TOYOTA LAND CRUISER 2008 J200 Owner's Manual
Manufacturer: TOYOTA, Model Year: 2008, Model line: LAND CRUISER, Model: TOYOTA LAND CRUISER 2008 J200Pages: 531, PDF Size: 5.6 MB
Page 21 of 531
21
Symbols used throughout this manual
Cautions & Notices
Safety symbol
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Throughout this manual, you will also see the symbol of a cir−
cle with a slash through it. This means “Do not”, “Do not do
this”, or “Do not let this happen”.
Page 22 of 531
22
Page 23 of 531
24
1−1. Key information

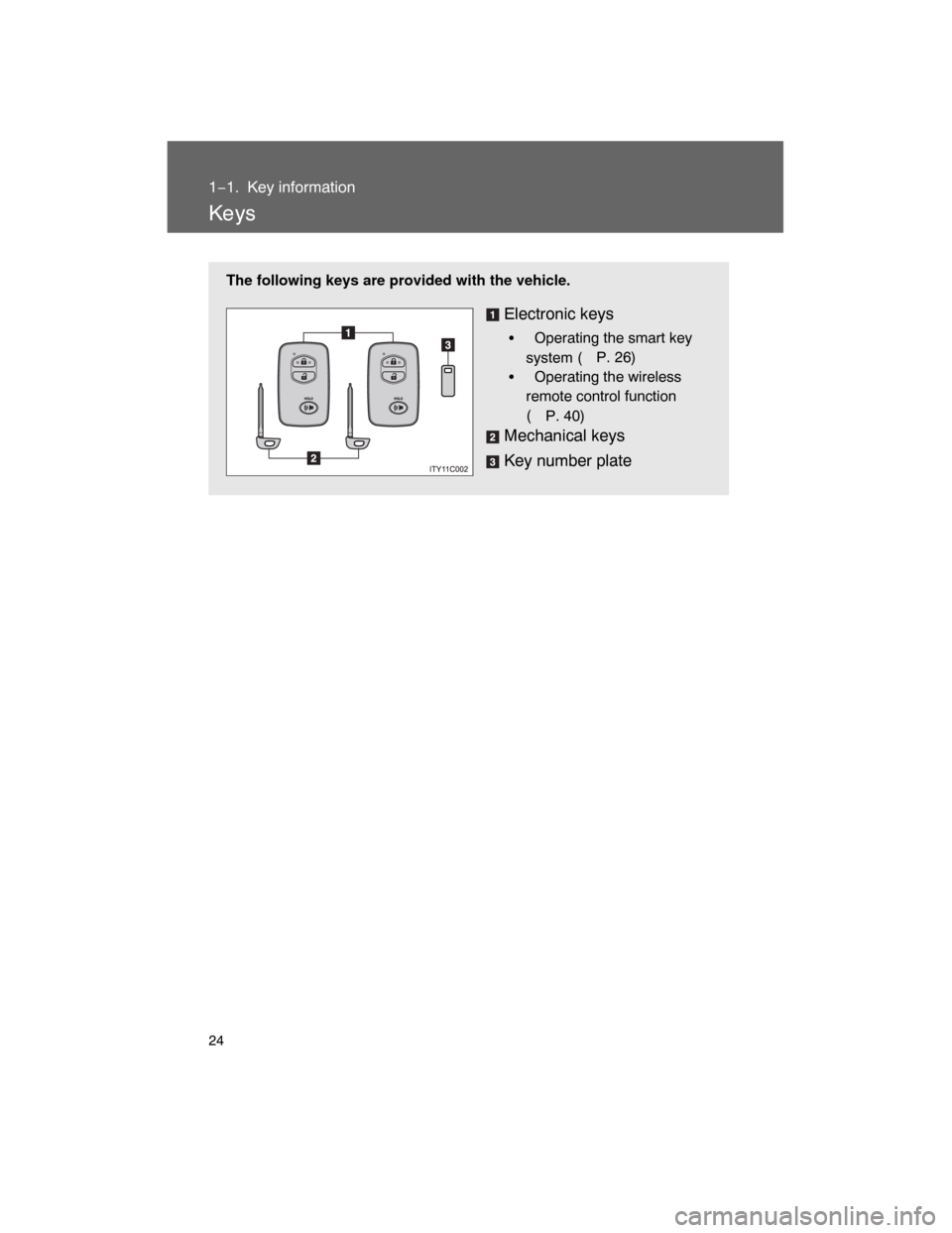

Ke ys
The following keys are provided with the vehicle.
Electronic keys
Operating the smart key
system (P. 26)
Operating the wireless
remote control function
(
P. 40)
Mechanical keys
Key number plate
Page 24 of 531
25
1−1. Key information
1
Before driving
Using the mechanical key
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted, you will
need the mechanical key.
(
P. 481)
nKey number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made at your Toyota dealer using
the key number plate. (
P. 479)
NOTICE
nTo prevent key damage
lDo not subject the keys to strong shocks, expose them to high tempera−
tures by placing them in direct sunlight, or get them wet.
lDo not expose the keys to electromagnetic materials or attach any mate−
rial that blocks electromagnetic waves to the key surface.
l
Do not disassemble the electronic key.
Page 25 of 531
26
1−2. Opening, closing and locking the doors

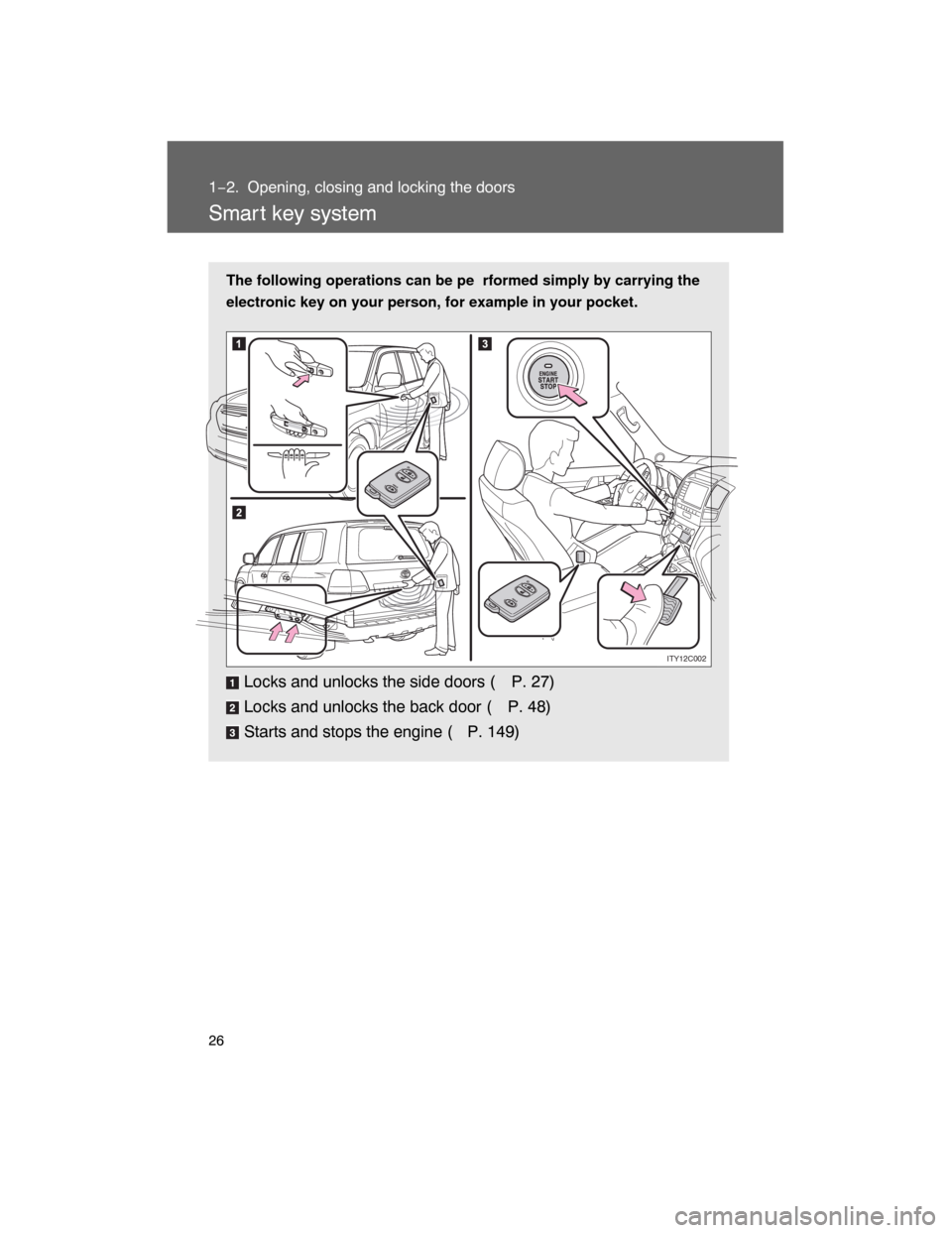

Smar t key system
The following operations can be pe rformed simply by carrying the
electronic key on your person, for example in your pocket.
Locks and unlocks the side doors ( P. 27)
Locks and unlocks the back door ( P. 48)
Starts and stops the engine (
P. 149)
ITY12C002
Page 26 of 531
27
1−2. Opening, closing and locking the doors
1
Before driving
Locking and unlocking the side doors
Press the lock button to lock the
door.
Grip the handle to unlock the
door.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for
3 seconds after the door is
locked.
Locking and unlocking the back door
Press the lock button to lock the
back door.
ITY12C008
ITY12C009
Page 27 of 531
28 1−2. Opening, closing and locking the doors
Press the unlock button to
unlock the back door.
Antenna location
Antennas outside cabin
Antennas inside cabin
Antenna outside luggage com−
partment
321212
ITY12C019
Page 28 of 531
29
1−2. Opening, closing and locking the doors
1
Before driving
nEffective range (areas within which the electronic key is
detected)
When locking or unlock−
ing the doors
The system can be oper−
ated when the electronic
key is within about 2.3 ft.
(0.7 m) of an outside door
handle.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be oper−
ated when the electronic
key is inside the vehicle.
Page 29 of 531
30 1−2. Opening, closing and locking the doors
nOperation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
nDoor lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to
lock the door is made. Fully close the door to stop the buzzer, and lock the
vehicle once more.
nConditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Way of coping
P. 481)
lWhen the electronic key battery is depleted
lNear a TV tower, electric power plant, gas station, radio station, large dis−
play, airport or other facility that
generates strong radio waves or electri−
cal noise
lWhen carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
lWhen the electronic key has come into contact with, or is covered by a
metallic object
lWhen multiple electronic keys are in the vicinity
lWhen carrying or using the electronic key together with the following
devices that emit radio waves
Another vehicle’s electronic key
A wireless key that emits radio waves
Personal computer
lIf window tint with a metallic content or metallic objects are attached to
the rear window
Page 30 of 531
31
1−2. Opening, closing and locking the doors
1
Before driving
nSwitching the door unlock function
If it is possible to set which doors the entry function unlocks.
Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, press and hold
, or for approximately 5 seconds while pressing
on the key.
The setting changes each time an operation is preformed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step 2.)
STEP1
STEP 2
Multi−information
displayUnlocking function Beep
Hold the driver ’s door han−
dle to unlock only the
driver ’s door.Exterior: Beeps three
times
Interior: Pings once
Hold either door handle to
unlock all doors.
Exterior: Beeps twice
Interior: Pings once
