TOYOTA LAND CRUISER 2010 J200 Owners Manual

381
3-7. Other interior features
3
Interior features
L/C200_U
CAUTION
■
While driving
Keep the cool box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
NOTICE
■To prevent battery discharge
Do not leave the cool box on longer than necessary when the engine is
stopped.

382
3-7. Other interior features
L/C200_U
Sun visors
Main sun visorForward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side extender:
Place in side position, then
slide backwards.
Sub-sun visor
Flip down with the main sun
visor in position or .

383
3-7. Other interior features
3
Interior features
L/C200_U
Vanity mirror
Slide the cover.
The light turns on when the
cover is opened.

384
3-7. Other interior features
L/C200_U

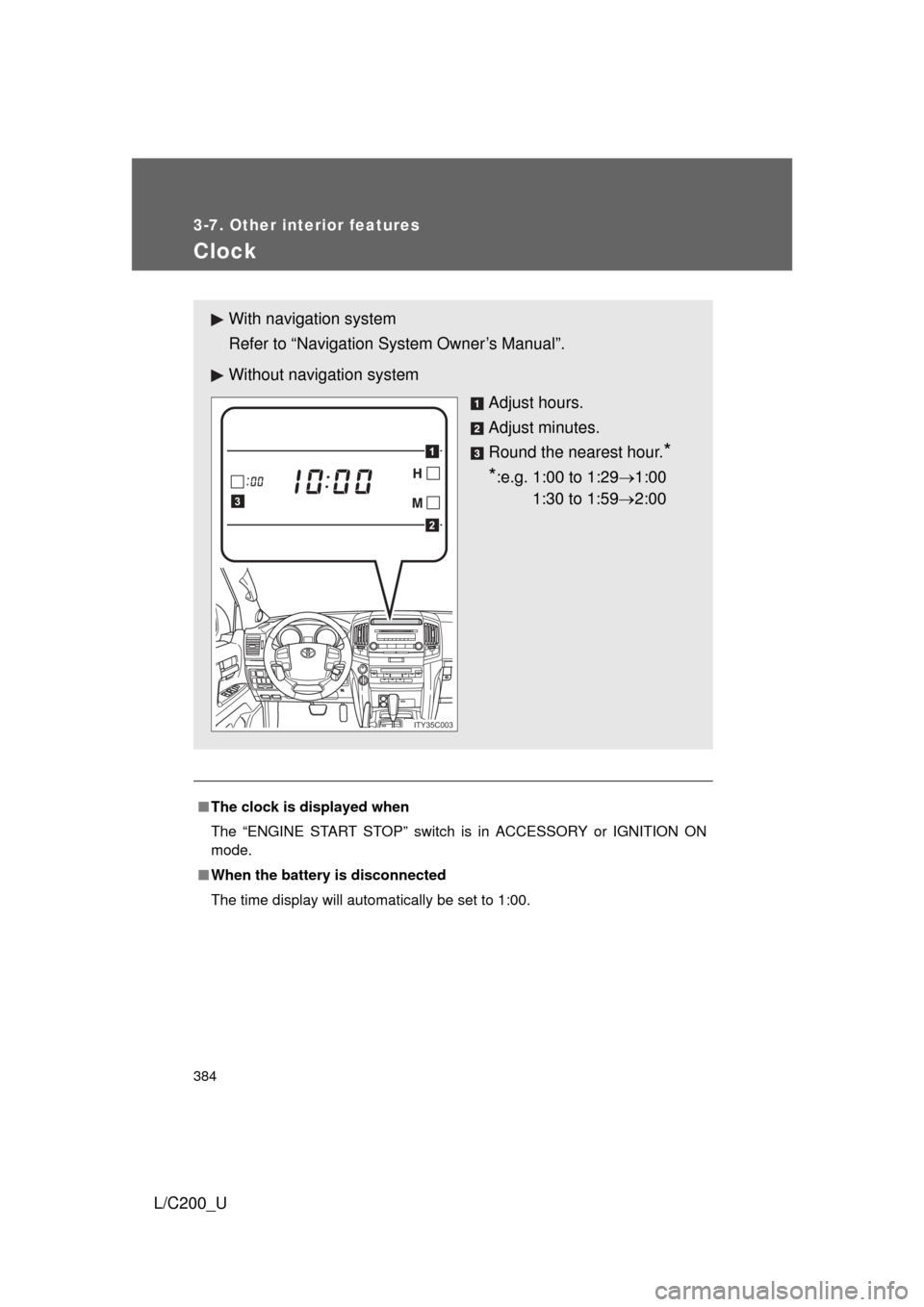

Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■ When the battery is disconnected
The time display will automatically be set to 1:00.
With navigation system
Refer to “Navigation System Owner’s Manual”.
Without navig ation system
Adjust hours.
Adjust minutes.
Round the nearest hour.
*
*
:e.g. 1:00 to 1:29 1:00
1:30 to 1:59 2:00
2
1
3
ITY35C003

385
3-7. Other interior features
3
Interior features
L/C200_U
Outside temperature display
■Operating conditions
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When --- is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
● When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
The displayed temperature ranges from -22°F (-30°C) up to 122°F
(50°C).

386
3-7. Other interior features
L/C200_U

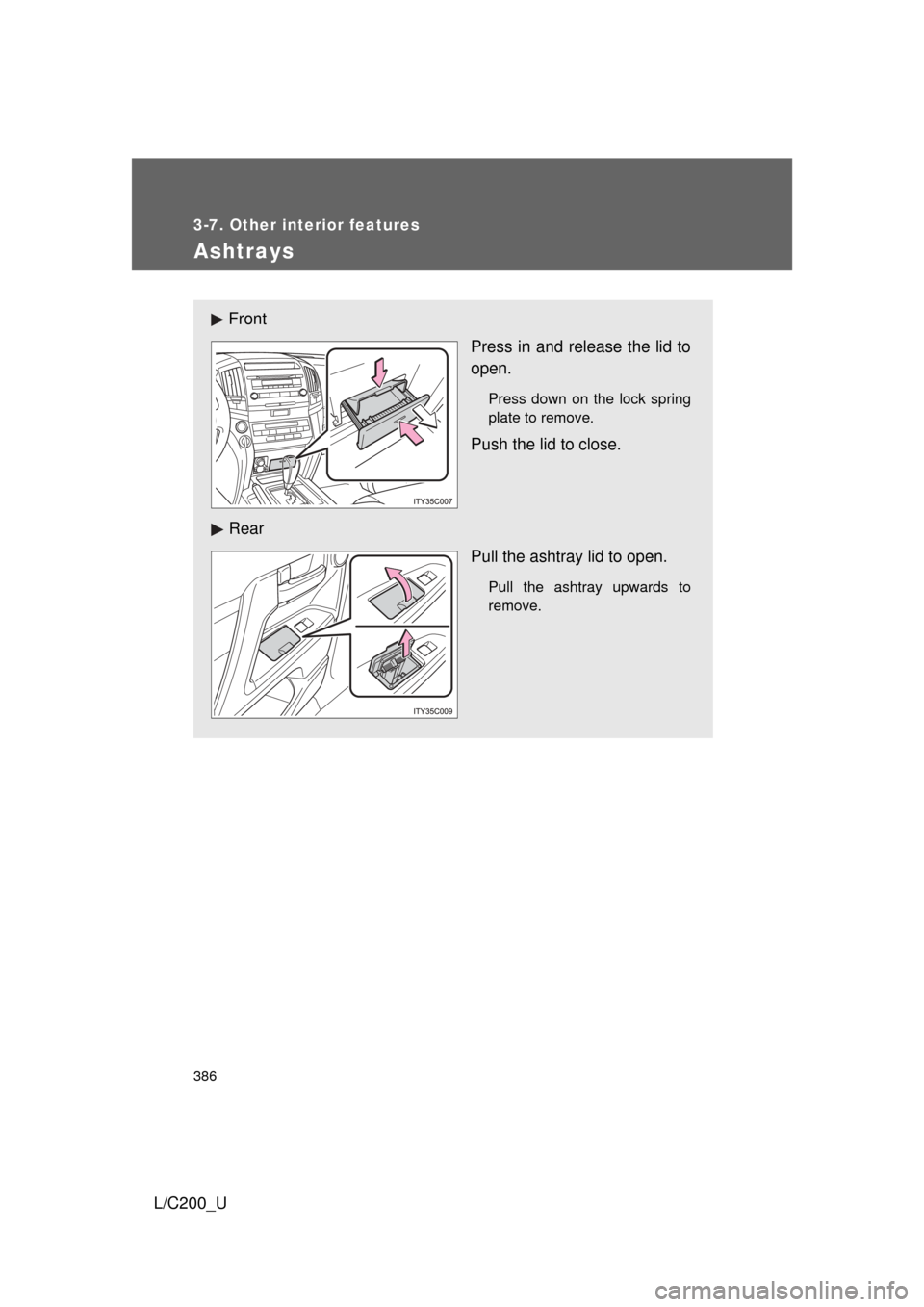

Ashtrays
FrontPress in and release the lid to
open.
Press down on the lock spring
plate to remove.
Push the lid to close.
Rear Pull the ashtray lid to open.
Pull the ashtray upwards to
remove.

387
3-7. Other interior features
3
Interior features
L/C200_U
CAUTION
■
When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
■ To prevent fire
● Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.

388
3-7. Other interior features
L/C200_U
Cigarette lighter
■The cigarette lighter can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
CAUTION
■To avoid burns or fires
● Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter down. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter into the outlet.\
Push the cigarette lighter in.
The cigarette lighter will pop up
when ready for use.

389
3-7. Other interior features
3
Interior features
L/C200_U

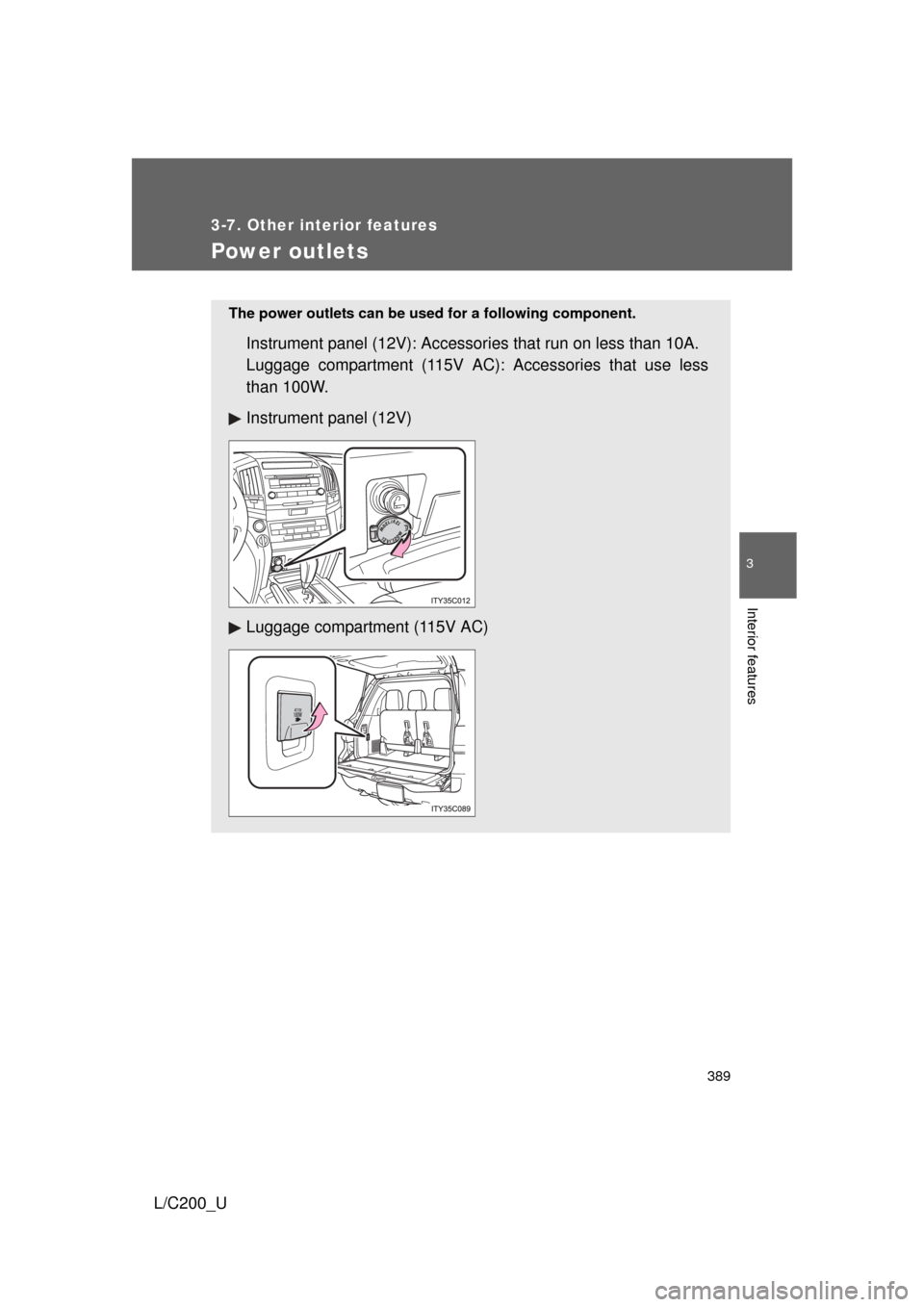

Power outlets
The power outlets can be used for a following component.
Instrument panel (12V): Accessor ies that run on less than 10A.
Luggage compartment (115V AC): Accessories that use less
than 100W.
Instrument panel (12V)
Luggage compartment (115V AC)

390 3-7. Other interior features
L/C200_U
■The power outlets can be used when
12V: The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
115V: The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When using the instrument panel power outlet
You may be unable to use the USB adapter if a device is connected to the
instrument panel power outlet at the same time.
NOTICE
■To avoid damaging the power outlets
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12V: Do not use an accessory that uses more than 12V/10A.
115V: Do not use a 115V AC appliance that requires more than 100W.
If a 115V AC appliance that consumes more than 100W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not\
running.
■ Appliances that may not ope rate properly (115V AC)
The following 115V AC appliances may not operate even if their power con-
sumption is under 100W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply
