TOYOTA LAND CRUISER 2010 J200 Owners Manual
Manufacturer: TOYOTA, Model Year: 2010, Model line: LAND CRUISER, Model: TOYOTA LAND CRUISER 2010 J200Pages: 592, PDF Size: 7.98 MB
Page 341 of 592

341
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
L/C200_U■
Using a short cut key
First menuSecond menuOperation detail
Dial “XXX (name)”
Dialing a number registered
in the phone book
Phone book add
entry
Adding a new number
Phone book change
name
Changing a name of a phone
number in the phone book
Phone book delete
entry
Deleting phone book data
Phone book list
names
Listing the registered data
Phone book set
speed dial
Registering a speed dial
Phone book delete
speed dial
Deleting a speed dial
Dial XXX (number)
Dialing by inputting a number
Phonebook Phonebook Unlock Unlocking the phone book
Phonebook Lock Locking the phone book
Page 342 of 592

342 3-4. Using the hands-free system (for cellular phone)
L/C200_U
■Automatic volume adjustment
When vehicle speed reaches 50 mph (80 km/h) or more, the volume auto-
matically increases. The volume returns to the previous volume setting when
vehicle speed drops to 43 mph (70 km/h) or less.
■ When using a voice command
● For numbers, say a combination of single digits from zero to nine, #
(pound), (star), and + (plus).
● Say a command correctly and clearly.
■ Situations that the system ma y not recognize your voice
● When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise
■ Operations that cannot be performed while driving
● Operating the system with
● Registering a cellular phone to the system
■ Changing the passkey
P. 352
Page 343 of 592

343
3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_U

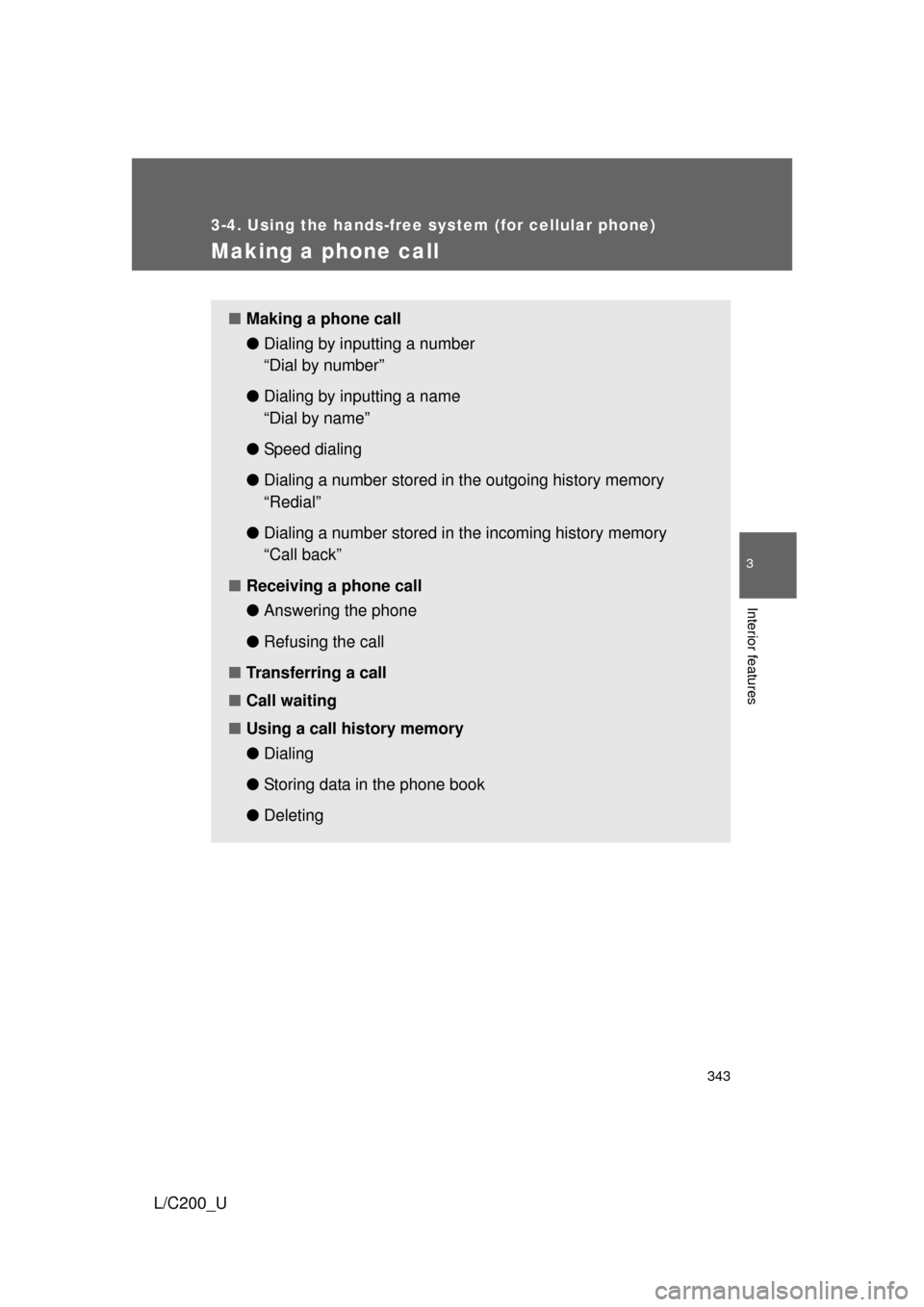

Making a phone call
■Making a phone call
●Dialing by inputting a number
“Dial by number”
● Dialing by inputting a name
“Dial by name”
● Speed dialing
● Dialing a number stored in the outgoing history memory
“Redial”
● Dialing a number stored in the incoming history memory
“Call back”
■ Receiving a phone call
●Answering the phone
● Refusing the call
■ Transferring a call
■ Call waiting
■ Using a call history memory
●Dialing
● Storing data in the phone book
● Deleting
Page 344 of 592

344 3-4. Using the hands-free system (for cellular phone)
L/C200_U
Dialing by inputting a numberPress the talk switch and say “Dial by number”.
Press the talk switch and say the phone number.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using .
Dialing by inputting a name
Press the talk switch and say “Dial by name”.
Select a registered name to be input by either of the following
methods:
a. Press the talk switch and say a registered name.
b. Press the talk switch and say “List names”. Press the talk
switch when the desired name is being read aloud.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using .
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
Page 345 of 592

345
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
L/C200_U
Speed dialing
Press the off-hook switch.
Press the preset button in which the desired number is regis-
tered.
Press the off-hook switch.
When receiving a phone call
■ Answering the phone
Press the off-hook switch.
■ Refusing the call
Press the on-hook switch.
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press the off-hook switch*1.
c. Press the talk switch and say “Call Transfer”
*2.
*1:This operation can be performed only when transferring a call from the cellular phone to the system during a call.
*2:While the vehicle is in motion, a call cannot be transferred from
the system to the cellular phone.
STEP1
STEP2
STEP3
Page 346 of 592

346 3-4. Using the hands-free system (for cellular phone)
L/C200_U
Call waitingWhen a call is interrupted by an incoming call from a third party, the
following options will become available:
● Answer the incoming call: Press the off-hook switch. (Press the off-
hook switch again as necessary to switch back and forth between
calls.)
● Refuse the incoming call: Press the on-hook switch.
Using the call history memory
Follow the procedure below to use a number stored in the call history
memory:
Press the talk switch and say “Redial” (when using a number
stored in the outgoing call history memory) or “Call back”
(when using a number stored in the incoming call history
memory).
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number isdisplayed.
b. Select the desired number using .
STEP1
STEP2
Page 347 of 592

347
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
L/C200_UThe following operations can be performed:
Dialing: Press the off-hook switch or select “Dial” using a
voice command or .
Storing the number in the phone book: Select “Store” and then
“Confirm” using a voice command or .
Deleting: Select “Delete” and then “Confirm” using a voice
command or .
■
Call waiting
● If your phone does not support HFP Ver. 1.5, this function cannot be
used.
● Call waiting operation may differ depending on your cellular phone and
service provider.
■ Call history
Up to 5 numbers can be stored in each of the outgoing and incoming call his-
tory memories.
■ When talking on the phone
● Do not talk simultaneously with the other party.
● Keep the volume of the receiving voice down. Otherwise, voice echo will
increase.
STEP3
Page 348 of 592

348
3-4. Using the hands-free system (for cellular phone)
L/C200_U

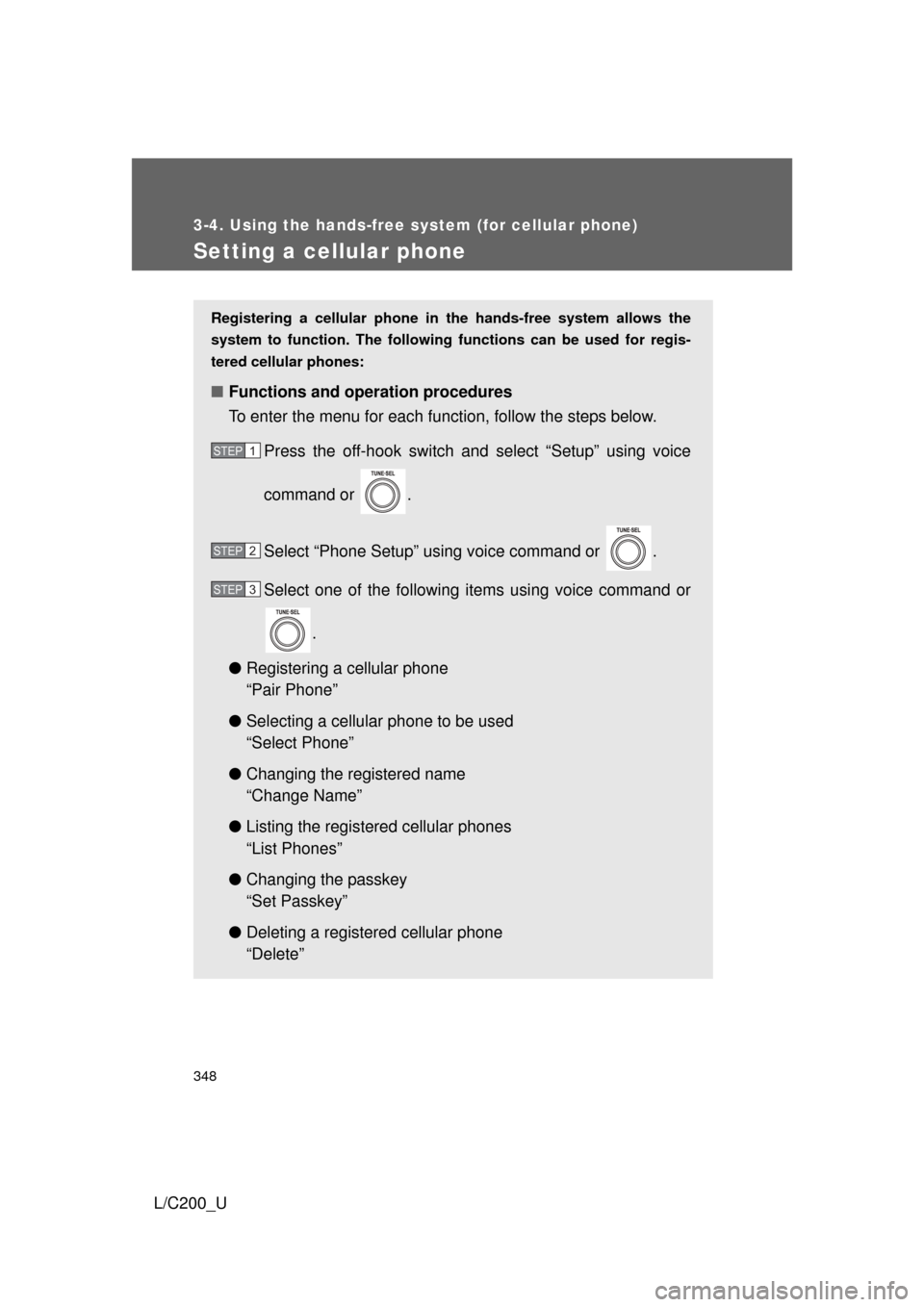

Setting a cellular phone
Registering a cellular phone in the hands-free system allows the
system to function. The following functions can be used for regis-
tered cellular phones:
■ Functions and operation procedures
To enter the menu for each function, follow the steps below.
Press the off-hook switch and select “Setup” using voice
command or .
Select “Phone Setup” using voice command or .
Select one of the following items using voice command or
.
● Registering a cellular phone
“Pair Phone”
● Selecting a cellular phone to be used
“Select Phone”
● Changing the registered name
“Change Name”
● Listing the registered cellular phones
“List Phones”
● Changing the passkey
“Set Passkey”
● Deleting a registered cellular phone
“Delete”
STEP1
STEP2
STEP3
Page 349 of 592

349
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
L/C200_U
Registering a cellular phone
Select “Pair Phone” using a voice command or , and perform
the procedure for registering a cellular phone. ( P. 337)
Selecting a cellular phone to be used
Select “Connect Phone (Connec t)” using a voice command or
.
Pattern A Select a cellular phone to be used by either of the following
methods, and select “Confirm” using a voice command or
:
a. Press the talk switch and say the name of the desired phone.
b. Press the talk switch and say “List Phones”. When the name of the desired cellular phone is read aloud, press the
talk switch.
Pattern B
Select a cellular phone to be used using .
STEP1
STEP2
STEP2
Page 350 of 592

350 3-4. Using the hands-free system (for cellular phone)
L/C200_U
Changing the registered name of a cellular phoneSelect “Change Name” using a voice command or .
Pattern A Select a name of cellular phone to be changed by either of the
following methods, and select “Confirm” using a voice com-
mand or .
a. Press the talk switch and say the name of the desired phone.
b. Press the talk switch an d say “List phones”. When the
name of the desired phone is being read aloud, press the
talk switch.
Pattern B
Select the desired phone name to be changed by using
.
Press the talk switch or select “Record Name” using ,
and say a new name.
Select “Confirm” using a voice command or .
STEP1
STEP2
STEP2
STEP3
STEP4
