TOYOTA LAND CRUISER 2010 J200 Owners Manual

391
3-7. Other interior features
3
Interior features
L/C200_U

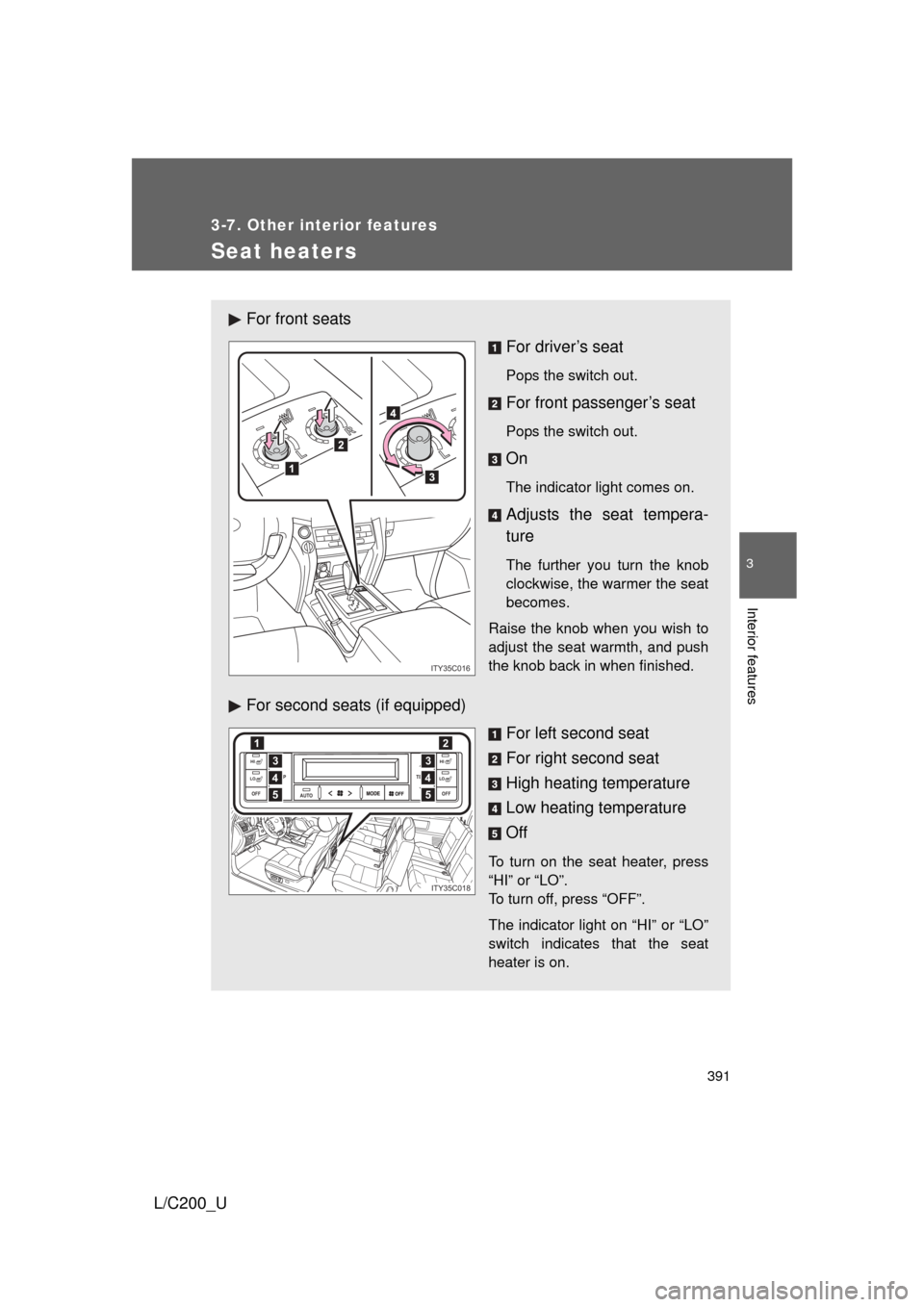

Seat heaters
For front seatsFor driver’s seat
Pops the switch out.
For front passenger’s seat
Pops the switch out.
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the knob
clockwise, the warmer the seat
becomes.
Raise the knob when you wish to
adjust the seat warmth, and push
the knob back in when finished.
For second seats (if equipped) For left second seat
For right second seat
High heating temperature
Low heating temperature
Off
To turn on the seat heater, press
“HI” or “LO”.
To turn off, press “OFF”.
The indicator light on “HI” or “LO”
switch indicates that the seat
heater is on.
L
R
L
ITY35C016
AUTO
TEMP
OFF TEMP
HI
LOOFF
HI
LO4
12
3
5
4
3
5
ITY35C018

392 3-7. Other interior features
L/C200_U
■The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

393
3-7. Other interior features
3
Interior features
L/C200_U
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.
ITY35C052

394
3-7. Other interior features
L/C200_U
Floor mats
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering wi\
th the
movement of the pedals during driving, resulting in an accident.
● Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the floor mat using the
hooks provided.
ITY35C020

395
3-7. Other interior features
3
Interior features
L/C200_U

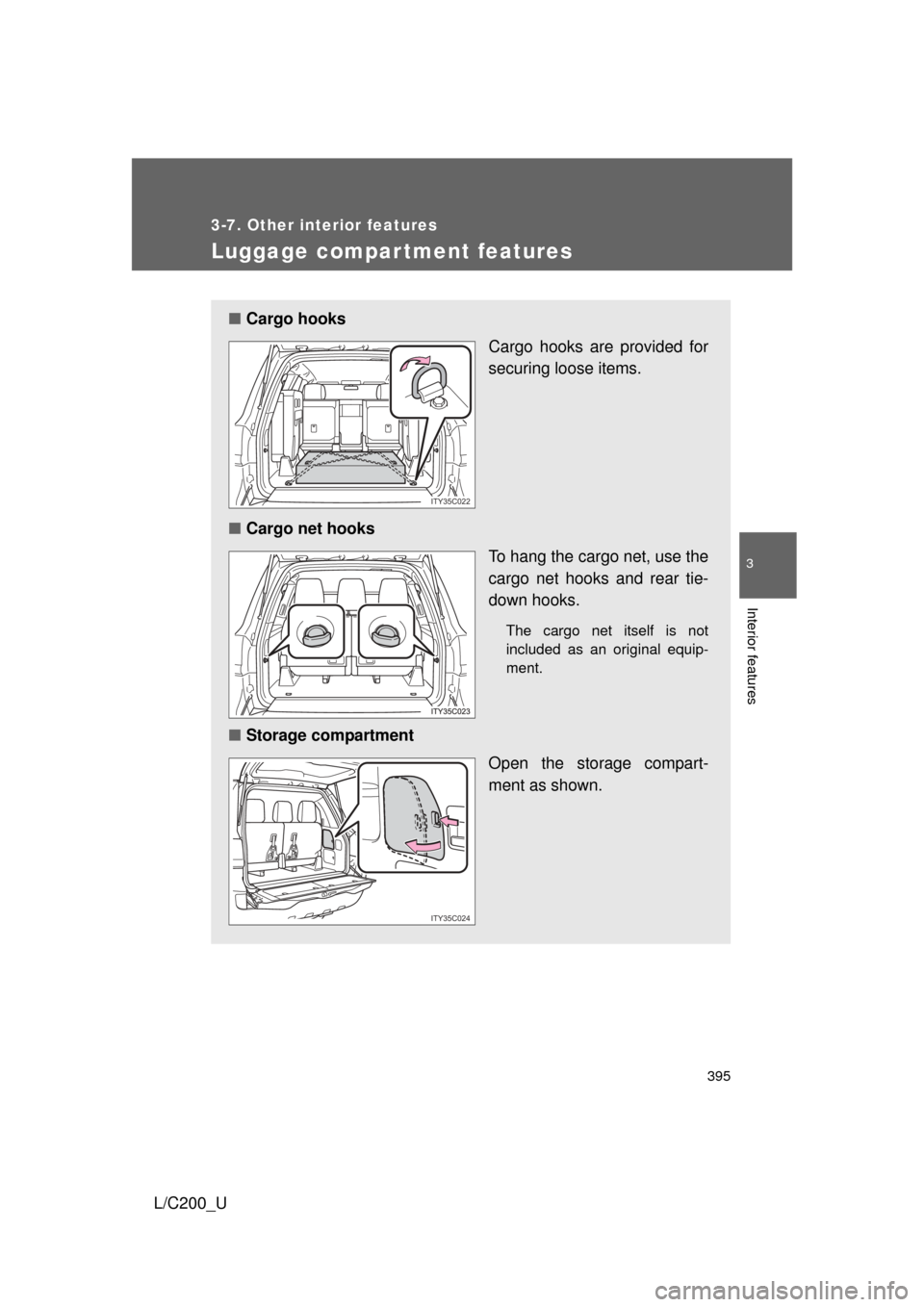

Luggage compar tment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Cargo net hooks
To hang the cargo net, use the
cargo net hooks and rear tie-
down hooks.
The cargo net itself is not
included as an original equip-
ment.
■Storage compartment
Open the storage compart-
ment as shown.
ITY35C022
ITY35C024

396 3-7. Other interior features
L/C200_U
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
NOTICE
■To prevent damage to the cargo net hooks
Avoid hanging things other than a cargo net on it.
■ Warning reflector holder
Hold the warning reflector with
a band.
The warning reflector itself is
not included as an original
equipment.
■First-aid kit holder
Hold the first-aid kit with a
band.
The first-aid kit itself is not
included as an original equip-
ment.
ITY35C025
ITY35C026

397
3-7. Other interior features
3
Interior features
L/C200_U
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufac-
tured under license from HomeLink.
Programming HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Buttons
Indicator
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, secu-
rity systems, and other devices.

398 3-7. Other interior features
L/C200_U■
Programming HomeLink

Point the remote control trans-
mitter for the device 1 to 3 in. (25
to 75 mm) from the HomeLink

buttons.
Keep the HomeLink indicator
light in view while programming.
Press and hold one of the
HomeLink buttons and the
transmitter button. When the
HomeLink
 indicator light
changes from a slow to a rapid
flash, you can release both but-
tons.
If the HomeLink indicator light
comes on but does not flash,
flashes rapidly for 2 seconds and
remains lit, the HomeLink
 button
is already programmed. Use the
other buttons or follow the
“Reprogramming a HomeLink

button” instructions. ( P. 402)
STEP1
STEP2

399
3-7. Other interior features
3
Interior features
L/C200_U
Test the HomeLink
 operation
by pressing the newly pro-
grammed button.
If a HomeLink button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
remote control transmitter is of
the rolling code type. Press and
hold the programmed HomeLink

button. The remote control trans-
mitter is of the rolling code type if
the HomeLink
 indicator light
flashes rapidly for 2 seconds and
then remains lit. If your transmit-
ter is of the rolling code type, pro-
ceed to the heading
“Programming a rolling code sys-
tem”.
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
STEP3
STEP4

400 3-7. Other interior features
L/C200_U■
Programming a rolling code system
If your device is rolling code e quipped, follow the steps under the
heading “Programming HomeLink
” before proceeding with the
steps listed below.
Locate the learn button on t he ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle’s programmed HomeLink button
for 2 seconds and release it. Repeat this step once again. The
garage door may open.
If the garage door opens, the programming process is complete. If
the door does not open, press and release the button a third time.
This third press and release will complete the programming process
by opening the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
 signal and operate the garage door.
Repeat the steps above to prog ram another rolling code sys-
tem for any of the remaining HomeLink buttons.
STEP1
STEP2
STEP3
STEP4
