bluetooth TOYOTA LAND CRUISER 2011 J200 Navigation Manual

7
4 Navigation System: Memory Points
Navigation settings100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Setting up the “Home” 101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the “Preset Destinations” 103
. . . . . . . . . . . . . . . . . . . . . .
Setting up the “Address Book” 106
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the “Areas to Avoid” 112
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous destinations 117
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Telephone and Information
Telephone (Handsfree system for cellular phone) 120
. . . . . . . . .
Enter a Bluetooth  phone 124 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth  phone 129 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receive on the Bluetooth  phone 136 . . . . . . . . . . . . . . . . . . . . . . . .
Talk on the Bluetooth  phone 136 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calendar 139 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
6 Audio/video System
Quick reference 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Using your audio/video system 143
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Some basics 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Radio operation 151
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
DVD changer operation 162
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  audio operation 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB memory/iPod operation 203
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls (steering switches) 211
. . . . . . . . . . . . . . .
Rear seat entertainment system features 213
. . . . . . . . . . . . . . . . . .
Using the radio 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Using the DVD changer 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing an audio CD/CD text 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing WMA/MP3 discs 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing DVD video/audio 222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing a video CD 232
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the video mode 235
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing other settings 237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 239
. . . . . . . . . . . . . . . . . . . . . . . . .

8
7 Air Conditioning
Automatic air conditioning controls250
. . . . . . . . . . . . . . . . . . . . . . . . . .
8 Rear View Monitor System
Rear view monitor system 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Setup
General settings 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Clock settings 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Voice settings 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Navigation settings 278
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Detailed navigation settings 278
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telephone settings 287
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Volume setting 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Manage phone 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Phonebook 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Setting the phonebook 298
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed dials setting 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting call history 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the voice tag 314
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Details 323
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio settings 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Select portable player 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Bluetooth audio 328
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle settings 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Maintenance 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
10 Appendix
Limitations of the navigation system 340
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 342
. . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 351
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Index 353
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .

19
During route guidancePage
Pausing route guidance89
Adjusting route guidance volume277
Deleting the destination69, 83
Displaying the entire route map85
Useful functions
Address bookPage
Registering your own address book entries106
Marking icons on the map108
InformationPage
Displaying vehicle maintenance333
Displaying the calendar139
Handsfree system (for cellular phone)Page
Initiating Bluetooth124
Making a call on the Bluetooth  phone129
Receiving a call on the Bluetooth  phone136
Speech command systemPage
Operating the system with your voice44

22
The items shown on the “Setup” screen can be set. To display the “Setup” screen, push
the “SETUP” button.
1“General”
Settings are available for language selec-
tion, operation sounds, automatic screen
change, etc. 268 . . . . . . . . . . . . . . . . . . . .
2“Clock”
Used for changing settings for time zones,
daylight saving time, etc. 273 . . . . . . . . .
3“Voice”
Voice guidance can be set. 275 . . . . . . .
4“Navi.”
Settings are available for average cruising
speed, displayed screen contents, POI
icon categories, etc. 278 . . . . . . . . . . . . .
5“Vehicle”
Settings are available for vehicle informa-
tion such as maintenance information. 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Audio”
Settings are available for portable audio
devices, Bluetooth  audio devices etc.
326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Phone”
Bluetooth  phones and phone numbers
can be registered, and the receiver volume
can be adjusted. 287 . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

SECTION 5
TELEPHONE AND INFORMATION
11 9
TELEPHONE AND INFORMATION
Telephone and information
Telephone (Handsfree system for cellular phone) 120
. . . . .
Enter a Bluetooth  phone 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth  phone 129
. . . . . . . . . . . . . . . . . . . . . . . . .
Receive on the Bluetooth  phone 136
. . . . . . . . . . . . . . . . . . . . .
Talk on the Bluetooth phone 136
. . . . . . . . . . . . . . . . . . . . . . . . .
 Calendar 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .

TELEPHONE AND INFORMATION
120
Handsfree system allows you to make
or receive a call without taking your
hands off the steering wheel by con-
necting your cellular phone.
This system supports Bluetooth .
Bluetooth  is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth , this system can not function.
The operating procedure of the phone is
explained here.
For registering and setting of the phone,
see “Telephone settings” on page 287.
CAUTION
While driving, do not use a cellular
phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature inside may
be high and damage the phone.
INFORMATION
In the following conditions, the
system may not function.
 The cellular phone is turned off.
 The current position is outside
the communication area.
 The cellular phone is not connec-
ted.
 The cellular phone has a low bat-
tery.
Even if your cellular phone sup-
ports both handsfree and audio
Bluetooth  connections, it may not
be able to connect to the hands
free connection at the same time.
When using Bluetooth  audio and
handsfree at the same time, the
following problems may occur.
 The Bluetooth connection may
be cut.
 Noise may be heard on the
Bluetooth  audio playback.
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
Telephone
(Handsfree system for
cellular phone)

TELEPHONE AND INFORMATION
121
INFORMATION
This system supports the following
service.
Bluetooth Specification
Ver.1.1 or higher
(Recommended: Ver.2.0+EDR or
higher)
Profiles
HFP (Hands Free Profile)
Ver.1.0 or higher
(Recommended: Ver.1.5 or high-
er)
OPP (Object Push Profile) Ver .1.1
PBAP (Phone Book Access Pro-
file) Ver.1.0
If your cellular phone does not
support HFP, you cannot enter the
Bluetooth  phone, and take OPP or
PBAP service individually.
Please go to “http://www.toyota.
letstalk.com/” to find approved
Bluetooth  phones for this system.
By pushing the telephone switch above,
you can receive a call or hang up without
taking your hands off the steering wheel.
 Microphone
You can use the microphone above
when talking on the phone.
The other party’s voice outputs from the
front speaker. When the received calls or
received voice outputs, the audio from the
audio system or voice guidance from the
navigation system will be muted.

TELEPHONE AND INFORMATION
122
INFORMATION
Talk alternately with the other party
on the phone. If you talk at the
same time, the voice may not reach
each other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, an echo will be
heard and receiving voice can be
heard outside of the vehicle. When
you talk on the phone, speak clear-
ly towards the microphone.
In the following situations, your
voice may not reach the other
party.
 Driving on unpaved road. (Mak-
ing a traffic noise.)
 Driving at the high speed.
 The window or moon roof are
open.
 Turning the airconditioning
vents towards the microphone.
 The sound of the aircondition-
ing fan is loud.
 There is an effect from the net-
work of the cellular phone.
1Indicates the condition of
Bluetooth  connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of voice quality.
: No connection to Bluetooth .
2Indicates the amount of battery
charge left.
Empty Full
This is not displayed when the Bluetooth
is not connected.
The amount left does not always corre-
spond with the one of your cellular phone.
The amount of battery charge left may not
be displayed depending on the phone you
have. This system doesn’t have a charg-
ing function.
3Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Hm” is displayed when receiving in
Home area.
The receiving area may not be displayed
depending on the phone you have.

TELEPHONE AND INFORMATION
123
4Indicates the level of reception.

Poor Excellent
The level of reception does not always cor-
respond with the one of your cellular
phone.
The level of reception may not be dis-
played depending on the phone you have.
When you are out of the service area or in
a place inaccessible by radio waves, “No
Service” is displayed.
An antenna for the Bluetooth  connec-
tion is built in the display. The indica-
tion of the Bluetooth connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove
box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth  phone on the place
where “Blue” indication is displayed. About the phonebook in this system
The following data is stored for every regis-
tered
phone. When another phone is con-
necting, you cannot read the registered
data.
Phonebook data
Voice tag
All of call history
Speed dial
When you delete the phone, the
above −mentioned data is also deleted.
When you release your car:
A lot of personal data is registered
when you use the Handsfree system.
When you release your car, initialize
your data. (See “ Delete personal
data” on page 272.)
If you initialize it, the former state will never
come back again. Pay much attention
when initializing the data.
You can initialize the following data in the
system.
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth  phone data
Volume setting
Details setting

TELEPHONE AND INFORMATION
124

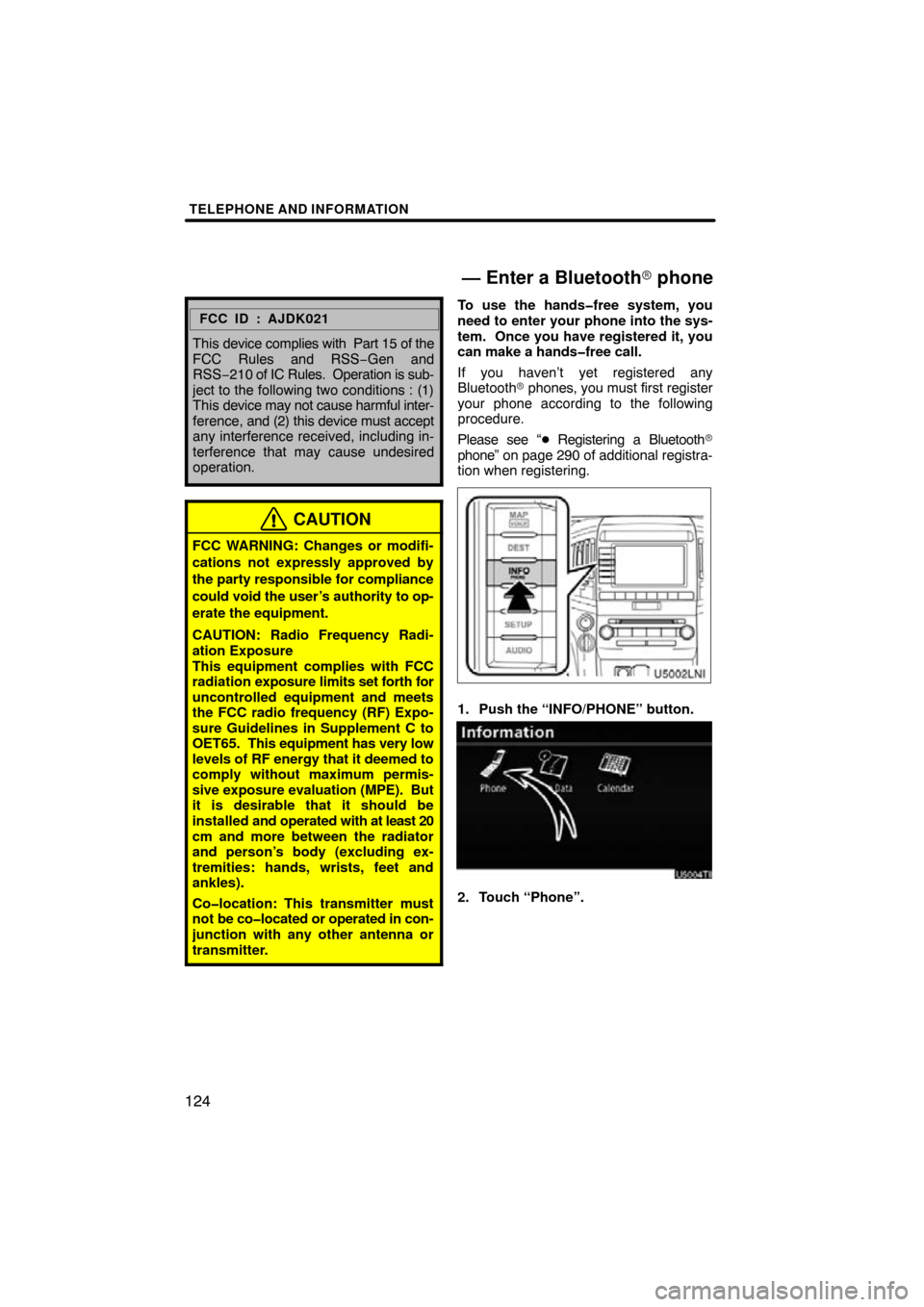

FCC ID : AJDK021
This device complies with Part 15 of the
FCC Rules and RSS −Gen and
RSS−210 of IC Rules. Operation is sub-
ject to the following two conditions : (1)
This device may not cause harmful inter-
ference, and (2) this device must accept
any interference received, including in-
terference that may cause undesired
operation.
CAUTION
FCC WARNING: Changes or modifi-
cations not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets
the FCC radio frequency (RF) Expo-
sure Guidelines in Supplement C to
OET65. This eq uipment has very low
levels of RF energy that it deemed to
comply without maximum permis-
sive exposure evaluation (MPE). But
it is desirable that it should be
installed and operated with at least 20
cm and more between the radiator
and person’s body (excluding ex-
tremities: hands, wrists, feet and
ankles).
Colocation: This transmitter must
not be colocated or operated in con-
junction with any other antenna or
transmitter.
To use the handsfree system, you
need to enter your phone into the sys-
tem. Once you have registered it, you
can make a handsfree call.
If you haven’t yet registered any
Bluetooth  phones, you must first register
your phone according to the following
procedure.
Please see “  Registering a Bluetooth
phone” on page 290 of additional registra-
tion when registering.
1. Push the “INFO/PHONE” button.
2. Touch “Phone”.
— Enter a Bluetooth phone
