Page 381 of 608
381
3-5. Using the interior lights
3
Interior features
L/C200_U (OM60F74U)
Personal lights
Front On/off
Rear (type A) On/off
Rear (type B) On/off
ITY33C014
Personal lights
Page 382 of 608
382
L/C200_U (OM60F74U)
3-6. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Card holders
Overhead console
Glove box
Bottle holdersDoor pockets
Auxiliary box
Console box/cool box
Cup holders
411234545
67845
ITY34C001
Page 383 of 608
383
3-6. Using the
storage features
3
Interior features
L/C200_U (OM60F74U)
Glove box
Open (push button)
Lock with the mechanical key
Unlock with the mechanical
key
ITY34C003
■Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Glove box
Page 384 of 608
384 3-6. Using the storage features
L/C200_U (OM60F74U)
Console boxYour vehicle is equipped with either a lower console box or cool box.
For vehicles with the cool box, refer to page 390.
Upper console box Press the tab to open.
Lower console box (if equipped) Lift the lever to open.
Remove the tray.
ITY34C005
ITY34C006
STEP1
ITY34C033
STEP2
Console box
Page 385 of 608
385
3-6. Using the
storage features
3
Interior features
L/C200_U (OM60F74U)
Overhead console
Press the button.
The overhead console is useful
for temporarily storing small
items.
CAUTION
■While driving
Keep the console box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
ITY34C009
CAUTION
■While driving
Do not leave the overhead console open.
Items may fall out and cause injury.
Console box and overhead console
Page 386 of 608
386 3-6. Using the storage features
L/C200_U (OM60F74U)
Cup holdersFront Press down and release the lid.
You can adjust or remove the
separator inside.
RearPull the armrest down. ( P. 403)
Press the button.
ITY34C011
STEP1
ITY34C015
STEP2
Cup holders
Page 387 of 608
387
3-6. Using the
storage features
3
Interior features
L/C200_U (OM60F74U)
Bottle holders
For front seats
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
■ When not in use
Keep the cup holders closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
ITY34C016
Cup holders and bottle holders
Page 388 of 608
388 3-6. Using the storage features
L/C200_U (OM60F74U)For second seats
For third seats
ITY34C024
NOTICE
■
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders
Page 389 of 608
389
3-6. Using the
storage features
3
Interior features
L/C200_U (OM60F74U)
Card holders
Sun visor
Instrument panel
Auxiliary box
ITY34C023
Card holders and auxiliary box
Page 390 of 608
390
L/C200_U (OM60F74U)
3-7. Other interior features

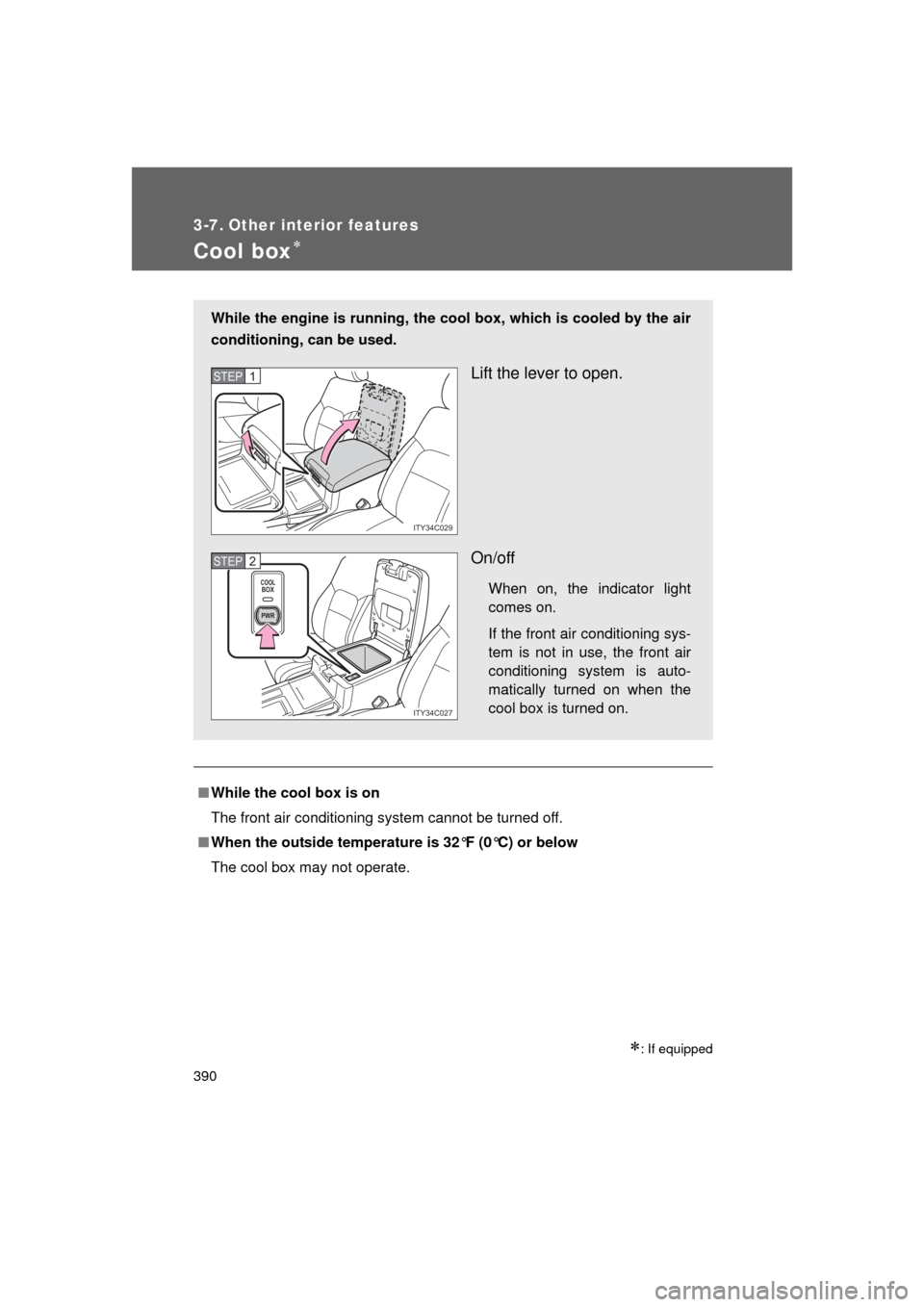

Cool box
: If equipped
■While the cool box is on
The front air conditioning system cannot be turned off.
■ When the outside temperature is 32°F (0°C) or below
The cool box may not operate.
While the engine is running, the co ol box, which is cooled by the air
conditioning, can be used.
Lift the lever to open.
On/off
When on, the indicator light
comes on.
If the front air conditioning sys-
tem is not in use, the front air
conditioning system is auto-
matically turned on when the
cool box is turned on.
ITY34C029
STEP1
COOLBOX
PWR
ITY34C027
STEP2
