TOYOTA LAND CRUISER 2012 Owners Manual

161 1-7. Safety information
1
Before driving
L/C200_EE (OM60G38E)

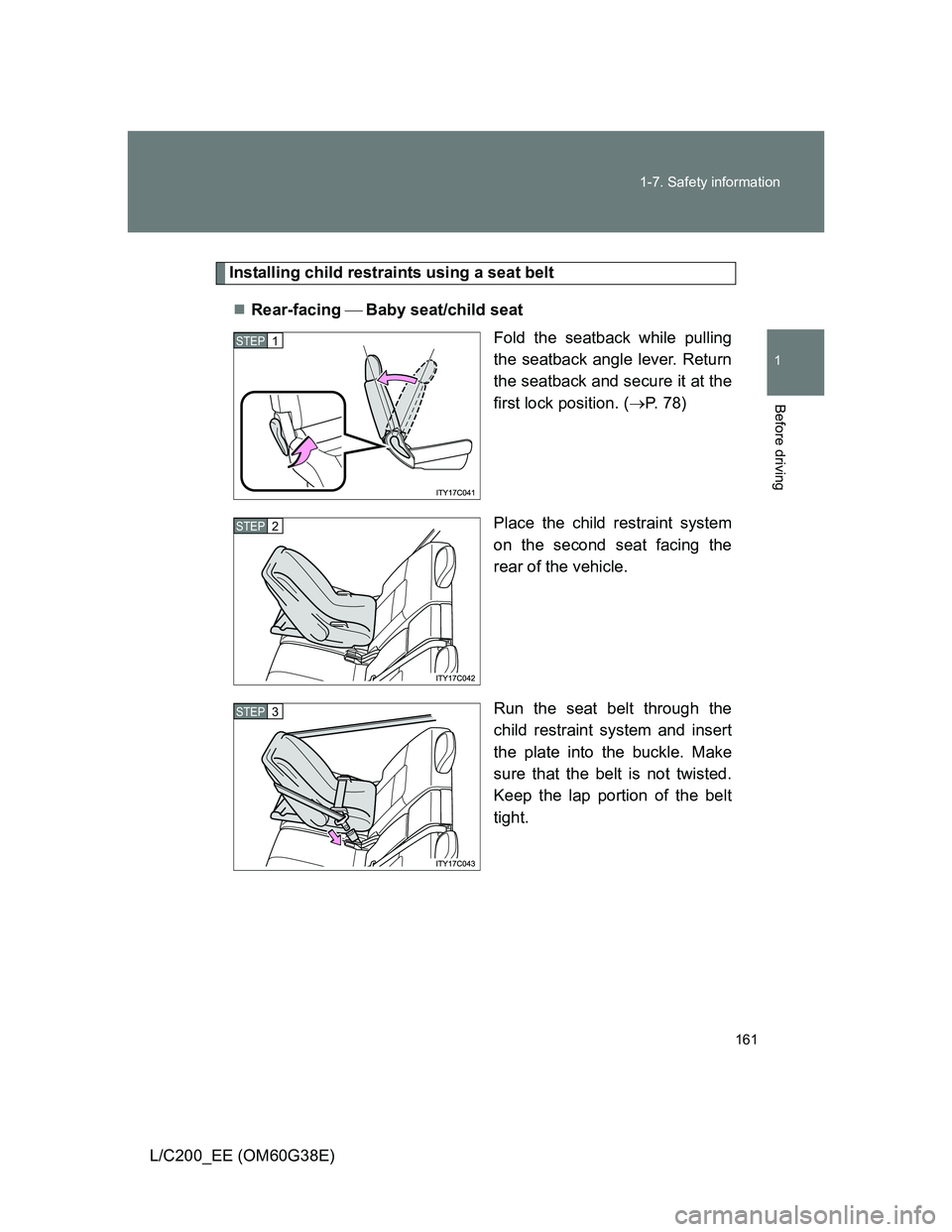

Installing child restraints using a seat belt
Rear-facing Baby seat/child seat
Fold the seatback while pulling
the seatback angle lever. Return
the seatback and secure it at the
first lock position. (P. 78)
Place the child restraint system
on the second seat facing the
rear of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
STEP1
STEP2
STEP3

162 1-7. Safety information

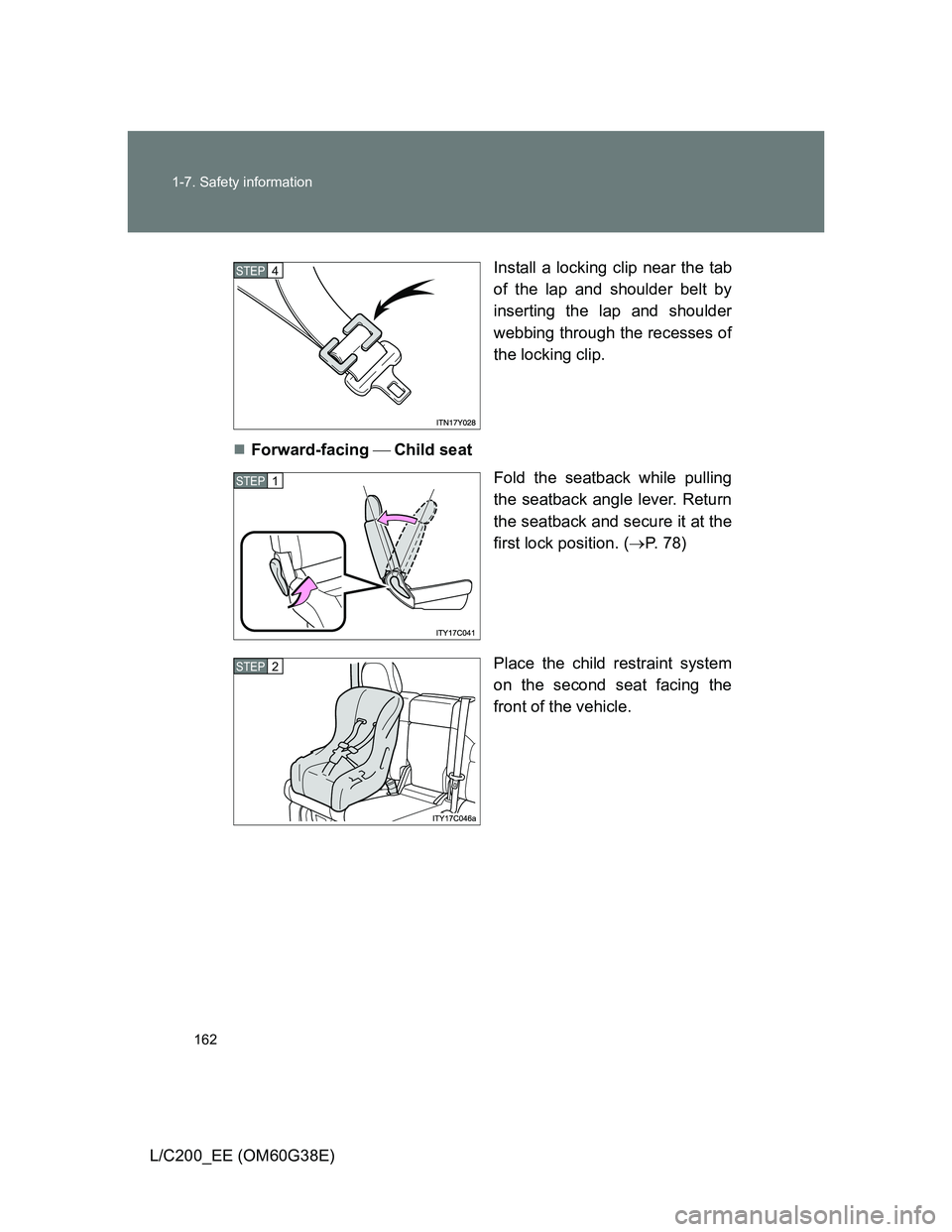

L/C200_EE (OM60G38E)Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
Forward-facing Child seat
Fold the seatback while pulling
the seatback angle lever. Return
the seatback and secure it at the
first lock position. (P. 78)
Place the child restraint system
on the second seat facing the
front of the vehicle.
STEP4
STEP1
STEP2

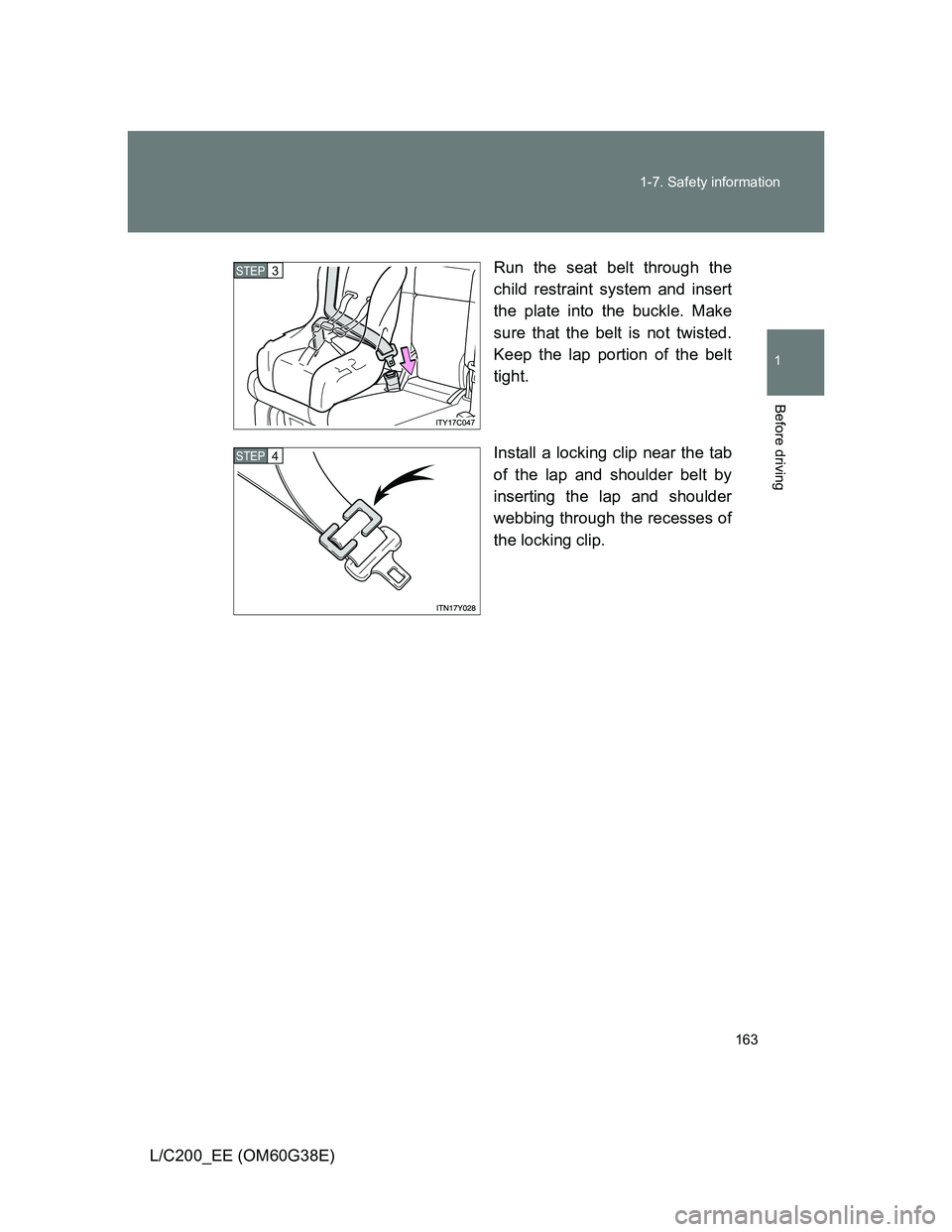

163 1-7. Safety information
1
Before driving
L/C200_EE (OM60G38E)Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
STEP3
STEP4

164 1-7. Safety information

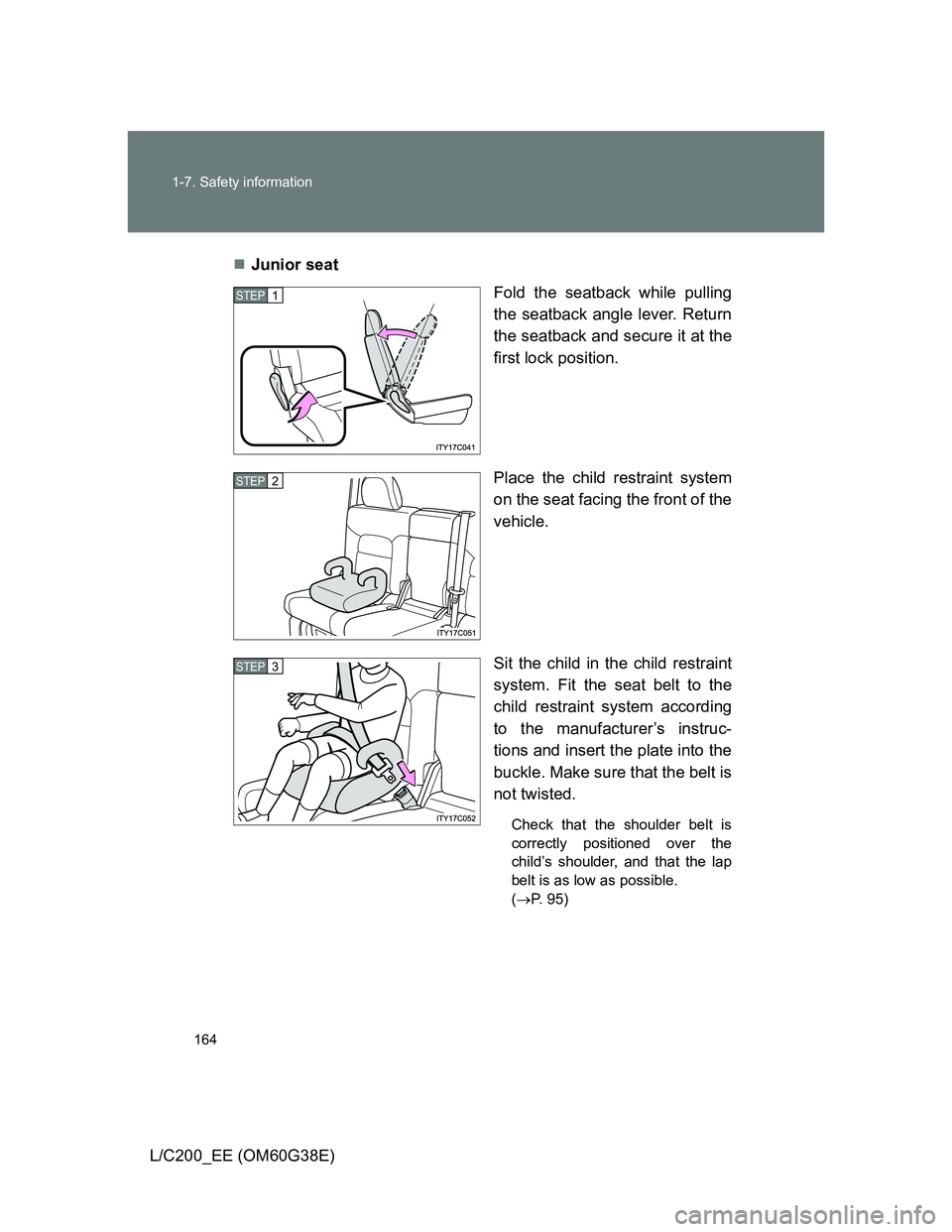

L/C200_EE (OM60G38E)Junior seat
Fold the seatback while pulling
the seatback angle lever. Return
the seatback and secure it at the
first lock position.
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
(P. 95)
STEP1
STEP2
STEP3

165 1-7. Safety information
1
Before driving
L/C200_EE (OM60G38E)

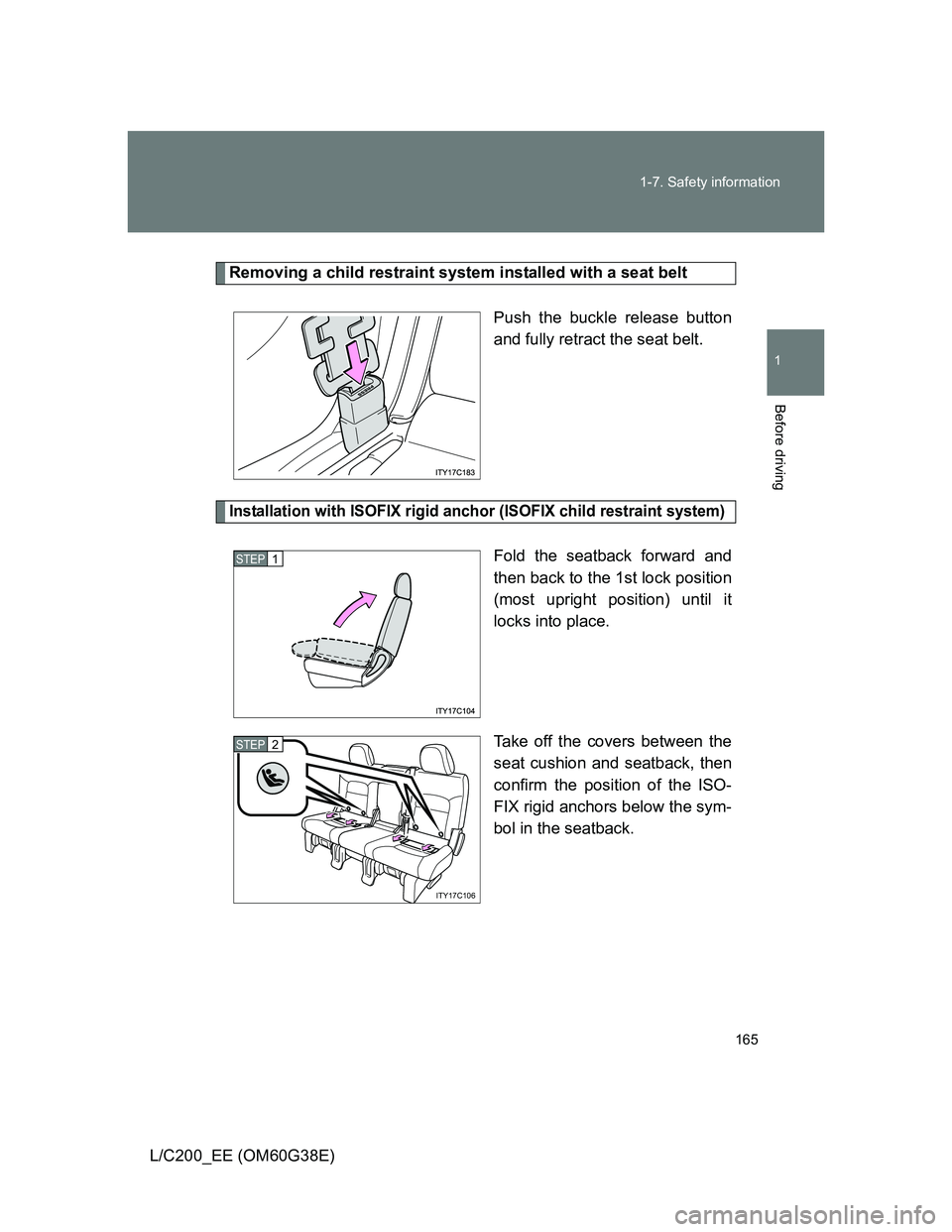

Removing a child restraint system installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
Installation with ISOFIX rigid anchor (ISOFIX child restraint system)
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it
locks into place.
Take off the covers between the
seat cushion and seatback, then
confirm the position of the ISO-
FIX rigid anchors below the sym-
bol in the seatback.STEP1
ITY17C106
STEP2

166 1-7. Safety information

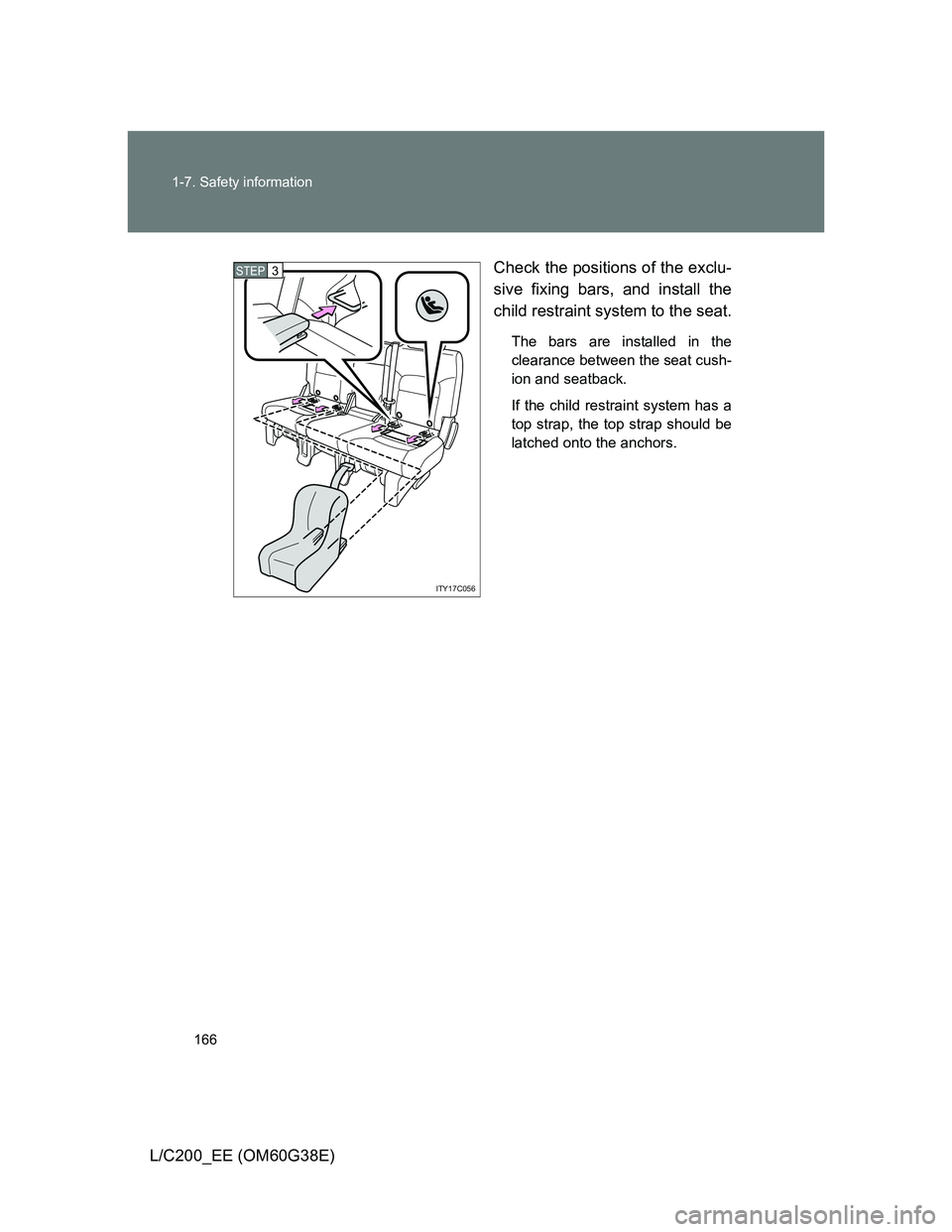

L/C200_EE (OM60G38E)Check the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
The bars are installed in the
clearance between the seat cush-
ion and seatback.
If the child restraint system has a
top strap, the top strap should be
latched onto the anchors.
ITY17C056
STEP3

167 1-7. Safety information
1
Before driving
L/C200_EE (OM60G38E)

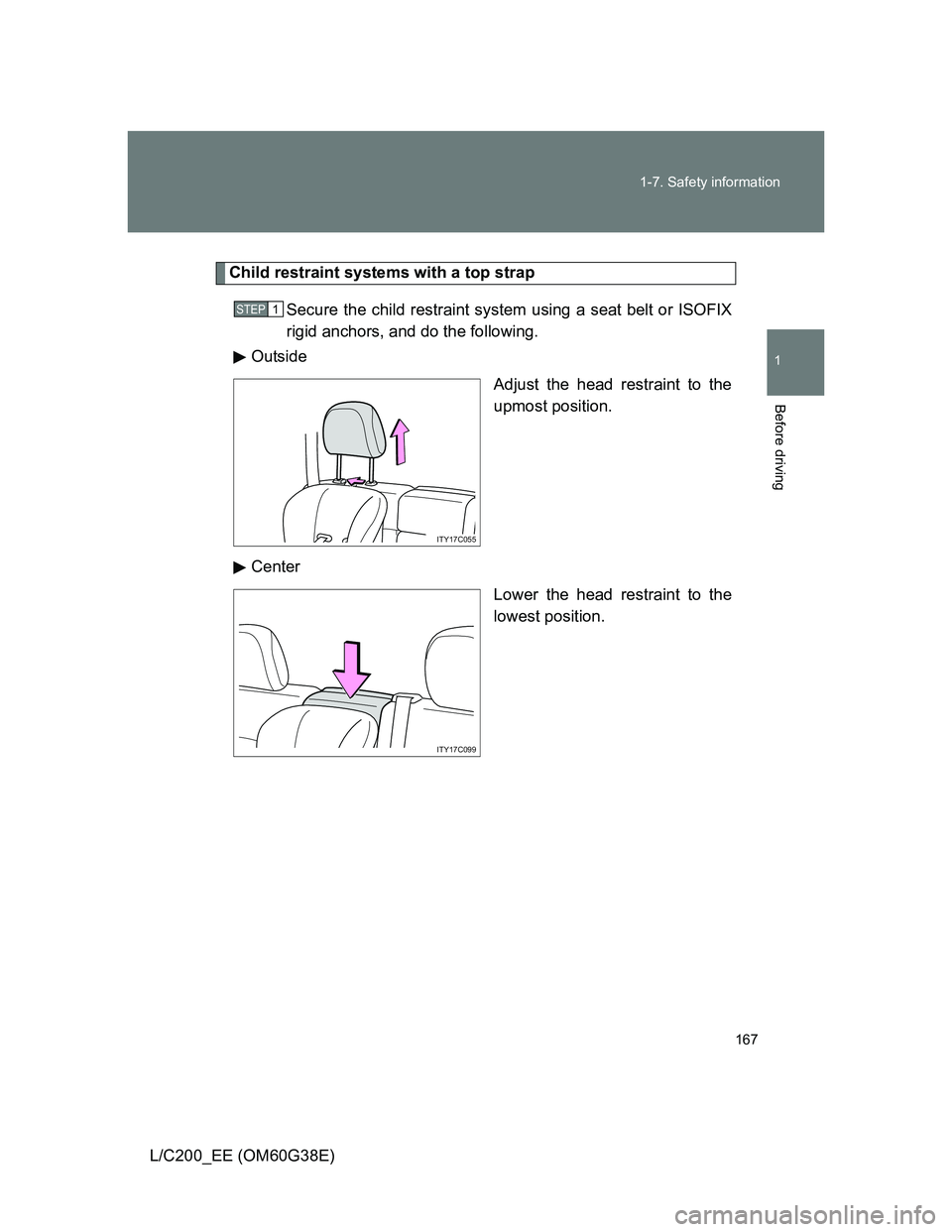

Child restraint systems with a top strap
Secure the child restraint system using a seat belt or ISOFIX
rigid anchors, and do the following.
Outside
Adjust the head restraint to the
upmost position.
Center
Lower the head restraint to the
lowest position.
STEP1
ITY17C055
ITY17C099

168 1-7. Safety information

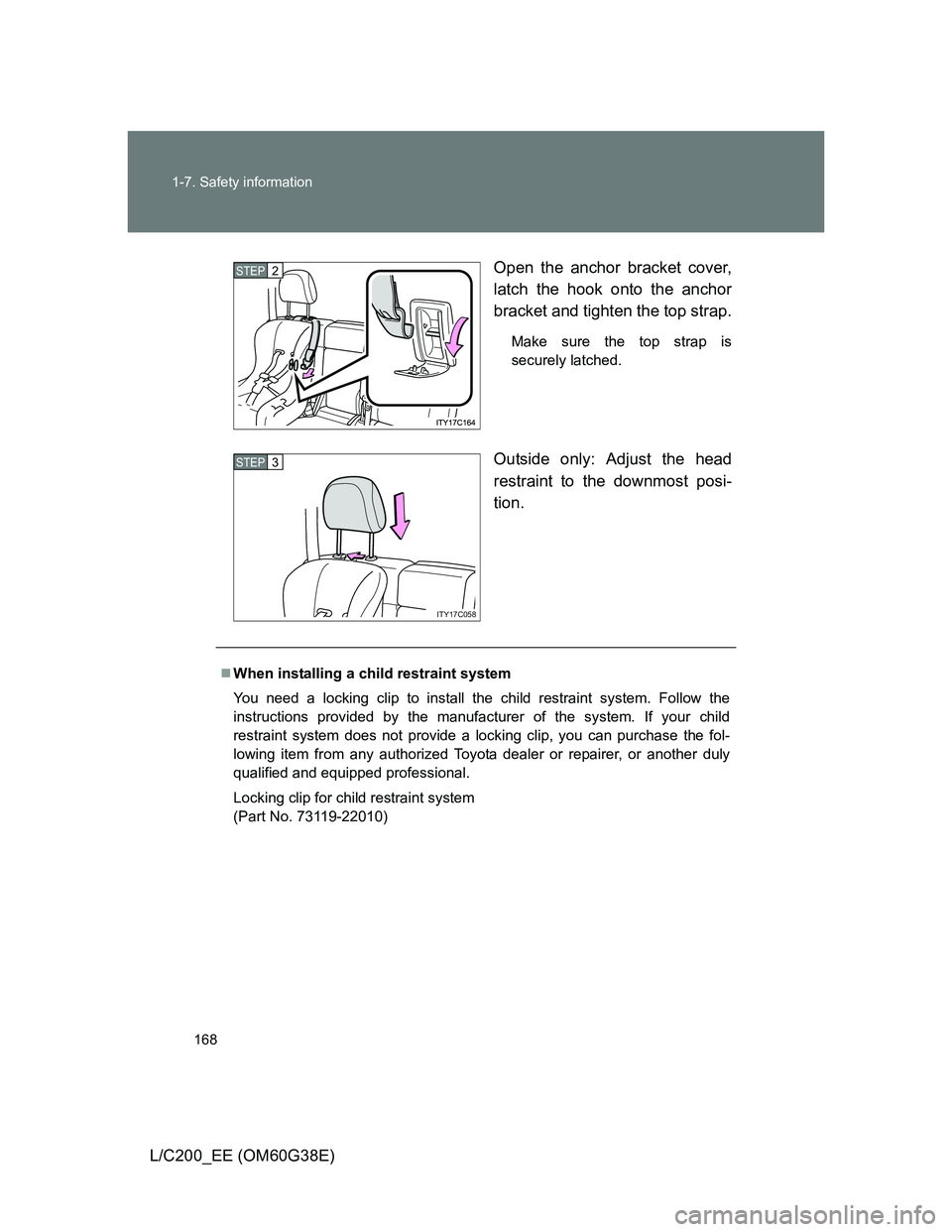

L/C200_EE (OM60G38E)Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
Outside only: Adjust the head
restraint to the downmost posi-
tion.
STEP2
ITY17C058
STEP3
When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)

169 1-7. Safety information
1
Before driving
L/C200_EE (OM60G38E)

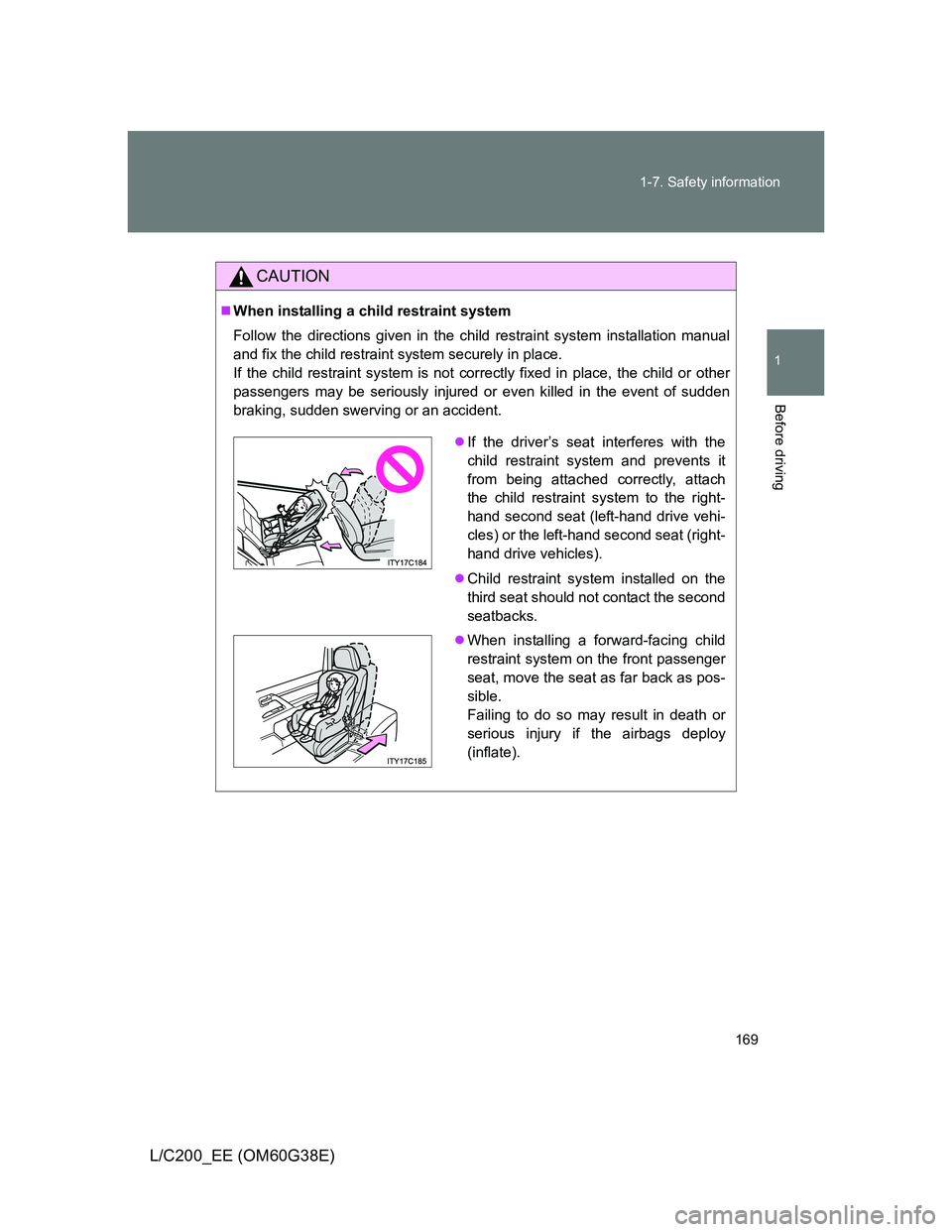

CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand second seat (left-hand drive vehi-
cles) or the left-hand second seat (right-
hand drive vehicles).
Child restraint system installed on the
third seat should not contact the second
seatbacks.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

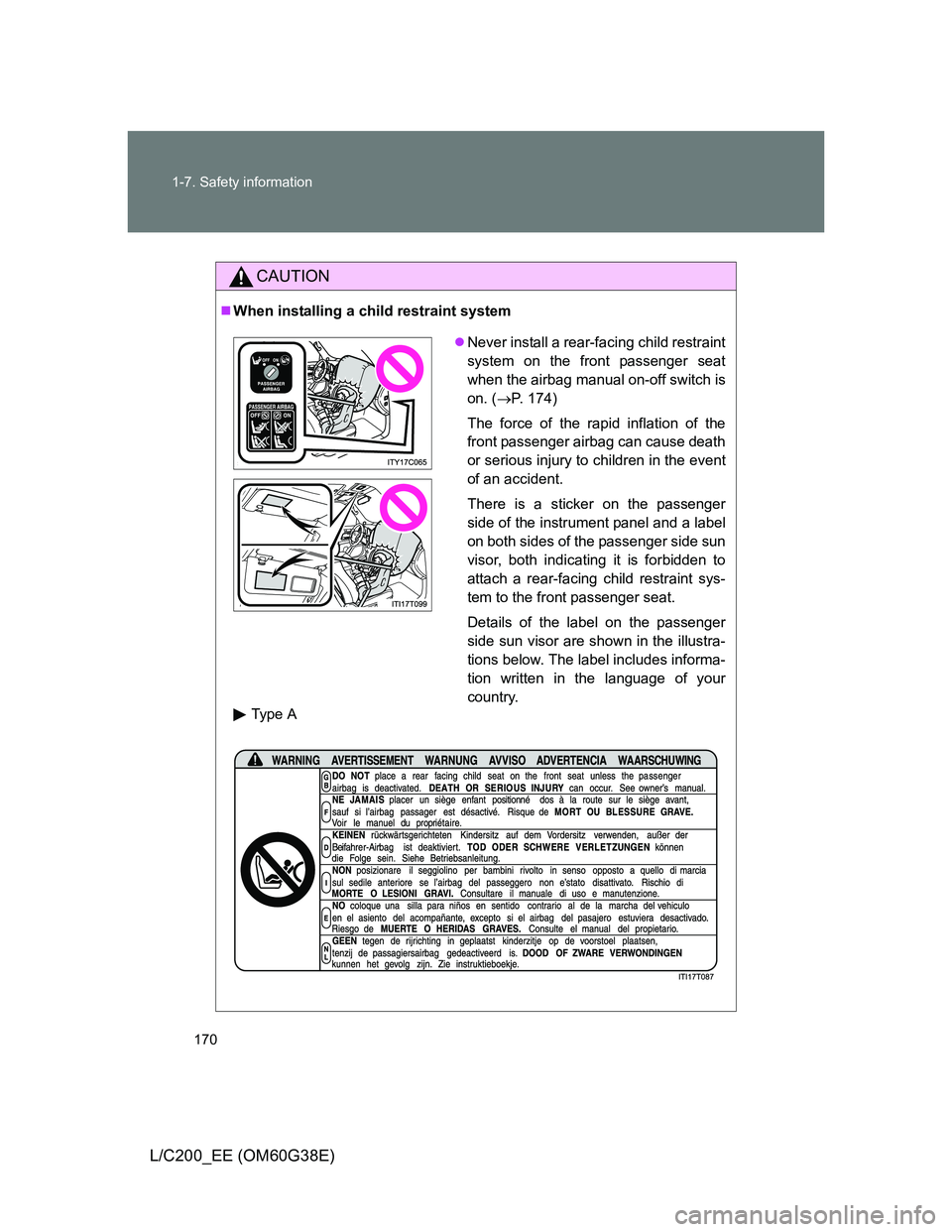

170 1-7. Safety information
L/C200_EE (OM60G38E)
CAUTION
When installing a child restraint system
Type A
Never install a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. (P. 174)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a sticker on the passenger
side of the instrument panel and a label
on both sides of the passenger side sun
visor, both indicating it is forbidden to
attach a rear-facing child restraint sys-
tem to the front passenger seat.
Details of the label on the passenger
side sun visor are shown in the illustra-
tions below. The label includes informa-
tion written in the language of your
country.
