TOYOTA LAND CRUISER 2012 Owners Manual

191 2-1. Driving procedures
2
When driving
L/C200_EE (OM60G38E)
Operation of the “ENGINE START STOP” switch
When operating the “ENGINE START STOP” switch, one short, firm press is
enough. If the switch is pressed improperly, the engine may not start or the
“ENGINE START STOP” switch mode may not change. It is not necessary to
press and hold the switch.

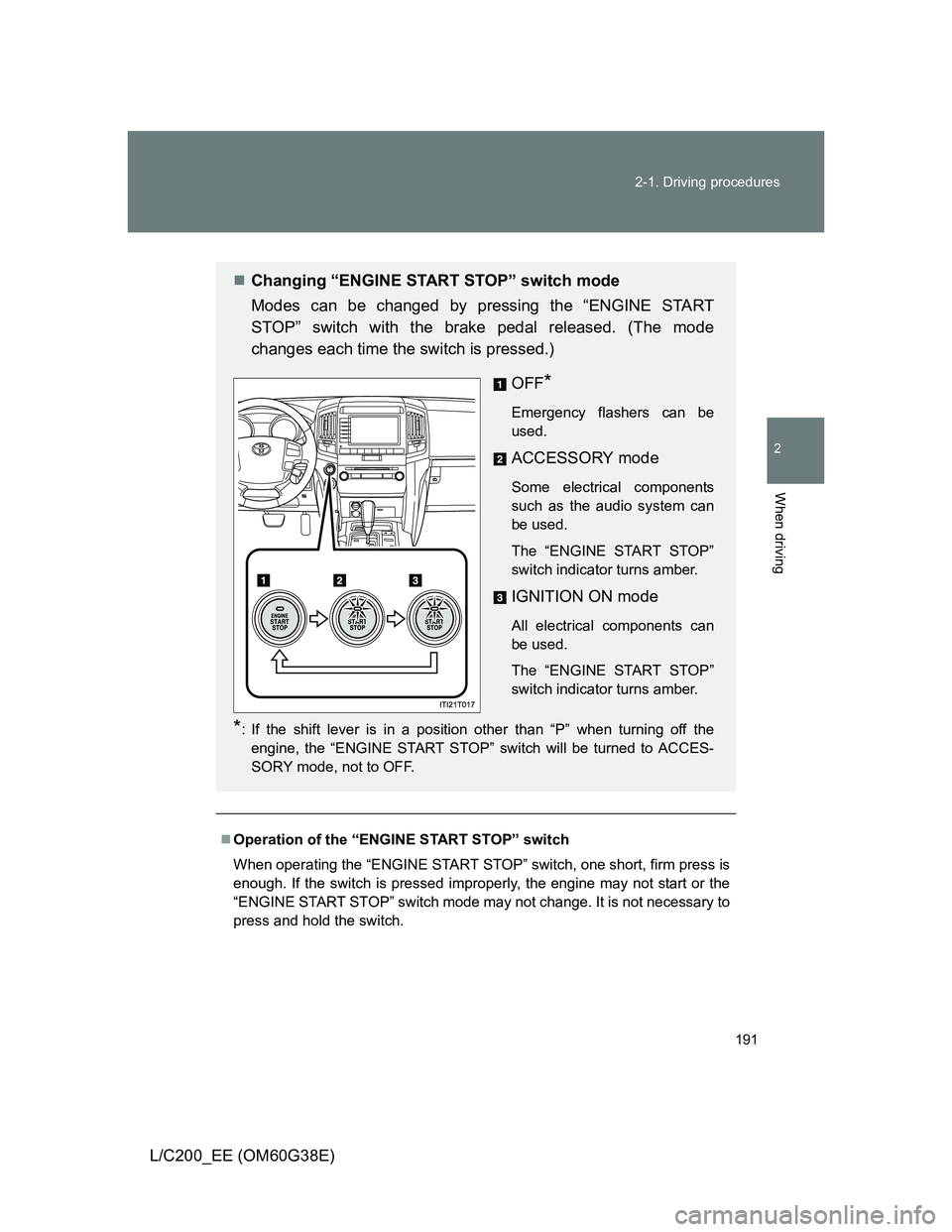

Changing “ENGINE START STOP” switch mode
Modes can be changed by pressing the “ENGINE START
STOP” switch with the brake pedal released. (The mode
changes each time the switch is pressed.)
OFF
*
Emergency flashers can be
used.
ACCESSORY mode
Some electrical components
such as the audio system can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
IGNITION ON mode
All electrical components can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
*: If the shift lever is in a position other than “P” when turning off the
engine, the “ENGINE START STOP” switch will be turned to ACCES-
SORY mode, not to OFF.

192 2-1. Driving procedures
L/C200_EE (OM60G38E)

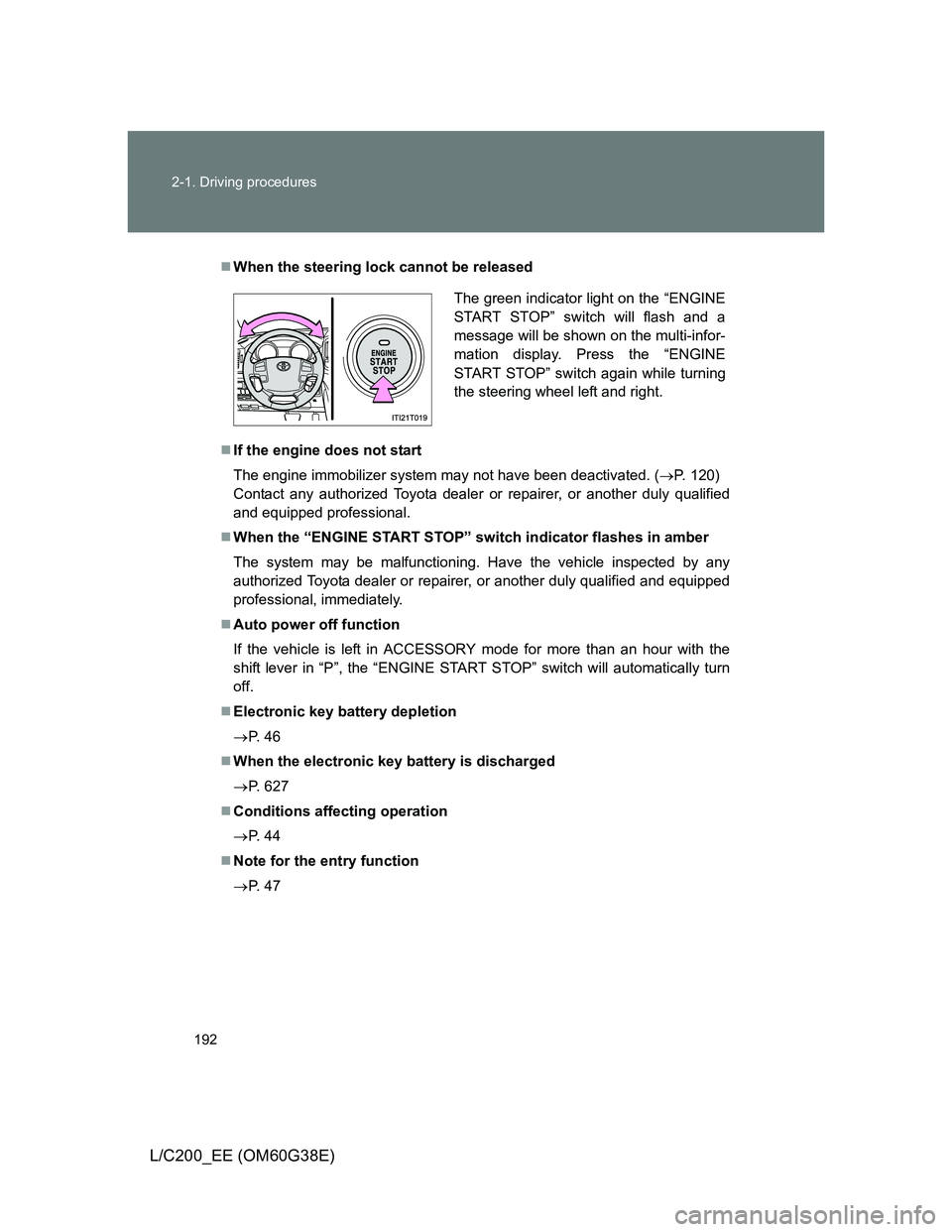

When the steering lock cannot be released
If the engine does not start
The engine immobilizer system may not have been deactivated. (P. 120)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
When the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, immediately.
Auto power off function
If the vehicle is left in ACCESSORY mode for more than an hour with the
shift lever in “P”, the “ENGINE START STOP” switch will automatically turn
off.
Electronic key battery depletion
P. 4 6
When the electronic key battery is discharged
P. 627
Conditions affecting operation
P. 4 4
Note for the entry function
P. 4 7
The green indicator light on the “ENGINE
START STOP” switch will flash and a
message will be shown on the multi-infor-
mation display. Press the “ENGINE
START STOP” switch again while turning
the steering wheel left and right.

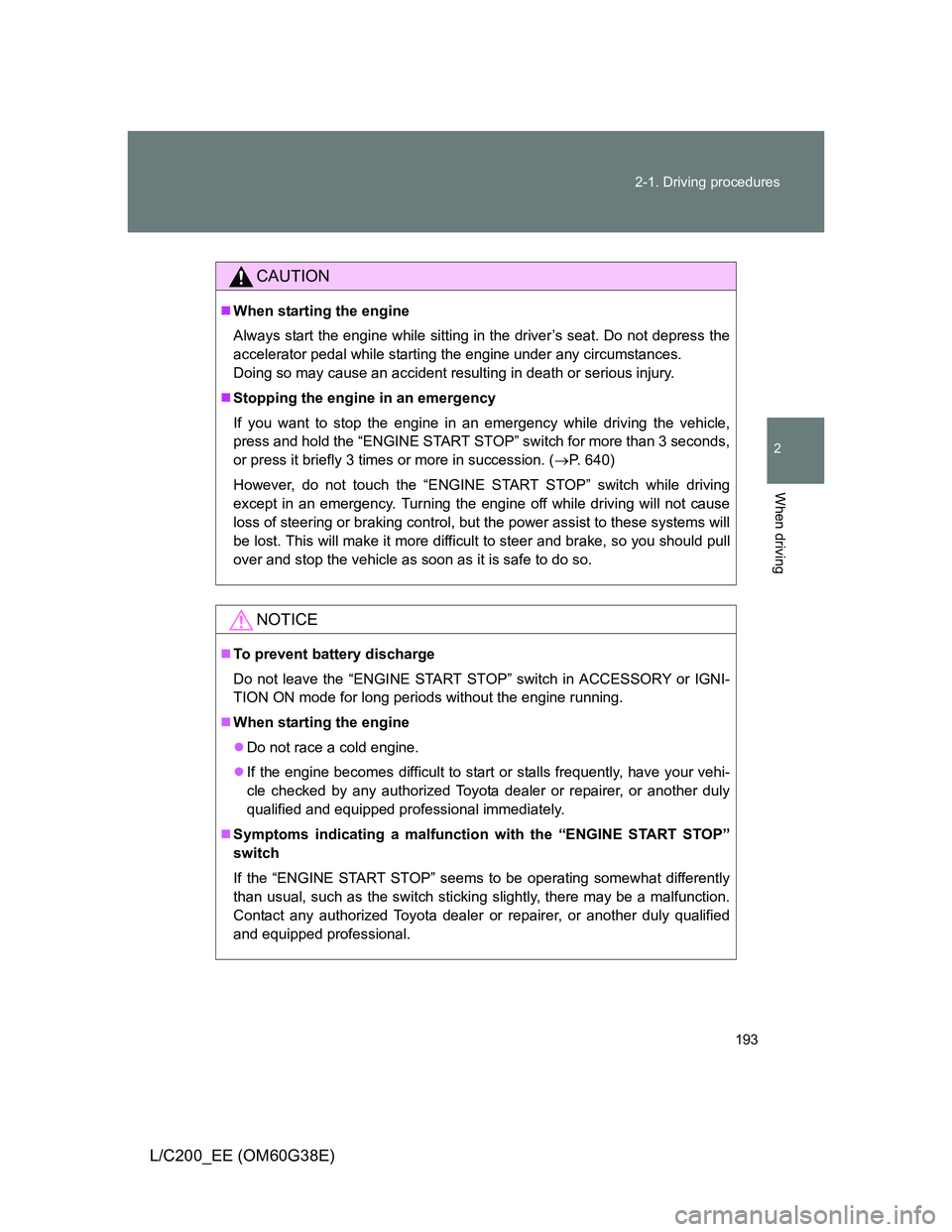

193 2-1. Driving procedures
2
When driving
L/C200_EE (OM60G38E)
CAUTION
When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
press and hold the “ENGINE START STOP” switch for more than 3 seconds,
or press it briefly 3 times or more in succession. (P. 640)
However, do not touch the “ENGINE START STOP” switch while driving
except in an emergency. Turning the engine off while driving will not cause
loss of steering or braking control, but the power assist to these systems will
be lost. This will make it more difficult to steer and brake, so you should pull
over and stop the vehicle as soon as it is safe to do so.
NOTICE
To prevent battery discharge
Do not leave the “ENGINE START STOP” switch in ACCESSORY or IGNI-
TION ON mode for long periods without the engine running.
When starting the engine
Do not race a cold engine.
If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
Symptoms indicating a malfunction with the “ENGINE START STOP”
switch
If the “ENGINE START STOP” seems to be operating somewhat differently
than usual, such as the switch sticking slightly, there may be a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.

194
2-1. Driving procedures
L/C200_EE (OM60G38E)

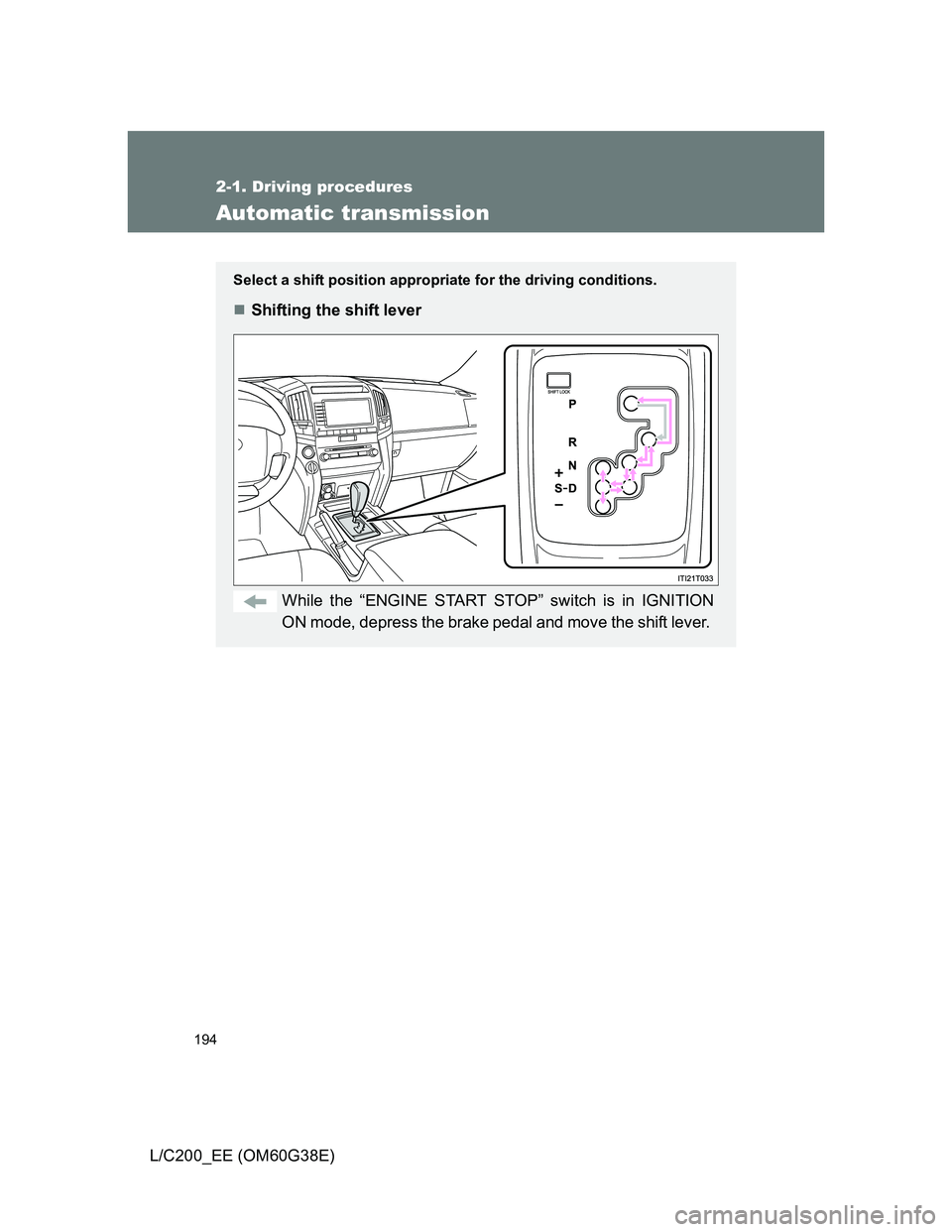

Automatic transmission
Select a shift position appropriate for the driving conditions.
Shifting the shift lever
While the “ENGINE START STOP” switch is in IGNITION
ON mode, depress the brake pedal and move the shift lever.

195 2-1. Driving procedures
2
When driving
L/C200_EE (OM60G38E)

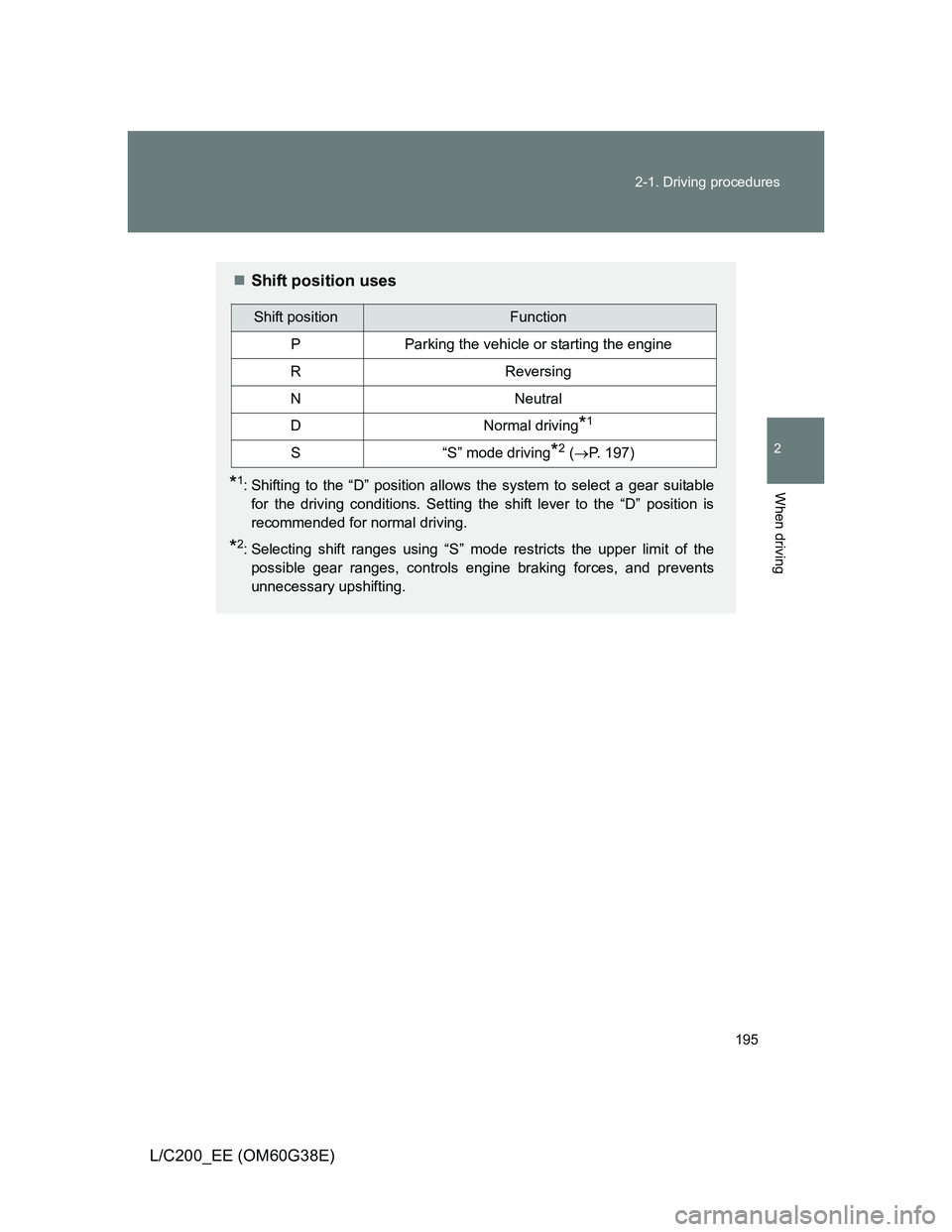

Shift position uses
*1: Shifting to the “D” position allows the system to select a gear suitable
for the driving conditions. Setting the shift lever to the “D” position is
recommended for normal driving.
*2: Selecting shift ranges using “S” mode restricts the upper limit of the
possible gear ranges, controls engine braking forces, and prevents
unnecessary upshifting.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*1
S“S” mode driving*2 (P. 197)

196 2-1. Driving procedures
L/C200_EE (OM60G38E)

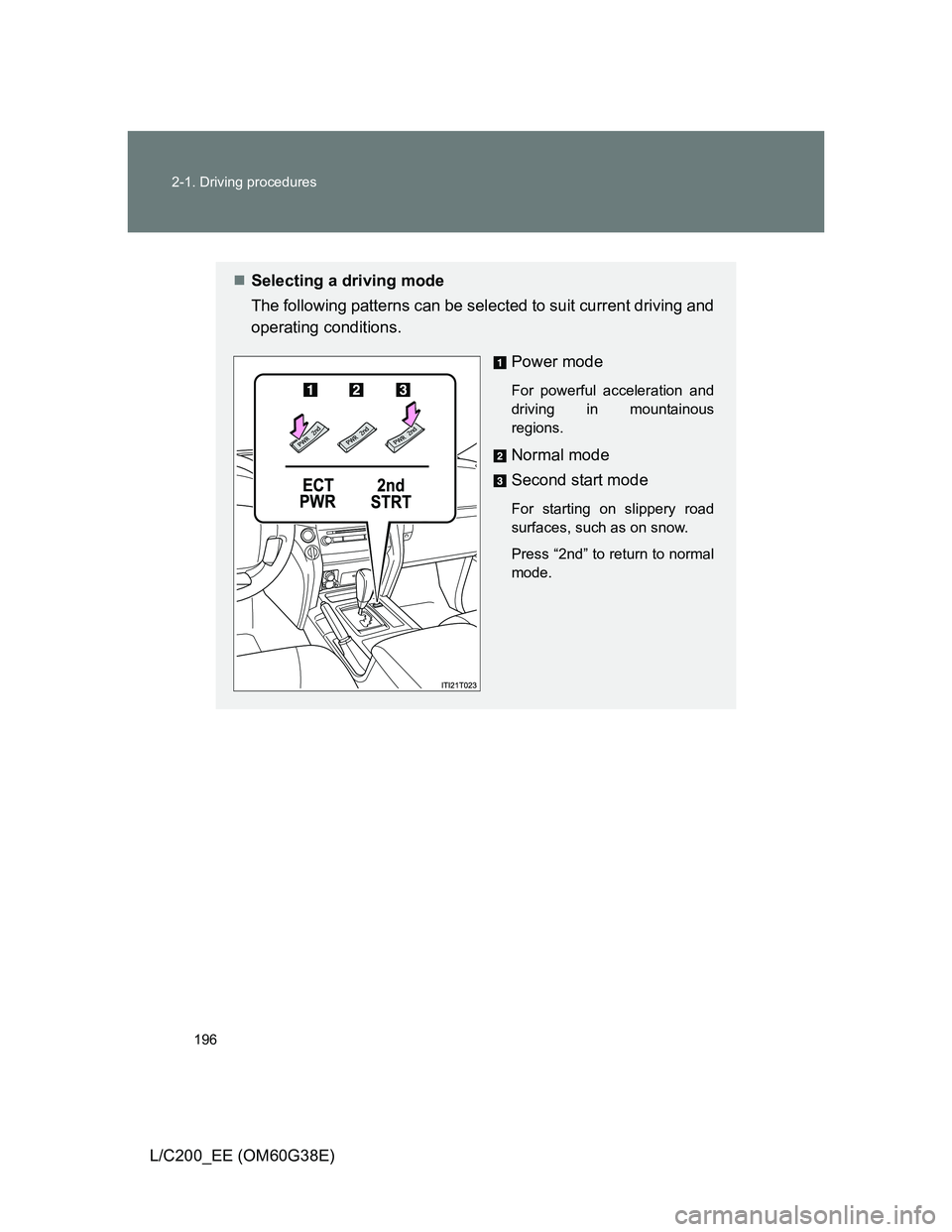

Selecting a driving mode
The following patterns can be selected to suit current driving and
operating conditions.
Power mode
For powerful acceleration and
driving in mountainous
regions.
Normal mode
Second start mode
For starting on slippery road
surfaces, such as on snow.
Press “2nd” to return to normal
mode.

197 2-1. Driving procedures
2
When driving
L/C200_EE (OM60G38E)

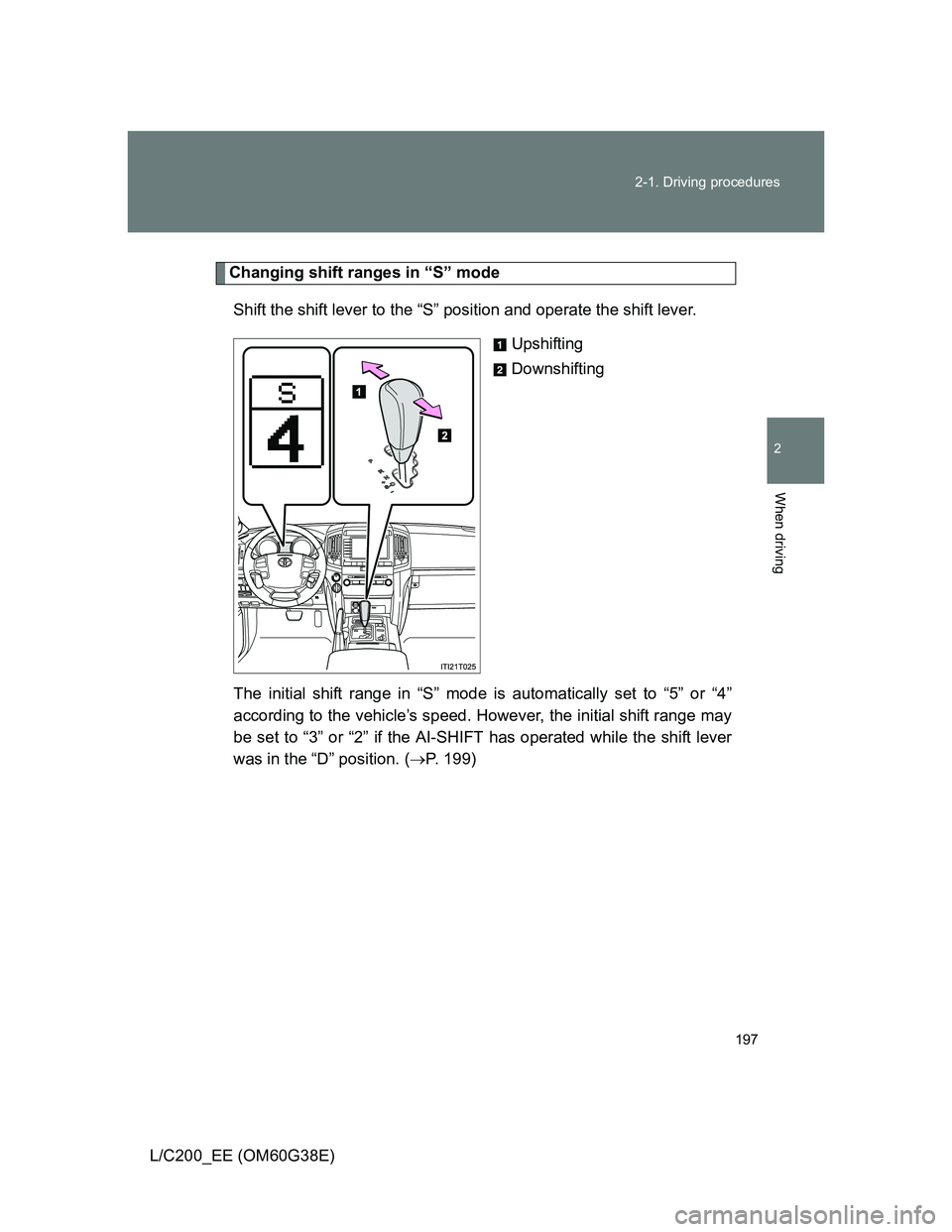

Changing shift ranges in “S” mode
Shift the shift lever to the “S” position and operate the shift lever.
Upshifting
Downshifting
The initial shift range in “S” mode is automatically set to “5” or “4”
according to the vehicle’s speed. However, the initial shift range may
be set to “3” or “2” if the AI-SHIFT has operated while the shift lever
was in the “D” position. (P. 199)
P
R
N
+
-S-D

198 2-1. Driving procedures

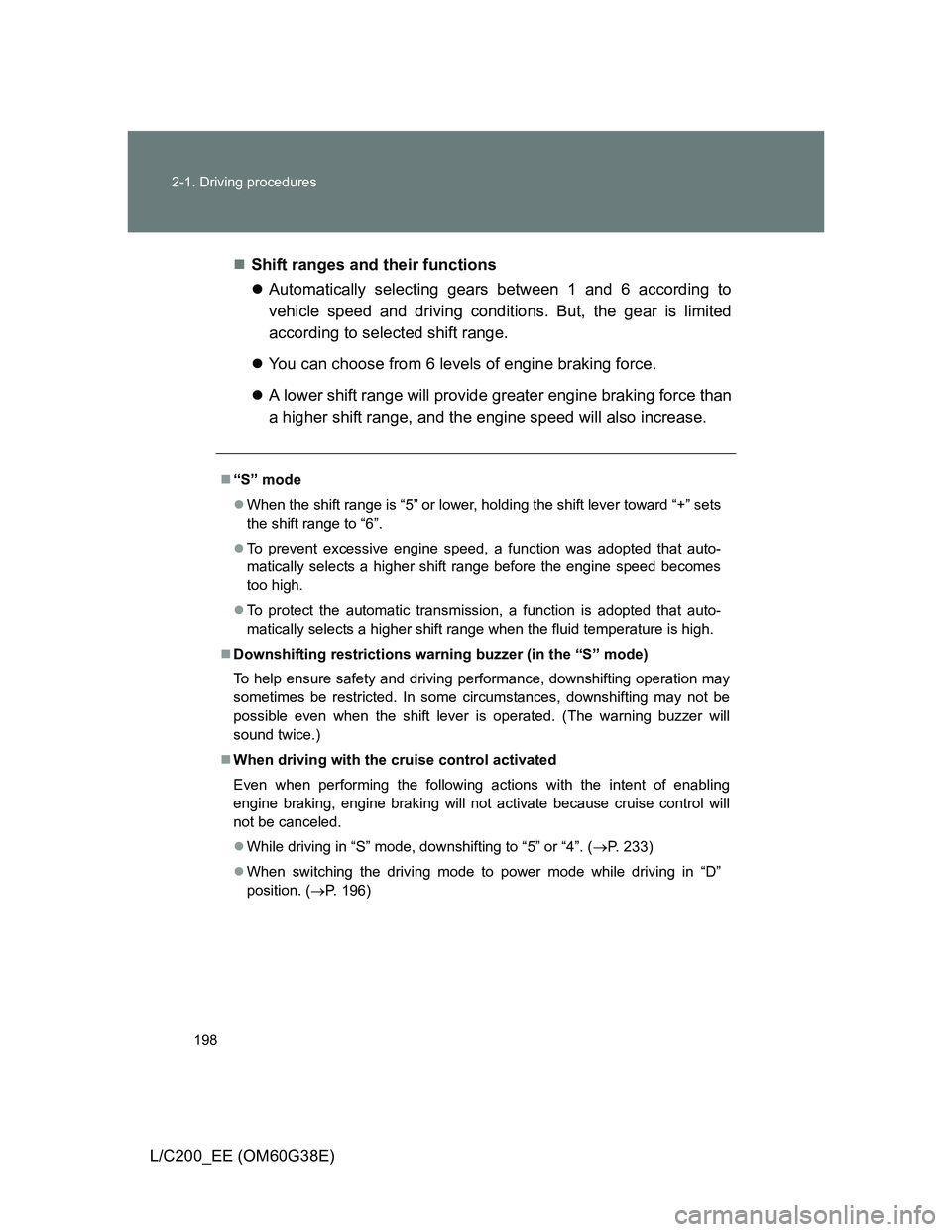

L/C200_EE (OM60G38E)Shift ranges and their functions
Automatically selecting gears between 1 and 6 according to
vehicle speed and driving conditions. But, the gear is limited
according to selected shift range.
You can choose from 6 levels of engine braking force.
A lower shift range will provide greater engine braking force than
a higher shift range, and the engine speed will also increase.
“S” mode
When the shift range is “5” or lower, holding the shift lever toward “+” sets
the shift range to “6”.
To prevent excessive engine speed, a function was adopted that auto-
matically selects a higher shift range before the engine speed becomes
too high.
To protect the automatic transmission, a function is adopted that auto-
matically selects a higher shift range when the fluid temperature is high.
Downshifting restrictions warning buzzer (in the “S” mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (The warning buzzer will
sound twice.)
When driving with the cruise control activated
Even when performing the following actions with the intent of enabling
engine braking, engine braking will not activate because cruise control will
not be canceled.
While driving in “S” mode, downshifting to “5” or “4”. (P. 233)
When switching the driving mode to power mode while driving in “D”
position. (P. 196)

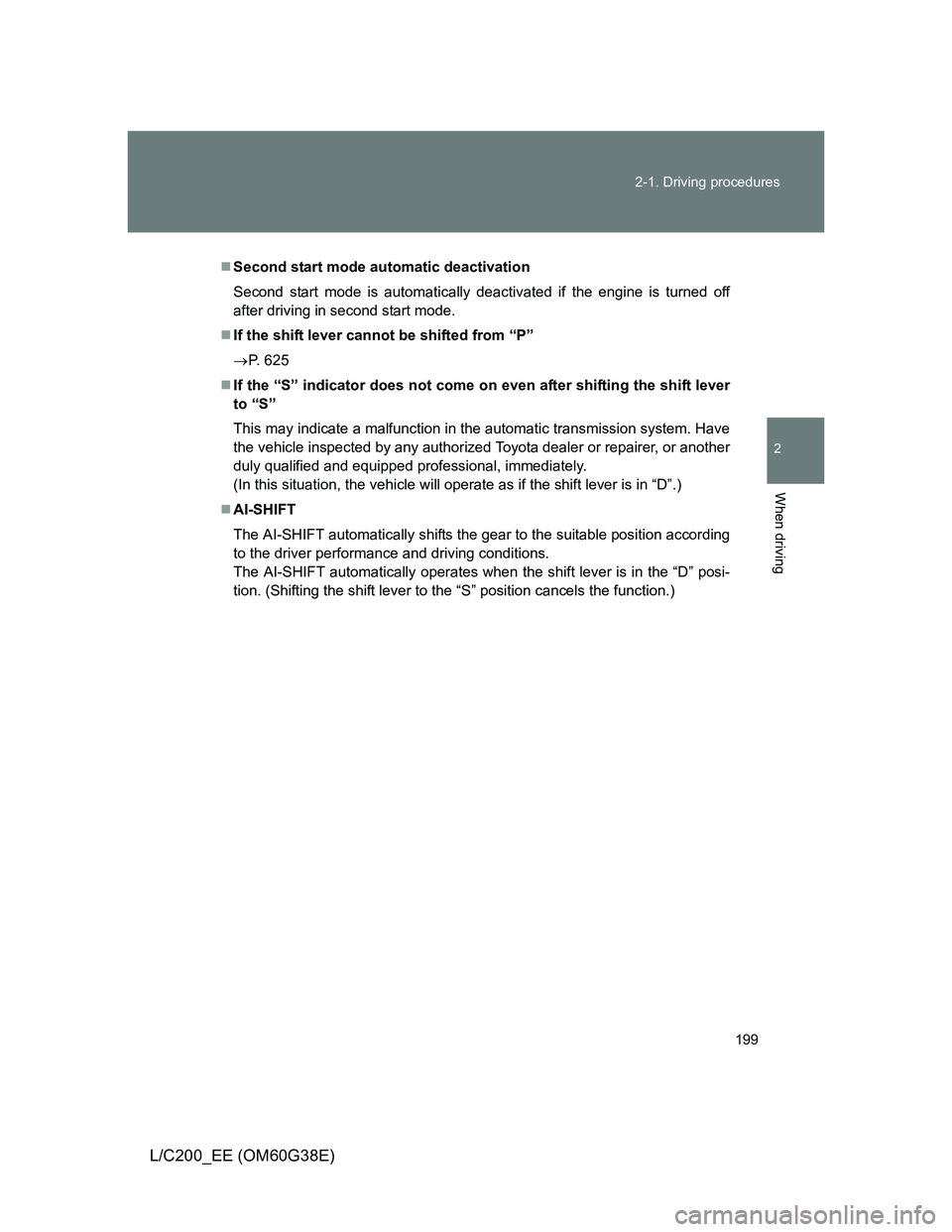

199 2-1. Driving procedures
2
When driving
L/C200_EE (OM60G38E)
Second start mode automatic deactivation
Second start mode is automatically deactivated if the engine is turned off
after driving in second start mode.
If the shift lever cannot be shifted from “P”
P. 625
If the “S” indicator does not come on even after shifting the shift lever
to “S”
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional, immediately.
(In this situation, the vehicle will operate as if the shift lever is in “D”.)
AI-SHIFT
The AI-SHIFT automatically shifts the gear to the suitable position according
to the driver performance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the “D” posi-
tion. (Shifting the shift lever to the “S” position cancels the function.)

200
2-1. Driving procedures
L/C200_EE (OM60G38E)

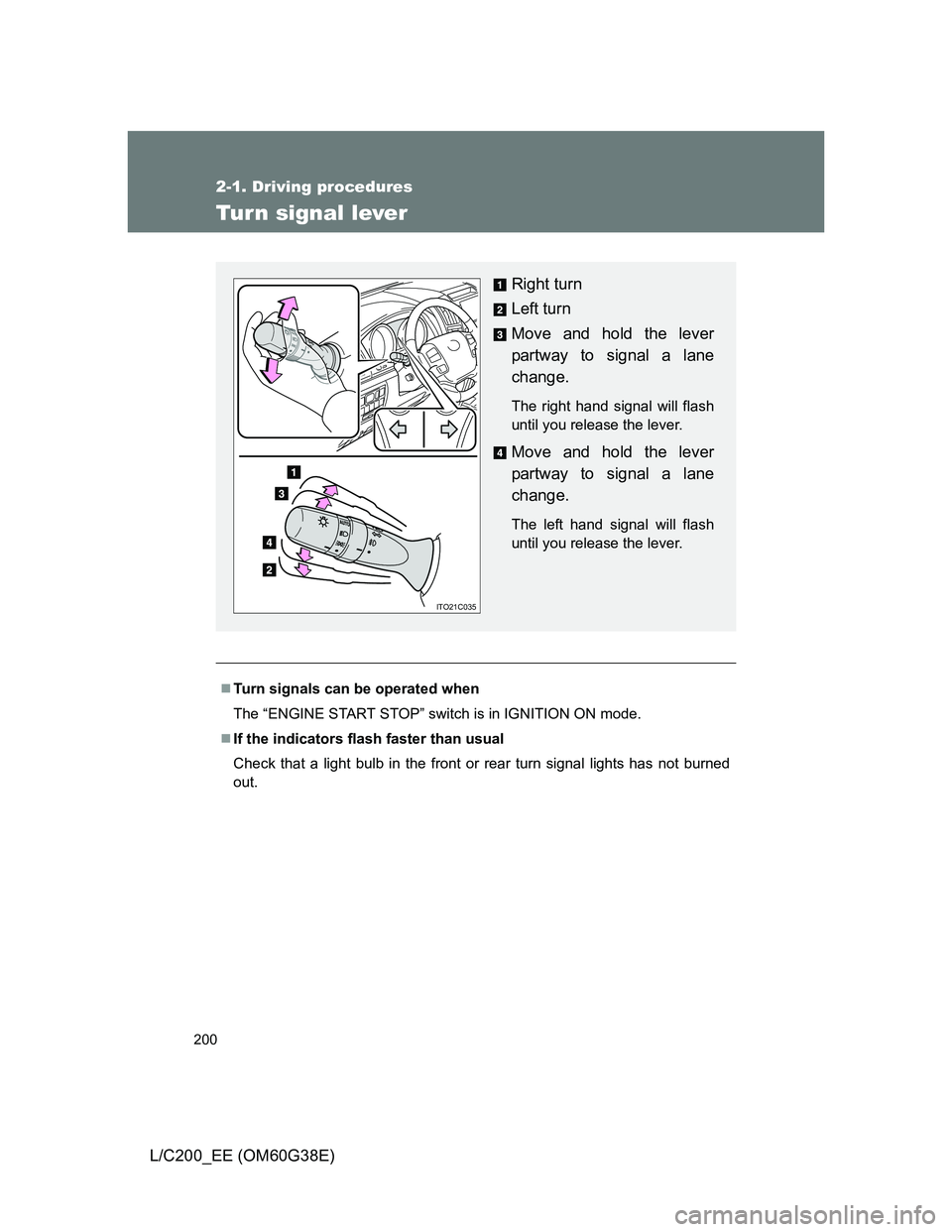

Turn signal lever
Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Right turn
Left turn
Move and hold the lever
partway to signal a lane
change.
The right hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change.
The left hand signal will flash
until you release the lever.
ITO21C035
