2-1. Driving procedures
2
When driving
L/C200_EE (OM60G38E)

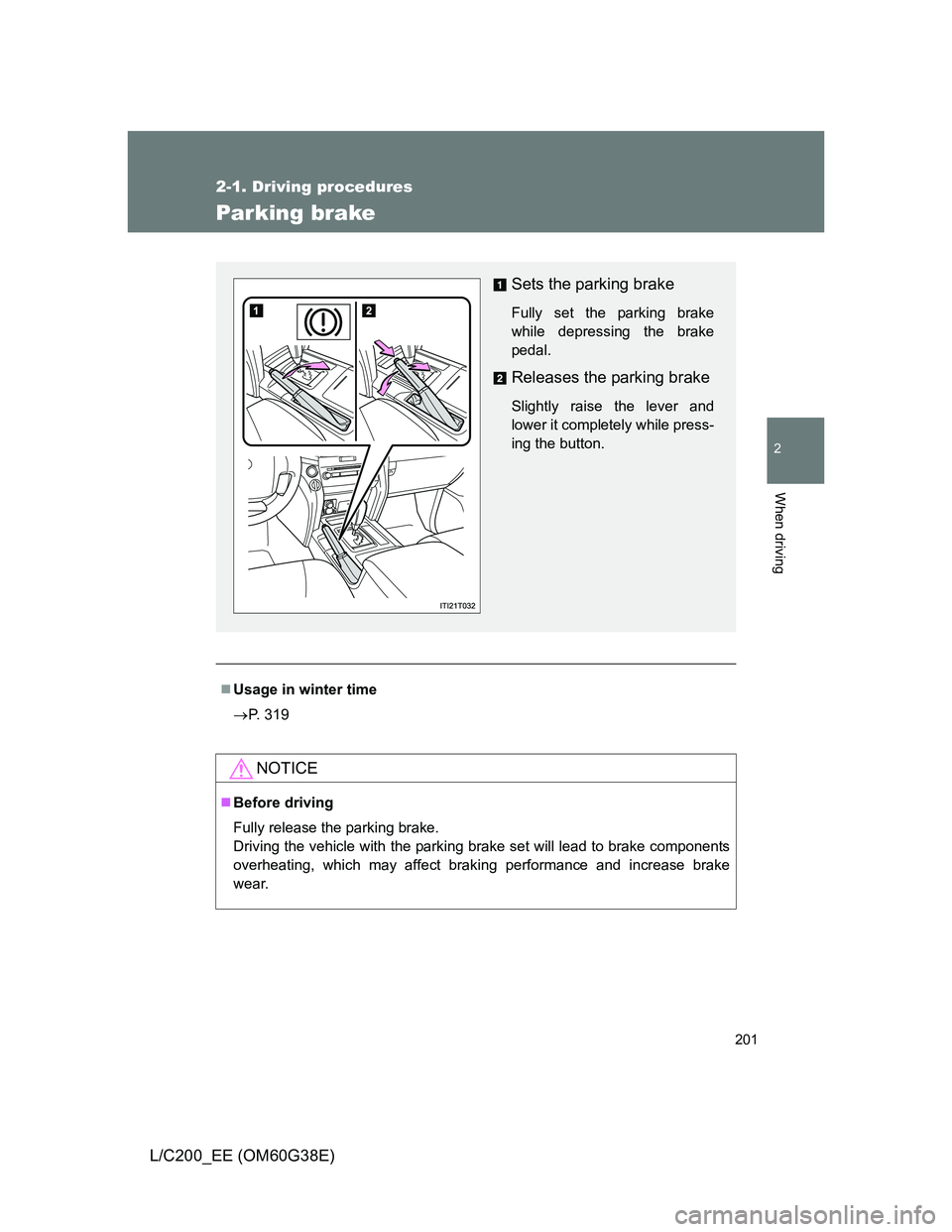

Parking brake
Usage in winter time
P. 319
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake
Fully set the parking brake
while depressing the brake
pedal.
Releases the parking brake
Slightly raise the lever and
lower it completely while press-
ing the button.

202
2-1. Driving procedures
L/C200_EE (OM60G38E)

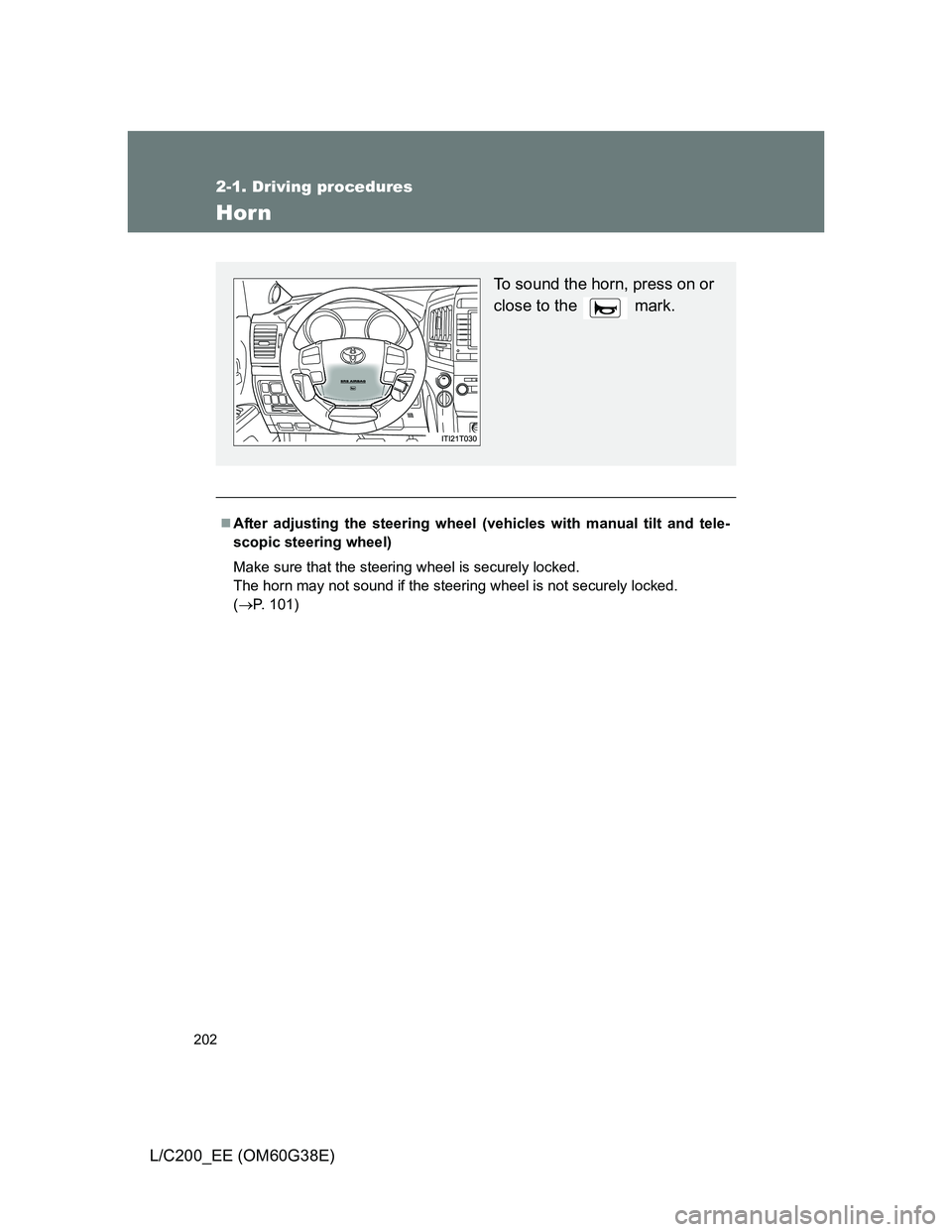

Horn
After adjusting the steering wheel (vehicles with manual tilt and tele-
scopic steering wheel)
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 101)
To sound the horn, press on or
close to the mark.

203
2
When driving
L/C200_EE (OM60G38E)
2-2. Instrument cluster
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Vo l t m e t e r
Displays the charge state
Multi-information display
Presents the driver with a variety of driving-related data (P. 212)

204 2-2. Instrument cluster
L/C200_EE (OM60G38E)

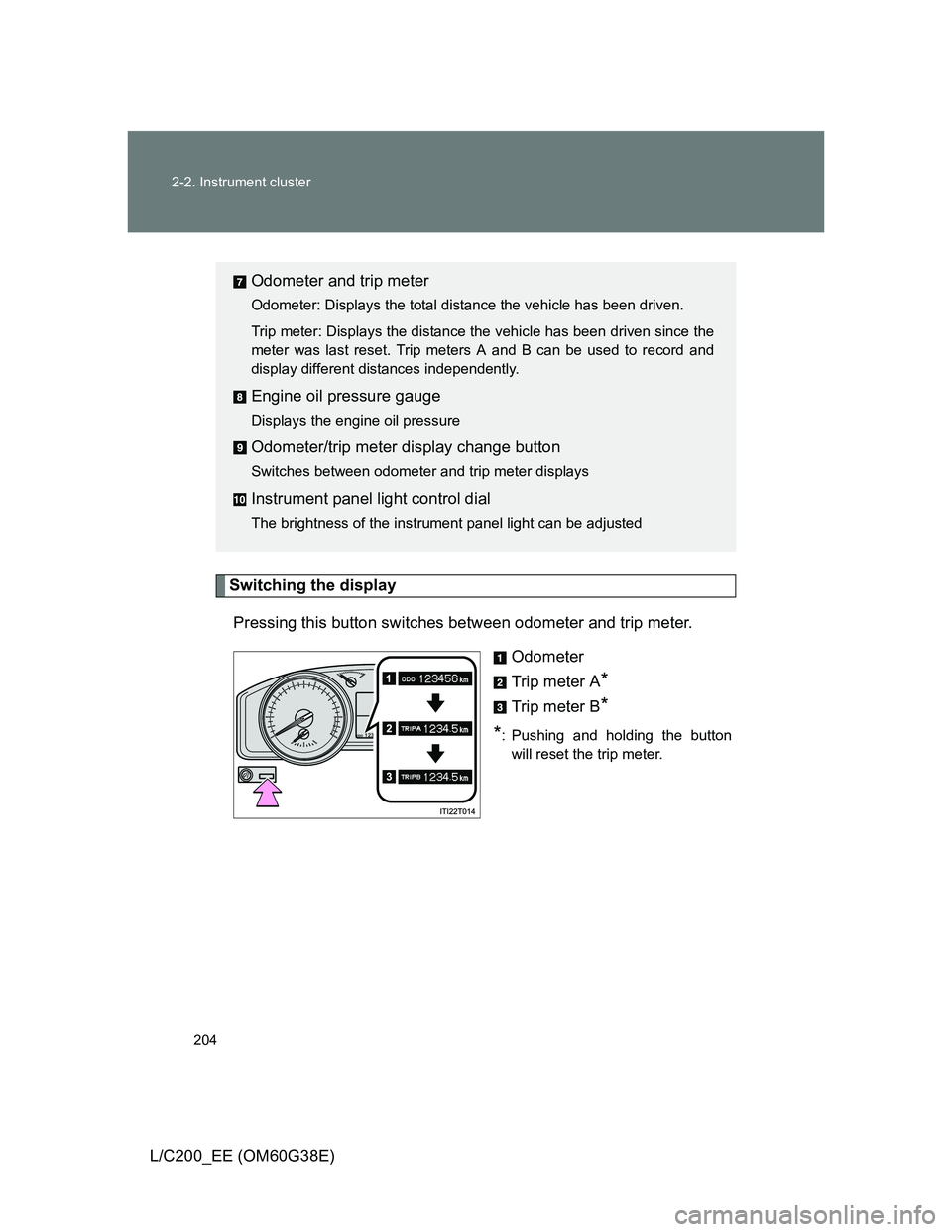

Switching the display
Pressing this button switches between odometer and trip meter.
Odometer
Trip meter A
*
Trip meter B*
*
: Pushing and holding the button
will reset the trip meter.
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to record and
display different distances independently.
Engine oil pressure gauge
Displays the engine oil pressure
Odometer/trip meter display change button
Switches between odometer and trip meter displays
Instrument panel light control dial
The brightness of the instrument panel light can be adjusted

205 2-2. Instrument cluster
2
When driving
L/C200_EE (OM60G38E)

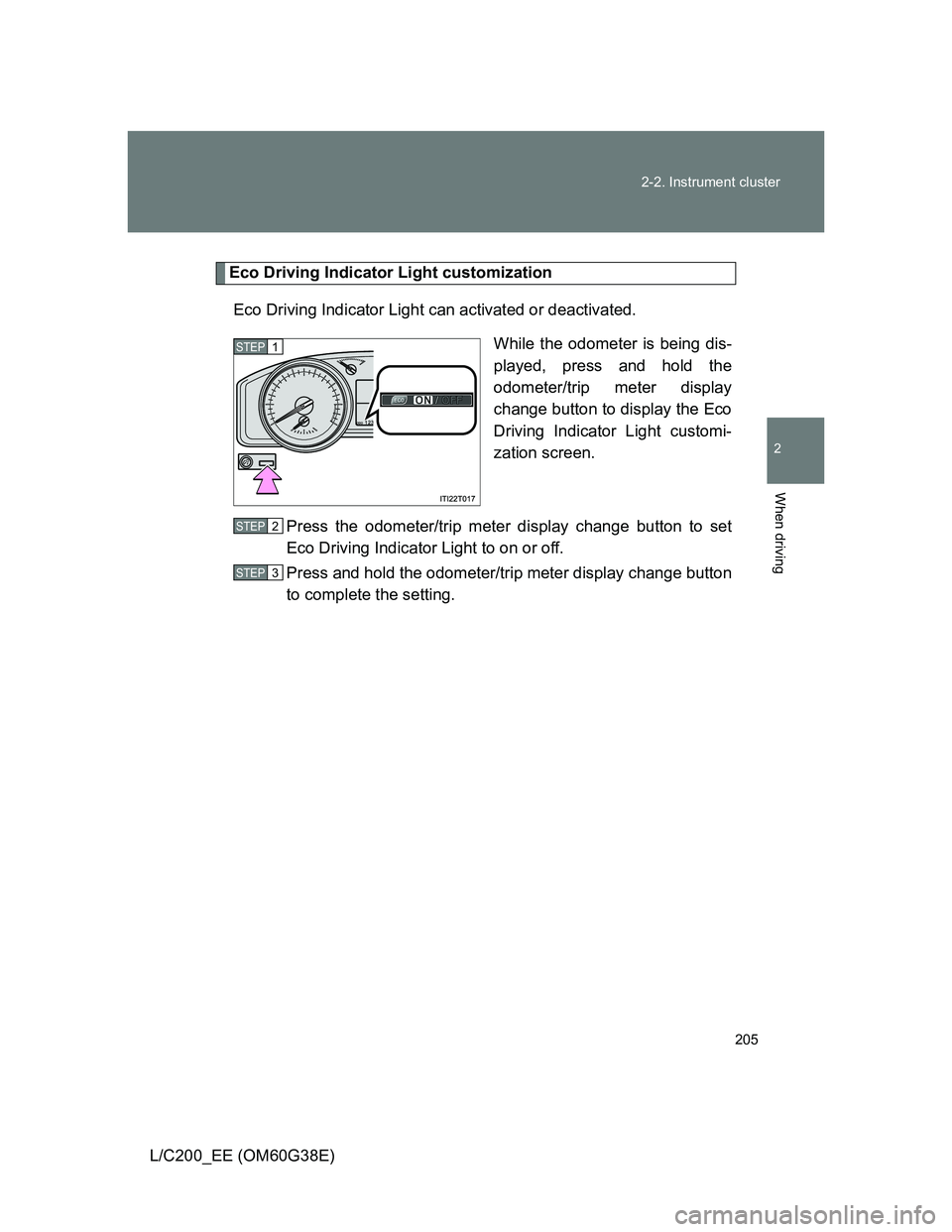

Eco Driving Indicator Light customization
Eco Driving Indicator Light can activated or deactivated.
While the odometer is being dis-
played, press and hold the
odometer/trip meter display
change button to display the Eco
Driving Indicator Light customi-
zation screen.
Press the odometer/trip meter display change button to set
Eco Driving Indicator Light to on or off.
Press and hold the odometer/trip meter display change button
to complete the setting.
STEP1
STEP2
STEP3

206 2-2. Instrument cluster
L/C200_EE (OM60G38E)
Instrument cluster light control
The brightness of the instrument cluster light can be adjusted.
Darker
Brighter
The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (
P. 634)
While driving
When the voltmeter indicates more than 19 V or less than 9 V, the battery
may be malfunctioning. Have your vehicle checked at any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
When the engine oil pressure gauge does not work properly, immediately
stop the engine and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

207
2-2. Instrument cluster
2
When driving
L/C200_EE (OM60G38E)

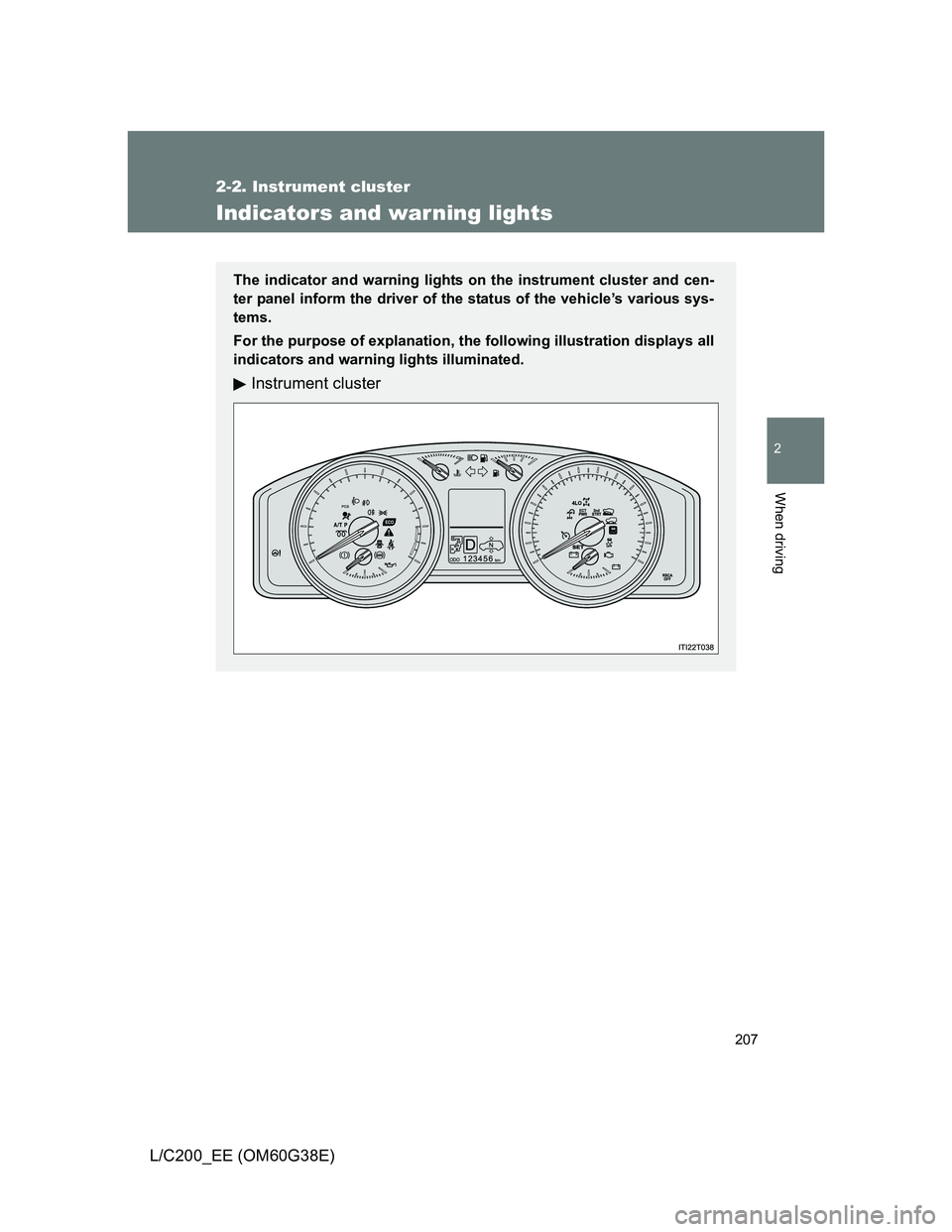

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster

208 2-2. Instrument cluster
L/C200_EE (OM60G38E)

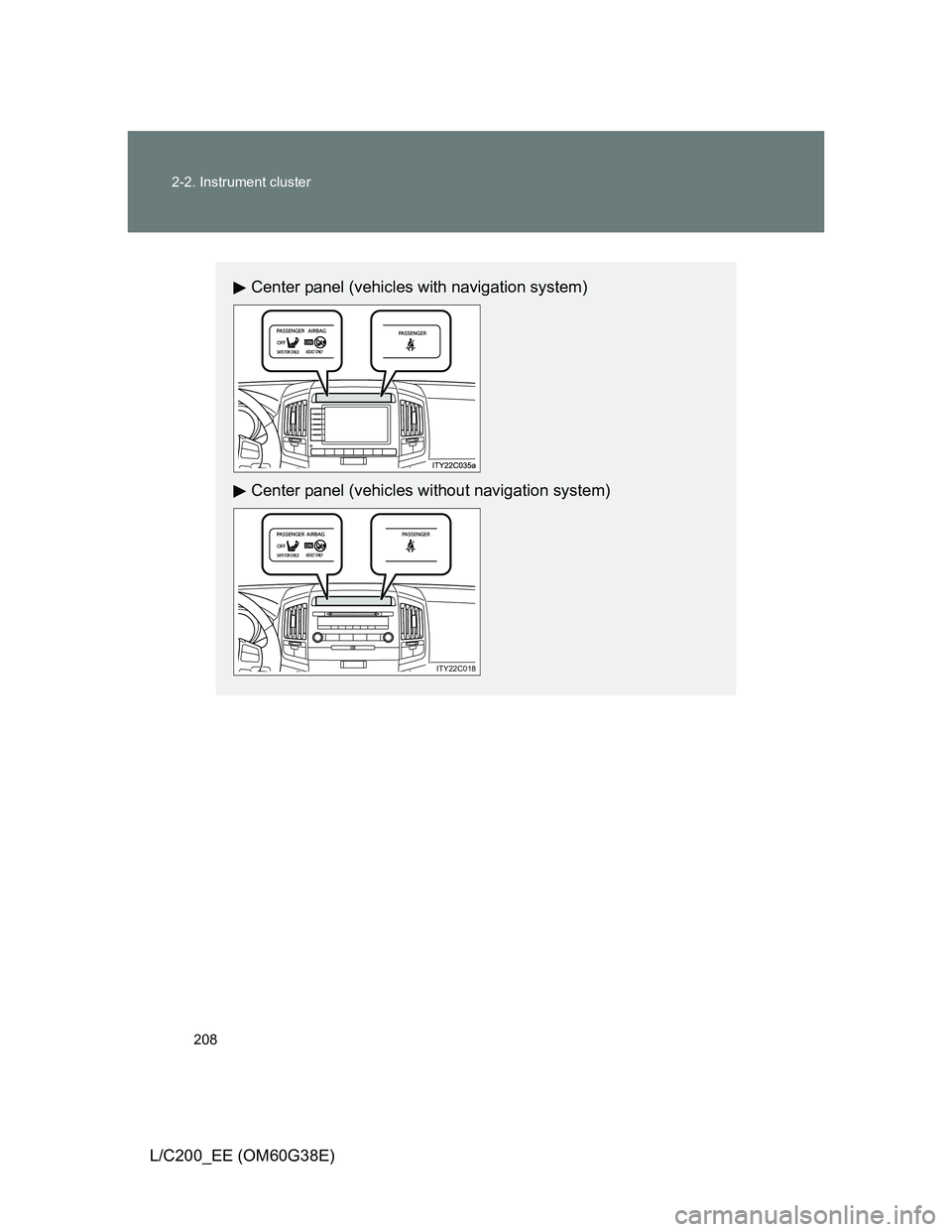

Center panel (vehicles with navigation system)
Center panel (vehicles without navigation system)
ITY22C018

209 2-2. Instrument cluster
2
When driving
L/C200_EE (OM60G38E)

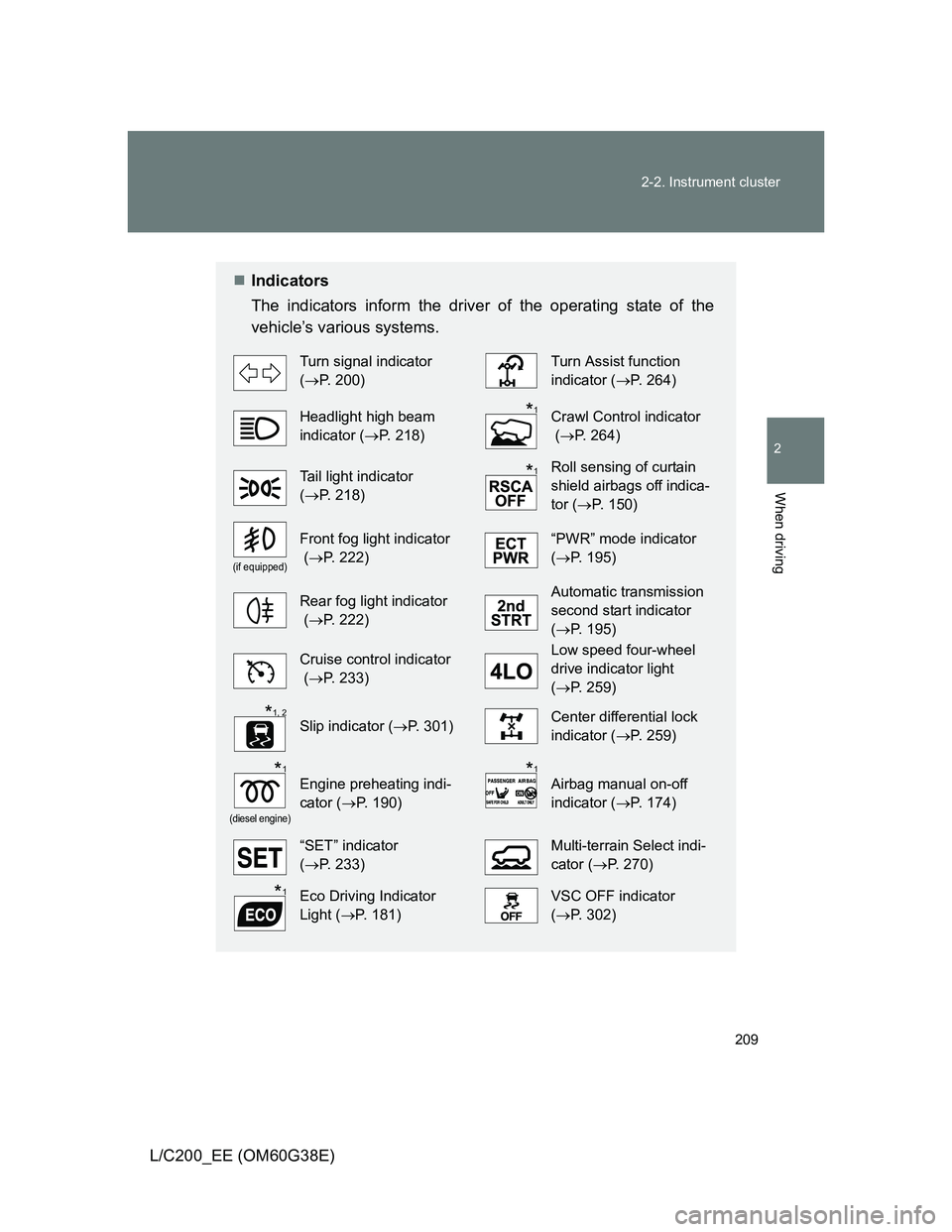

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 200)Turn Assist function
indicator (P. 264)
Headlight high beam
indicator (P. 218)Crawl Control indicator
(P. 264)
Tail light indicator
(P. 218) Roll sensing of curtain
shield airbags off indica-
tor (P. 150)
(if equipped)
Front fog light indicator
(P. 222)“PWR” mode indicator
(P. 195)
Rear fog light indicator
(P. 222)Automatic transmission
second start indicator
(P. 195)
Cruise control indicator
(P. 233)Low speed four-wheel
drive indicator light
(P. 259)
Slip indicator (P. 301)Center differential lock
indicator (P. 259)
(diesel engine)
Engine preheating indi-
cator (P. 190)Airbag manual on-off
indicator (P. 174)
“SET” indicator
(P. 233)Multi-terrain Select indi-
cator (P. 270)
Eco Driving Indicator
Light (P. 181)VSC OFF indicator
(P. 302)
*1
*1
*1, 2
*1*1
*1

210 2-2. Instrument cluster
L/C200_EE (OM60G38E)
*1: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
*2: The light flashes to indicate that the system is operating.

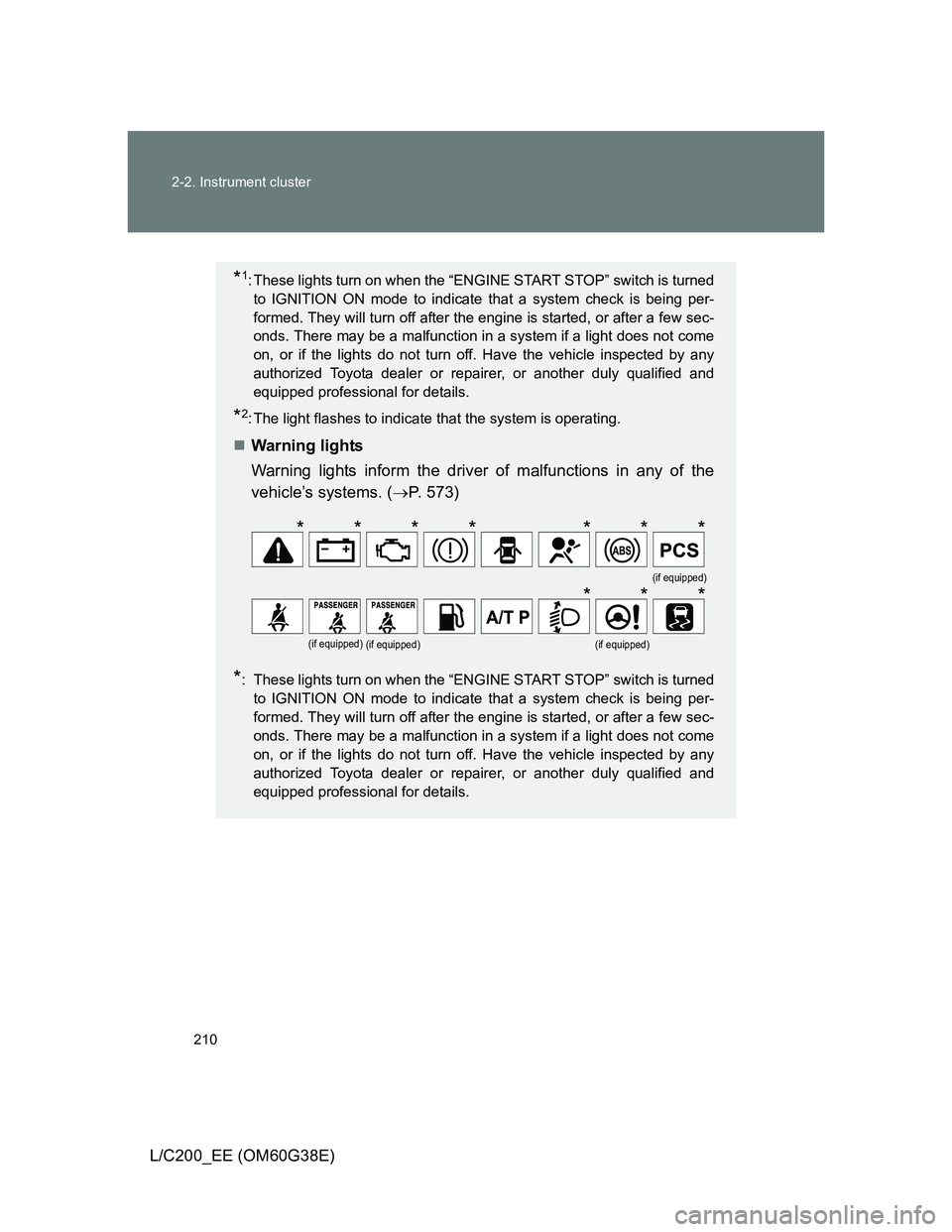

Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 573)
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
(if equipped)
(if equipped)(if equipped)(if equipped)
*******
***
