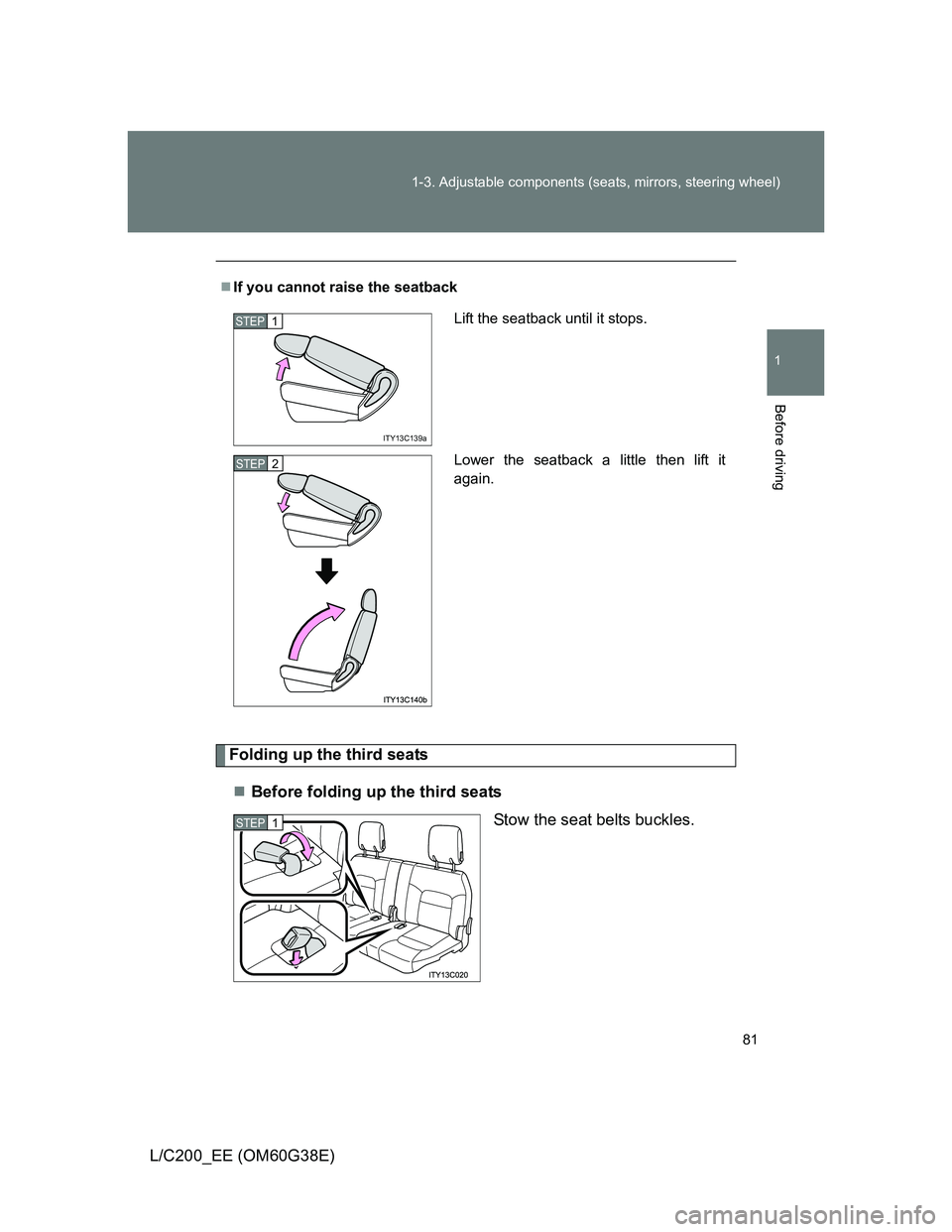

81 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
L/C200_EE (OM60G38E)
Folding up the third seats
Before folding up the third seats
Stow the seat belts buckles.
If you cannot raise the seatback
Lift the seatback until it stops.
Lower the seatback a little then lift it
again.
ITY13C139a
STEP1
STEP2
STEP1

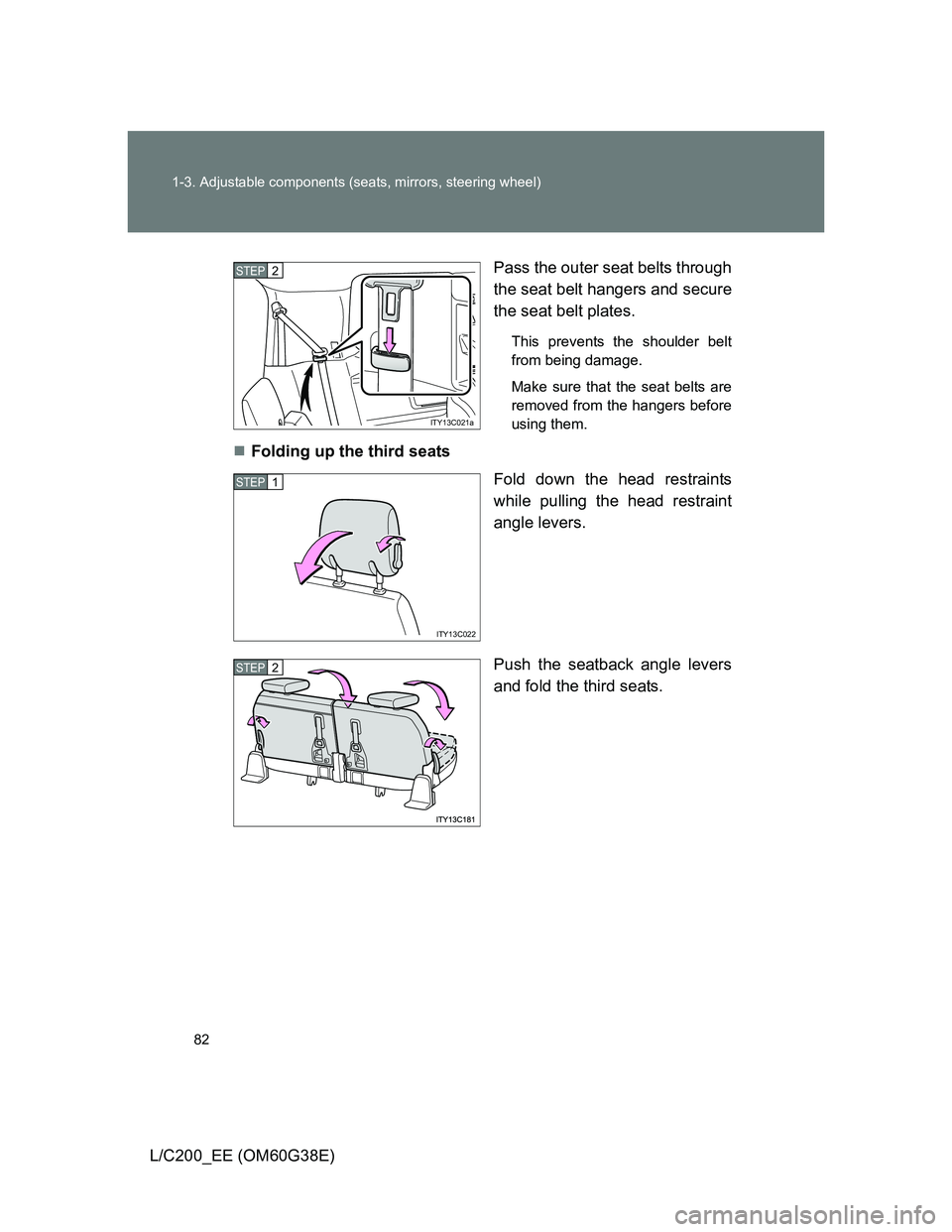

82 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_EE (OM60G38E)Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.
This prevents the shoulder belt
from being damage.
Make sure that the seat belts are
removed from the hangers before
using them.
Folding up the third seats
Fold down the head restraints
while pulling the head restraint
angle levers.
Push the seatback angle levers
and fold the third seats.
ITY13C021a
STEP2
ITY13C022
STEP1
STEP2

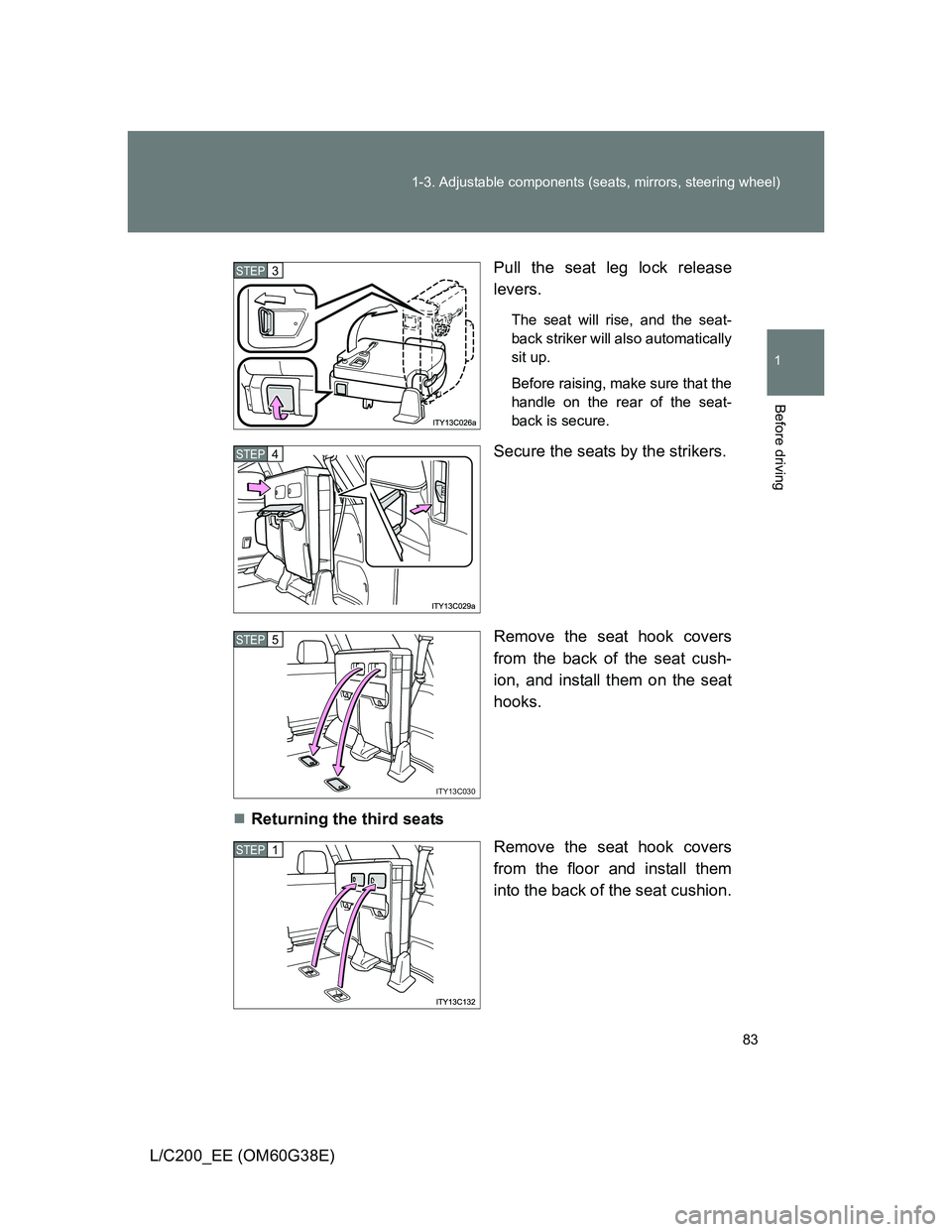

83 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
L/C200_EE (OM60G38E)Pull the seat leg lock release
levers.
The seat will rise, and the seat-
back striker will also automatically
sit up.
Before raising, make sure that the
handle on the rear of the seat-
back is secure.
Secure the seats by the strikers.
Remove the seat hook covers
from the back of the seat cush-
ion, and install them on the seat
hooks.
Returning the third seats
Remove the seat hook covers
from the floor and install them
into the back of the seat cushion.
STEP3
STEP4
ITY13C030
STEP5
STEP1

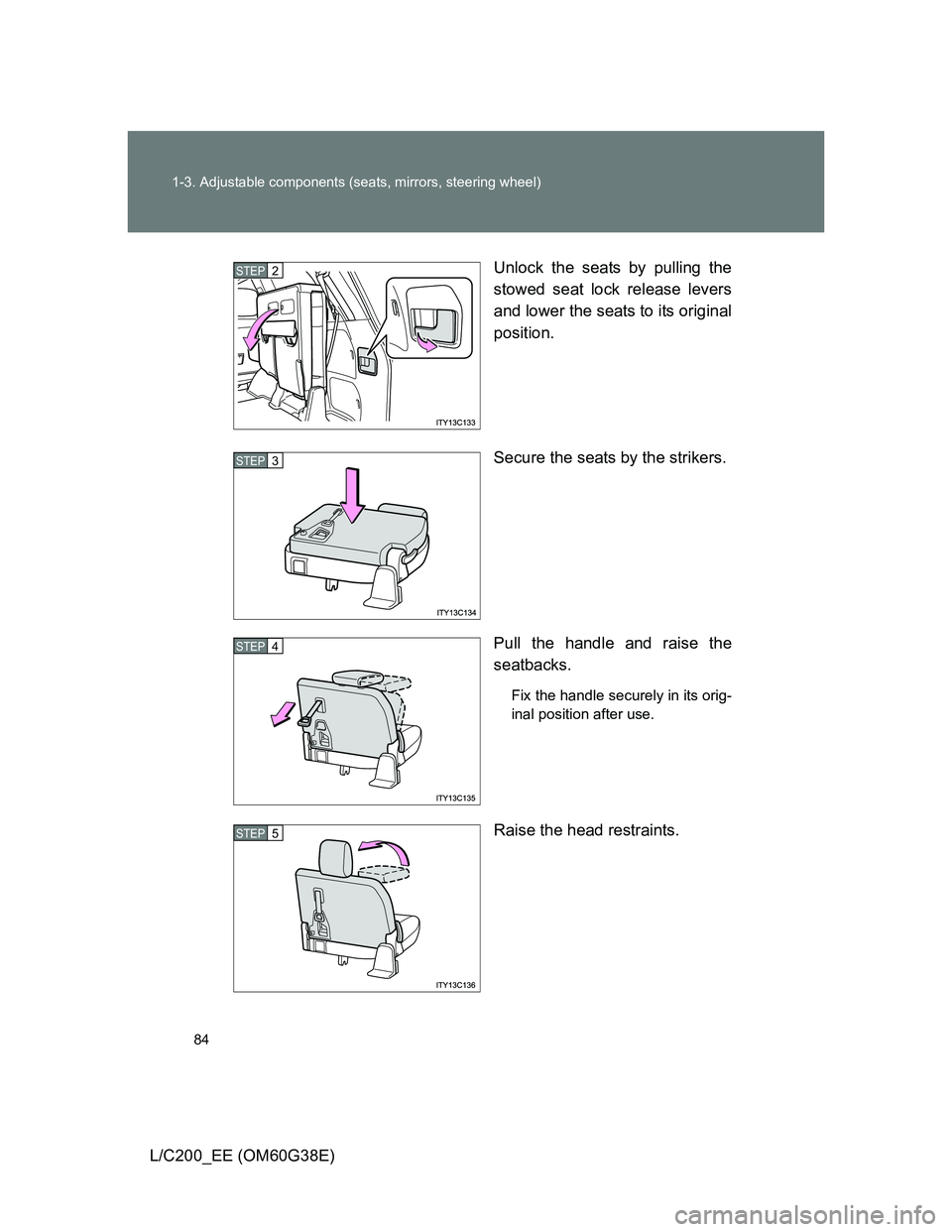

84 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_EE (OM60G38E)Unlock the seats by pulling the
stowed seat lock release levers
and lower the seats to its original
position.
Secure the seats by the strikers.
Pull the handle and raise the
seatbacks.
Fix the handle securely in its orig-
inal position after use.
Raise the head restraints.
STEP2
STEP3
STEP4
STEP5

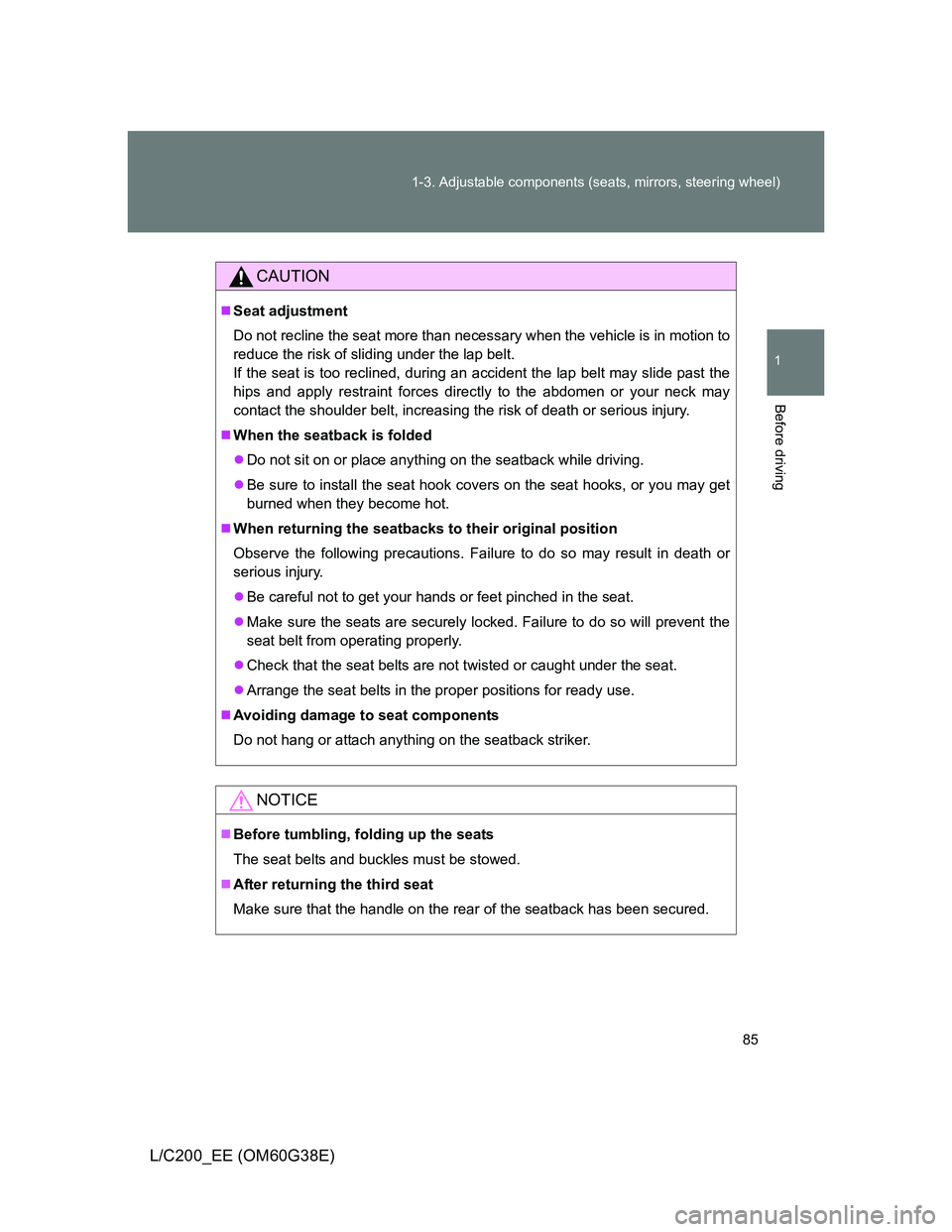

85 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
L/C200_EE (OM60G38E)
CAUTION
Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion to
reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
When the seatback is folded
Do not sit on or place anything on the seatback while driving.
Be sure to install the seat hook covers on the seat hooks, or you may get
burned when they become hot.
When returning the seatbacks to their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Be careful not to get your hands or feet pinched in the seat.
Make sure the seats are securely locked. Failure to do so will prevent the
seat belt from operating properly.
Check that the seat belts are not twisted or caught under the seat.
Arrange the seat belts in the proper positions for ready use.
Avoiding damage to seat components
Do not hang or attach anything on the seatback striker.
NOTICE
Before tumbling, folding up the seats
The seat belts and buckles must be stowed.
After returning the third seat
Make sure that the handle on the rear of the seatback has been secured.

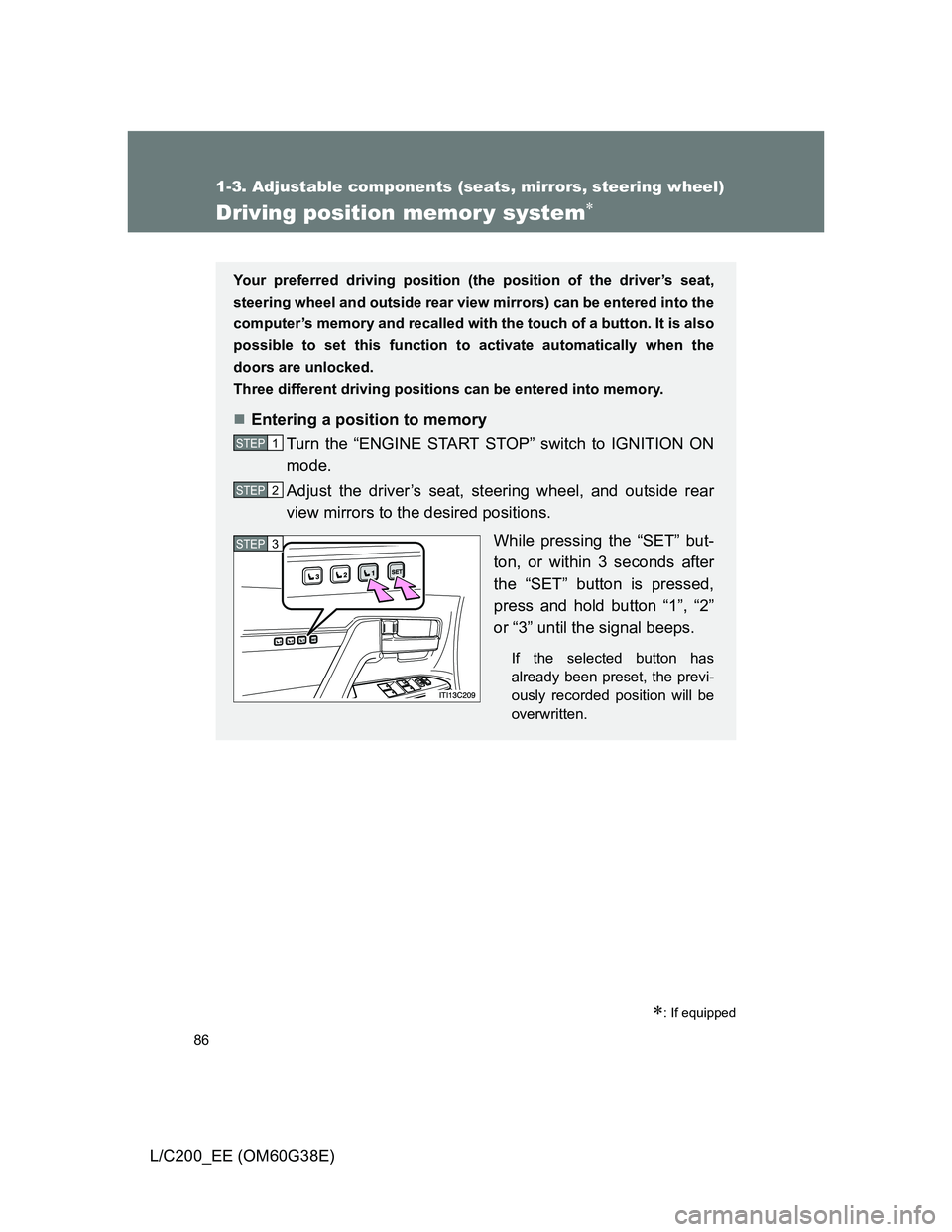

86
1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_EE (OM60G38E)
Driving position memor y system
: If equipped
Your preferred driving position (the position of the driver’s seat,
steering wheel and outside rear view mirrors) can be entered into the
computer’s memory and recalled with the touch of a button. It is also
possible to set this function to activate automatically when the
doors are unlocked.
Three different driving positions can be entered into memory.
Entering a position to memory
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear
view mirrors to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press and hold button “1”, “2”
or “3” until the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3

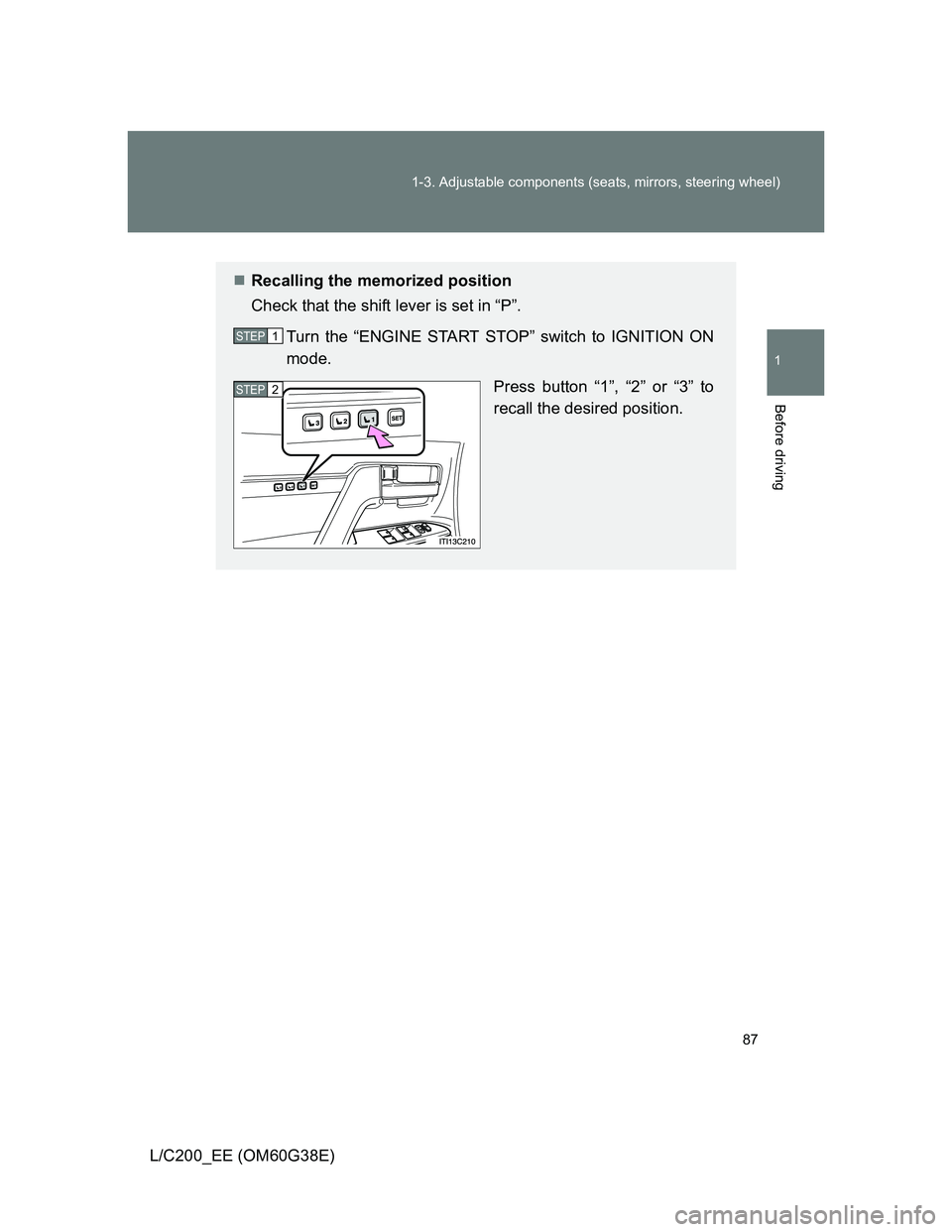

87 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
L/C200_EE (OM60G38E)
Recalling the memorized position
Check that the shift lever is set in “P”.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Press button “1”, “2” or “3” to
recall the desired position.
STEP1
STEP2

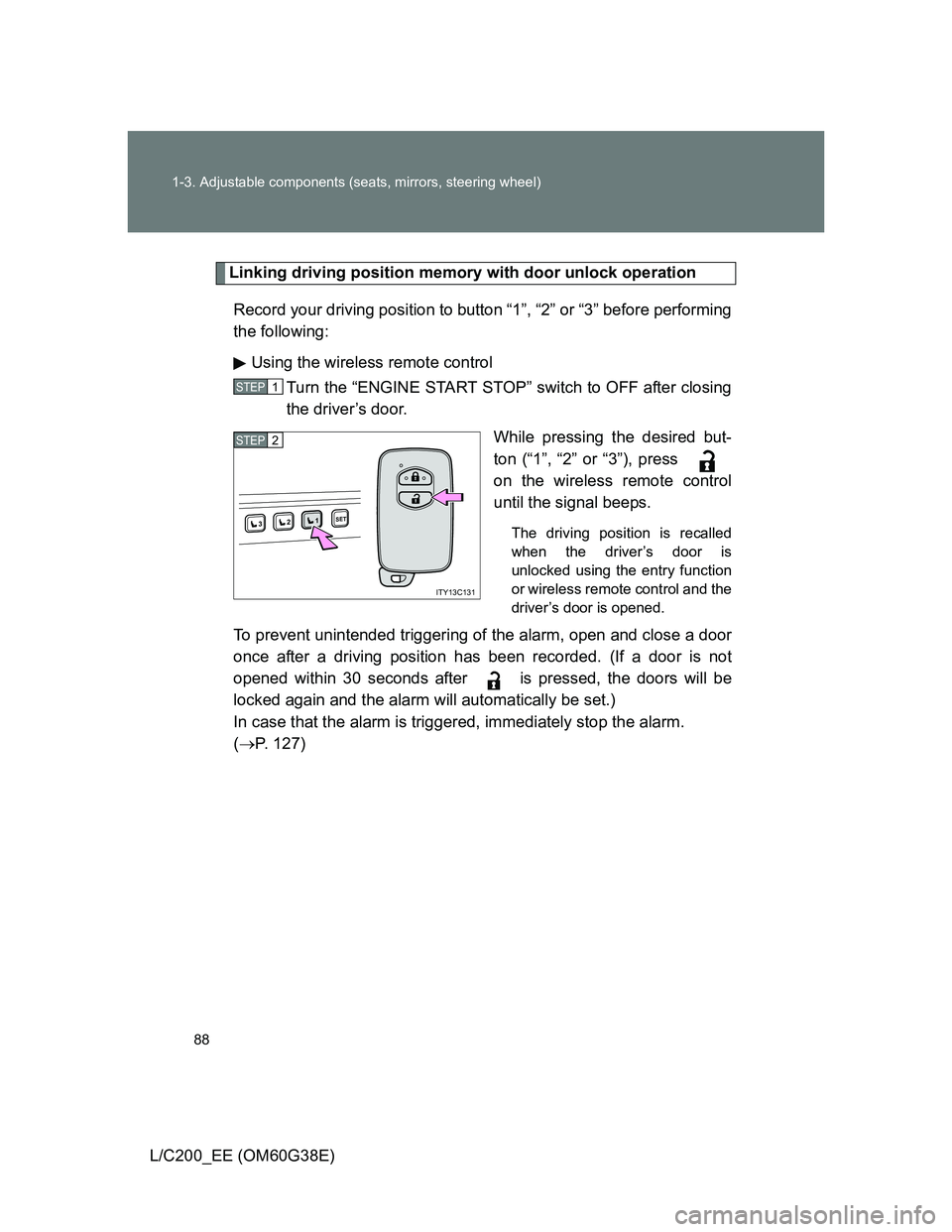

88 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_EE (OM60G38E)
’
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following:
Using the wireless remote control
Turn the “ENGINE START STOP” switch to OFF after closing
the driver’s door.
While pressing the desired but-
ton (“1”, “2” or “3”), press
on the wireless remote control
until the signal beeps.
The driving position is recalled
when the driver’s door is
unlocked using the entry function
or wireless remote control and the
driver’s door is opened.
To prevent unintended triggering of the alarm, open and close a door
once after a driving position has been recorded. (If a door is not
opened within 30 seconds after is pressed, the doors will be
locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm.
(P. 127)
STEP1
1SET23
ITY13C131
STEP2

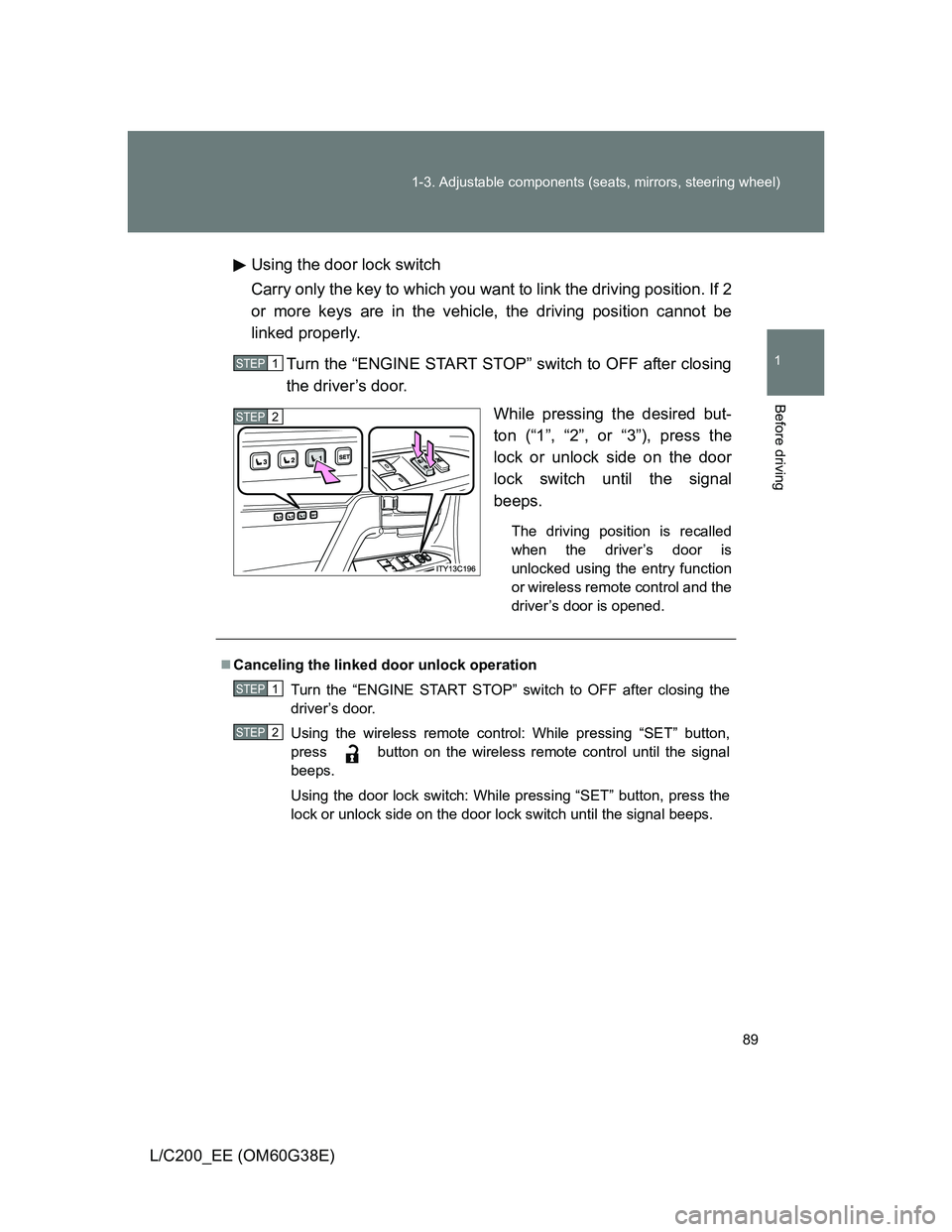

89 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
L/C200_EE (OM60G38E)Using the door lock switch
Carry only the key to which you want to link the driving position. If 2
or more keys are in the vehicle, the driving position cannot be
linked properly.
Turn the “ENGINE START STOP” switch to OFF after closing
the driver’s door.
While pressing the desired but-
ton (“1”, “2”, or “3”), press the
lock or unlock side on the door
lock switch until the signal
beeps.
The driving position is recalled
when the driver’s door is
unlocked using the entry function
or wireless remote control and the
driver’s door is opened.
STEP1
STEP2
Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch to OFF after closing the
driver’s door.
Using the wireless remote control: While pressing “SET” button,
press button on the wireless remote control until the signal
beeps.
Using the door lock switch: While pressing “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
STEP1
STEP2

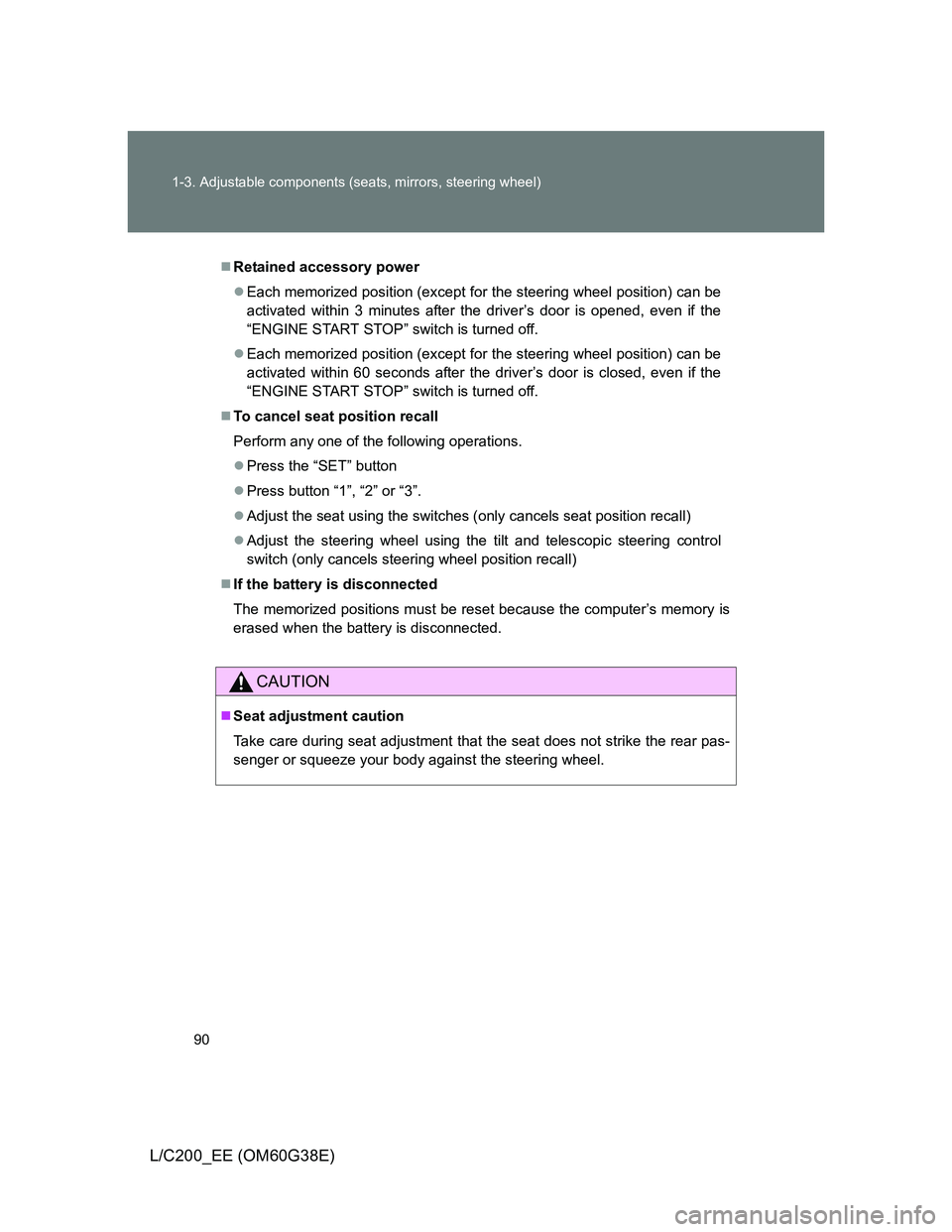

90 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_EE (OM60G38E)
Retained accessory power
Each memorized position (except for the steering wheel position) can be
activated within 3 minutes after the driver’s door is opened, even if the
“ENGINE START STOP” switch is turned off.
Each memorized position (except for the steering wheel position) can be
activated within 60 seconds after the driver’s door is closed, even if the
“ENGINE START STOP” switch is turned off.
To cancel seat position recall
Perform any one of the following operations.
Press the “SET” button
Press button “1”, “2” or “3”.
Adjust the seat using the switches (only cancels seat position recall)
Adjust the steering wheel using the tilt and telescopic steering control
switch (only cancels steering wheel position recall)
If the battery is disconnected
The memorized positions must be reset because the computer’s memory is
erased when the battery is disconnected.
CAUTION
Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear pas-
senger or squeeze your body against the steering wheel.
