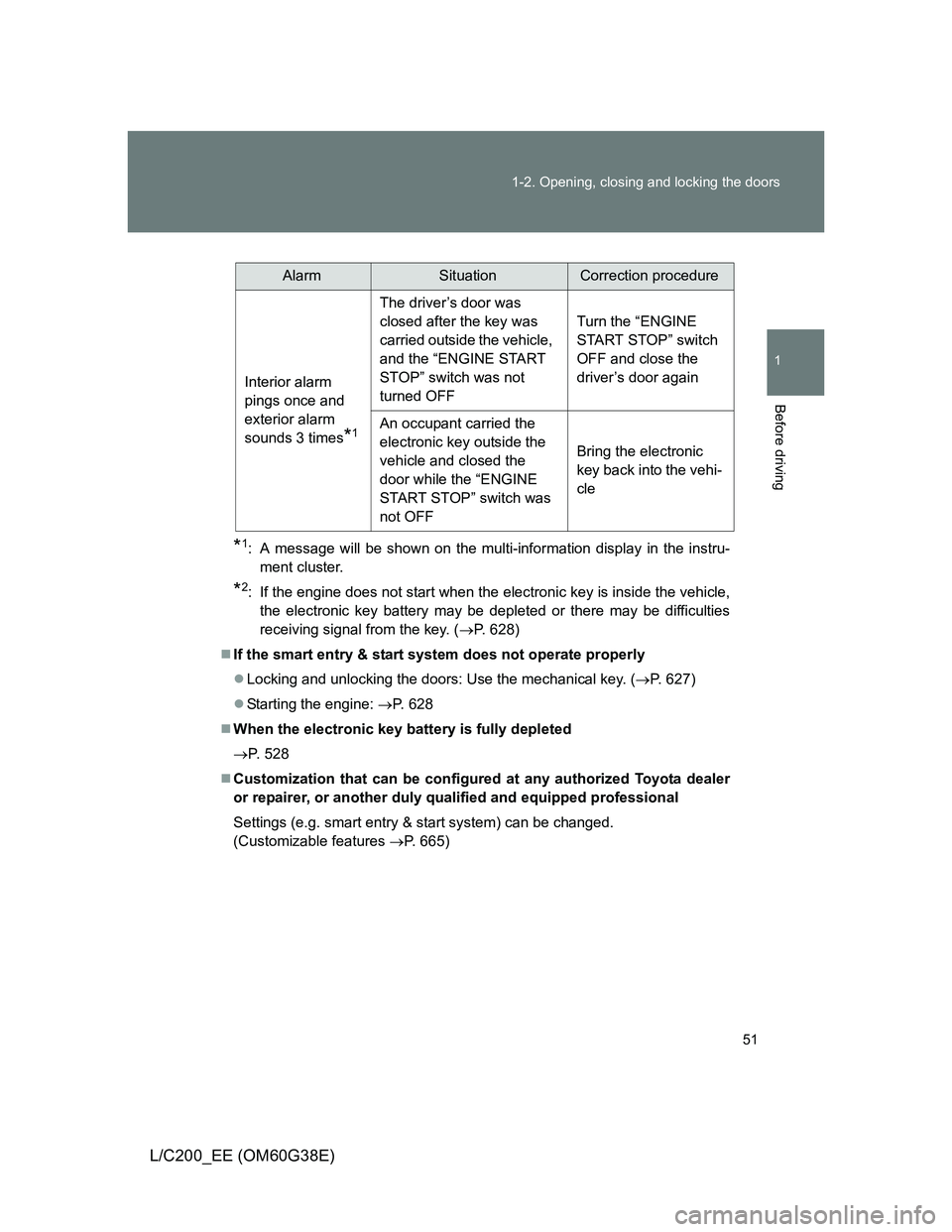

51 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)
*1: A message will be shown on the multi-information display in the instru-
ment cluster.
*2: If the engine does not start when the electronic key is inside the vehicle,
the electronic key battery may be depleted or there may be difficulties
receiving signal from the key. (P. 628)
If the smart entry & start system does not operate properly
Locking and unlocking the doors: Use the mechanical key. (P. 627)
Starting the engine: P. 628
When the electronic key battery is fully depleted
P. 528
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. smart entry & start system) can be changed.
(Customizable features P. 665)
AlarmSituationCorrection procedure
Interior alarm
pings once and
exterior alarm
sounds 3 times
*1
The driver’s door was
closed after the key was
carried outside the vehicle,
and the “ENGINE START
STOP” switch was not
turned OFFTurn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the
door while the “ENGINE
START STOP” switch was
not OFFBring the electronic
key back into the vehi-
cle

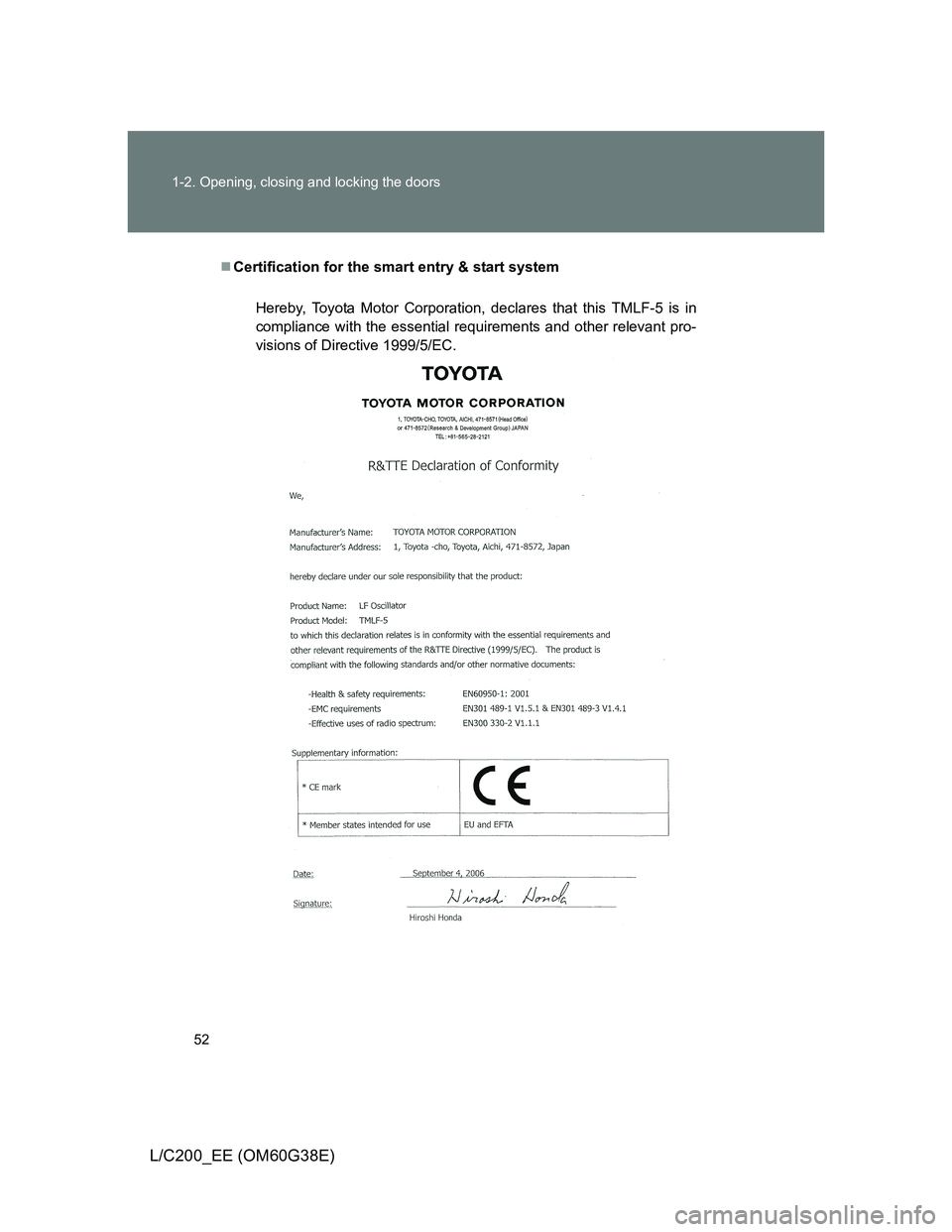

52 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)
Certification for the smart entry & start system
Hereby, Toyota Motor Corporation, declares that this TMLF-5 is in
compliance with the essential requirements and other relevant pro-
visions of Directive 1999/5/EC.

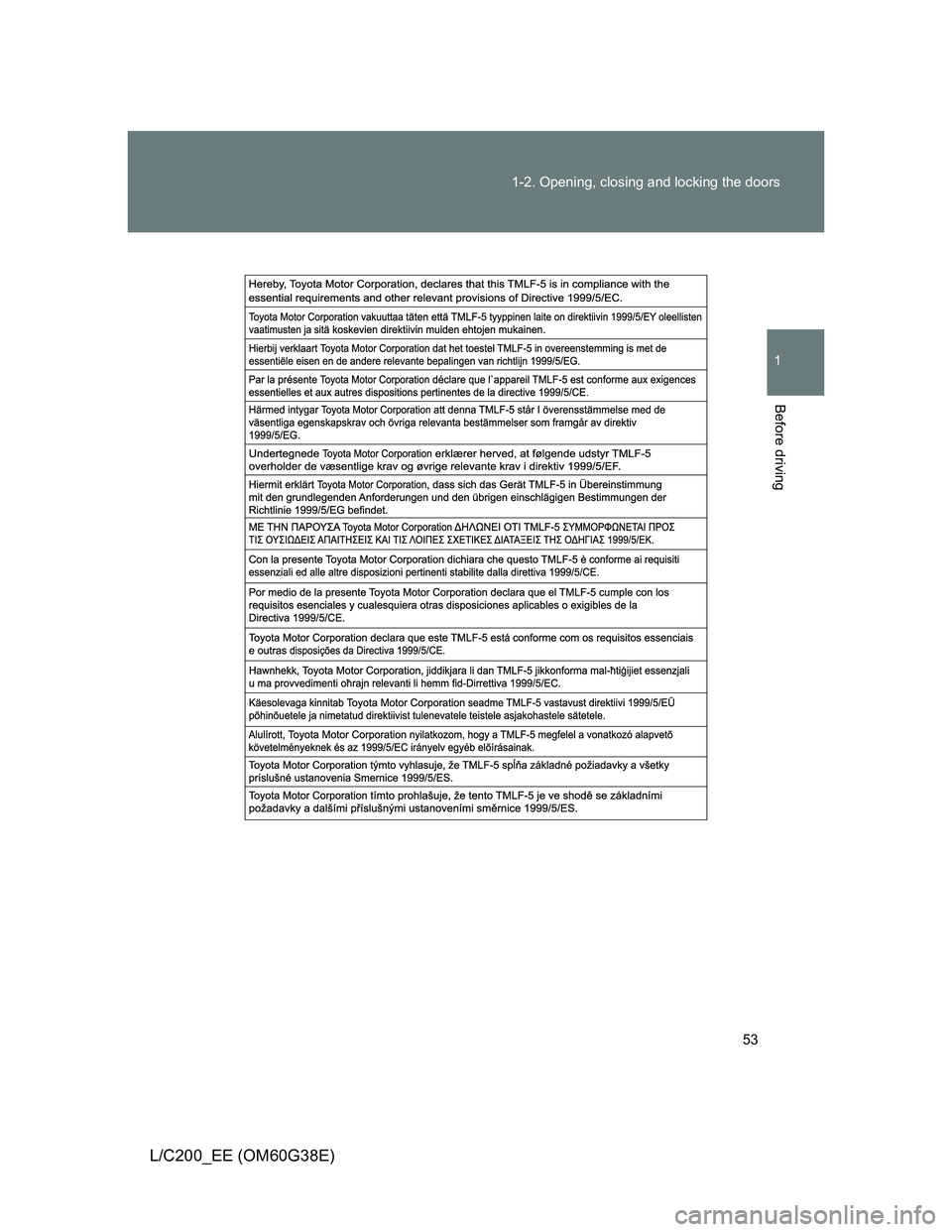

53 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)

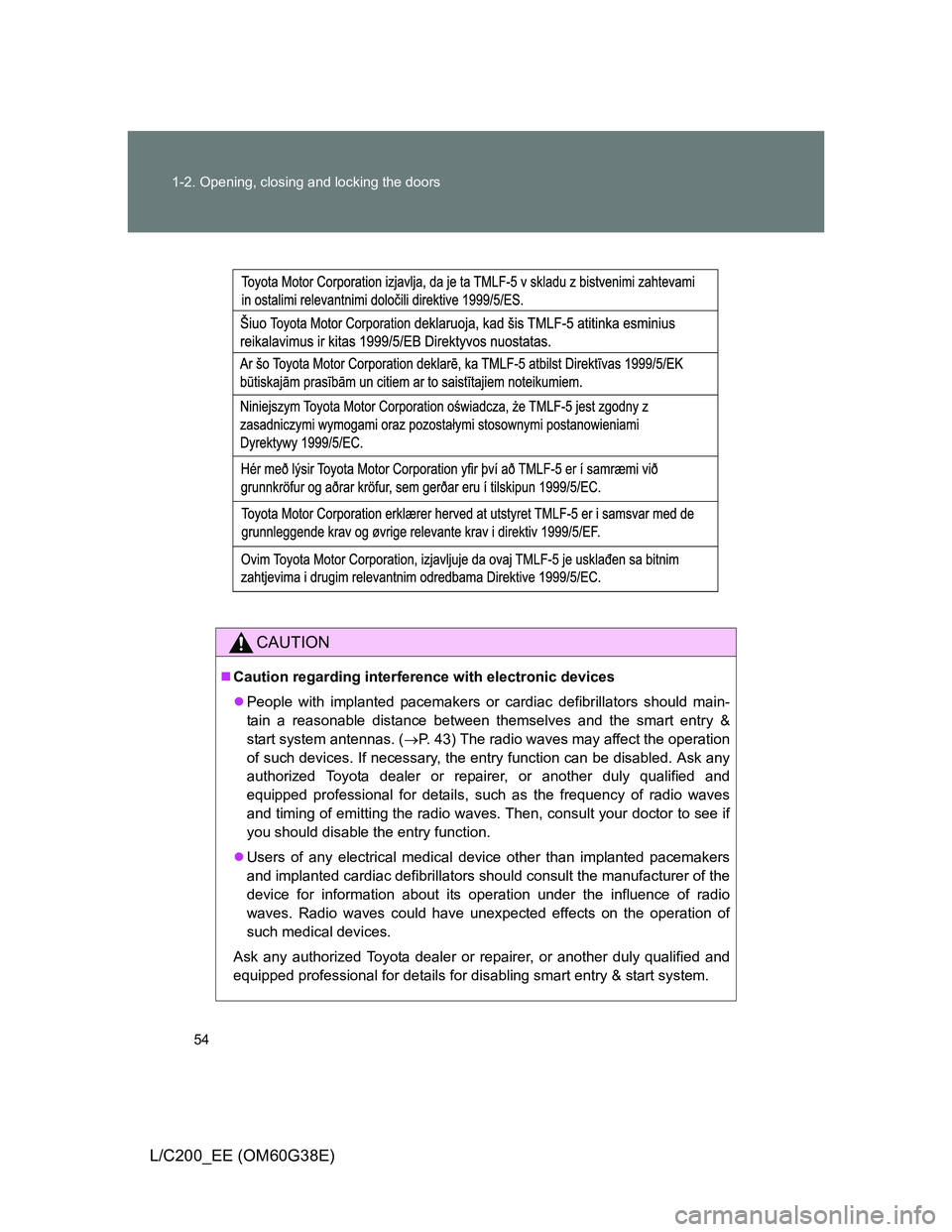

54 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)
CAUTION
Caution regarding interference with electronic devices
People with implanted pacemakers or cardiac defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. (P. 43) The radio waves may affect the operation
of such devices. If necessary, the entry function can be disabled. Ask any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details, such as the frequency of radio waves
and timing of emitting the radio waves. Then, consult your doctor to see if
you should disable the entry function.
Users of any electrical medical device other than implanted pacemakers
and implanted cardiac defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of
such medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details for disabling smart entry & start system.

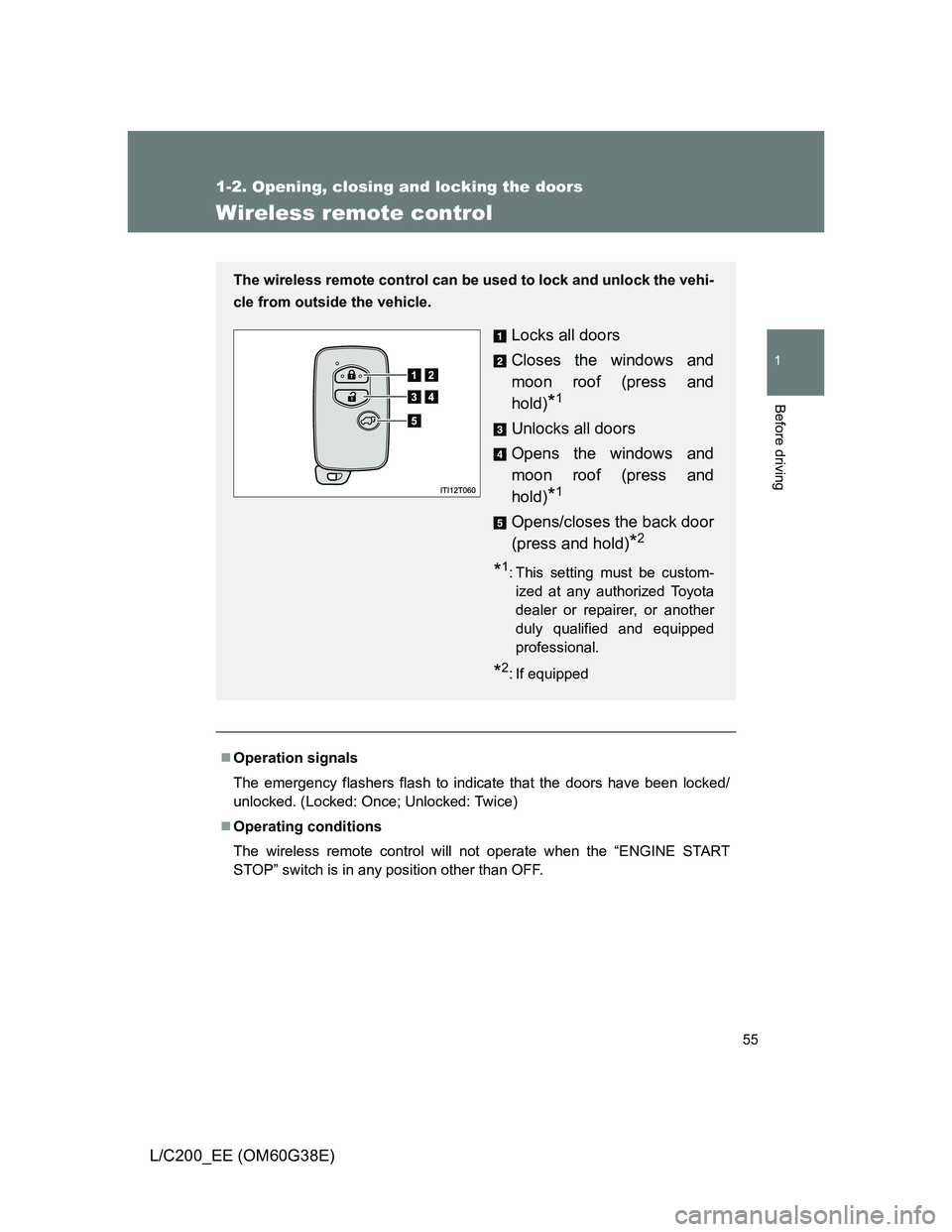

55
1
1-2. Opening, closing and locking the doors
Before driving
L/C200_EE (OM60G38E)
Wireless remote control
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Operating conditions
The wireless remote control will not operate when the “ENGINE START
STOP” switch is in any position other than OFF.
The wireless remote control can be used to lock and unlock the vehi-
cle from outside the vehicle.
Locks all doors
Closes the windows and
moon roof (press and
hold)
*1
Unlocks all doors
Opens the windows and
moon roof (press and
hold)
*1
Opens/closes the back door
(press and hold)
*2
*1: This setting must be custom-
ized at any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
*2: If equipped

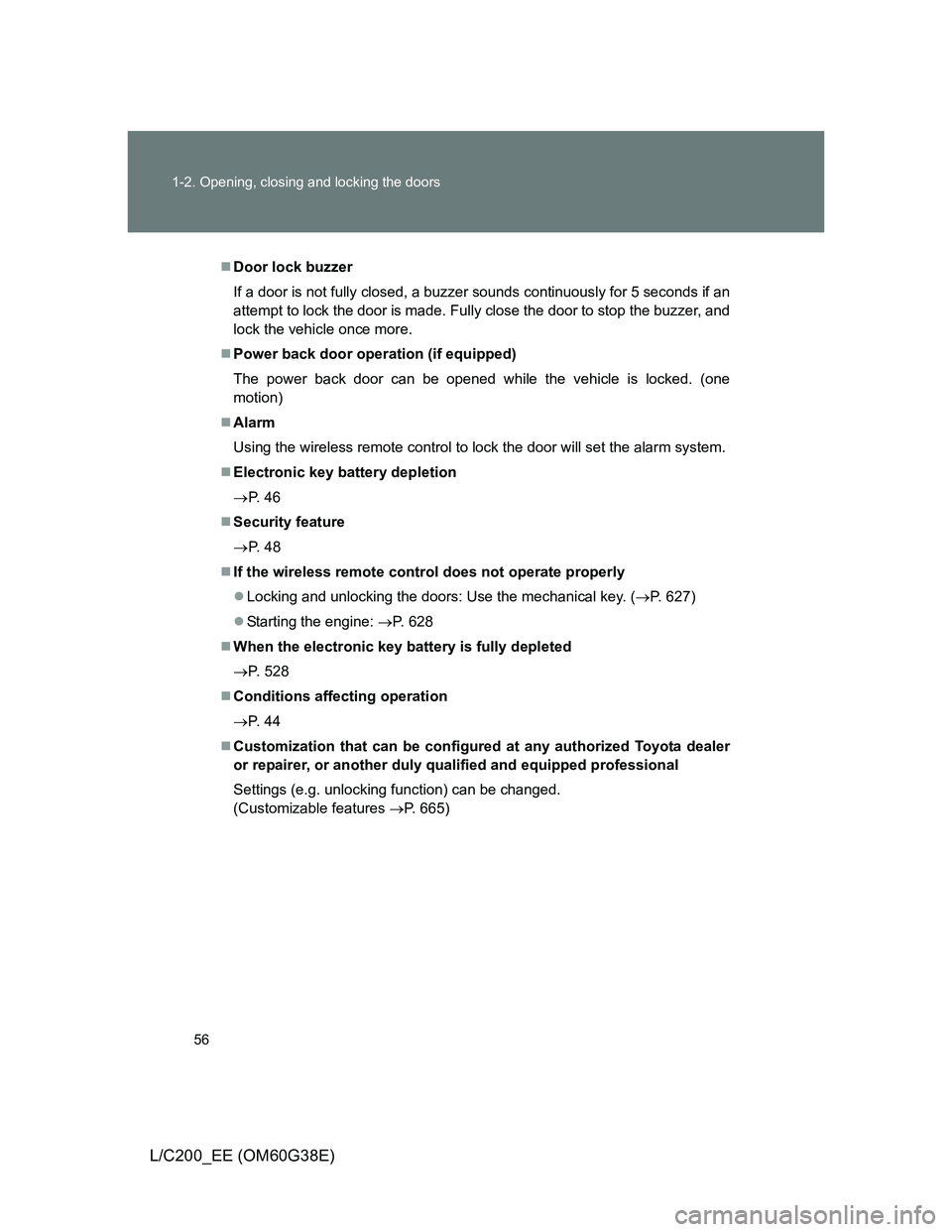

56 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)
Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously for 5 seconds if an
attempt to lock the door is made. Fully close the door to stop the buzzer, and
lock the vehicle once more.
Power back door operation (if equipped)
The power back door can be opened while the vehicle is locked. (one
motion)
Alarm
Using the wireless remote control to lock the door will set the alarm system.
Electronic key battery depletion
P. 4 6
Security feature
P. 4 8
If the wireless remote control does not operate properly
Locking and unlocking the doors: Use the mechanical key. (P. 627)
Starting the engine: P. 628
When the electronic key battery is fully depleted
P. 528
Conditions affecting operation
P. 4 4
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. unlocking function) can be changed.
(Customizable features P. 665)

57 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)
Certification for wireless remote control
Hereby, Tokai Rika Co., Ltd., declares that this B77EA is in compli-
ance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.

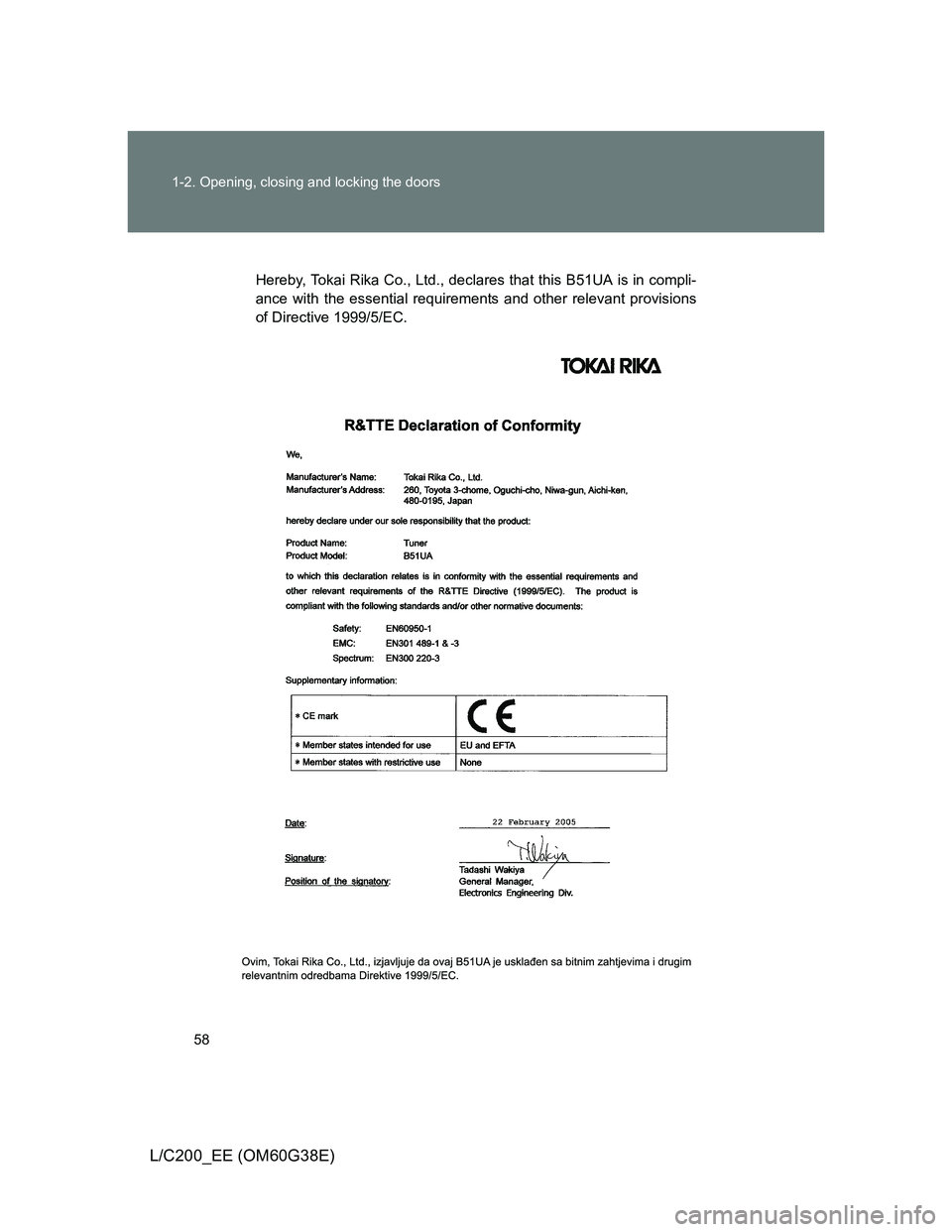

58 1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)
Hereby, Tokai Rika Co., Ltd., declares that this B51UA is in compli-
ance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.

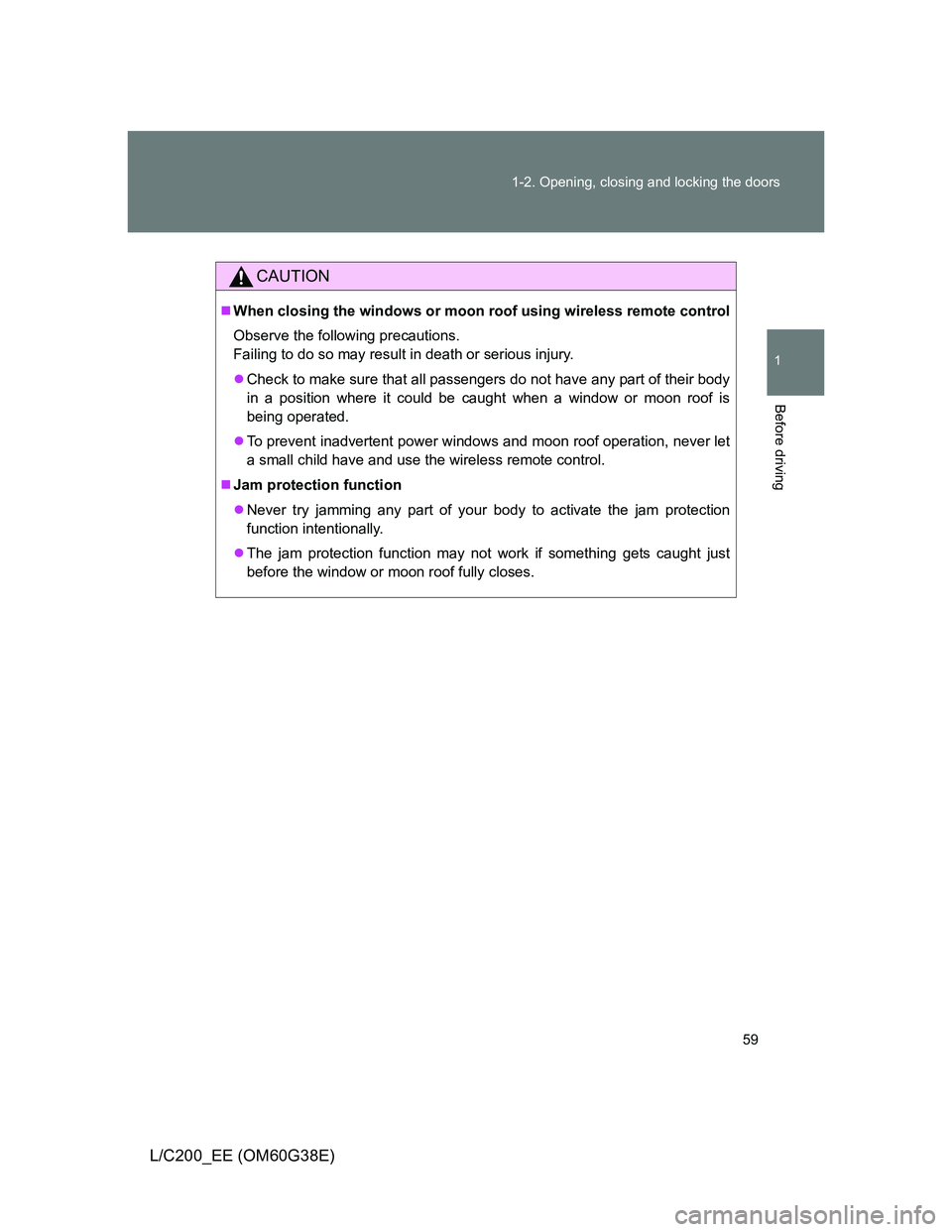

59 1-2. Opening, closing and locking the doors
1
Before driving
L/C200_EE (OM60G38E)
CAUTION
When closing the windows or moon roof using wireless remote control
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window or moon roof is
being operated.
To prevent inadvertent power windows and moon roof operation, never let
a small child have and use the wireless remote control.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the window or moon roof fully closes.

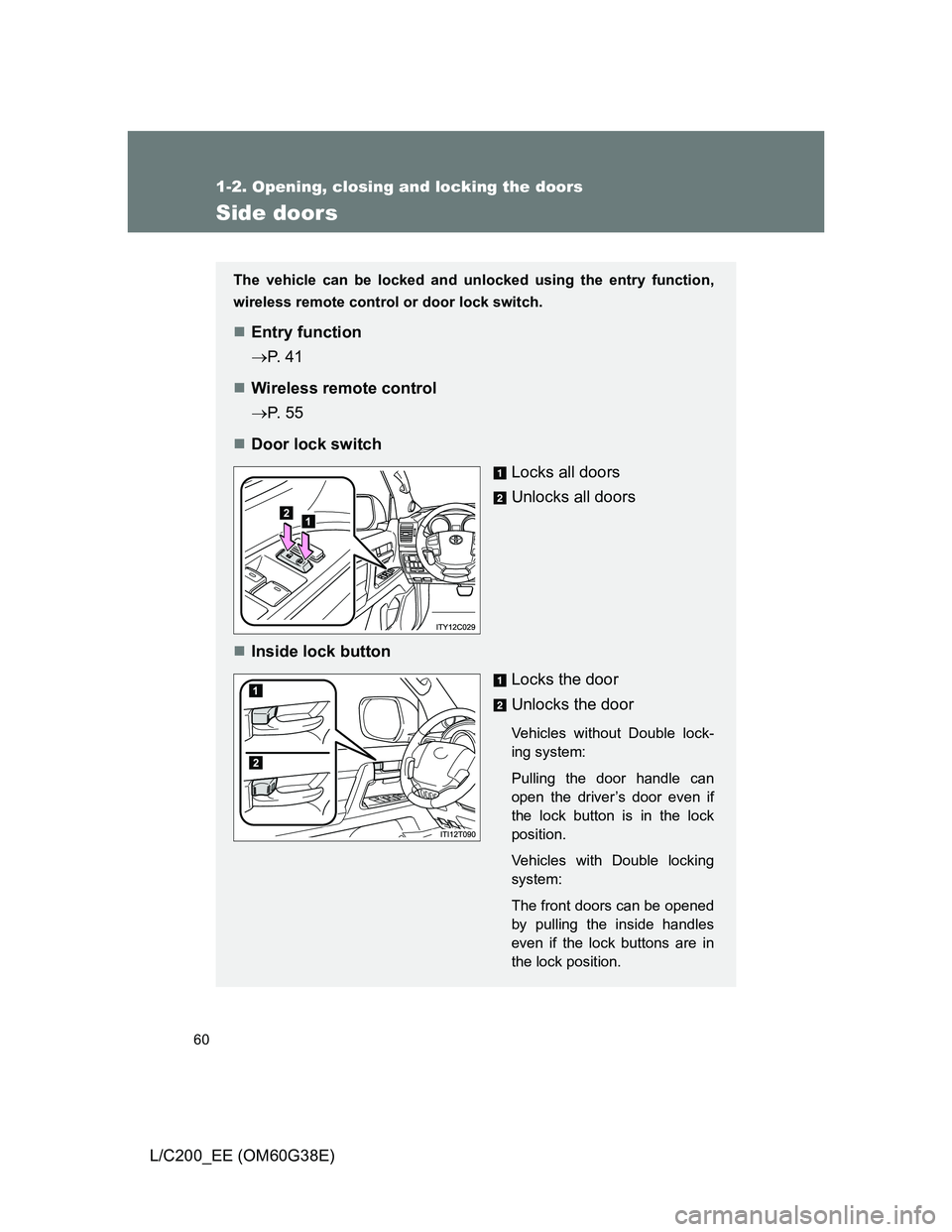

60
1-2. Opening, closing and locking the doors
L/C200_EE (OM60G38E)
Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
Entry function
P. 4 1
Wireless remote control
P. 5 5
Door lock switch
Locks all doors
Unlocks all doors
Inside lock button
Locks the door
Unlocks the door
Vehicles without Double lock-
ing system:
Pulling the door handle can
open the driver’s door even if
the lock button is in the lock
position.
Vehicles with Double locking
system:
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.
