TOYOTA LAND CRUISER 2015 J200 Owners Manual

351
3-1. Using the air conditioning system and defogger
3
Interior features
LC200_OM_OM60L83U_(U)
Rear air conditioning system
Using the automatic modePress .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “ ” to decrease the
temperature on .
The temperature for the right-hand and left-hand rear seats can be
set separately.
■ Automatic mode indicator
If the fan speed or air flow modes are operated, the automatic
mode indicator goes off. Howeve r, automatic mode for functions
other than that operated are maintained.
Airflow and outlets are automatica lly adjusted according to the tem-
perature setting.
Left side temperature control Left side temperature setting display Fan speed display Airflow display
Right side temperature setting displayRight side temperature control
Off
Changes
the air
outlets used
Fan speed
Automatic mode
STEP1
STEP2

352 3-1. Using the air conditioning system and defogger
LC200_OM_OM60L83U_(U)
Adjusting the settings
■ Adjusting the temperature setting
Press “ ” to increase the temperature and “ ” to decrease the tem-
perature on .
The temperature for the right-hand and left-hand rear seats can be
set separately.
■ Adjusting the fan speed
Press “ ” (increase) or “” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.

353
3-1. Using the air conditioning system
and defogger
3
Interior features
LC200_OM_OM60L83U_(U)■
Changing the air outlets
Press .
The air outlets switch each time the button is pressed.
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
ITY31C020

354 3-1. Using the air conditioning system and defogger
LC200_OM_OM60L83U_(U)
Adjusting the position and openi ng and closing the air outlets
Direct air flow to the left or
right, up or down.
Turn the knob fully to the back
of the vehicle to close the
vent.
ITY31C035
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

355
3-1. Using the air conditioning system and defogger
3
Interior features
LC200_OM_OM60L83U_(U)
Rear window and outside rear view mirror defoggers
■The rear window and outside rear vi ew mirror defoggers can be oper-
ated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■ When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
These features are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors.
With navigation system
On/off
The operation time changes
according to the ambient tem-
perature and vehicle speed.
Pressing the switch again also
turns the defoggers off.
Without navigation system

356
3-1. Using the air conditioning system and defogger
LC200_OM_OM60L83U_(U)
Windshield wiper de-icer
: If equipped
■The windshield wiper de-icer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or the side of the
front pillars as the surfaces can become very hot and burn you.
This feature is used to prevent i ce from building up on the wind-
shield and wiper blades.
With navigation system
On/off
The windshield wiper de-icer
will automatically turn off after
approximately 15 minutes.
Pressing the switch again also
turns the de-icer off.
Without navigation system

357
3
Interior features
LC200_OM_OM60L83U_(U)
3-2. Using the audio system

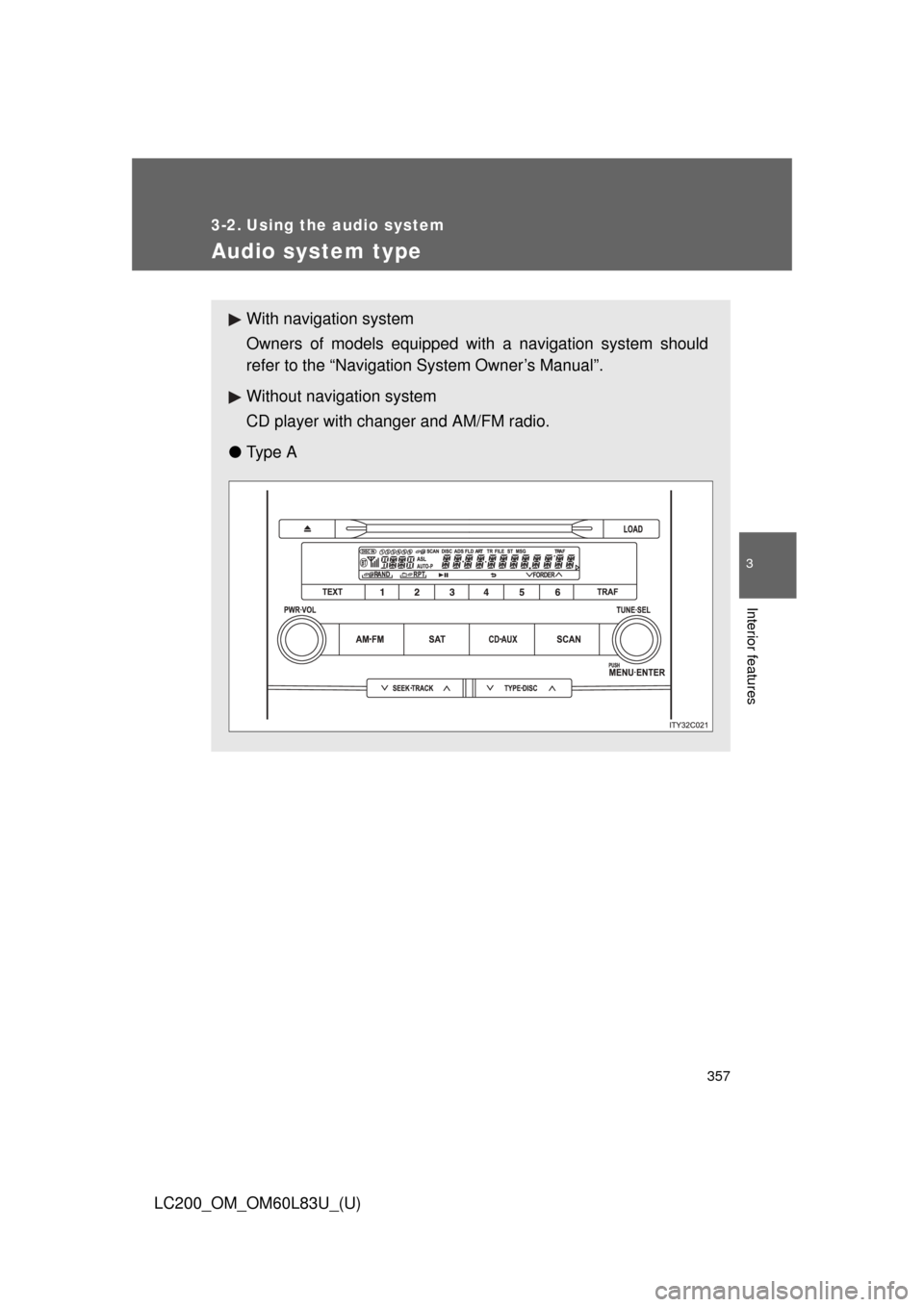

Audio system type
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
CD player with changer and AM/FM radio.
● Ty p e A

358 3-2. Using the audio system
LC200_OM_OM60L83U_(U)

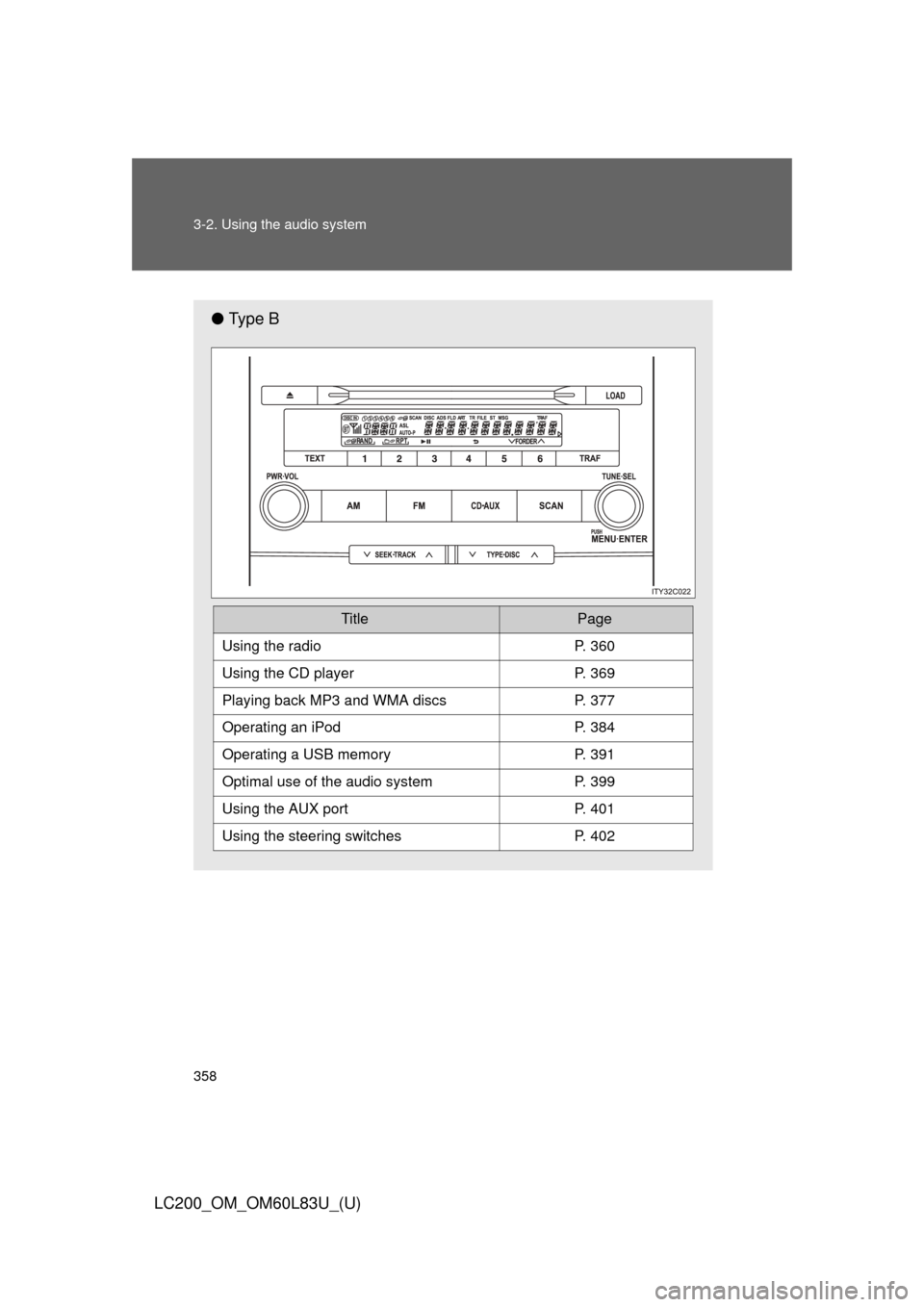

●Ty p e B

TitlePage
Using the radioP. 360
Using the CD playerP. 369
Playing back MP3 and WMA discs P. 377
Operating an iPodP. 384
Operating a USB memoryP. 391
Optimal use of the audio systemP. 399
Using the AUX portP. 401
Using the steering switchesP. 402

359
3-2. Using the audio system
3
Interior features
LC200_OM_OM60L83U_(U)
■
Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio syste\
m is
operating.
CAUTION
■For vehicles sold in the U.S.A.
●Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user’s authority to operate this device.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas-
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine o\
ff.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

360
3-2. Using the audio system
LC200_OM_OM60L83U_(U)

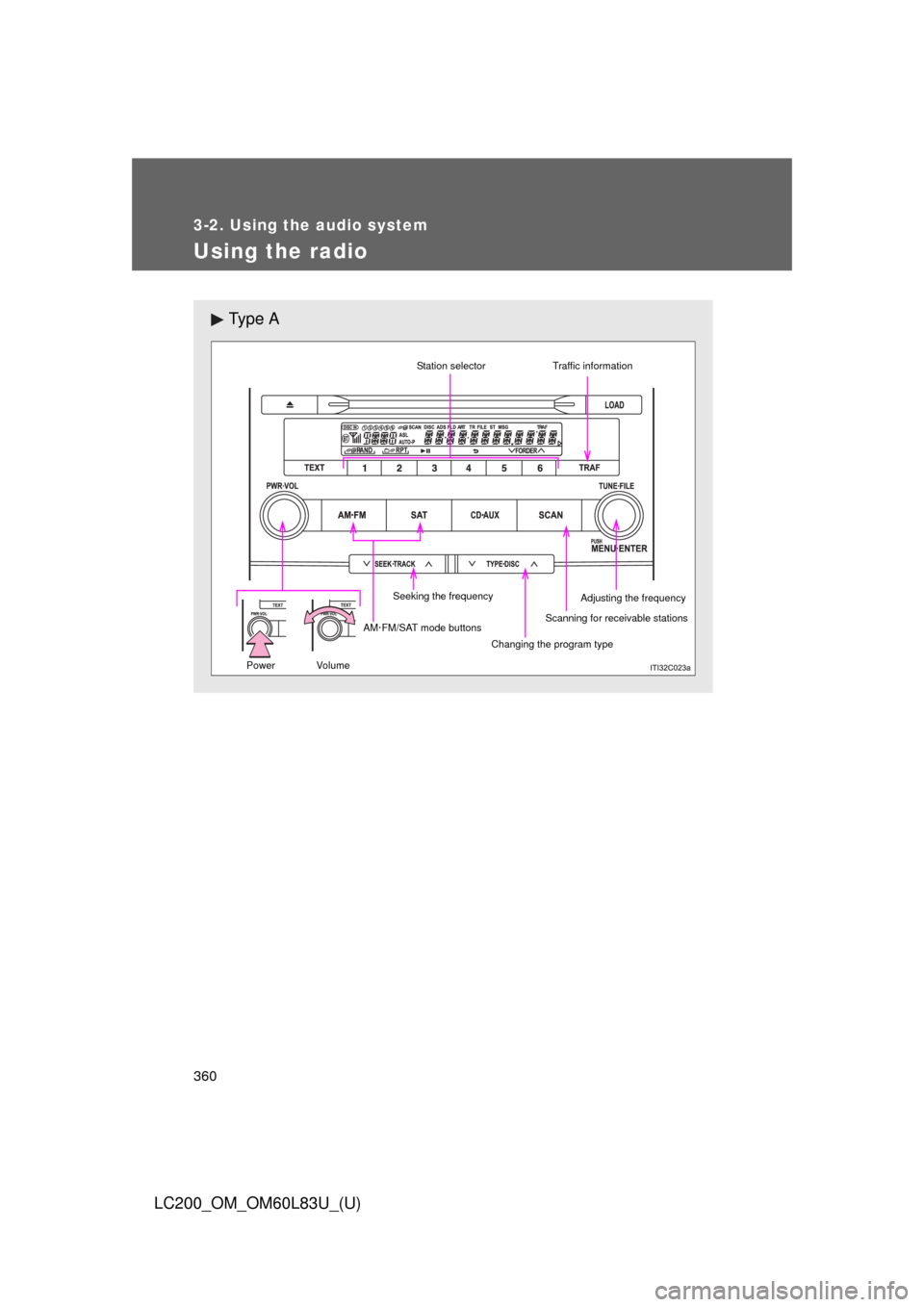

Using the radio
Ty p e A

Scanning for receivable stations
Seeking the frequency Station selector
AM·FM/SAT mode buttons Changing the program typeAdjusting the frequency
Power Volume
Traffic information
