TOYOTA LAND CRUISER 2015 J200 Owners Manual

481
3-7. Other interior features
3
Interior features
LC200_OM_OM60L83U_(U)
Sun visors
Main sun visorForward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side extender:
Place in side position, then
slide backwards.
Sub-sun visor
Flip down with the main sun
visor in position or .

482
3-7. Other interior features
LC200_OM_OM60L83U_(U)
Vanity mirror
NOTICE
■To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off.
Slide the cover.
The light turns on when the
cover is opened.

483
3-7. Other interior features
3
Interior features
LC200_OM_OM60L83U_(U)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■ When the battery is disconnected
The time display will automatically be set to 1:00.
With navigation system
Refer to “Navigation System Owner’s Manual”.
Without navig ation system
The clock can be adjusted by pressing the buttons.
Adjust hours.
Adjust minutes.
Round the nearest hour.
*
*
:e.g. 1:00 to 1:29 1:00
1:30 to 1:59 2:00
2
1
3

484
3-7. Other interior features
LC200_OM_OM60L83U_(U)

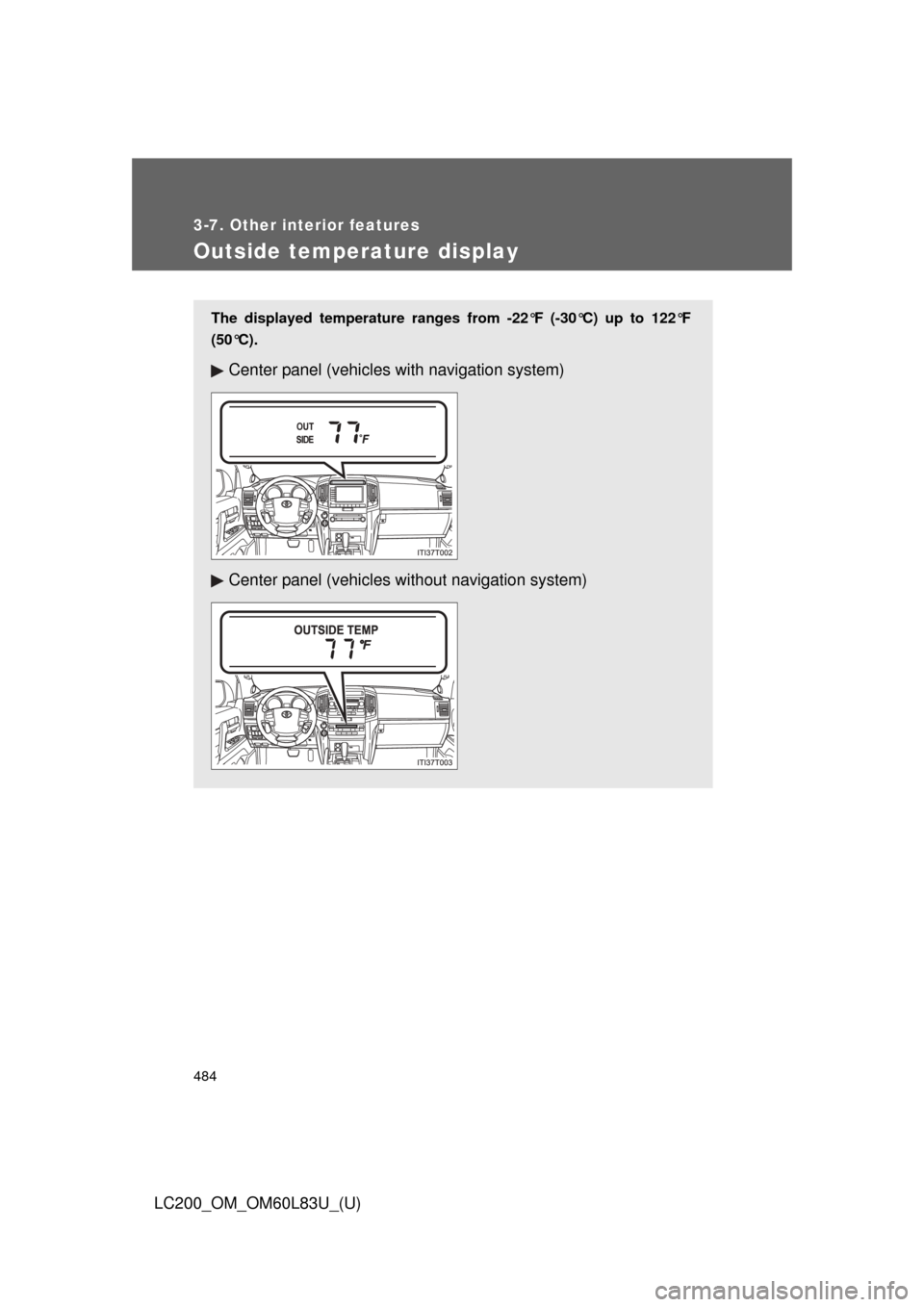

Outside temperature display
The displayed temperature ranges from -22°F (-30°C) up to 122°F
(50°C).
Center panel (vehicles with navigation system)
Center panel (vehicles without navigation system)

485
3-7. Other interior features
3
Interior features
LC200_OM_OM60L83U_(U)
■
Operating conditions
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When --- is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)

486
3-7. Other interior features
LC200_OM_OM60L83U_(U)

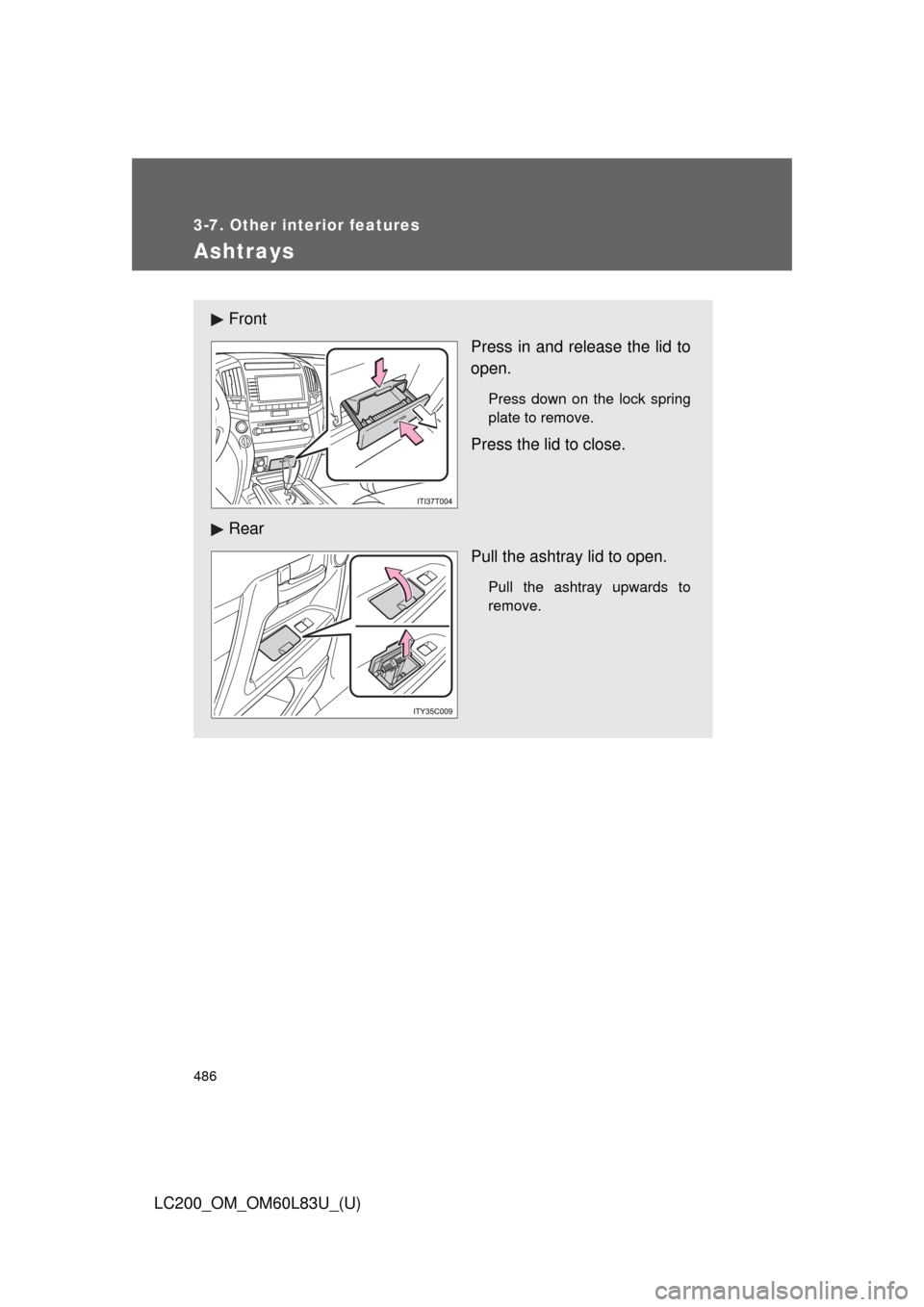

Ashtrays
FrontPress in and release the lid to
open.
Press down on the lock spring
plate to remove.
Press the lid to close.
Rear Pull the ashtray lid to open.
Pull the ashtray upwards to
remove.

487
3-7. Other interior features
3
Interior features
LC200_OM_OM60L83U_(U)
CAUTION
■
When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
■ To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.

488
3-7. Other interior features
LC200_OM_OM60L83U_(U)
Cigarette lighter
■The cigarette lighter can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter down. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter into the outlet.\
Push the cigarette lighter in.
The cigarette lighter will pop up
when ready for use.

489
3-7. Other interior features
3
Interior features
LC200_OM_OM60L83U_(U)

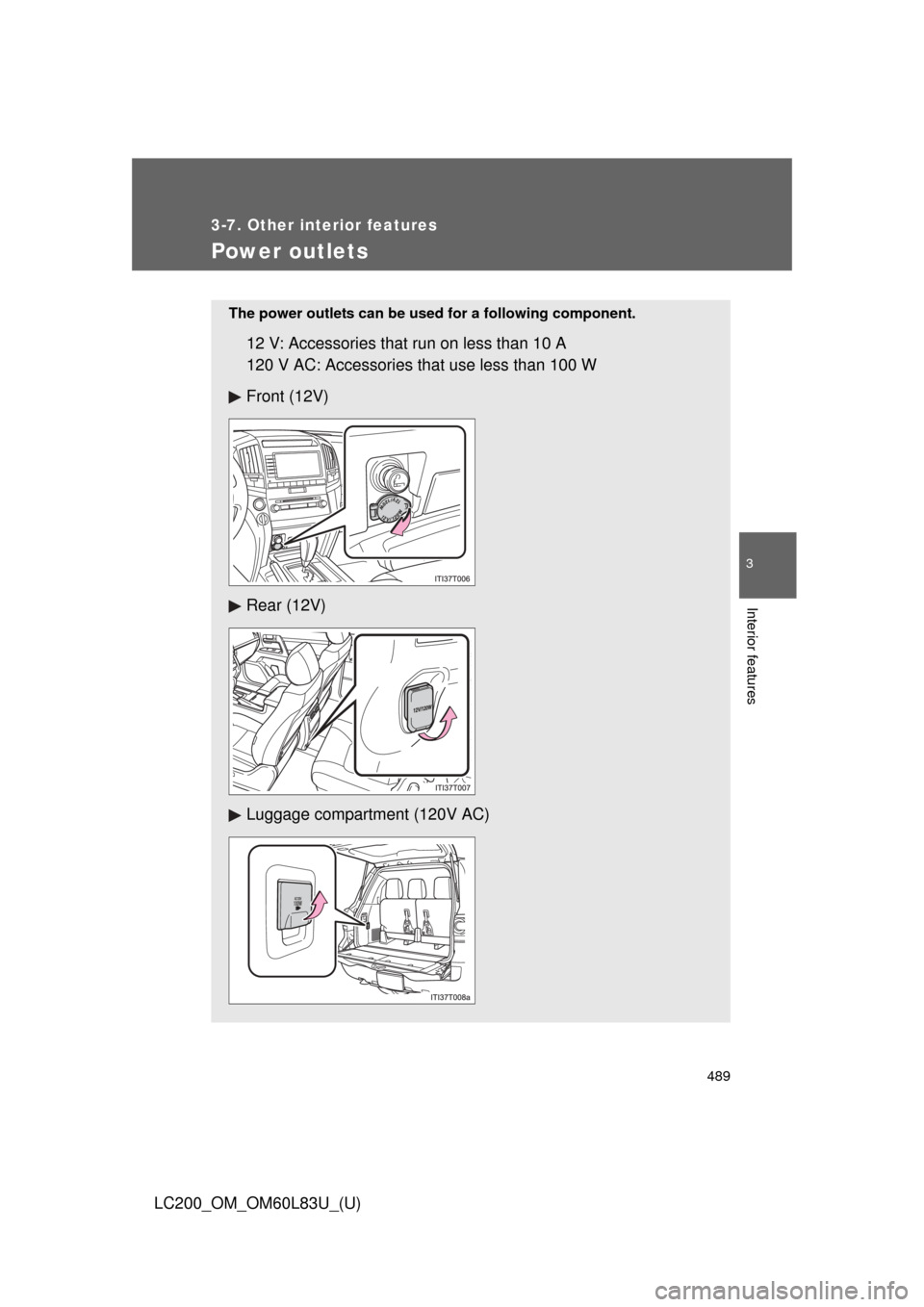

Power outlets
The power outlets can be used for a following component.
12 V: Accessories that run on less than 10 A
120 V AC: Accessories that use less than 100 W
Front (12V)
Rear (12V)
Luggage compartment (120V AC)

490 3-7. Other interior features
LC200_OM_OM60L83U_(U)
■The power outlets can be used when
12V: The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
120V: The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When using the instrument panel power outlet
You may be unable to use the USB port if a device is connected to the instru-
ment panel power outlet at the same time.
NOTICE
■To avoid damaging the power outlets
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12V: Do not use an accessory that uses more than 12V/10A.
120V: Do not use a 120V AC appliance that requires more than 100W.
If a 120V AC appliance that consumes more than 100W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not\
running.
■ Appliances that may not ope rate properly (120V AC)
The following 120V AC appliances may not operate even if their power con-
sumption is under 100W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply
