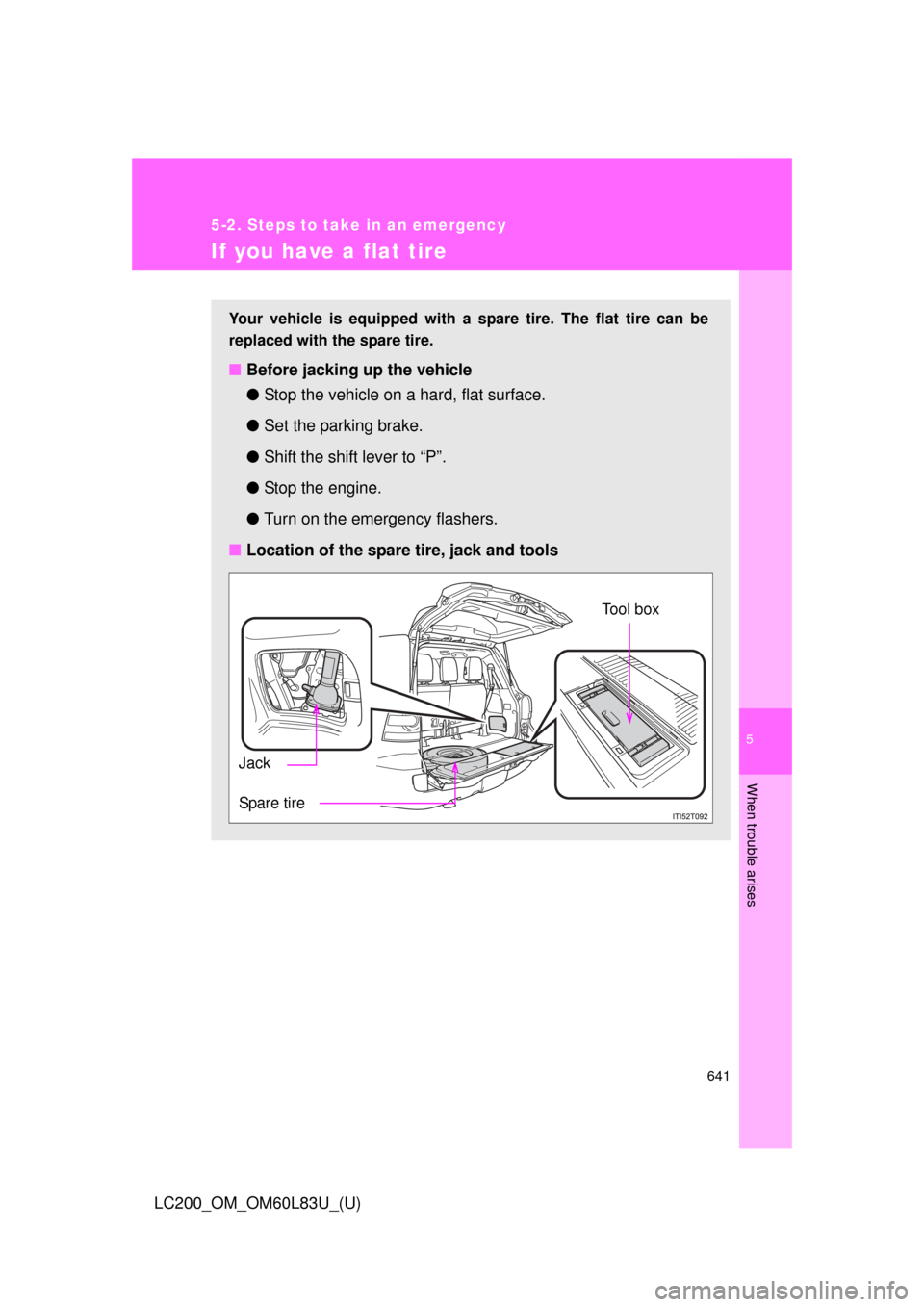

If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P”.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Tool box
Spare tire Jack

642 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)

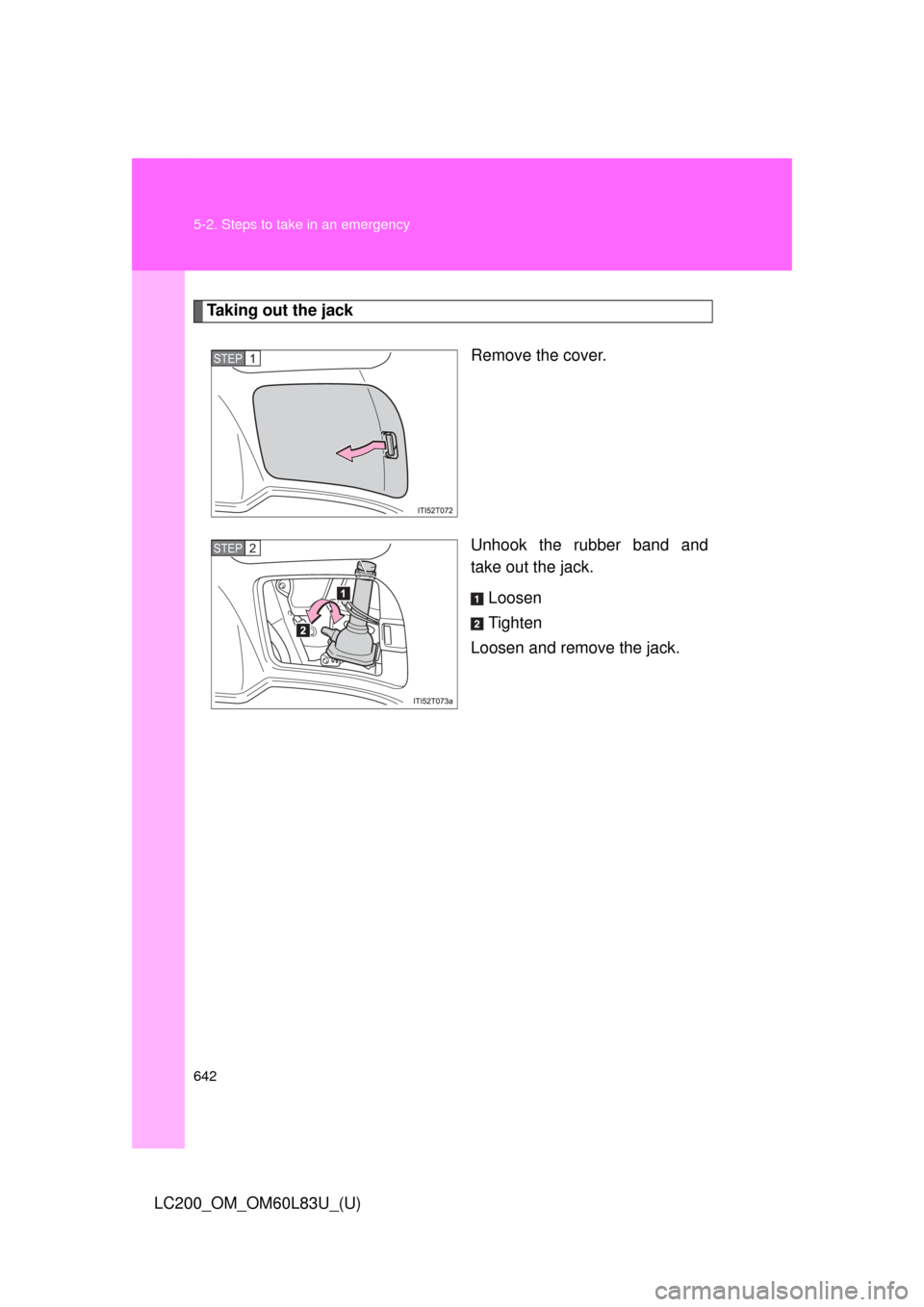

Taking out the jackRemove the cover.
Unhook the rubber band and
take out the jack.Loosen
Tighten
Loosen and remove the jack.
STEP1
STEP2

5
When trouble arises
643
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)

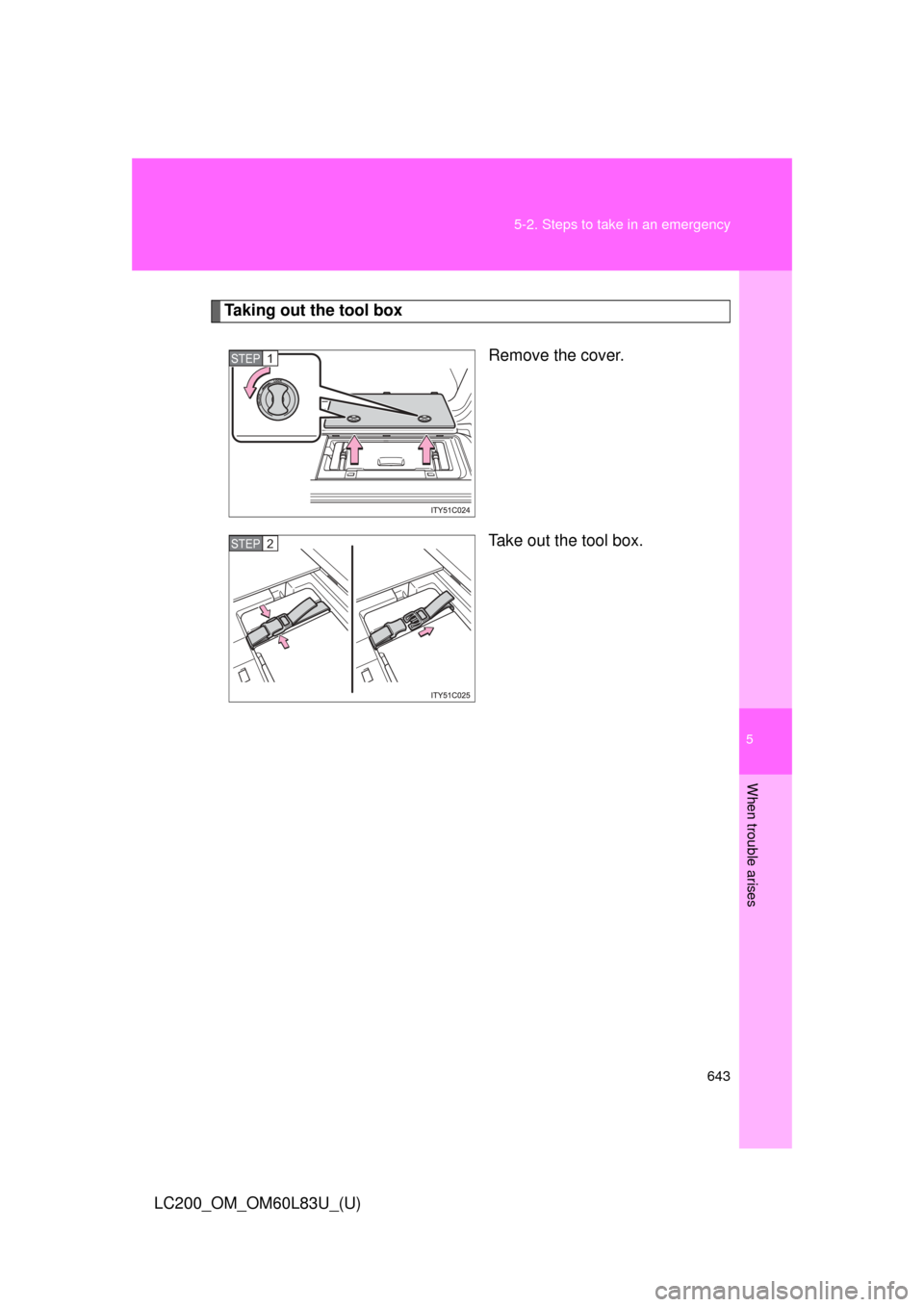

Taking out the tool box
Remove the cover.
Take out the tool box.
STEP1
STEP2

644 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)

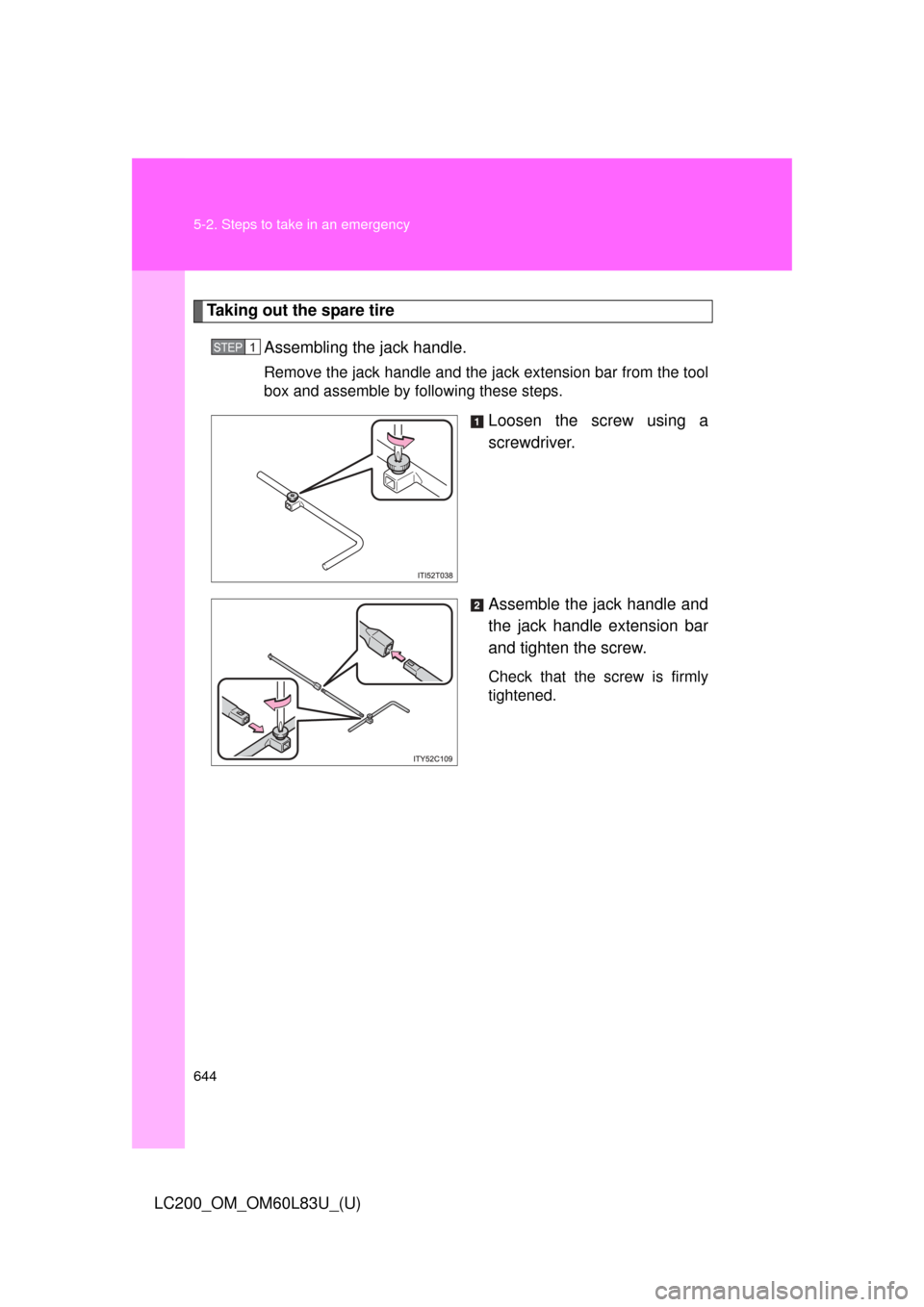

Taking out the spare tireAssembling the jack handle.
Remove the jack handle and the jack extension bar from the tool
box and assemble by following these steps.
Loosen the screw using a
screwdriver.
Assemble the jack handle and
the jack handle extension bar
and tighten the screw.
Check that the screw is firmly
tightened.
STEP1

5
When trouble arises
645
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)

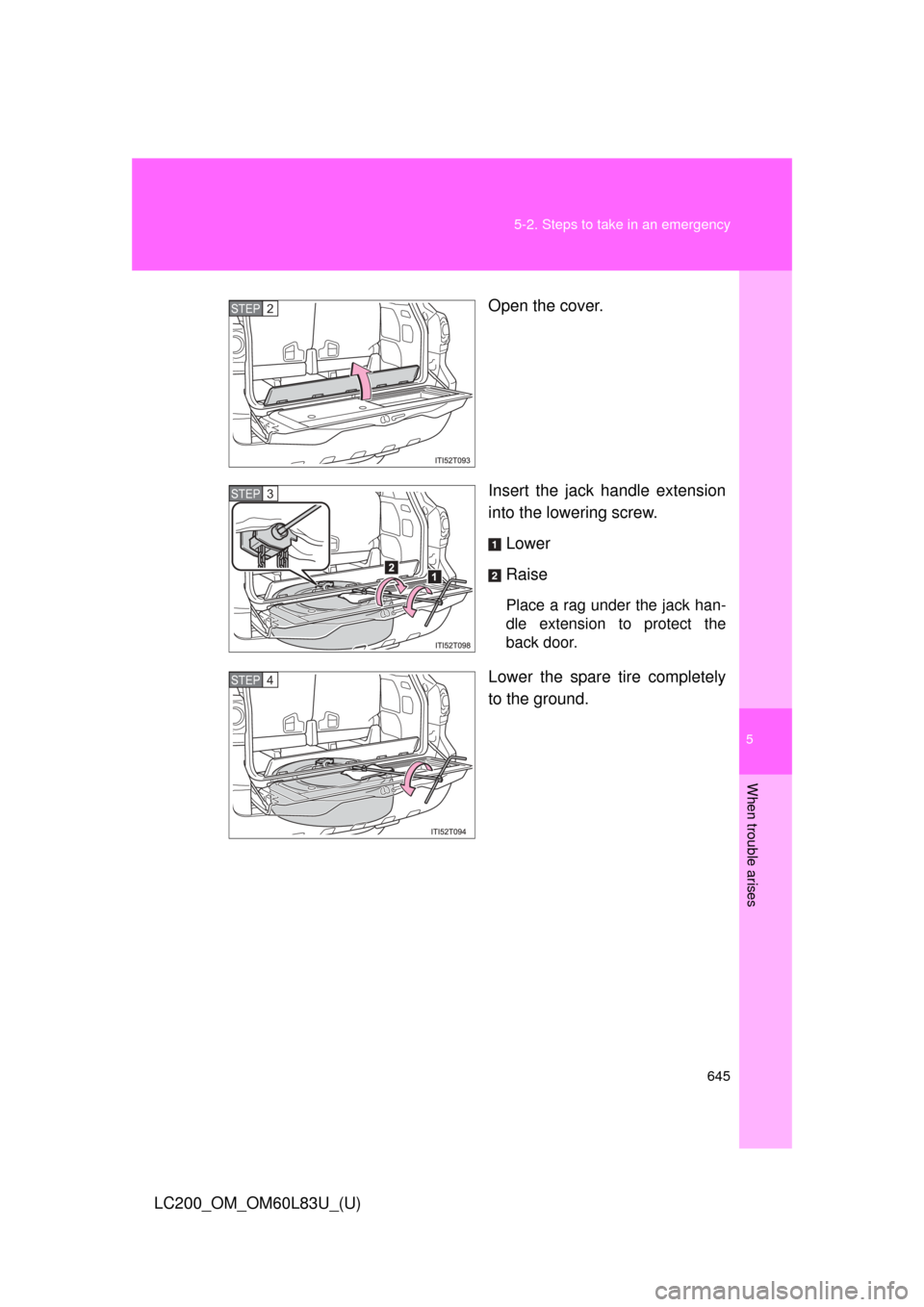

Open the cover.
Insert the jack handle extension
into the lowering screw.
Lower
Raise
Place a rag under the jack han-
dle extension to protect the
back door.
Lower the spare tire completely
to the ground.
STEP2
STEP3
STEP4

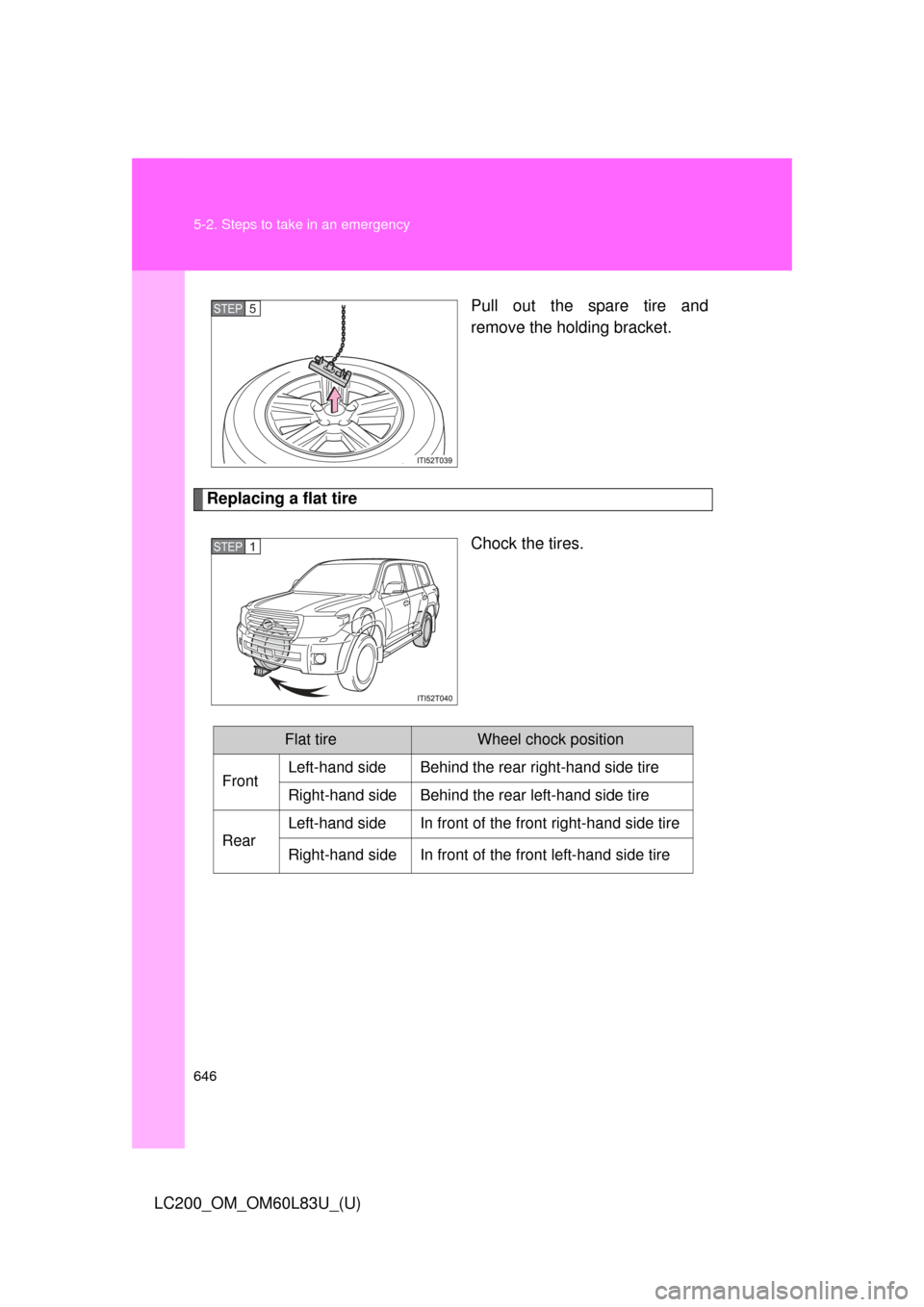

646 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)Pull out the spare tire and
remove the holding bracket.
Replacing a flat tire
Chock the tires.
STEP5
STEP1
Flat tireWheel chock position
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire

5
When trouble arises
647
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)

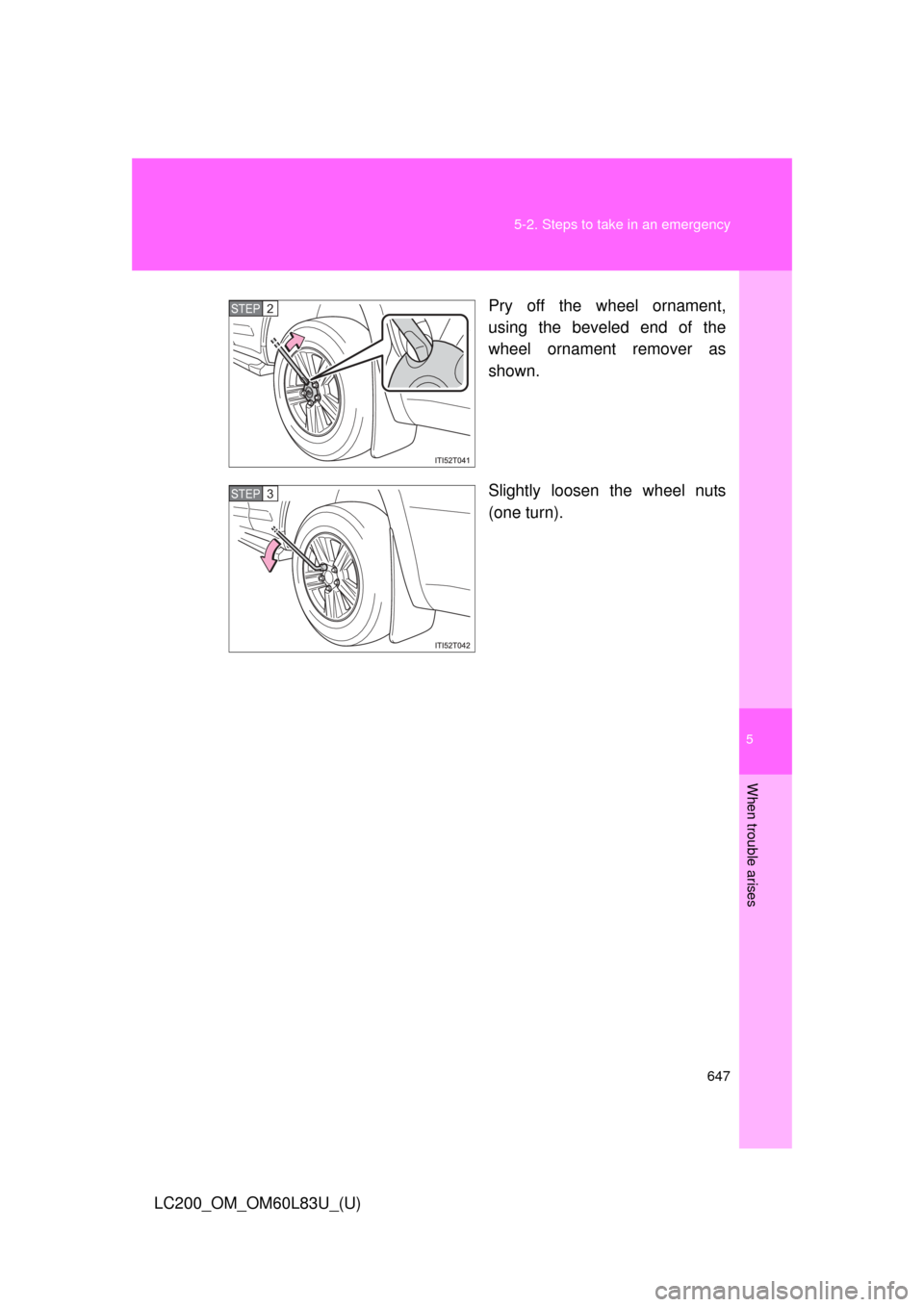

Pry off the wheel ornament,
using the beveled end of the
wheel ornament remover as
shown.
Slightly loosen the wheel nuts
(one turn).
STEP2
STEP3

648 5-2. Steps to take in an emergency

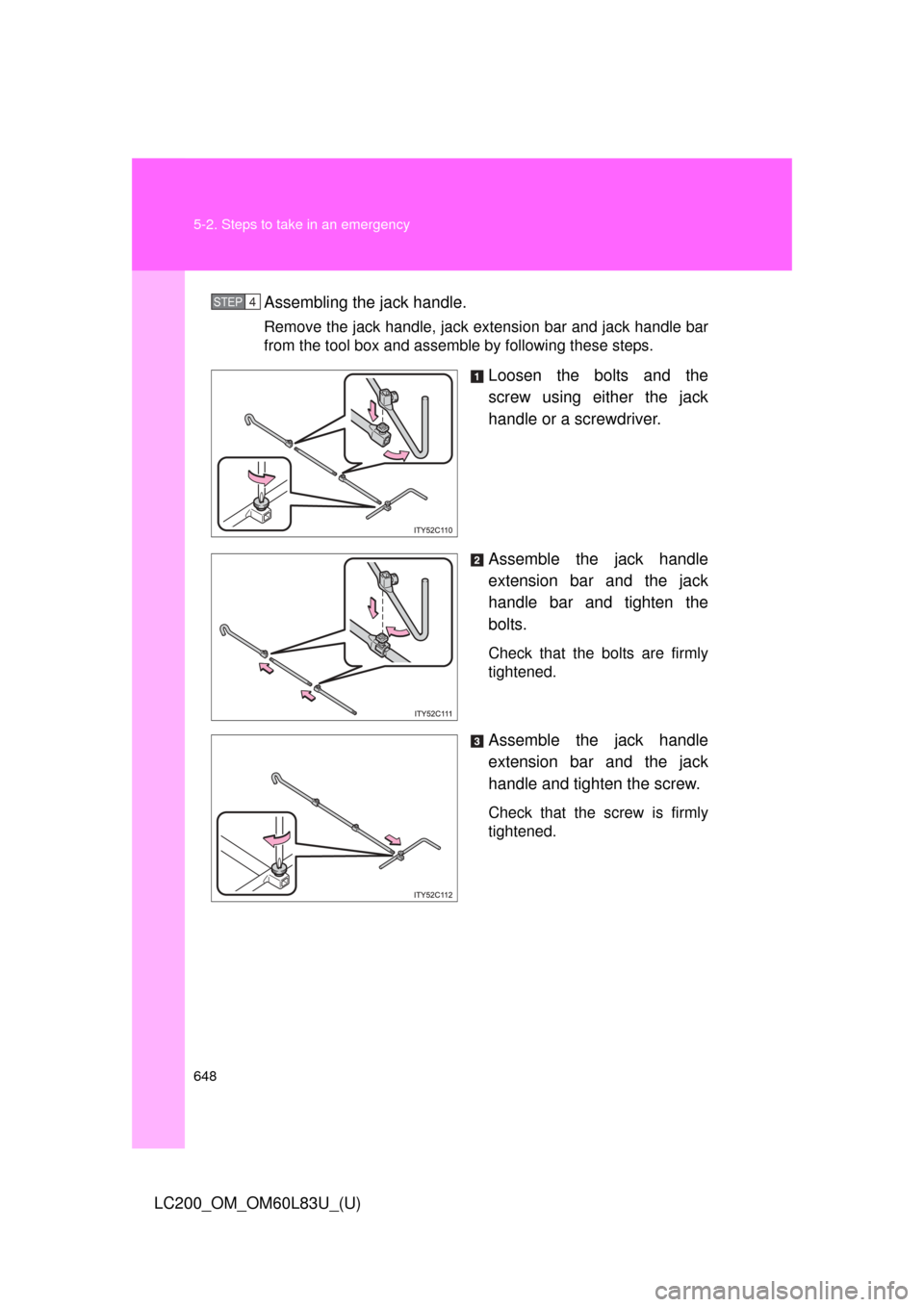

LC200_OM_OM60L83U_(U)Assembling the jack handle.
Remove the jack handle, jack extension bar and jack handle bar
from the tool box and assemble by following these steps.
Loosen the bolts and the
screw using either the jack
handle or a screwdriver.
Assemble the jack handle
extension bar and the jack
handle bar and tighten the
bolts.
Check that the bolts are firmly
tightened.
Assemble the jack handle
extension bar and the jack
handle and tighten the screw.
Check that the screw is firmly
tightened.
STEP4

5
When trouble arises
649
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)

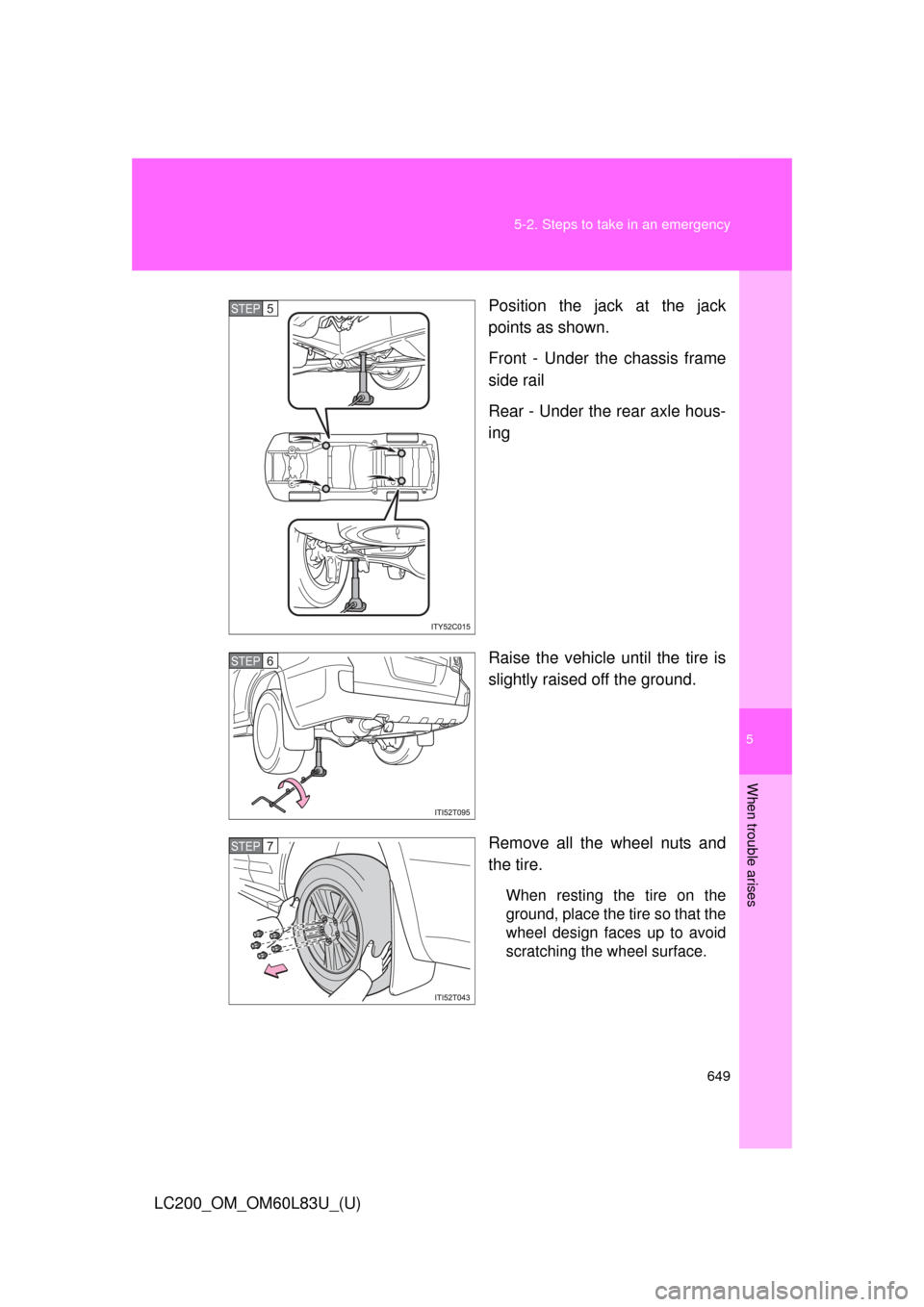

Position the jack at the jack
points as shown.
Front - Under the chassis frame
side rail
Rear - Under the rear axle hous-
ing
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP5
STEP6
STEP7

650 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
Installing the spare tireRemove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Turn the nut washers until they
come into contact with the disc
wheel.
Lower the vehicle.
STEP1
STEP2
Washer
Disc wheel
STEP3
