TOYOTA LAND CRUISER 2015 J200 Owners Manual

5
When trouble arises
621
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
■When a tire is replaced with a spare tire
The spare tire is also equipped with the tire pressure warning valve and
transmitter. The tire pressure warning li
ght will turn on if the tire inflation
pressure of the spare tire is low. If a tire goes flat, even though the flat
tire is replaced with the spare tire, the tire pressure warning light does
not turn off. Replace the spare tire with the repaired tire and adjust the
proper tire inflation pressure. The ti re pressure warning light will turn off
after a few minutes.
■If the tire pressure warning system is inoperative
The tire pressure warning system will be disabled in the following condi-
tions:
(When the condition be comes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmit-
ters are used.
●If the ID code on the tire pressure warning valves and transmitters is
not registered in the tire pressure warning computer.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or
higher.
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition be comes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies
are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on the vehicle, in particular around the
wheels or wheel housings.
●If non-genuine Toyota wheels are used. (Even if you use Toyota
wheels, the tire pressu re warning system may not work properly with
some types of tires.)
●If tire chains are used.
●If the spare tire is in a location subject to poor radio wave signal
reception.
●If a large metallic object which can interfere with signal reception is
put in the luggage compartment.

622 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
■If the tire pressure warning light frequently comes on after blinking
for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1
minute when the “ENGINE START STOP ” switch is turned to IGNITION
ON mode, have it checked by Toyota dealer.
CAUTION
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and re sult in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is pr obable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning syste m may not activate immediately.

5
When trouble arises
623
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle
placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a differ-
ent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the
proper tire inflation pr essure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pressure telltal e (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pre ssure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire ma intenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached the
level to trigger illu mination of the TPMS low tire pressure telltale (tire
pressure warning light).

624 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
CAUTION
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indicate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the malfunction indi cator is illumi-
nated, the system may not be able to detect or signal low tire pressure
as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different s pecifications or makers, as the tire
pressure warning system may not operate properly.

5
When trouble arises
625
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)

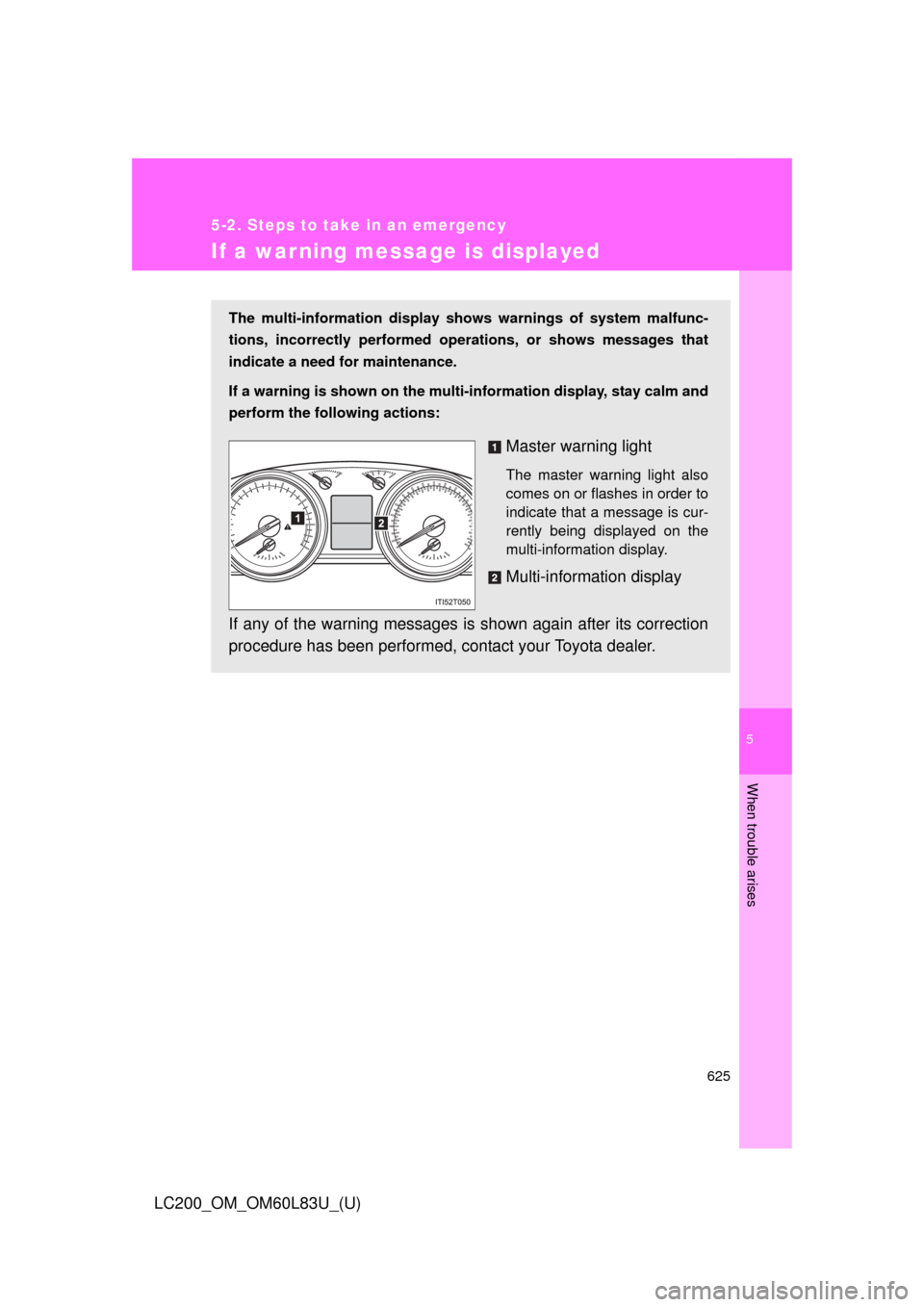

If a warning message is displayed
The multi-information display shows warnings of system malfunc-
tions, incorrectly performed operations, or shows messages that
indicate a need for maintenance.
If a warning is shown on the multi- information display, stay calm and
perform the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning messages is shown again after its correction
procedure has been performed, contact your Toyota dealer.

626 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
Have the vehicle inspected immediately.Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning messageDetails
Indicates a malfunction in the automatic
transmission system A buzzer also sounds.
Indicates a malfunction in the steering lock
system A buzzer also sounds.
(If equipped) Indicates a malfunction in the pre-collision sys-
tem
A buzzer also sounds.

5
When trouble arises
627
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
Indicates a malfunction in the intuitive parking
assist
The site of malfunction is shown flashing on the
display.
Indicates a malfunction in the cruise control
system Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
Indicates a malfunction in the dynamic radar
cruise control system (if equipped) Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
(If equipped) Indicates a malfunction in the VGRS
A buzzer also sounds.
Warning messageDetails

628 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
Follow the correction procedures.After taking the specified steps to correct the suspected problem,
check that the warning message goes off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is
not fully closed The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches
a speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
door(s) are not yet fully
closed. Make sure that all the
doors are closed.

5
When trouble arises
629
5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
(Flashes)
Indicates that the
moon roof is not fully
closed (with the
“ENGINE START
STOP” switch off, and
the driver’s door
open)
Close the moon roof.
(Flashes) Indicates, if the vehi-
cle reaches a speed of
3 mph (5 km/h), that
the parking brake is
still engaged.
Release the parking
brake.
Indicates that the
automatic transmis-
sion fluid temperature
is too high A buzzer also sounds. Immediately stop the
vehicle in a safe place,
shift the shift lever to “P”
and wait until the light
goes off.
If the light goes off,
you may start the vehi-
cle again. If the light
does not go off, con-
tact your Toyota
dealer.
Warning messageDetailsCorrection procedure

630 5-2. Steps to take in an emergency
LC200_OM_OM60L83U_(U)
Indicates that engine
oil level is lowA buzzer also sounds. Check the level of
engine oil, and add if
necessary.
This message may
appear if the vehicle is
stopped on a slope.
Move the vehicle to a
level surface and
check to see if the
message disappears.
Indicates that the
washer fluid level is
low Add washer fluid
Low tire inflation
pressureCheck the tire
inflation pressure,
and adjust to the
appropriate level.
Warning messageDetailsCorrection procedure
