TOYOTA LAND CRUISER 2016 J200 Navigation Manual

111. Basic function
LC200_Navi_OM60N15U_(U)
15.07.08 16:49
Quick guide
1
No.FunctionPage
Displays the condition of
the Bluetooth® connec-
tion11
Select to change the dis-
play items/area and the
home screen layout.
25
Status display
The condition of the Bluetooth
® con-
nection, as well as the level of recep-
tion and the amount of cellular phone
battery charge left, are displayed on
the status bar. This status bar is al-
ways shown on all modes.
No.Indicators
Conditions
The condition of the Bluetooth® con-
nection
: No connection
(Gray): Poor
(Blue): Good
An antenna for the Bluetooth
® connection
is built into the instrument panel. The con-
dition of the Bluetooth
® connection may
deteriorate and the system may not func-
tion when a Bluetooth
® phone is used in
the following conditions and/or places:
The cellular phone is obstructed by certain
objects (such as when it is behind the seat
or in the glove box or console box).
The cellular phone is touching or is cov-
ered with metal materials.
Leave the Bluetooth
® phone in a place
where the condition of the Bluetooth® con-
nection is good.
The level of reception
Poor Excellent
The level of reception does not always
correspond with the level displayed on the
cellular phone. The level of reception may
not be displayed depending on the phone
you have.
When the cellular phone is out of the ser-
vice area or in a place inaccessible by
radio waves, “No Service” is displayed.
“Rm” is displayed when receiving in a
roaming area. While roaming, display
“Rm” top-left on the icon.
The receiving area may not be displayed
depending on the type of phone you have.

LC200_Navi_OM60N15U_(U)
15.07.08 16:49
121. Basic function
The amount of battery charge left
Empty Full
The amount displayed does not always
correspond with the amount displayed on
the Bluetooth
® device.
The amount of battery charge left may not
be displayed depending on the type of the
Bluetooth
® device connected.
This system does not have a charging
function.
No.Indicators
Conditions

LC200_Navi_OM60N15U_(U)
15.07.08 16:49
13
Quick guide
1
2. Quick reference
“Setup” screen
The items shown on the “Setup”
screen can be set. Press the “SETUP”
button to display the “Setup” screen.
No.FunctionPage
Select to change the se-
lected language, opera-
tion sound, automatic
screen change settings,
etc.
43
Select to set the voice
guidance settings.48
Select to set Bluetooth®
phones and Bluetooth®
audio devices.
36
Select to set radio and
external media settings.173
Select to set traffic infor-
mation.100
Select to adjust the con-
trast and brightness of
the screens, turn the
screen off, etc.
29
Select to set memory
points (home, preset des-
tinations, address book
entries, areas to avoid),
navigation details or to
delete previous destina-
tions.
90, 97
Select to set vehicle infor-
mation such as mainte-
nance information.
49
Select to set the phone
sound, contacts, mes-
sage settings, etc.226
Select to set Entune App
Suite settings.255
Select to set data servic-
es settings.210

LC200_Navi_OM60N15U_(U)
15.07.08 16:49
142. Quick reference

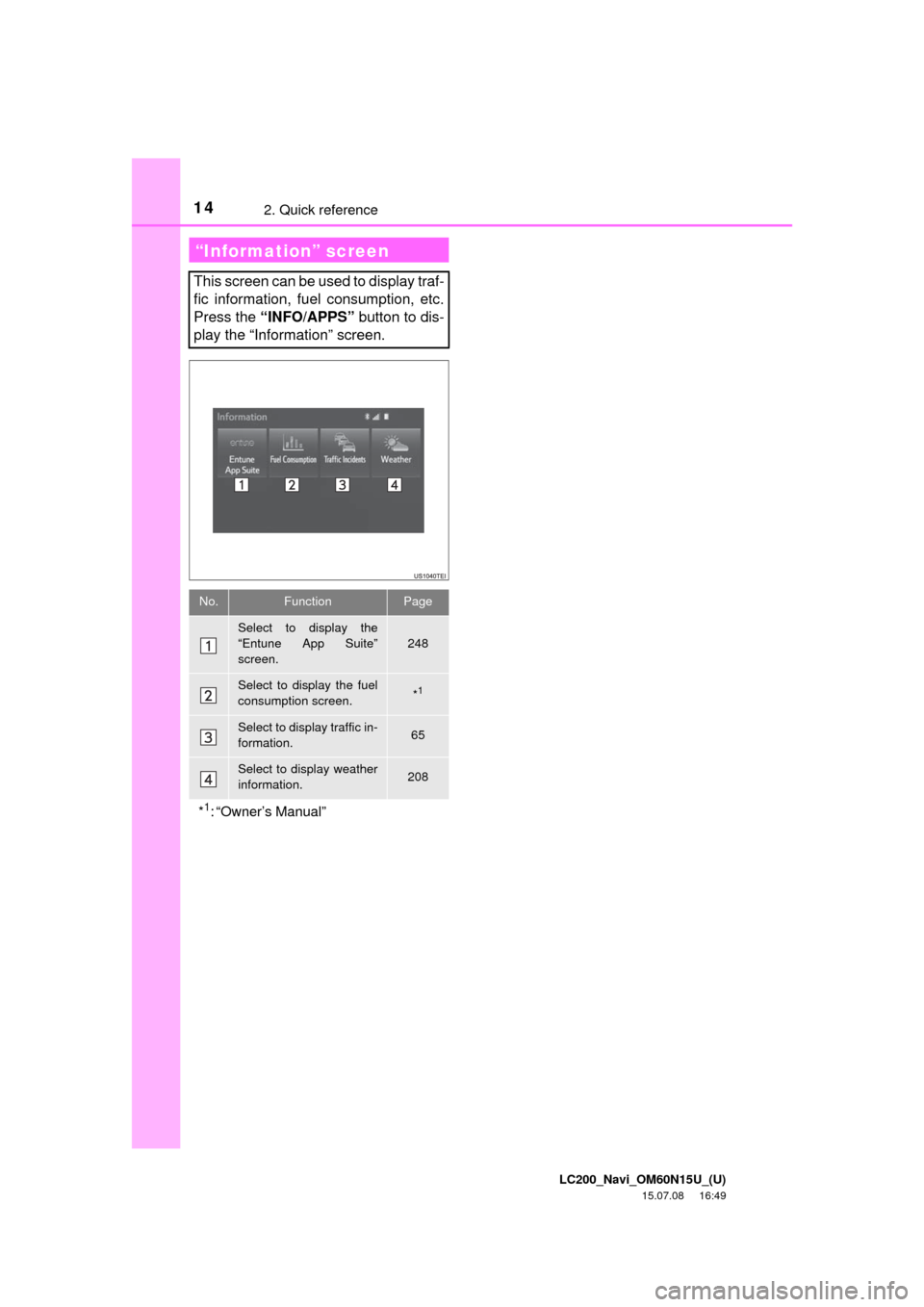

“Information” screen
This screen can be used to display traf-
fic information, fuel consumption, etc.
Press the “INFO/APPS” button to dis-
play the “Information” screen.
No.FunctionPage
Select to display the
“Entune App Suite”
screen.
248
Select to display the fuel
consumption screen.*1
Select to display traffic in-
formation.65
Select to display weather
information.208
*1: “Owner’s Manual”

LC200_Navi_OM60N15U_(U)
15.07.08 16:49
15
Quick guide
1
3. Navigation operation
Press the “NAV” button.
Select “Dest.”.
Select “Go Home”.
Select “Yes”.There are different kinds of meth-
ods to search for your home.
(P.68)
Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way
P.90
Editing the name, location, phone num-
ber and icon
P.91
Setting home as the destination
P.70
Registering home
1
2
3
4
5
6
7

LC200_Navi_OM60N15U_(U)
15.07.08 16:49
163. Navigation operation
Press the “NAV” button.
Select “Dest.”.
Select one of the preset destina-
tion buttons.
Select “Yes”.There are different kinds of meth-
ods to search for a destination.
(P.68)
Select “Enter”.
Select “OK”.
Registration of preset destinations is
complete.
Registering preset destinations in a dif-
ferent way
P.91
Editing the name, location, phone num-
ber and icon
P.92
Setting preset destinations as the desti-
nation
P.70
Registering preset
destinations
1
2
3
4
5
6
7

173. Navigation operation
LC200_Navi_OM60N15U_(U)
15.07.08 16:49
Quick guide
1
Press the “NAV” button.
Select “Dest.”.
There are different kinds of meth-
ods to search for a destination.
(P. 6 8 )
Select “Go”.Select “OK”.
Selecting routes other than the one recom-
mended (P.78)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
Operation flow: guiding
the route
1
2
3
4
5

LC200_Navi_OM60N15U_(U)
15.07.08 16:49
183. Navigation operation
Press the “NAV” button.
Select “Dest.”.
Select “Go Home”.Select “OK”.
Selecting routes other than the one recom-
mended (P.78)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
Setting home as the
destination
1
2
3
4

LC200_Navi_OM60N15U_(U)
15.07.08 16:49
19
Quick guide
1
4. Function index
Map
Route guidanceUseful functions
Function index
Displaying mapsPage
Viewing the map screen54
Displaying the current position55
Viewing the current position vi-
cinity map60
Changing the scale56
Changing the map orientation57
Displaying map Information61
Displaying the estimated travel/
arrival time to the destination81
Selecting the map mode58
Displaying traffic information65
Searching for destinationsPage
Searching for the destination69
Changing the search area69
Before starting or during route
guidancePage
Starting route guidance78
Editing the route87
Viewing the entire route map82
Pausing guidance80
Adjusting route guidance volume48
Deleting the destination88
Address bookPage
Registering address book entries92
Marking icons on the map93
InformationPage
Displaying vehicle maintenance50
Hands-free system (for cellular
phone)Page
Registering/connecting a
Bluetooth® phone32
Making a call on a Bluetooth®
phone215
Receiving a call on the
Bluetooth® phone219
Voice command systemPage
Operating the system with your
voice192

LC200_Navi_OM60N15U_(U)
15.07.08 16:49
204. Function index
