TOYOTA LAND CRUISER 2016 J200 Navigation Manual

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
Navigation system
3
712. Destination search
3Select the desired city name.
4Enter a street name and select “OK”.
5Select the desired street name.
6Enter a house number and select
“OK”.
If the same address exists in more than
one town, the address list screen will be
displayed. Select the desired address.
1Select “Street Address”.
2Enter a house number and select
“OK”.
3Enter a street name and select “OK”.
4Select the desired street name.
5Enter a city name and select “OK”.
6Select the desired city name.
If the same address exists in more than
one town, the address list screen will be
displayed. Select the desired address.
1Display the “Destination” screen.
(P.69)
2Select “Point of Interest”.
3Select the desired search method.
Searching by street address
INFORMATION
●A street name can be searched using
only the body part of its name.
For example: S WESTERN AVE
• A search can be performed by entering
“S WESTERN AVE”, “WESTERN AVE”
or “WESTERN”.
Searching by point of interest
There are 4 methods to search for a
destination by Points of Interest.
No.FunctionPage
Select to search by name.72
Select to search by catego-
ry.73
Select to search by phone
number.74

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
722. Destination search
1Select “Name”.
2Enter a POI name and select “OK”.
3Select the desired POI.
When entering the name of a specific POI,
and there are 2 or more sites with the
same name, the list screen will be dis-
played. Select the desired POI.
■Selecting a city to search
1Select “City”.
2Enter a city name and select “OK”.
“Any City”: Select to cancel the city set-
ting.
3Select the desired city name.
4Select the desired POI.
■Selecting from the categories
1Select “Category”.
2Select the desired category.
If there is more than 1 detailed item of the
selected category, the detailed list will be
displayed.
“List All Categories”: Select to display all
POI categories.
3Select the desired POI.
Searching by name
No.FunctionPage
Select to search for POI in
the desired city.72
Select to search for POI
from the category list.72
Select to search for POI us-
ing online database.73
INFORMATION
●To search for a facility name using multi-
ple search words, put a space between
each word.

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
Navigation system
3
732. Destination search
■Searching for POI using web
search
1Select “” next to “Web Search” to se-
lect a search engine.
2Select the desired search engine icon.
The selected search engine icon will be
displayed on the top center of the POI list
screen.
3Select the search engine icon.
1Select “Category”.
2Select the desired search point.
3Select the desired POI category.
If there is more than 1 detailed item of the
selected category, the detailed list will be
displayed.
“List All Categories”: Select to display all
POI categories.
“Favorite POI Categories”: Select to use
the 6 POIs that have been previously set.
(P.98)
Accessing to a search engine
For the procedure on how to conduct a
search via a search engine, go to
“Setting a destination using Entune App
Suite” (P.252), and follow the steps
from 3 onward.
Searching by category
No.Function
Select to set the search point from
near the current position.
Select to search for POIs along the
set route.
Select to set the search point from
near a city center. (P.74)
Select to set the search point from
near a destination.

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
742. Destination search
4Select the desired POI.
“Web Search”: Select to search for POI
using online database. (P.73)
When “Near a City Center in XX*” is se-
lected
1Select “Near a City Center in XX”.
2Enter a city name and select “OK”.
“Last 5 Cities”: Select the city name from
the list of the last 5 cities.
3Select the desired city name.
4Select “OK” when the city center map
screen is displayed.
5Follow the steps from 3 onward in
“Searching by category”. (P.73)
*: XX represents the selected search area
name.
1Select “Phone #”.
2Enter a phone number and select
“OK”.
If there is more than 1 site with the same
number, the list screen will be displayed.
1Display the “Destination” screen.
(P.69)
2Select “Previous Destinations”.
3Select the desired destination.
“Previous Start Point”: Select to display
the start point map of the previous guided
route.
“Delete”: Select to delete the previous
destination. (P.96)
INFORMATION
●The names of POIs located within
approximately 200 miles (320 km) from
the selected search point can be dis-
played.
INFORMATION
●If the navigation system has never been
used, selecting the city name from “Last
5 Cities” will not be available.
Searching by phone number
INFORMATION
●If there is no match for the entered
phone number, a list of identical num-
bers with different area codes will be dis-
played.
Searching from previous
destinations
INFORMATION
●The previous start point and up to 100
previously set destinations are displayed
on the screen.

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
Navigation system
3
752. Destination search
1Display the “Destination” screen.
(P.69)
2Select “Address Book”.
3Select the desired address book entry.
“Options”: Select to register or edit ad-
dress book entries. (P.93)
1Display the “Destination” screen.
(P.69)
2Select “Emergency”.
3Select the desired emergency catego-
ry.
4Select the desired destination.
Searching by address book
To use this function, it is necessary to
register an address book entry.
(P.92)Searching by emergency
INFORMATION
●The navigation system does not guide in
areas where route guidance is unavail-
able. (P.104)

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
762. Destination search
1Display the “Destination” screen.
(P.69)
2Select “Intersection & Freeway”.
3Select the desired method.
1Select “Intersection”.
2Enter the name of the first intersecting
street which is located near the desti-
nation and select “OK”.
3Select the desired street name.
4Enter the name of the second inter-
secting street and select “OK”.
5Select the desired street name.
If the 2 streets cross at more than 1 inter-
section in a city, the list of intersections will
be displayed.
1Select “Freeway Entrance / Exit”.
2Enter a freeway name and select
“OK”.
3Select the desired freeway.
4Select “Entrance” or “Exit”.
5Enter a freeway entrance or exit name
and select “OK”.
6Select the desired entrance or exit
name.
Searching by intersection and
freeway
There are 2 methods to search for a
destination by Intersection & Freeway.
No.FunctionPage
Select to search by inter-
section.76
Select to search by free-
way entrance/exit.76
Searching by intersection
Searching by freeway entrance/
exit

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
Navigation system
3
772. Destination search
1Display the “Destination” screen.
(P.69)
2Select “Map”.
3Scroll the map to the desired point and
select “Go to ”.
“Adjust Location”: Select to adjust the
position in smaller increments. (P.60)
If a destination has already been set, “Go
to ” and “Add to Route” will be dis-
played.
“Go to ”: Select to delete the existing
destination(s) and set a new one.
“Add to Route”: Select to add a destina-
tion.
The navigation system performs a search
for the route and the entire route map is
displayed. (P.78)
1Display the “Destination” screen.
(P.69)
2Select “Coordinates”.
3Enter the latitude and longitude and
select “OK”.
INFORMATION
●Be sure to use the complete name of the
freeway or highway, including the
hyphen, when entering the destination.
Freeways and interstates use an “I” (I-
405). US highways use the state desig-
nation before the number (CA-118).
Searching by map
By selecting “Map” the last displayed
location is displayed again on the map
screen. You can search for a destina-
tion from this map.
Searching by coordinates

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
782. Destination search
1Select “OK” to start guidance.
1Select “Three Routes”.
2Select the desired route.

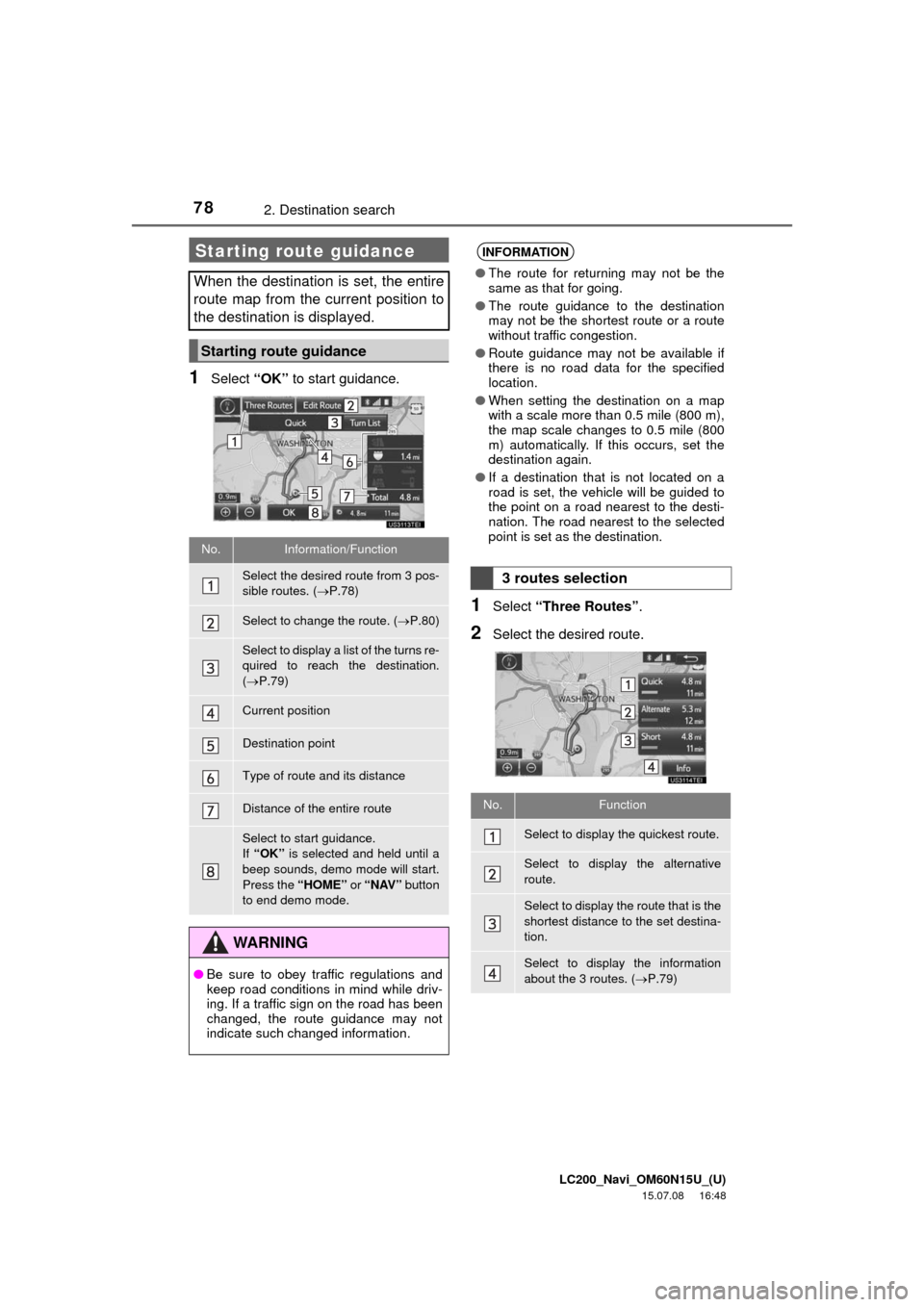

Starting route guidance
When the destination is set, the entire
route map from the current position to
the destination is displayed.
Starting route guidance
No.Information/Function
Select the desired route from 3 pos-
sible routes. (P.78)
Select to change the route. (P.80)
Select to display a list of the turns re-
quired to reach the destination.
(P.79)
Current position
Destination point
Type of route and its distance
Distance of the entire route
Select to start guidance.
If “OK” is selected and held until a
beep sounds, demo mode will start.
Press the “HOME” or “NAV” button
to end demo mode.
WA R N I N G
●Be sure to obey traffic regulations and
keep road conditions in mind while driv-
ing. If a traffic sign on the road has been
changed, the route guidance may not
indicate such changed information.
INFORMATION
●The route for returning may not be the
same as that for going.
●The route guidance to the destination
may not be the shortest route or a route
without traffic congestion.
●Route guidance may not be available if
there is no road data for the specified
location.
●When setting the destination on a map
with a scale more than 0.5 mile (800 m),
the map scale changes to 0.5 mile (800
m) automatically. If this occurs, set the
destination again.
●If a destination that is not located on a
road is set, the vehicle will be guided to
the point on a road nearest to the desti-
nation. The road nearest to the selected
point is set as the destination.
3 routes selection
No.Function
Select to display the quickest route.
Select to display the alternative
route.
Select to display the route that is the
shortest distance to the set destina-
tion.
Select to display the information
about the 3 routes. (P.79)

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
Navigation system
3
792. Destination search
■Displaying 3 routes information
1Select “Info”.
2Check that the “Information for Three
Routes” screen is displayed.
1Select “Turn List”.
2Check that the turn list is displayed.
No.Information
Time necessary for the entire trip
Distance of the entire trip
Distance of the toll road
Distance of the freeway
Distance of the ferry trip
Displaying turn list
A list of turn information from the cur-
rent position to the destination can be
displayed.
No.Information
Current position
Distance to the next turn
Turn direction at the intersection
Select to display the map of the se-
lected point.
INFORMATION
●However, not all road names on the
route may appear on the list. If a road
changes its name without requiring a
turn (such as on a street that runs
through 2 or more cities), the name
change will not appear on the list. The
street names will be displayed in order
from the starting point, along with the
distance to the next turn.

LC200_Navi_OM60N15U_(U)
15.07.08 16:48
802. Destination search
1Select “Edit Route”.
2Select the desired item.
1Select “Options” on the map screen.
2Select “Pause Guidance”.
1Select “Resume Guidance”.
Editing route
Destinations can be added, reordered
or deleted, and conditions for the route
to the destination can be changed.
No.FunctionPage
Select to add destinations.87
Select to delete destina-
tions.88
Select to reorder destina-
tions.88
Select to set route prefer-
ences.88
Select to change route
type.88
INFORMATION
●Even if the “Freeways” indicator is
dimmed, the route cannot avoid includ-
ing a freeway in some cases. (P.88)
●If the calculated route includes a trip by
ferry, the route guidance shows a sea
route. After traveling by ferry, the current
position may be incorrect. Upon recep-
tion of GPS signals, it is automatically
corrected.
Pausing guidance
Resuming guidance
