OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
9
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help \
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”

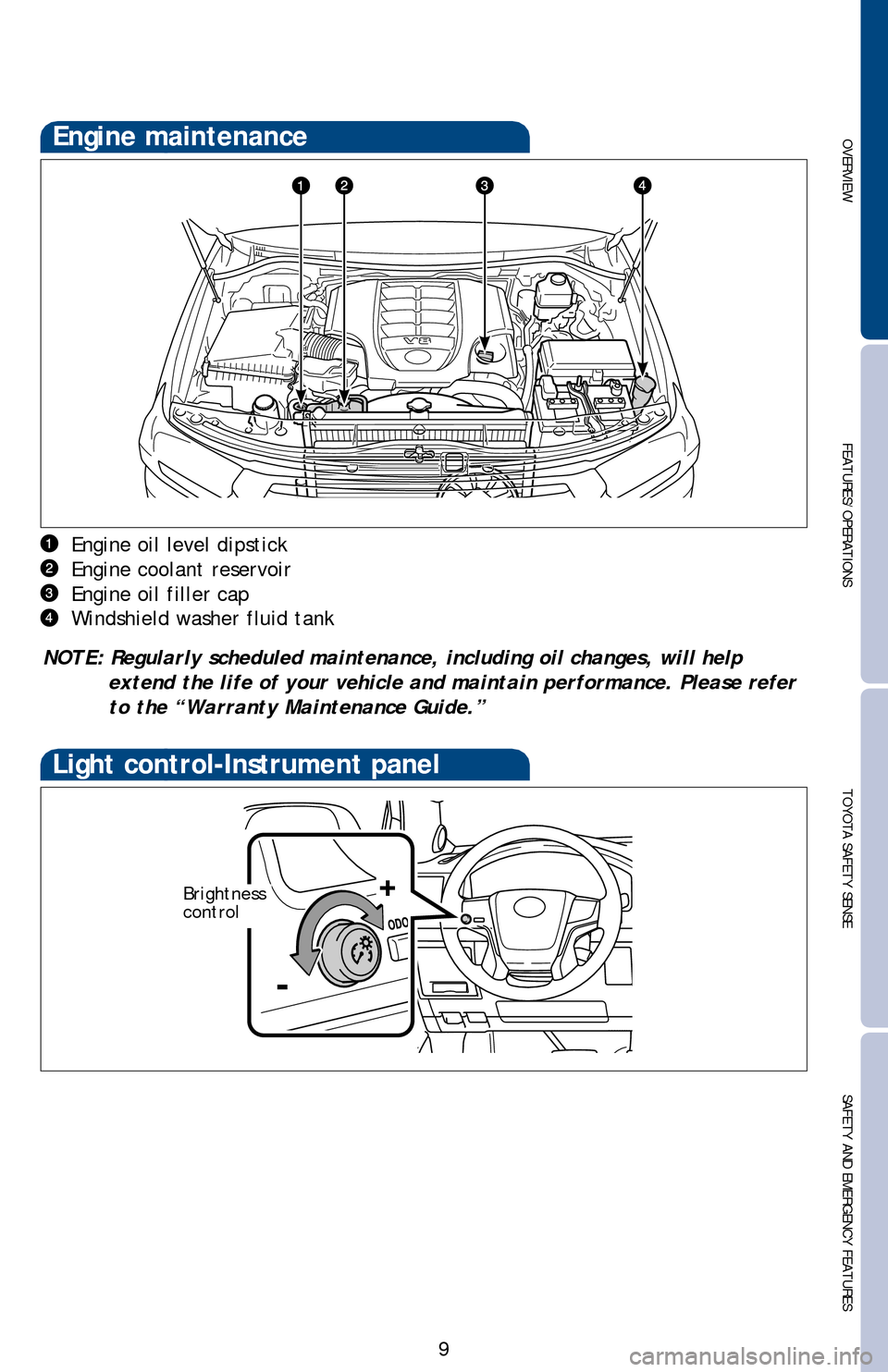

Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
Page 12 of 56
10
FEATURES/OPERATIONS

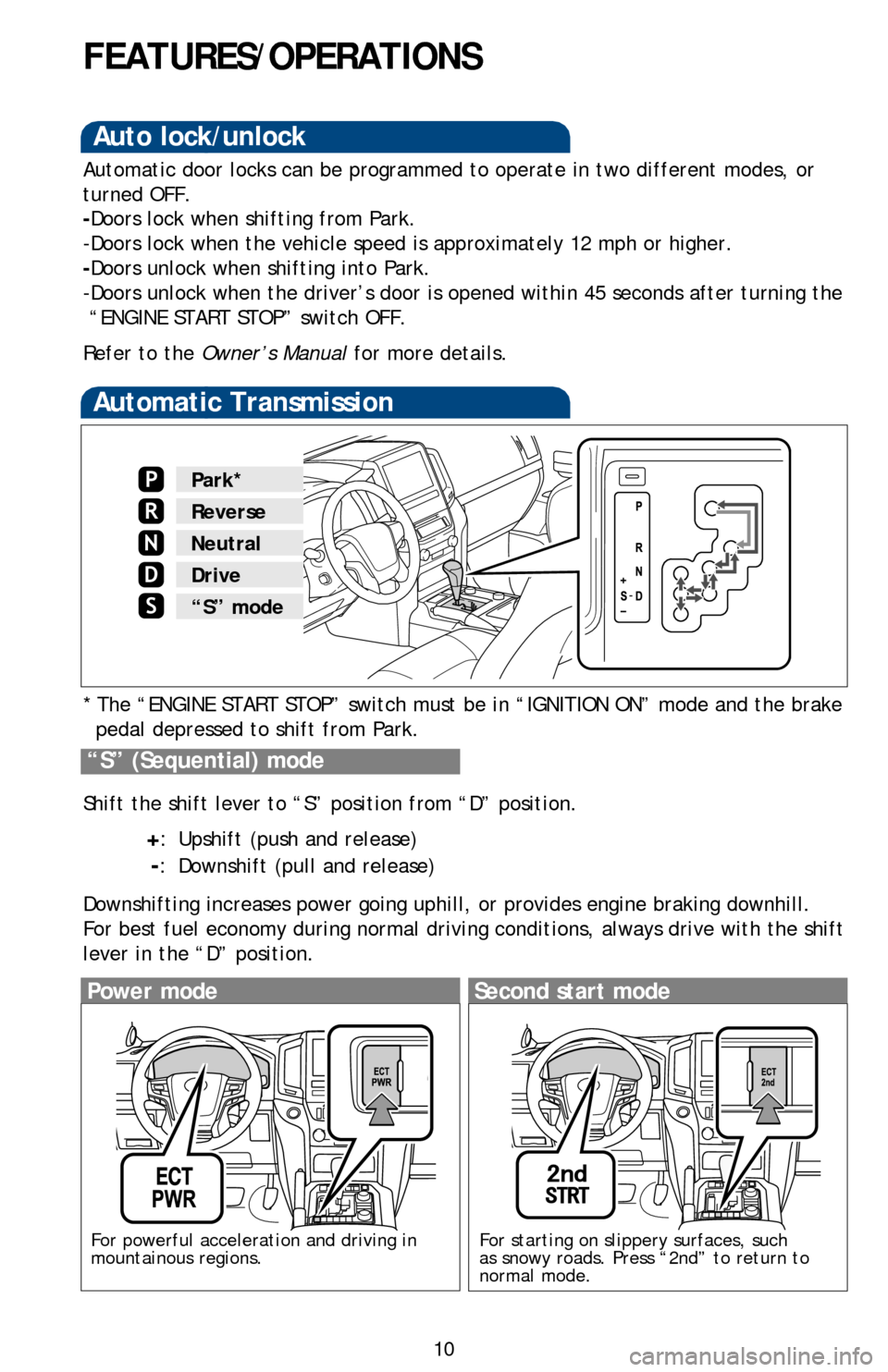

Automatic Transmission
* The “ENGINE START STOP” switch must be in “IGNITION ON” mo\
de and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the shift
lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
P
R
N
D
S“S” mode
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes\
, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 45 seconds afte\
r turning the
“ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
Power modeSecond start mode
For powerful acceleration and driving in
mountainous regions.For starting on slippery surfaces, such
as snowy roads. Press “2nd” to return to
normal mode.
Page 13 of 56
OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
11

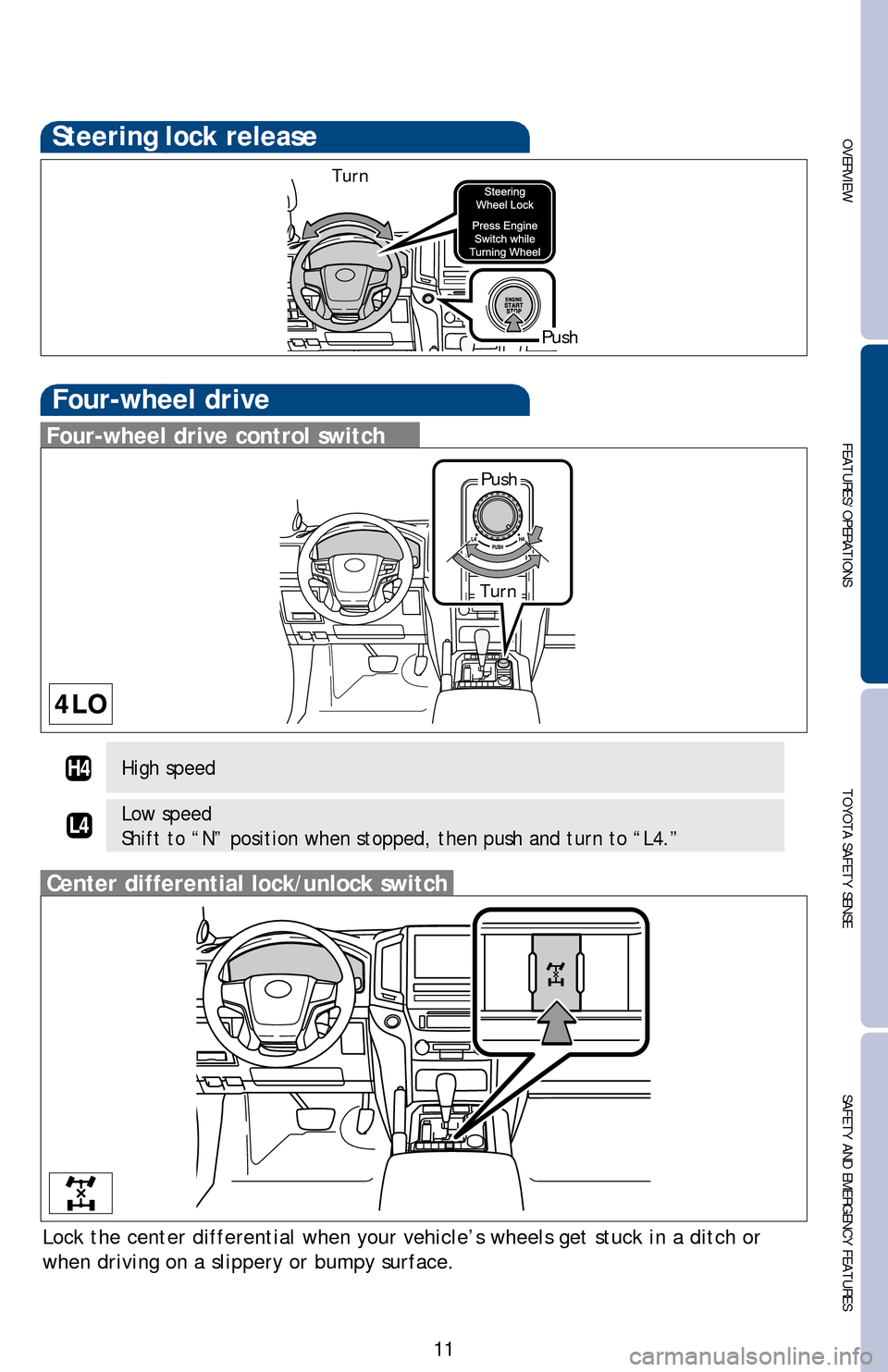

Steering lock release
Turn
Push
Four-wheel drive
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”\
H4
L4
Lock the center differential when your vehicle’s wheels get stuck in \
a ditch or
when driving on a slippery or bumpy surface.
Four-wheel drive control switch
Center differential lock/unlock switch
Push
Turn
Page 14 of 56
12
FEATURES/OPERATIONS
Seat adjustments-Rear
Folding down seatSeatback angle
Seat position
Refer to the Owner’s Manual for more details.

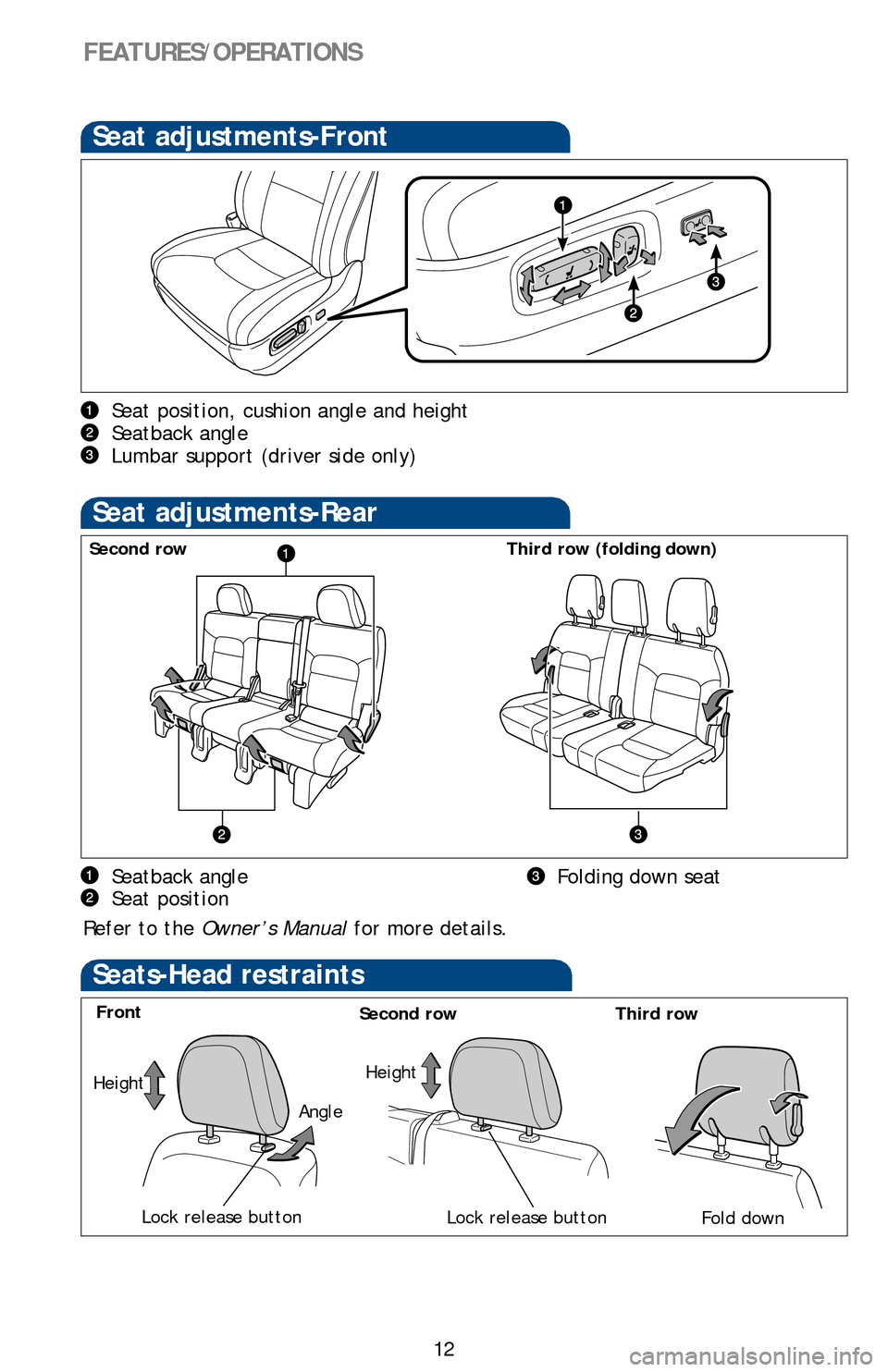

Seat adjustments-Front
Seat position, cushion angle and height
Seatback angle
Lumbar support (driver side only)
Second row Third row (folding down)
Seats-Head restraints
Front
Second row Third row
Lock release button
Height
Angle
Lock release button
Height
Fold down
Page 15 of 56
OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
13
(1) Stow the seat belt buckles and lower the head restraints.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seatback and swing the whole seat up and forward.
(4) Hook the holding strap to the assist grip and secure the seat.
(5) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)

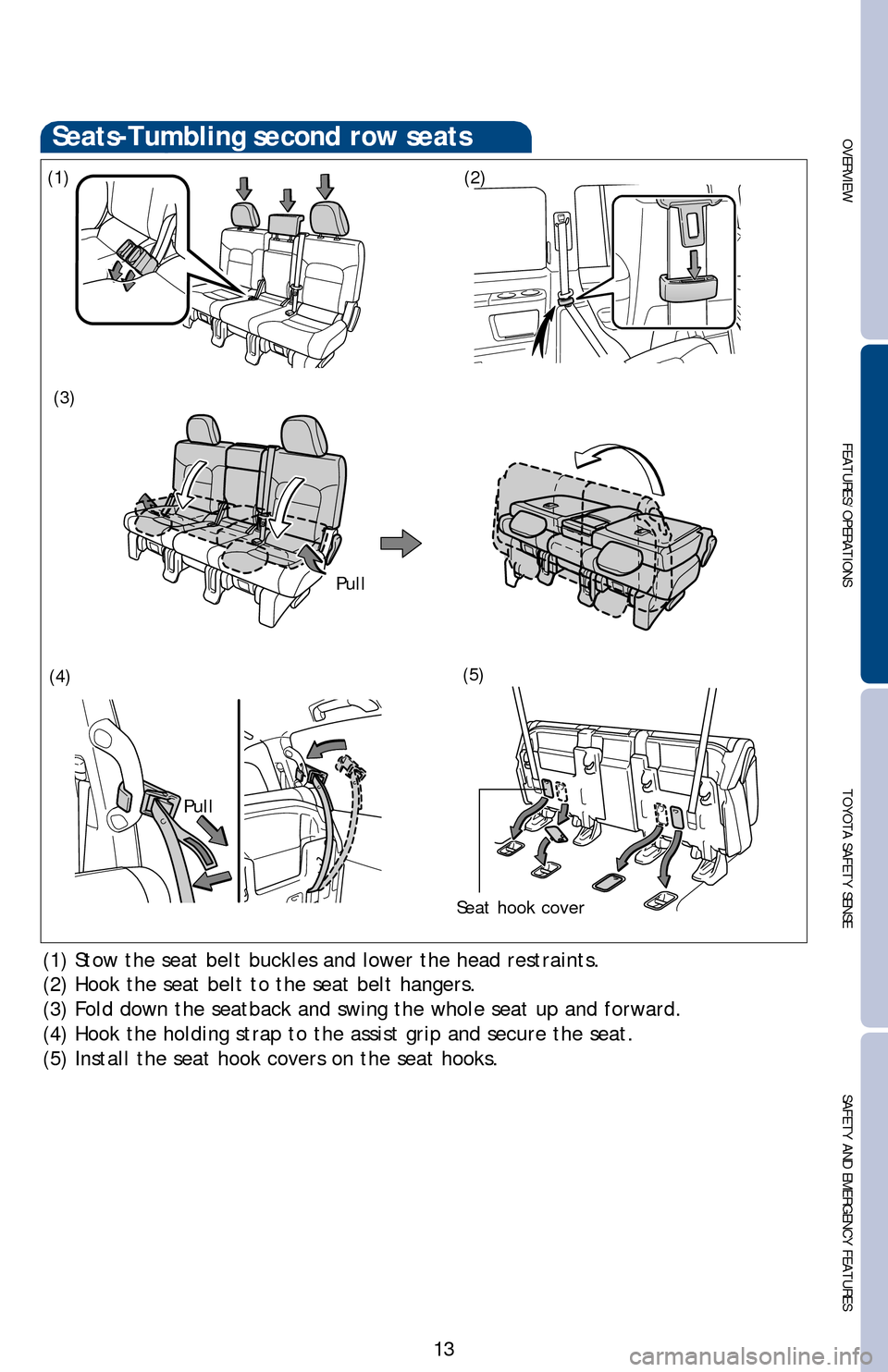

Seats-Tumbling second row seats
(4)
Pull Seat hook cover
Pull
Page 16 of 56
14
FEATURES/OPERATIONS
(1) Stow the seat belt buckles.
(2) Stow the center head restraint.
(3) Hook the seat belt to the seat belt hangers.
(4) Fold down the outer head restraints.
(5) Fold the seats.
(6) Lift the seats sideward.
(7) Lock the seats.
(8) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)

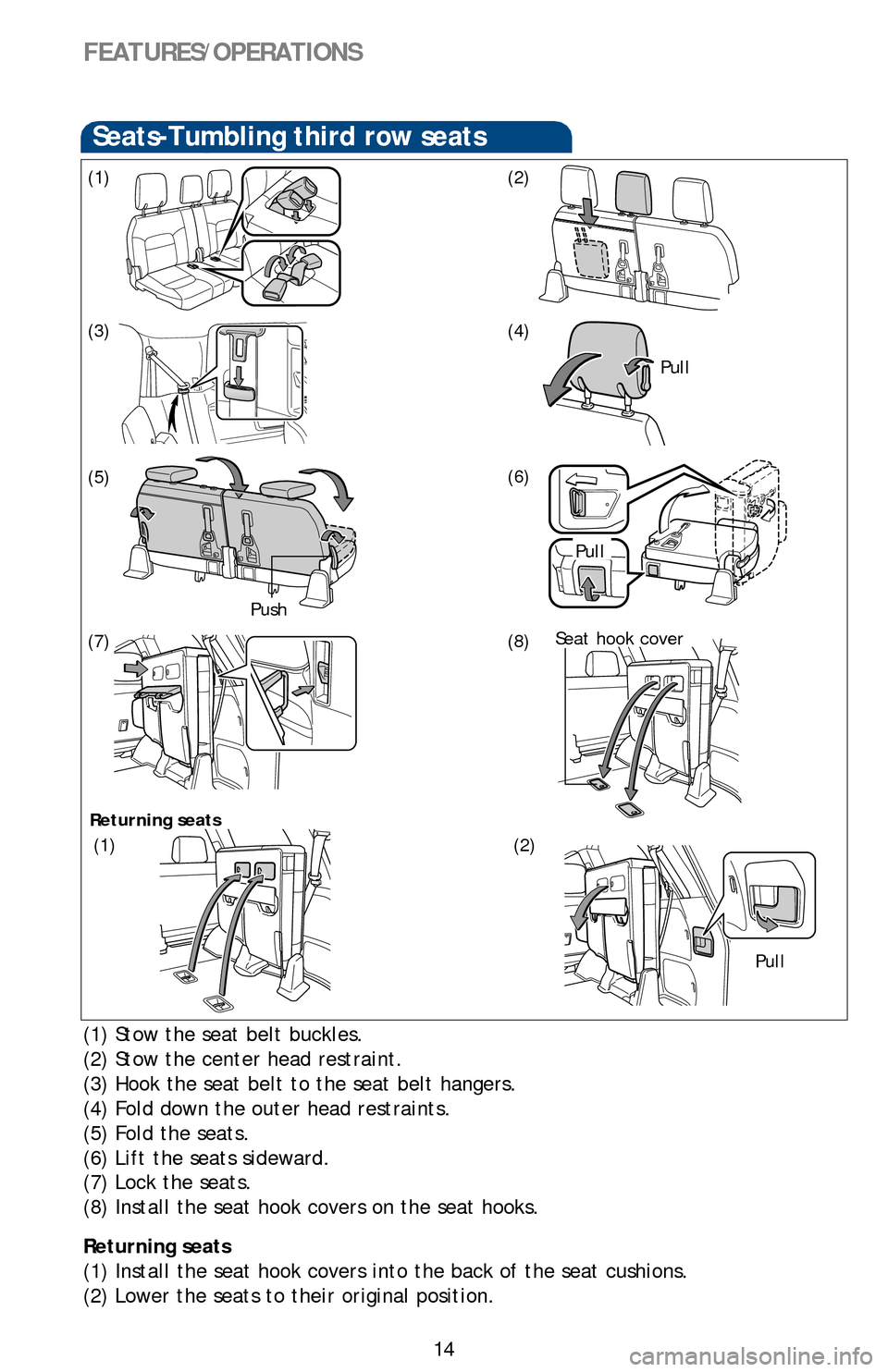

Seats-Tumbling third row seats
(4)
Push
(6)
Pull
(7)(8)Seat hook cover
Pull
Pull
Returning seats
(1)(2)
Returning seats
(1) Install the seat hook covers into the back of the seat cushions.
(2) Lower the seats to their
original position.
Page 17 of 56
OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
15

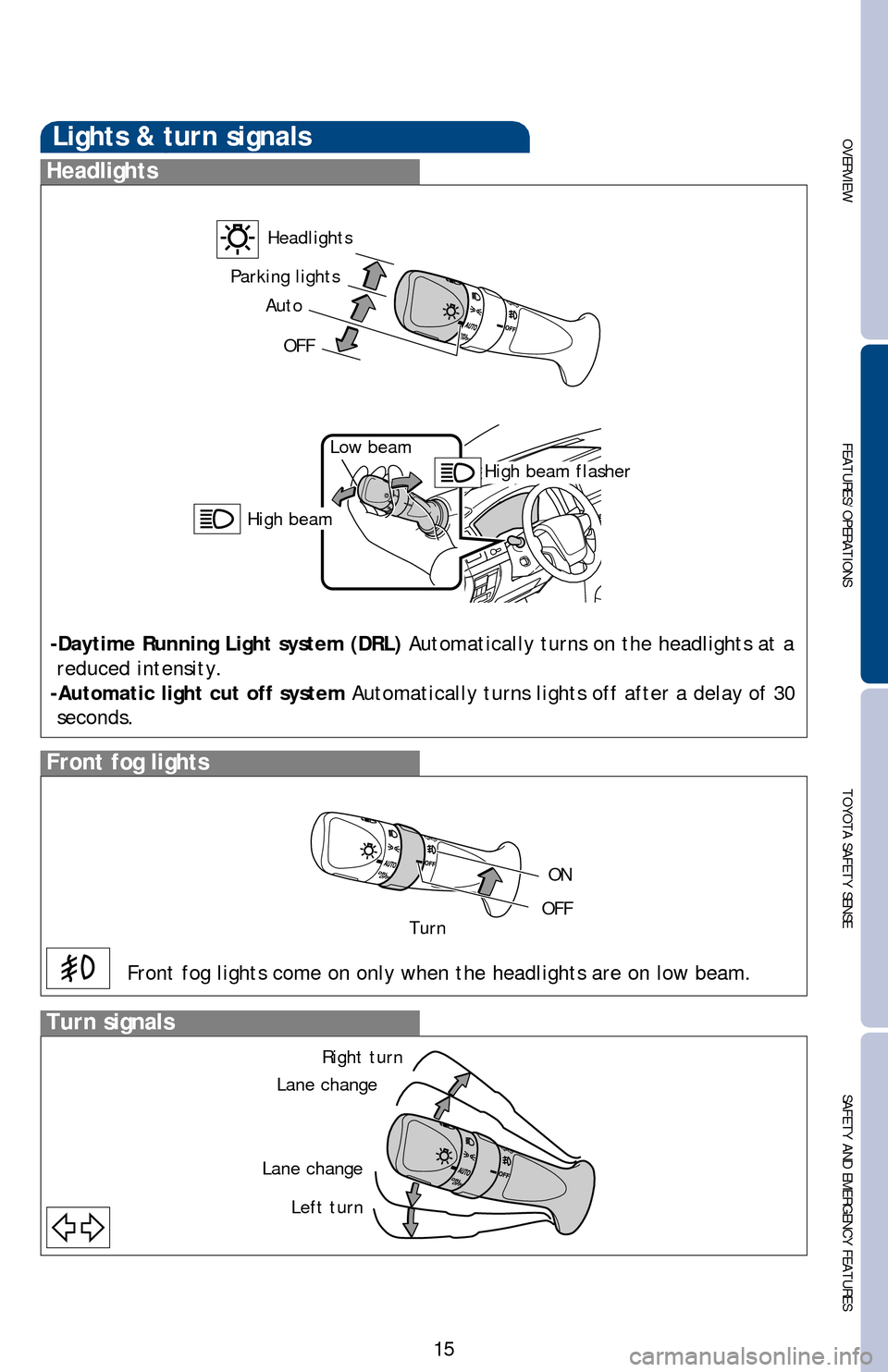

Lights & turn signals
Turn signals
Headlights
Front fog lights
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after a delay of 30
seconds.
Right turn
Lane change
Lane change Left turn
Auto
OFF
Parking lights
Headlights
TurnOFF
ON
Front fog lights come on only when the headlights are on low beam.
Low beam
High beam flasher
High beam
Page 18 of 56
16
Windshield wipers & washers
FEATURES/OPERATIONS
Windows-Power
Up
Down
Driver sideWindow lock switch
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop window midway, lightly push \
the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Front
Rear
Intermittent
Normal
Adjust sensor sensitivity2
Pull to wash and wipe
Push to wash
and wipe
Single wipe
Auto wipe
Slow
Fast
1 Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
2 Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
With intermittent wiper
With AUTO rain-sensing wiper
Pull to wash
and wipe
Single wipe
Interval wipe
Slow
Fast
Adjust
frequency1
Turn end
to activate
Page 19 of 56
OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
17

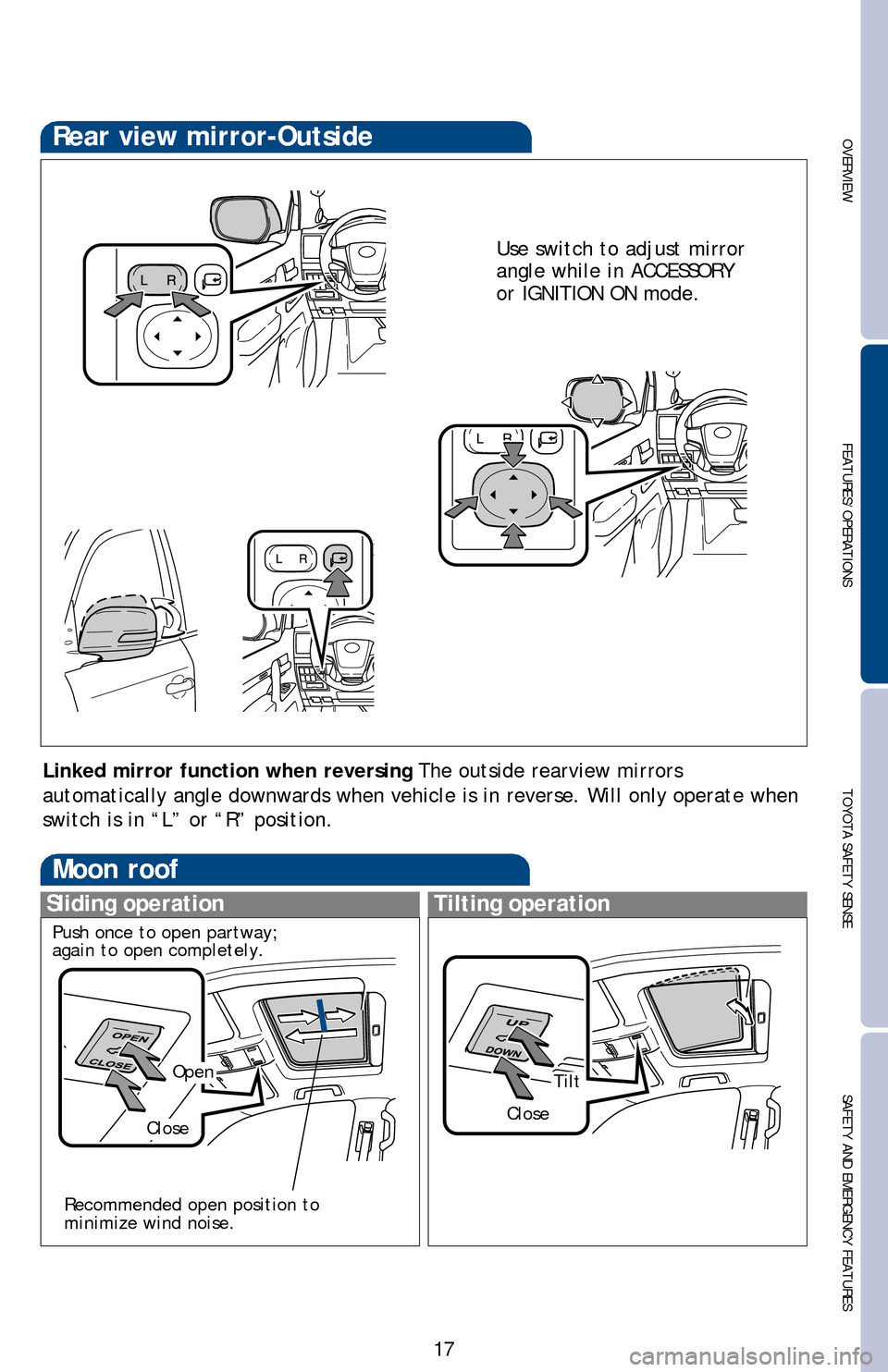

Moon roof
Sliding operationTilting operation
OpenTilt
CloseClose
Recommended open position to
minimize wind noise.
Push once to open partway;
again to open completely.
Rear view mirror-Outside
Linked mirror function when reversing
The outside rearview mirrors
automatically angle downwards when vehicle is in reverse. Will only oper\
ate when
switch is in “L” or “R” position. Use switch to adjust mirror
angle while in ACCESSORY
or IGNITION ON mode.
Page 20 of 56
18
FEATURES/OPERATIONS

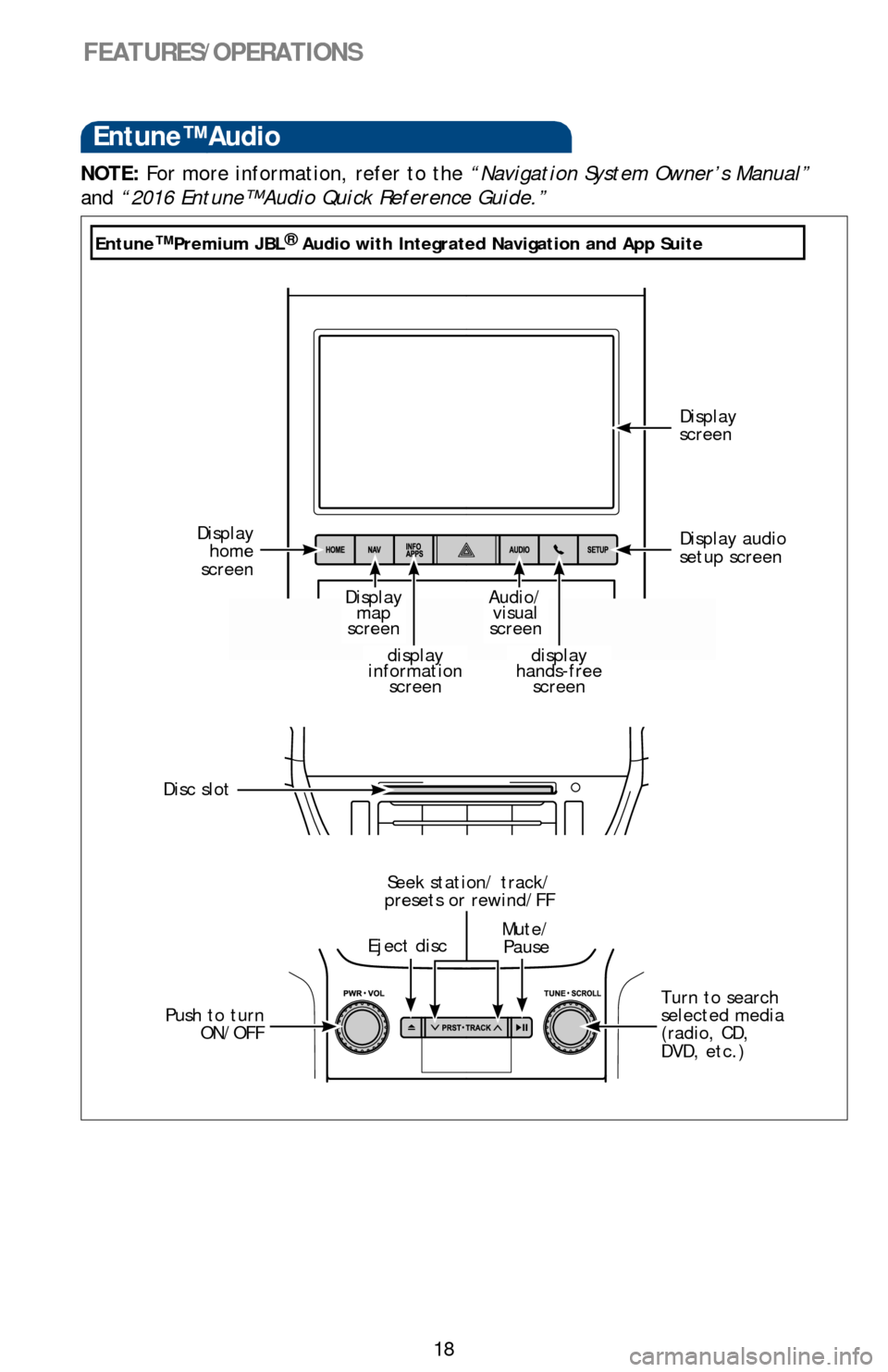

Entune™ Audio
NOTE: For more information, refer to the “Navigation System Owner’s Manual”
and “2016 Entune™ Audio Quick Reference Guide.”
Disc slot
Turn to search
selected media
(radio, CD,
DVD, etc.)
Eject disc
Mute/
Pause
Seek station/ track/
presets or rewind/FF
Push to turn ON/OFF
Displayhome
screen Display audio
setup screen Display
screen
Display
map
screenAudio/ visual
screen
display
information screendisplay
hands-free screen
Entune™ Premium JBL ® Audio with Integrated Navigation and App Suite
