TOYOTA LAND CRUISER 2016 J200 Quick Reference Guide
Manufacturer: TOYOTA, Model Year: 2016, Model line: LAND CRUISER, Model: TOYOTA LAND CRUISER 2016 J200Pages: 56, PDF Size: 2.33 MB
Page 21 of 56
OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
19

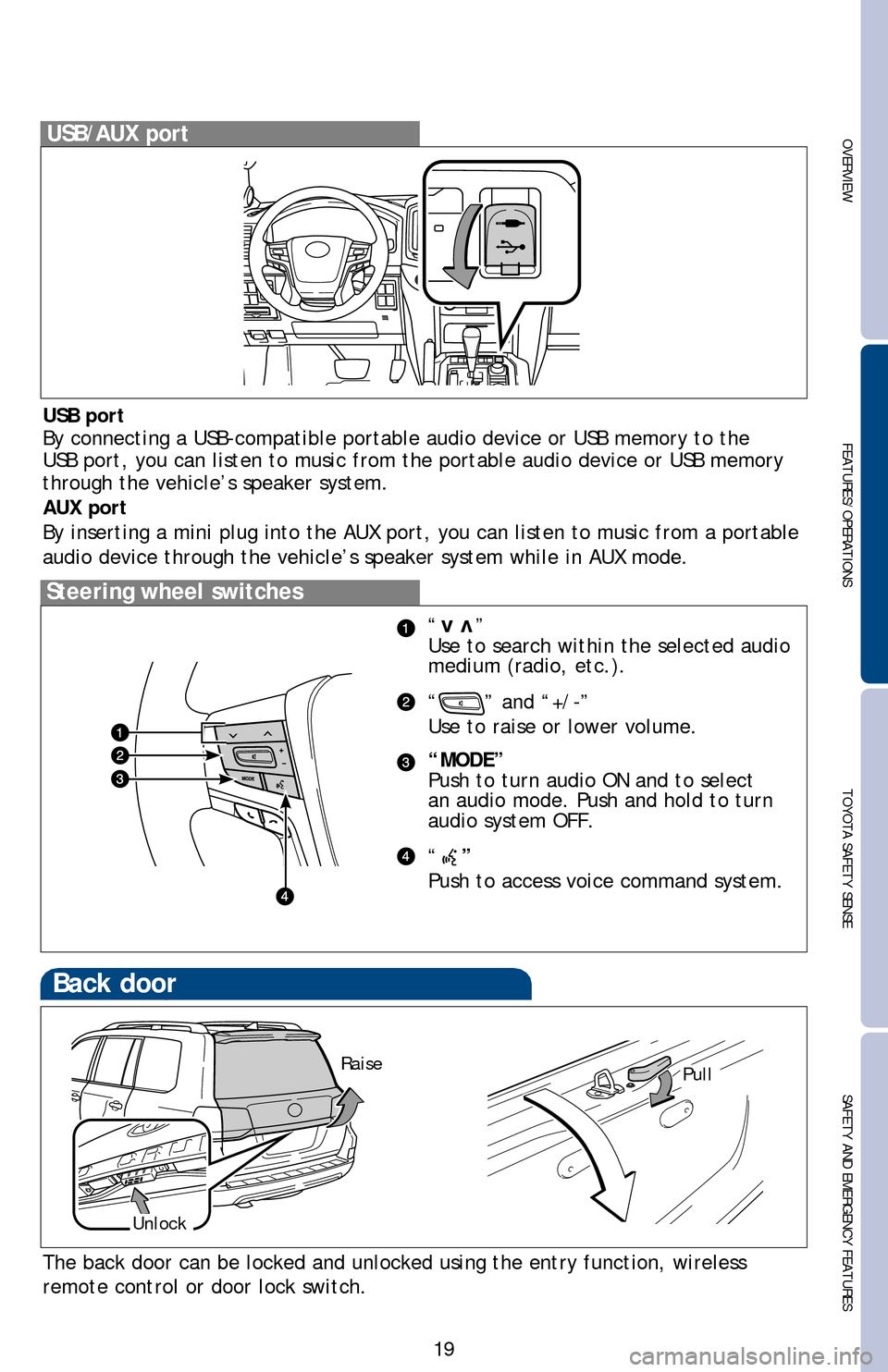

USB/AUX port
“vv”
Use to search within the selected audio
medium (radio, etc.).
“
” and “+/-”
Use to raise or lower volume.
“MODE”
Push to turn audio ON and to select
an audio mode. Push and hold to turn
audio system OFF.
“
”
Push to access voice command system.
Steering wheel switches
USB port
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
Back door
Pull
Unlock
The back door can be locked and unlocked using the entry function, wirel\
ess
remote control or door lock switch.
Raise
Page 22 of 56
Rear AC control button (touch to display rear AC control screen)
Airflow control display (see diagram below)
Windshield defogger and airflow to feet
Option controls
Fan speed
Temperature display (driver side left, passenger side right)
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air inta\
ke and
fan to adjust automatically.
Climate control OFF
Air intake control (switch between outside air “
” and recirculated air
“
” mode)
CLIMATE (push to display AC control screen)
Temperature controls (driver side)
Rear Air Conditioning operation mode ON/OFF
Outside rearview mirror/Rear window defogger
Windshield airflow/defogger (outside air only)
Airflow controls (press to change airflow mode)
Temperature controls (passenger side)
20
FEATURES/OPERATIONS

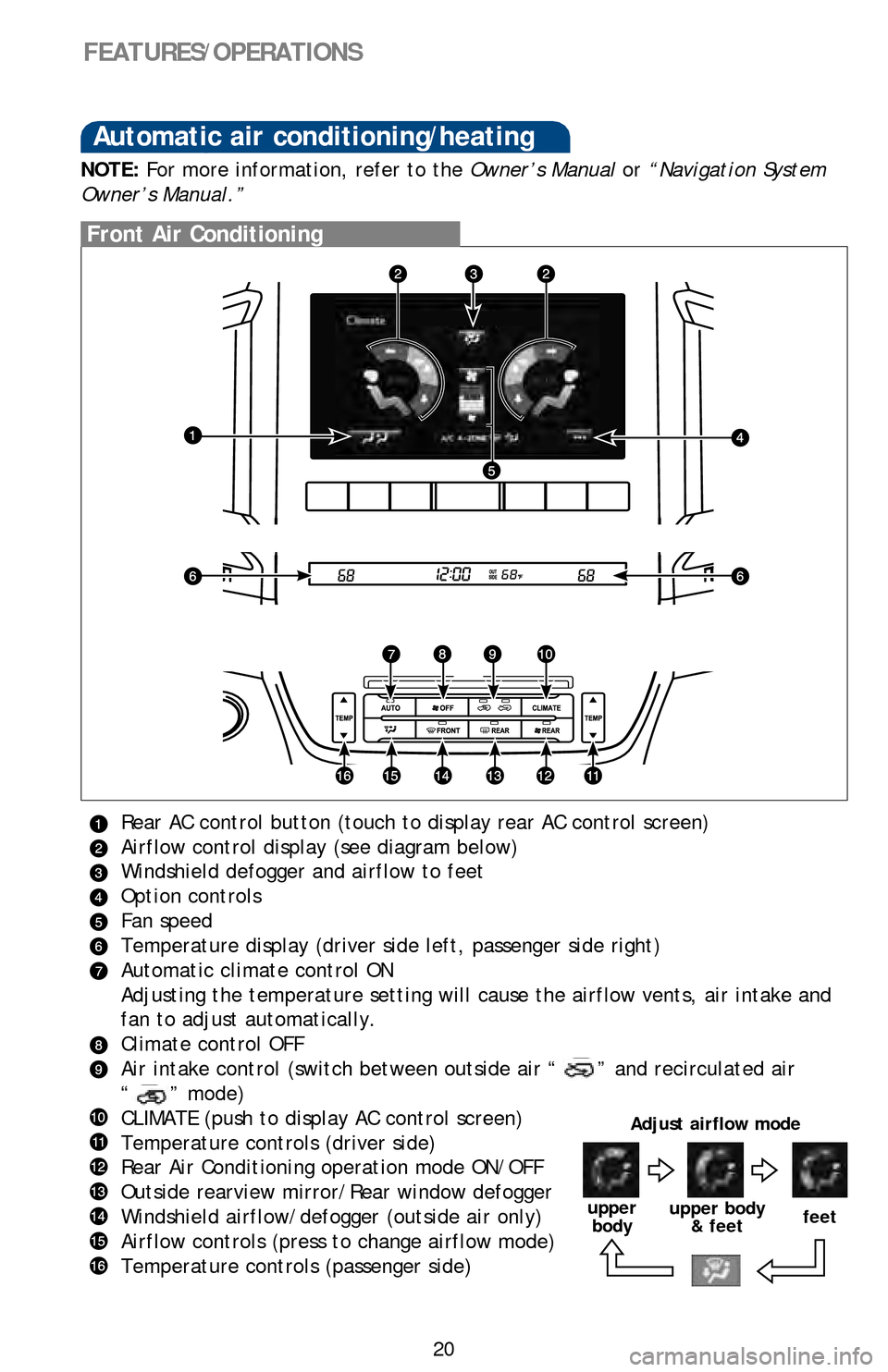

Automatic air conditioning/heating
NOTE: For more information, refer to the Owner’s Manual or “Navigation System
Owner’s Manual.”
Front Air Conditioning
Adjust airflow mode
feetupper body & feet upperbody
Page 23 of 56
OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
21

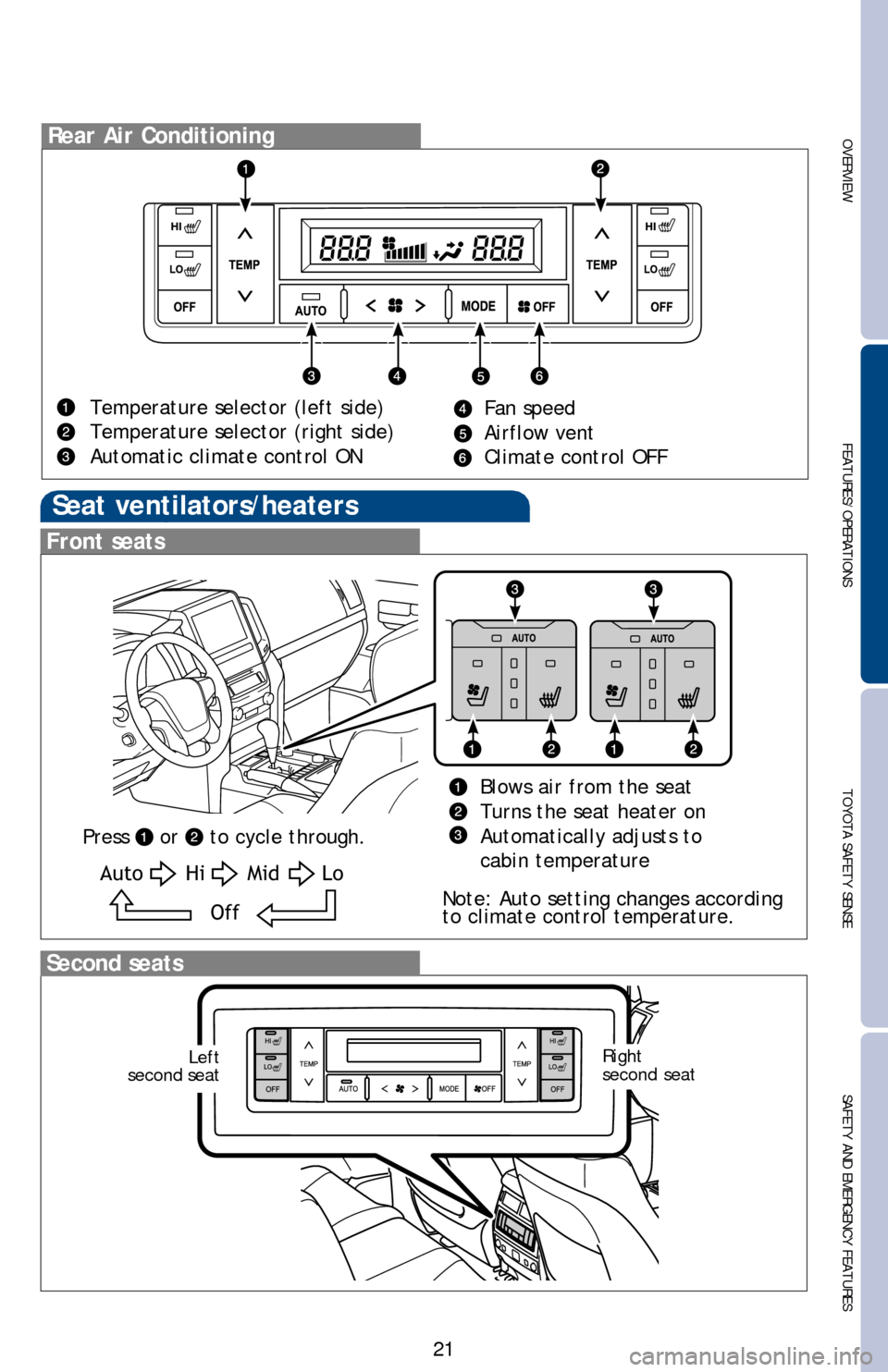

Rear Air Conditioning
Temperature selector (left side)
Temperature selector (right side)
Automatic climate control ON
Seat ventilators/heaters
Front seats
Press or to cycle through.
Note: Auto setting changes according
to climate control temperature.Fan speed
Airflow vent
Climate control OFF
Blows air from the seat
Turns the seat heater on
Automatically adjusts to
cabin temperature
Second seats
Left
second seatRight
second seat
Off
AutoHiMidLo
Page 24 of 56
22
Crawl Control
Multi-terrain Monitor
Speed selection switch
LoHi(1)
(2)
Med
Lo-MedMed-Hi
Speed modes
FEATURES/OPERATIONS
Press “” switch while the engine switch is in IGNITION ON mode to check
vehicle surroundings.
Note: The amount of time that the screen is displayed changes according\
to
the vehicle speed at the time the VIEW switch was pressed. Speeds exceed\
ing
approximately 7 mph (12 km/h) will cancel monitor viewing.
For more details, please refer to the Owner’s Manual.
Crawl Control allows travel on extremely rough off-road surfaces at a fi\
xed low
speed without pressing the accelerator or brake pedal. Operating status \
displays
on the MID.
Lo to Lo-Med - Rock, mogul (downhill) and gravel (downhill)
Lo-Med to Med - Mogul (uphill)
Med-Hi - Snow, mud, gravel (uphill), sand, dirt, mogul (uphill) and grass
Page 25 of 56
OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
23

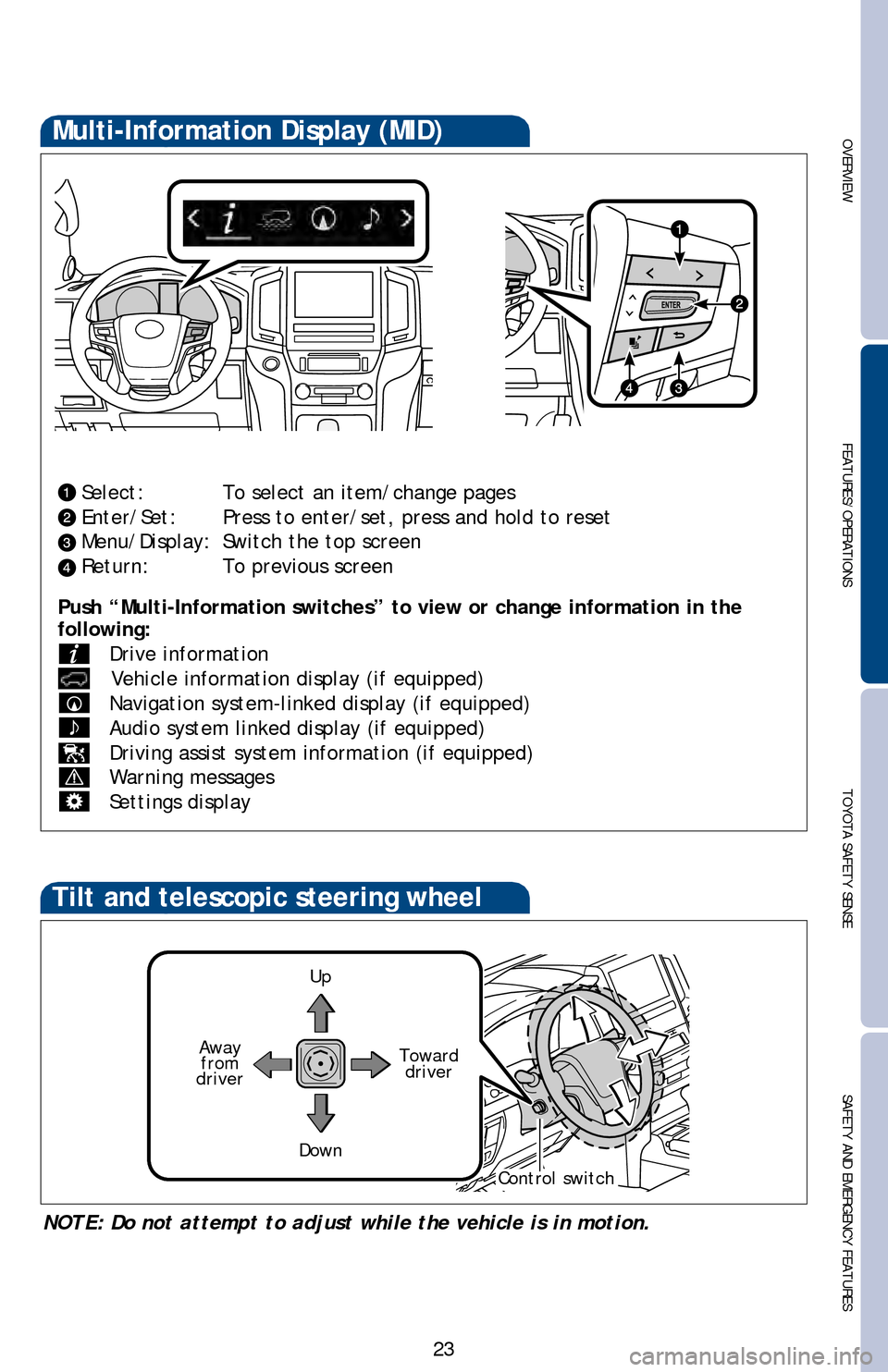

Push “Multi-Information switches” to view or change information in\
the
following:
Drive information
Vehicle information display (if equipped)
Navigation system-linked display (if equipped)
Audio system linked display (if equipped)
Driving assist system information (if equipped)
Warning messages
Settings display
Select: To select an item/change pages
Enter/Set: Press to enter/set, press and hold to reset
Menu/Display: Switch the top screen
Return: To previous screen
Multi-Information Display (MID)
Up
Toward driver
Down
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Away from
driver
Control switch
Page 26 of 56
24
FEATURES/OPERATIONS

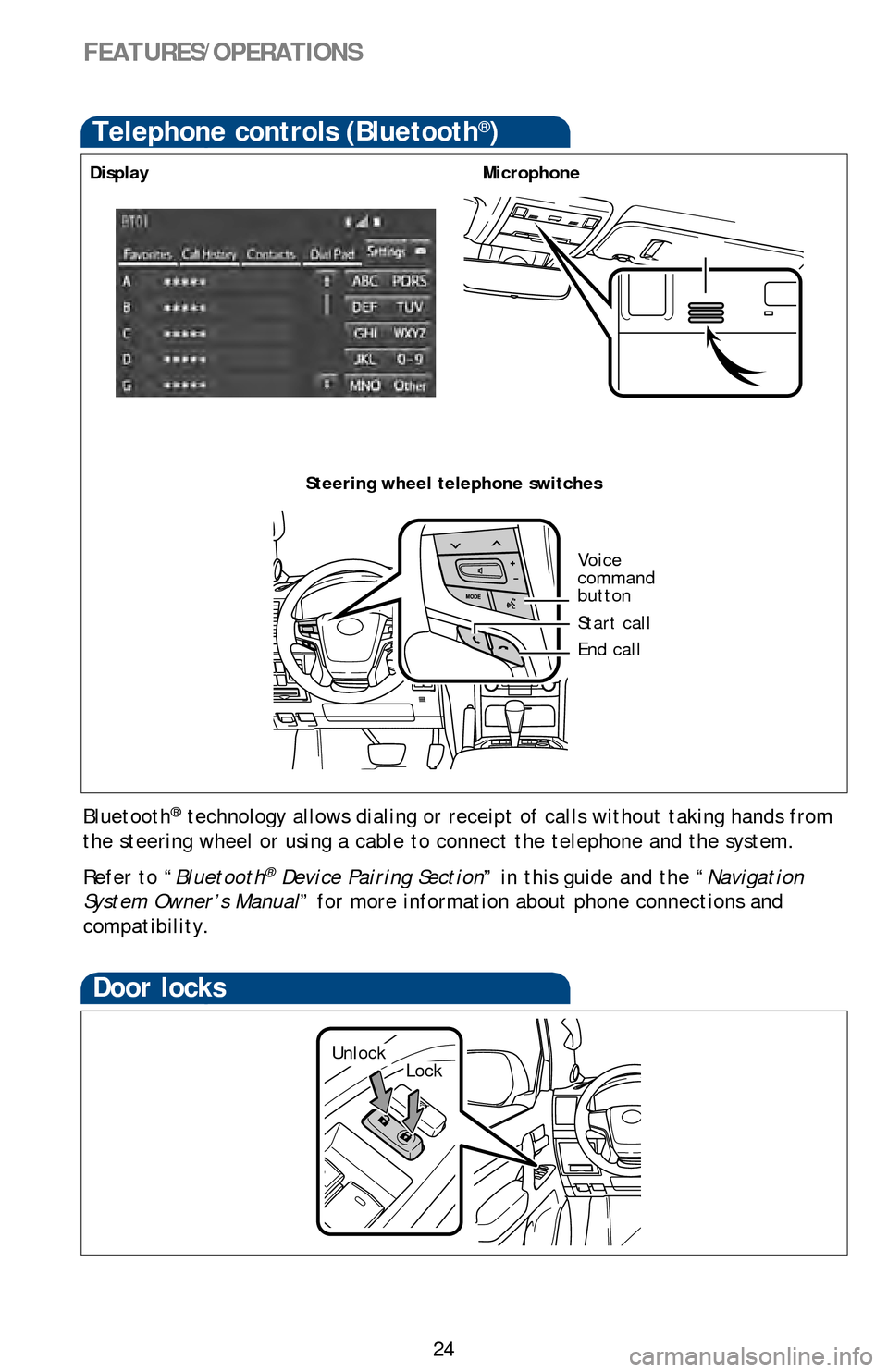

Voice
command
button
End call
Start call
Telephone controls (Bluetooth®)
MicrophoneDisplay
Steering wheel telephone switches
Microphone
Bluetooth® technology allows dialing or receipt of calls without taking hands from\
the steering wheel or using a cable to connect the telephone and the sys\
tem.
Refer to “Bluetooth
® Device Pairing Section ” in this guide and the “ Navigation
System Owner’s Manual ” for more information about phone connections and
compatibility.
Door locks
LockUnlock
Page 27 of 56
25
OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES

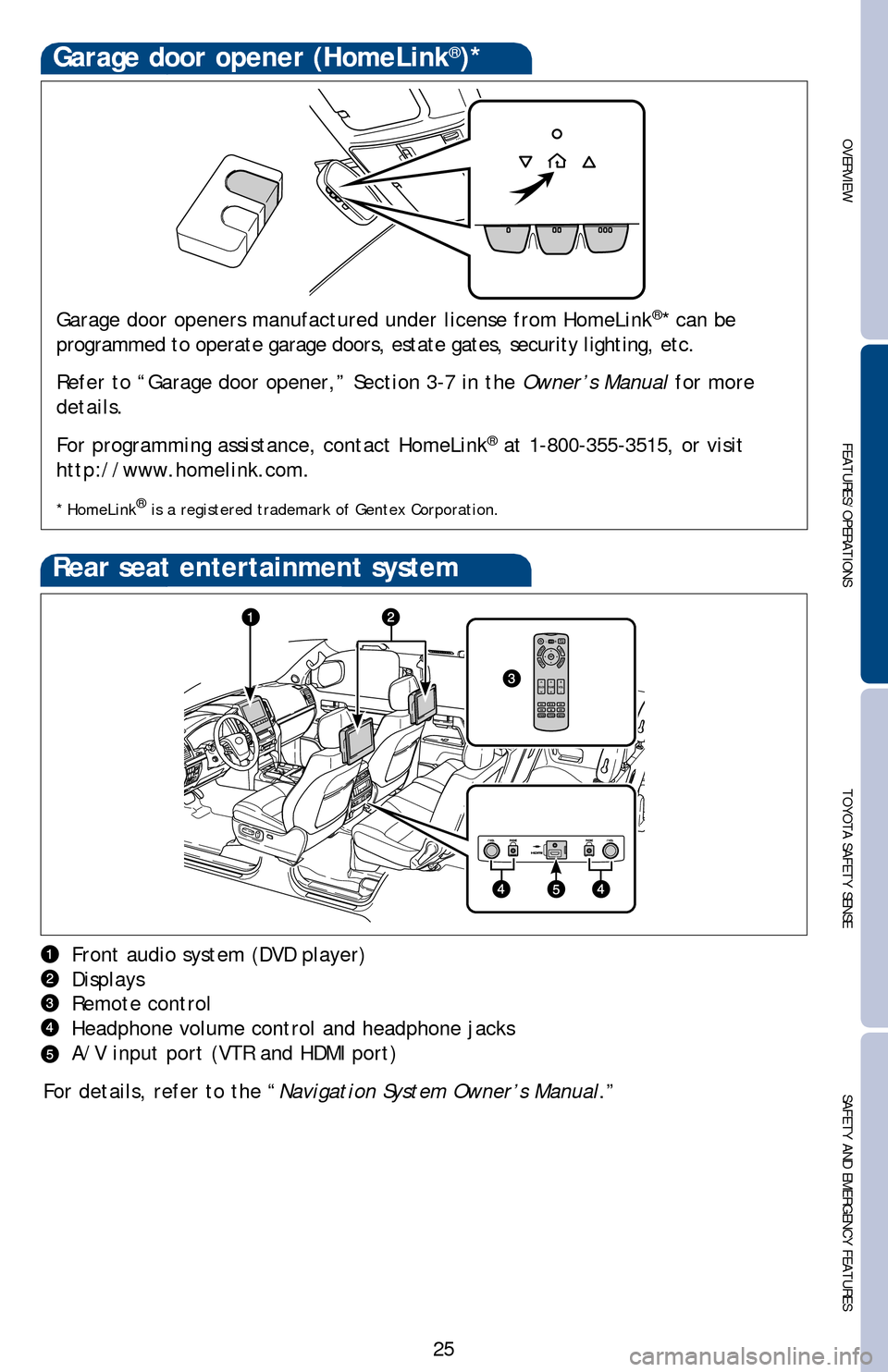

Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Gentex Corporation.
Garage door opener (HomeLink®)*
Front audio system (DVD player)
Displays
Remote control
Headphone volume control and headphone jacks
A/V input port (VTR and HDMI port)
For details, refer to the “ Navigation System Owner’s Manual .”
Rear seat entertainment system
Page 28 of 56
26
FEATURES/OPERATIONS

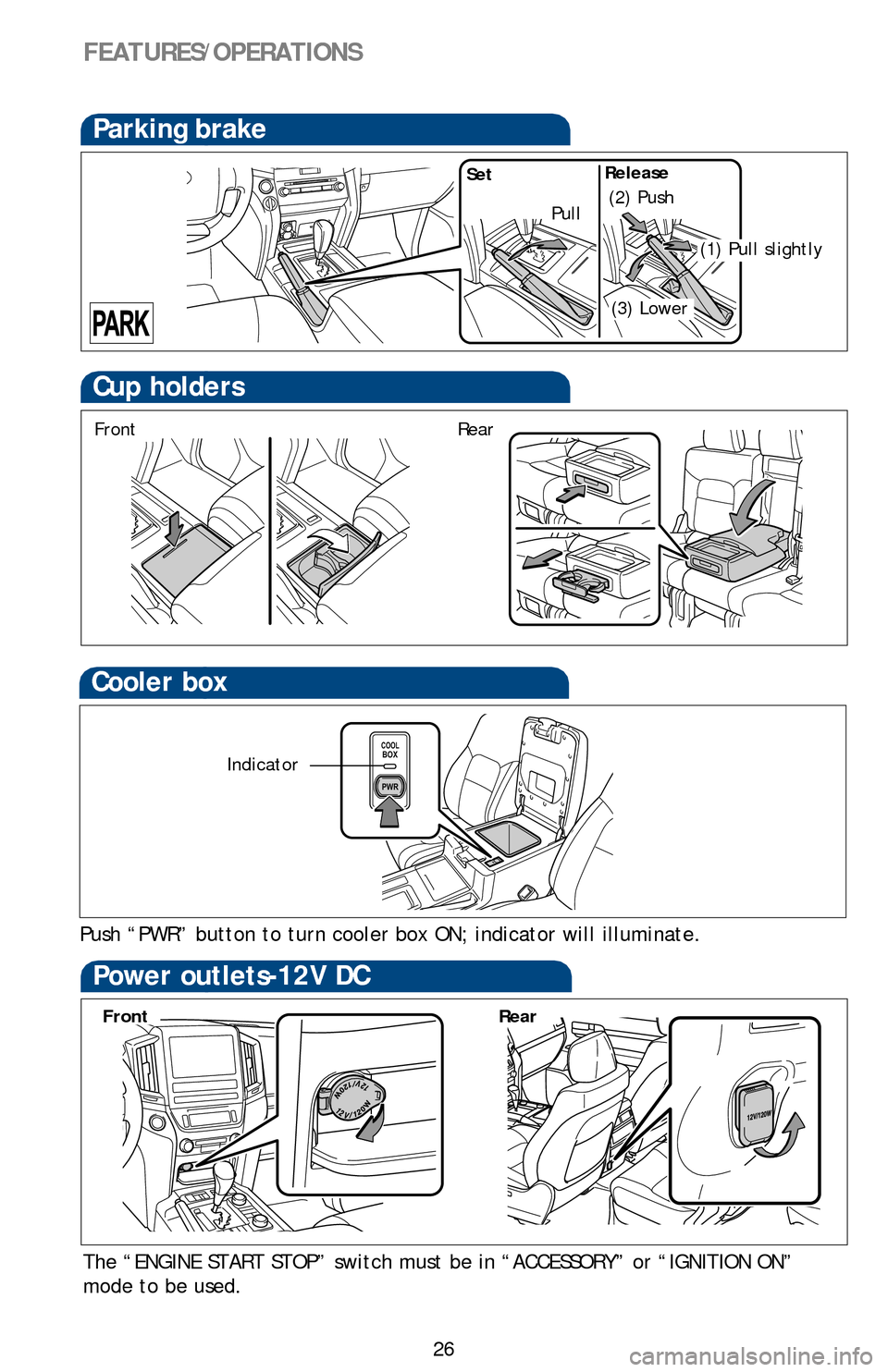

COOLBOX
PWR
Cooler box
Push “PWR” button to turn cooler box ON; indicator will illuminate\
.
Indicator
Power outlets-12V DC
The “ENGINE START STOP” switch must be in “ACCESSORY” or “\
IGNITION ON”
mode to be used.
FrontRear
Parking brake
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
Cup holders
FrontRear
Page 29 of 56
OVERVIEWFEATURES/OPERATIONS TOYOTA SAFETY SENSESAFETY AND EMERGENCY FEATURES
27

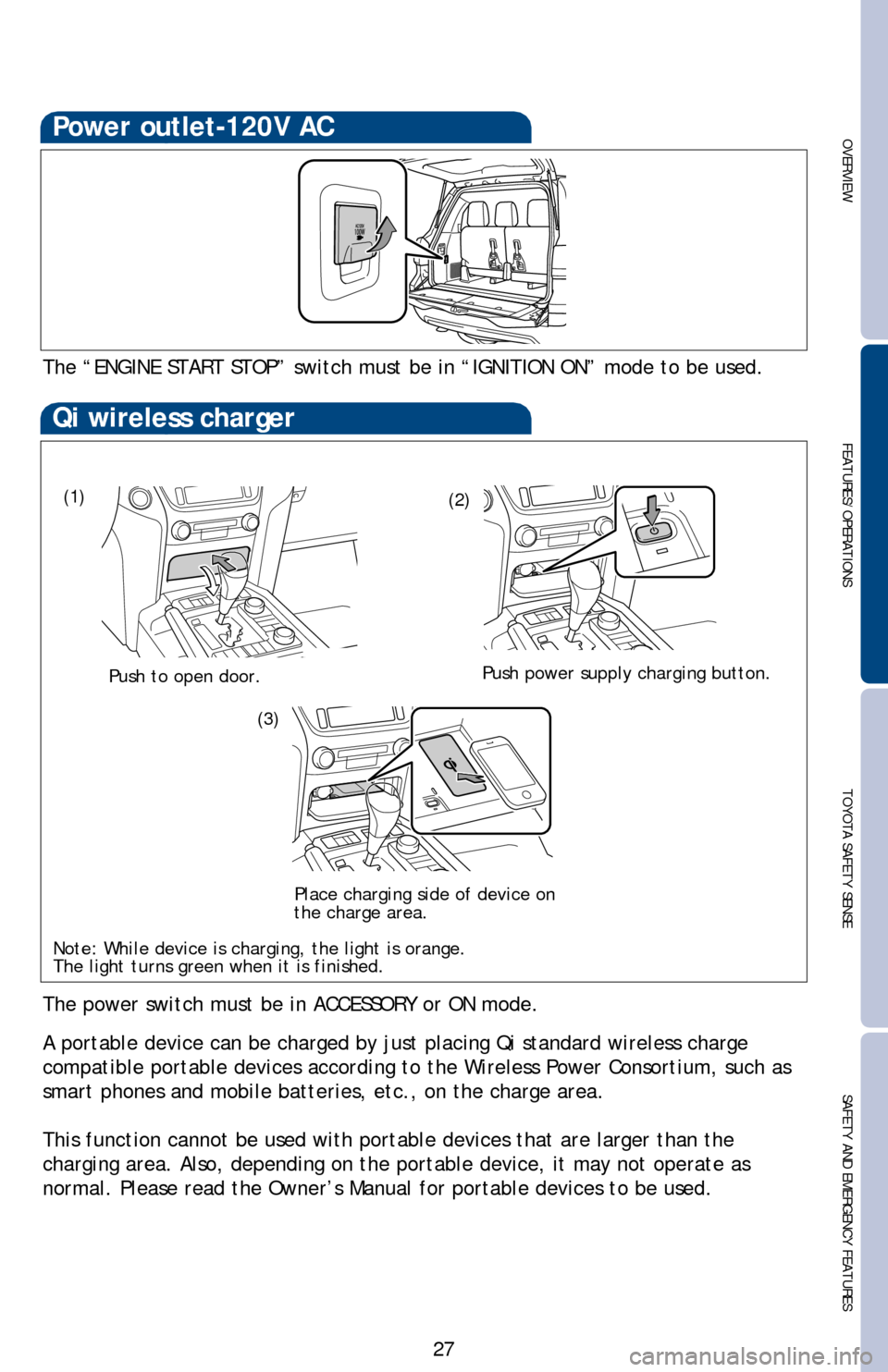

Power outlet-120V AC
The “ENGINE START STOP” switch must be in “IGNITION ON” mode\
to be used.
Qi wireless charger
A portable device can be charged by just placing Qi standard wireless ch\
arge
compatible portable devices according to the Wireless Power Consortium, \
such as
smart phones and mobile batteries, etc., on the charge area.
This function cannot be used with portable devices that are larger than \
the
charging area. Also, depending on the portable device, it may not operat\
e as
normal. Please read the Owner’s Manual for portable devices to be use\
d. The power switch must be in ACCESSORY or ON mode.
(1)
Push to open door.Push power supply charging button.
Note: While device is charging, the light is orange.
The light turns green when it is finished.
Place charging side of device on
the charge area.
(2)
(3)
Page 30 of 56
28

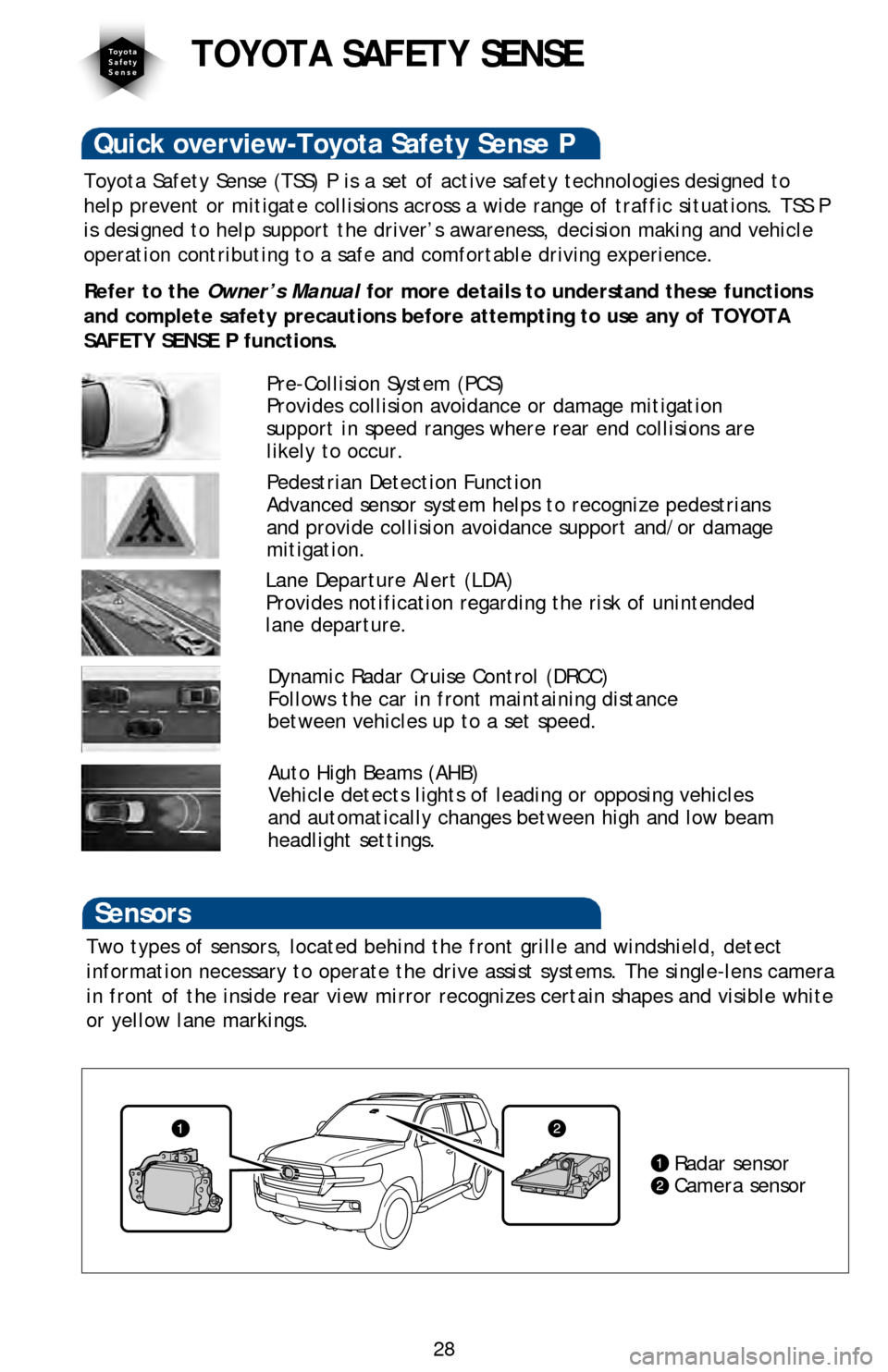

Quick overview-Toyota Safety Sense P
Toyota Safety Sense (TSS) P is a set of active safety technologies des\
igned to
help prevent or mitigate collisions across a wide range of traffic situa\
tions. TSS P
is designed to help support the driver’s awareness, decision making a\
nd vehicle
operation contributing to a safe and comfortable driving experience.
TOYOTA SAFETY SENSE
Pre-Collision System (PCS)
Provides collision avoidance or damage mitigation
support in speed ranges where rear end collisions are
likely to occur.
Lane Departure Alert (LDA)
Provides notification regarding the risk of unintended
lane departure.
Auto High Beams (AHB)
Vehicle detects lights of leading or opposing vehicles
and automatically changes between high and low beam
headlight settings.
Pedestrian Detection Function
Advanced sensor system helps to recognize pedestrians
and provide collision avoidance support and/or damage
mitigation.
Dynamic Radar Cruise Control (DRCC)
Follows the car in front maintaining distance
between vehicles up to a set speed.
Refer to the Owner’s Manual for more details to understand these functions
and complete safety precautions before attempting to use any of TOYOTA
SAFETY SENSE P functions.
Sensors
Two types of sensors, located behind the front grille and windshield, de\
tect
information necessary to operate the drive assist systems. The single-le\
ns camera
in front of the inside rear view mirror recognizes certain shapes and vi\
sible white
or yellow lane markings.
Radar sensor
Camera sensor
