TOYOTA LAND CRUISER 2019 Owners Manual (in English)

LC200_OM_OM60Q99U_(U)
2814-5. Using the driving support systems
4
Driving
■Dynamic radar cruise control can be set when
●The shift lever is in D or range 4 or higher of S has been sele cted.
● Vehicle speed is at or above approximately 30 mph (50 km/h).
■ Accelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicl e distance
control mode, the vehicle speed may decrease below the set spee d in order
to maintain the distance to the preceding vehicle.
■ Automatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically cance led in the fol-
lowing situations:
● Actual vehicle speed falls below approximately 25 mph (40 km/h) .
● VSC is activated.
● Active TRAC is activated for a period of time.
● When the VSC or Active TRAC system is turned off.
● When second start mode is set.
● The sensor cannot detect correctly because it is covered in some way.
● Pre-collision braking is activated.
● The center differential lock/unlock is not completed within 5 s econds while
the cruise control system is on.
If vehicle-to-vehicle distance control mode is automatically ca nceled for any
other reason, there may be a malfunction in the system. Contact your Toyota
dealer.

282
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
■Automatic cancelation of c onstant speed control mode
Constant speed control mode is automatically canceled in the following situa-
tions:
● Actual vehicle speed is more than approximately 10 mph (16 km/h ) below
the set vehicle speed.
● Actual vehicle speed falls below approximately 25 mph (40 km/h) .
● VSC is activated.
● Active TRAC is activated for a period of time.
● When the VSC or Active TRAC system is turned off.
● Pre-collision braking is activated.
● The center differential lock/unlock is not completed within 5 s econds while
the cruise control system is on.
If constant speed control mode is automatically canceled for an y other rea-
son, there may be a malfunction in the system. Contact your Toyota dealer.
■ Brake system operation sound
If the brakes are applied automatically while the vehicle is in vehicle-to-vehi-
cle distance control mode, a brake system operation sound may b e heard.
This does not indicate a malfunction.
■ Warning messages and buzzers for d ynamic radar cruise control
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions.
■ When the sensor may not be correctly detect ing the vehicle ahead
In the case of the following and depending on the conditions, o perate the
brake pedal when deceleration of the system is insufficient or operate the
accelerator pedal when acceleration is required.
As the sensor may not be able to correctly detect these types o f vehicles, the
approach warning ( P. 279) may not be activated.
● Vehicles that cut in suddenly
● Vehicles traveling at low speeds
● Vehicles that are not moving in the same lane
● Vehicles with small rear ends (trailers with no load on board, etc.)
● Motorcycles traveling in the same lane

LC200_OM_OM60Q99U_(U)
2834-5. Using the driving support systems
4
Driving
●When water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor
■ Conditions under which the vehic le-to-vehicle distance control mode
may not function correctly
In the case of the following conditions, operate the brake peda l (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahead, the system
may not operate properly.
● When the vehicle ahead of you decelerates suddenly
● When driving on a road surrounded by a structure, such as in a tunnel or on
a bridge
● While the vehicle speed is decreasing to the set speed after th e vehicle
accelerates by depressing the accelerator pedal
●
When your vehicle is pointing upwards
(caused by a heavy load in the luggage
compartment, etc.)
● Preceding vehicle has an extremely high
ground clearance
● When the road curves or when the lanes
are narrow
● When steering wheel operation or your
position in the lane is unstable

284
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
Cruise control
Use the cruise control to maintain a set speed without depressi ng the
accelerator pedal.
Indicators
Cruise control switch
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
: If equipped
Summary of functions
1
2
Setting the vehicle speed
1
2

LC200_OM_OM60Q99U_(U)
2854-5. Using the driving support systems
4
Driving
To change the set speed, operate the lever until the desired se t speed
is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired direc-
tion.
Large adjustment: Hold the lever in
the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By 1 mph (1.6 km/h)
*1 or 1 km/h (0.6 mph)*2 each time
the lever is operated.
Large adjustment: The set speed can be increased or decreased c ontinu-
ally until the lever is released.
*1: When the set speed is shown in “MPH”
*2: When the set speed is shown in “km/h”
Pulling the lever toward you
cancels the c onstant speed
control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes
the constant speed control.
Resuming is available when the
vehicle speed is more than approx-
imately 25 mph (40 km/h).
■Cruise control can be set when
●The shift lever is in the D or range 4 or higher of S has been selected.
● Vehicle speed is above approximately 25 mph (40 km/h).
■ Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, th e set speed
resumes.
● Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
Adjusting the set speed
1
2
Canceling and resuming t he constant speed control
1
2

286
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
■Automatic cruise co ntrol cancelation
Cruise control will stop maintaining the vehicle speed in any o f the following
situations:
● Actual vehicle speed falls more than approximately 10 mph (16 k m/h) below
the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 25 mph (40 km/h).
● VSC is activated.
● The center differential lock/unlock is not completed within 5 s econds while
the cruise control system is on.
● Active TRAC is activated for a period of time.
● When the VSC or Active TRAC system is turned off.
■ If “Cruise Control Malfunction Vi sit Your Dealer” is shown on the multi-
information display
Press the “ON-OFF” button once to deactivate the system, and th en press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise cont rol cancels imme-
diately after being activated, there may be a malfunction in th e cruise control
system. Have the vehicle inspected by your Toyota dealer.
WARNING
■ To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accid ent resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a stee p hill.
● When your vehicle is towing a trailer (with towing hitch) or du ring emer-
gency towing

287
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
4
Driving
Intuitive parking assist
Front corner sensors
Rear corner sensors
Rear center sensors
On/off
To turn the system on, press the
switch. The indicator light comes
on and the buzzer sounds to inform
the driver that the system is opera-
tional.
To turn the system off, press the
switch again.
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via t he multi-information display,
the multimedia screen (if equipped), the navigation system
screen, and a buzzer. Always check the surrounding area when
using this system.
Types of sensors
1
2
3
Intuitive parking assist switch

288
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
When the sensors detect an obstac le, a graphic is shown on the multi-
information display, navigation system screen depending on the posi-
tion and distance to the obstacle.
Multi-information display
Front corner sensor operation
Rear corner sensor operation
Rear center sensor operation
Navigation system screen
Intuitive parking assist display
When the Multi-terrain Monitor
is not displayed.
A graphic is automatically dis-
played when an obstacle is
detected. The screen can be set so
that the graphic is not displayed.
(P. 291)
: Select to mute the buzzer
sounds.
Intuitive parking assist
Rear Cross Traffic Alert (if
equipped)
When the Multi-terrain Monitor
is displayed.
A simplified image is displayed on
the upper corner of the screen
when an obstacle is detected.
Display
1
2
3
1
2
3

LC200_OM_OM60Q99U_(U)
2894-5. Using the driving support systems
4
Driving

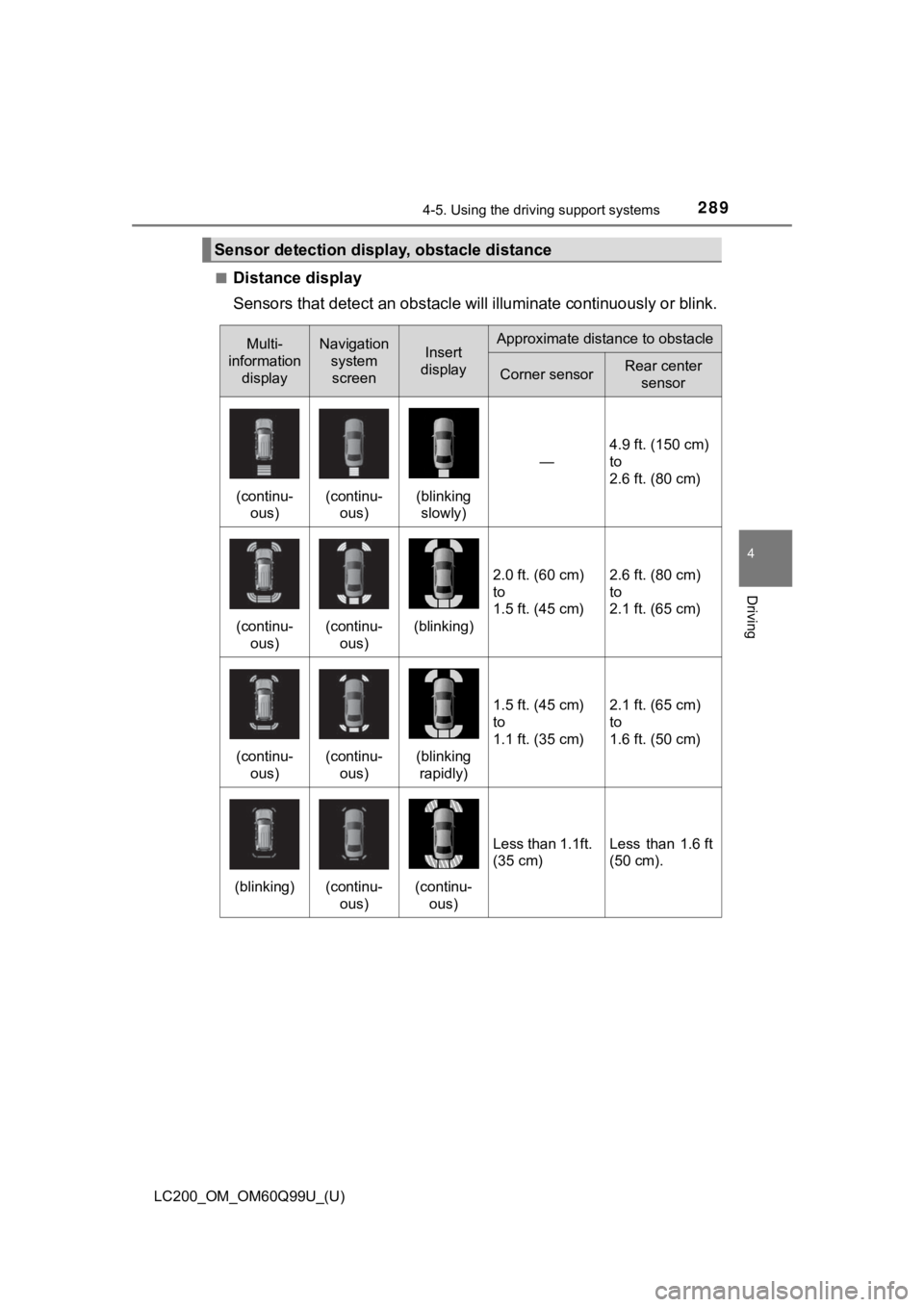

■Distance display
Sensors that detect an obstacle will illuminate continuously or blink.
Sensor detection display, obstacle distance
Multi-
information
displayNavigation system
screenInsert
displayApproximate distance to obstacle
Corner sensorRear center
sensor
(continu-ous)(continu-ous)(blinking slowly)
—
4.9 ft. (150 cm)
to
2.6 ft. (80 cm)
(continu- ous)(continu-ous)(blinking)
2.0 ft. (60 cm)
to
1.5 ft. (45 cm)2.6 ft. (80 cm)
to
2.1 ft. (65 cm)
(continu-
ous)(continu-ous)(blinking rapidly)
1.5 ft. (45 cm)
to
1.1 ft. (35 cm)2.1 ft. (65 cm)
to
1.6 ft. (50 cm)
(blinking)(continu- ous)(continu-ous)
Less than 1.1ft.
(35 cm)Less than 1.6 ft
(50 cm).

290
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
■Buzzer operation and di stance to an obstacle
A buzzer sounds when the sensors are operating.
● The buzzer sounds faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the
obstacle, the buzzer sounds continuously.
• Corner sensors: Approximately 1.1ft. (35 cm)
• Rear center sensors: Approximately 1.3 ft. (50 cm)
● When 2 or more obstacles are detected simultaneously, the
buzzer system responds to the nearest obstacle. If one or both
come within the above distances , the beep will repeat a long
tone, followed by fast beeps.
● You can change the volume of the warning beeps. (P. 291)
Approximately 4.9 ft. (150 cm)
Approximately 2.0 ft. (60 cm)
Approximately 2.0 ft. (60 cm)
The diagram shows the detection
range of the sensors. Note that the
sensors may not be able to detect
obstacles that are extremely close
to the vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
Detection range of the sensors
1
2
3
