3314-5. Using the driving support systems
4
Driving
●Switching modes
The display mode switches and t he icon display changes each
time the guide line display selection switch is selected.
• Projected course line display mode: Projected course lines that change according to steering
wheel operations are displayed.
• Parking assist guide line display mode: Inverted steering wheel operati ons (parking assist guide line)
are displayed. Use this mode if you are used to how the vehi-
cle handles (if you can park without needing the course line
display).
• Distance guide line display mode: Only distance guide lines are displayed.
● Guide lines
The panoramic view & rear view screen is explained here as an
example.

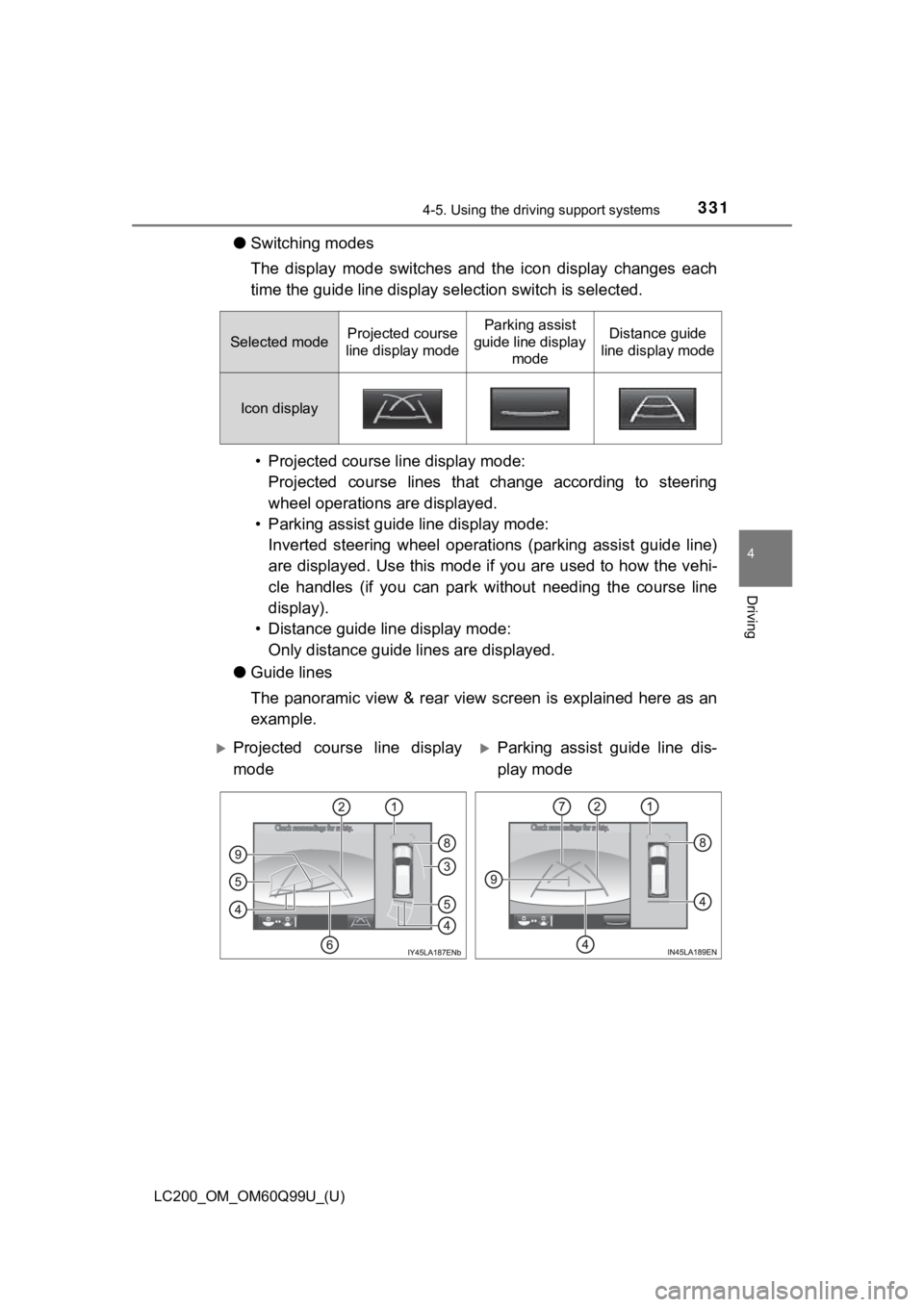

Selected modeProjected course
line display modeParking assist
guide line display modeDistance guide
line display mode
Icon display
Projected course line display
modeParking assist guide line dis-
play mode

332
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems

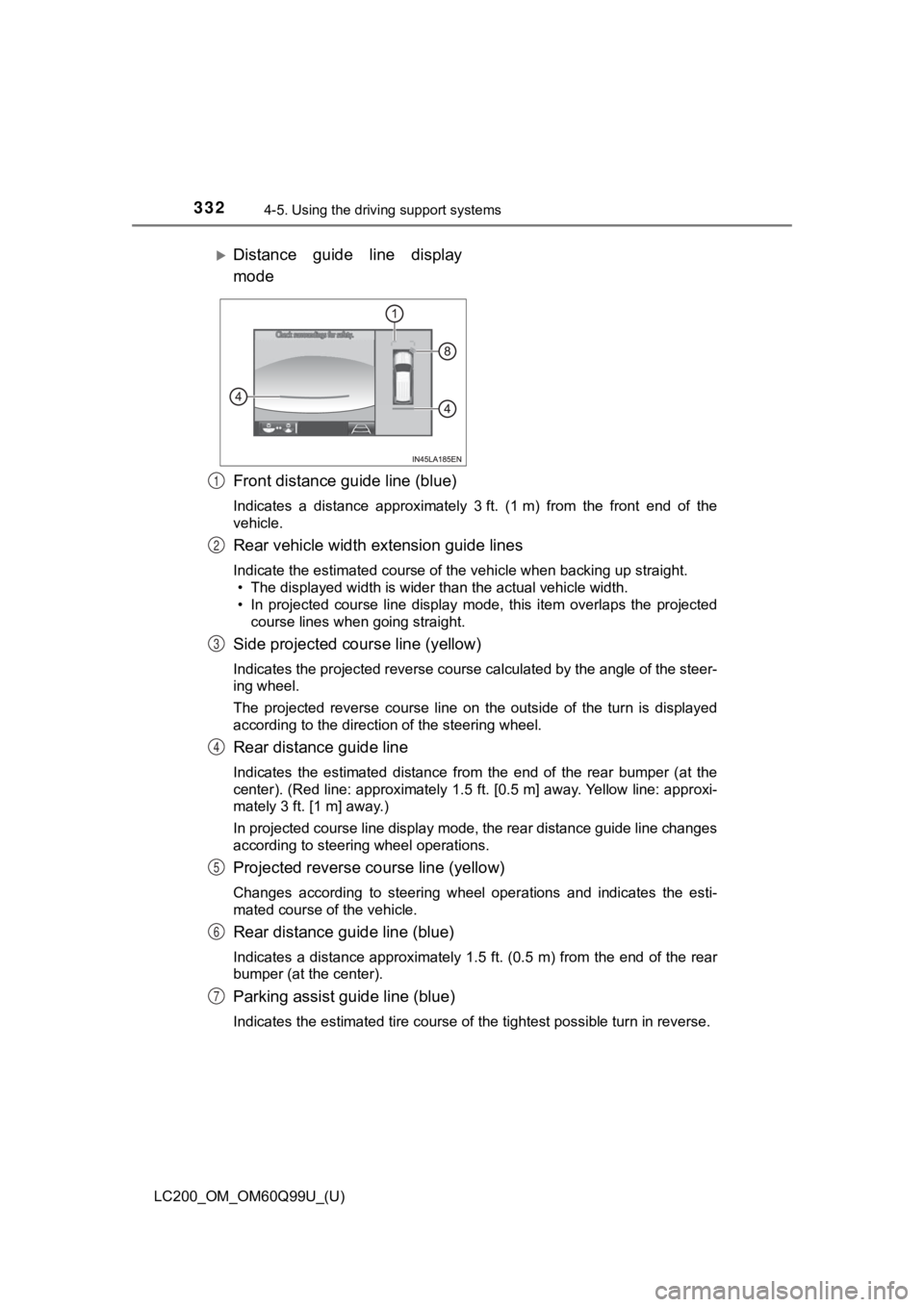

Front distance guide line (blue)
Indicates a distance approximately 3 ft. (1 m) from the front end of the
vehicle.
Rear vehicle width extension guide lines
Indicate the estimated course of the vehicle when backing up st raight.
• The displayed width is wider than the actual vehicle width.
• In projected course line display mode, this item overlaps the projected
course lines when going straight.
Side projected course line (yellow)
Indicates the projected reverse course calculated by the angle of the steer-
ing wheel.
The projected reverse course line on the outside of the turn is displayed
according to the direction of the steering wheel.
Rear distance guide line
Indicates the estimated distance from the end of the rear bumpe r (at the
center). (Red line: approximately 1.5 ft. [0.5 m] away. Yellow line: approxi-
mately 3 ft. [1 m] away.)
In projected course line display mode, the rear distance guide line changes
according to steering wheel operations.
Projected reverse course line (yellow)
Changes according to steering wheel operations and indicates th e esti-
mated course of the vehicle.
Rear distance guide line (blue)
Indicates a distance approximately 1.5 ft. (0.5 m) from the end of the rear
bumper (at the center).
Parking assist guide line (blue)
Indicates the estimated tire course of the tightest possible tu rn in reverse.
Distance guide line display
mode
1
2
3
4
5
6
7

LC200_OM_OM60Q99U_(U)
3334-5. Using the driving support systems
4
Driving
Intuitive parking assist
When the intuitive parking assist is on, an icon will be displa yed when an
obstacle is detected. (Refer to P. 287 for information about th e intuitive
parking assist.)
Vehicle center line (blue)
Indicates the estimated vehicle center on the ground.
● Parking operation (using t he estimated course line)
When parking in a space which is in the reverse direction to th e
space described in t he procedure below, the steering directions will
be reversed.
Shift the shift leve r to the R position.

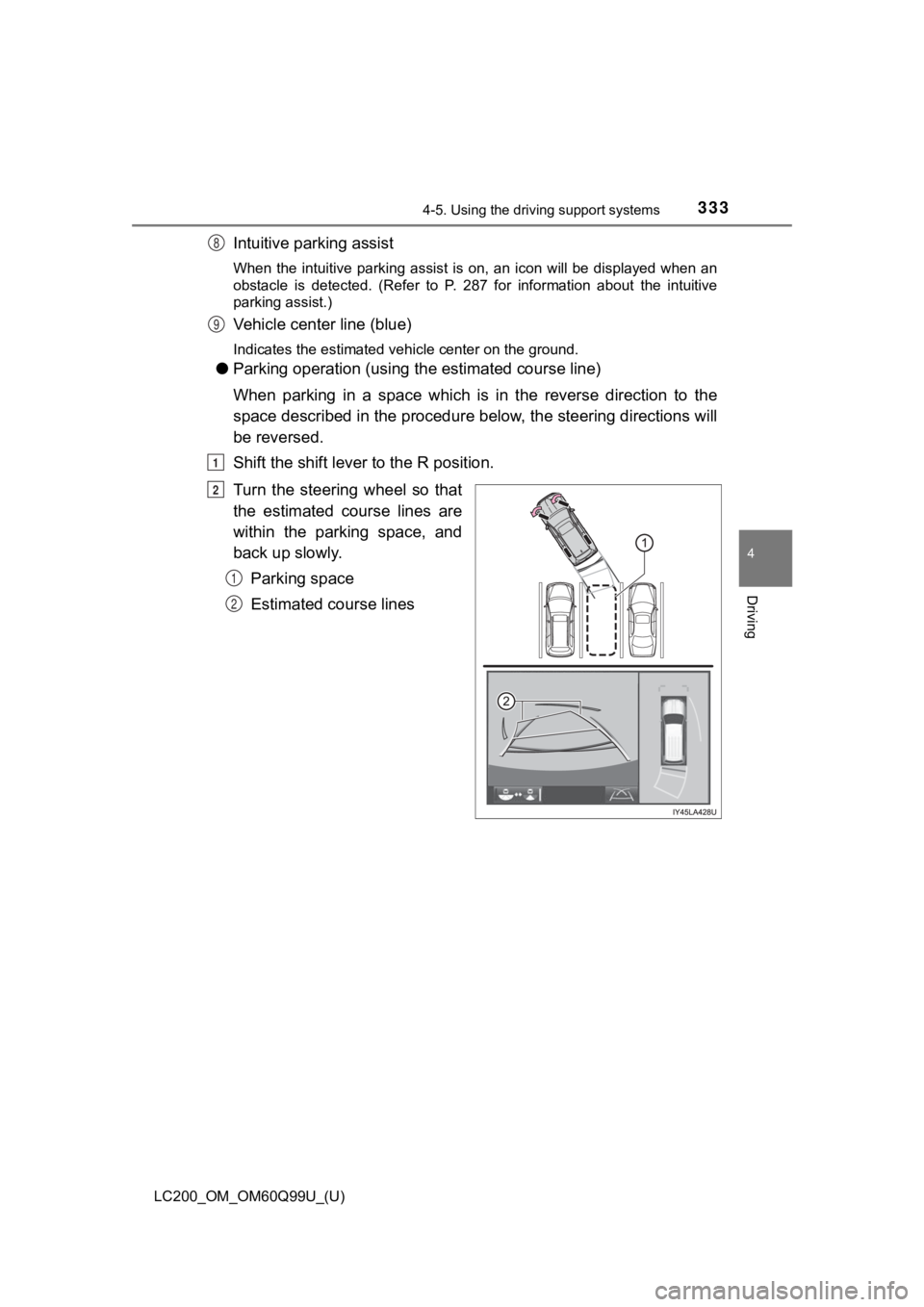

Turn the steering wheel so that
the estimated course lines are
within the parking space, and
back up slowly. Parking space
Estimated course lines
8
9
1
2
1
2

334
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
When the rear position of the
vehicle has entered the parking
space, turn the steering wheel
so that the vehicle width exten-
sion guide lines are within the
left and right dividing lines of
the parking space.
Vehicle width extension
guide line
Once the vehicle width extension guide lines and the parking sp ace
lines are parallel, straighten t he steering wheel and back up s lowly
until the vehicle has completely entered the parking space.
Stop the vehicle in an appropria te place, and finish parking.
● Parking (using the park ing assist guide line)
Shift the shift leve r to the R position.

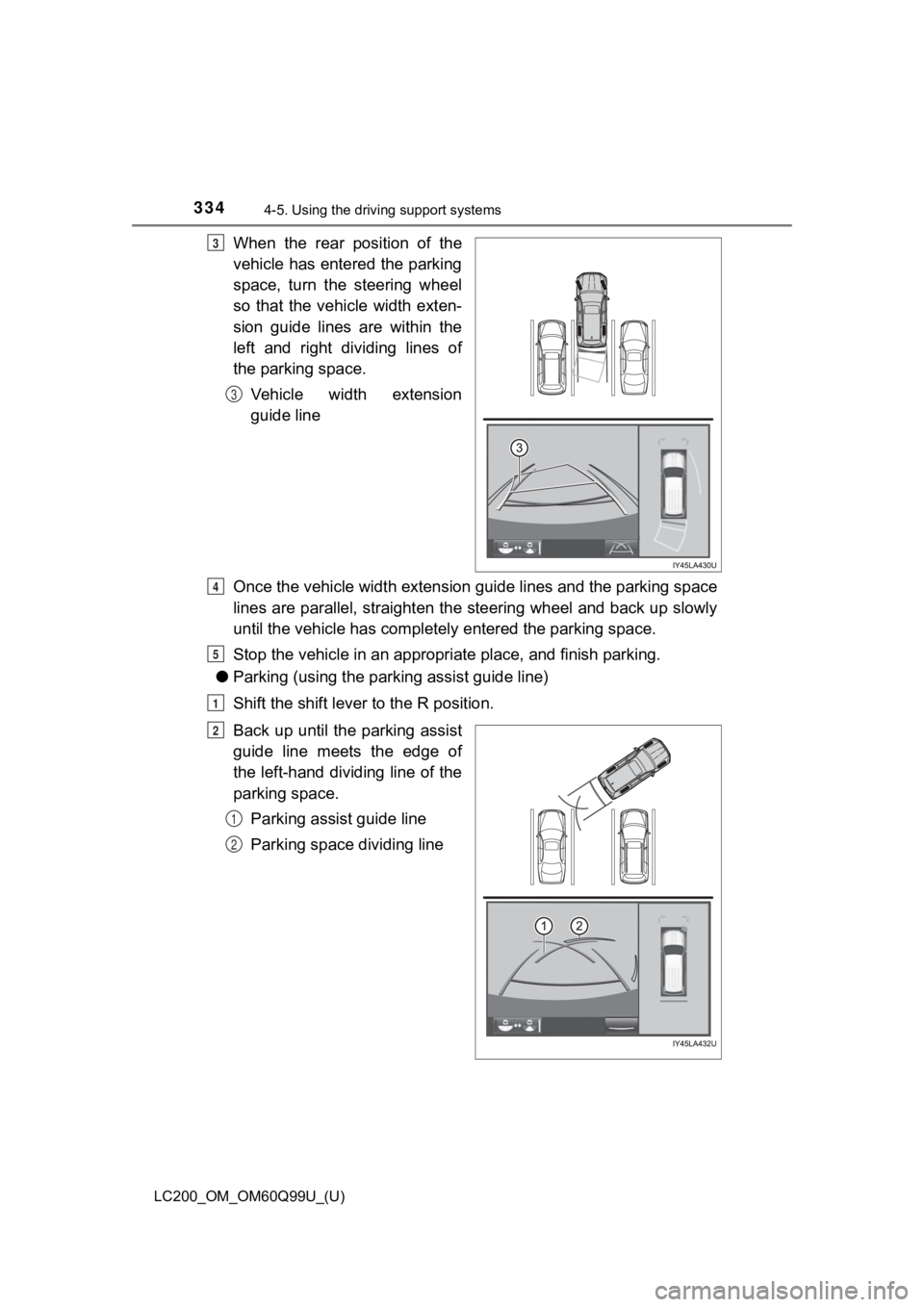

Back up until the parking assist
guide line meets the edge of
the left-hand dividing line of the
parking space. Parking assist guide line
Parking space dividing line3
3
4
5
1
2
1
2

LC200_OM_OM60Q99U_(U)
3354-5. Using the driving support systems
4
Driving
Turn the steering wheel all the way to the right, and back up slowly.
Once the vehicle is parallel wi th the parking space, straighten the
steering wheel and back up slowly until the vehicle has complet ely
entered the parking space.
Stop the vehicle in an appropria te place, and finish parking.
■Panoramic view & rear view/wide rear view
The screen can be displayed when the shift lever is in R.
■ Guide lines
If the back door is not closed, guide lines will not be display ed. If the guide
lines do not display even when the back door is closed, have th e vehicle
inspected at your Toyota dealer.
■ Intuitive parking assist pop-up display
P. 287
WARNING
■Guide lines
The tire position indicator lines and vehicle position indicator lines may differ
from actual vehicle positions depending on the number of passen gers,
cargo weight, road grade, road surface conditions, brightness o f the sur-
rounding environment, etc. Always drive the vehicle while confi rming the
safety of your surroundings.
■ When using panoramic view & rear view or wide rear view
● If the vehicle width extension guide lines and projected course lines are
not aligned with the steering wheel in the center position, dri ve straight on
a road without as little traffic and as few bends or curves as possible for
approximately 5 minutes or more. If the symptom is not resolved, have the
vehicle inspected by your Toyota dealer.
● Rear vehicle width extension guide lines are displayed wider th an the
actual vehicle width. When backing up, always confirm the safet y of your
surroundings and the area to the rear of the vehicle.
3
4
5

336
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
■Display when the outside rear view mirrors are retracted (side
view and side views)
When the outside rear view mirrors are retracted, one of the fo llow-
ing screens is displayed and assi sts the driver to confirm the safety
of the area around the vehicle, or park alongside and close to
another object.

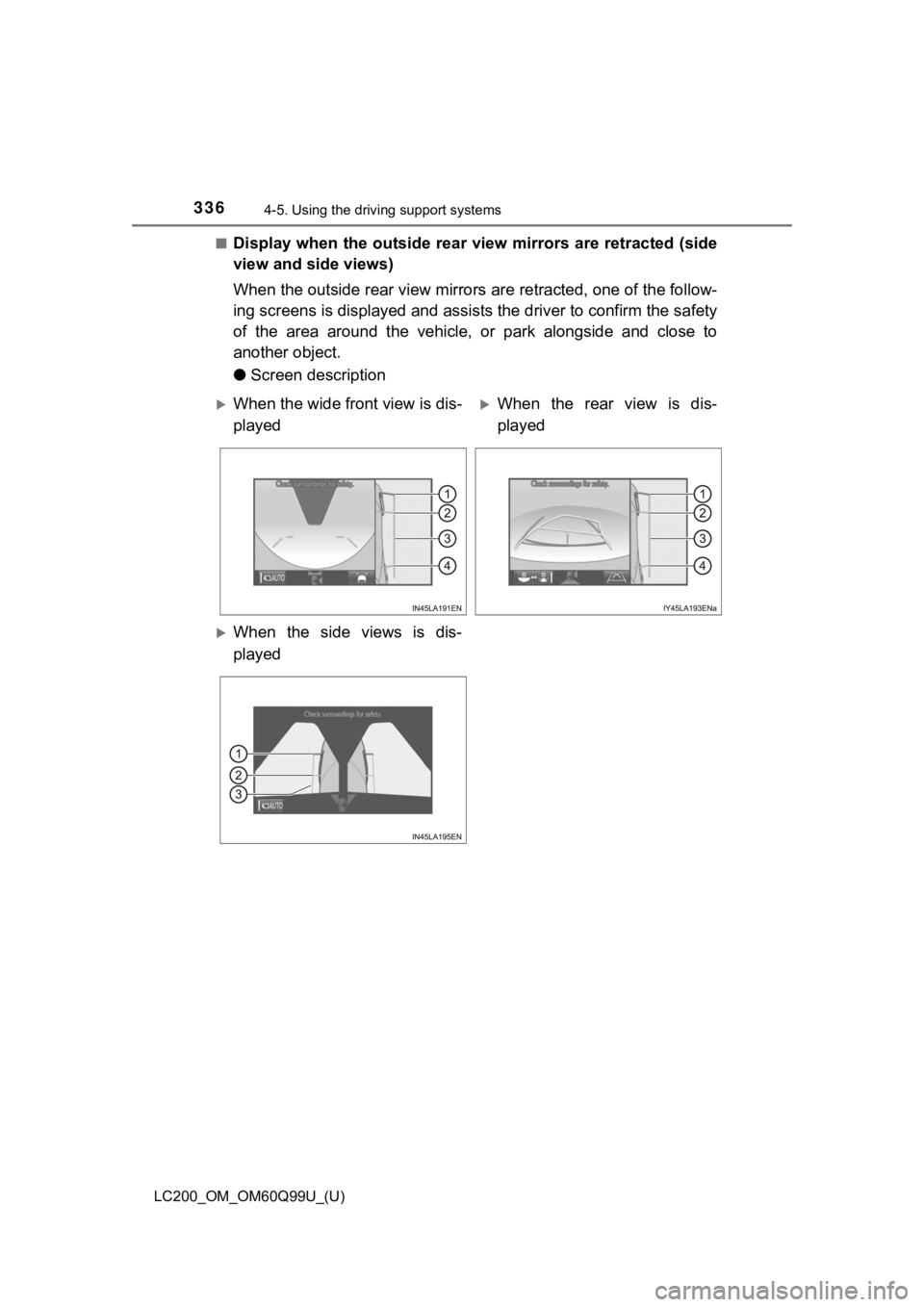

● Screen description
When the wide front view is dis-
playedWhen the rear view is dis-
played
When the side views is dis-
played

LC200_OM_OM60Q99U_(U)
3374-5. Using the driving support systems
4
Driving
For information about other th an the side view and side views d isplay
area, refer to the page for the respective screen.
Front distance guide line (red)
Indicates a distance approximately 1.5 ft. (0.5 m) from the front end of the
vehicle.
Front tire contact line (blue)
Indicates the estimated front tire position on the image.
Vehicle width lines (blue)
Indicate the estimated vehicle width including the outside rear view mir-
rors.
Rear tire contact line (blue)
Indicates the estimated rear tire position on the image.
1
2
3
4

338
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
●Using the vehicle width lines
The relative distance of obstacles from the vehicle width lines
can be confirmed.

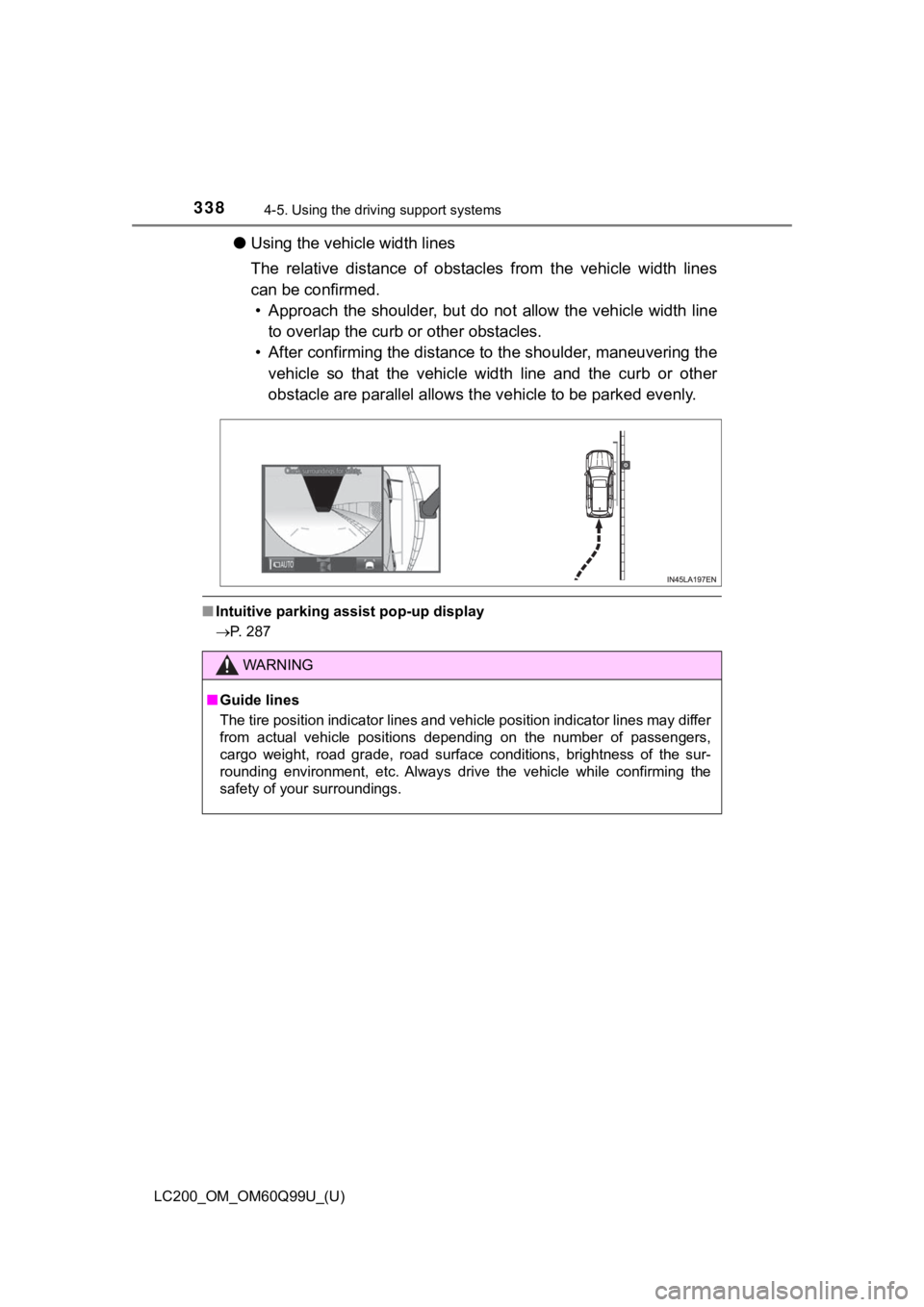

• Approach the shoulder, but do not allow the vehicle width line
to overlap the curb o r other obstacles.
• After confirming the distance to the shoulder, maneuvering the
vehicle so that the vehicle width line and the curb or other
obstacle are parallel allows t he vehicle to be parked evenly.
■Intuitive parking assist pop-up display
P. 287
WARNING
■Guide lines
The tire position indicator lines and vehicle position indicator lines may differ
from actual vehicle positions depending on the number of passen gers,
cargo weight, road grade, road surface conditions, brightness o f the sur-
rounding environment, etc. Always drive the vehicle while confi rming the
safety of your surroundings.

LC200_OM_OM60Q99U_(U)
3394-5. Using the driving support systems
4
Driving
■Intuitive parking assist a nd RCTA cooperative display
When either the Intuitive parking assist ( P. 287) or Blind Spot
Monitor ( P. 358) is turned on, a popup icon warns the driver when
an obstacle is detected.

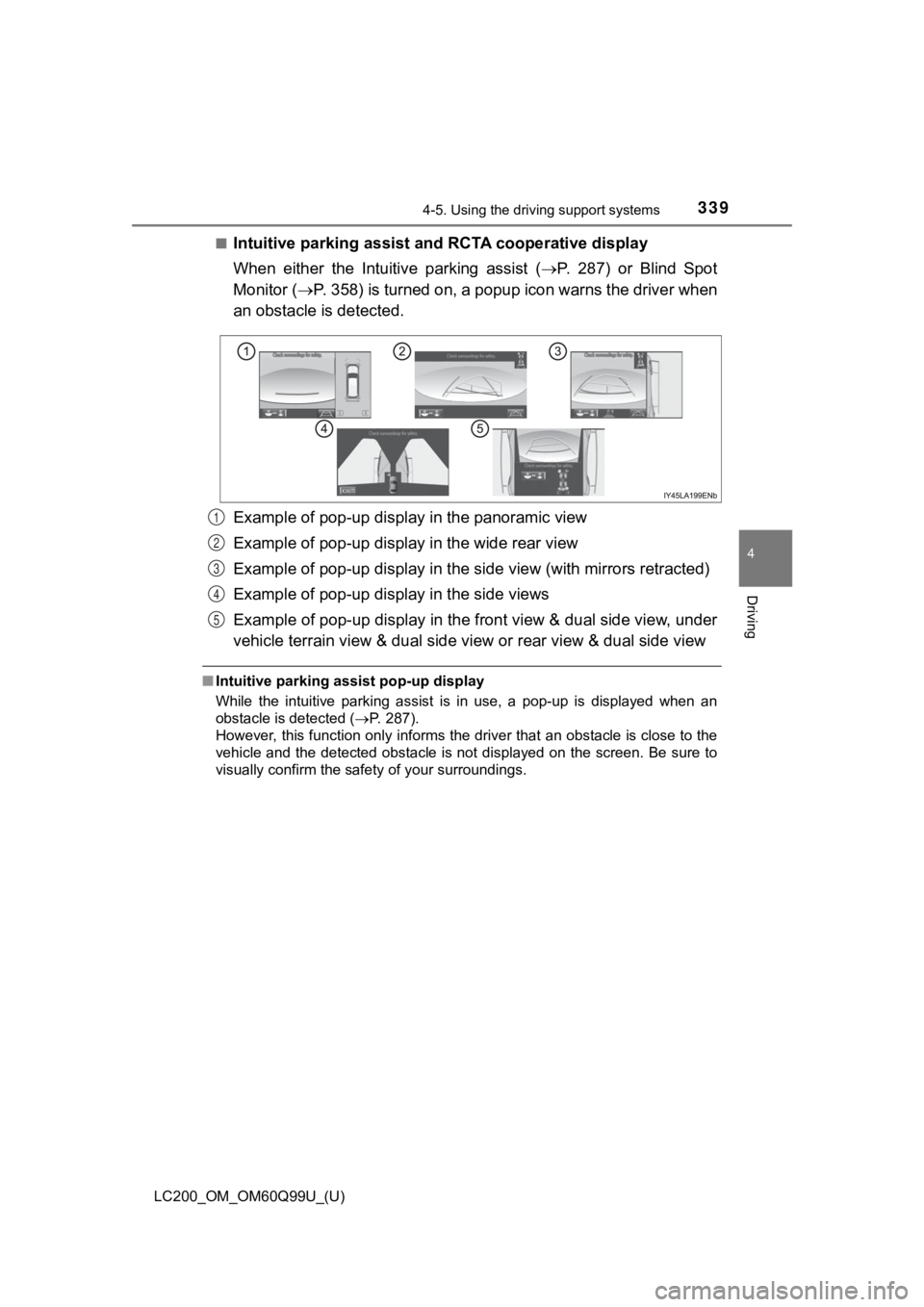

Example of pop-up display in the panoramic view
Example of pop-up display in the wide rear view
Example of pop-up display in the side view (with mirrors retrac ted)
Example of pop-up display in the side views
Example of pop-up display in the front view & dual side view, u nder
vehicle terrain view & dual side view or rear view & dual side view
■Intuitive parking assist pop-up display
While the intuitive parking assist is in use, a pop-up is displayed when an
obstacle is detected ( P. 287).
However, this function only informs the driver that an obstacle is close to the
vehicle and the detected obstacle is not displayed on the scree n. Be sure to
visually confirm the safety of your surroundings.
1
2
3
4
5

340
LC200_OM_OM60Q99U_(U)
4-5. Using the driving support systems
Observe the following precautions. Failure to do so may result in an
unexpected accident. Al so, when driving, make sure to directly con-
firm the safety of your surroundings and the area to the rear o f the
vehicle.
When using the Multi-terrain Monitor
WARNING
■ Conditions under which the Multi-terrain Monitor should not be used
Do not use the Multi-terrain Monitor in the following situations. The system
may not operate properly, resulting in an unexpected accident.
● When driving on an icy, snow-covered or otherwise slippery road surface
● When using tire chains or a spare tire
● When either front door or the back door is not completely close d
● When driving on an uneven road, such as a hill
● When tires or suspension parts other than those specified are e quipped
When the tires are replaced, the position indicated by the guid e lines dis-
played on the screen may differ.
■ Guide lines
The tire position indicator lines and vehicle position indicator lines may differ
from actual vehicle positions depending on the number of passen gers,
cargo weight, road grade, road surface conditions, brightness o f the sur-
rounding environment, etc. Always drive the vehicle while confi rming the
safety of your surroundings.
