Instrument cluster2
2. Instrument clusterWarning lights and indicators .......................... 92
Gauges and meters ............ 97
Multi-information display ... 101
Fuel consumption information ...................... 110

92
LC200_OM_OM60T03U_(U)
2. Instrument cluster

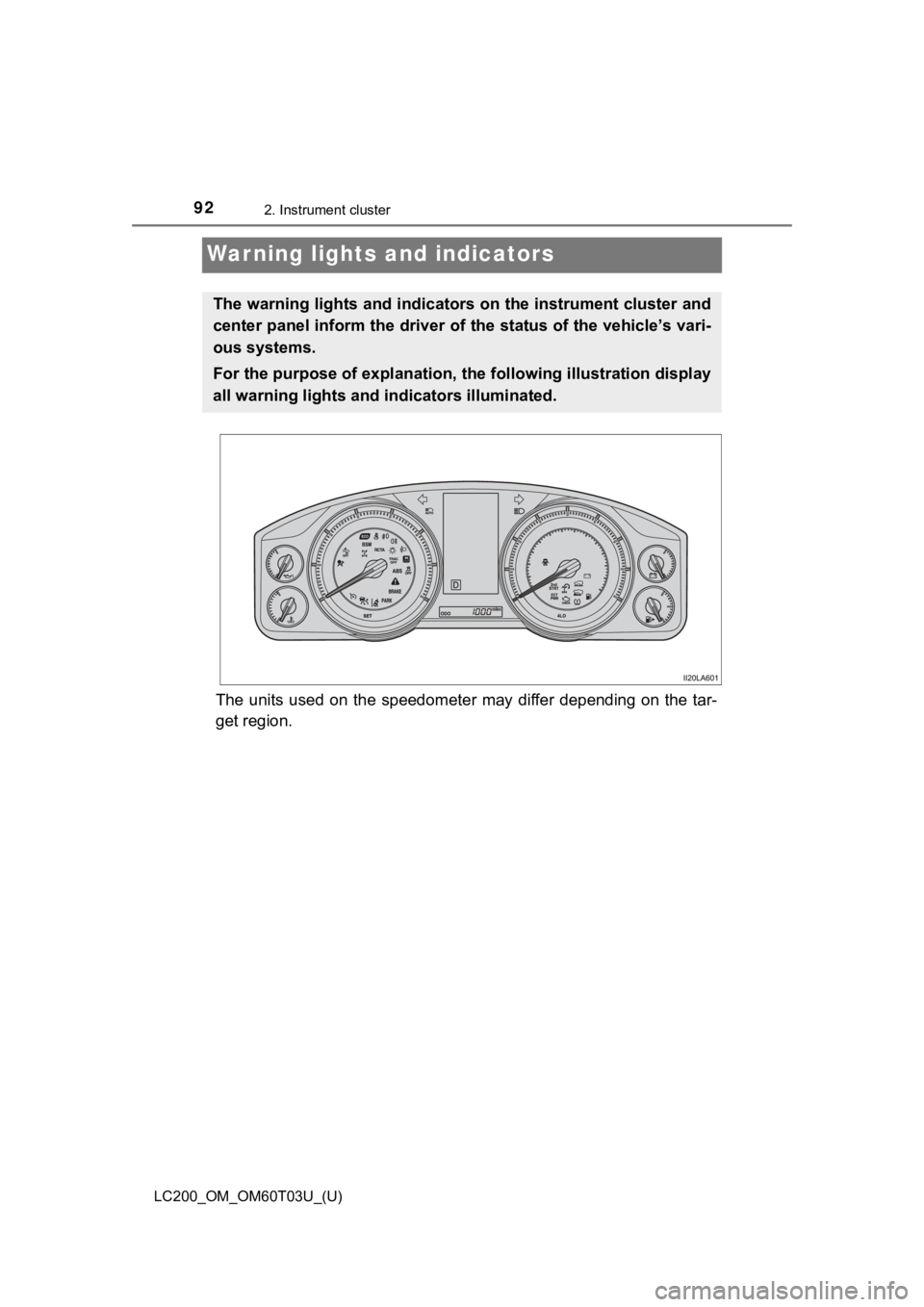

Warning lights and indicators
The units used on the speedometer may differ depending on the tar-
get region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, t he following illustration display
all warning lights and i ndicators illuminated.

LC200_OM_OM60T03U_(U)
932. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
*1: These lights turn on when the engine switch is turned to IGNIT ION ON
mode to indicate that a system check is being performed. They w ill turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if the lights do not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
*2: The light flashes or illuminates to indicate a malfunction.
*3: This light illuminates on the center panel.
*4: The light flashes to indicate a malfunction.
Warning lights
*1Brake system warning
light ( P. 530)Open door warning light
(P. 532)
*1Charging system
warning light ( P. 530)Driver’s seat belt
reminder light ( P. 532)
*1Malfunction indicator
lamp (P. 530)*3Front passenger’s seat
belt reminder light
(P. 532)
*1SRS warning light
(P. 530)Low fuel level warning
light ( P. 532)
*1ABS warning light
(P. 531)*1Master warning light
(P. 532)
*1
Slip indicator ( P. 531)*1Tire pressure warning
light (P. 532)
*1, 2
(if equipped)
PCS warning light
(P. 531)*1, 4Automatic headlight
leveling system warning
light ( P. 532)

94
LC200_OM_OM60T03U_(U)
2. Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 224) Power mode indicator
(
P. 219)
Headlight high beam
indicator ( P. 227) Second start mode
indicator (
P. 219)
Headlight indicator
( P. 226) Low speed four-wheel
drive indicator light
(
P. 300)
Automatic High Beam
indicator ( P. 231) Center differential lock
indicator (
P. 300)
Fog light indicator
( P. 235)
*1, 4“AIR BAG ON/
OFF” indicator
(P. 52)
Cruise control indicator
( P. 276, 289)
(if equipped)
Dynamic radar cruise
control indicator
(P. 276)
*1, 2
Slip indicator ( P. 378)Turn Assist indicator
(P. 304)
*1, 3TRAC OFF indicator
(P. 379)*1Crawl Control indicator
(P. 304)
*1, 3VSC OFF indicator
(P. 379)
(if equipped)
LDA indicator ( P. 267)

LC200_OM_OM60T03U_(U)
952. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They w ill turn
off after the engine is on, or after a few seconds. There may b e a mal-
function in a system if the lights do not turn on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off.
*4: This light illuminates on the center panel.
*5: In order to confirm operation, the BSM outside rear view mirro r indicators
illuminate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the sys-
tem is set to on.
• When the system is set to on while the engine switch is in IGN ITION ON
mode.
If the system is functioning correctly, the BSM outside rear vi ew mirror
indicators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminat e or do not
turn off, there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Toyota deale r.
*6: This light illuminates on the outside rear view mirrors.Cruise control “SET”
indicator (
P. 276, 289)
*1
(if equipped)
BSM (Blind Spot
Monitor) indicator
(P. 363)
Multi-terrain Select
indicator ( P. 309)
(if equipped)
RCTA (Rear Cross
Traffic Alert) indicator
(P. 371)
*1Eco Driving Indicator
Light ( P. 96)*5, 6
(if equipped)
BSM (Blind Spot
Monitor) outside rear
view mirror indicators
(P. 363)
*1, 3
(if equipped)
PCS warning light
(P. 254) Shift position and shift
range indicators
(
P. 218)
Parking brake indicator
( P. 225)

96
LC200_OM_OM60T03U_(U)
2. Instrument cluster
■Eco Driving Indicator Light
●The shift lever is in any position other than D.
● The vehicle is set to second start mode or power mode. ( P. 218)
● The vehicle speed is approximately 81 mph (130 km/h) or higher.
● The Crawl Control is operating. ( P. 304)
During Eco-Friendly acceleration opera-
tion (Eco driving), Eco Driving Indicator
Light will turn on. When the acceleration
exceeds Zone of Eco driving (
P. 108),
or when the vehicle is stopped, the light
turns off.
Eco Driving Indicator Light will not operate
in the following conditions:
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the Multi Terrain ABS and the SRS
warning light not come on when you start the engine, this could mean that
these systems are not available to help protect you in an accid ent, which
could result in death or serious injury. Have the vehicle inspected by your
Toyota dealer immediately if this occurs.

97
LC200_OM_OM60T03U_(U)
2. Instrument cluster
2
Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the tar-
get region.
Engine oil pressure gauge
Displays the engine oil pressure
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Vo l t m e t e r
Displays the charge state
Fuel gauge
Displays the quantity of fuel remaining in the tank
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of driving-related data P. 101)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the met er was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
1
2
3
4
5
6
7
8

98
LC200_OM_OM60T03U_(U)
2. Instrument cluster
Shift position and shift range display
Displays the selected shift position or selected shift range ( P. 218)
Odometer/trip meter display change button
Switches between odometer and trip meter displays
Instrument panel light control dial
The brightness of the instrument panel light can be adjusted
Pressing this button switches between odometer and trip meter.
Odometer
Trip meter A
*
Trip meter B*
*
: Pushing and holding the button will reset the trip meter.
The brightness of the instrumen t panel lights can be adjusted.
Darker
Brighter
Changing the display
9
10
11
1
2
3
Instrument panel light control
1
2

LC200_OM_OM60T03U_(U)
992. Instrument cluster
2
Instrument cluster
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■ The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be reduced
slightly unless the meter brightness level adjustment is set to the brightest
setting.
If the tail lights are turned on when the surroundings are dark , the meter’s
brightness will reduce slightly. However, when the surroundings are bright,
such as during the daytime, the meter’s brightness will not be reduced even if
the tail lights are turned on.
■ Customization
The meter display can be customized on the multi-information di splay.
(Customizable features: P. 594)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and t he new gear
number appearing on the display. This lag could cause the drive r to down-
shift again, causing rapid and excessive engine braking and pos sibly an
accident resulting in death or injury.

100
LC200_OM_OM60T03U_(U)
2. Instrument cluster
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 566)
■ Vo l t m e t e r
When the voltmeter indicates 19 V or higher or 9 V or lower whi le the engine
is running, there may be a battery or charging system malfunction. Have the
vehicle inspected at your Toyota dealer.
■ Engine oil pressure gauge
When the value of the engine oil pressure gauge drops while the engine is
running, stop the vehicle in a safe place immediately and check the amount
of engine oil. ( P. 471)
When the oil pressure drops even though the engine oil amount h as not
decreased, or if the oil pressure does not increase when engine oil is
added, contact your Toyota dealer, as there may be a problem wi th the lubri-
cation system.
