TOYOTA LAND CRUISER 2021 Owners Manual (in English)

LC200_OM_OM60T03U_(U)
1213-2. Opening, closing and locking the doors
3
Operation of each component
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehi cle.
Depending on the position of the electronic key, the key may no t be
detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Locking the driver’s door from the outside without a key
Rear door child-protector lock
1
2
1
2

122
LC200_OM_OM60T03U_(U)
3-2. Opening, closing and locking the doors

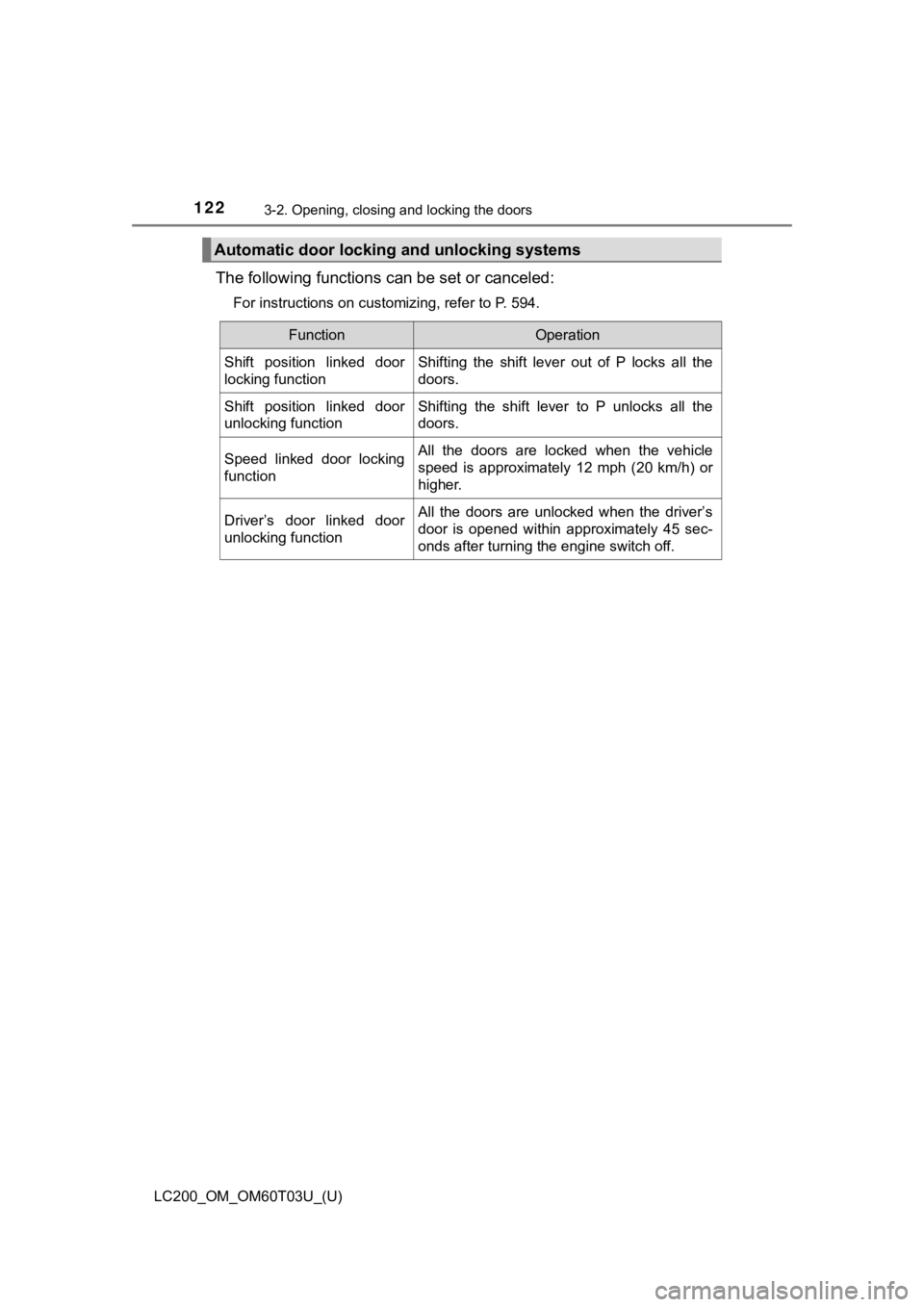

The following functions can be set or canceled:
For instructions on customizing, refer to P. 594.
Automatic door locking and unlocking systems
FunctionOperation
Shift position linked door
locking functionShifting the shift lever out of P locks all the
doors.
Shift position linked door
unlocking functionShifting the shift lever to P unlocks all the
doors.
Speed linked door locking
functionAll the doors are locked when the vehicle
speed is approximately 12 mph (20 km/h) or
higher.
Driver’s door linked door
unlocking functionAll the doors are unlocked when the driver’s
door is opened within approximately 45 sec-
onds after turning the engine switch off.

LC200_OM_OM60T03U_(U)
1233-2. Opening, closing and locking the doors
3
Operation of each component
■Changing the door unlock function setting
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the engine switch off.
When the indicator light on the key surface is not on, press an d hold
or for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as sho wn below.
(When changing the setting continuously, release the buttons, w ait for at least
5 seconds, and repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the
wireless remote control and open and close a door once after th e settings
have been changed. (If a door is not opened within 60 seconds a fter is
pressed, the doors will be locked again and the alarm will auto matically be
set.)
In a case that the alarm is triggered, immediately stop the alarm. ( P. 87)
1
2
2
Multi-information
displayUnlocking functionBeep
Holding the driver’s door
handle unlocks only the
driver’s door.
Exterior: Beeps 3
times
Interior: Pings once
Holding a passenger’s door
handle unlocks all the
doors.
Holding a door handle
unlocks all the doors.Exterior: Beeps twice
Interior: Pings once

124
LC200_OM_OM60T03U_(U)
3-2. Opening, closing and locking the doors
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of a ccident, how-
ever, the system may not operate.
■ Using the mechanical key
The doors can also be locked and unlocked with the mechanical k ey.
( P. 560)
■ Conditions affecting the operation of the smart key system or w ireless
remote control
P. 140
■ Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 594)

LC200_OM_OM60T03U_(U)
1253-2. Opening, closing and locking the doors
3
Operation of each component
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant b eing thrown
out of the vehicle, resulting in death or serious injury.
● Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seate d in the rear
seats.

126
LC200_OM_OM60T03U_(U)
3-2. Opening, closing and locking the doors
Back door
◆Smart key system
Carry the electronic key to enable this function.
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
◆Wireless remote control
 P. 1 1 8
◆Door lock switches
P. 1 2 0
Press and hold the switch.
The power back door can be oper-
ated even when the back door is
locked.
*
*
: This setting can be customized so
that the power back door can be
operated only when the back door
is unlocked. ( P. 594)
The back door can be locked/unlocked and opened by the fol-
lowing procedures.
Locking and unlocking the back door
1
2
Opening/closing the back door wit h the wireless remote control
(vehicles with power back door)

LC200_OM_OM60T03U_(U)
1273-2. Opening, closing and locking the doors
3
Operation of each component
The power back door can be
opened/closed using the power
back door switch or wireless
remote control. (P. 1 2 6 )
Push and hold the switch to close
or open.
(A buzzer sounds.)
Open the upper back door
Vehicles without power back
door
When the back door is
unlocked: Raise the back
door while pressing up the
back door opener switch.
When the back door is
locked: While carrying an
electronic key, raise the back
door while pressing up the
back door opener switch.
Vehicles with power back door
When the power back door is unlocked: Press the back door
opener switch.
When the power back door is lo cked: While carrying an elec-
tronic key, press and hold the back door opener switch.
The upper back door will automatically* open.
*: Using the customization function, the upper back door can be s et to
not automatically open, even when the back door opener switch i s
pressed. ( P. 594)
When the automatic open function is disabled, the upper back do or
can be opened by lifting it up with the back door opener switch
pressed and held.
Opening the back door from the inside (vehicles with power
back door)
Opening the back door from the outside
1

128
LC200_OM_OM60T03U_(U)
3-2. Opening, closing and locking the doors
Open the lower back door
Pull the handle.
Pressing the switch closes upper
back door automatically. (A
buzzer sounds.)
Pressing the switch while the
upper back door is closing opens it
again.
Turn the main switch off to disable
the power back door system. On
Orange mark on the switch should
be visible when the switch is on.
Off
The back door cannot be operated
even with the wireless remote con-
trol or power back door switch.
2
Power back door switch (if equipped)
Canceling the power back door system (if equipped)
1
2

LC200_OM_OM60T03U_(U)
1293-2. Opening, closing and locking the doors
3
Operation of each component
●Make sure that the lower side of
the back door is closed before
closing the upper side of the
back door.
● Lower the back door using the
back door handle, and make
sure to push the back door
down from the outside to close
it.
The rear step bumper is for rear
end protection and easier step-up
loading.
When closing the back door
Rear step bumper

130
LC200_OM_OM60T03U_(U)
3-2. Opening, closing and locking the doors
■Power back door oper ating conditions (vehicles with power back door)
● When the engine switch is off or in accessory mode, the power b ack door
can be opened and closed if the power back door main switch is on and all
of the following conditions are met.
• The lower back door is closed (only when closing)
*1
● When the engine switch is in IGNITION ON mode, the power back d oor can
be opened and closed if the power back door main switch is on and all of the
following conditions are met.
*2
• The power back door is unlocked (except when closing)
• The lower back door is closed (only when closing)
*1
• The vehicle speed is below 1 mph (3 km/h) and the shift lever is in P
*1: If the lower back door is opened while the upper back door is in a closing
operation, it automatically opens again.
*2: The back door cannot be operated using the wireless remote con trol.
■ If the back door opener is inoperative
The back door can be operated from the inside.
Remove the cover on the back door
trim.
Use a cloth to prevent scratches.
Remove the screw and cover.
(Vehicle without power back door)
1
2
