TOYOTA MATRIX 2010 E140 / 2.G Owners Manual

341 4-3. Do-it-yourself maintenance
4
Maintenance and care
Unplug the bulb while depress-
ing the lock release.
■Front turn signal/parking and front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP4
STEP1
STEP2

342 4-3. Do-it-yourself maintenance
■Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Open the back door.
Left side
Remove the cover.
Right side (type A)
Remove the cover using the flat-
head screwdriver.
To protect the cover, place a rag
between the flathead screwdriver
and the cover.
Right side (type B)
Remove the cover.
STEP1
STEP2
STEP2
STEP2

343 4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Stop/tail and rear side marker
light
Remove the light bulb.
Rear turn signal light
Back-up light
Stop/tail and rear side marker
lightSTEP3
STEP4

344 4-3. Do-it-yourself maintenance
■License plate lights
Open the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and the cover, as shown in the
illustration.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of
the LEDs burn out, take your vehicle to your Toyota dealer to have
the light replaced.
STEP1
STEP2
STEP3

345 4-3. Do-it-yourself maintenance
4
Maintenance and care
■Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

346 4-3. Do-it-yourself maintenance

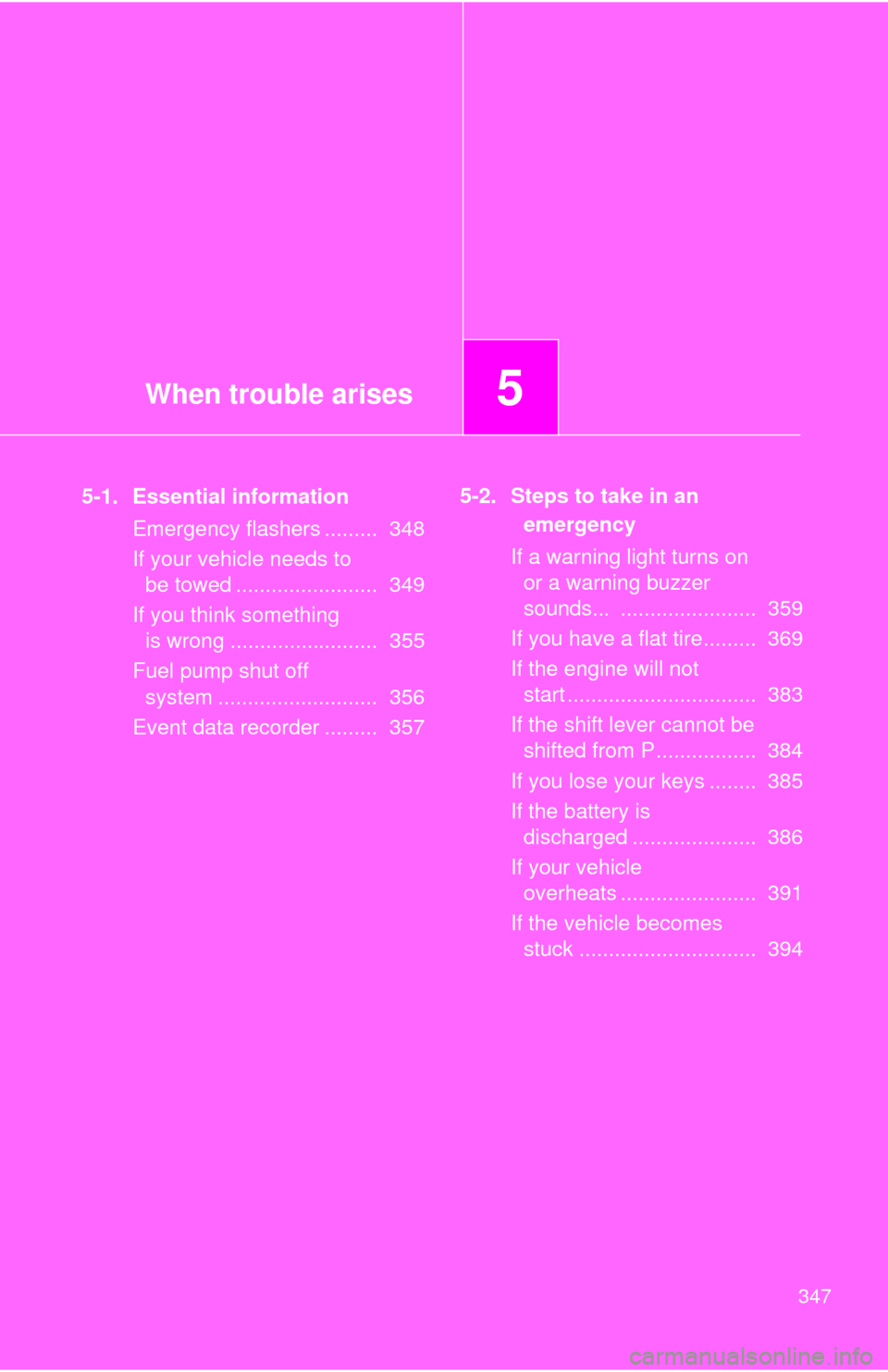

When trouble arises5
347
5-1. Essential information
Emergency flashers ......... 348
If your vehicle needs to
be towed ........................ 349
If you think something
is wrong ......................... 355
Fuel pump shut off
system ........................... 356
Event data recorder ......... 3575-2. Steps to take in an
emergency
If a warning light turns on
or a warning buzzer
sounds... ....................... 359
If you have a flat tire......... 369
If the engine will not
start ................................ 383
If the shift lever cannot be
shifted from P................. 384
If you lose your keys ........ 385
If the battery is
discharged ..................... 386
If your vehicle
overheats ....................... 391
If the vehicle becomes
stuck .............................. 394

348
5-1. Essential information

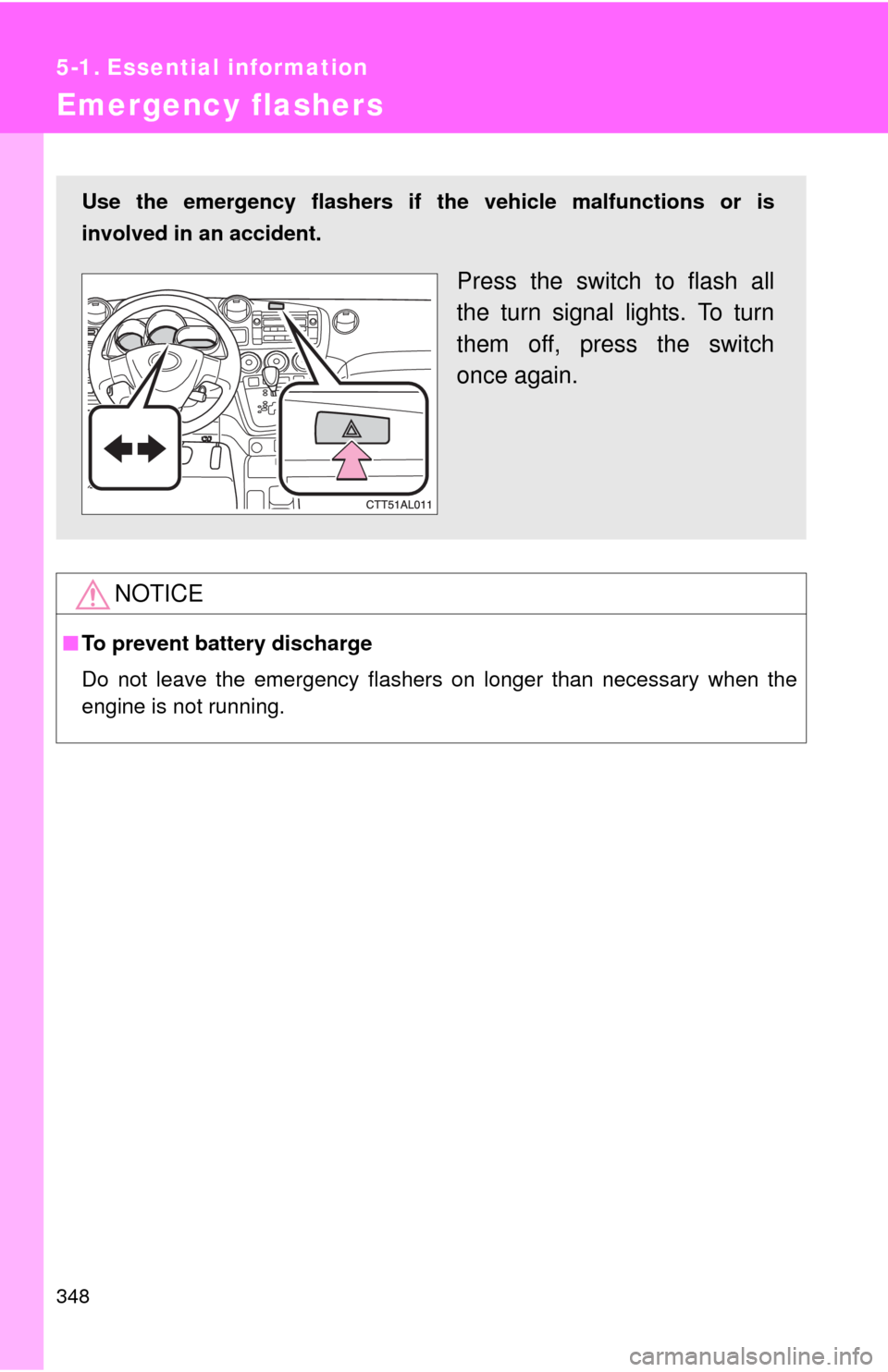

Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if the vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
When trouble arises
349
5-1. Essential information
If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
●The engine is running, but the vehicle will not move.
●The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commercial towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.
If towing from the front, the vehicle's rear wheels and axles must be
in good condition. (P. 352)
If they are damaged, use a towing dolly or flat bed truck.

350 5-1. Essential information
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only be attempted on hard surfaced roads
for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
1.8 L 4-cylinder (2ZR-FE) engine
Towing eyelet
2.4 L 4-cylinder (2AZ-FE) engine
Towing eyelet
