TOYOTA MATRIX 2012 E140 / 2.G Owners Manual

381
4-3. Do-it-yourself maintenance
4
Maintenance and care

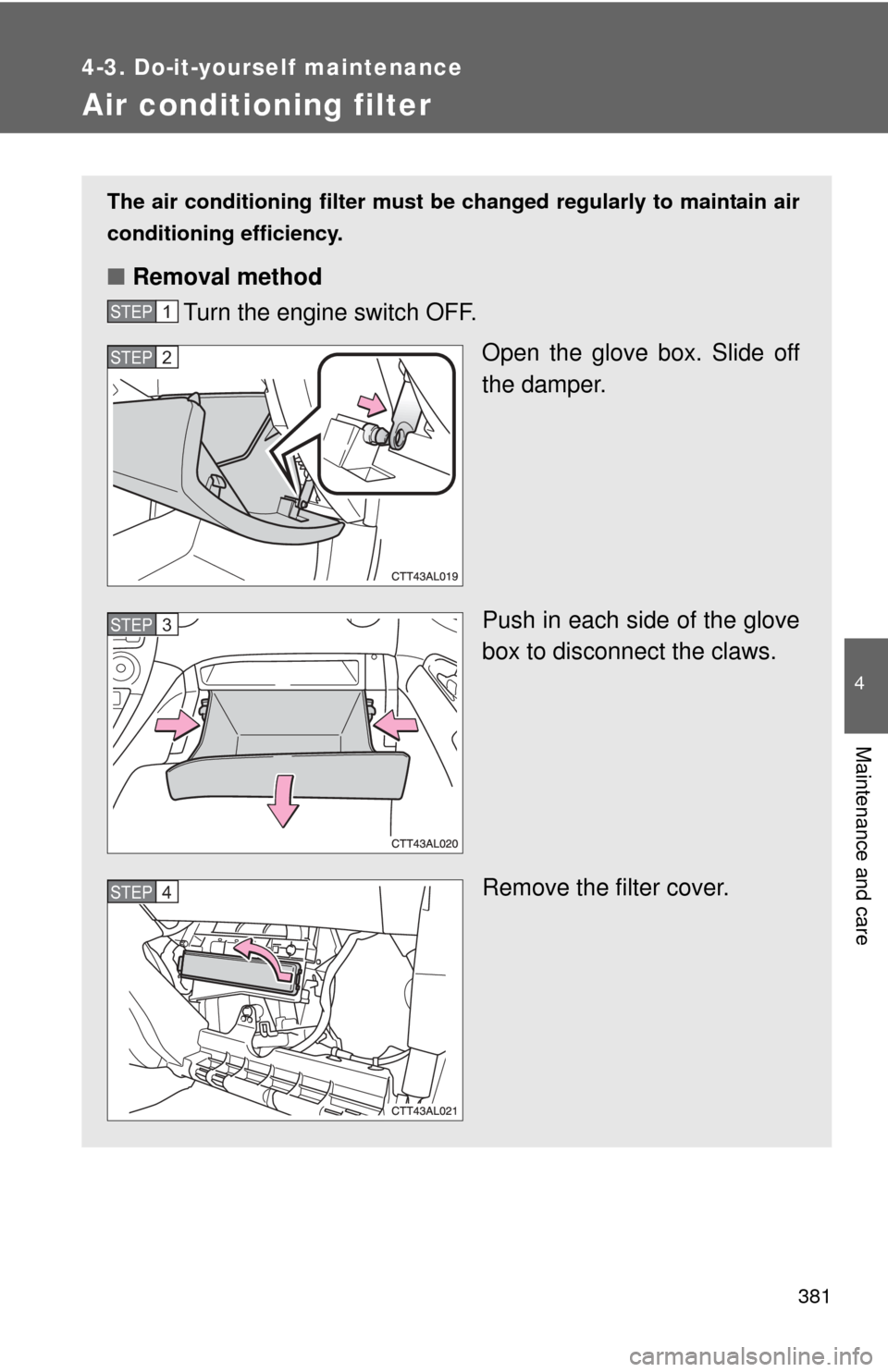

Air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
■ Removal method
Turn the engine switch OFF.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
Remove the filter cover.
STEP1
STEP2
STEP3
STEP4

382 4-3. Do-it-yourself maintenance
■Checking interval
Replace the air conditioning filter according to the maintenance schedule. In
dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

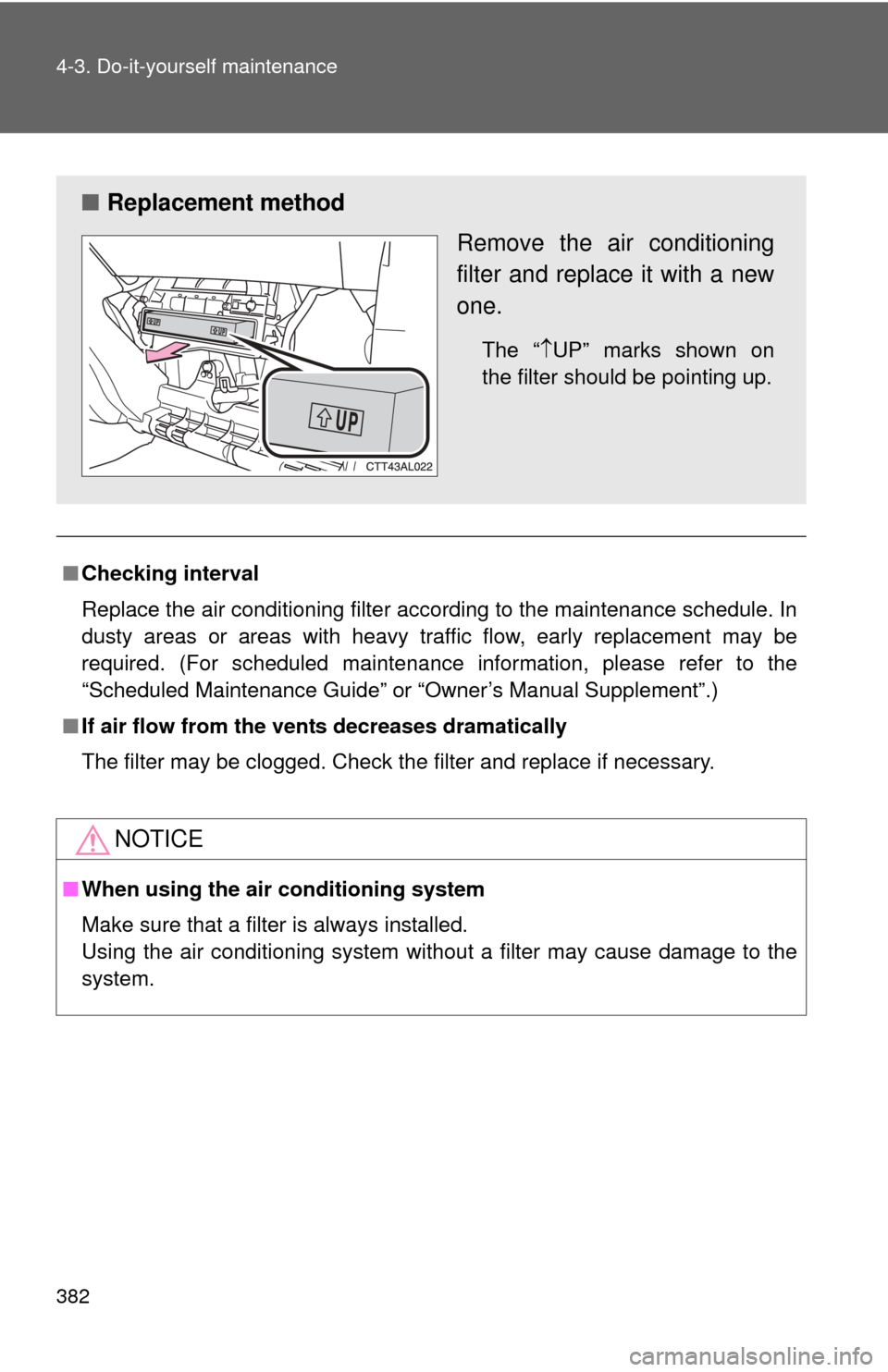

■ Replacement method
Remove the air conditioning
filter and replace it with a new
one.
The “UP” marks shown on
the filter should be pointing up.

383
4-3. Do-it-yourself maintenance
4
Maintenance and care
Key batter y (vehicles with wireless remote control)
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with a rag.)
● Lithium battery CR2025
■ Replacing the battery
Remove the cover.
Remove the module.
Open the case cover using a
flathead screwdriver pro-
tected with tape etc. and
remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
STEP3

384 4-3. Do-it-yourself maintenance
■If the key battery is discharged
The following symptoms may occur.
●The wireless remote control will not function properly.
● The operational range is reduced.
■ Use CR2025 lithium battery
●Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by your
To y o t a dealer.
● Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.

385
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 388) for details about which fuse to check.STEP1
STEP2
STEP3

386 4-3. Do-it-yourself maintenance
Take out the pullout tool.
Only type A fuse can be
removed using the pullout tool.
For type A and B fuses: Remove the fuse.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
STEP6

387
4-3. Do-it-yourself maintenance
4
Maintenance and care
Ty p e C
Normal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e D
Normal fuse
Blown fuse
Contact your Toyota dealer.

388 4-3. Do-it-yourself maintenance

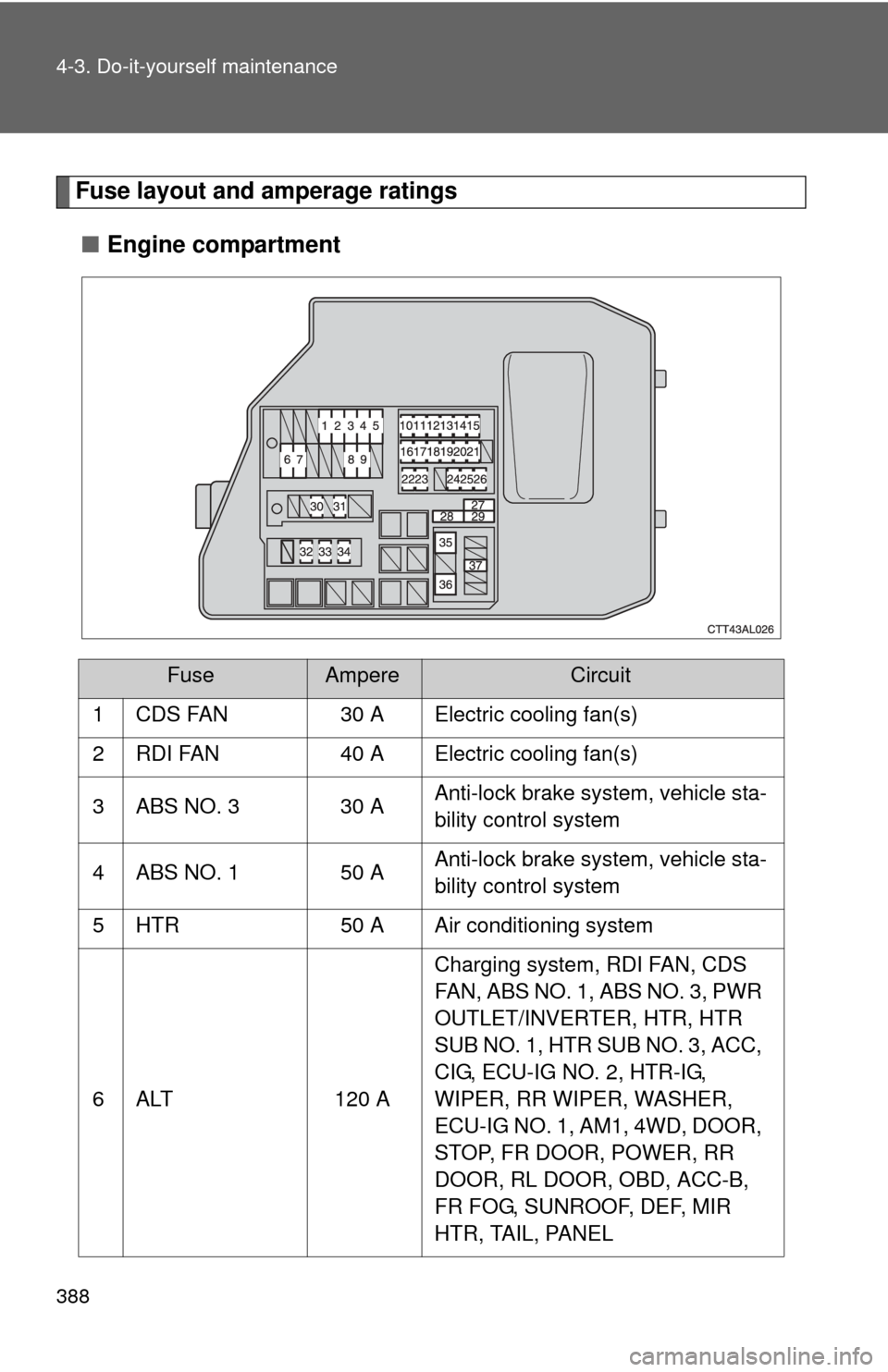

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1 CDS FAN 30 A Electric cooling fan(s)
2 RDI FAN 40 A Electric cooling fan(s)
3 ABS NO. 3 30 A Anti-lock brake system, vehicle sta-
bility control system
4 ABS NO. 1 50 A Anti-lock brake system, vehicle sta-
bility control system
5 HTR 50 A Air conditioning system
6 ALT 120 A Charging system, RDI FAN, CDS
FAN, ABS NO. 1, ABS NO. 3, PWR
OUTLET/INVERTER, HTR, HTR
SUB NO. 1, HTR SUB NO. 3, ACC,
CIG, ECU-IG NO. 2, HTR-IG,
WIPER, RR WIPER, WASHER,
ECU-IG NO. 1, AM1, 4WD, DOOR,
STOP, FR DOOR, POWER, RR
DOOR, RL DOOR, OBD, ACC-B,
FR FOG, SUNROOF, DEF, MIR
HTR, TAIL, PANEL

389
4-3. Do-it-yourself maintenance
4
Maintenance and care
7 EPS
60 A Electric power steering
8 P/I 50 A EFI MAIN, HORN, IG2
9 H-LP MAIN 50 A H-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
10 EFI NO. 2 10 A Emission control system
11 EFI NO. 1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
12 H-LP RH HI 10 A Right-hand headlight (high beam)
13 H-LP LH HI 10 A Left-hand headlight (high beam)
14 H-LP RH LO 10 A Right-hand headlight (low beam)
15 H-LP LH LO 10 A Left-hand headlight (low beam)
16 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
17 TURN-HAZ 10 A Turn signal lights, emergency
flashers
18 ALT-S 7.5 A Charging system
19 AM2 NO. 2 7.5 A Starting system, multiport fuel
injection system/sequential multi-
port fuel injection system
20 AM2 30 AStarting system, multiport fuel
injection system/sequential multi-
port fuel injection system
21 STRG LOCK 20 A No circuit
22 IG2 NO. 2 7.5 A Starting system
23 ECU-B2 10 A PTC heater
24 ECU-B 10 AMain body ECU, gauge and
meters, daytime running light sys-
tem
25 RAD NO. 1 15 A Audio system
FuseAmpereCircuit

390 4-3. Do-it-yourself maintenance
26 DOME10 AInterior lights, personal light, clock,
wireless remote control
27 SPARE 10 A Spare fuse
28 SPARE 30 A Spare fuse
29 SPARE 20 A Spare fuse
30 AMP 30 A No circuit
31 MAYDAY 10 A No circuit
32 EFI MAIN 20 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO. 1, EFI NO. 2
33 HORN 10 A Horn
34 IG2 15 AMultiport fuel injection system/
sequential multiport fuel injection
system, starting system, IGN,
METER
35 HTR SUB
NO. 1 30 A PTC heater
36 HTR SUB
NO. 3 30 A PTC heater
37 PWR OUTLET/
INVERTER 15 A Power outlet
FuseAmpereCircuit
