fuse box TOYOTA MATRIX 2012 E140 / 2.G Owners Manual

TABLE OF CONTENTSIndex
4
3-5. Using the interior lightsInterior lights list ................. 296
• Interior light ...................... 297
• Personal/interior lights...... 298
• Personal lights ................. 299
3-6. Using the storage features List of storage features....... 300
• Glove box ......................... 301
• Console box ..................... 301
• Cup holders ...................... 302
• Bottle holders ................... 304
• Auxiliary boxes ................. 305
3-7. Other interior features Sun visors .......................... 307
Vanity mirrors ..................... 308
Clock .................................. 309
Ashtrays ............................. 310
Cigarette lighter .................. 311
Power outlet ....................... 312
Grocery bag hook............... 314
Seatback table ................... 316
Floor mat ............................ 317
Luggage compartment feature .............................. 318
Compass ............................ 325 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior ........... 330
Cleaning and protecting the vehicle interior ............ 333
4-2. Maintenance Maintenance requirements .................... 336
General maintenance ......... 338
Emission inspection and maintenance (I/M)
programs .......................... 341
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ....................... 342
Hood ................................... 346
Positioning a floor jack........ 348
Engine compartment .......... 351
Tires.................................... 365
Tire inflation pressure ......... 374
Wheels................................ 378
Air conditioning filter ........... 381
Key battery ......................... 383
Checking and replacing fuses ................................. 385
Light bulbs .......................... 394
4Maintenance and care

351
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compar tment
1.8 L 4-cylinder (2ZR-FE) engine
Engine oil filler cap( P. 354)
Engine oil level dipstick ( P. 353)
Brake fluid reservoir ( P. 359)
Fuse box ( P. 385)Battery ( P. 361)
Radiator ( P. 358)
Electric cooling fan
Condenser ( P. 358)
Engine coolant reservoir ( P. 357)
Washer fluid tank ( P. 363)

352 4-3. Do-it-yourself maintenance
2.4 L 4-cylinder (2AZ-FE) engine
Engine coolant reservoir( P. 357)
Engine oil filler cap ( P. 354)
Engine oil level dipstick ( P. 353)
Brake fluid reservoir ( P. 359)Fuse box ( P. 385)
Battery ( P. 361)
Radiator ( P. 358)
Electric cooling fans
Condenser ( P. 358)
Washer fluid tank ( P. 363)

385
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 388) for details about which fuse to check.STEP1
STEP2
STEP3

386 4-3. Do-it-yourself maintenance

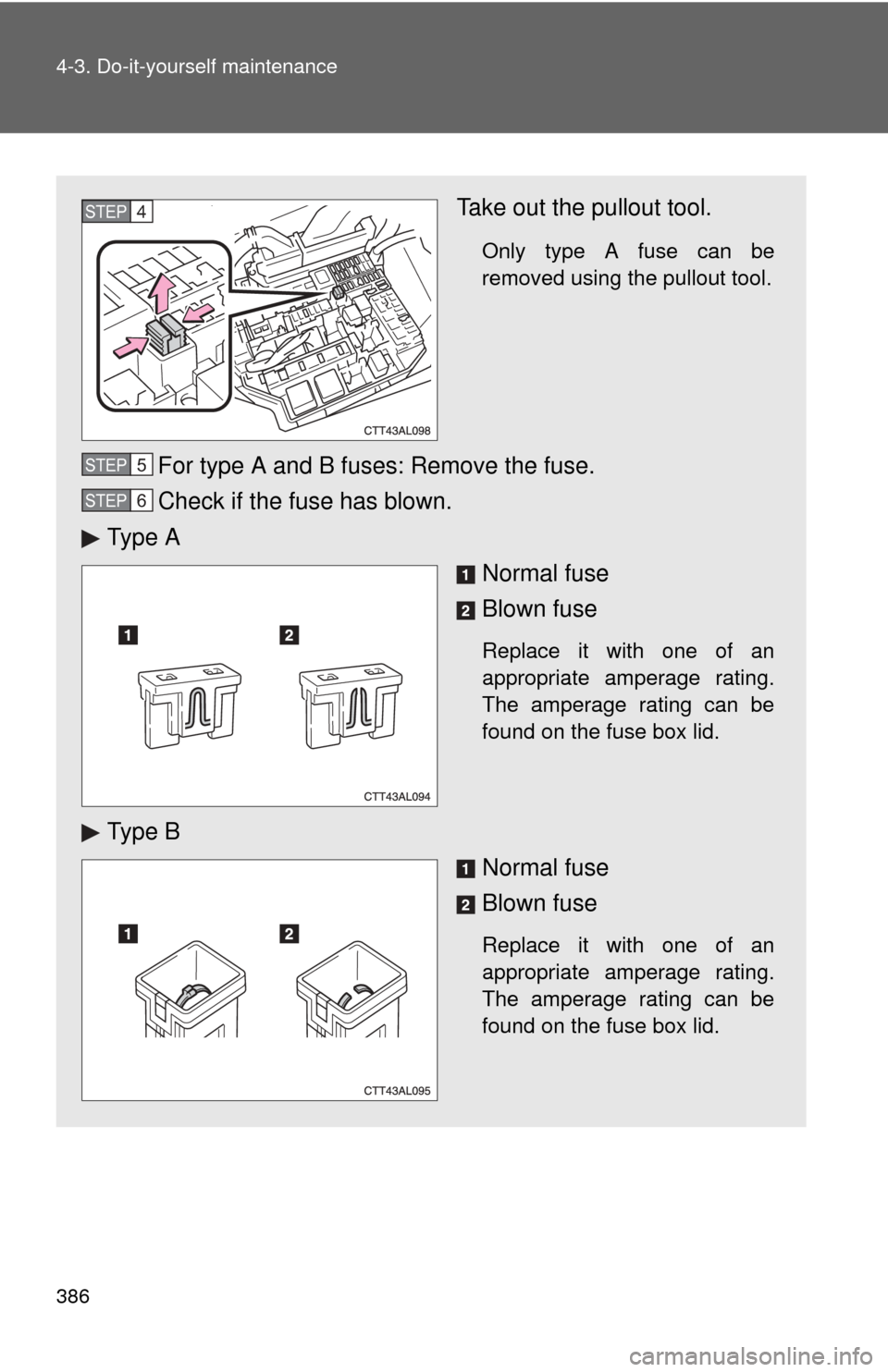

Take out the pullout tool.
Only type A fuse can be
removed using the pullout tool.
For type A and B fuses: Remove the fuse.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
STEP6

393
4-3. Do-it-yourself maintenance
4
Maintenance and care
24 FR FOG
15 A Front fog lights
25 AM1 7.5 AStarting system, shift lock control
system
26 DEF 30 A Rear window defogger, MIR HTR
27 POWER 30 A Power windows
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacing. ( P. 394)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer, as soon as possible.
FuseAmpereCircuit

508 Alphabetical index
Floor mat................................... 317
FluidBrake ..................................... 359
Washer .................................. 363
Fog lights
Replacing light bulbs ............. 394
Switch.................................... 141
Wattage ................................. 469
Front passenger occupant classification system ..............85
Front passenger's seat belt
reminder light......................... 416
Front seats Adjustment ..............................40
Front side marker lights Replacing light bulbs ............. 394
Switch.................................... 138
Wattage ................................. 469
Front turn signal lights Replacing light bulbs ............. 394
Switch.................................... 129
Wattage ................................. 469
Fuel
Capacity ................................ 458
Fuel gauge ............................ 132
Fuel pump shut off system .... 412
Gas station information ......... 516
Information ............................ 470
Refueling .................................64
Type ...................................... 458
Fuel door.....................................64
Fuel filler door ............................64
Fuel pump shut off system ..... 412
Fuses......................................... 385 Gas station information .......... 516
Gauges...................................... 132
Glove box ................................. 301
Grocery bag hooks .................. 314
Hands-free phone system
(for cellular phone) ................ 261
Hazard lights Switch ................................... 404
Head restraints
Adjusting ................................ 46
Headlights Replacing light bulbs ............. 394
Switch ................................... 138
Wattage................................. 469
Heaters
Side mirror ............................ 193
Hood.......................................... 346
Hooks Cargo hooks.......................... 318
Grocery bag hooks................ 314
Horn .......................................... 131FG
H
