TOYOTA MIRAI 2019 Accessories, Audio & Navigation (in English)

131
1. VOICE COMMAND SYSTEM OPERATION
VOICE COMMAND SYSTEM
4
MIRAI_Navi_USA_OM62055U_19MY
Phone
 While in a phone call
 While incoming message not ification is displayed*
CommandAction
“Call ”*Places a call to the specified contact from the phone book
“Call ”*Places a call to the specified phone type of the contact
from the phone book
“Dial ”Places a call to the specified phone number
“Redial”Places a call to the phone number of the latest outgoing
call
“Call back”Places a call to the phone num ber of latest incoming call
“Show recent calls”Displays the call history screen
“Send a message to ”Sends a text message to specified contact from the
phone book
*: If the system does not recognize the name of a contact, create a voice tag. ( P.182) The
name of a contact can also be rec ognized by adding a voice tag.
CommandAction
“Send ”Sends DTMF tones has specified
“Mute”Mutes the microphone (far side cannot hear the conver-
sation)
“Unmute”Unmutes the microphone
CommandAction
“Read message”Reads the incoming message over the vehicle speakers
“Ignore”Ignores the incoming message notification
“Reply”Initiates sending a reply to the incoming message
“Call”Places a call to the phone number of incoming message
*: Full screen message notification must be turned on within the phone settings (P.173)

132
1. VOICE COMMAND SYSTEM OPERATION
MIRAI_Navi_USA_OM62055U_19MY
Radio
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play a station”Changes the radio to an FM station of the specified
genre*1
“Tune to preset <1-36>”Changes the radio to the specified preset radio station
“Tune to a satellite
station”Changes the radio to a satellite radio channel of the spec-
ified genre*2
“Tune to
”Changes the radio to the satellite radio channel with the
specified name*2
“Tune to channel on
XM”Changes the radio to a satellite radio channel of the spec-
ified number*2
*1: A station list must be built fi rst using the radio screen (P.80)
*2: Requires a satellite radio subscription

133
1. VOICE COMMAND SYSTEM OPERATION
VOICE COMMAND SYSTEM
4
MIRAI_Navi_USA_OM62055U_19MY
Audio*
CommandAction
“Play playlist ”Plays tracks from the selected playlist
“Play artist ”Plays tracks from the selected artist
“Play song ”Plays the selected track
“Play album ”Plays tracks from the selected album
“Play genre ”Plays tracks from the selected genre
“Play composer ”Plays tracks from the selected composer
“Play podcast ”Plays tracks from the selected podcast
“Play audiobook ”Plays tracks from the selected audiobook
“Audio on”Turns the audio/visual system on
“Audio off”Turns the audio/visual system off
“Change the audio source to
”Sets the source to the specified audio mode
*: The audio device must be connected via a USB cable to use the functionality in this section

134
1. VOICE COMMAND SYSTEM OPERATION
MIRAI_Navi_USA_OM62055U_19MY
Information
 Apps
CommandAction
“Get the forecast”Displays weather information
“Get the forecast for ”*Displays weather for the specified city
“Show traffic”Displays traffic information
“Show traffic near here”Displays traffic information near your current location
“Get traffic along my route”Displays traffic information along your current route
“Show traffic on this street”Displays traffic information along road you are currently
driving on
“Show traffic for saved route”Displays traffic information for a saved route
“Show predictive traffic”Displays the predictive traffic map
*: Only major US cities are supported by voice
CommandAction
“Launch ”Activates the Toyota Entune App Suite Connect applica-
tion
INFORMATION
● When an application is opened and is in full screen mode, press ing the talk switch will
start the voice command system and commands for the currently d isplayed application
will be available.

135
VOICE COMMAND SYSTEM
4
MIRAI_Navi_USA_OM62055U_19MY
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold the switch on the
steering wheel until you hear the
beeps.
The Mobile Assistant function is a
voice input assist function. Mobile
Assist supports the Siri Eyes Free
Mode and Google App. (Google App
can be used only the corresponding
device.) Instructions can be spoken
into the vehicle microphone as if
speaking a command to the phone.
The content of the request is then
interpreted by the phone and the result
is output from the vehicle speakers. To
operate the Mobile Assistant, a
compatible device must be registered
and connected to this system via
Bluetooth
®. (P.42)
CONNECTABLE DEVICES
AND AVAILABLE
FUNCTIONS
Mobile Assist supports the Siri Eyes
Free Mode and Google App. The avail-
able features and functions may vary
based on the iOS/Android version in-
stalled on the connected device.
MOBILE ASSISTANT
OPERATION

136
2. MOBILE ASSISTANT OPERATION
MIRAI_Navi_USA_OM62055U_19MY
2Mobile Assistant can be used only
when the following screen is displayed.
To cancel the Mobile Assistant, select
“Cancel” , or press and hold the
switch on the steering wheel.
 To restart the Mobile Assistant for addi-
tional commands, press the switch
on the steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice
command.
• After saying a command, the Mobile Assistant function will automatically end
to complete the requested action.
 The volume of the Mobile Assistant can be
adjusted using the “POWER/VOLUME”
knob or steering wheel volume control
switches. The Mobile Assistant and phone
call volumes are synchronized.
INFORMATION
● While a phone call is active, the Mobile
Assistant cannot be used.
● If using the navigation feature of the cel-
lular phone, ensure the active audio
source is Bluetooth
® audio or iPod in
order to hear turn by turn direction
prompts.
● Wait for the listening beeps before using
the Mobile Assistant.
● The Mobile Assistant may not recognize
commands in the following situations:
• Spoken too quickly.
• Spoken at a low or high volume.
• The windows are open.
• Passengers are talking while the
Mobile Assistant is being used.
• The fan speed of the air conditioning system is set at high.
• The air conditioning vents are turned toward the microphone.

5
137
1
2
3
4
5
6
7
8
9
MIRAI_Navi_USA_OM62055U_19MY

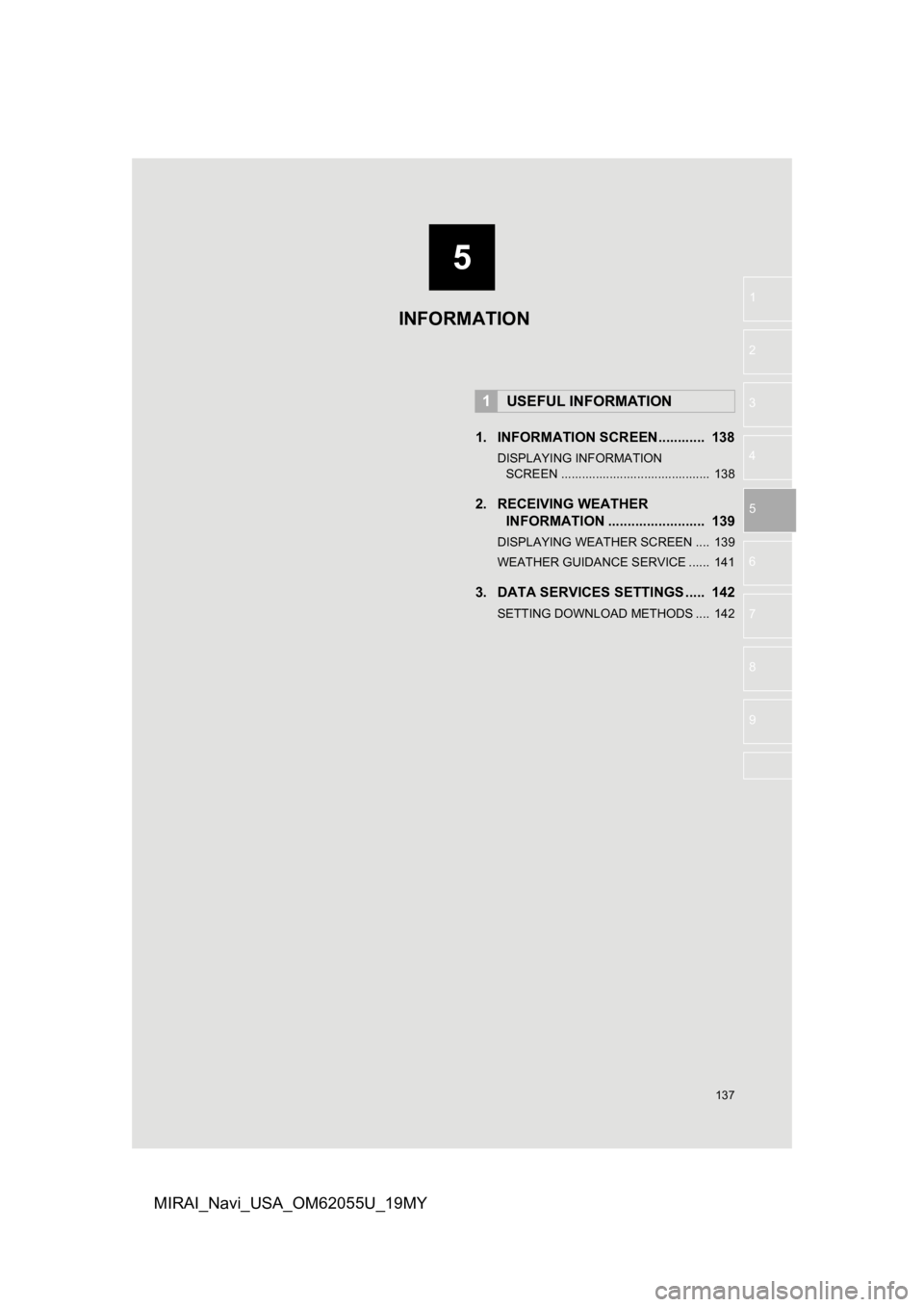

1. INFORMATION SCREEN............ 138
DISPLAYING INFORMATION SCREEN ........................................... 138
2. RECEIVING WEATHER INFORMATION ......................... 139
DISPLAYING WEATHER SCREEN .... 139
WEATHER GUIDANCE SERVICE ...... 141
3. DATA SERVICES SET TINGS ..... 142
SETTING DOWNLOAD METHODS .... 142
1USEFUL INFORMATION
INFORMATION

138
MIRAI_Navi_USA_OM62055U_19MY
1. USEFUL INFORMATION
1. INFORMATION SCREEN
1Press the “MENU” button.
2Select “Info”.
3Select the desired item.Useful information, such as the traffic
incidents, weather, etc., is available on
the information screen.
DISPLAYING INFORMATION
SCREEN
No.FunctionPage
Select to display traf-
fic information.202
Select to display
weather information.139
*Select to display the
vehicle alert history.
*: Vehicles with DCM

139
1. USEFUL INFORMATION
INFORMATION
5
MIRAI_Navi_USA_OM62055U_19MY
2. RECEIVING WEATHER INFORMATION
1Press the “MENU” button.
2Select “Info”.
3Select “Weather” .
4Check that the weather screen is dis-
played.
Weather information can be received
via HD Radio broadcast or DCM (Data
Communication Module).
DISPLAYING WEATHER
SCREEN
No.Function
Select to display the current weather
information. ( P.140)
Select to display a 3-day weather
forecast for the currently displayed
location.
To view the details of a specific day,
select the date.
Select to display the weather infor-
mation for the next 6 hours and 12
hours. (This button is not displayed
when a location is selected from the
“National Cities” list of “National/
Local” .)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to change the displayed
weather location.
A location can be selected from two
different lists: a list of national cities
and a list of local cities. ( P.140)
Select to display Doppler weather
radar information over the map.

140
1. USEFUL INFORMATION
MIRAI_Navi_USA_OM62055U_19MY
1Display the weather screen. (P.139)
2Select “Current” .
3Check the weather information for the
current location.
By selecting “3 Day” or “6/12 Hour”, dif-
ferent types of weathe r information for the
current location will be displayed.
1Display the weather screen. ( P.139)
2Select “National/Local” .
3Select the desired item to be set.
4Select the desired location from the
list.
After selecting a location, the current
weather information will be displayed. By
selecting “3 Day” or “6/12 Hour”, the dif-
ferent type of weather information for the
selected location is displayed.
INFORMATION
● This function is not made available in
some countries or areas.
● The weather for current location might
not show the closest city when it first dis-
plays.
● The weather information is updated
every 5 to 90 minutes. The time elapsed
since the last update is displayed at the
bottom right corner of the screen. If the
weather has been updated less than 5
minutes ago, “Now” will be displayed.
DISPLAYING WEATHER
INFORMATION FOR THE
CURRENT LOCATION
SELECTING A LOCATION
No.Function
Select to display the list of National
cities. When the lis t is displayed, se-
lect the desired area.
Select to display the list of local cit-
ies.
