navigation system TOYOTA MIRAI 2020 Accessories, Audio & Navigation (in English)

136
2. MOBILE ASSISTANT OPERATION
MIRAI_Navi_USA_OM62074U_20MY
2Mobile Assistant can be used only
when the following screen is displayed.
To cancel the Mobile Assistant, select
“Cancel” , or press and hold the
switch on the steering wheel.
 To restart the Mobile Assistant for addi-
tional commands, press the switch
on the steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice
command.
• After saying a command, the Mobile Assistant function will automatically end
to complete the requested action.
 The volume of the Mobile Assistant can be
adjusted using the “POWER/VOLUME”
knob or steering wheel volume control
switches. The Mobile Assistant and phone
call volumes are synchronized.
INFORMATION
● While a phone call is active, the Mobile
Assistant cannot be used.
● If using the navigation feature of the cel-
lular phone, ensure the active audio
source is Bluetooth
® audio or iPod in
order to hear turn by turn direction
prompts.
● Wait for the listening beeps before using
the Mobile Assistant.
● The Mobile Assistant may not recognize
commands in the following situations:
• Spoken too quickly.
• Spoken at a low or high volume.
• The windows are open.
• Passengers are talking while the
Mobile Assistant is being used.
• The fan speed of the air conditioning system is set at high.
• The air conditioning vents are turned toward the microphone.

171
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
PHONE
7
MIRAI_Navi_USA_OM62074U_20MY
1Display the message screen.
(P.168)
2Select the desired message from the
list.
3Select “Reply”.
4Select “Quick Message” .
5Select the desired message.
: Select to edit the message.(P.171)
6Select “Send” .
“Cancel” : Select to cancel sending the
message.
 While the message is being sent, a send-
ing message screen is displayed.
7Check that a confirmation screen is
displayed when the operation is com-
plete.
If an error message is displayed, follow
the guidance on the screen to try again.
■EDITING QUICK REPLY MESSAG-
ES
1Select corresponding to the de-
sired message to edit.
2Select “OK” when editing is complet-
ed.
REPLYING TO A MESSAGE
(QUICK REPLY)
15 messages have already been
stored.
INFORMATION
● Depending on the type of Bluetooth®
phone, reply function is not available.
This operation cannot be performed
while driving.
INFORMATION
●To reset the edit quick reply messages,
select “Default” .
● “Quick Message 1” (“I am driving and
will arrive in approximately [##]
minutes.”) :
This message cannot be edited and will
automatically fill in [##] with the
navigation calculated estimated time of
arrival on the confirm message screen.
If there are waypoints set, [##] to the
next waypoint will be shown.
If there is no route currently set in the
navigation system, “Quick Message 1”
cannot be selected.

190
MIRAI_Navi_USA_OM62074U_20MY
1. QUICK REFERENCE ................... 192
MAP SCREEN ..................................... 192
2. MAP SCREEN OPERATION ....... 194
CURRENT POSITION DISPLAY ......... 194
MAP SCALE ........................................ 194
ORIENTATION OF THE MAP ............. 195
MAP SCROLL OPERATION................ 196
ADJUSTING LOCATION IN SMALL INCREMENTS................................... 196
DISPLAYING INFORMATION ABOUT THE ICON WHERE THE CURSOR
IS SET ............................................... 197
STANDARD MAP ICONS .................... 197
3. MAP OPTIONS OPERATION ...... 198
SWITCHING THE MAP MODE............ 198
SELECTING THE POI* ICONS ........... 200
ROUTE TRACE ................................... 201
4. TRAFFIC INFORMATION ............ 202
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 205
1. DESTINATION SEARCH OPERATION ............................. 206
SELECTING SEARCH AREA .............. 208
SETTING HOME AS
DESTINATION................................... 208
SEARCHING BY KEYWORD............... 208
SEARCHING BY FAVORITES LIST .... 209
SEARCHING BY Destination Assist..... 209
SEARCHING BY RECENT DESTINATIONS ................................ 209
SEARCHING BY EMERGENCY .......... 210
SEARCHING BY CONTACT ................ 210
SEARCHING BY ADDRESS ................ 210
SEARCHING BY POINT OF INTEREST ......................................... 211
ONE-TOUCH SETTING HOME/ FAVORITE AS A DESTINATION ..... 214
2. STARTING ROUTE GUIDANCE ....... ....................... .. 216
CONFIRM DESTINATION SCREEN ... 217
ROUTE OVERVIEW SCREEN ............ 217
A ROUTE FROM THE CLOUD
(VEHICLES WITH DCM) ................... 220
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM

8

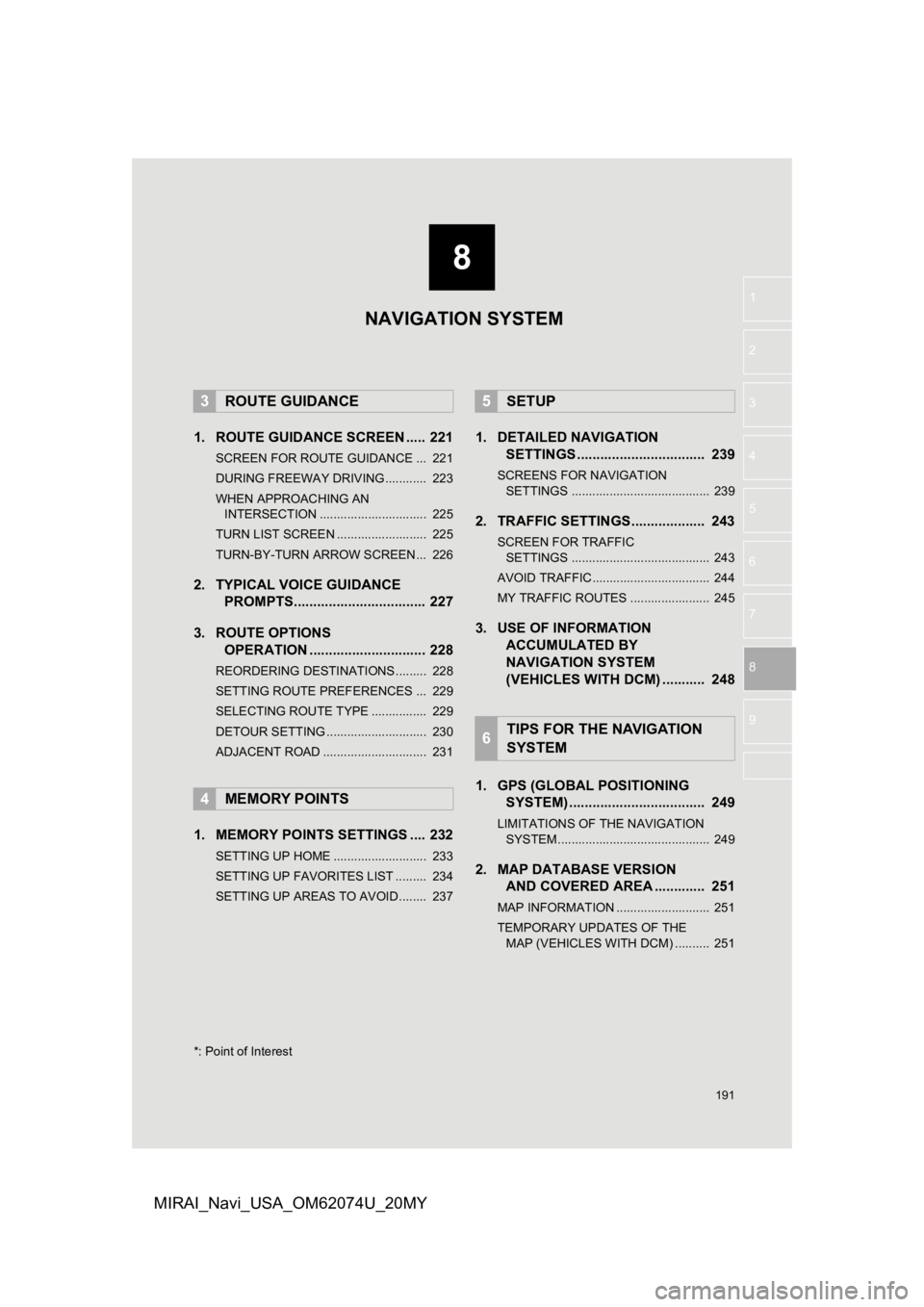

191
1
2
3
4
5
6
7
8
9
MIRAI_Navi_USA_OM62074U_20MY
1. ROUTE GUIDANCE SCREEN ..... 221
SCREEN FOR ROUTE GUIDANCE ... 221
DURING FREEWAY DRIVING............ 223
WHEN APPROACHING AN INTERSECTION ............................... 225
TURN LIST SCREEN .......................... 225
TURN-BY-TURN ARROW SCREEN ... 226
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 227
3. ROUTE OPTIONS OPERATION .............................. 228
REORDERING DESTINATIONS ......... 228
SETTING ROUTE PREFERENCES ... 229
SELECTING ROUTE TYPE ................ 229
DETOUR SETTING ............................. 230
ADJACENT ROAD .............................. 231
1. MEMORY POINTS SETTINGS .... 232
SETTING UP HOME ........................... 233
SETTING UP FAVORITES LIST ......... 234
SETTING UP AREAS TO AVOID ........ 237
1. DETAILED NAVIGATIONSETTINGS ................................. 239
SCREENS FOR NAVIGATION
SETTINGS ........................................ 239
2. TRAFFIC SETTINGS................... 243
SCREEN FOR TRAFFIC SETTINGS ........................................ 243
AVOID TRAFFIC.................................. 244
MY TRAFFIC ROUTES ....................... 245
3. USE OF INFORMATION ACCUMULATED BY
NAVIGATION SYSTEM
(VEHICLES WITH DCM) ........... 248
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 249
LIMITATIONS OF THE NAVIGATION
SYSTEM ............................................ 249
2. MAP DATABASE VERSION AND COVERED AREA ............. 251
MAP INFORMATION ........................... 251
TEMPORARY UPDATES OF THE
MAP (VEHICLES WITH DCM) .......... 251
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
*: Point of Interest
NAVIGATION SYSTEM

193
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62074U_20MY
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.194
Micro city map
buttonSelect to display the micro city map screen.195
Route informa-
tion bar
Displays the distance with the estimated travel
time/arrival time to the destination. The route in-
formation bar fills from le ft to right as the vehicle
progresses on the route.
222
Delete destina-
tion buttonSelect to delete destinations.
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.198
*ClockDisplays the clock.
*: The clock is not displayed on the navigation system screen fo r this vehicle.
The clock is displayed on the meter.
No.NameFunctionPage
INFORMATION
● When the vehicle is not receiving GPS signals, such as when dri ving in a tunnel,
will be displayed at the bottom left corner of the screen.

195
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62074U_20MY
1Select on the map screen.
2Check that the micro city map is dis-
played.
To return to the normal map display, select
.
 If the map or the current position is moved
to the area which is not covered by the
micro city map, the screen scale automati-
cally changes to 150 ft. (50 m).
 On the micro city map, a one way street is
displayed by .
 Scrolling the micro city map is not avail-
able while driving.
: North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
 The letter(s) under this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
MICRO CITY MAP
For areas covered by the micro city
map (some major cities), a micro city
map on a scale of 75 ft. (25 m) can be
selected.
When the map is scaled down to 150 ft.
(50 m), changes to and
can be selected to display the micro
city map.
Building micro cities in the database
were created and provided by HERE.ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.

197
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62074U_20MY
1Place the cursor over an icon.
2Select “Info”.
The information screen will be displayed.
“Save”: Select to register as a memory
point.To change the icon, name, etc.
( P.234)
“Go”/“Enter” : Select to set as a destina-
tion.
: Select to call the registered
number.
“Delete” : Select to delete destination or
memory point.
“Edit” : Select to display the edit memory
point screen.
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET
When the cursor is placed over an icon
on the map screen, the name is dis-
played at the top of the screen. If “In-
fo” is shown to the right of the name,
detailed information can be displayed.
STANDARD MAP ICONS
IconName
Park
Business facility
Airport
Military
University
Hospital
Stadium
Shopping mall
Golf

199
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62074U_20MY
1Select any point on the right side map.
2Select the desired item.
3Select “OK”.
DUAL MAP
The map on the left is the main map.
The right side map can be edited.
No.FunctionPage
Select to change the orien-
tation of the map.195
Select to display POI
icons.200
*Select to show traffic infor-
mation. 202
Select to change the map
scale.194
*: This function is not available in some countries and areas.
COMPASS
Information about the destination, cur-
rent position and a compass are dis-
played on the screen.
INFORMATION
● The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
● When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the whole compass mode
screen.

201
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62074U_20MY
1Select on the map screen.
(P.192)
2Select “Route Trace”.
The route trace starts.
3Check that the traveled line is dis-
played.
1Select on the map screen.
(P.192)
2Select “Route Trace” again.
3A confirmation screen will be dis-
played.
“Yes”: Select to keep the recorded
route trace.
“No” : Select to erase the recorded
route trace.
ROUTE TRACE
The traveled route can be stored and
retraced on the map screen. This fea-
ture is available when the map scale is
30 miles (50 km) or less.
STOP RECORDING THE
ROUTE TRACE
INFORMATION
● The traveled route can be stored up to
124 miles (200 km).

203
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62074U_20MY
1Display the traffic incidents screen.
(P.202)
2Select “Traffic Events on Current
Road” , “Traffic Events on Current
Route” or “Traffic Events Nearby” .
3Select the desired traffic information.
 When “Traffic Events Nearby” is se-
lected, depending on whether the traffic
flow information is enabled/disabled, the
following will be displayed:
When enabled: Traffic event and conges-
tion information
When disabled: Traffic event information
only
4Check that the traffic information is dis-
played.
“Detail” : Select to display detailed traffic
information.
INFORMATION
● If a large amount of information is being
received, it may take longer than normal
for the information to be displayed on
the screen.
● If traffic information cannot be received
because the vehicle is outside of HD
Radio coverage area, it may still be able
to be received using DCM. ( P.142)
DISPLAYING TRAFFIC
INFORMATION
A list of current traffic information can
be displayed along with information on
the location of each incident.
