TOYOTA MR2 SPYDER 2001 Accessories, Audio & Navigation (in English)
Manufacturer: TOYOTA, Model Year: 2001, Model line: MR2 SPYDER, Model: TOYOTA MR2 SPYDER 2001Pages: 23, PDF Size: 0.97 MB
Page 1 of 23

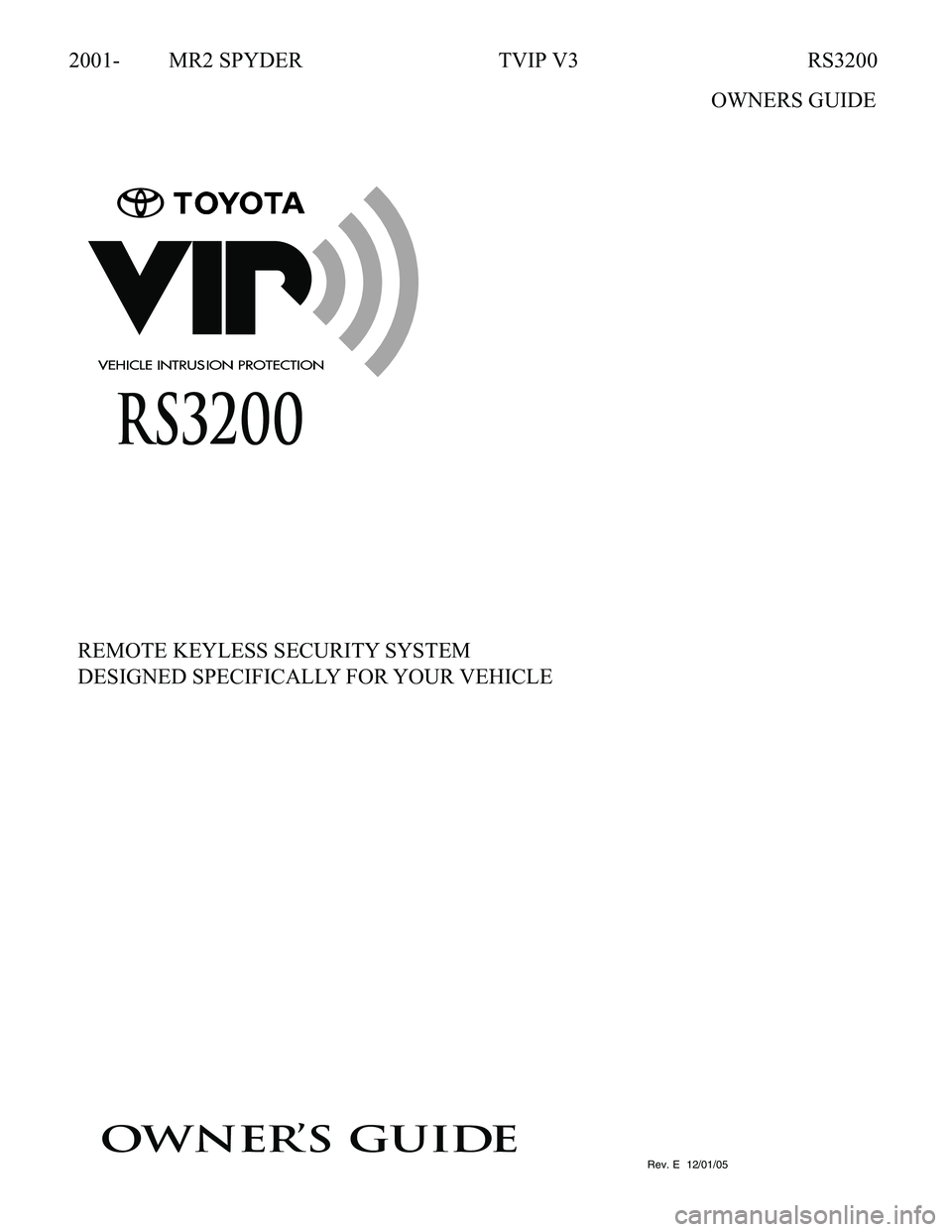

Remote KeylessSecurity system
Designed Specifically for your Vehicle
owner’s guide
RS3200
Rev. E 12/01/05
REMOTE KEYLESS SECURITY SYSTEM
DESIGNED SPECIFICALLY FOR YOUR VEHICLE
Page 2 of 23
To better understand the features and functions of this security system,\
please read this
Owner’s Guide completely prior to use.

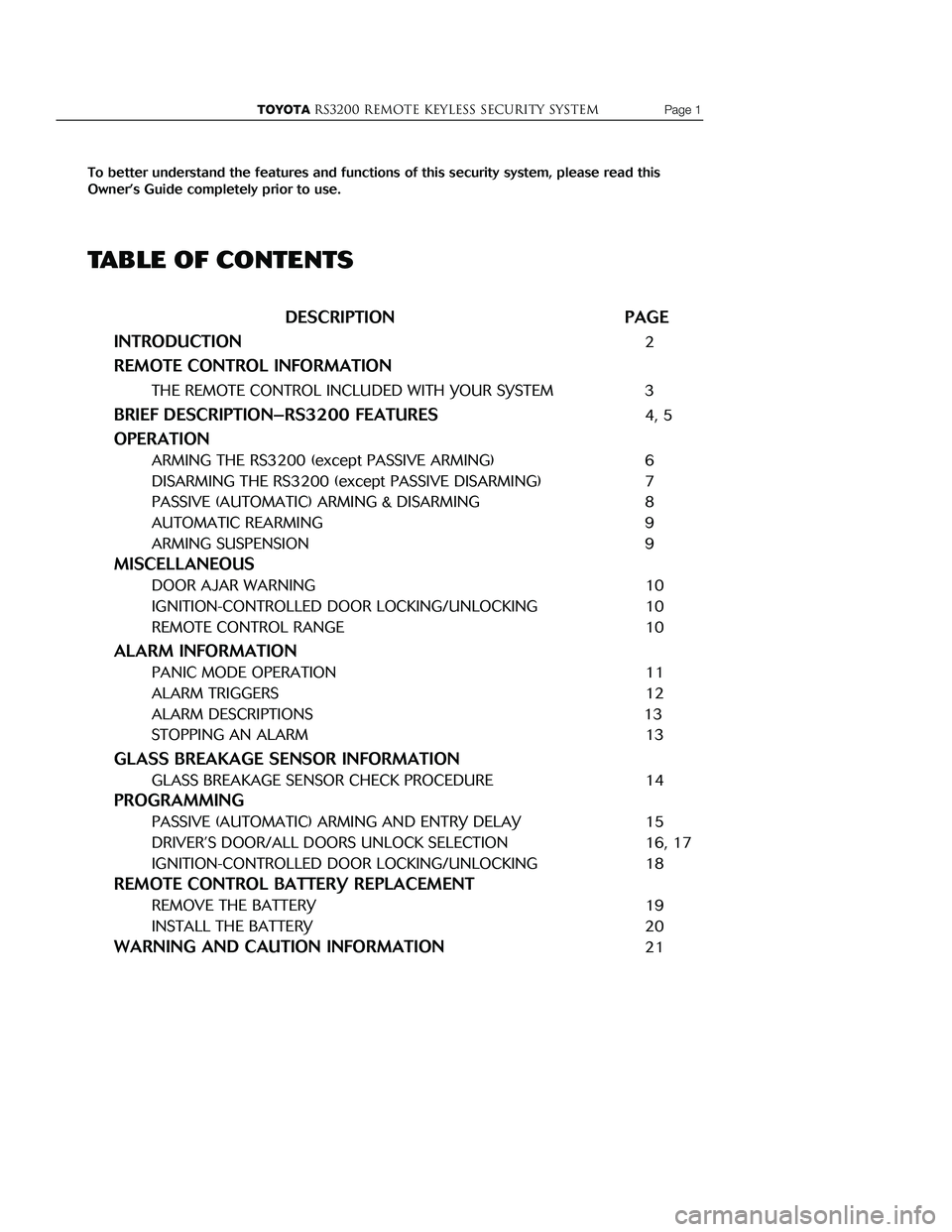

TABLE OF CONTENTS
DESCRIPTION PAGE
INTRODUCTION
2
REMOTE CONTROL INFORMATION
THE REMOTE CONTROL INCLUDED WITH YOUR SYSTEM 3
BRIEF DESCRIPTION–RS3200 FEATURES4, 5
OPERATION

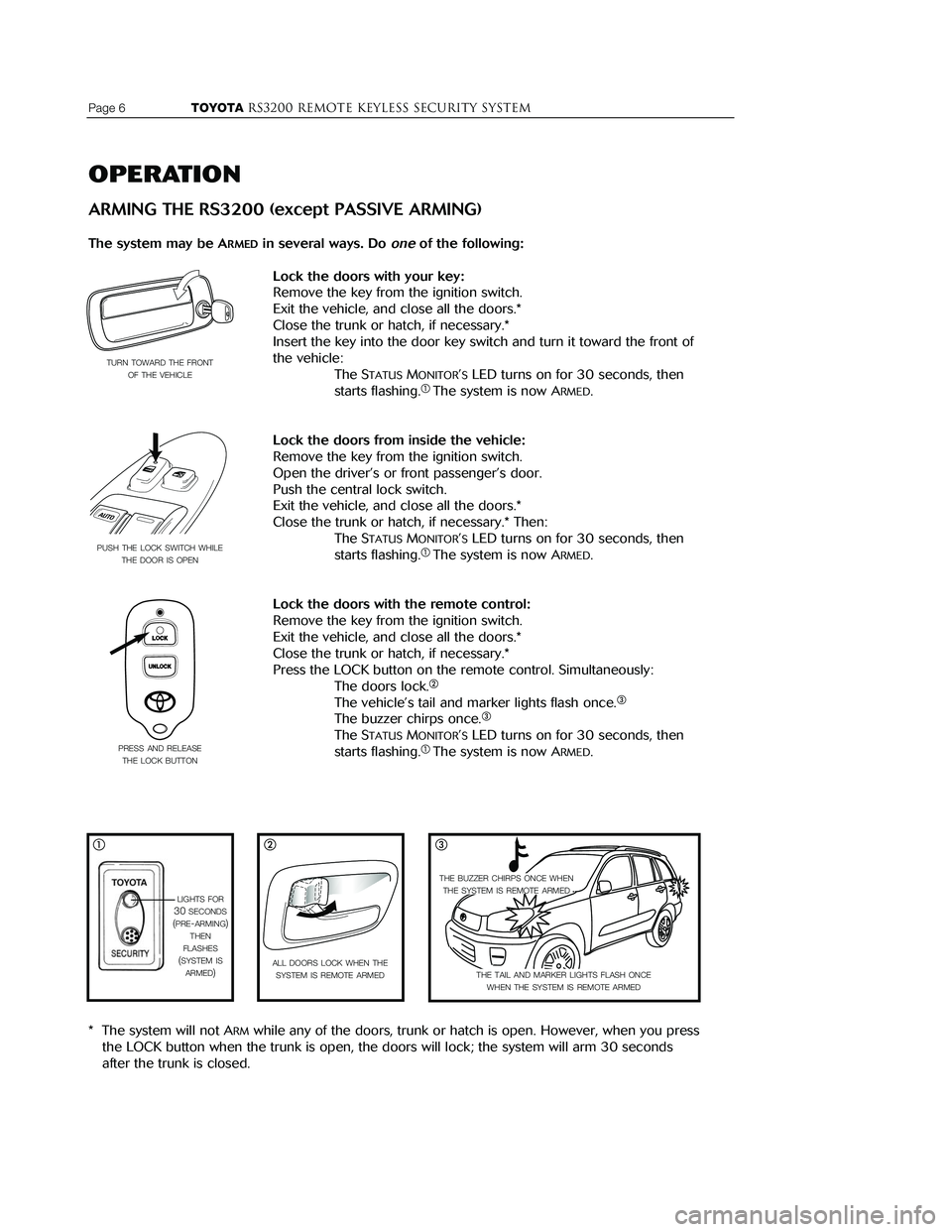

ARMING THE RS3200 (except PASSIVE ARMING) 6

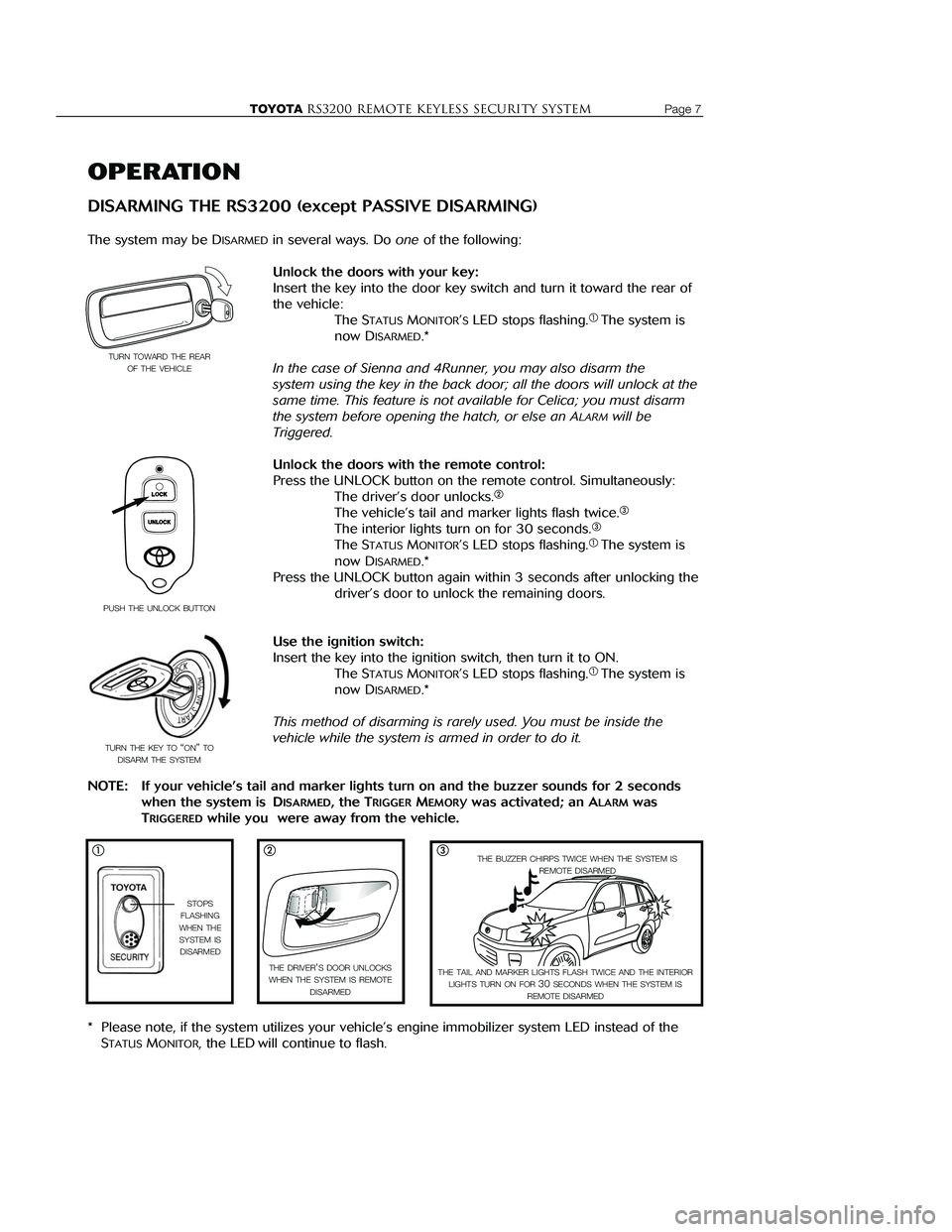

DISARMING THE RS3200 (except PASSIVE DISARMING) 7

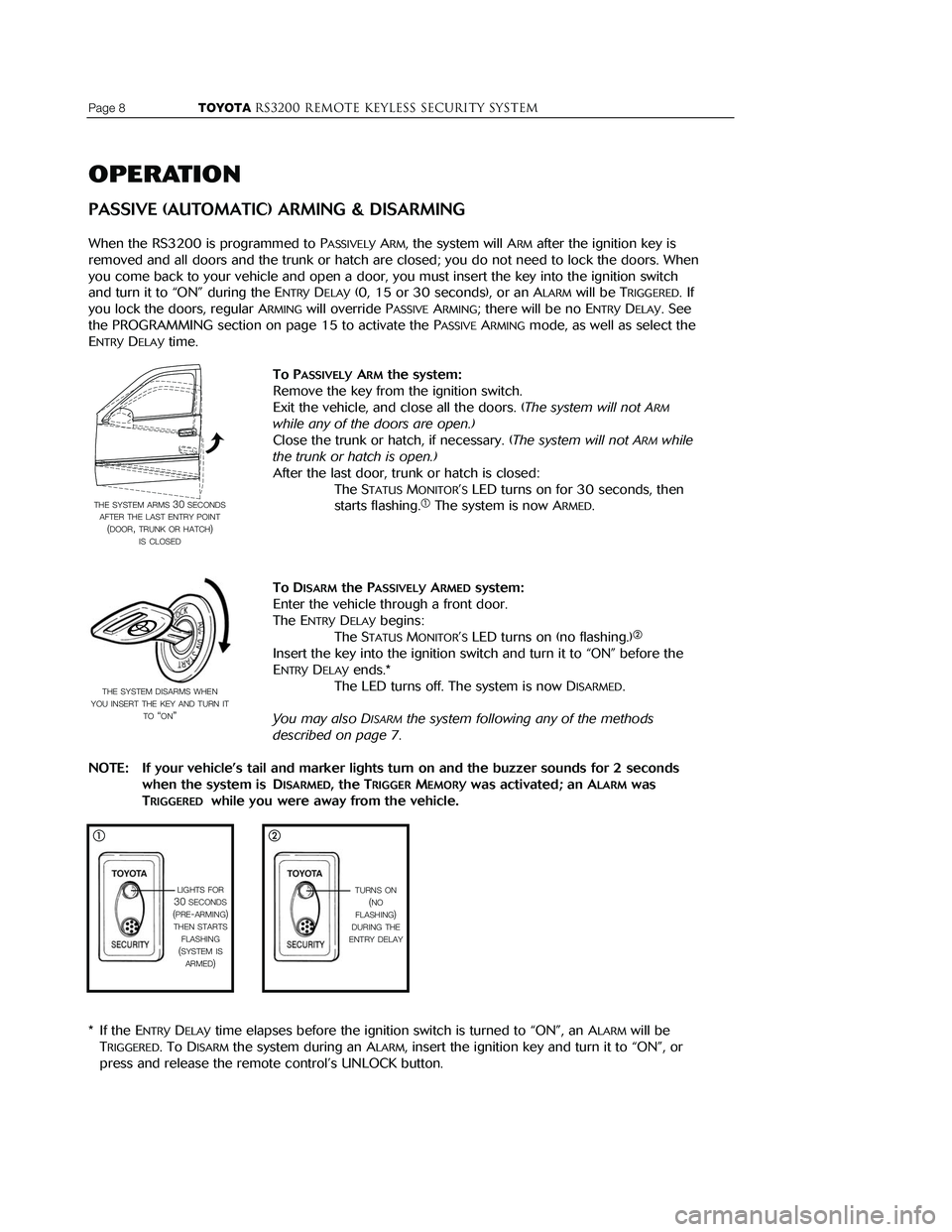

PASSIVE (AUTOMATIC) ARMING & DISARMING 8

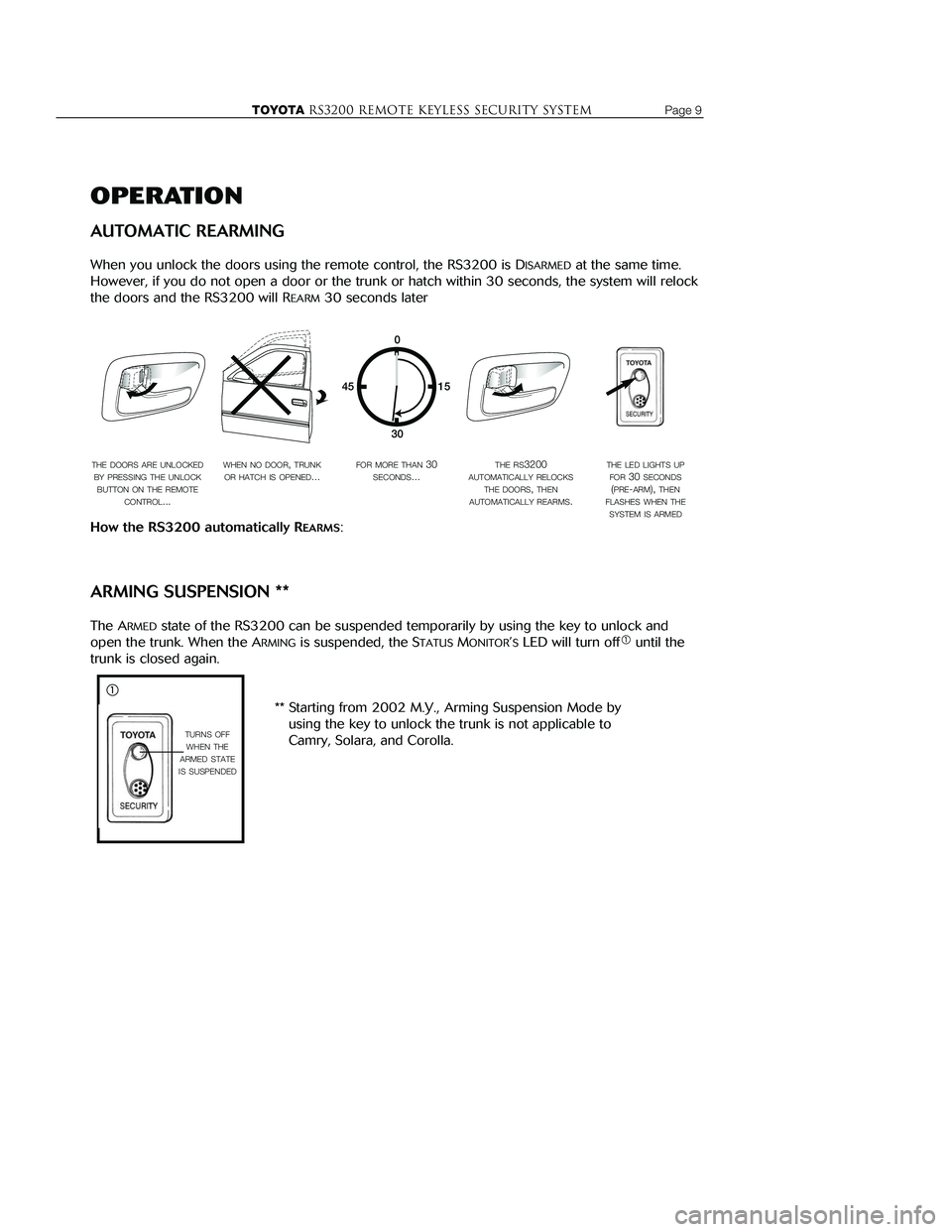

AUTOMATIC REARMING 9
ARMING SUSPENSION 9
MISCELLANEOUS
DOOR AJAR WARNING 10
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 10
REMOTE CONTROL RANGE 10
ALARM INFORMATION
PANIC MODE OPERATION 11
ALARM TRIGGERS 12
ALARM DESCRIPTIONS 13
STOPPING AN ALARM 13
GLASS BREAKAGE SENSOR INFORMATION
GLASS BREAKAGE SENSOR CHECK PROCEDURE 14
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY 15
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION 16, 17
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 18
REMOTE CONTROL BATTERY REPLACEMENT
REMOVE THE BATTERY 19
INSTALL THE BATTERY 20
WARNING AND CAUTION INFORMATION21
TOYOTARS3200 remote keyless Security system Page 1
Page 3 of 23

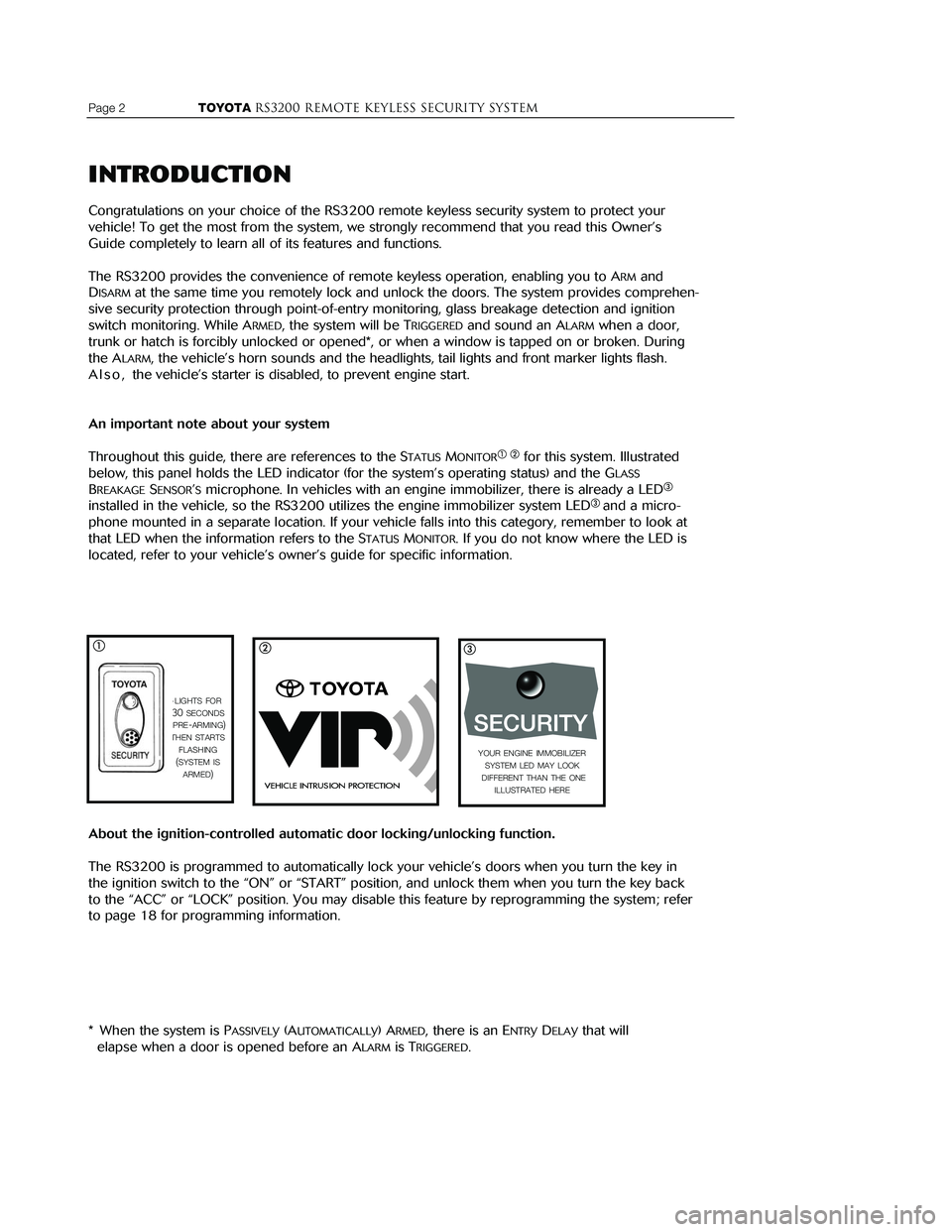

INTRODUCTION
Congratulations on your choice of the RS3200 remote keyless security sys\
tem to protect your
vehicle! To get the most from the system, we strongly recommend that you\
read this Owner’s
Guide completely to learn all of its features and functions.
The RS3200 provides the convenience of remote keyless operation, enablin\
g you to A
RMand
D
ISARMat the same time you remotely lock and unlock the doors. The system prov\
ides comprehen-
sive security protection through point-of-entry monitoring, glass breaka\
ge detection and ignition
switch monitoring. While A
RMED, the system will be TRIGGEREDand sound an ALARMwhen a door,
trunk or hatch is forcibly unlocked or opened*, or when a window is tapp\
ed on or broken. During
the A
LARM, the vehicle’s horn sounds and the headlights, tail lights and front marker lights flash.
Also, the ve hicle’sstarter is disabled, to prevent engine start.
An important note about your system
Throughout this guide, there are references to the S
TATUSMONITOR for this system. Illustrated
below, this panel holds the LED indicator (for the system’s operatin\
g status) and the G
LASS
BREAKAGESENSOR’Smicrophone. In vehicles with an engine immobilizer, there is already a L\
ED
installed in the vehicle, so the RS3200 utilizes the engine immobilizer \
system LED and a micro-
phone mounted in a separate location. If your vehicle falls into this ca\
tegory, remember to look at
that LED when the information refers to the S
TATUSMONITOR. If you do not know where the LED is
located, refer to your vehicle’s owner’s guide for specific inform\
ation.
About the ignition-controlled automatic door locking/unlocking function.\
The RS3200 is programmed to automatically lock your vehicle’s doors w\
hen you turn the key in
the ignition switch to the “ON” or “START” position, and unl\
ock them when you turn the key back
to the “ACC” or “LOCK” position. You may disable this featur\
e by reprogramming the system; refer
to page 18 for programming information.
* When the system is P
ASSIVELY(AUTOMATICALLY) ARMED, there is an ENTRYDELAYthat will
elapse when a door is opened before an A
LARMis TRIGGERED.
YOUR ENGINE IMMOBILIZER
SYSTEM LED MAY LOOK
DIFFERENT THAN THE ONE ILLUSTRATED HERE
LIGHTS FOR30SECONDS(PRE-ARMING)THEN STARTSFLASHING
(SYSTEM ISARMED)
Page 2 TOYOTARS3200 REMOTE KEYLESS Security system
Page 4 of 23
REMOTE CONTROL INFORMATION
THE REMOTE CONTROLS PROVIDED WITH YOUR SYSTEM
The 3 button remotes included with your system have separate LOCK and UNLOCK buttons on the
frontand a PANICbutton on the back .
The RS3200 may be controlled by as many as 4 remote controls, so you may\
add two additional
remote controls to the two included with your system. Contact your Toyot\
a dealer for more details.
TOYOTARS3200 remote keyless Security system Page 3
Front Button
FLASHES WHEN
BUTTONS PRESSED
PUSH TO LOCK
DOORS AND ARM
SYSTEM
PUSH TO UNLOCK
DOORS AND DISARM
SYSTEM
Back Button
HOLD TO ACTIVATE
PANIC MODE
OPERATION
NOTE: This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC rules. Thes\
e
limits are designed to provide reasonable protection against harmful int\
er
ference in a residential installation. This equipment generates, uses, a\
nd
can radiate radio frequency energy and, if not installed and used in acc\
or
dance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does caus\
e
harmful interference to radio or television reception, which can be dete\
r
mined by turning the equipment off and on, the user is encouraged to try\
and correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Page 5 of 23
Page 4 TOYOTARS3200 REMOTE KEYLESS Security system

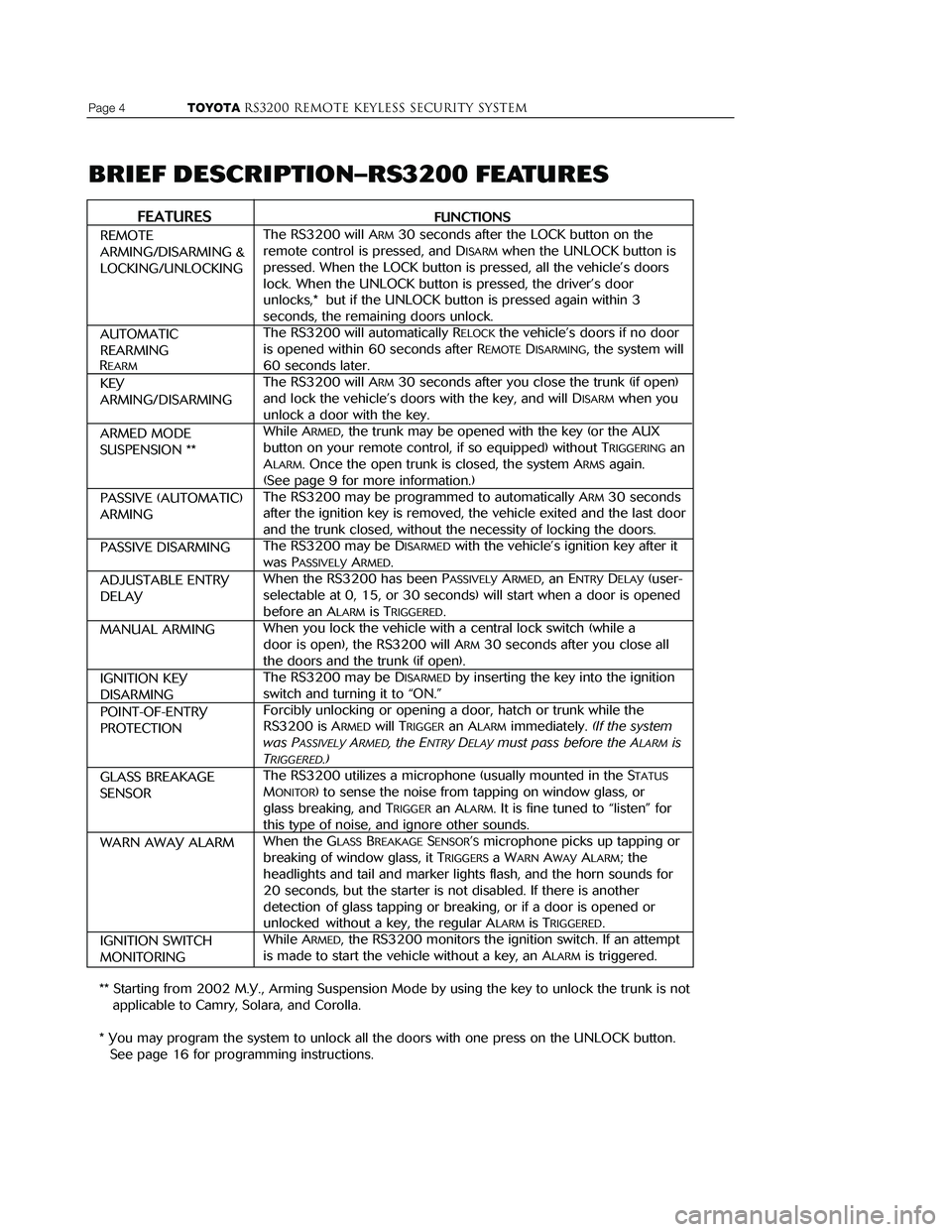

FEATURESFUNCTIONS
The RS3200 will A
RM30 seconds after the LOCK button on the
remote control is pressed, and D
ISARMwhen the UNLOCK button is
pressed. When the LOCK button is pressed, all the vehicle’s doors
lock. When the UNLOCK button is pressed, the driver’s door
unlocks,* but if the UNLOCK button is pressed again within 3
seconds, the remaining doors unlock.
The RS3200 will automatically R
ELOCKthe vehicle’s doors if no door
is opened within 60 seconds after R
EMOTEDISARMING, the system will
R
EARM60 seconds later.
The RS3200 will A
RM30 seconds after you close the trunk (if open)
and lock the vehicle’s doors with the key, and will D
ISARMwhen you
unlock a door with the key.
While A
RMED, the trunk may be opened with the key (or the AUX
button on your remote control, if so equipped) without T
RIGGERINGan
A
LARM. Once the open trunk is closed, the system ARMSagain.
(See page 9 for more information.)
The RS3200 may be programmed to automatically A
RM30 seconds
after the ignition key is removed, the vehicle exited and the last door
and the trunk closed, without the necessity of locking the doors.
The RS3200 may be D
ISARMEDwith the vehicle’s ignition key after it
was P
ASSIVELYARMED.
When the RS3200 has been P
ASSIVELYARMED, an ENTRYDELAY(user-
selectable at 0, 15, or 30 seconds) will start when a door is opened
before an A
LARMis TRIGGERED.
When you lock the vehicle with a central lock switch (while a
door is open), the RS3200 will A
RM30 seconds after you close all
the doors and the trunk (if open).
The RS3200 may be D
ISARMEDby inserting the key into the ignition
switch and turning it to “ON.”
Forcibly unlocking or opening a door, hatch or trunk while the
RS3200 is A
RMEDwill TRIGGERan ALARMimmediately. (If the system
was P
ASSIVELYARMED, the ENTRYDELAYmust pass before the ALARMis
T
RIGGERED.)
The RS3200 utilizes a microphone (usually mounted in the S
TATUS
MONITOR) to sense the noise from tapping on window glass, or
glass breaking, and T
RIGGERan ALARM. It is fine tuned to “listen” for
this type of noise, and ignore other sounds.
When the G
LASSBREAKAGESENSOR’Smicrophone picks up tapping or
breaking of window glass, it T
RIGGERSa WARNAWAYALARM; the
headlights and tail and marker lights flash, and the horn sounds for
20 seconds, but the starter is not disabled. If there is another
detection of glass tapping or breaking, or if a door is opened or
unlocked without a key, the regular A
LARMis TRIGGERED.
While A
RMED, the RS3200 monitors the ignition switch. If an attempt
is made to start the vehicle without a key, an A
LARMis triggered.
** Starting from 2002 M.Y., Arming Suspension Mode by using the key to u\
nlock the trunk is not applicable to Camry, Solara, and Corolla.
* You may program the system to unlock all the doors with one press on t\
he UNLOCK button. See page 16 for programming instructions.
REMOTE
ARMING/DISARMING &
LOCKING/UNLOCKING
AUTOMATIC
REARMING
KEY
ARMING/DISARMING
ARMED MODE
SUSPENSION **
PASSIVE (AUTOMATIC)
ARMING
PASSIVE DISARMING
ADJUSTABLE ENTRY
DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
GLASS BREAKAGE
SENSOR
WARN AWAY ALARM
IGNITION SWITCH
MONITORING
BRIEF DESCRIPTION–R
S3200 FEATURES
Page 6 of 23
TOYOTARS3200 remote keyless Security system Page 5

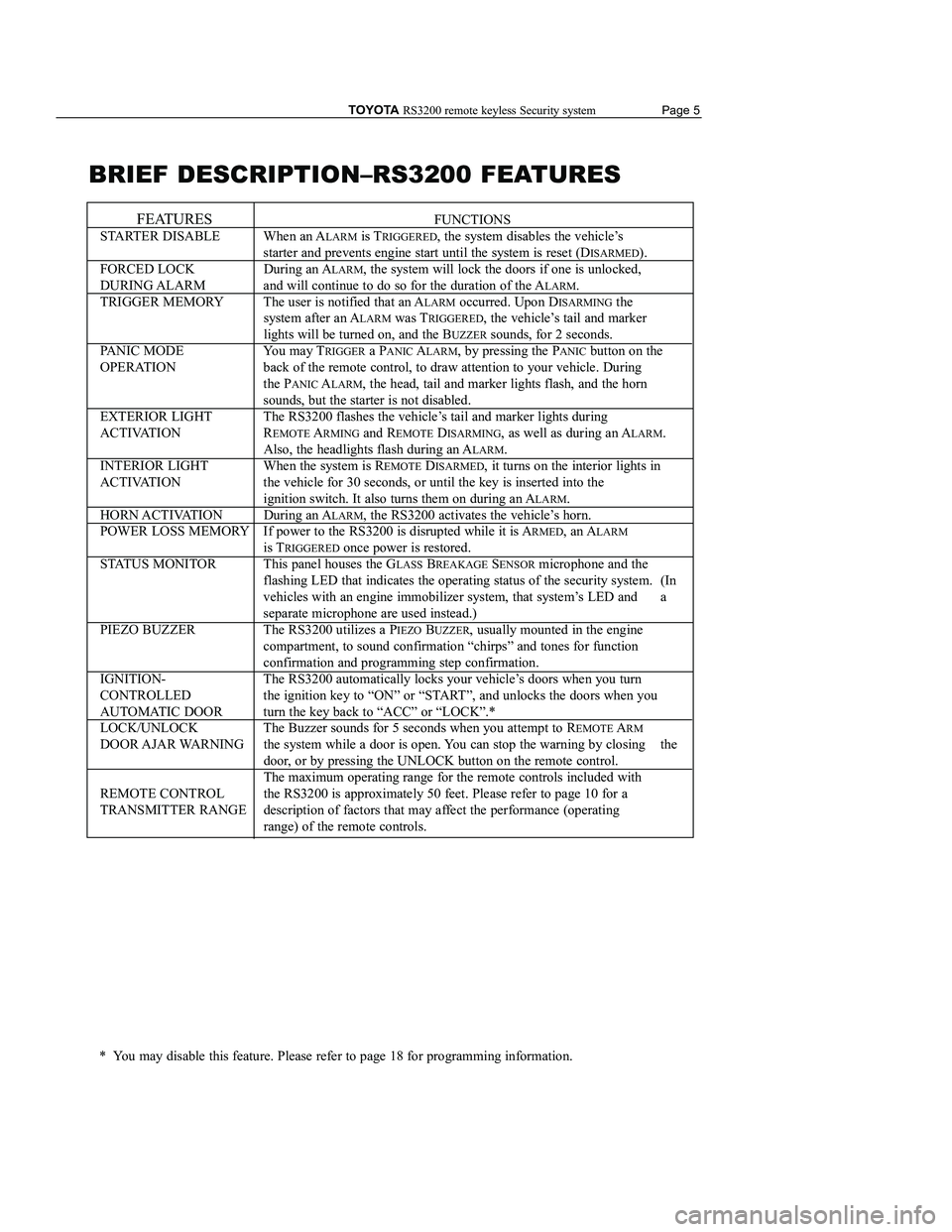

FEATURESFUNCTIONS
When an A
LARMis TRIGGERED, the system disables the vehicle’s
starter and prevents engine start until the system is reset (D
ISARMED).
During an A
LARM, the system will lock the doors if one is unlocked,
and will continue to do so for the duration of the A
LARM.
The user is notified that an A
LARM occurred. Upon DISARMING the
system after an A
LARMwas TRIGGERED, the vehicle’s tail and marker
lights will be turned on, and the B
UZZERsounds, for 2 seconds.
You may T
RIGGERaPANIC ALARM, by pressing the PANICbutton on the
back of the remote control, to draw attention to your vehicle. During
the P
ANIC ALARM, the head, tail and marker lights flash, and the horn
sounds, but the starter is not disabled.
The RS3200 flashes the vehicle’s tail and marker lights during
R
EMOTE ARMING and REMOTEDISARMING, as well as during an ALARM.
Also, the headlights flash during an A
LARM.
When the system is R
EMOTEDISARMED, it turns on the interior lights in
the vehicle for 30 seconds, or until the key is inserted into the
ignition switch. It also turns them on during an A
LARM.
During an A
LARM, the RS3200 activates the vehicle’s horn.
If power to the RS3200 is disrupted while it is A
RMED, an ALARM
is T
RIGGEREDonce power is restored.
This panel houses the G
LASS BREAKAGESENSORmicrophone and the
flashing LED that indicates the operating status of the security system.\
(In
vehicles with an engine immobilizer system, that system’s LED and a
separate microphone are used instead.)
The RS3200 utilizes a P
IEZO BUZZER, usually mounted in the engine
compartment, to sound confirmation “chirps” and tones for function\
confirmation and programming step confirmation.
The RS3200 automatically locks your vehicle’s doors when you turn
the ignition key to “ON” or “START”, and unlocks the doors when you
turn the key back to “ACC” or “LOCK”.*
The Buzzer sounds for 5 seconds when you attempt to R
EMOTE ARM
the system while a door is open. You can stop the warning by closing the
door, or by pressing the UNLOCK button on the remote control.
The maximum operating range for the remote controls included with
the RS3200 is approximately 50 feet. Please refer to page 10 for a
description of factors that may affect the performance (operating
range) of the remote controls.
* You may disable this feature. Please refer to page 18 for programming inf\
ormation. STARTER DISABLE
FORCED LOCK
DURING ALARM
TRIGGER MEMORY
PANIC MODE
OPERATION
EXTERIOR LIGHT
ACTIVATION
INTERIOR LIGHT
ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
PIEZO BUZZER
IGNITION-
CONTROLLED
AUTOMATIC DOOR
LOCK/UNLOCK
DOOR AJAR WARNING
REMOTE CONTROL
TRANSMITTER RANGE
BRIEF DESCRIPTION–RS3200 FEATURES
Page 7 of 23
Page 6 TOYOTARS3200 REMOTE KEYLESS Security system
OPERATION
ARMING THE RS3200 (except PASSIVE ARMING)
The system may be ARMEDin several ways. Do oneof the following:
Lock the doors with your key:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Insert the key into the door key switch and turn it toward the front of \
the vehicle: The S
TATUSMONITOR’SLED turns on for 30 seconds, then
starts flashing. The system is now ARMED.
Lock the doors from inside the vehicle:
Remove the key from the ignition switch.
Open the driver’s or front passenger’s door.
Push the central lock switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.* Then: The S
TATUSMONITOR’SLED turns on for 30 seconds, then
starts flashing. The system is now ARMED.
Lock the doors with the remote control:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Press the LOCK button on the remote control. Simultaneously: The doors lock.
The vehicle’s tail and marker lights flash once.
The buzzer chirps once.
The STATUSMONITOR’SLED turns on for 30 seconds, then
starts flashing. The system is now ARMED.
* The system will not A
RMwhile any of the doors, trunk or hatch is open. However, when you press
the LOCK button when the trunk is open, the doors will lock; the system \
will arm 30 seconds
after the trunk is closed.
TURN TOWARD THE FRONT
OF THE VEHICLE
PRESS AND RELEASETHE LOCK BUTTON
PUSH THE LOCK SWITCH WHILE THE DOOR IS OPEN
LIGHTS FOR30SECONDS(PRE-ARMING)THEN
FLASHES
(SYSTEM IS ARMED)
THE TAIL AND MARKER LIGHTS FLASH ONCE WHEN THE SYSTEM IS REMOTE ARMED
ALL DOORS LOCK WHEN THE
SYSTEM IS REMOTE ARMED
THE BUZZER CHIRPS ONCE WHEN THE SYSTEM IS REMOTE ARMED
Page 8 of 23
TOYOTARS3200 remote keyless Security systemPage 7
OPERATION
DISARMING THE RS3200 (except PASSIVE DISARMING)
The system may be DISARMEDin several ways. Do oneof the following:
Unlock the doors with your key:
Insert the key into the door key switch and turn it toward the rear of
the vehicle: The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
In the case of Sienna and 4Runner, you may also disarm the
system using the key in the back door; all the doors will unlock at the
same time. This feature is not available for Celica; you must disarm
the system before opening the hatch, or else an A
LARMwill be
Triggered.
Unlock the doors with the remote control:
Press the UNLOCK button on the remote control. Simultaneously: The driver’s door unlocks.
The vehicle’s tail and marker lights flash twice.
The interior lights turn on for 30 seconds.
The STATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
Press the UNLOCK button again within 3 seconds after unlocking the driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON. The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sound\
s for 2 seconds when the system is D
ISARMED, the TRIGGERMEMORYwas activated; an ALARMwas
T
RIGGEREDwhile you were away from the vehicle.
* Please note, if the system utilizes your vehicle’s engine immobilizer\
system LED instead of the S
TATUSMONITOR, the LED will continue to flash.
TURN TOWARD THE REAR
OF THE VEHICLE
TURN THE KEY TO“ON”TO
DISARM THE SYSTEM
THE DRIVER
’S DOOR UNLOCKS
WHEN THE SYSTEM IS REMOTE DISARMEDTHE TAIL AND MARKER LIGHTS FLASH TWICE AND THE INTERIORLIGHTS TURN ON FOR30SECONDS WHEN THE SYSTEM IS
REMOTE DISARMED
PUSH THE UNLOCK BUTTON
STOPS
FLASHING
WHEN THE SYSTEM IS DISARMED
THE BUZZER CHIRPS TWICE WHEN THE SYSTEM IS REMOTE DISARMED
Page 9 of 23
Page 8
TOYOTA
RS3200 REMOTE KEYLESS Security system
OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 is programmed to PASSIVELYARM, the system will ARMafter the ignition key is
removed and all doors and the trunk or hatch are closed; you do not need\
to lock the doors. When
you come back to your vehicle and open a door, you must insert the key i\
nto the ignition switch
and turn it to “ON” during the E
NTRYDELAY(0, 15 or 30 seconds), or an ALARMwill be TRIGGERED. If
you lock the doors, regular A
RMINGwill override PASSIVEARMING; there will be no ENTRYDELAY. See
the PROGRAMMING section on page 15 to activate the P
ASSIVEARMINGmode, as well as select the
E
NTRYDELAYtime.
To PASSIVELYARMthe system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (
The system will not ARM
while any of the doors are open.)
Close the trunk or hatch, if necessary. (
The system will not ARMwhile
the trunk or hatch is open.)
After the last door, trunk or hatch is closed: The S
TATUSMONITOR’SLED turns on for 30 seconds, then
starts flashing.
The system is now ARMED.
To DISARMthe PASSIVELYARMEDsystem:
Enter the vehicle through a front door.
The E
NTRYDELAYbegins:
The S
TATUSMONITOR’SLED turns on (no flashing.)
Insert the key into the ignition switch and turn it to “ON”before the
E
NTRYDELAYends.*
The LED turns off. The system is now D
ISARMED.
You may also DISARMthe system following any of the methods
described on page 7.
NOTE: If your vehicle’s tail and marker lights turn on and the buzzer sound\
s for 2 seconds when the system is D
ISARMED, the TRIGGERMEMORYwas activated; an ALARMwas
T
RIGGEREDwhile you were away from the vehicle.
* If the ENTRYDELAYtime elapses before the ignition switch is turned to “ON”, an ALARMwill be
T
RIGGERED. To DISARMthe system during an ALARM, insert the ignition key and turn it to “ON”, or
press and release the remote control’s UNLOCK button.
THE SYSTEM ARMS30SECONDS
AFTER THE LAST ENTRY POINT
(DOOR,TRUNK OR HATCH)IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO
“ON”
LIGHTS FOR30SECONDS(PRE-ARMING)THEN STARTSFLASHING
(SYSTEM ISARMED)
TURNS ON(NO
FLASHING)DURING THE
ENTRY DELAY
Page 10 of 23
TOYOTARS3200 remote keyless Security systemPage 9
OPERATION
AUTOMATIC REARMING
When you unlock the doors using the remote control, the RS3200 is DISARMEDat the same time.
However, if you do not open a door or the trunk or hatch within 30 secon\
ds, the system will relock
the doors and the RS3200 will R
EARM30 seconds later
How the RS3200 automatically R
EARMS:
ARMING SUSPENSION **
The ARMEDstate of the RS3200 can be suspended temporarily by using the key to unl\
ock and
open the trunk. When the A
RMINGis suspended, the STATUSMONITOR’SLED will turn offuntil the
trunk is closed again.
** Starting from 2002 M.Y., Arming Suspension Mode by using the key to unlock the trunk is not applicable to
Camry, Solara, and Corolla.
0
15
30
45
THE DOORS ARE UNLOCKED
BY PRESSING THE UNLOCK BUTTON ON THE REMOTE CONTROL
...
WHEN NO DOOR,TRUNK
OR HATCH IS OPENED...FOR MORE THAN30SECONDS...THE RS3200AUTOMATICALLY RELOCKS THE DOORS,THEN
AUTOMATICALLY REARMS.
THE LED LIGHTS UP FOR30SECONDS(PRE-ARM),THEN
FLASHES WHEN THE SYSTEM IS ARMED
TURNS OFFWHEN THE
ARMED STATE
IS SUSPENDED
