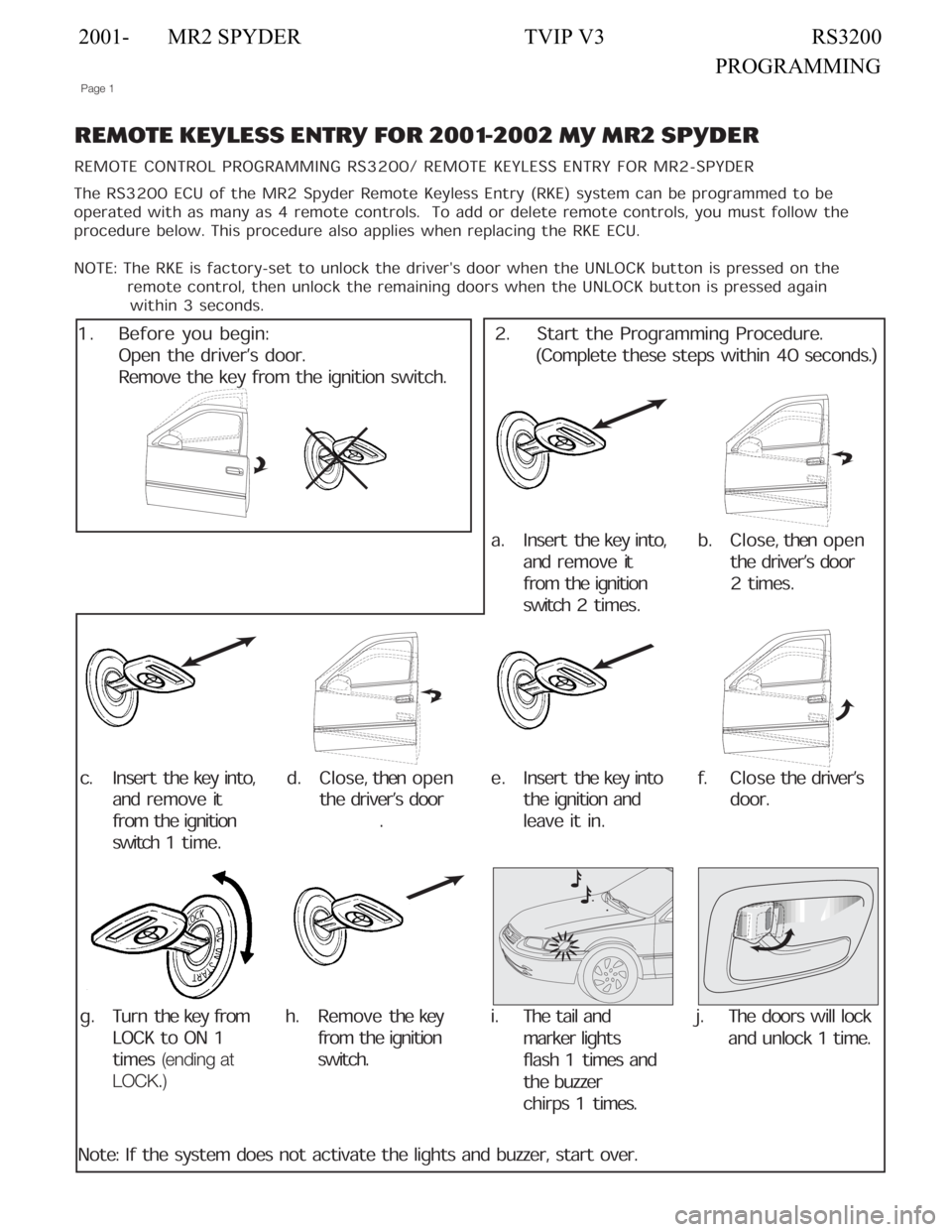

REMOTE CONTROL PROGRAMMING RS3200/ REMOTE KEYLESS ENTRY FOR MR2-SPYDER
1 . Before you begin: 2. Start the Programming Procedure.
Open the driver’s door. (Complete these steps within 40 seconds.)
Remove the key from the ignition switch.
Note: If the system does not activate the lights and buzzer, start over.\
Page 1

a . Insert the key into,
and remove it
from the ignition
switch 2 times.

e . Insert the key into
the ignition and
leave it in.
c. Insert the key into,
and remove it
from the ignition
switch 1 time.

g . Turn the key from
LOCK to ON 1
times (ending at
LOCK.)
h. Remove the key
from the ignition
switch.
i . The tail and
marker lights
flash 1 times and
the buzzer
chirps 1 times.
j . The doors will lock
and unlock 1 time.

b. Close, then open
the driver’s door
2 times.

f. Close the driver’s
door.
d. Close, then open
the driver’s door .

The RS3200 ECU of the MR2 Spyder Remote Keyless Entry (RKE) system can\
be programmed to be
operated with as many as 4 remote controls. To add or delete remote con\
trols, you must follow the
procedure below. This procedure also applies when replacing the RKE ECU.\

NOTE: The RKE is factory-set to unlock the driver's door when the UNLOCK\
button is pressed on the
remote control, then unlock the remaining doors when the UNLOCK\
button is pressed again within 3 seconds.

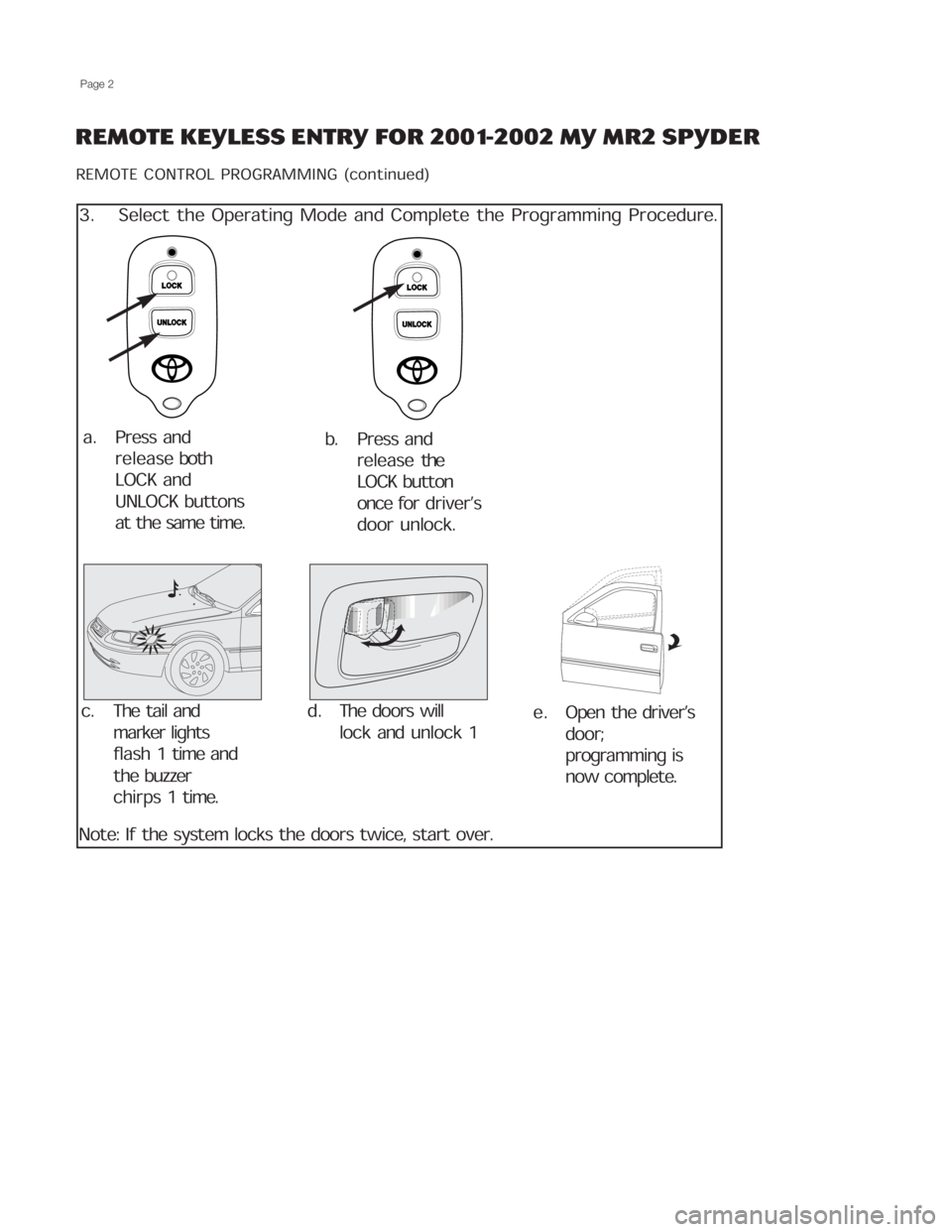

REMOTE CONTROL PROGRAMMING (continued)
3. Select the Operating Mode and Complete the Programming Procedure.
Note: If the system locks the doors twice, start over.
Page 2
a. Press and
releaseboth
LOCK and
UNLOCK buttons
at the same time.b. Press and
release the
LOCK button
once for driver’s
door unlock.
c. The tail and
marker lights
flash 1time and
the buzzer
chirps 1time.e . Open the driver’s
door;
programming is
now complete.d . The doors will
lock and unlock 1
