Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner’s Manual explains the operation of your new Toyota. Please read it
thoroughly and have all the occupants follow the instructions carefully. Doing
so will help you enjoy many years of safe and trouble−free motoring. For
important information about this manual and your Toyota, read the following
pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle
best and is interested in your complete satisfaction. He will provide quality mainte-
nance and any other assistance you may require.
Please leave this Owner’s Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of printing.
However, because of Toyota’s policy of continual product improvement, we reserve
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
©2000 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.
Page 2 of 234
01MY MR2 (U) L/O 0008
ii2001 MR2 (OM17482U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle
damage warnings. You must follow these warnings carefully
to avoid possible injury or damage.
The types of warnings, what they look like, and how they
are used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: Do not"; Do
not do this"; or Do not let this
happen".
Page 3 of 234
01MY MR2 (U) L/O 0008
iii2001 MR2 (OM17482U)
Important information about your Toyota
New vehicle warranty
Your new vehicle is covered by the following Toyota
limited warranties: New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the Owner’s
Warranty Information Booklet" or Owner ’s Manual
Supplement".
Your responsibility for maintenance
It is the owner ’s responsibility to make sure that the
specified maintenance is performed. Section 6 gives de-
tails of these maintenance requirements. Also included
in Section 6 is general maintenance. For scheduled
maintenance information, please refer to the Scheduled
Maintenance Guide" or Owner ’s Manual Supplement".
Accessories, spare parts and modification of your Toyota
A wide variety of non−genuine spare parts and accesso-
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Toyota vehicle.
This vehicle should not be modified with non−genuine
Toyota products. Modification with non−genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.
Page 4 of 234
01MY MR2 (U) L/O 0008
iv2001 MR2 (OM17482U)
Installation of a mobiletwo−way radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti−lock brake
system, SRS airbag system and seat belt pretensi oner
system, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding
installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by a qualified
service shop or by your Toyota dealer before you dis-
pose of your vehicle.
Page 5 of 234
01MY MR2(U) L/O 0008
2001 MR2 (OM17482U)
Publication No. OM17482U
Part No. 01999-17482
Printed in Japan 01−0008−00
C
MR2(U)
Quick index
If a service reminder indicator or warning buzzer comes on 70 . . . . . . . . . . .
If your vehicle will not start 132 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
If your engine stalls while driving 135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
If you have a flat tire 136 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
If your vehicle needs to be towed 145 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break−in period 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 124 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
General maintenance 177 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Complete index 227 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Gas station information
Fuel type:
1ZZ−FE engine: UNLEADED gasoline, Octane Rating 87
(Research Octane Number 91) or higher
See page 110 for detailed information.
Fuel tank capacity:
48 L (12.7 gal., 10.6 lmp. gal.)
Engine oil:
API grade SJ, Energy−Conserving" or ILSAC multigrade engine oil is
recommended.
See page 190 for detailed information.
Tire information: See pages 194 through 199.
Tire pressure: See page 219.
U 2
Page 6 of 234
01MY MR2(U) L/O 0008
2001 MR2 (OM17482U)
You should know as much about the quality and
importance of proper main tenance of your new
vehicle as the people who built it.
The Toyota authorized Repair Manual
tells you how to maint ain your vehicle and
enables you to correct ly perform your own
maintenance.
The best way to keep your new vehicle in top
running order is to maintain it properly from
the moment you drive it off the showroom
floor.
The Toyota authorized Repair Manual is
packed with literally everything you need to
know to perform your own maintenance in
virtually every area of your new vehicle.
Page 7 of 234
01MY MR2(U) L/O 0008
2001 MR2 (OM17482U)
Where to obtain the Repair Manual
The repair manual for MR2, written in English,
may be purchased as applicable from any Toyota
dealer.
Pub. Name: 2001 MR2 Repair Manual
Pub. No.: RM801U1 (Maintenance, Preparation, Service specifications and Diagnos-
tics)
RM801U2 (Engine, Chassis and Body)
Maintenance procedures for the engine,
chassis, body, electric al system, and more,
are clearly explained and illustrated.
Periodic maintenance and tune up
Periodic maintenance and tune up helps to pre-
vent small problems from growing into larger ones lat-
er on. The repair manual outlines exactly what main-
tenance is required and clearly explains how to do the
work yourself step by step.
Areas covered include such things as spark plug re-
placement, valve clearance adjustment and engine oil
and filter replacement.
Page 8 of 234
01MY MR2(U) L/O 0008
12001 MR2 (OM17482U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Instrument cluster overview 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 5
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 1
Page 9 of 234
01MY MR2(U) L/O 0008
22001 MR2 (OM17482U)

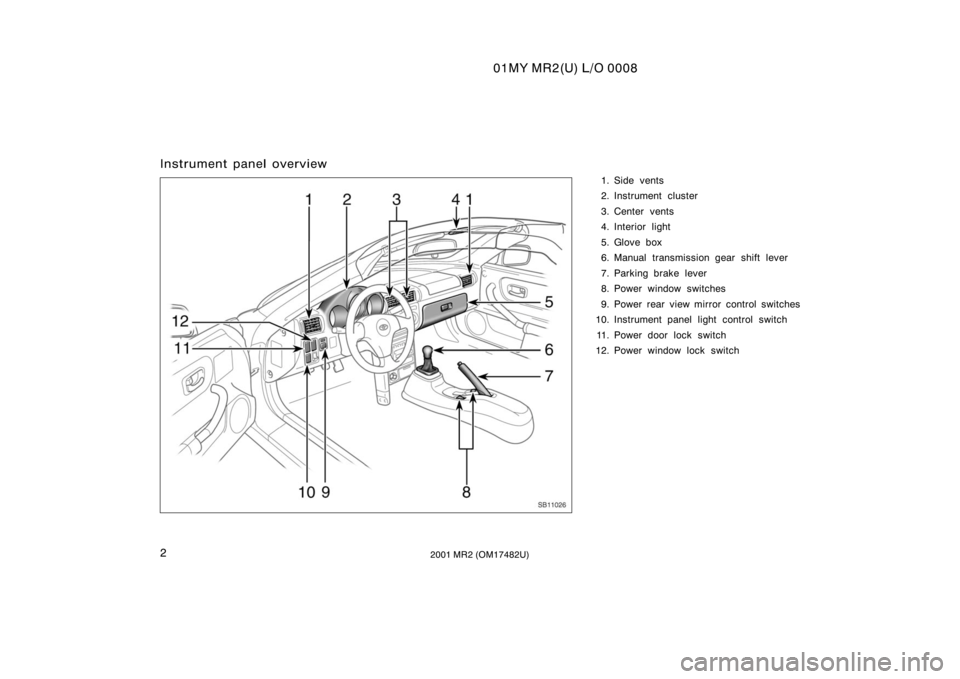

Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Interior light
5. Glove box
6. Manual transmission gear shift lever
7. Parking brake lever
8. Power window switches
9. Power rear view mirror control switches
10. Instrument panel light control switch
11. Power door lock switch
12. Power window lock switch
SB11026
Page 10 of 234
01MY MR2(U) L/O 0008
32001 MR2 (OM17482U)

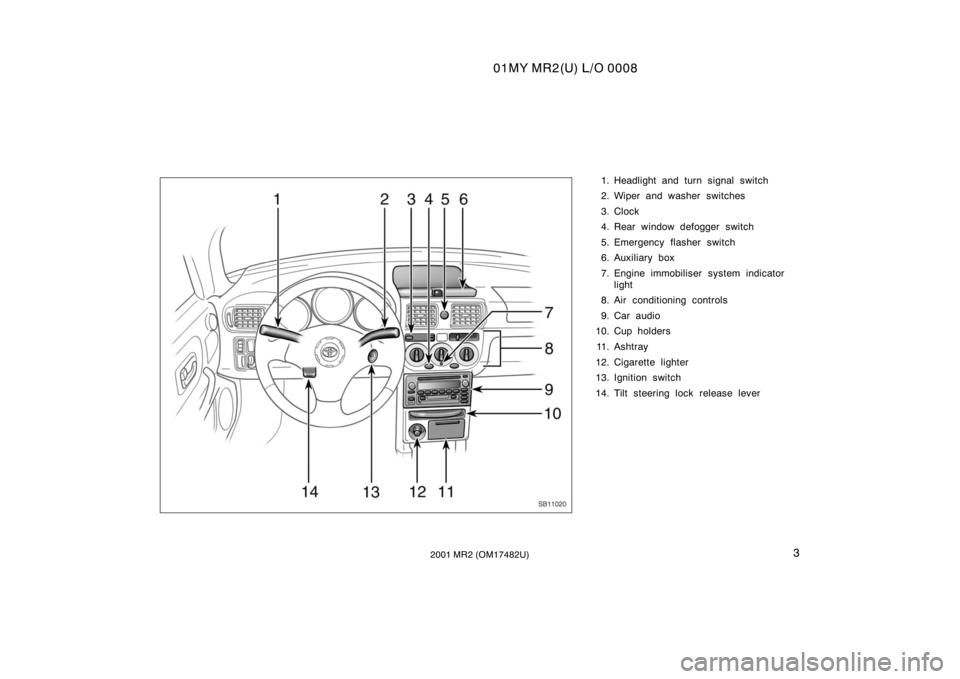

1. Headlight and turn signal switch
2. Wiper and washer switches
3. Clock
4. Rear window defogger switch
5. Emergency flasher switch
6. Auxiliary box
7. Engine immobiliser system indicator light
8. Air conditioning controls
9. Car audio
10. Cup holders
11 . A s h t r a y
12. Cigarette lighter
13. Ignition switch
14. Tilt steering lock release lever
SB11020
