To better understand the features and functions of this security system,\
please read this
Owner’s Guide completely prior to use.
TABLE OF CONTENTS
DESCRIPTION PAGE
INTRODUCTION
2
REMOTE CONTROL INFORMATION
THE REMOTE CONTROL INCLUDED WITH YOUR SYSTEM 3
BRIEF DESCRIPTION–RS3200 FEATURES4, 5
OPERATION
ARMING THE RS3200 (except PASSIVE ARMING) 6
DISARMING THE RS3200 (except PASSIVE DISARMING) 7
PASSIVE (AUTOMATIC) ARMING & DISARMING 8
AUTOMATIC REARMING 9
ARMING SUSPENSION 9
MISCELLANEOUS
DOOR AJAR WARNING 10
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 10
REMOTE CONTROL RANGE 10
ALARM INFORMATION
PANIC MODE OPERATION 11
ALARM TRIGGERS 12
ALARM DESCRIPTIONS 13
STOPPING AN ALARM 13
GLASS BREAKAGE SENSOR INFORMATION
GLASS BREAKAGE SENSOR CHECK PROCEDURE 14
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY 15
DRIVER’S DOOR/ALL DOORS UNLOCK SELECTION 16, 17
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING 18
REMOTE CONTROL BATTERY REPLACEMENT
REMOVE THE BATTERY 19
INSTALL THE BATTERY 20
WARNING AND CAUTION INFORMATION21
TOYOTARS3200 remote keyless Security system Page 1

Page 10 TOYOTARS3200 REMOTE KEYLESS Security system
MISCELLANEOUS
DOOR AJAR WARNING
The RS3200 will sound a five second DOORAJARWARNINGwhen you attempt to REMOTEARMthe
system while a door is open. To stop the warning tone, either close the \
open door, or press and
release the UNLOCK button on the remote control. To A
RMthe system, press the LOCK button
again.
Note: The D
OORAJARWARNINGwill not sound when the trunk is open; the doors will lock, but the
system will not A
RMuntil the trunk or hatch is closed.
IGNITION-CONTROLLED DOOR LOCKING/UNLOCKING
The RS3200 is programmed to automatically lock your vehicle’s doors w\
hen you turn the ignition
key to “ON” or “START”, and unlock the doors when you turn t\
he key back to “ACC” or “LOCK”. If
you start the vehicle while a door is open, the system will not lock the\
doors; you must lock them
manually.
How the RS3200 automatically locks and unlocks the doors :
This feature may be defeated by changing the system’s programming. Re\
fer to page 18 for
programming instructions.
REMOTE CONTROL RANGE
The maximum range for the RS3200’s remote controls is 50 feet. Howeve\
r, several factors that
may affect your remote control’s actual performance, include, but are\
not limited to:
➯The remote control’s battery strength* (weak battery = decreased per\
formance).
➯Your position relative to the vehicle (dependent on the system’s ant\
enna wire location).
➯Objects in the path between you and your vehicle.
➯Your surroundings (in a parking structure, out in the open, etc.).
➯Outside electrical interference caused by high tension power lines, etc.\
* As the REMOTE CONTROL’s battery becomes weaker, the LED indicator bec\
omes dimmer. When you notice the LED becoming dimmer, you should replace the battery.\

WITH ALL THE DOORS
CLOSED,TURN THE KEY TO
THE“ON”OR“LOCK”POSITION...
ALL THE DOORS ARE
LOCKED AUTOMATICALLY.WHEN THE KEY IS TURNED BACK TO THE“ACC”OR“LOCK”POSITION...
ALL THE DOORS ARE UNLOCKED.

TOYOTARS3200 remote keyless Security systemPage 19
REMOTE CONTROL BATTERY REPLACEMENT
The following shows the procedure to replace the batteries in your remot\
e controls. We recom-
mend that you replace the batteries at least once a year, or when the re\
mote control’s transmitting
range diminishes. You may obtain the replacement battery from your Toyot\
a dealer, as well as
many retailers that sell watch batteries. The battery replacement type is a Lithium CR2025.
Important notes on battery replacement:
When replacing the battery, be careful not to lose the components.
Take care not to bend or damage the rubber gasket.
REMOVE THE BATTERY
1. Lay the remote control on a towel or other soft material. Place it with the back side facing up.
2. Using a coin, pry open the remote control. Use gentle pressure to avoid deforming the plastic.
3. Set the back cover aside.
4. Remove the rubber gasket and set it aside.
5. Push the battery down and toward you, and hold it down.
6. Pry the back edge of the battery up and toward you.

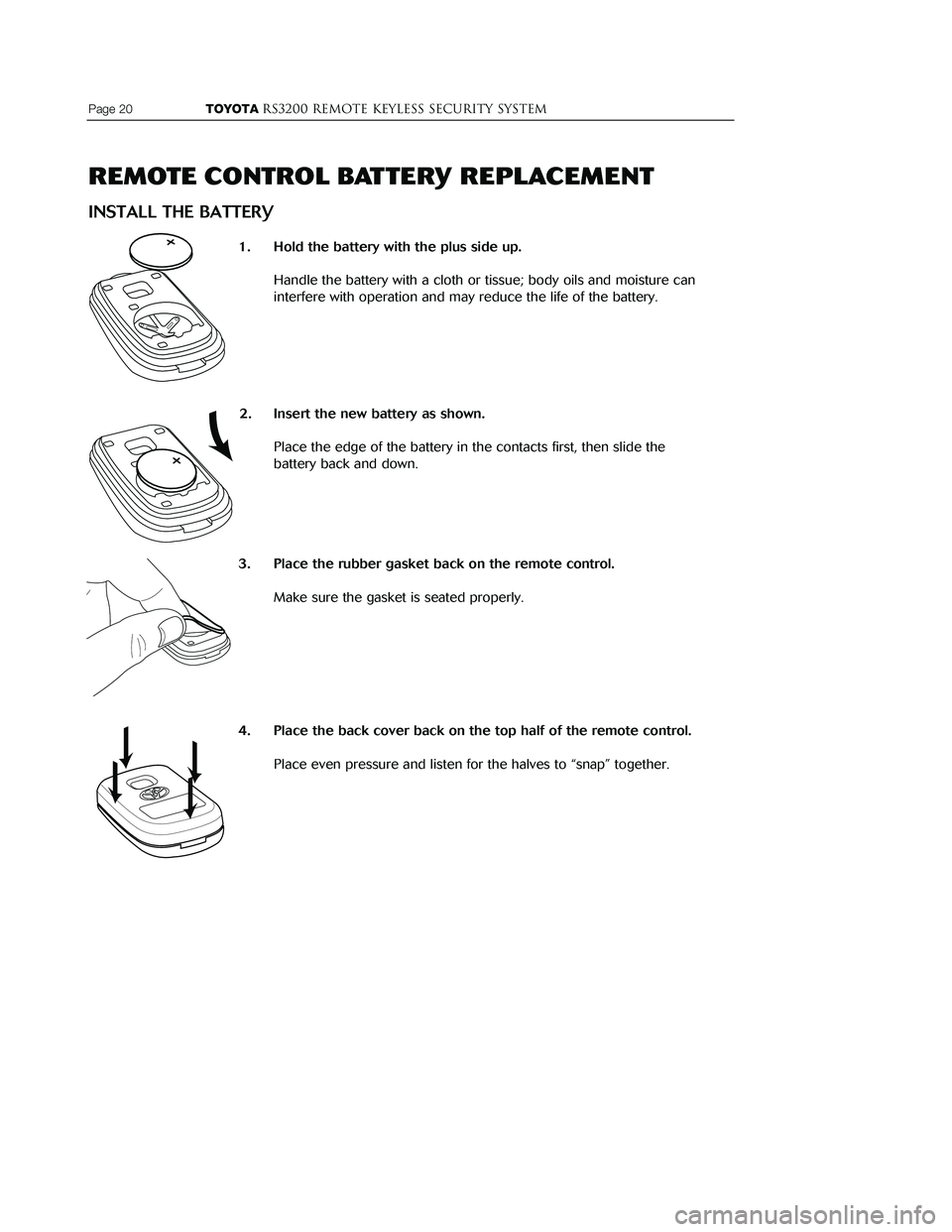

Page 20 TOYOTARS3200 REMOTE KEYLESS Security system
REMOTE CONTROL BATTERY REPLACEMENT
INSTALL THE BATTERY
1. Hold the battery with the plus side up.Handle the battery with a cloth or tissue; body oils and moisture can
interfere with operation and may reduce the life of the battery.
2. Insert the new battery as shown. Place the edge of the battery in the contacts first, then slide the
battery back and down.
3. Place the rubber gasket back on the remote control. Make sure the gasket is seated properly.
4. Place the back cover back on the top half of the remote control. Place even pressure and listen for the halves to “snap” together.

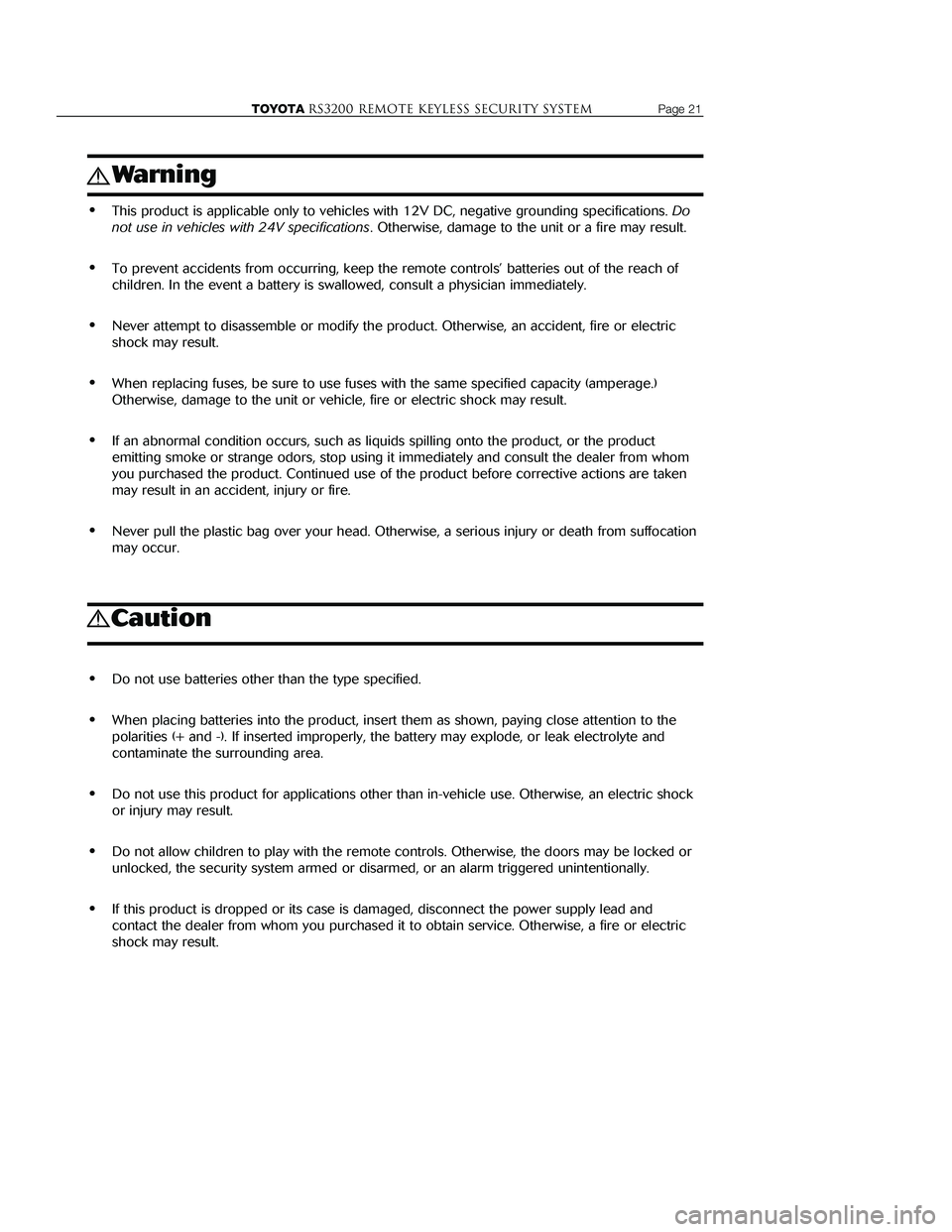

TOYOTARS3200 remote keyless Security systemPage 21
Warning
•This product is applicable only to vehicles with 12V DC, negative ground\
ing specifications. Do
not use in vehicles with 24V specifications . Otherwise, damage to the unit or a fire may result.
•To prevent accidents from occurring, keep the remote controls’ batter\
ies out of the reach of
children. In the event a battery is swallowed, consult a physician immed\
iately.
•Never attempt to disassemble or modify the product. Otherwise, an accide\
nt, fire or electric
shock may result.
•When replacing fuses, be sure to use fuses with the same specified capac\
ity (amperage.)
Otherwise, damage to the unit or vehicle, fire or electric shock may res\
ult.
•If an abnormal condition occurs, such as liquids spilling onto the produ\
ct, or the product
emitting smoke or strange odors, stop using it immediately and consult t\
he dealer from whom
you purchased the product. Continued use of the product before correctiv\
e actions are taken
may result in an accident, injury or fire.
•Never pull the plastic bag over your head. Otherwise, a serious injury o\
r death from suffocation
may occur.
Caution
•Do not use batteries other than the type specified.
•When placing batteries into the product, insert them as shown, paying cl\
ose attention to the
polarities (+ and -). If inserted improperly, the battery may explode,\
or leak electrolyte and
contaminate the surrounding area.
•Do not use this product for applications other than in-vehicle use. Othe\
rwise, an electric shock
or injury may result.
•Do not allow children to play with the remote controls. Otherwise, the d\
oors may be locked or
unlocked, the security system armed or disarmed, or an alarm triggered u\
nintentionally.
•If this product is dropped or its case is damaged, disconnect the power \
supply lead and
contact the dealer from whom you purchased it to obtain service. Otherwi\
se, a fire or electric
shock may result.
