TOYOTARS3200 remote keyless Security system Page 5
FEATURESFUNCTIONS
When an A
LARMis TRIGGERED, the system disables the vehicle’s
starter and prevents engine start until the system is reset (D
ISARMED).
During an A
LARM, the system will lock the doors if one is unlocked,
and will continue to do so for the duration of the A
LARM.
The user is notified that an A
LARM occurred. Upon DISARMING the
system after an A
LARMwas TRIGGERED, the vehicle’s tail and marker
lights will be turned on, and the B
UZZERsounds, for 2 seconds.
You may T
RIGGERaPANIC ALARM, by pressing the PANICbutton on the
back of the remote control, to draw attention to your vehicle. During
the P
ANIC ALARM, the head, tail and marker lights flash, and the horn
sounds, but the starter is not disabled.
The RS3200 flashes the vehicle’s tail and marker lights during
R
EMOTE ARMING and REMOTEDISARMING, as well as during an ALARM.
Also, the headlights flash during an A
LARM.
When the system is R
EMOTEDISARMED, it turns on the interior lights in
the vehicle for 30 seconds, or until the key is inserted into the
ignition switch. It also turns them on during an A
LARM.
During an A
LARM, the RS3200 activates the vehicle’s horn.
If power to the RS3200 is disrupted while it is A
RMED, an ALARM
is T
RIGGEREDonce power is restored.
This panel houses the G
LASS BREAKAGESENSORmicrophone and the
flashing LED that indicates the operating status of the security system.\
(In
vehicles with an engine immobilizer system, that system’s LED and a
separate microphone are used instead.)
The RS3200 utilizes a P
IEZO BUZZER, usually mounted in the engine
compartment, to sound confirmation “chirps” and tones for function\
confirmation and programming step confirmation.
The RS3200 automatically locks your vehicle’s doors when you turn
the ignition key to “ON” or “START”, and unlocks the doors when you
turn the key back to “ACC” or “LOCK”.*
The Buzzer sounds for 5 seconds when you attempt to R
EMOTE ARM
the system while a door is open. You can stop the warning by closing the
door, or by pressing the UNLOCK button on the remote control.
The maximum operating range for the remote controls included with
the RS3200 is approximately 50 feet. Please refer to page 10 for a
description of factors that may affect the performance (operating
range) of the remote controls.
* You may disable this feature. Please refer to page 18 for programming inf\
ormation. STARTER DISABLE
FORCED LOCK
DURING ALARM
TRIGGER MEMORY
PANIC MODE
OPERATION
EXTERIOR LIGHT
ACTIVATION
INTERIOR LIGHT
ACTIVATION
HORN ACTIVATION
POWER LOSS MEMORY
STATUS MONITOR
PIEZO BUZZER
IGNITION-
CONTROLLED
AUTOMATIC DOOR
LOCK/UNLOCK
DOOR AJAR WARNING
REMOTE CONTROL
TRANSMITTER RANGE
BRIEF DESCRIPTION–RS3200 FEATURES
Page 15 of 23
Page 14 TOYOTARS3200 REMOTE KEYLESS Security system

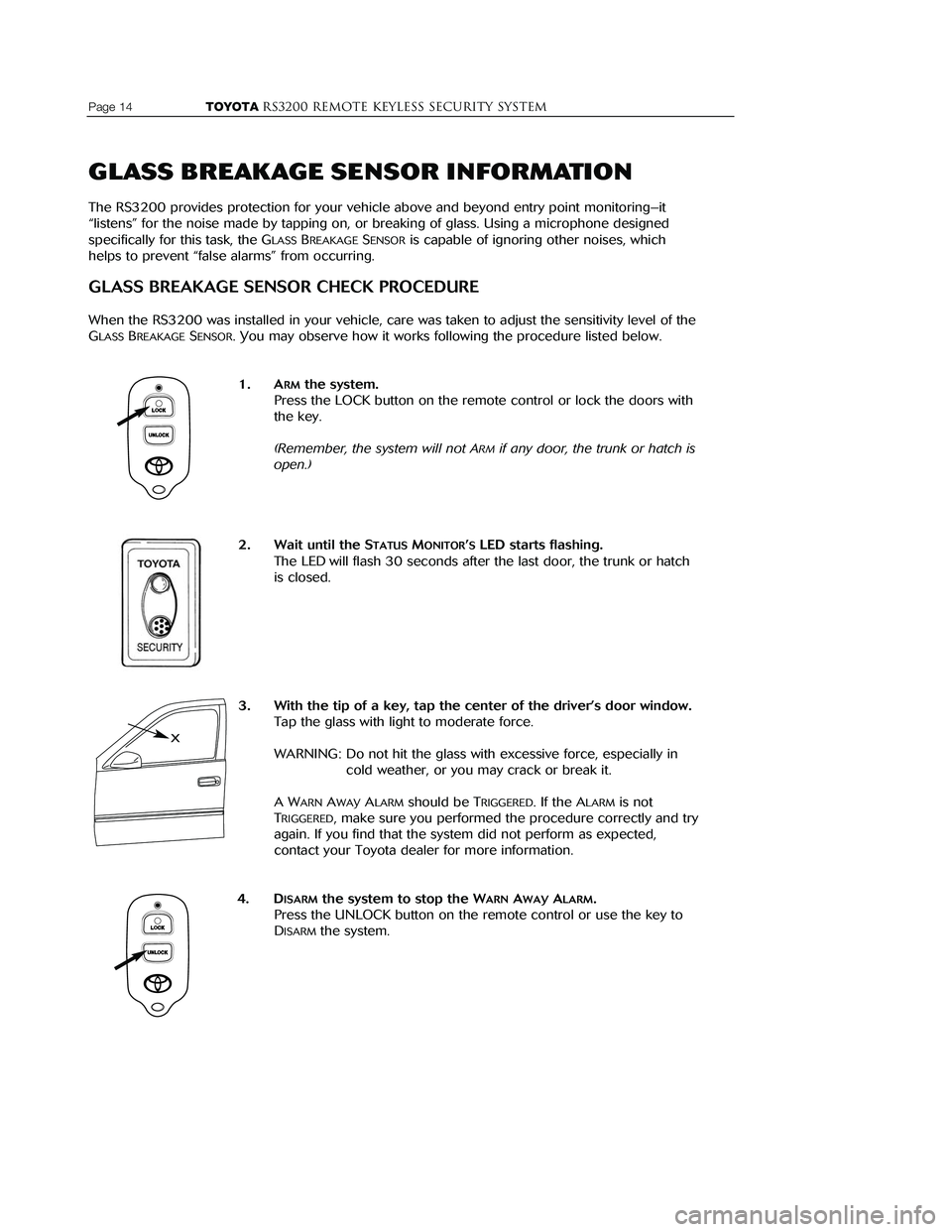

GLASS BREAKAGE SENSOR INFORMATION
The RS3200 provides protection for your vehicle above and beyond entry p\
oint monitoring–it
“listens” for the noise made by tapping on, or breaking of glass. \
Using a microphone designed
specifically for this task, the G
LASSBREAKAGESENSORis capable of ignoring other noises, which
helps to prevent “false alarms” from occurring.
GLASS BREAKAGE SENSOR CHECK PROCEDURE
When the RS3200 was installed in your vehicle, care was taken to adjust \
the sensitivity level of the
G
LASSBREAKAGESENSOR. You may observe how it works following the procedure listed below.
1. A
RMthe system.
Press the LOCK button on the remote control or lock the doors with
the key.
(Remember, the system will not A
RMif any door, the trunk or hatch is
open.)
2. Wait until the S
TATUSMONITOR’SLED starts flashing.
The LED will flash 30 seconds after the last door, the trunk or hatch
is closed.
3. With the tip of a key, tap the center of the driver’s door window. Tap the glass with light to moderate force.
WARNING: Do not hit the glass with excessive force, especially in cold weather, or you may crack or break it.
A W
ARNAWAYALARMshould be TRIGGERED. If the ALARMis not
T
RIGGERED, make sure you performed the procedure correctly and try
again. If you find that the system did not perform as expected,
contact your Toyota dealer for more information.
4. D
ISARMthe system to stop the WARNAWAYALARM.
Press the UNLOCK button on the remote control or use the key to
D
ISARMthe system.
