TOYOTA MR2 SPYDER 2001 Owners Manual (in English)

01MY MR2(U) L/O 0008
1742001 MR2 (OM17482U)

01MY MR2(U) L/O 0008
1752001 MR2 (OM17482U)
VEHICLE MAINTENANCE AND CARE
Maintenance requirements176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Does your vehicle need repairing? 179
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
For scheduled maintenance information, please refer to the
Scheduled Maintenance Guide" or Owner’s Manual Supplement".
SECTION 6

01MY MR2(U) L/O 0008
1762001 MR2 (OM17482U)
Maintenance requirements
Your Toyota vehicle has been designed for
fewer maintenance requirements with lon-
ger service intervals to save both your
time and money. However, each regular
maintenance, as well as day−to−day care,
is more important than ever before to en-
sure smooth, trouble−free, safe, and eco-
nomical drivings.
It is the owner ’s responsibility to make
sure the specified maintenance, including
general maintenance service, is performed.
Note that both the new vehicle and
emission control system warranties specify
that proper maintenance and care must be
performed. See Owner ’s Warranty
Information Booklet" or Owner ’s Manual
Supplement" for complete warranty
information.
General maintenance
General maintenance items are those day−
to−day care practices that are important to
your vehicle for proper operation. It is the
owner ’s responsibility to insure that the
general maintenance items are performed
regularly.
These checks or inspections can be done
either by yourself or a qualified technician,
or if you prefer, your Toyota dealer will be
pleased to do them at a nominal cost.Scheduled maintenance
The scheduled maintenance items listed in
the Scheduled Maintenance Guide" or
Owner ’s Manual Supplement" are those
required to be serviced at regular inter-
vals.
For details of your maintenance schedule,
read the Scheduled Maintenance Guide"
or Owner ’s Manual Supplement".
It is recommend that only genuine
Toyota parts be used for maintenance
or for the repair of the emission
control system.
The owner may elect to use non−Toyota
supplied parts for replacement pur-
poses without invalidating the emission
control system warranty. However, use
of replacement parts which are not of
equivalent quality may impair the effec-
tiveness of the emission control sys-
tems.
You may also elect to have
maintenance, replacement, or repair of
the emission control devices and
system performed by any automotive
repair establishment or individual
without invalidating this warranty. See
Owner ’s Warranty Information Booklet"
or Owner’s Manual Supplement" for
complete warranty information.Where to go for service?
Toyota technicians are well−trained spe-
cialists and are kept up to date with the
latest service information through technical
bulletins, service tips and in−dealership
training programs. They learn to work on
Toyotas before they work on your vehicle,
rather than while they are working on it.
You can be confident that your Toyota
dealer ’s service department performs the
best job to meet the maintenance require-
ments on your vehiclereliably and eco-
nomically.
Your copy of the repair order is proof that
all required maintenance has been per-
formed for warranty coverage. And if any
problems should arise with your vehicle
while under warranty, your Toyota dealer
will promptly take care of it. Again, be
sure to keep a copy of the repair order
for any service performed on your Toyota.
What about do−it−yourself maintenance?
Many of the maintenance items are easy
to do yourself if you have a little mechani-
cal ability and a few basic automotive
tools. Simple instructions for how to per-
form them are presented in Section 7.

01MY MR2(U) L/O 0008
1772001 MR2 (OM17482U)
If you are a skilled do−it−yourself
mechanic, the Toyota service manuals are
recommended. Please be aware that
do−it−yourself maintenance can affect your
warranty coverage. See Owner ’s Warranty
Information Booklet" or Owner ’s Manual
Supplement" for the details.
General maintenance
Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only where ade-
quate ventilation can be obtained if
you run the engine.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Tire pressure
Check the pressure with a gauge every
two weeks, or at least once a month. See
page 194 in Section 7−2 for additional
information.Tire surface and wheel nuts
Check the tires carefully for cuts, damage
or excessive wear. See page 195 in Sec-
tion 7−2 for additional information. When
checking the tires, make sure no nuts are
missing, and check the nuts for loose-
ness. Tighten them if necessary.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and trunk lid
Check that both the doors operate
smoothly and all latches lock securely.
Make sure the trunk lid secondary latch
secures the lid from opening when the
primary latch is released.

01MY MR2(U) L/O 0008
1782001 MR2 (OM17482U)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
latches lock securely.
Seat belts
Check that the seat belt system such as
buckles and retractors operate properly
and smoothly. Make sure the belt webbing
is not cut, frayed, worn or damaged.Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
At a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the lever has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See page 205 in Section 7−3 for
additional information.
Engine coolant level
Make sure the coolant level is between
the FULL" and LOW" lines on the see−
through reservoir when the engine is cold.
See page 191 in Section 7−2 for addition-
al information.
Battery electrolyte level
Make sure the electrolyte level of all bat-
tery cells is between upper and lower lev-
el lines on the case. Add only distilled
water when replenishing. See page 202 in
Section 7−3 for additional information.
Brake fluid level
Make sure the brake fluid level is correct.
See page 192 in Section 7−2 for addition-
al information.
Engine oil level
Check the level by the dipstick with the
engine turned off and the vehicle parked
on a level spot. See page 190 in Section
7−2 for additional information.

01MY MR2(U) L/O 0008
1792001 MR2 (OM17482U)
Power steering fluid level
Check the level through the reservoir. The
level should be in the HOT" or COLD"
range depending on the fluid temperature.
See page 193 in Section 7−2 for addition-
al information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See Engine exhaust cautions" on
page 114 in Section 2.)Be on the alert for changes in perfor-
mance, sounds, and visual tip−offs that
indicate service is needed. Some impor-
tant clues are as follows:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)
Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)
Flat−looking tire; excessive tire squeal
when cornering; uneven tire wear
Vehicle pulls to one side when driving
straight on a level road
Strange noises related to suspension
movement
Loss of brake effectiveness; spongy
feeling brake or clutch pedal; pedal al-
most touches floor; vehicle pulls to one
side when braking
Engine coolant temperature continually
higher than normalIf you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Does your vehicle need
repairing?

01MY MR2(U) L/O 0008
1802001 MR2 (OM17482U)

01MY MR2(U) L/O 0008
1812001 MR2 (OM17482U)
DO−IT−YOURSELF MAINTENANCE
Introduction
Engine compartment overview182
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk room overview 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Fuse locations 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do−it−yourself service precautions 185
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 186
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Positioning the jack 187
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION 7− 1

SC71003
01MY MR2(U) L/O 0008
1822001 MR2 (OM17482U)

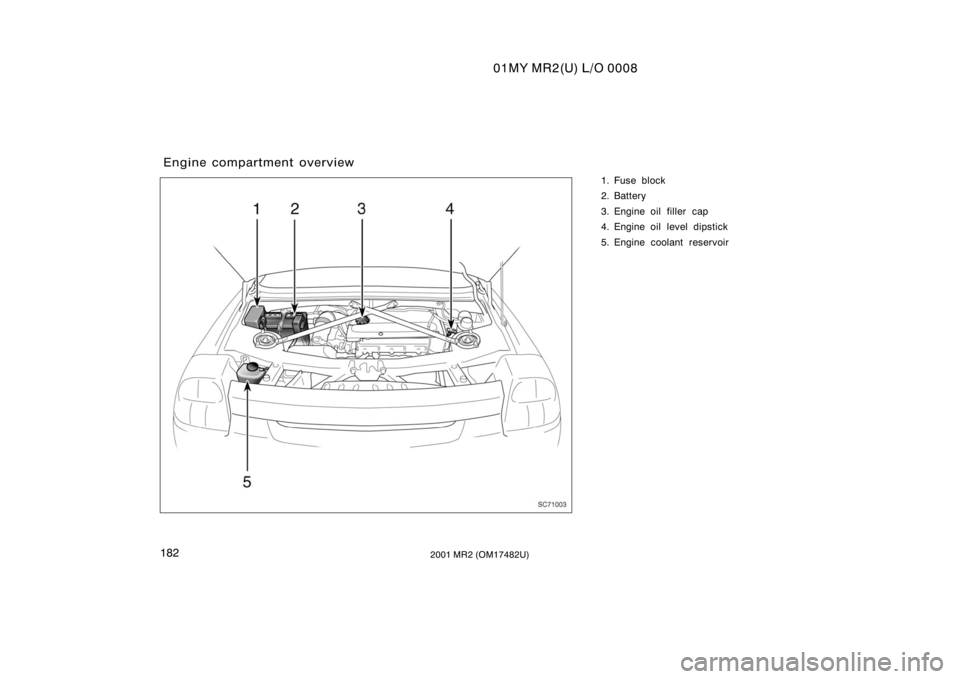

1. Fuse block
2. Battery
3. Engine oil filler cap
4. Engine oil level dipstick
5. Engine coolant reservoir
Engine compartment overview

SB71018
01MY MR2(U) L/O 0008
1832001 MR2 (OM17482U)
1. Brake fluid reservoir
2. Fuse block
3. Power steering fluid reservoir
4. Windshield washer fluid tank
Trunk room overview
