TOYOTA MR2 SPYDER 2001 (in English) Owner's Guide

01MY MR2(U) L/O 0008
242001 MR2 (OM17482U)

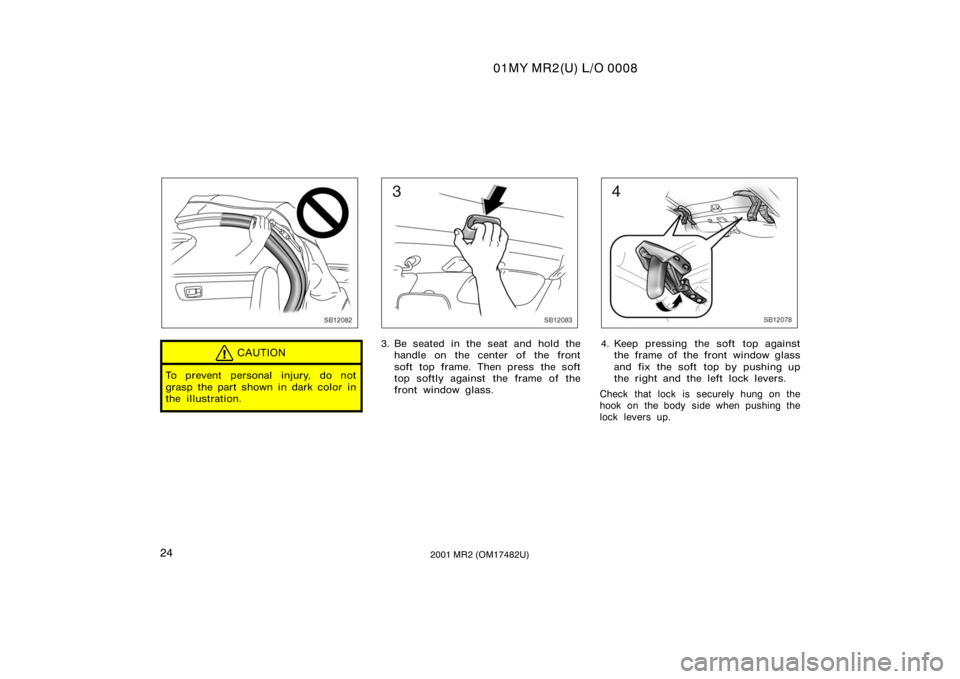

SB12082
CAUTION
To prevent personal injury, do not
grasp the part shown in dark color in
the illustration.
SB12083
3. Be seated in the seat and hold thehandle on the center of the front
soft top frame. Then press the soft
top softly against the frame of the
front window glass.
SB12078
4. Keep pressing the soft top againstthe frame of the front window glass
and fix the soft top by pushing up
the right and the left lock levers.
Check that lock is securely hung on the
hook on the body side when pushing the
lock levers up.

01MY MR2(U) L/O 0008
252001 MR2 (OM17482U)
SB12089

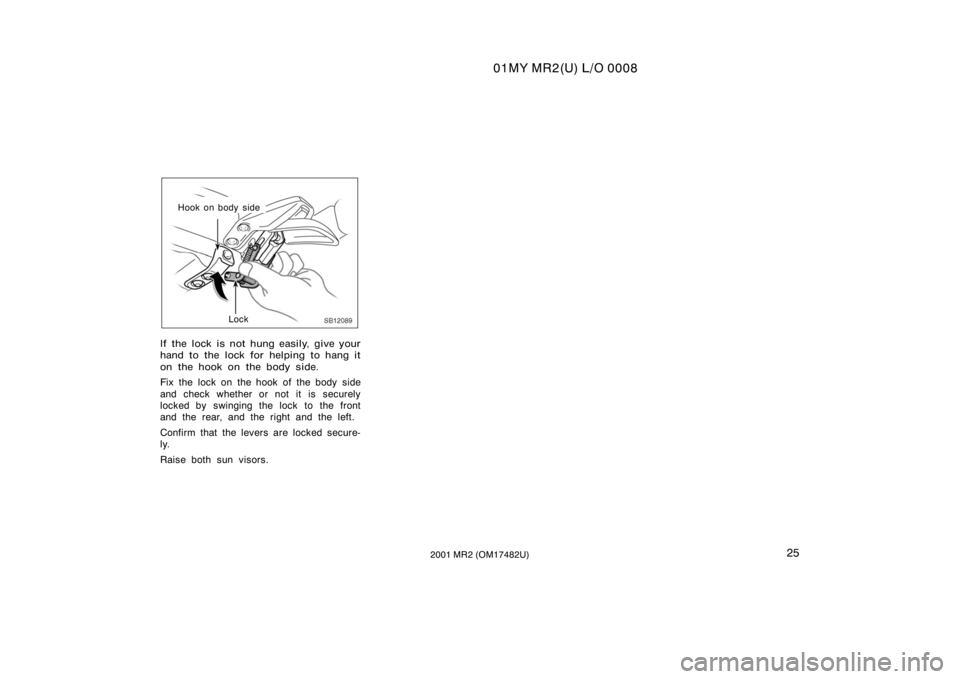

Hook on body sideLockHook on body side
If the lock is not hung easily, give your
hand to the lock for helping to hang it
on the hook on the body side.
Fix the lock on the hook of the body side
and check whether or not it is securely
locked by swinging the lock to the front
and the rear, and the right and the left.
Confirm that the levers are locked secure-
ly.
Raise both sun visors.

01MY MR2(U) L/O 0008
262001 MR2 (OM17482U)

01MY MR2(U) L/O 0008
272001 MR2 (OM17482U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Seat belts 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver and passenger airbags 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passenger airbag manual on−off switch 45
. . . . . . . . . . . . . . . . . . . . . . . .
Child restraint 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Tilt steering wheel 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Outside rear view mirrors 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti−glare inside rear view mirror 59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 3

01MY MR2(U) L/O 0008
282001 MR2 (OM17482U)

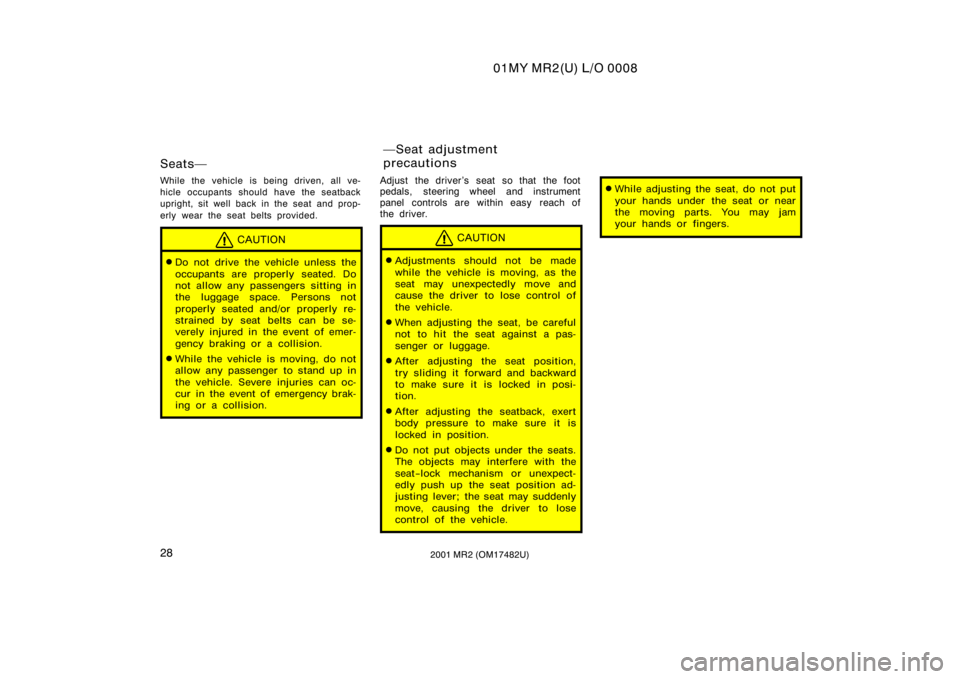

Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers sitting in
the luggage space. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
While the vehicle is moving, do not
allow any passenger to stand up in
the vehicle. Severe injuries can oc-
cur in the event of emergency brak-
ing or a collision.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seat−lock mechanism or unexpect-
edly push up the seat position ad-
justing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may jam
your hands or fingers.
Seat adjustment
precautions

01MY MR2(U) L/O 0008
292001 MR2 (OM17482U)

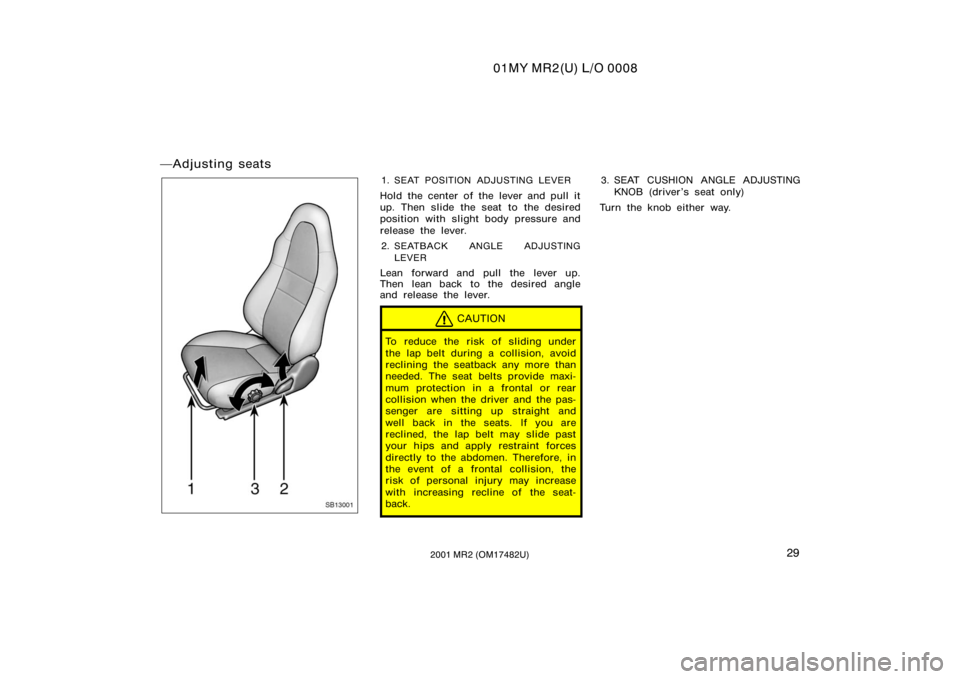

Adjusting seats
SB13001
1.SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.2.
SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
3. SEAT CUSHION ANGLE ADJUSTING KNOB (driver’s seat only)
Turn the knob either way.

01MY MR2(U) L/O 0008
302001 MR2 (OM17482U)
Toyota strongly urges that the driver and
passenger in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See Child restraint"
on page 46 in this section for details.
If a child is too large for a child restraint
system, the child must be restrained using
the vehicle’s seat belt.
If a child must sit in the seat, the seat
belts should be worn properly. If an acci-
dent occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Do not allow the child to stand up or
kneel on the seat. An unrestrained child
could suffer serious injury or death during
emergency braking or a co llision. Also, do
not let the child sit on your lap. It does
not provide sufficient restraint. Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.

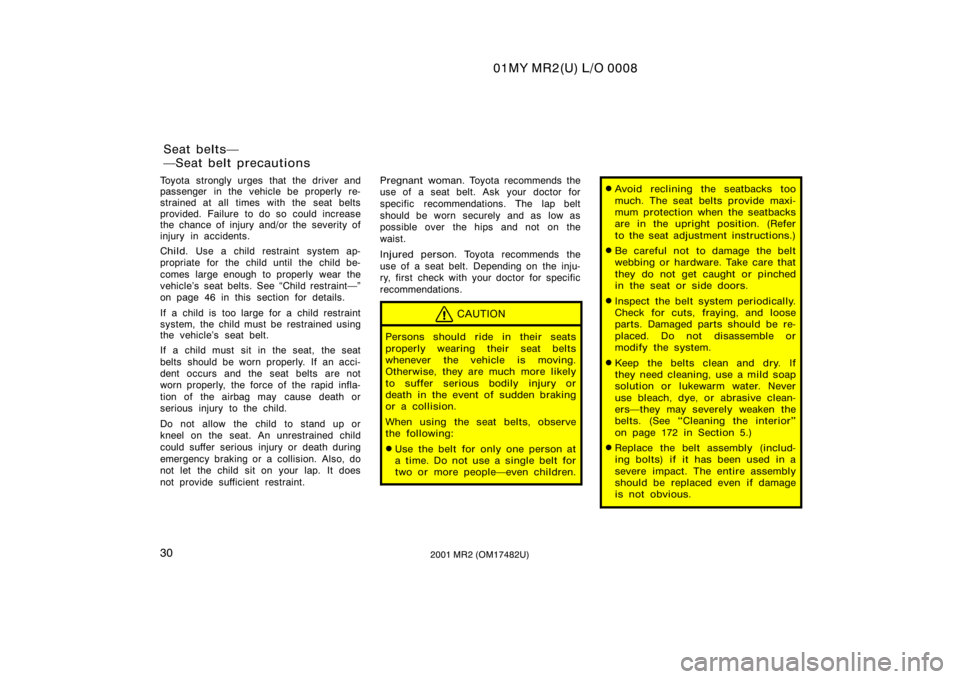

CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more peopleeven children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ersthey may severely weaken the
belts. (See Cleaning the interior"
on page 172 in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Seat belts
Seat belt precautions

01MY MR2(U) L/O 0008
312001 MR2 (OM17482U)

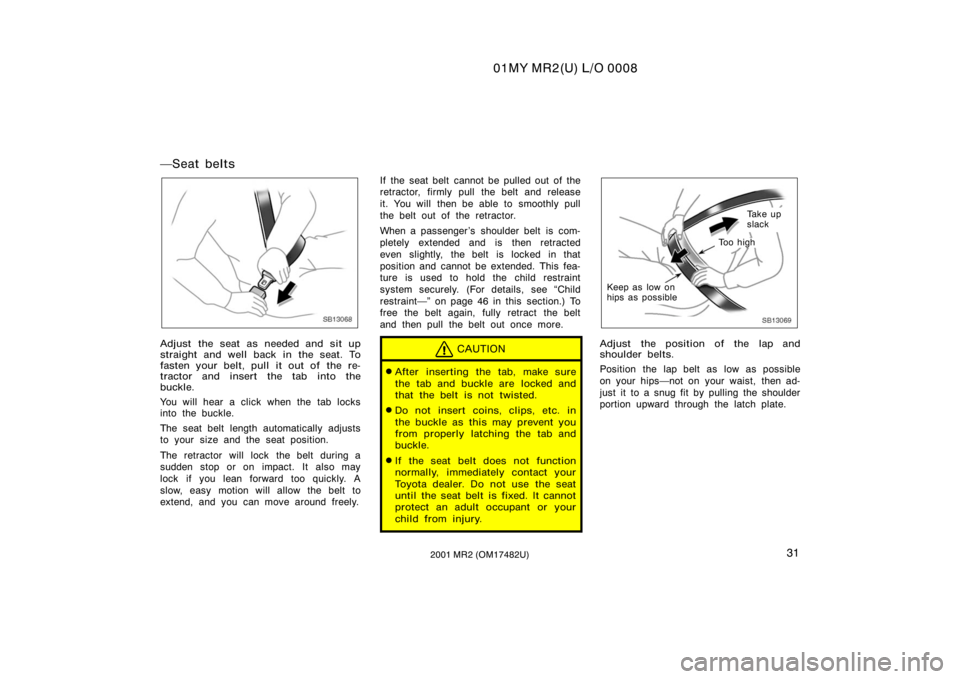

Seat belts
SB13068
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see Child
restraint" on page 46 in this section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
SB13069
Ta k e u p
slack
To o h i g h
Keep as low on
hips as possibleTa k e u p
slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hipsnot on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.

01MY MR2(U) L/O 0008
322001 MR2 (OM17482U)

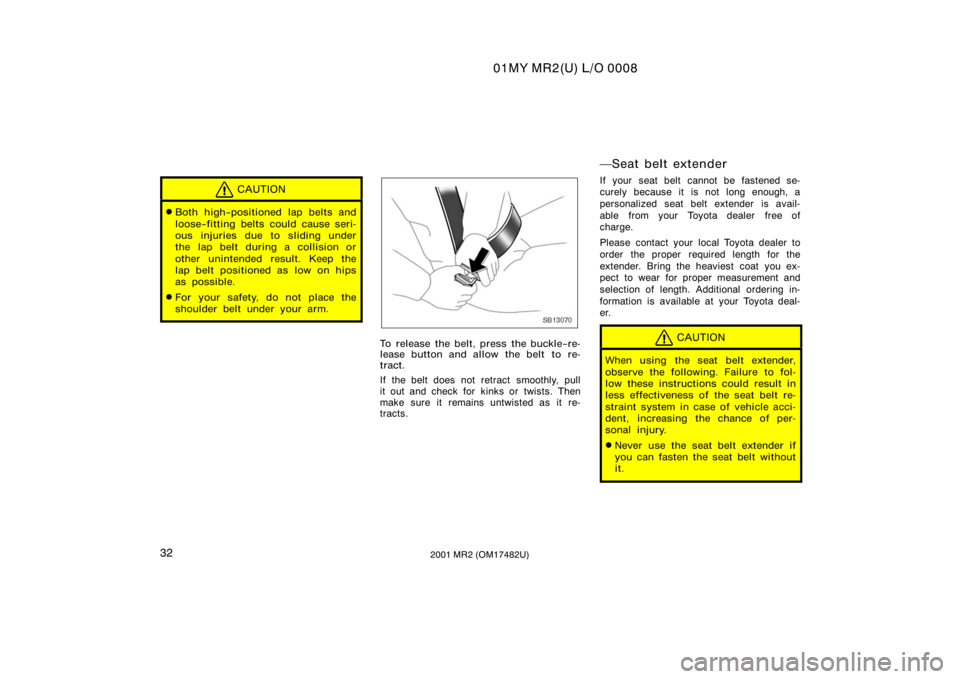

CAUTION
Both high−positioned lap belts and
loose−fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on hips
as possible.
For your safety, do not place the
shoulder belt under your arm.
SB13070
To release the belt, press the buckle−re-
lease button and allow the belt to re-
tract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.
Seat belt extender
If your seat belt cannot be fastened se-
curely because it is not long enough, a
personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer to
order the proper required length for the
extender. Bring the heaviest coat you ex-
pect to wear for proper measurement and
selection of length. Additional ordering in-
formation is available at your Toyota deal-
er.
CAUTION
When using the seat belt extender,
observe the following. Failure to fol-
low these instructions could result in
less effectiveness of the seat belt re-
straint system in case of vehicle acci-
dent, increasing the chance of per-
sonal injury.
Never use the seat belt extender if
you can fasten the seat belt without
it.

01MY MR2(U) L/O 0008
332001 MR2 (OM17482U)

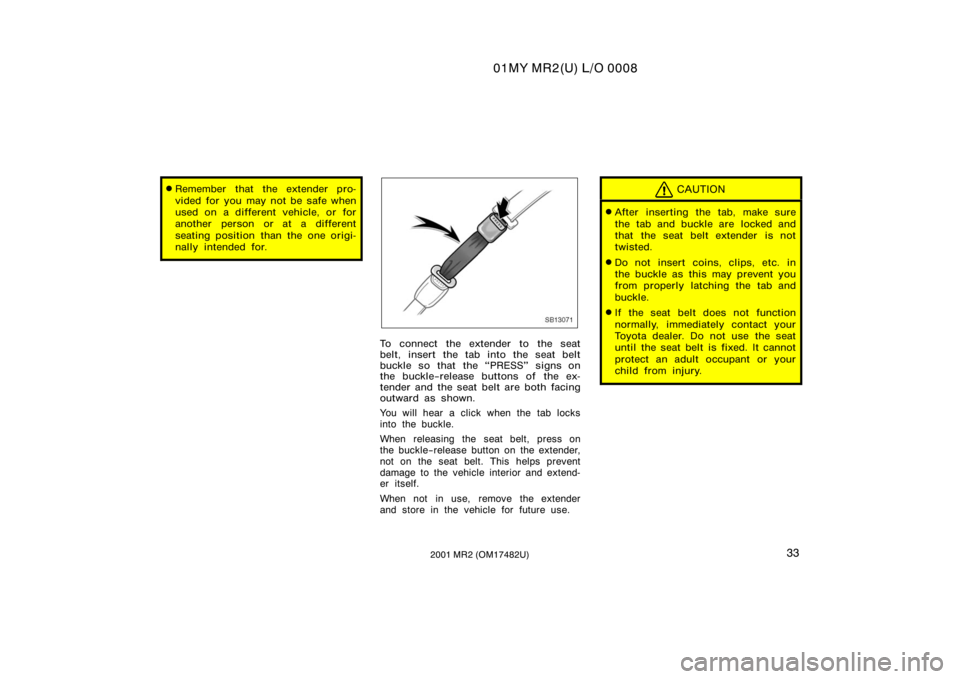

Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, or for
another person or at a different
seating position than the one origi-
nally intended for.
SB13071
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the PRESS" signs on
the buckle−release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle−release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
