OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Parking brake 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1− 6

01MY MR2(U) L/O 0008
762001 MR2 (OM17482U)
SB16007
START"Starter motor on. The key
will return to the ON" position when
released.
For starting tips, see page 123 in Section
3.
ON"Engine on and all accessories
on.
This is the normal driving position.
ACC"Accessories such as the radio
operate, but the engine is off.
If you leave the key in the ACC" or
LOCK" position and open the driver’s
door, a buzzer will remind you to remove
the key.LOCK"Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn it from
ACC" to the LOCK" position.
Once you remove the key, the engine im-
mobiliser system is automatically set. (See
Engine immobiliser system" on page 10
in Section 1−2.)
When starting the engine, the key may
seem stuck at the LOCK" position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
CAUTION
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the ON"
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Manual transmission
SB16017
The shift pattern is as shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. And
do not use the clutch to hold the vehicle
when stopped on an uphill gradeuse the
parking brake.
Recommended shifting speeds
The transmission is fully synchronized and
upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the following
speeds:
Ignition switch with
steering lock

01MY MR2(U) L/O 0008
772001 MR2 (OM17482U)
gearkm/h(mph)
1 to 2 or 2 to 1 24(15)
2 to 3 or 3 to 2 40(25)
3 to 4 or 4 to 3 64(40) 4 to 5 or 5 to 4 72(45)
Downshift to the appropriate gear if accel-
eration is needed when you are cruising
below the above downshifting speeds.
Upshifting too soon or downshifting too
late will cause lugging, and possibly ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause ex-
cessive engine wear and high fuel
consumption.
Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
gear: gear km/h(mph)
1 53(33)
2 88(53)
3 120(75)
4 163(101)NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.
Good driving practice
If it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
NOTICE
Make sure the vehicle is completely
stopped before shifting into reverse.
Parking brake
SB16008
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.
To release: Pull up the lever slightly (1),
press the lock release button (2), and low-
er (3).
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.

01MY MR2(U) L/O 0008
782001 MR2 (OM17482U)
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.

01MY MR2(U) L/O 0008
792001 MR2 (OM17482U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Car audio system
Reference80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Using your audio system 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Car audio system operating hints 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 7

01MY MR2(U) L/O 0008
802001 MR2 (OM17482U)
Reference
SB17001
AM·FM ETR radio/cassette player/compact
disc player (with compact disc auto
changer controller)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ACC" or ON" position.
TURNING THE SYSTEM ON AND OFF
Push PWR·VOL" to turn the audio system
on and off.
Push AM", FM1·2", TAPE" or CD" to
turn on that function without pushing
PWR·VOL".
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push AM", FM1·2", TAPE" or CD" if the
system is already on but you want to
switch from one function to another.TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange, and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
Using your audio system
Some basics

01MY MR2(U) L/O 0008
812001 MR2 (OM17482U)
YOUR RADIO ANTENNA
To remove the antenna, carefully turn it
counterclockwise.
On some models
To lower the power antenna, turn off the
audio system by pushing PWR·VOL", or
turn the ignition key to LOCK".
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should be to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
On models with the compact disc auto
changer, next disc will be played from
track 1.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.

SU17006
01MY MR2(U) L/O 0008
822001 MR2 (OM17482U)

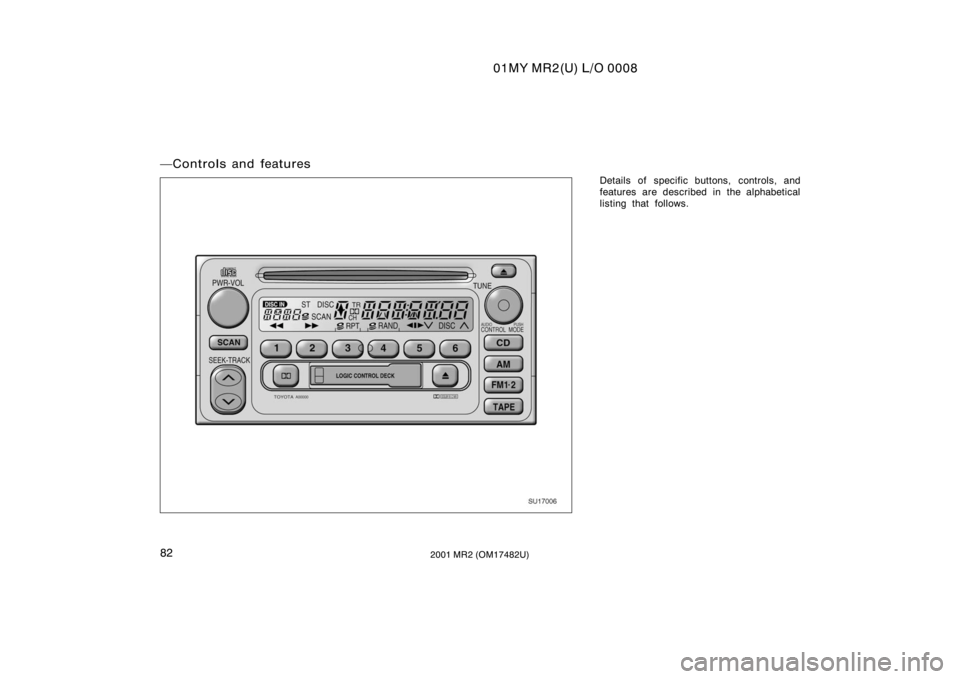

Controls and features
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.

01MY MR2(U) L/O 0008
832001 MR2 (OM17482U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNE" knob or
SEEK" button). Push and hold down the
button until you hear a beepthis will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AM", FM1" or FM2" when you
push AM" FM1·2").
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to LOCK", you
will be able to eject a cassette or disc but
you will not be able to reinsert it.
(Program)
Push
" to select the other side of a
cassette tape. The display indicates which
side is currently selected (
" indicates
top side,
" indicates bottom side).
Auto−reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. FF" will appear on
the display. Push the reverse button to
rewind a tape. REW" will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPE"; to stop the tape while it is re-
winding, push the reverse button or
TAPE". If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto−re-
verse feature.
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM
Push AM" to turn on the radio and select
the AM band. AM" will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AM". Also, push
AM" to switch from cassette or compact
disc operation to radio operation.
