Power windows
SB12049
The windows can be operated with the
switch on the center console.
The power windows work when the ignition
switch is in the “ON” position.

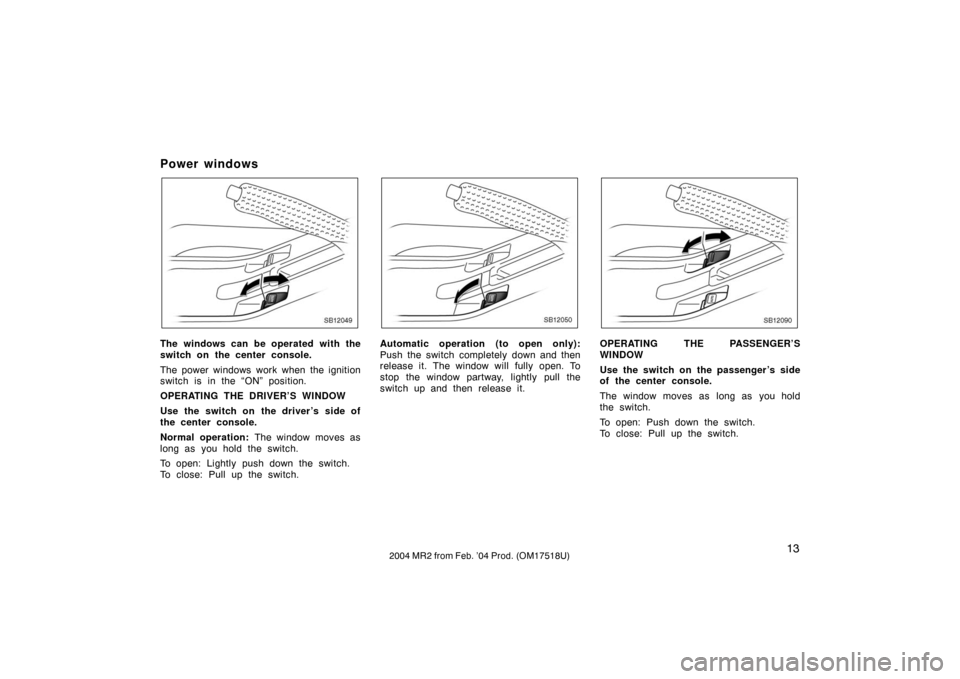

OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s side of
the center console.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
SB12050
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
SB12090
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s side
of the center console.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.

142004 MR2 from Feb. ’04 Prod. (OM17518U)

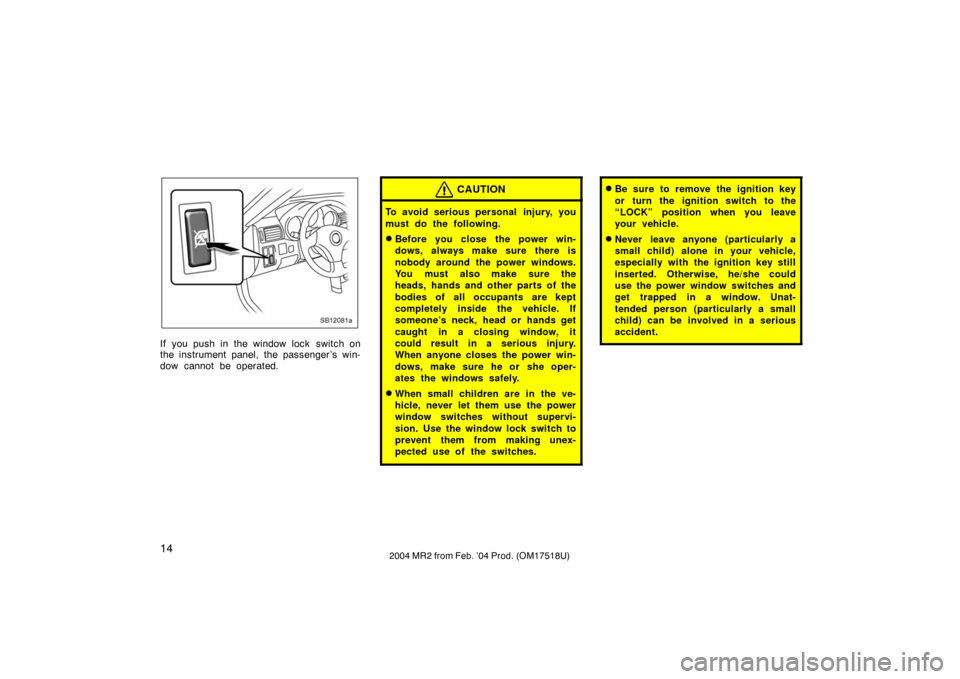

SB12081a
If you push in the window lock switch on
the instrument panel, the passenger ’s win-
dow cannot be operated.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
or turn the ignition switch to the
“LOCK” position when you leave
your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

152004 MR2 from Feb. ’04 Prod. (OM17518U)
Trunk lid—
SB12043

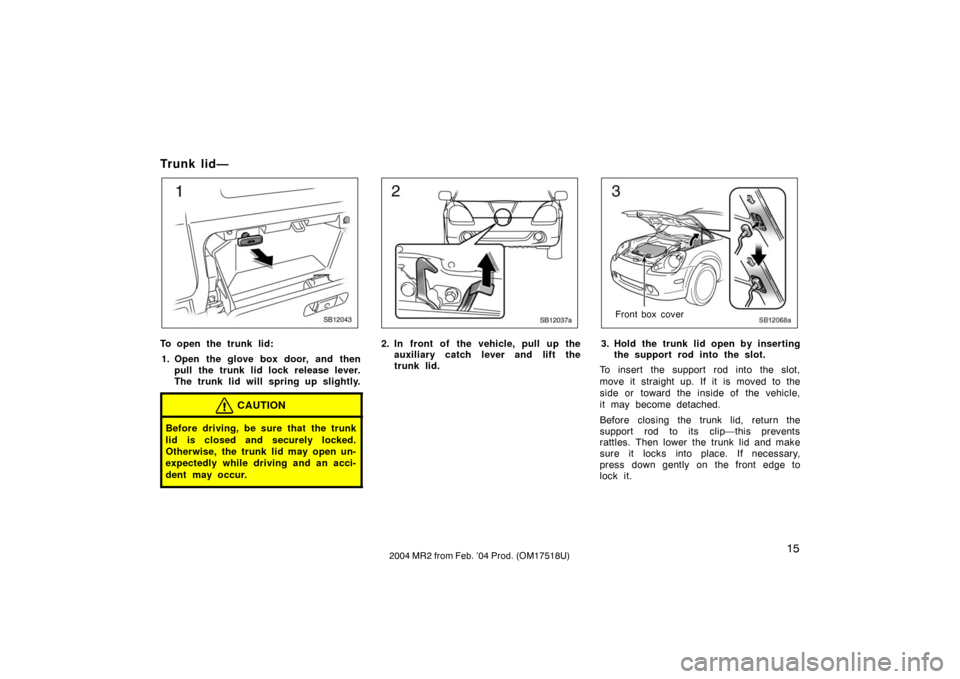

To open the trunk lid:1. Open the glove box door, and then pull the trunk lid lock release lever.
The trunk lid will spring up slightly.
CAUTION
Before driving, be sure that the trunk
lid is closed and securely locked.
Otherwise, the trunk lid may open un-
expectedly while driving and an acci-
dent may occur.
SB12037a
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
trunk lid.
SB12068a
Front box cover
3. Hold the trunk lid open by inserting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the trunk lid, return the
support rod to its clip—this prevents
rattles. Then lower the trunk lid and make
sure it locks into place. If necessary,
press down gently on the front edge to
lock it.

162004 MR2 from Feb. ’04 Prod. (OM17518U)
CAUTION
After inserting the support rod into
the slot, make sure the rod sup-
ports the trunk lid securely from
falling down on to your head or
body.
Before closing the trunk lid, lock
the front box cover securely.
This prevents the front box from
being damaged.
Keep the trunk lid closed while
driving. This keeps the luggage
from being thrown out.
NOTICE
Be sure to return the support rod to
its clip before closing the trunk lid.
Closing the trunk lid with the support
rod up could cause the trunk lid to
bend.
—Luggage security system
SB12091
If you do not want to activate the trunk
lid lock release lever, insert the master
key to the glove box, and turn it clock-
wise.
Engine hood
SB12086a
To open the engine hood:1. Pull the engine hood lock release lever. The engine hood will spring up
slightly.
The engine hood lock release lever can
be locked by the key.
CAUTION
Before driving, be sure that the en-
gine hood is closed and securely
locked. Otherwise, the engine hood
may open unexpectedly while driving
and an accident may occur.

172004 MR2 from Feb. ’04 Prod. (OM17518U)
SB12044a
2. In rear of the vehicle, lift the enginehood.
CAUTION
Be careful not to touch the engine
hood, the support rod, or surrounding
area which could be hot after driving,
to prevent burning yourself.
SB12038a
3. Hold the engine hood open by in-serting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the engine hood, check to
see that you have not forgotten any tools,
rags, etc. and return the support rod to its
clip—this prevents rattles. Then lower the
engine hood and make sure it locks into
place. If necessary, press down gently on
the rear edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the engine hood securely from falling
down on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the engine
hood. Closing the engine hood with
the support rod up could cause the
engine hood to bend.

182004 MR2 from Feb. ’04 Prod. (OM17518U)
SB12087
LOCKING AND UNLOCKING WITH
ENGINE HOOD
To lock: Turn the key clockwise.
The engine hood lock release lever can
be locked by the key.
When leaving the vehicle with the soft top
lowered, make sure to lock the engine
hood lock release lever with the key.
The fuel filler door opener lever is locked
at the same time.
Fuel tank cap
SD12013a
This indicates that the fuel filler door
is on the left side of your vehicle.
SB12088a
1. To open the fuel filler door, pull the lever up.
When refueling, turn off the engine.
The fuel filler door opener lever can be
locked by the key.

192004 MR2 from Feb. ’04 Prod. (OM17518U)
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.SC12051
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.

202004 MR2 from Feb. ’04 Prod. (OM17518U)
SB12087
LOCKING AND UNLOCKING WITH FUEL
TANK CAP
To lock: Turn the key clockwise.
The fuel filler door opener lever can be
locked by the key.
When leaving the vehicle with the soft top
lowered, make sure to lock the fuel filler
door opener lever with the key.
The engine hood lock release lever is
locked at the same time. Sequential manual transmission:
Before
raising or lowering the soft top, lower both
side windows, apply the parking brake, put
the selector lever in the “S(1)” position
and stop the engine.
Manual transmission: Before raising or
lowering the soft top, lower both side win-
dows, apply the parking brake, stop the
engine and put the transmission lever in
the first position.
CAUTION
When raising or lowering the soft
top, keep hands off from the hinges
of the top side rails and any part
of the top linkage.
To prevent personal injury, do not
raise or lower the soft top when the
wind is strong.
The vehicle should never be driven
with the soft top partially lowered.
Make sure the top has been either
fully latched to the windshield
frame or fully lowered before driv-
ing.
NOTICE
 Make sure there are no items or
packages in the folding board when
lowering in the soft top. Even small
items may interfere with the soft
top operation and can cause dam-
age.
 Do not sit or place excessive
weight on the soft top when the top
is up or down. Damage to the top
may occur.
 Do not raise or lower the soft top
when the temperature is below 5 C
(41 F). Damage to the top or rear
window may result. If necessary to
do so, warm the vehicle in a heated
garage prior to operating the soft
top mechanism.
 Do not lower the soft top if the top
is damp or wet. Possible interior
water damage, water stains or mil-
dew on the top material may result.
Soft top—
—Soft top precautions

212004 MR2 from Feb. ’04 Prod. (OM17518U)
When the soft top is completely
lowered, keep the rear window de-
fogger turned off to avoid damage
to the top.
 It may be hard to fix the soft top
when raising it after having kept it
open for a long time.
—Lowering the soft top

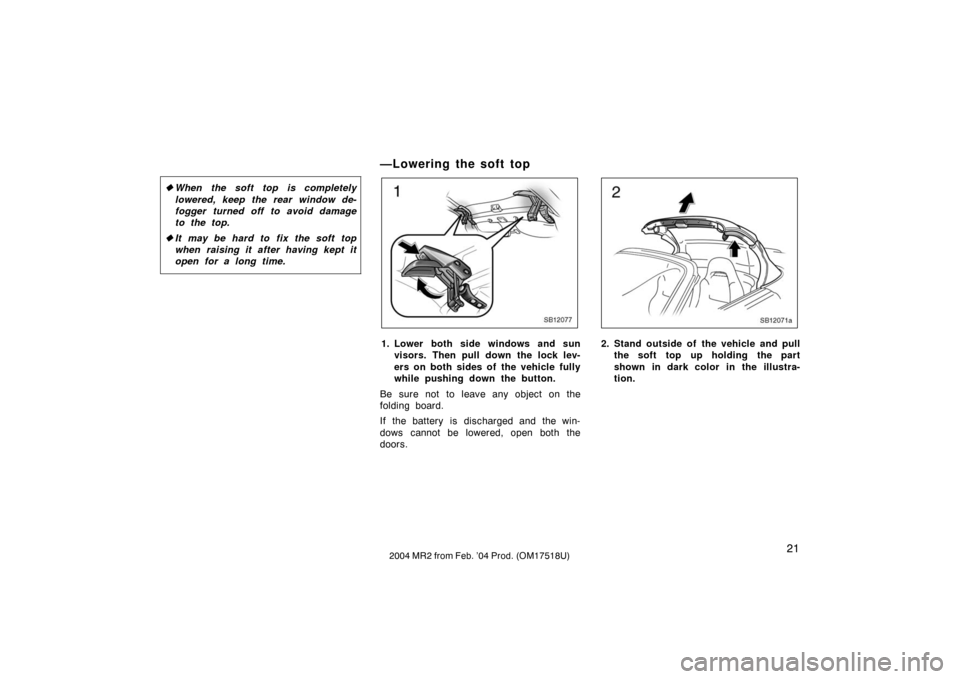

SB12077
1. Lower both side windows and sun
visors. Then pull down the lock lev-
ers on both sides of the vehicle fully
while pushing down the button.
Be sure not to leave any object on the
folding board.
If the battery is discharged and the win-
dows cannot be lowered, open both the
doors.
SB12071a
2. Stand outside of the vehicle and pull the soft top up holding the part
shown in dark color in the illustra-
tion.

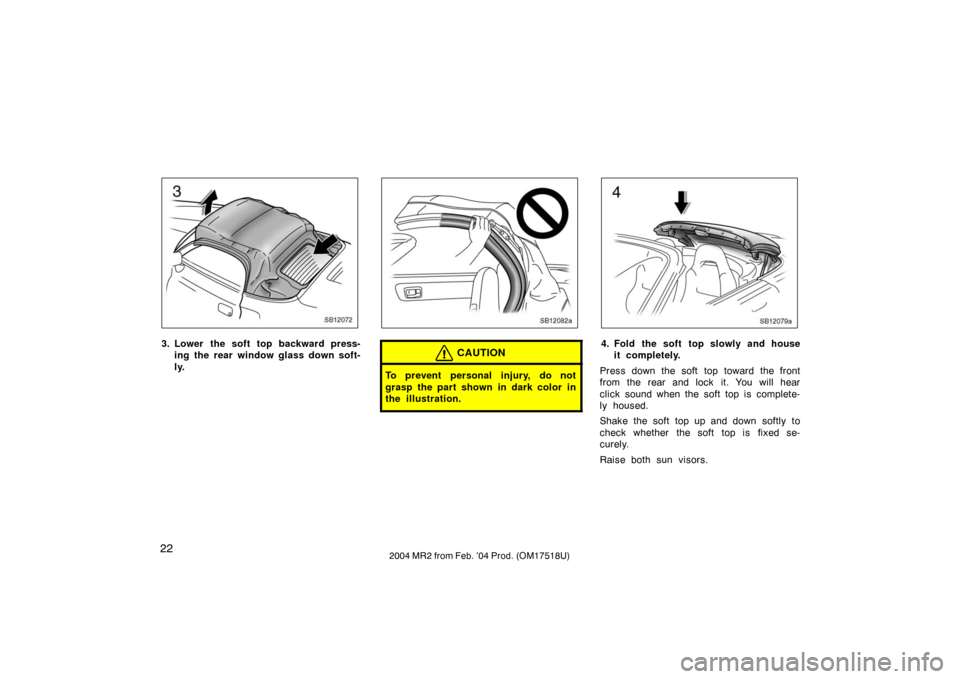

222004 MR2 from Feb. ’04 Prod. (OM17518U)
SB12072
3. Lower the soft top backward press-ing the rear window glass down soft-
ly.
SB12082a
CAUTION
To prevent personal injury, do not
grasp the part shown in dark color in
the illustration.
SB12079a
4. Fold the soft top slowly and houseit completely.
Press down the soft top toward the front
from the rear and lock it. You will hear
click sound when the soft top is complete-
ly housed.
Shake the soft top up and down softly to
check whether the soft top is fixed se-
curely.
Raise both sun visors.
