TOYOTA MR2 SPYDER 2004 W30 / 3.G Repair Manual

532004 MR2 from Feb. ’04 Prod. (OM17518U)
SB13107a
When you put a forwardfacing or a
rearfacing child restraint system which
belongs to a passenger risk group on
the passenger seat, turn the passenger
airbag manual onoff switch counter-
clockwise to the “OFF” position. (For
details, see “SRS driver airbag and pas-
senger airbag” on page 37 in this Sec-
tion.)
The indicator comes on when the system
is off.
CAUTION
If you must install a rearfacing
child restraint system on the pas-
senger seat, make sure the passen-
ger airbag manual onoff switch is
in the “OFF” position and that the
indicator light is on.
Forwardfacing child restraint sys-
tem: A forwardfacing child re-
straint system which belongs to a
passenger risk group should never
be installed on the passenger seat
with the passenger airbag manual
onoff switch in the “ON” position,
because the passenger airbag could
inflate with considerable speed and
force. Otherwise the child may be
killed or seriously injured in for-
ward seating position. (For details,
see “SRS driver airbag and passen-
ger airbag” on page 37 in this Sec-
tion.)
SB13083a
1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.

542004 MR2 from Feb. ’04 Prod. (OM17518U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
SB13084a
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
SB13085a
3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

552004 MR2 from Feb. ’04 Prod. (OM17518U)

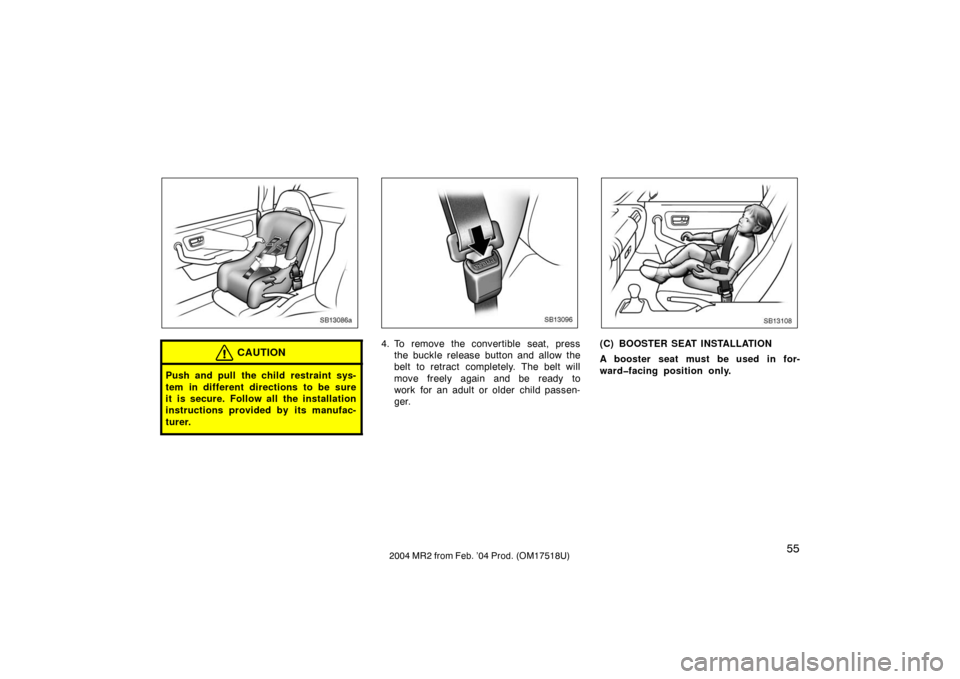

SB13086a
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
SB13096
4. To remove the convertible seat, pressthe buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
SB13108
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.

562004 MR2 from Feb. ’04 Prod. (OM17518U)
CAUTION
A forwardfacing child restraint
system which belongs to a passenger
risk group should never be installed
on the passenger seat with the
passenger airbag manual onoff
switch in the “ON” position, because
the passenger airbag could inflate
with considerable speed and force.
Otherwise the child may be killed or
seriously injured in forward seating
position. (For details, see “SRS driver
airbag and passenger airbag” on page
37 in this Section.)
SB13107a
When you put a forwardfacing child
restraint system which belongs to pas-
senger risk group on the passenger
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver airbag and passenger airbag” on
page 37 in this Section.)
The indicator comes on when the system
is off.
SB13064
1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts—” on
page 31 in this Section for details.

572004 MR2 from Feb. ’04 Prod. (OM17518U)

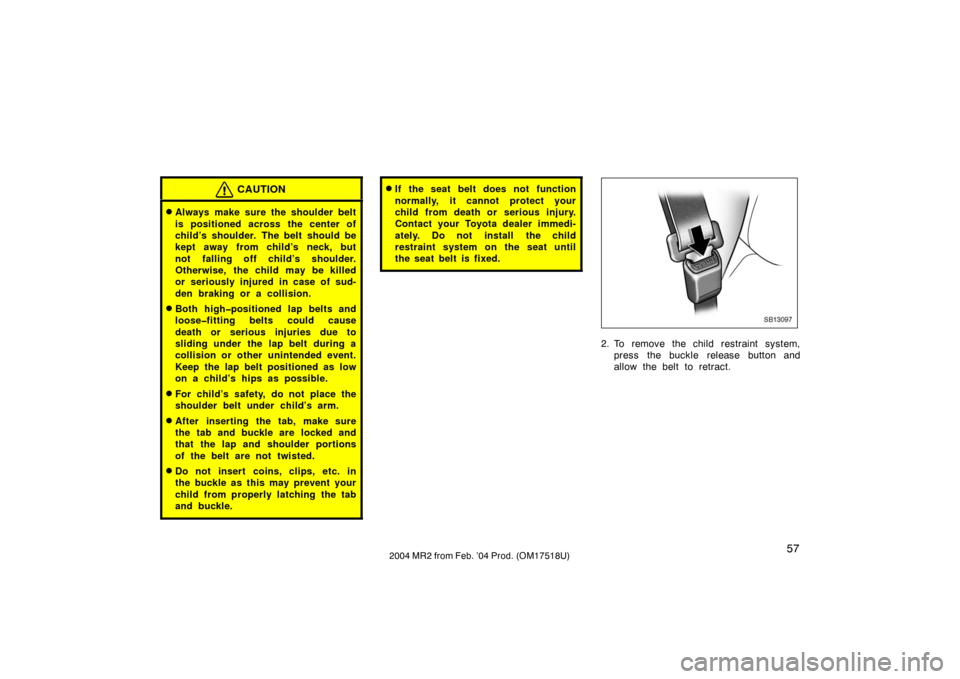

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
SB13097
2. To remove the child restraint system, press the buckle release button and
allow the belt to retract.

582004 MR2 from Feb. ’04 Prod. (OM17518U)
—U sin g a to p st rap

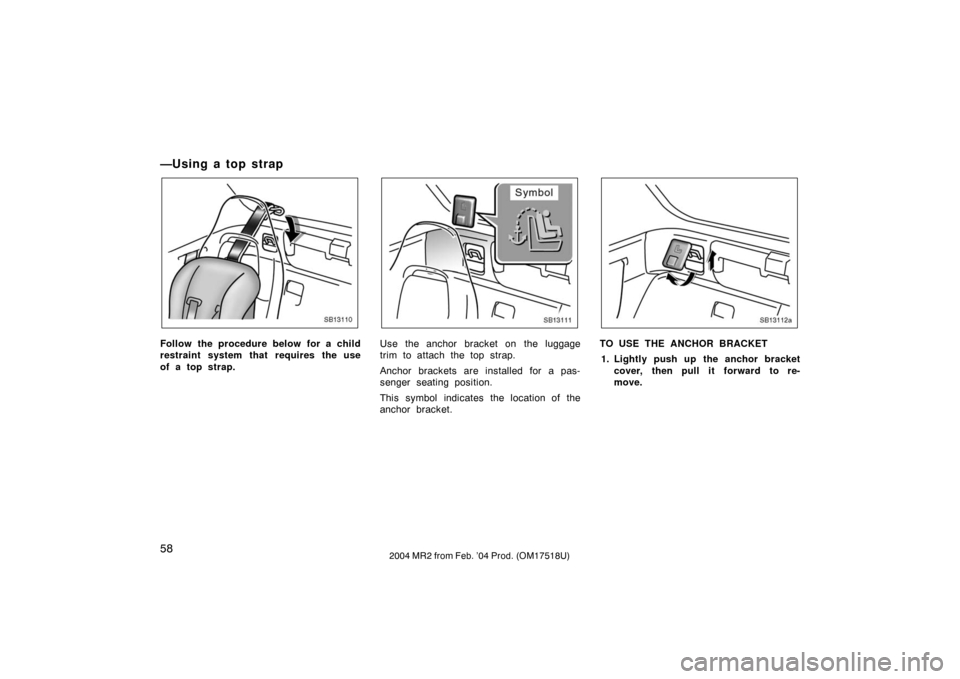

SB13110
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
SB13111
Use the anchor bracket on the luggage
trim to attach the top strap.
Anchor brackets are installed for a pas-
senger seating position.
This symbol indicates the location of the
anchor bracket.
SB13112a
TO USE THE ANCHOR BRACKET1. Lightly push up the anchor bracket cover, then pull it forward to re-
move.

592004 MR2 from Feb. ’04 Prod. (OM17518U)

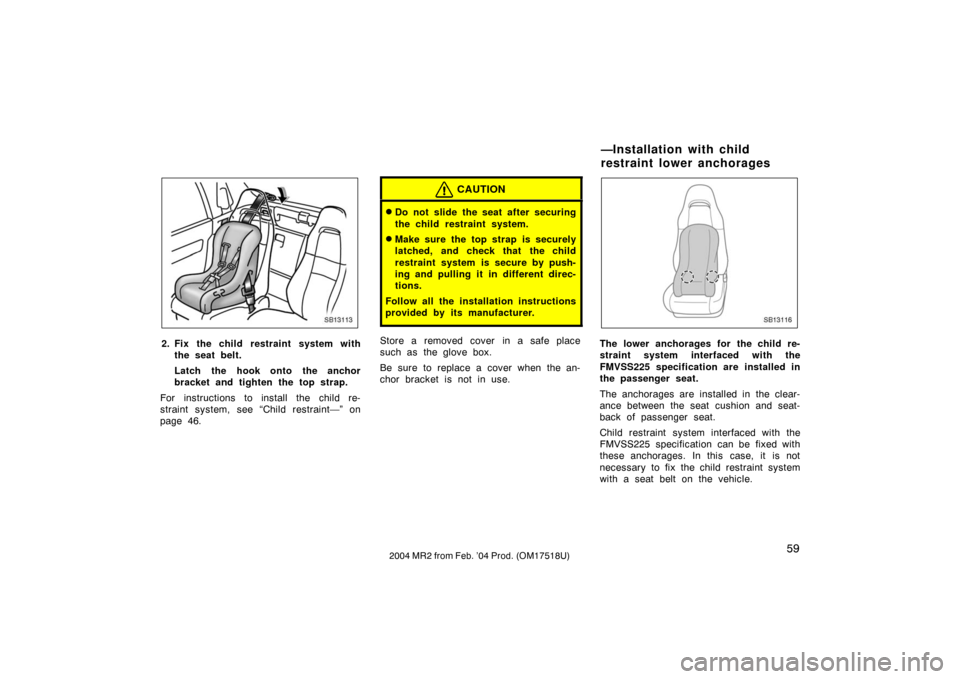

SB13113
2. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint—” on
page 46.
CAUTION
Do not slide the seat after securing
the child restraint system.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions.
Follow all the installation instructions
provided by its manufacturer.
Store a removed cover in a safe place
such as the glove box.
Be sure to replace a cover when the an-
chor bracket is not in use.
SB13116
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the passenger seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of passenger seat.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
—Installation with child
restraint lower anchorages

602004 MR2 from Feb. ’04 Prod. (OM17518U)

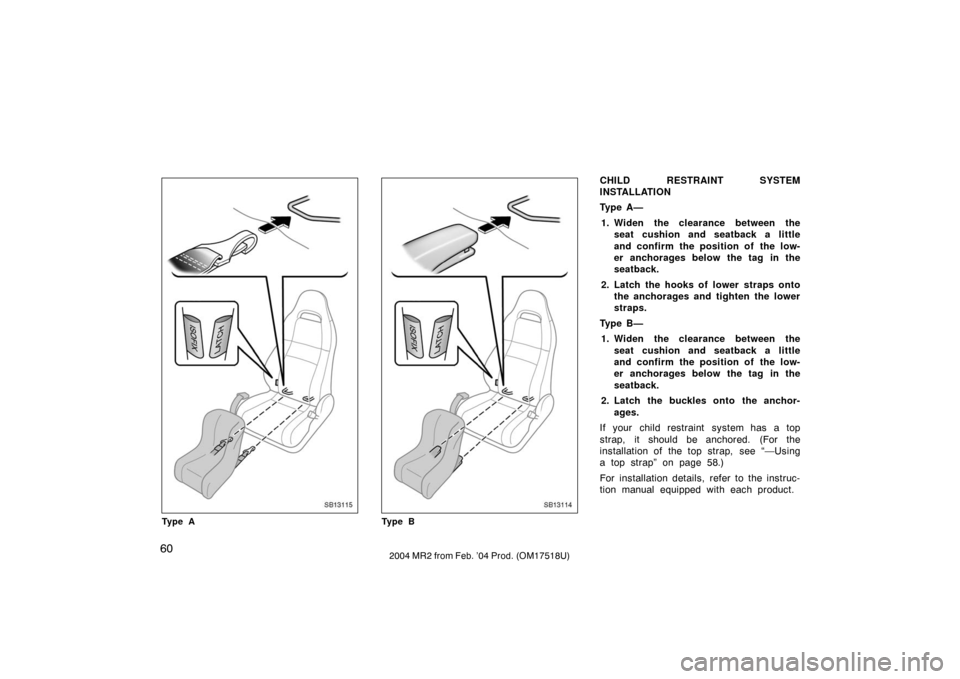

SB13115
Ty p e A
SB13114
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A —1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seatback.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seatback.
2. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 58.)
For installation details, refer to the instruc-
tion manual equipped with each product.

612004 MR2 from Feb. ’04 Prod. (OM17518U)
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using the lower anchorages
for the child restraint system, en-
sure that the seat is moved to the
rearmost position, with the seat-
back close to the child restraint
system.
After securing the child restraint
system, never slide of recline the
seat.
