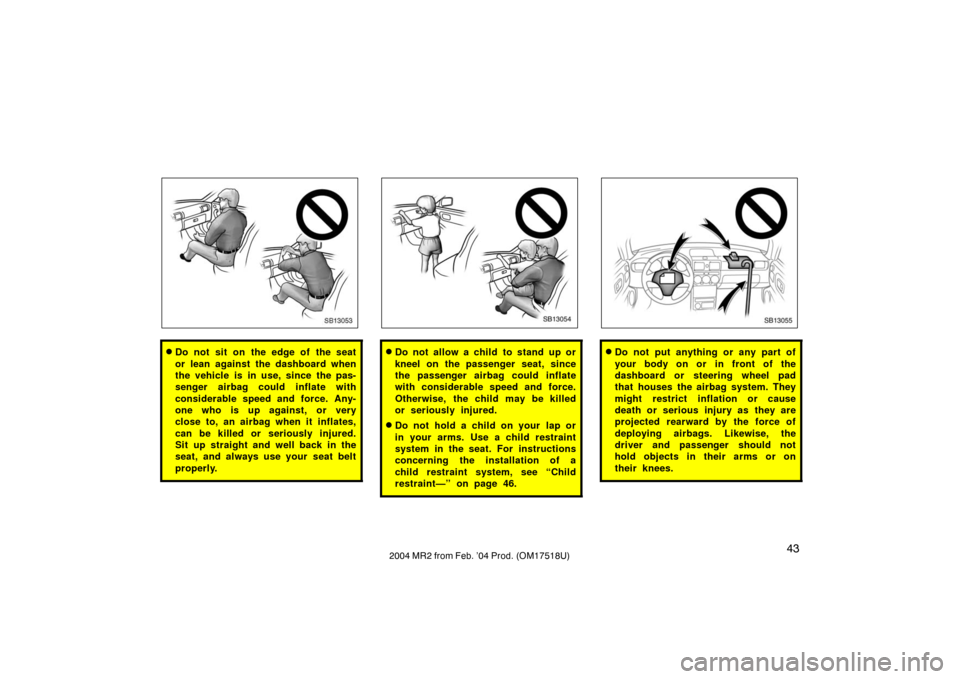

Do not sit on the edge of the seat
or lean against the dashboard when
the vehicle is in use, since the pas-
senger airbag could inflate with
considerable speed and force. Any-
one who is up against, or very
close to, an airbag when it inflates,
can be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.
SB13054
Do not allow a child to stand up or
kneel on the passenger seat, since
the passenger airbag could inflate
with considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the seat. For instructions
concerning the installation of a
child restraint system, see “Child
restraint—” on page 46.
SB13055
Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the airbag system. They
might restrict inflation or cause
death or serious injury as they are
projected rearward by the force of
deploying airbags. Likewise, the
driver and passenger should not
hold objects in their arms or on
their knees.

442004 MR2 from Feb. ’04 Prod. (OM17518U)

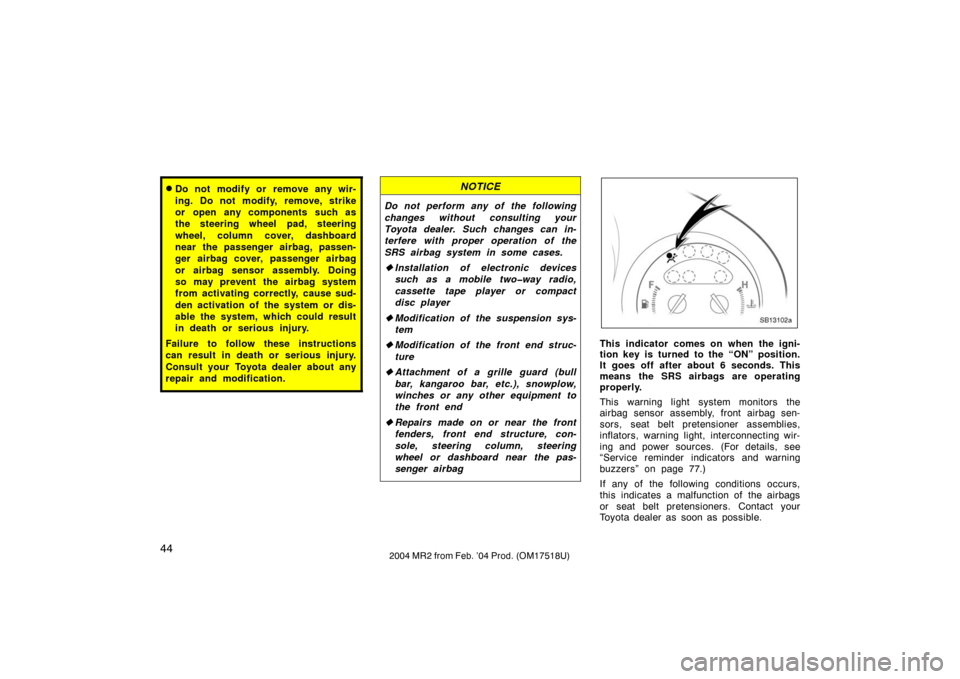

Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the passenger airbag, passen-
ger airbag cover, passenger airbag
or airbag sensor assembly. Doing
so may prevent the airbag system
from activating correctly, cause sud-
den activation of the system or dis-
able the system, which could result
in death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
SRS airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the pas-
senger airbag
SB13102a
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS airbags are operating
properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 77.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.

452004 MR2 from Feb. ’04 Prod. (OM17518U)
When the ignition key is turned to the
“ON” position, the light does not come
on, remains on or flashes.
The light comes on or starts flashing
while driving.
SB13067a
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS airbags have been inflated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS airbags to inflate.
The pad section of the steering wheel
or passenger airbag cover (shaded in
the illustration) is scratched, cracked,
or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
SB13106a
Indicator light
This onoff switch is designed to dis-
able the passenger airbag in order to
allow usage, if necessary, of a member
of a passenger risk group identified in
TABLE 1 (on page 40) is occupying the
passenger seating position (For details,
see “SRS driver airbag and passenger
airbag” on page 37 in this Section.)
Operate onoff switch as follows:
Insert key into the keyhole and turn it in
the glove box.
To turn passenger airbag on: Turn the key
clockwise to the “ON” position.
To turn passenger airbag off: Turn the key
counterclockwise to the “OFF” position.
Passenger airbag manual
onoff switch

462004 MR2 from Feb. ’04 Prod. (OM17518U)
The indicator comes on when the passen-
ger airbag system is off.
To check the airbag cut−off system status,
turn the ignition switch to the “ON” posi-
tion. The “AIRBAG” warning light and the
“OFF” indicator light should go on for
approximately 4 seconds. If the airbag
switch is turned off, the “OFF” indicator
will continue to illuminate, and if the air-
bag switch is turned on, the “OFF” indica-
tor will not illuminate.CAUTION

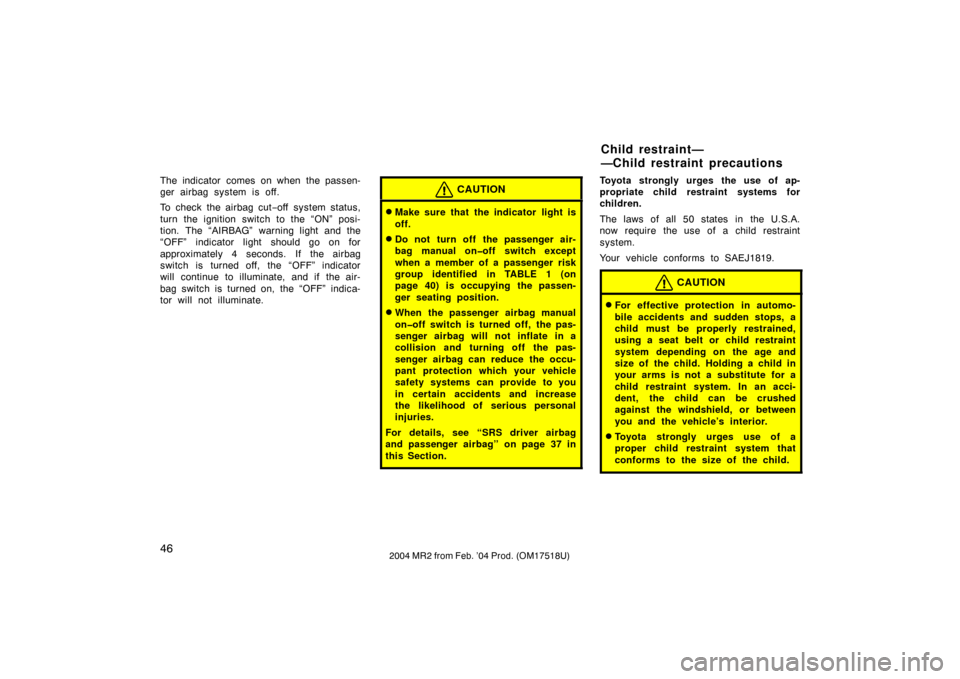

Make sure that the indicator light is
off.
Do not turn off the passenger air-
bag manual onoff switch except
when a member of a passenger risk
group identified in TABLE 1 (on
page 40) is occupying the passen-
ger seating position.
When the passenger airbag manual
onoff switch is turned off, the pas-
senger airbag will not inflate in a
collision and turning off the pas-
senger airbag can reduce the occu-
pant protection which your vehicle
safety systems can provide to you
in certain accidents and increase
the likelihood of serious personal
injuries.
For details, see “SRS driver airbag
and passenger airbag” on page 37 in
this Section.
Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
now require the use of a child restraint
system.
Your vehicle conforms to SAEJ1819.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system that
conforms to the size of the child.
Child restraint—
—Child restraint precautions

472004 MR2 from Feb. ’04 Prod. (OM17518U)

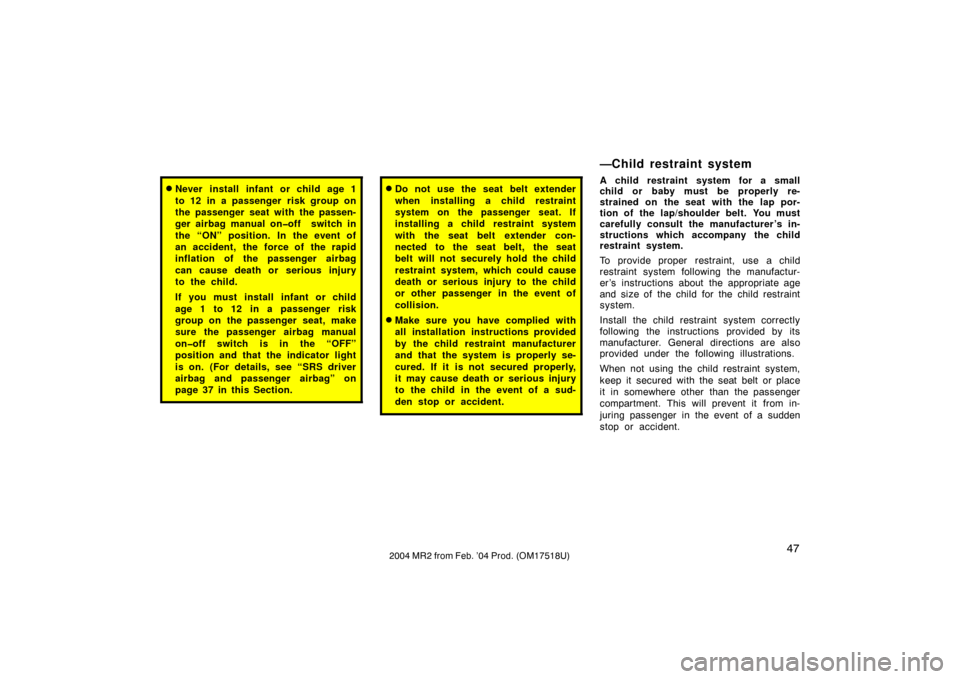

Never install infant or child age 1
to 12 in a passenger risk group on
the passenger seat with the passen-
ger airbag manual onoff switch in
the “ON” position. In the event of
an accident, the force of the rapid
inflation of the passenger airbag
can cause death or serious injury
to the child.
If you must install infant or child
age 1 to 12 in a passenger risk
group on the passenger seat, make
sure the passenger airbag manual
onoff switch is in the “OFF”
position and that the indicator light
is on. (For details, see “SRS driver
airbag and passenger airbag” on
page 37 in this Section.Do not use the seat belt extender
when installing a child restraint
system on the passenger seat. If
installing a child restraint system
with the seat belt extender con-
nected to the seat belt, the seat
belt will not securely hold the child
restraint system, which could cause
death or serious injury to the child
or other passenger in the event of
collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.
—Child restraint system
A child restraint system for a small
child or baby must be properly re-
strained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s in-
structions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
When not using the child restraint system,
keep it secured with the seat belt or place
it in somewhere other than the passenger
compartment. This will prevent it from in-
juring passenger in the event of a sudden
stop or accident.

482004 MR2 from Feb. ’04 Prod. (OM17518U)
Child restraint systems are divided into
the following 3 types according to the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 58.
The child restraint lower anchorages
approved for your vehicle may also be
used. See “—Installation with child
restraint lower anchorages” on page 59.
SB13056
(A) Infant seat
SB13080a
(B) Convertible seat
SB13048a
(C) Booster seat
—Types of child restraint
system

492004 MR2 from Feb. ’04 Prod. (OM17518U)
—Installation with seat belt
SB13081
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
SB13101
CAUTION
Never install a rearfacing child re-
straint system on the passenger seat
with the passenger airbag manual on
off switch in the “ON” position. In
the event of an accident, the force of
the rapid inflation of the passenger
airbag can cause death or serious in-
jury to the child.
SB13107a
When you put a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the passenger
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver airbag and passenger airbag” on
page 37 in this Section.)
The indicator comes on when the system
is off.

502004 MR2 from Feb. ’04 Prod. (OM17518U)
CAUTION

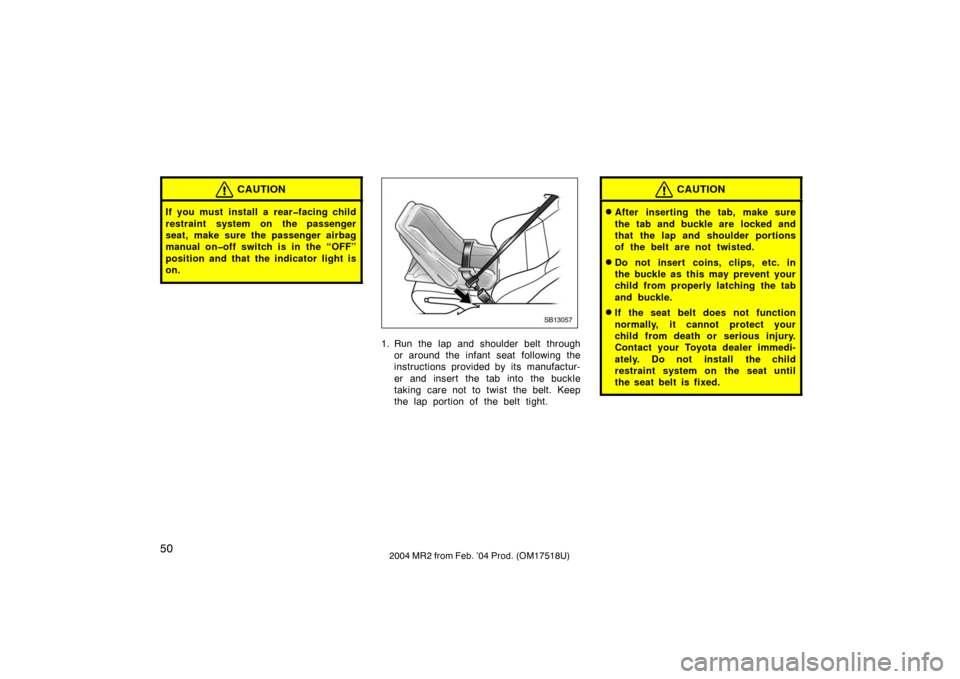

If you must install a rearfacing child
restraint system on the passenger
seat, make sure the passenger airbag
manual onoff switch is in the “OFF”
position and that the indicator light is
on.
SB13057
1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

512004 MR2 from Feb. ’04 Prod. (OM17518U)

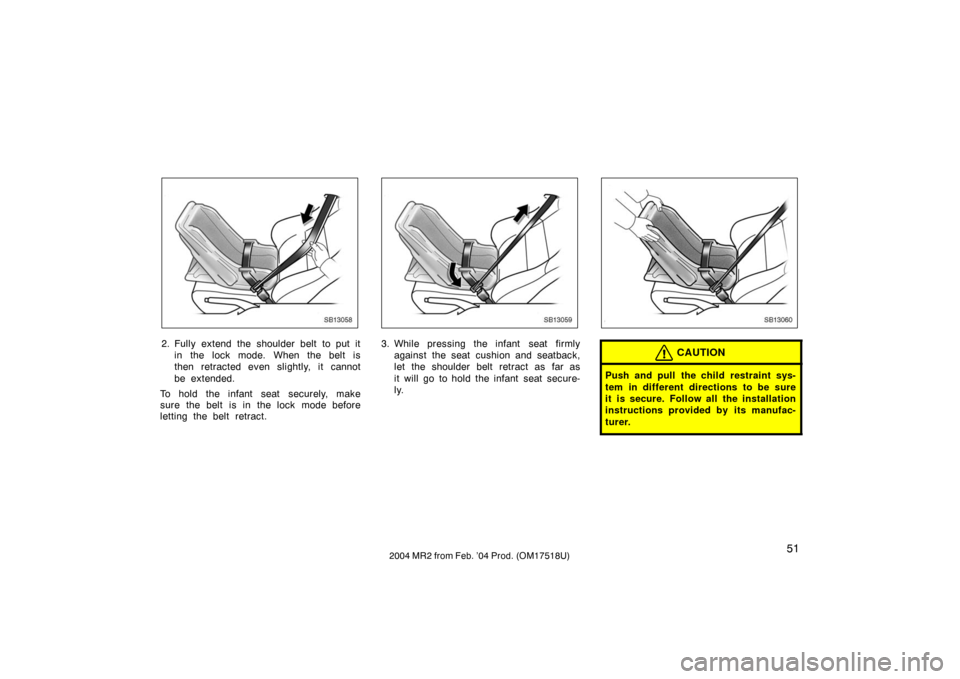

SB13058
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
SB13059
3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.
SB13060
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

522004 MR2 from Feb. ’04 Prod. (OM17518U)

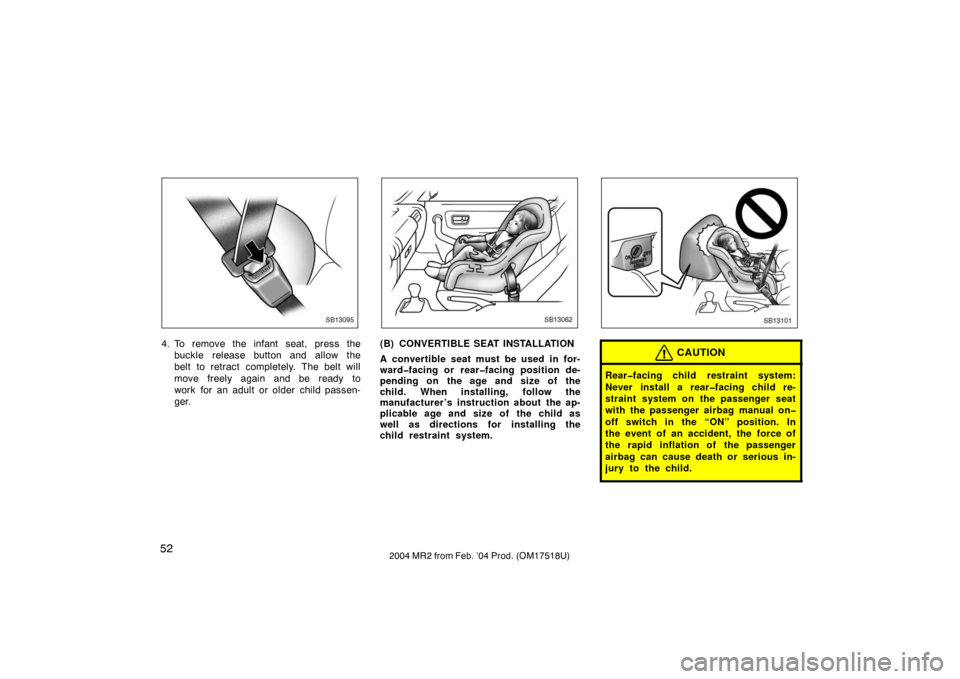

SB13095
4. To remove the infant seat, press thebuckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
SB13062
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instruction about the ap-
plicable age and size of the child as
well as directions for installing the
child restraint system.
SB13101
CAUTION
Rearfacing child restraint system:
Never install a rearfacing child re-
straint system on the passenger seat
with the passenger airbag manual on
off switch in the “ON” position. In
the event of an accident, the force of
the rapid inflation of the passenger
airbag can cause death or serious in-
jury to the child.
