TOYOTA MR2 SPYDER 2004 W30 / 3.G Owner's Guide

232004 MR2 from Feb. ’04 Prod. (OM17518U)
SB12059a
Folding boardFlare
NOTICE
Do not lower the soft top while
placing a luggage which is higher
than the bottom edge of the flare
inside the luggage space. The lug-
gage may be damaged by hitting
the folding board or the improperly
folded soft top may flap in the wind
and cause an accident.
 Do not place any objects on the
folding board. Such objects may
damage the folding board or cause
an unexpected accident by moving
while the vehicle is driven.
—Air deflector
SB12060a
The air deflector will reduce the wind
from the rear of the vehicle when the
vehicle is running with the soft top
lowered. Pull up to use.
NOTICE
Do not use alcohol or other solvents
for the air deflector. Because they
could damage the air deflector’s resin
material.
—Raising the soft top
SB12061
1. Lower both side windows and sun
visors. Then pull down the lock re-
lease lever towards the front of the
vehicle and release the lock of the
soft top.
NOTICE
Always lower the sun visor when rais-
ing the soft top. The sun visor may
be damaged if the soft top is locked
with the sun visor raised.

242004 MR2 from Feb. ’04 Prod. (OM17518U)
SB12074a
2. Stand outside of the vehicle and pullthe soft top out slowly holding the
part shown in dark color in the il-
lustration. Then move the soft top
toward the upper part of the frame
of the front window glass.
NOTICE
Lower the windows before raising the
soft top. Otherwise, the soft top may
not lock securely.
SB12082a
CAUTION
To prevent personal injury, do not
grasp the part shown in dark color in
the illustration.
SB12083
3. Be seated in the seat and hold thehandle on the center of the front
soft top frame. Then press the soft
top softly against the frame of the
front window glass.

252004 MR2 from Feb. ’04 Prod. (OM17518U)
SB12078
4. Keep pressing the soft top againstthe frame of the front window glass
and fix the soft top by pushing up
the right and the left lock levers un-
til a click is heard.
Check that lock is securely hung on the
hook on the body side when pushing the
lock levers up.
SB12089
Hook on body side
LockHook on body side
If the lock is not hung easily, give your
hand to the lock for helping to hang it
on the hook on the body side.
Fix the lock on the hook of the body side
and check whether or not it is securely
locked by swinging the lock to the front
and the rear, and the right and the left.
Confirm that the levers are locked secure-
ly.
Raise both sun visors.

262004 MR2 from Feb. ’04 Prod. (OM17518U)

272004 MR2 from Feb. ’04 Prod. (OM17518U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Seat belts 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver airbag and passenger airbag 37
. . . . . . . . . . . . . . . . . . . . . . .
Passenger airbag manual on −off switch 45
. . . . . . . . . . . . . . . . . . . . . . . .
Child restraint 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 3

282004 MR2 from Feb. ’04 Prod. (OM17518U)
Seats—
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

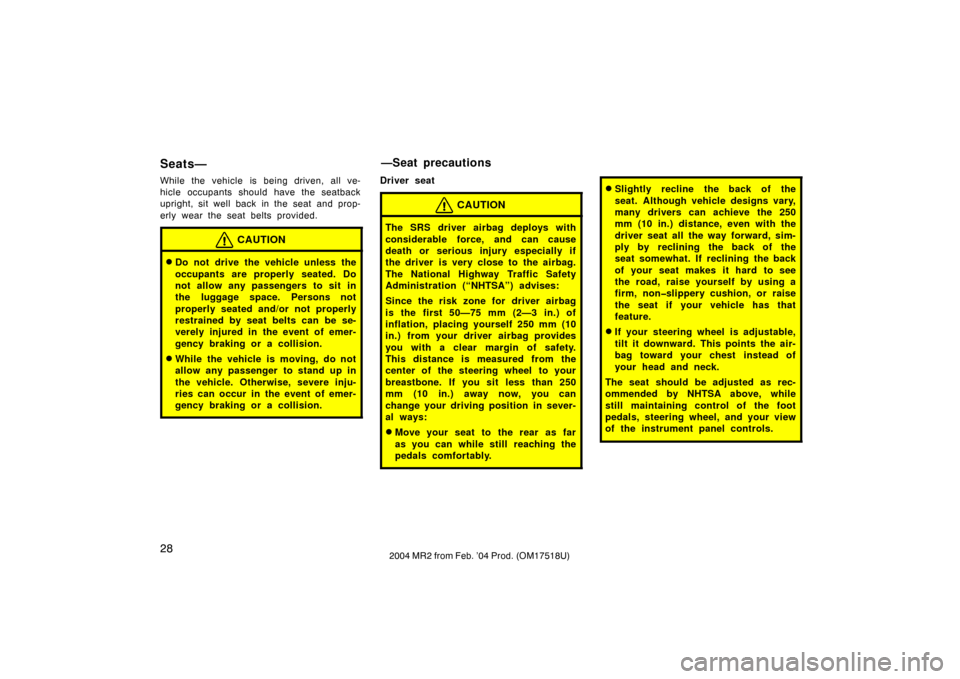

CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit in
the luggage space. Persons not
properly seated and/or not properly
restrained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
While the vehicle is moving, do not
allow any passenger to stand up in
the vehicle. Otherwise, severe inju-
ries can occur in the event of emer-
gency braking or a collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
—Seat precautions

292004 MR2 from Feb. ’04 Prod. (OM17518U)
Passenger seat

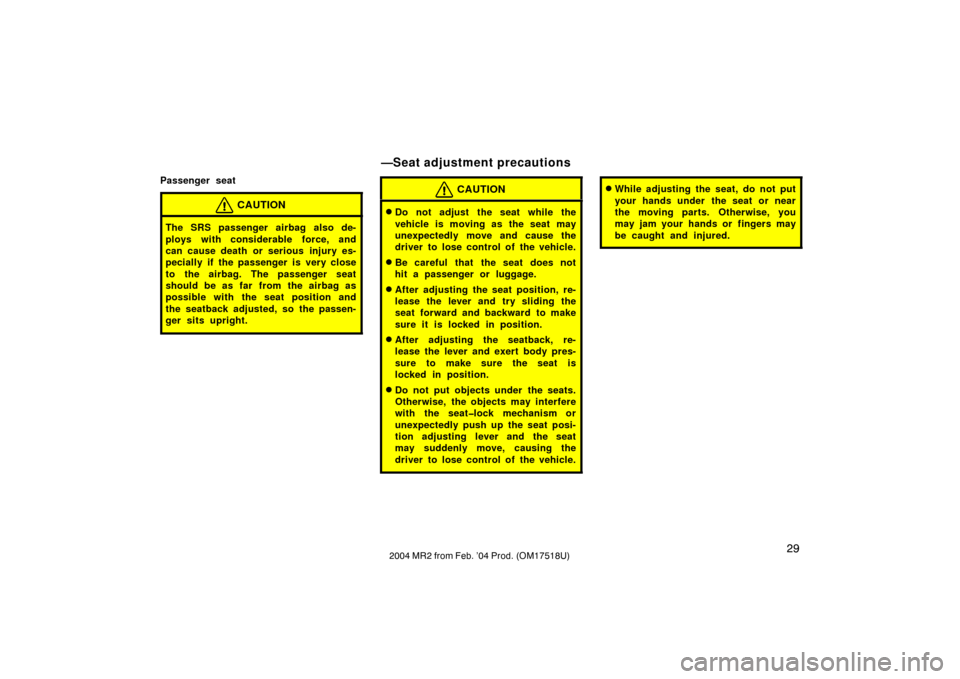

CAUTION
The SRS passenger airbag also de-
ploys with considerable force, and
can cause death or serious injury es-
pecially if the passenger is very close
to the airbag. The passenger seat
should be as far from the airbag as
possible with the seat position and
the seatback adjusted, so the passen-
ger sits upright.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, re-
lease the lever and exert body pres-
sure to make sure the seat is
locked in position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, you
may jam your hands or fingers may
be caught and injured.
—Seat adjustment precautions

302004 MR2 from Feb. ’04 Prod. (OM17518U)

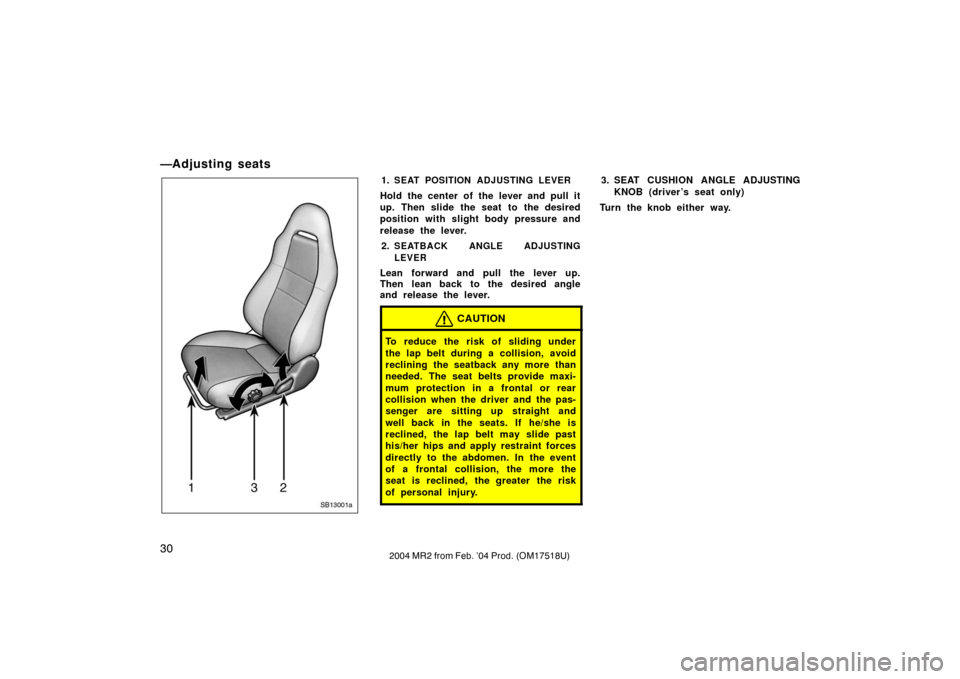

—Adjusting seats
SB13001a
1.SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.2.
SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If he/she is
reclined, the lap belt may slide past
his/her hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
3. SEAT CUSHION ANGLE ADJUSTING KNOB (driver ’s seat only)
Turn the knob either way.

312004 MR2 from Feb. ’04 Prod. (OM17518U)
Toyota strongly urges that the driver and
passenger in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint—”
on page 46 for details.
If a child is too large for a child restraint
system, the child must be restrained using
the vehicle’s seat belt.
If a child must sit in the seat, the seat
belts should be worn properly. If an acci-
dent occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Do not allow the child to stand up or
kneel on the seat. An unrestrained child
could suffer serious injury or death during
emergency braking or a co llision. Also, do
not let the child sit on your lap. Holding
a child in your arms does not provide
sufficient restraint. Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.

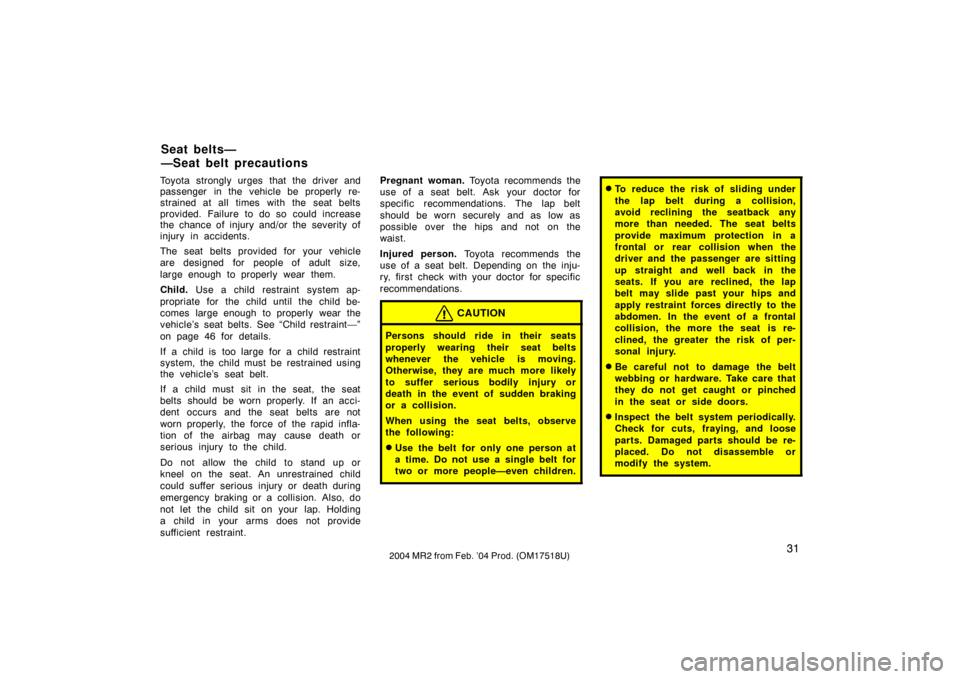

CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the passenger are sitting
up straight and well back in the
seats. If you are reclined, the lap
belt may slide past your hips and
apply restraint forces directly to the
abdomen. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of per-
sonal injury.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Seat belts—
—Seat belt precautions

322004 MR2 from Feb. ’04 Prod. (OM17518U)

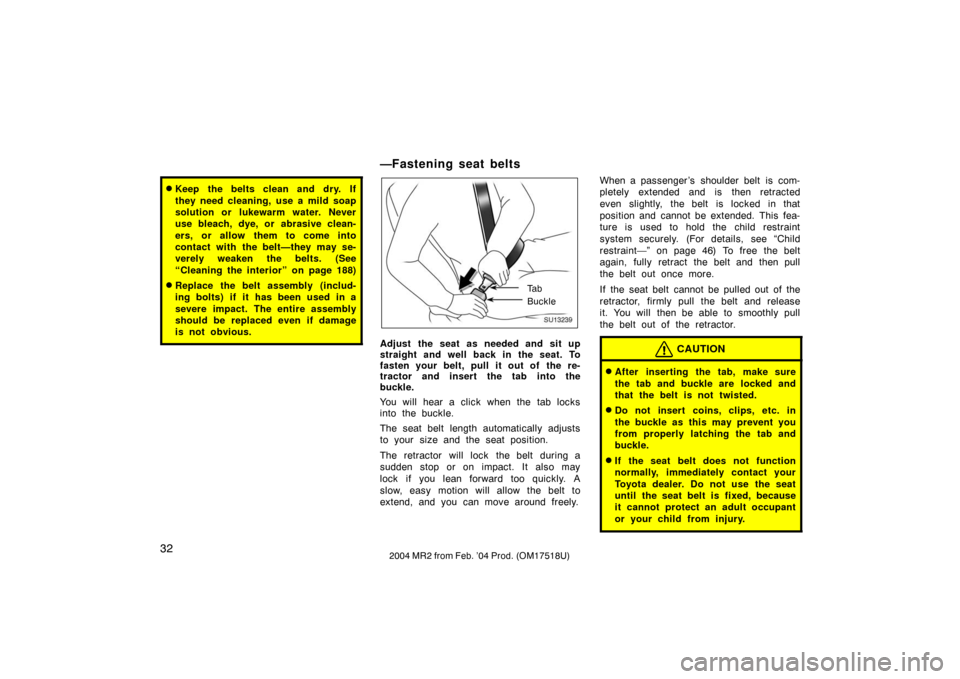

Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belt—they may se-
verely weaken the belts. (See
“Cleaning the interior” on page 188)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
—Fastening seat belts
SU13239
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint—” on page 46) To free the belt
again, fully retract the belt and then pull
the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
