TOYOTA PRIUS 2001  Service Repair Manual BO3SV±01
H15461
A
B
H15368
H15458
H15369
Hog Ring
BO±76
± BODYFRONT SEAT
2001 PRIUS   (RM778U)
DISASSEMBLY
CAUTION:
When storing the seatback frame with the side airbag
assembly, do not face down

Page 1892 of 1943

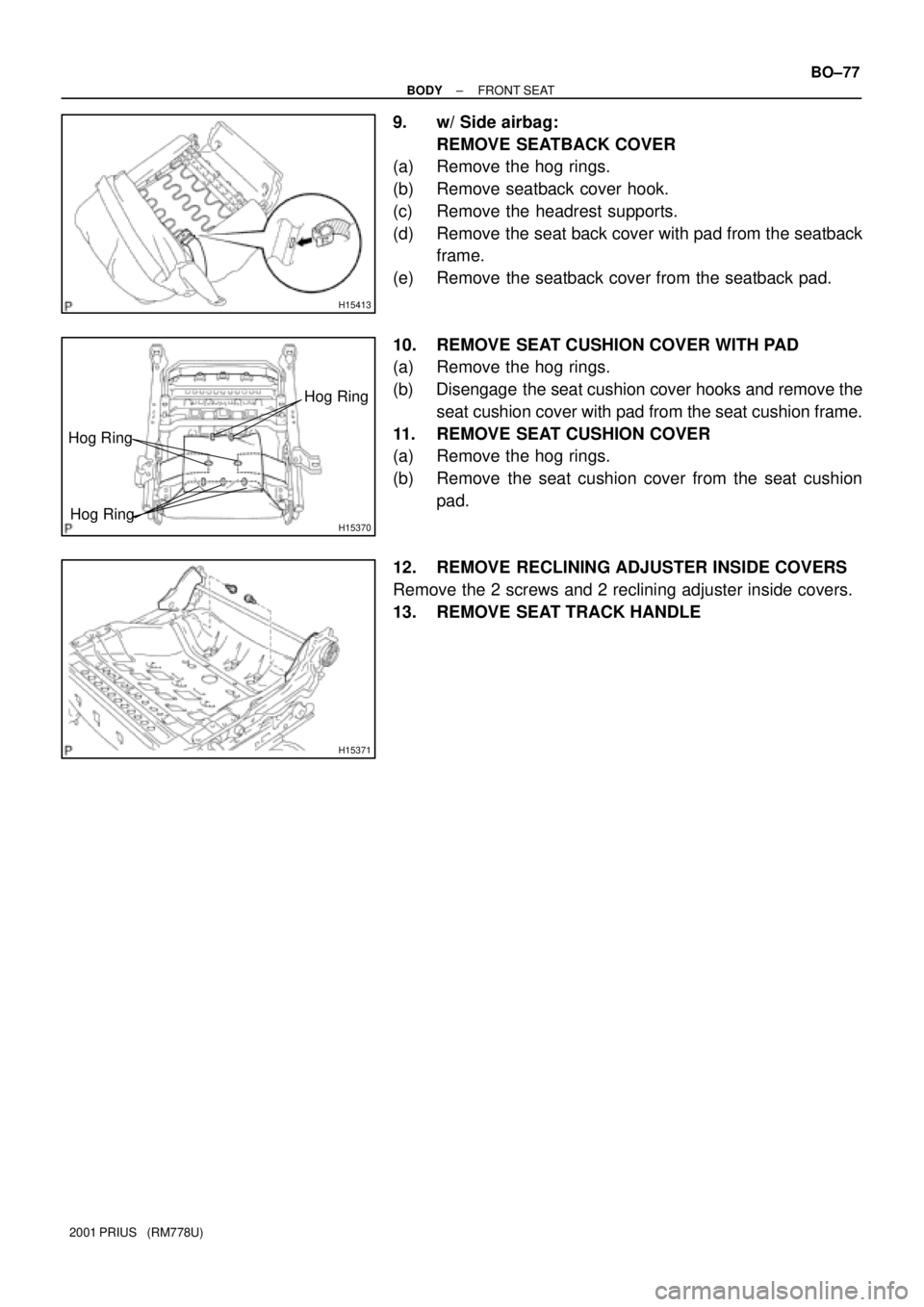

TOYOTA PRIUS 2001  Service Repair Manual H15413
H15370
Hog RingHog Ring
Hog Ring
H15371
± BODYFRONT SEAT
BO±77
2001 PRIUS   (RM778U)
9. w/ Side airbag:
REMOVE SEATBACK COVER
(a) Remove the hog rings.
(b) Remove seatback cover hook.
(c) Rem

Page 1893 of 1943

TOYOTA PRIUS 2001  Service Repair Manual BO3SW±01
H15371
H15370
Hog Ring
Hog Ring
Hog Ring
H15369
Hog Ring
H15413
± BODYFRONT SEAT
BO±79
2001 PRIUS   (RM778U)
REASSEMBLY
NOTICE:
If the seatback frame with the side airbag assembly has
been

Page 1894 of 1943

TOYOTA PRIUS 2001  Service Repair Manual H15368
H15458
H15461
AB
BO±80
± BODYFRONT SEAT
2001 PRIUS   (RM778U)
(d) Install the headrest supports.
7. w/o Side airbag:
INSTALL SEATBACK ASSEMBLY
Install seatback assembly with 4 bolts.
Torque:

Page 1895 of 1943

TOYOTA PRIUS 2001  Service Repair Manual BO3T5±01
BO0632
BO0633
45° 15° BO±88
± BODYSEAT BELT
2001 PRIUS   (RM778U)
INSPECTION
CAUTION:
Replace the seat belt assembly (outer belt, inner belt, bolts,
nuts or sill±bar) if it has been use

Page 1896 of 1943

TOYOTA PRIUS 2001  Service Repair Manual N10070
Full Belt Length Minus
200 mm (7.87 in.)
BO0633
15°
45°
± BODYSEAT BELT
BO±89
2001 PRIUS   (RM778U)
(e) Retract whole belt, then pull out the belt until 200 mm
(7.87 in.) of belt remains re

Page 1897 of 1943

TOYOTA PRIUS 2001  Service Repair Manual BO3T6±01
H13689
H13690
H13691
2 Clips
H13692
BO±90
± BODYSEAT BELT PRETENSIONER
1875 Author: Date:
2001 PRIUS   (RM778U)
SEAT BELT PRETENSIONER
REMOVAL
NOTICE:
If the wiring connector of the sea

Page 1898 of 1943

TOYOTA PRIUS 2001  Service Repair Manual H15467
H15471
± BODYSEAT BELT PRETENSIONER
BO±91
1876 Author: Date:
2001 PRIUS   (RM778U)
(e) Drivers side:
Remove the retractor of front seat outer belt.
CAUTION:
Never disassemble the front sea

Page 1899 of 1943

TOYOTA PRIUS 2001  Service Repair Manual BO3T8±01
AB0152
SST
AB0158
SSTBattery
± BODYSEAT BELT PRETENSIONER
BO±93
2001 PRIUS   (RM778U)
DISPOSAL
HINT:
When scrapping vehicles equipped with a seat belt pretension-
er or disposing of a fron

Page 1900 of 1943

TOYOTA PRIUS 2001  Service Repair Manual AB0152
SST
AB0158
SSTBattery
H01580
SST
H15467H15471H16295
Drivers side:
Except drivers side:
BO±94
± BODYSEAT BELT PRETENSIONER
2001 PRIUS   (RM778U)
(a) Check the functioning of SST.
CAUTION:
Wh
