TOYOTA PRIUS 2002 1.G Navigation Manual

34
1UE059
The current vehicle position mark ap-
pears in the center of the Map screen. You
can return to this map screen showing
your current position at any time from
any screen by pushing the
“MAP”
switch.
During driving, the current vehicle position
mark is fixed in the center of the screen and
the map moves.
If you move the map with a “one −touch”
scroll (see page 48 for details), the current
vehicle position mark continues to track your
current location.
INFORMATION
When you use the “onetouch” scroll
feature, the current vehicle position
mark may disappear from the screen.
Move the map with a “onetouch”
scroll again or push the
“MAP” switch
to return to the current vehicle position
map location display.
The current position is automatically set
as your vehicle receives signals from the
GPS (Global Positioning System). If your
current position is not correct, it is auto-
matically corrected after your vehicle re-
ceives signals from the GPS.
INFORMATION
After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
If you must correct the current position
manually, follow the steps on page 77. Voice guidance is offered automatically
during route guidance. Use voice guid-
ance just for your reference.
You can adjust the volume of the voice or turn
off voice guidance.
1UE040
Push
the “MENU” switch to display the
Menu sc reen. Then touch the
“Volume”
switch on the Menu screen.
Current position displayVoice guidance

35
1UE060
Touch any number to select the desired
volume. Touching the “Off” switch turns
the voice route guidance off. If you turn
the
“Adaptive volume control” on,
the volume is turned up automatically
when the vehicle speed exceeds 80 km/h
(50 mph).
INFORMATION
During route guidance, the voice route
guidance continues even if the naviga-
tion screen is changed to the other
screens, such as the audio screen.
UN301
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver the
vehicle.
1“Proceed about 5 miles”
2“In a quarter of a mile, right turn”
3“Right turn.”
4(Beep sound only)
INFORMATION
On freeways, interstates or other high-
ways with higher speed limits, the
voice guidance will be made at earlier
points than on city streets in order to al-
low time to maneuver.
Typical voice guidance
p
rompts

36
IS2
1“Proceed about 4 miles to thetraffic circle.”
2“In a quarter of a mile, trafficcircle ahead, and then 3rd exit.”
3“The 3rd exit ahead.”
4(Beep sound only)
5“The exit ahead.”
6(Beep sound only)
EMV3114U
∗: The system indicates a U −turn if the dis-
tance between two one −way roads (of oppo-
site directions) is less than 15 m (50 ft.) in
residential areas or 50 m (164 ft.) in non −res-
idential areas.
1“In half of a mile, make a legal U−turn.”
2“Make a legal U −turn ahead.”
3(Beep sound only)
EMV3115U
The system announces your approach to the
final destination.
1“Your destination is ahead.”
2“You have arrived at your destina-
tion. The route guidance is now
finished.”

37
INFORMATION
If the system cannot determine the
current vehicle position correctly (in
cases of poor GPS signal reception),
the voice guidance may be made ear-
ly or delayed.
 If you did not hear the voice guid-
ance command, push the
“MAP”switch to hear it.
If you register your home address before-
hand, you can eas ily set the route back to
your home.
1UE040
1. Push the “MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE061
2. Touch the “Reg. home” switch of
Marked points screen for registering
your home.
Registering your home

38If your home is registered, the
“Delete
home”
switch will be shown.
1UE062
You may register the location of your
home by some different methods: cur-
rent position, address, map location, etc.
Touch the screen to select your desired
method from the menu.
Input your home in the same way as the des-
tination input. (See page 22.)
Deleting your home
1UE040
1. Push the “MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Delete home” switch on
the “Marked points” screen.

39
1UE064
The screen changes and displays the map
location of home and a message. If you are
sure that you want to delete the point, touch
the
“Yes” switch. If not, touch the “No”
switch. You can register up to 5 preset destina-
tions
1. Push the
“MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE065
2. Touch the “Register” switch of Pre-
set destinations
1~5.
1UE066
3. Touch the “1~5” switch that you
want to register the preset destination.
Registering preset
d
estinations

40If you have already registered the preset
destination,
you can overwrite on the present
registered destination.
1UE067

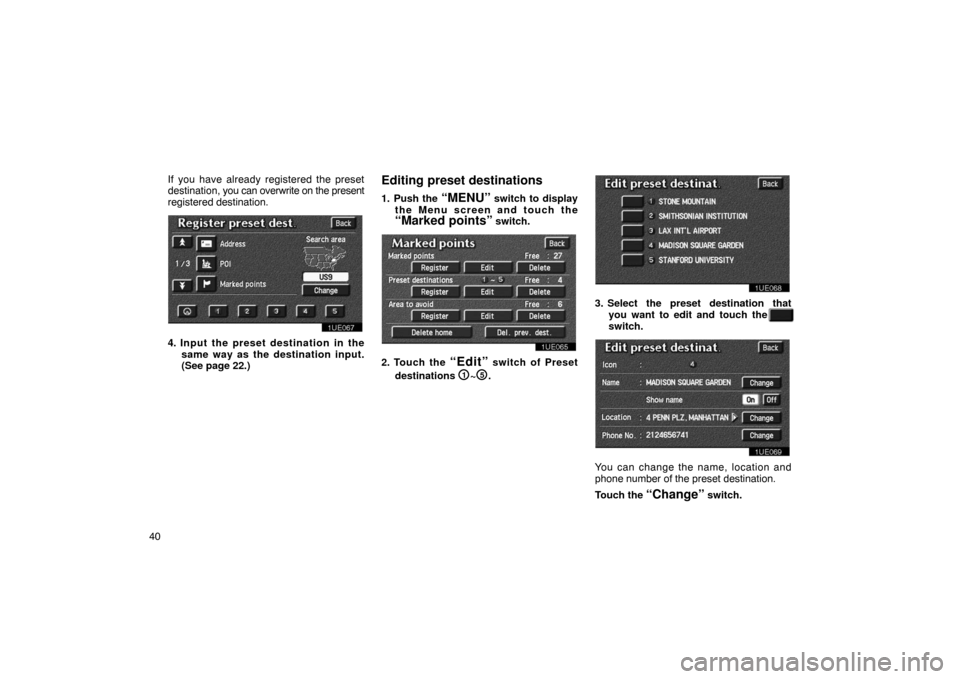

4. Input the preset destination in the
same way as the destination input.
(See page 22.)
Editing preset destinations
1. Push the “MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE065
2. Touch the “Edit” switch of Preset
destinations
1~5.
1UE068
3. Select the preset destination that you want to edit and touch the
switch.
1UE069
You can change the name, location and
phone number of the preset destination.
Touch the
“Change” switch.

41

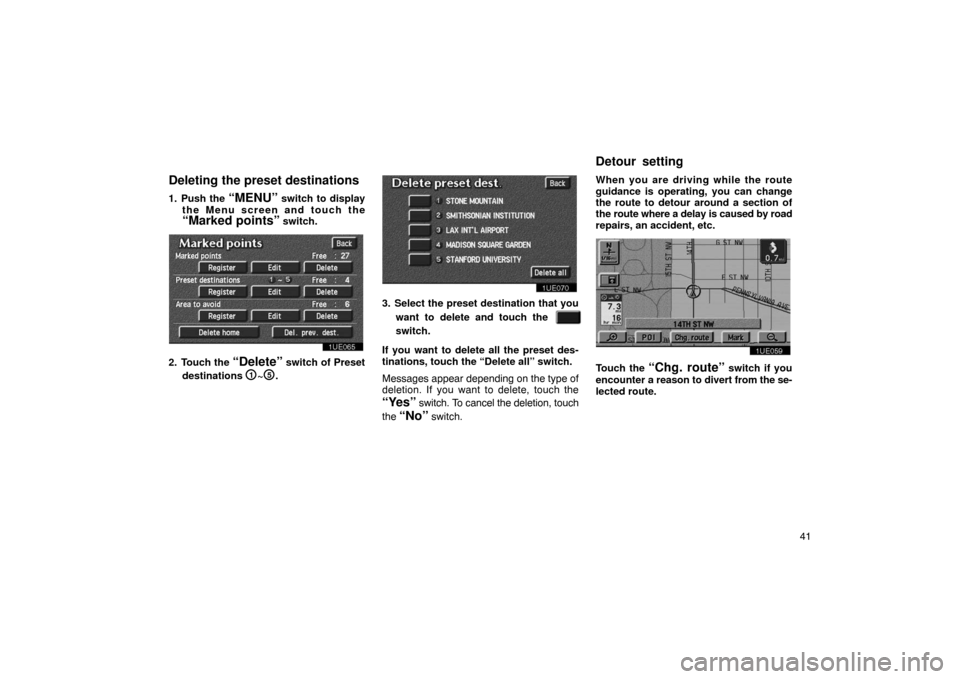

Deleting the preset destinations
1. Push the “MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE065
2. Touch the “Delete” switch of Preset
destinations
1~5.
1UE070
3. Select the preset destination that you
want to delete and touch the
switch.
If you want to delete all the preset des-
tinations, touch the “Delete all” switch.
Messages appear depending on the type of
deletion. If you want to delete, touch the
“Yes” switch. To cancel the deletion, touch
the
“No” switch. When you are driving while the route
guidance is operating, you can change
the route to detour around a section of
the route where a delay is caused by road
repairs, an accident, etc.
1UE059
Touch the “Chg. route” switch if you
encounter a reason to divert from the se-
lected route.
Detour setting

42
EMV3065U

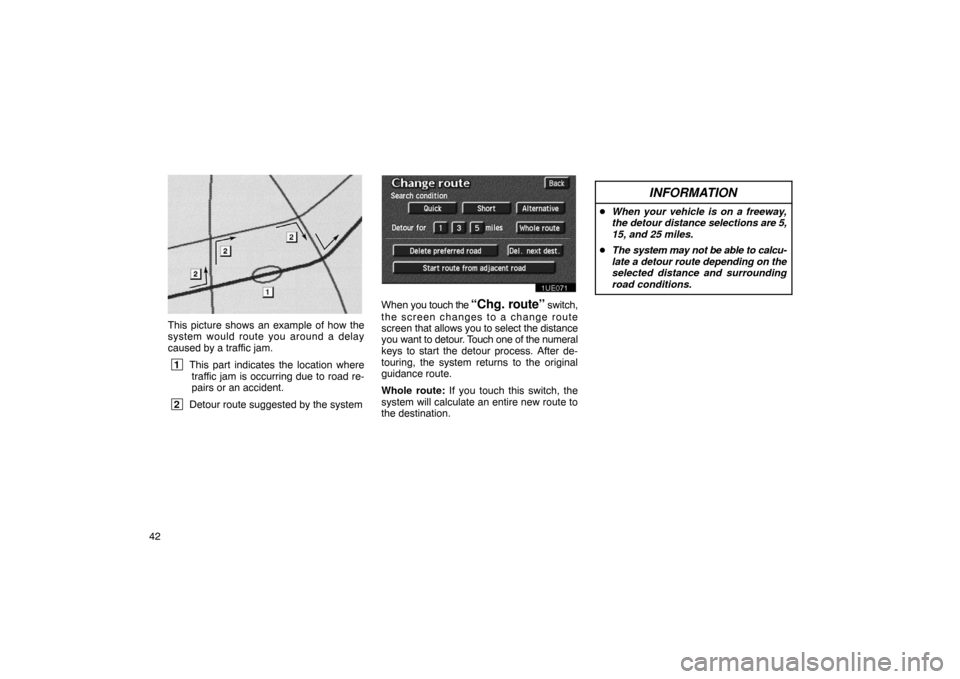

This picture shows an example of how the
system would route you around a delay
caused by a traffic jam.
1This part indicates the location where
traffic jam is occurring due to road re-
pairs or an accident.
2 Detour route suggested by the system
1UE071
When you touch the “Chg. route” switch,
the screen changes to a change route
screen that allows you to select the distance
you want to detour. Touch one of the numeral
keys to start the detour process. After de-
touring, the system returns to the original
guidance route.
Whole route: If you touch this switch, the
system will calculate an entire new route to
the destination.
INFORMATION
 When your vehicle is on a freeway,
the detour distance selections are 5,
15, and 25 miles.
 The system may not be able to calcu-
late a detour route depending on the
selected distance and surrounding
road conditions.

43
Points of interest such as gas stations
and restaurants can be displayed on the
Map screen. You can also set their loca-
tion as a destination and use them for
route guidance.
1UE059
To display a particular type of point of in-
terest on the screen, touch the
“POI”
switch on the Map screen.
1UE072
A window with a limited choice of points of in-
terest will be displayed. When you touch
your desired type of point of interest, icons
will appear on the Map screen indicating
where the POI addresses are located.
1UE073
More:
If you cannot find your desired point of
interest on the limited choice screen, touch
this switch. The screen then displays the
complete POI listing screen. You can display
up to 5 categories of icons on the screen.
Displaying POI
