TOYOTA PRIUS 2002 1.G Navigation Manual

64

65
ADVANCED FUNCTIONS
Descriptions of operations for more effective use
Marked points66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Area to avoid 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Current position calibration 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
SECTION II

66You can register and keep your own
marked
points of interest list (like restau-
rants, sports facilities, etc.) and use the
marked points to input a destination.
1UE040
1. Push the “MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Register” switch of the
Marked points.
2UE001
A screen similar to that for destination input
appears. Input the address of the marked
point in the same way as any destination in-
put. See page 8 through 22.
Marked points
(a) Registering marked
p
oints

67
When you finish registration of the
marked point, the Register marked point
screen appears.
2SE004U
3. Touch your desired icon. You can turn
the page by touching the “Page 1” or“Page 2” switch. Touching the“With sound” switch, you can se-
lect your desired sound. (For details,
see page 68.)
INFORMATION
Up to 100 marked points can be regis-
tered.
Once a marked point is registered, you
can edit the icon, name or telephone
number.
1. Push the
“MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Edit” switch of Marked
points.
2UE003
The screen lists the marked points.
Sort by Icon: Touch this switch to list the
marked points in order of the category of
icon.
Sort by Date: Touch this switch to list the
marked points in order of the registered date.
Sort by Name: Touch this switch to list the
marked points in alphabetical order.
Touch
of the desired marked point to
display the Edit marked point screen.
(b) Editing marked points

68
2UE002
Touch the item to edit (on the right side of
the screen).
CHANGING THE “ICON”
2UE004
Touch your desired icon.
Page 1 and page 2: You can select one of 46
icons.
When you touch the desired icon,
“Back”
or complete the direction setting, the pre-
vious screen is displayed. With sound:
When your vehicle ap-
proaches the marked point, the sound which
you chose will sound.
The next screen appears when you select
the “Bell (with direction)” switch.
2UE005
Touch the direction switches and adjust the
direction. Touch the “OK” switch. The bell
sounds when your vehicle approaches this
point in the direction that you set.
When you touch the desired icon,
“Back”
or complete the direction setting, the pre-
vious screen is displayed.

69

CHANGING THE “NAME”
2UE006
Touch alphabet or numeral keys directly
to input the name.
After you finish your entry, touch the
“OK”
switch.
The previous screen will be displayed. If you
touch the
“Off” switch of show name, the
name of this marked point is not shown on
the map.
CHANGING THE “PHONE NUMBER”
2UE007
Touch numeral keys directly.
After you finish your entry, touch the
“OK”
switch.
The previous screen will be displayed.
CHANGING THE “LOCATION”
2UE008
Touch the arrows to scroll to your desired
point on the Map screen.
Touch the
“OK” switch when the cursor
moves to your desired point.
The previous screen will return.
After you finish any editing, touch the
“Back” switch on the first screen of Edit
marked points.

70You can register up to 100 marked points. If
you attempt to register more than 100, a
message appears for confirmation.
2UE009
If you want to register a new point, delete one
of the marked points. See “(c) Deleting
marked points”.
1. Push the
“MENU” switch to display
the Menu screen and touch the
“Marked points” switch.
1UE063
2. Touch the “Delete” switch of the
marked points.
2UE010
3. Touch of the marked point to de-
lete.
(c) Deleting marked points

71
The screen for confirmation will appear
with the map of the marked point. If you
want to delete, touch
“Yes”. Touching
“No” or “Back” will return to the pre-
vious screen.
If you want to delete all of the marked
points, touch the
“Delete all” switch.
The screen for confirmation will appear.
Touching
“Yes” will delete all of the
marked points. Touching
“No” or
“Back” will return to the previous
screen.
To delete only specified marked points, use
the
“Icon”, “Date” or “Name” switch
to display the screen, so that you can easily
find the marked points.
2UE011
2UE012
Either of the above messages appears de-
pending on the type of deletion. If you want
to delete, touch the
“Yes” switch. To cancel
the deletion, touch the
“No” or “Back”
switch.
2UE013
You can register your current position or
any points (See “Screen Scrolling”on
page 48.) from the Map screen by touch-
ing the
“Mark” switch.
(d) Onetouch marked point
r
egistration

72

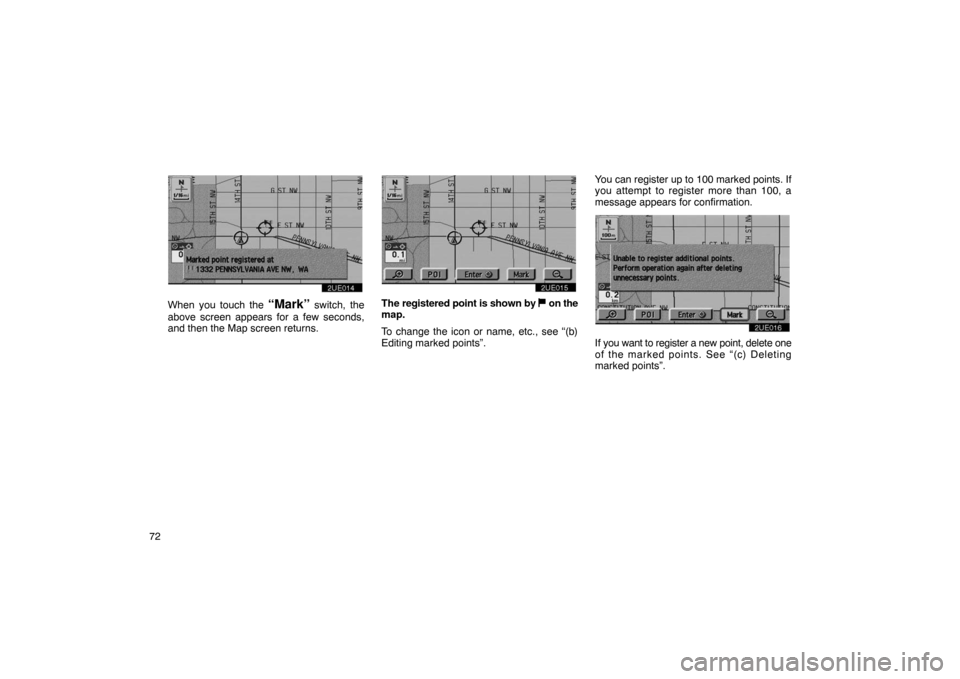

2UE014
When you touch the “Mark” switch, the
above screen appears for a few seconds,
and then the Map screen returns.
2UE015
The registered point is shown by on the
map.
To change the icon or name, etc., see “(b)
Editing marked points”. You can register up to 100 marked points. If
you attempt to register more than 100, a
message appears for confirmation.2UE016
If you want to register a new point, delete one
of the marked points. See “(c) Deleting
marked points”.

73
Any areas you want to avoid due to traffic
jams, construction work or other reasons
can be registered as an area to avoid.
Push the
“MENU” switch to display
Menu screen and then touch the
“Marked points” switch to display the
following screen.
1UE063
INFORMATION
 Some areas and freeways may not
be able to be set as an avoid point.
 If a destination is input in the area to
avoid or the route calculation cannot
be made without running through
the area to avoid, a route passing
through the area to avoid may be
shown.
1. Touch the “Register” switch of Area
to avoid.
2UE017
Area to avoid(a) Registering area to avoid
