Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against something
that may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to avoid or reduce the risk to
yourself and other people.
INFORMATION
This provides additional information.
Initial screen
UN001
When you start the hybrid system or turn the
ignition switch to “ACC”, the initial “T OYOTA”
screen appears and the system begins oper-
ating.
CAUTION
When the vehicle is stopped with the
hybrid system operating, always apply
the parking brake for safety.
After a few seconds, the “CAUTION” screen
appears.
0UE003
Touch either “English” or “French” to se-
lect the language. Read it and follow the
instructions.
If a screen other than for the navigation sys-
tem is displayed, the current screen would
change to the
“CAUTION” screen by
pushing the
“MAP”, “DEST” or
“MENU” switch.
When you touch the
“I agree” switch on
the screen, the Map screen appears.

v
Overview of Touch Screen and Switches
Switch operation
This system operates mainly by the
switches on the screen. To protect the
screen, lightly touch switches on the
screen with your finger. When you touch
a switch on the screen or on the bezel, a
beep sounds.
INFORMATION
 If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface
of the display using a glass cleaning
cloth.
 The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.

UNP001
Current vehicle
position mark
Indicates the current
position. For details,
see page 34.
Current street name
Turn on this function
to indicate the current
street name. For
details, see page 85.
MAP switch
Push this switch to
repeat voice guidance,
cancel one touch
scroll and start
guidance. For details,
see page 34.
DEST switch
Push this switch to
display the Destination
screen. For details,
see page 4.
MENU switch
Push this switch to
display the Menu
screen. This screen
allows you to make
adjustments or correct
settings of various
options and functions.
INFO switch
Push this switch to
display the Information
menu screen. For
details, see page 86.
Northup or
Headingup symbol and Scale of map
Indicates a map view with north up or
heading up. Touching this symbol changes
map orientation. The
figure also indicates the
map scale. For details, see page 49.
GPS (Global
Positioning System) mark
Whenever your vehicle is receiving signals
from the GPS, this
mark is displayed. For
details, see page 49.
Map/Guidance
Touch this switch to change the screen
mode. For details, see page 28.
Displays the distance and the estimated travel time to
the destination. If you input more than two
destinations, it displays the distance and time to the
next destination. Touching this indication will change it
to the distance and time to the other destinations. The
direction will be indicated when your vehicle is off the
route.
Distance and time
to destination
vi
Symbols and Switches

vii
Changing the route
guidance
When you touch this switch, the Change
route screen will appear. For details, see
page 29.
Onetouch registration
of marked point
Touch this switch to register the current ve-
hicle position as a marked point. For details,
see page 71.
Displaying of points of
interest
Symbols such as restaurants and hotels, etc.
can be displayed on the screen. For details,
see page 43.
Zoom in/Zoom out
These switches magnify or reduce the map
scale. For details, see page 47.

1
BASIC FUNCTIONS
Descriptions of basic operations in frequent use
Inputting letters and numbers2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
How to move the cursor 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Destination input Explains 11 ways to input your destination 4
. . . . . . . . . . . . .
Explains 11 ways to input your destination
Setting and deleting destination 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Setting and deleting preferred road 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route guidance screen 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Route preview 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Current position display 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Voice guidance 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Typical voice guidance prompts 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Registering your home 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Registering preset destinations 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Detour setting 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Displaying POI 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Map appearance 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Map scale 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Screen scrolling 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Orientation of the map 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Limitations of the navigation system 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

2The navigation system operates by
switches on
the screen and the switches
located on the front face around the
screen. When you touch or push a switch,
a beep sounds. When using the switches
on the touch screen, please use only light
pressure with your finger to protect the
screen from damage. Do not use objects
other than your finger to touch the
screen.
1UE001
To type in an address etc., directly touch al-
phabet keys on the screen. If you touch a
wrong letter, delete it using the
switch.
Touching the
switch erases one letter. Touching
the
“List” switch will change the
screen to a display of the database items that
match the name or address that you have
entered on the screen. The number of
matching items is shown to the right side of
the screen. If the matching item is more than
9,999, the system displays
“” on the
screen.
To input numerals, touch the
“0–9” switch
and the display will change the screen to
number input display.
1UE002
Touching the “A–Z” switch changes the
screen back to the previous name input dis-
play.
1UE003
When a list is displayed, you can scroll or
page through the list by using the appropri-
ate switch.
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed screen
position.
Inputting letters and number

3
If appears on the right of the item
name, the complete name is too
long for the display. Touch , and
the name will scroll to the end of the
name.
Touching will scroll the name to
the beginning of the name.
1UE004
1. Touch
the “Adjust” switch to move the
cursor .
1UE005
 Position locating screen on the map
2. When you touch an arrow facing your de-
sired point, the map scrolls in that direc-
tion. When you release your finger, scrol-
ling stops.
3. If you touch the
“Enter” switch, the
position of cursor is set.
How to move the cursor

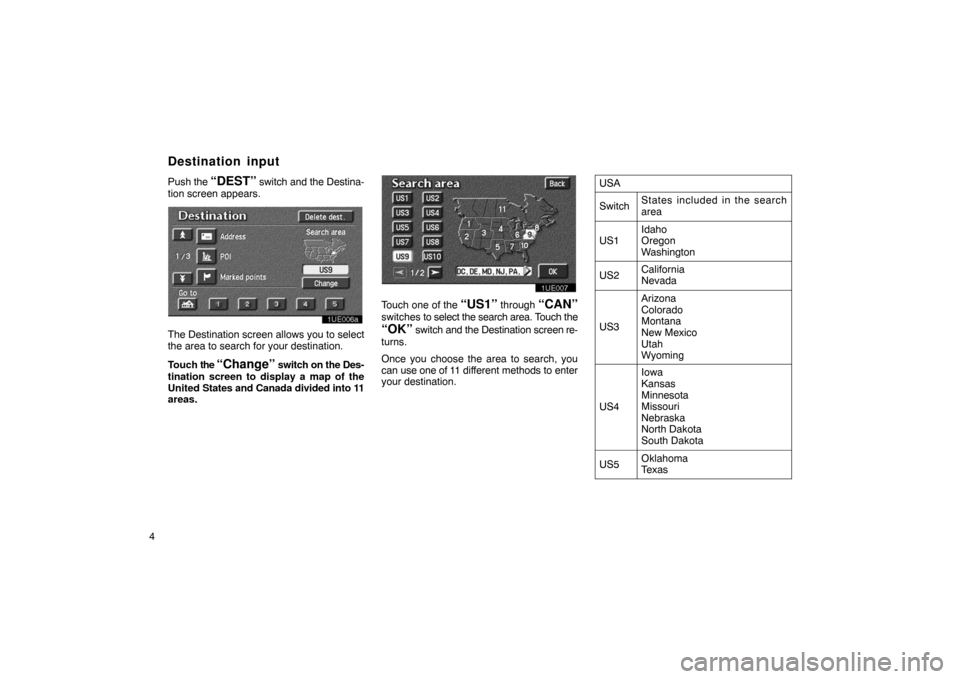

4Push
the
“DEST” switch and the Destina-
tion screen appears.
1UE006a
The Destination screen allows you to select
the area to search for your destination.
Touch the
“Change” switch on the Des-
tination screen to display a map of the
United States and Canada divided into 11
areas.
1UE007
Touch one of the “US1” through “CAN”
switches to select the search area. Touch the
“OK” switch and the Destination screen re-
turns.
Once you choose the area to search, you
can use one of 11 different methods to enter
your destination. USA
SwitchStates included in the search
area
US1
Idaho
Oregon
Washington
US2California
Nevada
US3
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
US4
Iowa
Kansas
Minnesota
Missouri
Nebraska
North Dakota
South Dakota
US5Oklahoma
Texas
Destination input

6You can find your destination using various
methods. See page 7
through 22 for the de-
tailed steps.
1. By Home (
switch on the Destina-
tion screen): You can select your own
home without entering the address each
time. In this case, it is necessary to regis-
ter your home beforehand. See page 7
for the detailed steps.
2. By Preset destination (
— switches on the Destination screen):
You can select one of 5 preset destina-
tions directly. In this case, it is necessary
to register the destinations beforehand.
See page 7 for the detailed steps.
3. By Address: You can input the house
number and the street address by using
the input keys. See page 8 for the de-
tailed steps.
4. By Point of Interest: You can select one of the many points of interest that have
been already stored in the system’s data-
base. There are more than 50 categories
to choose from including restaurants,
banks and automotive places. See page
10 for the detailed steps. 5. By Marked point:
You can register your
own favorite destinations as a “Marked
Point”. The system allows you to store up
100 marked points. See page 17 for the
detailed steps.
6. By Previous destination: You can select a destination from any of the last 20 pre-
viously set destinations. See page 17 for
the detailed steps.
7. By Emergency: You can select one of the three points of emergency service points
that have been already stored in the sys-
tem’s database. See page 18 for the de-
tailed steps.
8. By Intersection: Yo u c a n e n t e r t h e
names of two intersecting streets. This is
helpful if you do not know the specific
street address of your destination but
know the general vicinity. See page 19 for
the detailed steps.
9. By Freeway Entrance/Exit: You can en-
ter the name of the freeway (interstate)
entrance or exit. See page 20 for the de-
tailed steps.
10. By Previous starting point: You can en-
ter a point where the system has started
to guide last time. See page 21 for the de-
tailed steps. 11. By Map selection:
You can select a des-
tination simply by touching the location on
the displayed map. See page 22 for the
detailed steps.
INFORMATION
 When inputting the destination, the
response to the switch may be slow.
 “Point of interest” are mainly regis-
tered in “Detailed map coverage
areas”. The registration is made
based on the NavTech “Standard
POI Inclusion List”.
 If there is no point registered,
switches such as “Marked point”,
“Previous destination” or “Previous
starting point” are dimmed and not
available.
 The route for returning may not be
the same as that for going.
 The route guidance to the destina-
tion may not be the shortest route or
a route without traffic congestion.
 Route guidance may not be available
if there is no road data for the speci-
fied location.

7

When setting the destination, you
should use the map on a scale of one
half mile or smaller.
 To select an “Address”, “Point of in-
terest”, “Freeway Entrance/Exit” or
“Intersection” in a dif ferent area, it is
necessary to change the search
area.
CAUTION
While you are driving, be sure to follow
traffic regulations and keep the road
condition in mind. If a traffic sign on the
road has been changed, the route guid-
ance may provide wrong information.
Touch the switch on the Destination
input screen.
The screen changes and displays the
map location of your home.
The system starts the guidance from your
current position to your home immediately
after you touch the
switch .
For the steps to register your home, see
”Registering your home” on page 37. Touch any of
— (preset destina-
tion) switches on the destination input
screen.
The screen changes and displays the map
location of the preset destination.
The system starts the guidance from your
current position to the preset destination im-
mediately after you touch the preset destina-
tion switch.
For the steps to register the preset destina-
tion, see “Registering preset destination” on
page 39.
Destination input by HOME
Destination input by PRESET
D
ESTINATION
