TOYOTA PRIUS 2006 2.G Navigation Manual

1
BASIC FUNCTIONS
Basic information before operation
Initial screen2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . .
Touch screen operation 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Inputting letters and numbers/List screen operation 4
. . . . . . . . . . . . . . . . . . . . . . . .
Function help 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . .
Map screen operation 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Current position display 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Screen scroll operation 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Switching the screens 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Map scale 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Foot print map 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Orientation of the map 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
SECTION I

2

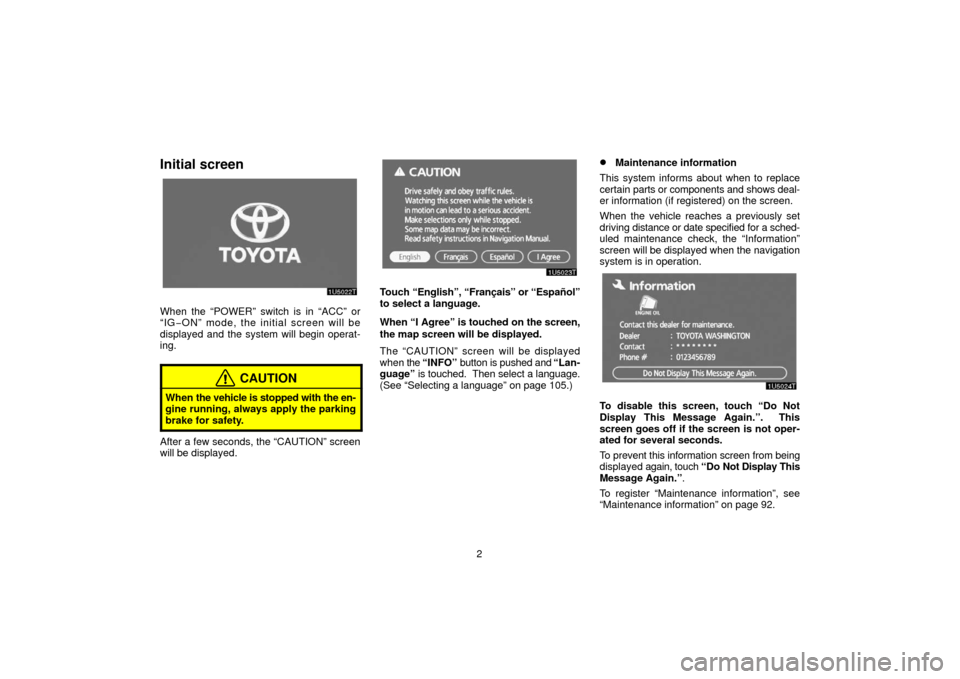

Initial screen
When the “POWER” switch is in “ACC” or
“IG−ON” mode, the initial screen will be
displayed and the system will begin operat-
ing.
CAUTION
When the vehicle is stopped with the en-
gine running, always apply the parking
brake for safety.
After a few seconds, the “CAUTION” screen
will be displayed.
Touch “English”, “Français” or “Español”
to select a language.
When “I Agree” is touched
on the screen,
the map screen will be displayed.
The “CAUTION” screen will be displayed
when the “INFO” button is pushed and “Lan-
guage” is touched. Then select a language.
(See “Selecting a language” on page 105.)
Maintenance information
This system informs about when to replace
certain parts or components and shows deal-
er information (if registered) on the screen.
When the vehicle reaches a previously set
driving distance or date specified for a sched-
uled maintenance check, the “Information”
screen will be displayed when the navigation
system is in operation.
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not oper-
ated for several seconds.
To prevent this information screen from being
displayed again, touch “Do Not Display This
Message Again.” .
To register “Maintenance information”, see
“Maintenance information” on page 92.

3

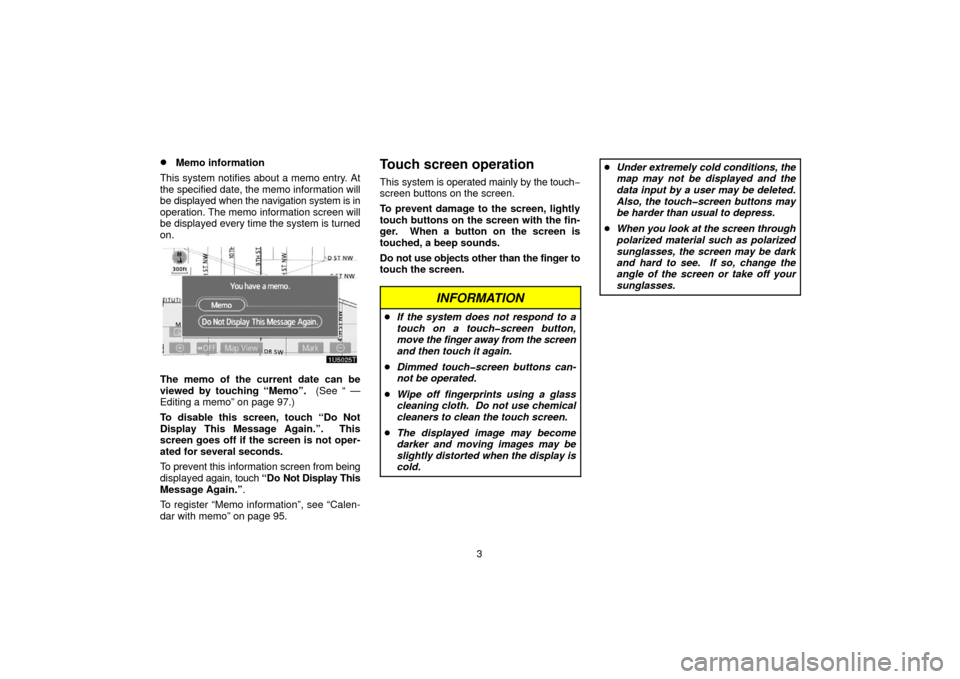

Memo information
This system notifies about a memo entry. At
the specified date, the memo information will
be displayed wh en the navigation system is in
operation. The memo information screen will
be displayed every time the system is turned
on.
The memo of the current date can be
viewed by touching “Memo”. (See “ —
Editing a memo” on page 97.)
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not oper-
ated for several seconds.
To prevent this information screen from being
displayed again, touch “Do Not Display This
Message Again.” .
To register “Memo information”, see “Calen-
dar with memo” on page 95.
Touch screen operation
This system is operated mainly by the touch−
screen buttons on the screen.
To prevent damage to the screen, lightly
touch buttons on the screen with the fin-
ger. When a button on the screen is
touched, a beep sounds.
Do not use objects other than the finger to
touch the screen.
INFORMATION
 If the system does not respond to a
touch on a touchscreen button,
move the finger away from the screen
and then touch it again.
 Dimmed touchscreen buttons can-
not be operated.
 Wipe off fingerprints using a glass
cleaning cloth. Do not use chemical
cleaners to clean the touch screen.
 The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
Under extremely cold conditions, the
map may not be displayed and the
data input by a user may be deleted.
Also, the touchscreen buttons may
be harder than usual to depress.
 When you look at the screen through
polarized material such as polarized
sunglasses, the screen may be dark
and hard to see. If so, change the
angle of the screen or take off your
sunglasses.

4

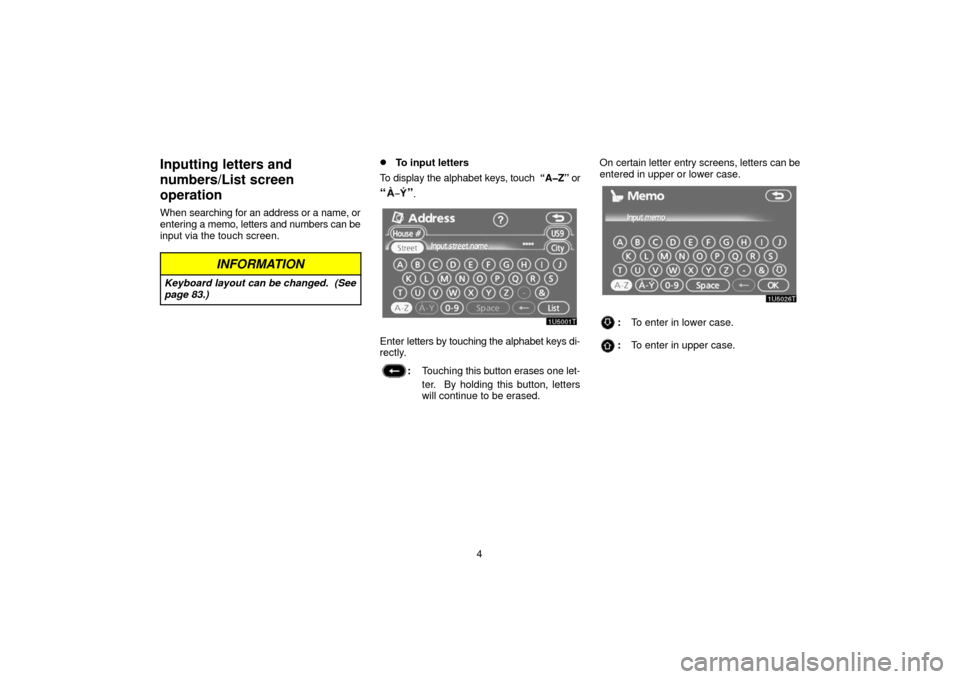

Inputting letters and
numbers/List screen
operation
When searching for an address or a name, or
entering a memo, letters and numbers can be
input via the touch screen.
INFORMATION
Keyboard layout can be changed. (See
page 83.)
To input letters
To display the alphabet keys, touch “AZ” or
“”.
Enter letters by touching the alphabet keys di-
rectly.
: Touching this button erases one let-
ter. By holding this button, letters
will continue to be erased. On certain letter entry screens, letters can be
entered in upper or lower case.
:
To enter in lower case.
:To enter in upper case.

5

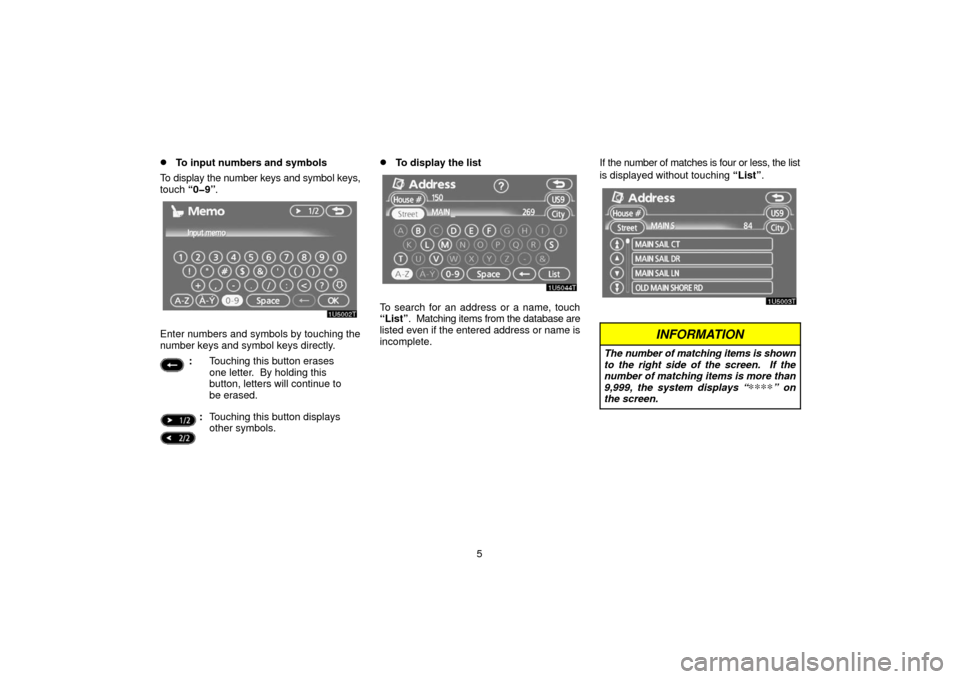

To input numbers and symbols
To display the number keys and symbol keys,
touch “09” .
Enter numbers and symbols by touching the
number keys and symbol keys directly.
:Touching this button erases
one letter. By holding this
button, letters will continue to
be erased.
:Touching this button displays
other symbols.
To display the list
To search for an address or a name, touch
“List” . Matching items from the database are
listed even if the entered address or name is
incomplete. If the number of matches is four or less, the list
is displayed without touching
“List”.
INFORMATION
The number of matching items is shown
to the right side of the screen. If the
number of matching items is more than
9,999, the system displays “
∗∗∗∗” on
the screen.

6

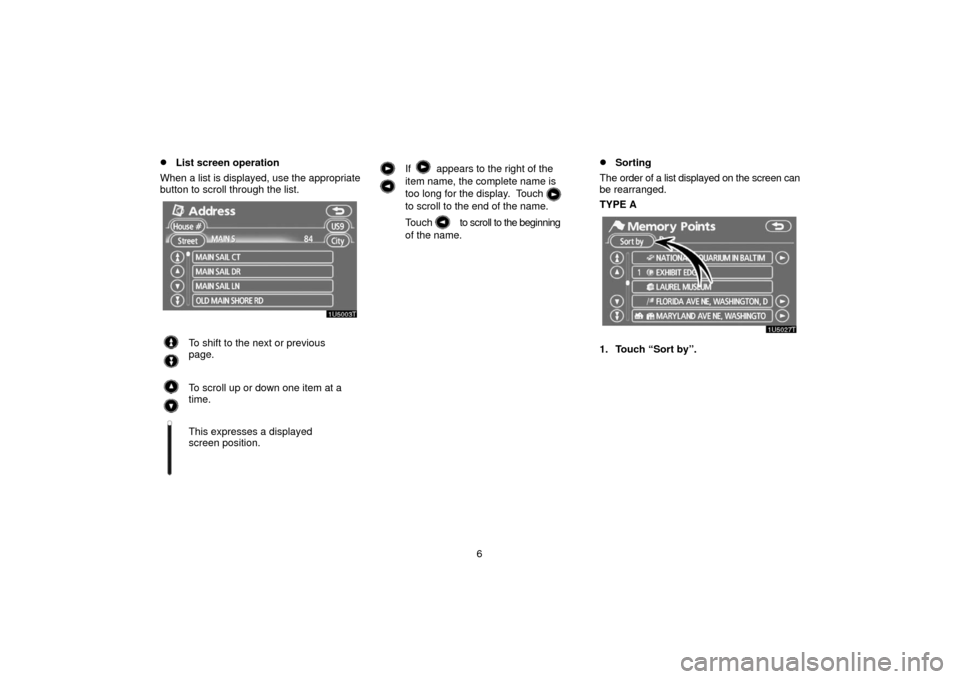

List screen operation
When a list is displayed, use the appropriate
button to scroll through the list.
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed
screen position.
If appears to the right of the
item name, the complete name is
too long for the display. Touch
to scroll to the end of the name.
Touch to scroll to the beginning

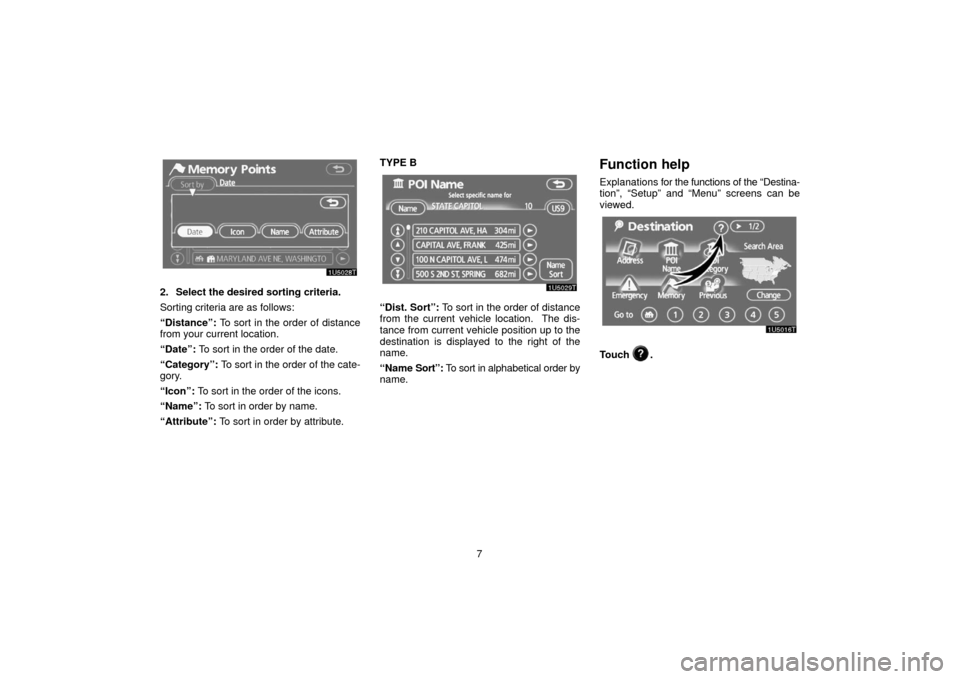

of the name.Sorting
The order of a list displayed on the screen can
be rearranged.
TYPE A
1. Touch “Sort by”.

7
2. Select the desired sorting criteria.
Sorting criteria are as follows:
“Distance”: To sort in the order of distance
from your current location.
“Date”: To sort in the order of the date.
“Category”: To sort in the order of the cate-
gory.
“Icon”: To sort in the order of the icons.
“Name”: To sort in order by name.
“Attribute”: To sort in order by attribute. TYPE B
“Dist. Sort”: To sort in the order of distance
from the current vehicle location. The dis-
tance from current vehicle position up to the
destination is displayed to the right of the
name.
“Name
Sort”: To sort in alphabetical order by
name.

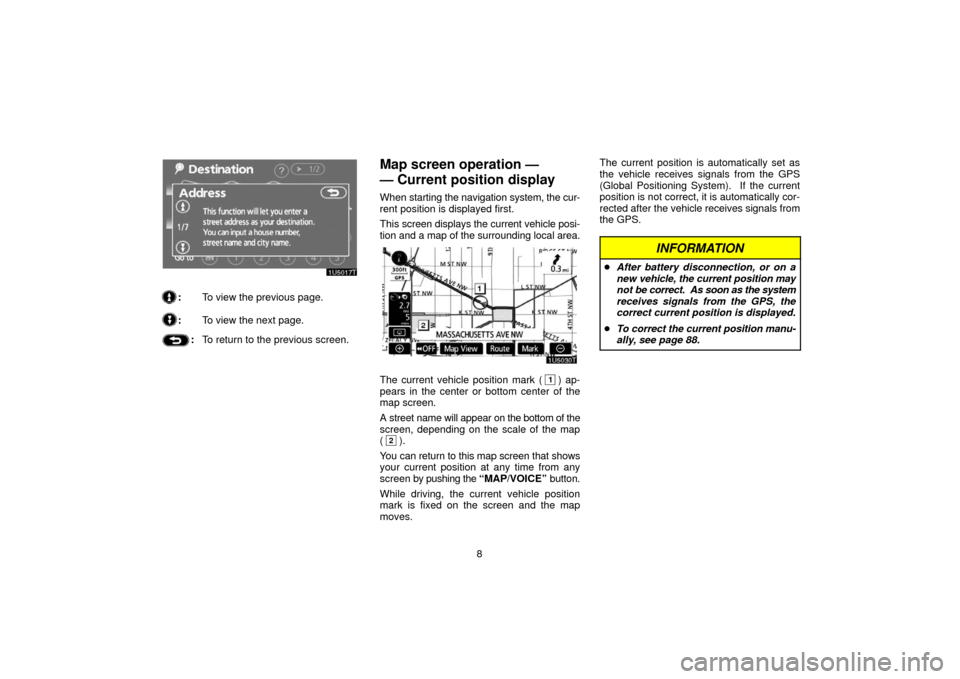

Function help
Explanations for the functions of the “Destina-
tion”, “Setup” and “Menu” screens can be
viewed.
Touch .

8
:To view the previous page.
:To view the next page.
:To return to the previous screen.
Map screen operation —
— Current position display
When starting the navigation system, the cur-
rent position is displayed first.
This screen displays the current vehicle posi-
tion and a map of the surrounding local area.
The current vehicle position mark (1) ap-
pears in the center or bottom center of the
map screen.
A street name will appear on the bottom of the
screen, depending on the scale of the map
(
2).
You can return to this map screen that shows
your current position at any time from any
screen by pushing the “MAP/VOICE” button.
While driving, the current vehicle position
mark is fixed on the screen and the map
moves. The current position is automatically set as
the vehicle receives signals from the GPS
(Global Positioning System). If the current
position is not correct, it is automatically cor-
rected after
the vehicle receives signals from
the GPS.
INFORMATION
 After battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the
correct current position is displayed.
 To correct the current position manu-
ally, see page 88.

9

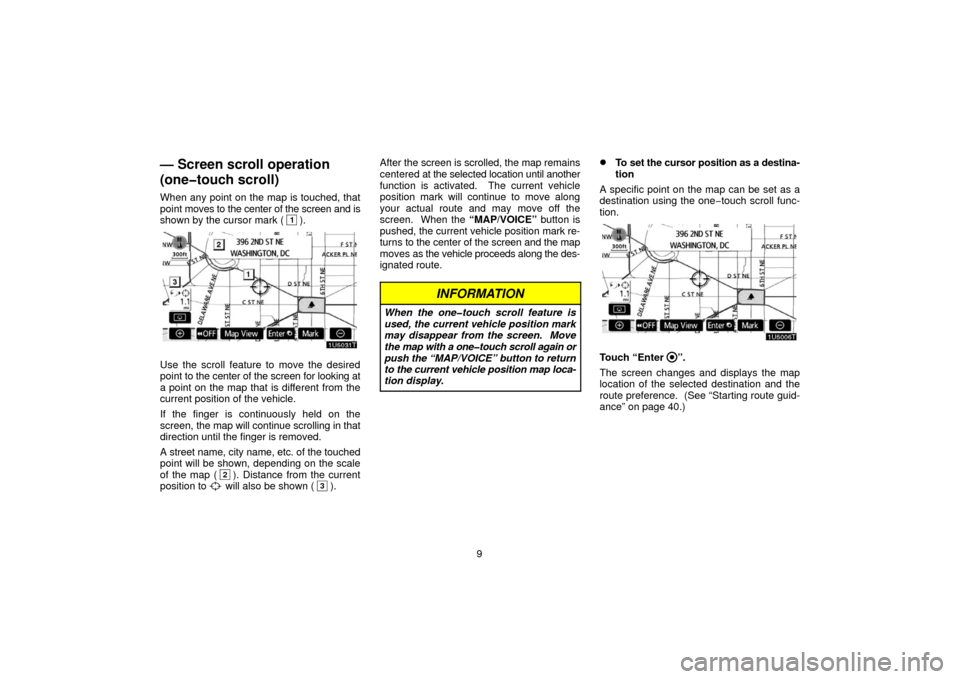

— Screen scroll operation
(onetouch scroll)
When any point on the map is touched, that
point moves to the center of the screen and is
shown by the cursor mark (
1).
Use the scroll feature to move the desired
point to the center of the screen for looking at
a point on the map that is different from the
current position of the vehicle.
If the finger is continuously held on the
screen, the map will continue scrolling in that
direction until the finger is removed.
A street name, city name, etc. of the touched
point will be shown, depending on the scale
of the map (
2). Distance from the current
position to will also be shown (3). After the
screen is scrolled, the map remains
centered at the selected location until another
function is activated. The current vehicle
position mark will continue to move along
your actual route and may move off the
screen. When the “MAP/VOICE” button is
pushed, the current vehicle position mark re-
turns to the center of the screen and the map
moves as the vehicle proceeds along the des-
ignated route.
INFORMATION
When the onetouch scroll feature is
used, the current vehicle position mark
may disappear from the screen. Move
the map with a onetouch scroll again or
push the “MAP/VOICE” button to return
to the current vehicle position map loca-
tion display.
To set the cursor position as a destina-
tion
A specific point on the map can be set as a
destination using the one −touch scroll func-
tion.
Touch “Enter ”.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route guid-
ance” on page 40.)

10

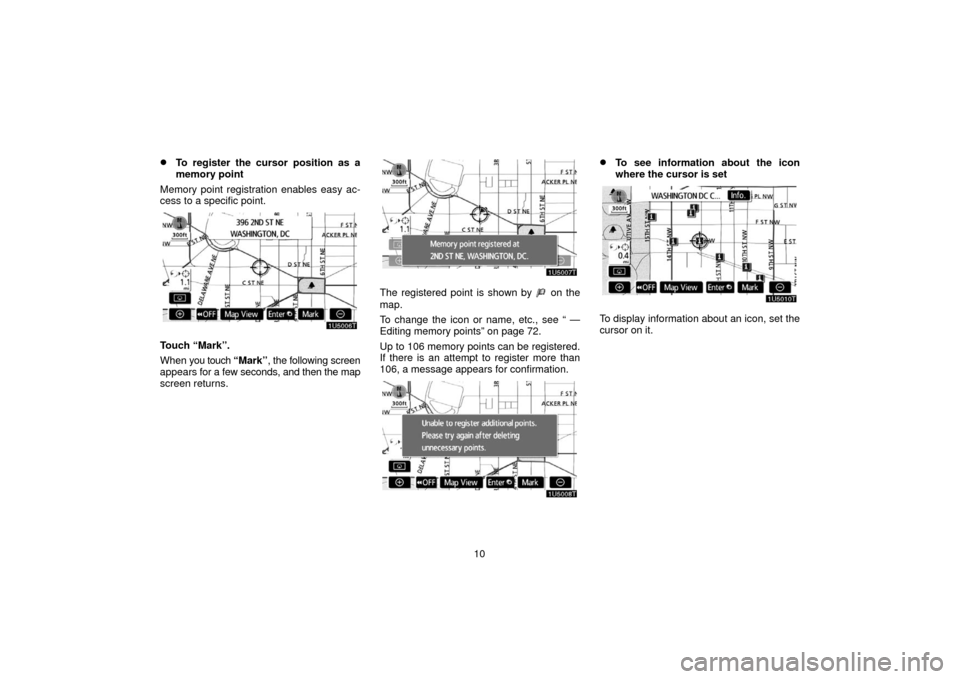

To register the cursor position as a
memory point
Memory point registration enables easy ac-
cess to a specific point.
Touch “Mark”.
When you touch “Mark” , the following screen
appears for a few seconds, and then the map
screen returns.
The registered point is shown by on the
map.
To change the icon or name, etc., see “ —
Editing memory points” on page 72.
Up to 106 memory points can be registered.
If there is an attempt to register more than
106, a message appears for confirmation.
To see information about the icon
where the cursor is set
To display information about an icon, set the
cursor on it.
