TOYOTA PRIUS 2006 2.G Navigation Manual

11
POI INFORMATION
When the cursor is set on a POI icon, the
name
and “Info.” are displayed on the top of
the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination. If there is already a set destination,
“Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
To register this POI as a memory point, touch
“Mark” . (See page 71.)
If
is touched, the registered telephone
number can be called.
INFORMATION
The desired Point of Interest can be dis-
played on the map screen. (See “ — Dis-
play POI icons” on page 57.)
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.” are displayed on
the top of the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.

12
If there is already a set destination,
“Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
To edit a memory point, touch “Edit” . (See “
— Editing memory points” on page 72.)
To delete a memory point, touch “Delete”.
If
is touched, the registered telephone
number can be called. DESTINATION INFORMATION
When the cursor is set on a destination icon,
the name
and “Info.” are displayed on the top
of the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
To delete a destination, touch “Delete” .
If
is touched, the registered telephone
number can be called.

13
— Switching the screens
Any one of the screen configurations can be
selected .
1. Touch this button to display the follow-
ing screen.
2. To select the desired screen configura-
tion, touch one of the following buttons. Depending on the conditions, certain screen
configuration buttons cannot be selected.
:
To display the single map screen.
(See page 13.)
: To display the dual map screen. (See
page 14.)
:To display the compass mode
screen. (See page 14.)
:To display the turn list screen. (See
page 48.)
:To display the arrow screen. (See
page 48.)
:To display the freeway information
screen. (See page 47.)
:To display the intersection guidance
screen or the guidance screen on the
freeway. (See page 47.)
Screen configurations
SINGLE MAP
This is a regular map screen.
While on a different screen, touching
will display the single map screen.
The screen shows the single map.

14
DUAL MAP
A map can be displayed split in two.
While on a different screen, touching
will display the dual map screen.
The screen shows the dual map. The map on
the left is the main map.
The right side map can be edited by touching
any specific point on the right side map.
This screen can perform the following proce-
dures:
1. Changing the map scale
2. Displaying the POI icon
3. Changing the orientation of the map
Touch “OK” when you complete editing.
The screen returns to the dual map screen.
COMPASS MODE
Current vehicle position is indicated with a
compass, not with a map.
While on a different screen, touching
will display the compass mode screen.
Information
about the destination and current
position, as well as a compass, is displayed
on the screen.
The destination mark is displayed in the direc-
tion of the destination. When driving refer to
the longitude and latitude coordinates, and
the compass, to make sure that your vehicle
is headed in the direction of the destination.
INFORMATION
When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the compass mode screen.

15
— Map scale
Touch or to change the scale of
the map display. The scale bar and indicator
at the bottom of the screen indicates the map
scale menu. The scale range is 150 feet (50
m) to 250 miles (400 km).
Touch
or until the scale bar
changes normally. By continuing to touch the
button, the scale bar changes smoothly.
The scale of the map display can be changed
by touching the scale bar directly. It is not
available while driving.
The map scale is displayed under the north −
up symbol or heading −up symbol at the top
left of the screen.
INFORMATION
When the map scale is at the maximum
range of 250 miles (400 km), is not
shown. When the map scale is at the
minimum range of 150 feet (50 m),
is not shown. In areas where the foot
print map is available the map scale
changes from to when at the
minimum range.
Foot print map
For the area which is covered by the foot print
map (Some areas in the following cities: De-
troit, Chicago, N.Y., L.A), you can switch to
the foot print map on a scale of 75 feet (25 m).
To switch to the foot print map
changes into when the map is
scaled down to 150 feet (50 m).
To display the foot print map, touch .
To delete the foot print map display, touch
.

16
INFORMATION
If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the screen
scale automatically changes to 150
feet (50 m).
 On the foot print map, a one way
street is displayed by .
 It is not possible to perform scrolling
on the foot print map (onetouch
scroll) while driving.
To display building information
Information is available only for buildings for
which information is recorded on the map
disc.
1. Touch “Info.” while the foot print map
is displayed.
If the map is displayed by a split screen, the
map will change into a single map display.
2. Using the eightdirection arrow, move
the cursor to the position of the building to
display building information.
3. Touch “Building Info.”.

17

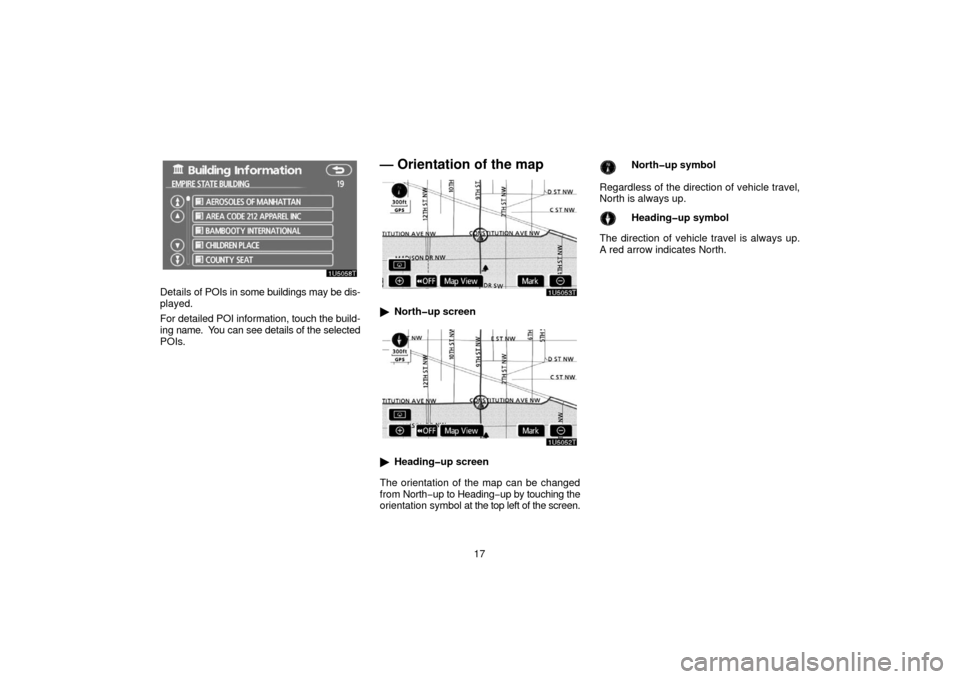

Details of POIs in some buildings may be dis-
played.
For detailed POI information, touch the build-
ing name. You can see details of the selected
POIs.
— Orientation of the map
 Northup screen
Headingup screen
The orientation of the map can be changed
from North− up to Heading −up by touching the
orientation symbol at the top left of the screen. Northup symbol
Regardless of the direction of vehicle travel,
North is always up.
Headingup symbol
The direction of vehicle travel is always up.
A red arrow indicates North.

18

19
DESTINATION SEARCH
Quick reference (“Destination” screen)20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the search area 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Destination search by Home 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Destination search by Quick access 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Address” 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Destination search by “POI Name” 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI Category” 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Memory” 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Destination search by “Previous” 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Map” 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Destination search by “Intersection” 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Freeway Ent./Exit” 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Coordinates” 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Phone #” 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Starting route guidance 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
SECTION II

20

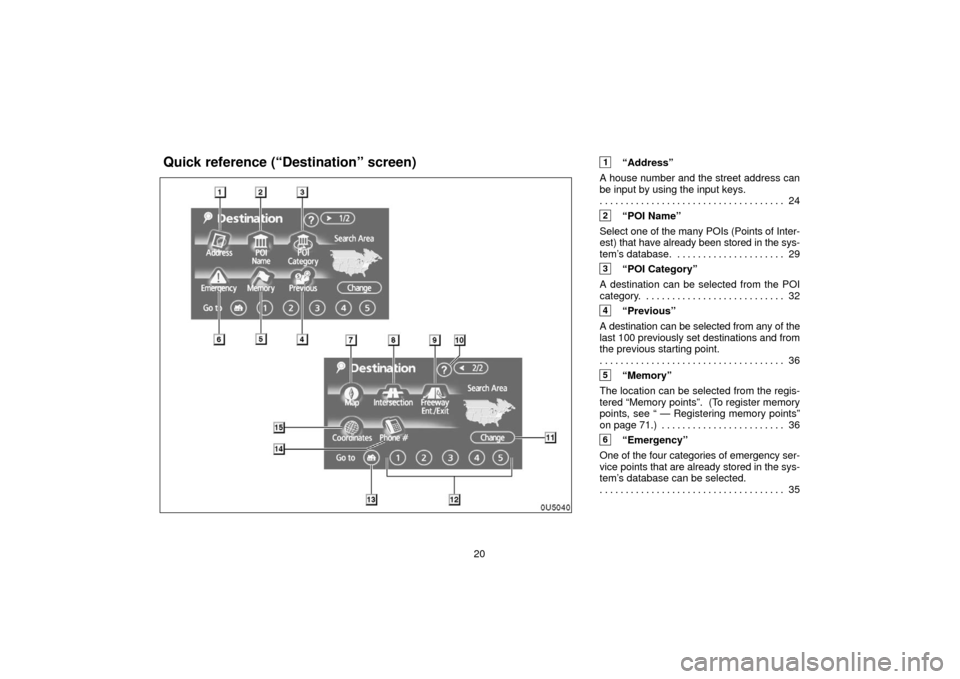

1“Address”
A house number and the street address can
be input by using the input keys. 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2“POI Name”
Select on e of the many POIs (Points of Inter-
est) that have already been stored in the sys-
tem’s database. 29 . . . . . . . . . . . . . . . . . . . . .
3“POI Category”
A destination can be selected from the POI
category. 32 . . . . . . . . . . . . . . . . . . . . . . . . . . .
4“Previous”
A destination can be selected from any of the
last 100 previously set destinations and from
the previous starting point. 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“Memory”
The location can be selected from the regis-
tered “Memory points”. (To register memory
points, see “ — Registering memory points”
on page 71.) 36 . . . . . . . . . . . . . . . . . . . . . . . .
6“Emergency”
One of the four categories of emergency ser-
vice points that are already stored in the sys-
tem’s database can be selected. 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Destination” screen)
