TOYOTA PRIUS 2006 2.G Navigation Manual

41
2. Touch “Enter”.
The system starts route search and displays
recommended routes.
If there is already a set destination,
“Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
“Route Preference”: To change the route
preference. (See page 42.)
“Info.”: If this button is displayed on the top
of the screen, touch it to view items such as
name, address, and phone number.
1Current position
2Destination point
3Type of the route and the distance
4Distance of the entire route
3. To start guidance, touch “Guide”.
“3 Routes”: To select the desired route from
three possible routes. (See page 43.)
“Route”: To change the route. (See pages
51 and 54.)
INFORMATION
 Guidance can be suspended or re-
sumed. (See “Suspending and re-
suming guidance” on page 66.)
 If “Guide” is touched until a beep
sounds, demo mode will start. Push
the “MAP/VOICE” button to finish
Demo mode.
 The route for returning may not be the
same as that for going.
 The route guidance to the destination
may not be the shortest route nor a
route without traffic congestion.
 Route guidance may not be available
if there is no road data for the speci-
fied location.
 When setting the destination on a
map with a scale larger than 0.5 miles
(800 m), the map scale changes to 0.5
miles (800 m) automatically. Set the
destination again.
 If a destination is entered, the road
nearest to the point you selected is
set as the destination.

42
CAUTION
Be sure to obey traffic regulations and
keep road conditions in mind while driv-
ing. If a traffic sign on the road has been
changed, the route guidance may pro-
vide wrong information.
To change the route before starting
guidance
ROUTE PREFERENCE
1. You can change route preference by
touching “Route Preference”.
2. Select the desired route preference by
touching the button.
When searching for a route, the system will
avoid routes when the indicator is off. 3. After choosing the desired route pref-
erence, touch “OK”.
INFORMATION

Even if the “Allow Freeway” indicator
is dimmed, the route cannot avoid in-
cluding a freeway in some cases.
 If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.

43

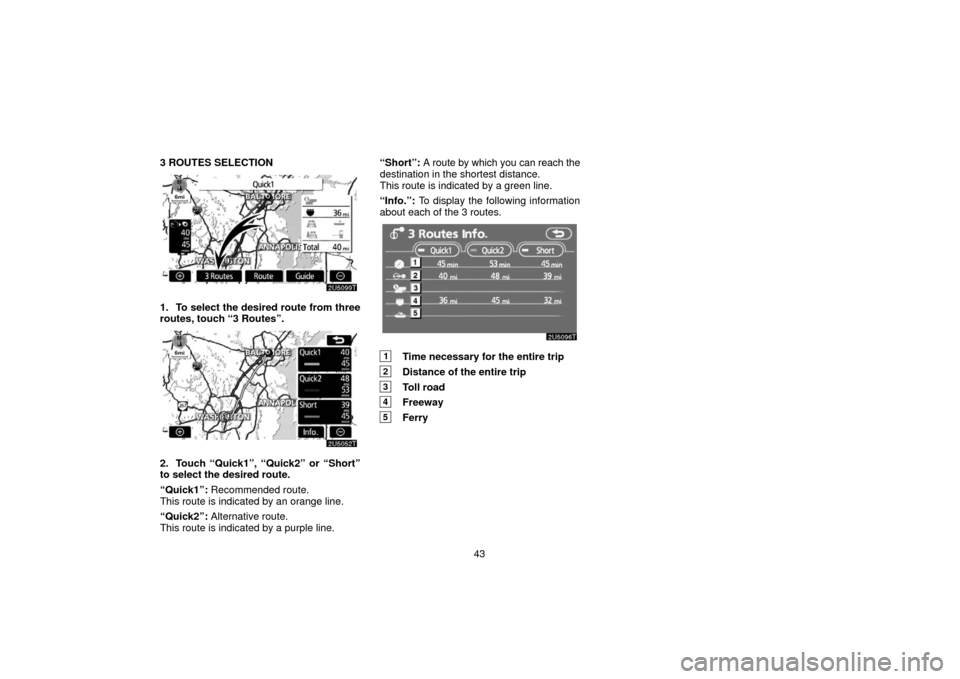

3 ROUTES SELECTION
1. To select the desired route from three
routes, touch “3 Routes”.
2. Touch “Quick1”, “Quick2” or “Short”
to select the desired route.
“Quick1”:
Recommended route.
This route is indicated by an orange line.
“Quick2”: Alternative route.
This route is indicated by a purple line. “Short”:
A route by which you can reach the
destination in the shortest distance.
This route is indicated by a green line.
“Info.”: To display the following information
about each of the 3 routes.
1Time necessary for the entire trip
2Distance of the entire trip
3Toll road
4Freeway
5Ferry

44

45
ROUTE GUIDANCE
Route guidance screen46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Typical voice guidance prompts 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Distance and time to destination 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Setting and deleting destination 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Adding destinations 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Reordering destinations 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Deleting destinations 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Setting route 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Search condition 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Detour setting 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Route preference 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Starting route from adjacent road 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map view 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . .
Display POI icons 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Route overview 59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Route preview 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Route trace 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
SECTION III

46
Route guidance screen
During route guidance, various types of guid-
ance screens can be displayed depending on
conditions.
Screen layout
1Distance to the next turn and the ar-
row indicating turning direction
2Current street name
3Distance and travel/arrival time to the
destination
4Current position
5Guidance route
INFORMATION
 If the vehicle goes off the guidance
route, the route is searched again.
 For some areas, the roads have not
been completely digitized in our data-
base. For this reason, the route guid-
ance may select road that should not
be traveled on.
 When you arrive at your destination,
the destination name will be dis-
played on the top of the screen.
Touching “OFF” clears the display.
During freeway driving
During freeway driving, the freeway exit infor-
mation screen will be displayed.
This screen displays the distance to the next
junction and exit, or POIs in the vicinity of the
freeway exit.
1Current position
2Points of Interest that are close to a
freeway exit
3Exit number and junction name
4Distance from the current position to
the exit or junction
5Current street name

47
:To display the selected map of the exit
vicinity.
: To scroll for farther junctions or exits.
:To scroll for closer junctions or exits.
:To scroll for the closest three junctions
or exits.
When approaching a freeway exit or
junction
When the vehicle approaches an exit or junc-
tion, the guidance screen for the freeway will
be displayed.
1Road/area name
2Distance from the current position to
the exit or junction
3Current position
“OFF”: The guidance screen on freeway dis-
appears and the map screen appears.
When touching
or pushing the “MAP/
VOICE” button, the guidance screen on free-
way reappears.
When approaching an intersection
When the vehicle approaches an intersec-
tion, the intersection guidance screen will be
displayed.
1Next street name
2Distance to the intersection
3Current position
“OFF”: The intersection guidance screen
disappears and the map screen appears.
When touching
or pushing the “MAP/
VOICE” button, the intersection guidance
screen reappears.

48
Other screens
TURN LIST SCREEN
On this screen, the list of turns on the guid-
ance route can be viewed.
Touching
during guidance displays the
turn list.
1Next street name or destination name
2Turn direction
3Distance between turns
4Current street name ARROW SCREEN
On this screen, information about next turns
on the guidance route can be viewed.
Touching
during guidance displays the
arrow screen.
1Exit number, street name containing
number or next street name
2Turn direction
3Distance to the next turn
4Current street name
Typical voice guidance
prompts
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver the
vehicle.
4.7 miles
0.25 miles
+ α
1“Proceed about 5 miles.”
2“In a quarter of a mile, right turn.”
3“Right turn.”
4(Beep sound only)

49
INFORMATION
On freeways, interstates or other high-
ways with higher speed limits, the voice
guidance will be made at earlier points
than on city streets in order to allow time
to maneuver.4.2 miles
0.25 miles
1“Proceed about 4 miles to the traf-
fic circle.”
2“In a quarter of a mile, traf fic circle
ahead, and then 3rd exit ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
One −way road
One −way road
∗: The system indicates a U −turn if the dis-
tance between two one −way roads (of oppo-
site directions) is less than 50 feet (15 m) in
residential areas or 164 feet (50 m) in non −
residential areas.
1“In half of a mile, make a legal U −
turn.”
2“Make a legal U −turn ahead.”
3(Beep sound only)

50
The system announces the approach to the fi-
nal destination.
1“Your destination is ahead.”
2“You have arrived at your destina-
tion. The route guidance is now
finished.”
INFORMATION
If the system cannot determine the
current vehicle position correctly (in
cases of poor GPS signal reception),
the voice guidance may be made ear-
ly or delayed.
 If you did not hear the voice guidance
command, push the “MAP/VOICE”
button to hear it again.
 To adjust the voice guidance volume,
see “Volume” on page 67.
Distance and time to
destination
When the vehicle is on the guidance route,
the distance and the estimated travel/arrival
time to the destination are displayed. When
the vehicle is not on the guidance route, the
distance and the direction of the destination
are displayed.
When driving on the guidance route and more
than one destination is set, the distance and
the estimated travel/arrival time from the cur-
rent position to each destination are dis-
played.
