Page 401 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 401
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)

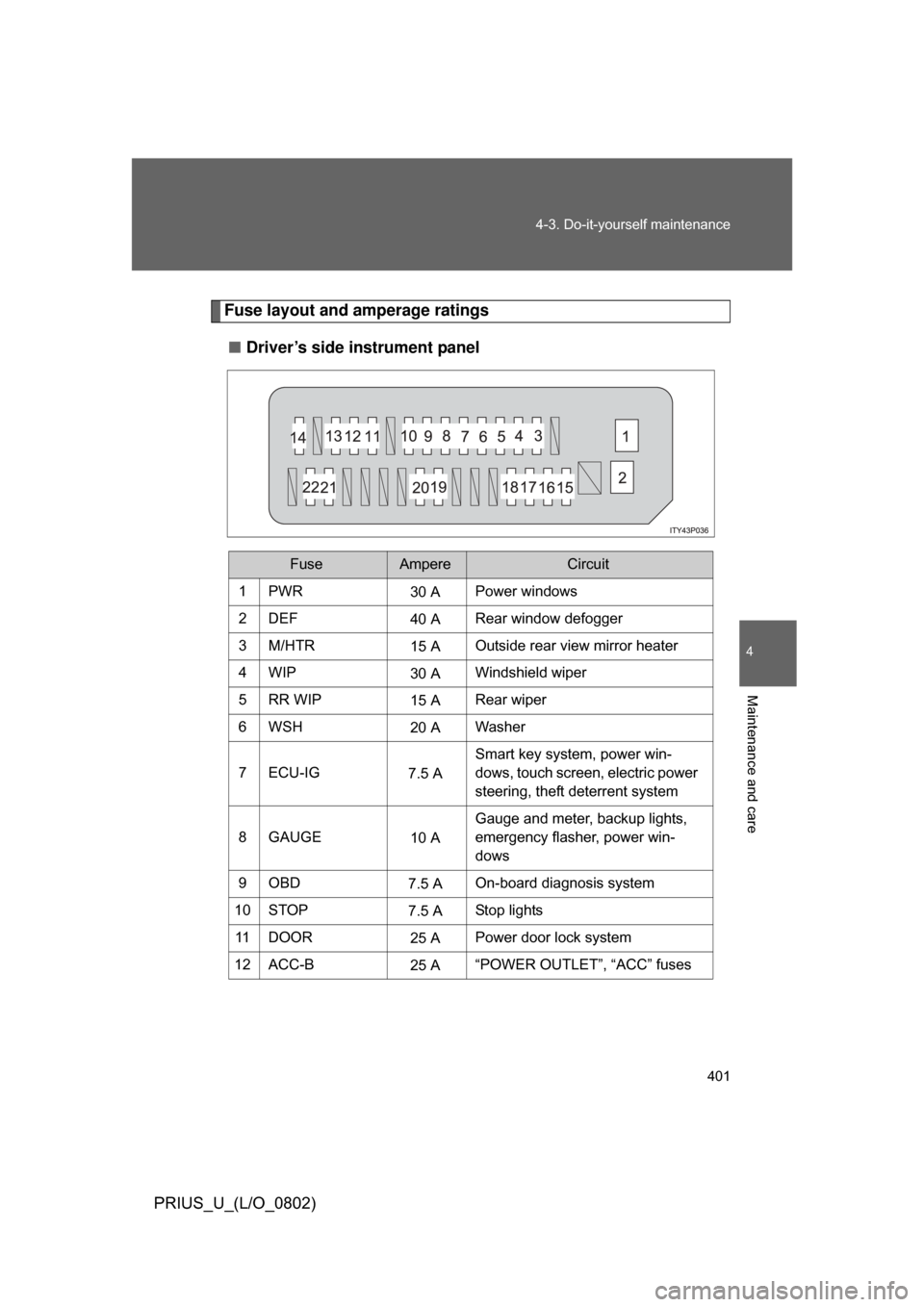

Fuse layout and amperage ratings
■ Driver’s side instrument panel
FuseAmpereCircuit
1PWR30 APower windows
2DEF 40 ARea

Page 402 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 402 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)
13 ECU-B15 ATouch screen, power windows, air
conditioning system
14 AM1 7.5 AHybrid system
15 TAIL 10 ATail lights, license plates light,
parki

Page 403 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 403
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
■

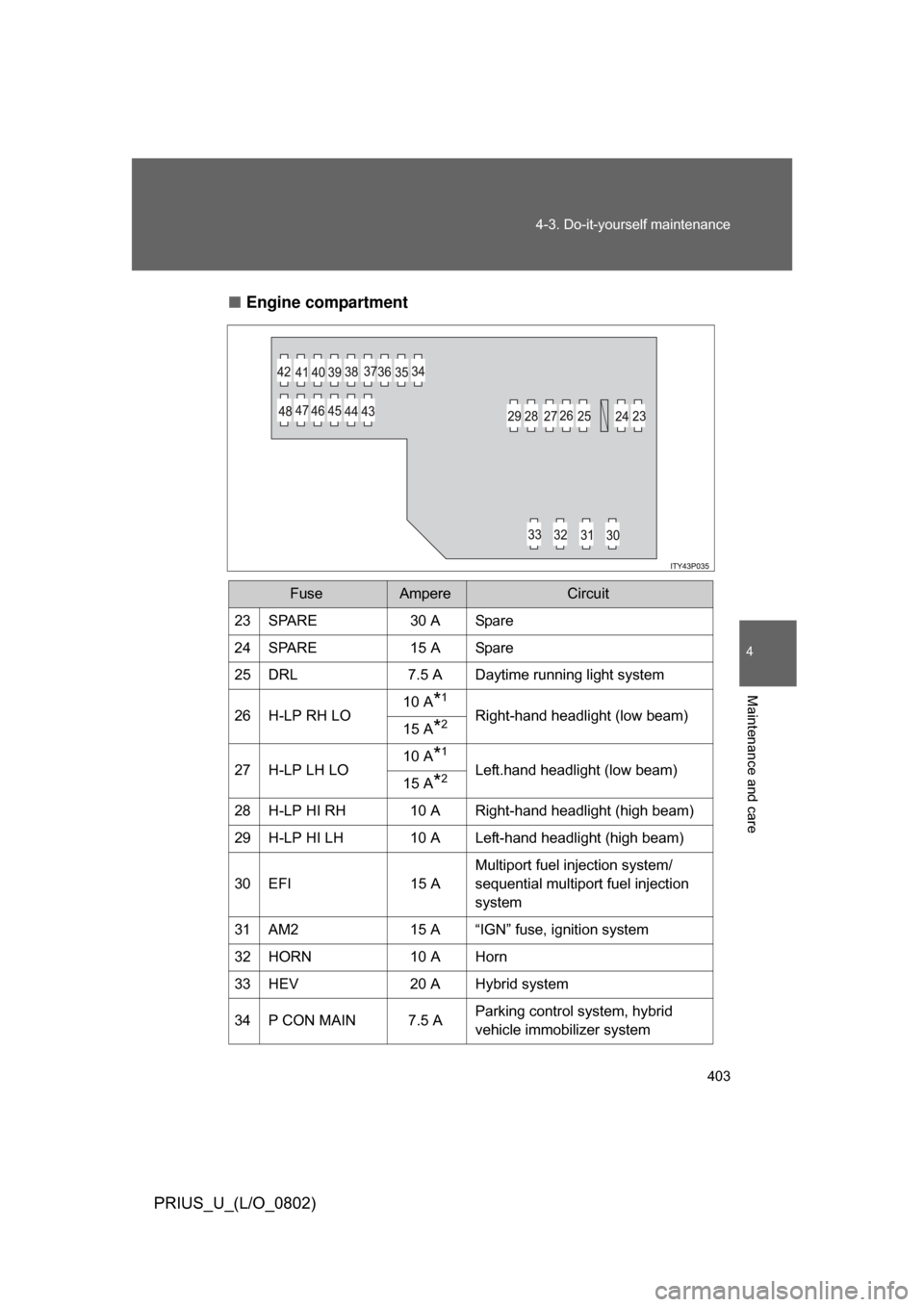

Engine compartment
FuseAmpereCircuit
23SPARE30 ASpare
24 SPARE 15 A Spare
25 DRL 7.5 A Daytime running light system
26

Page 404 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 404 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)
*1: Vehicles with halogen headlights (low beam)
*2: Vehicles with discharge headlights (low beam)35 ABS-1 25 A Anti-lock brake system
36 ETCS 10

Page 405 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 405
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)
■

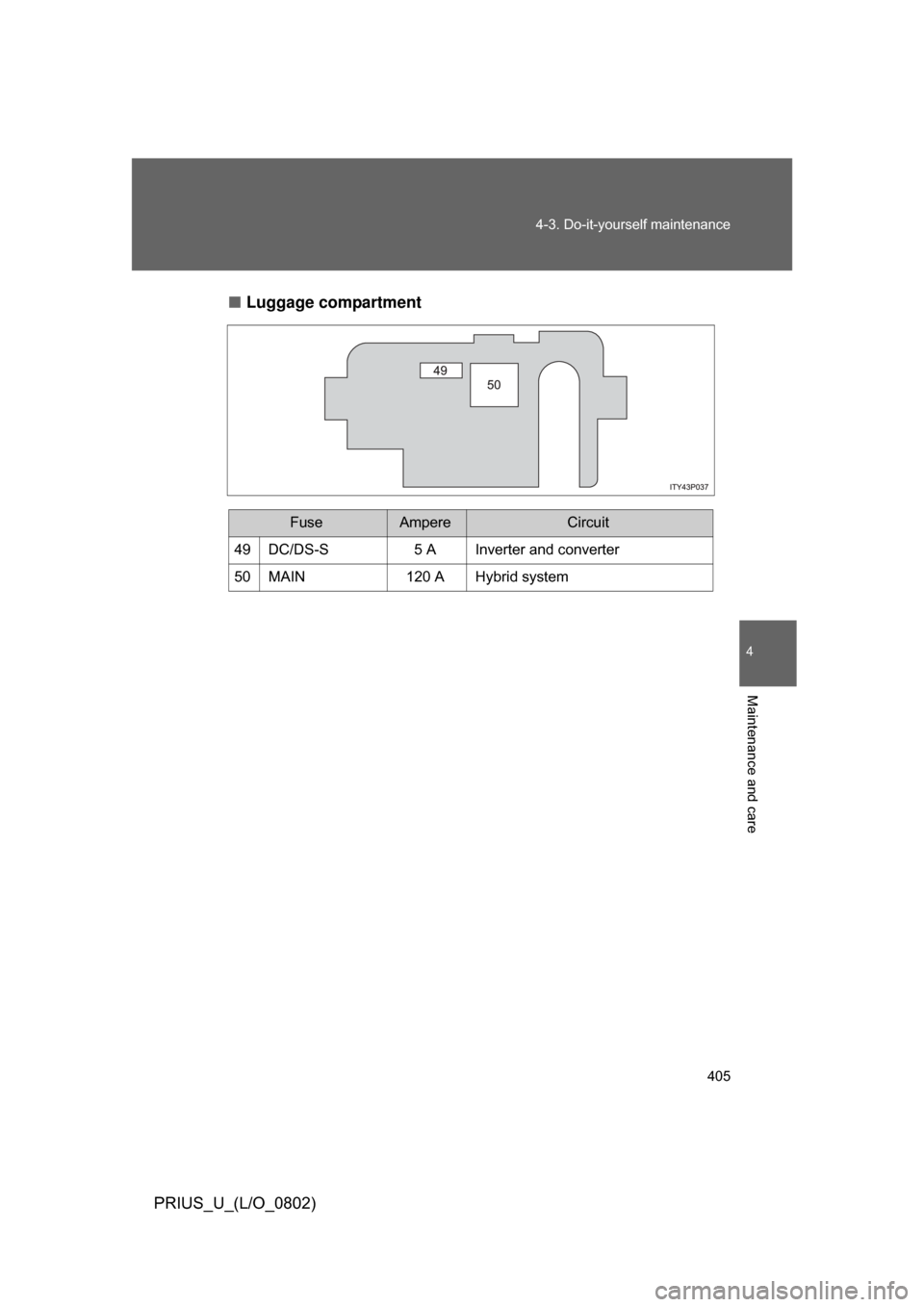

Luggage compartment
FuseAmpereCircuit
49 DC/DS-S 5 A Inverter and converter
50 MAIN 120 A Hybrid system

Page 406 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 406 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fir

Page 407 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 407
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)

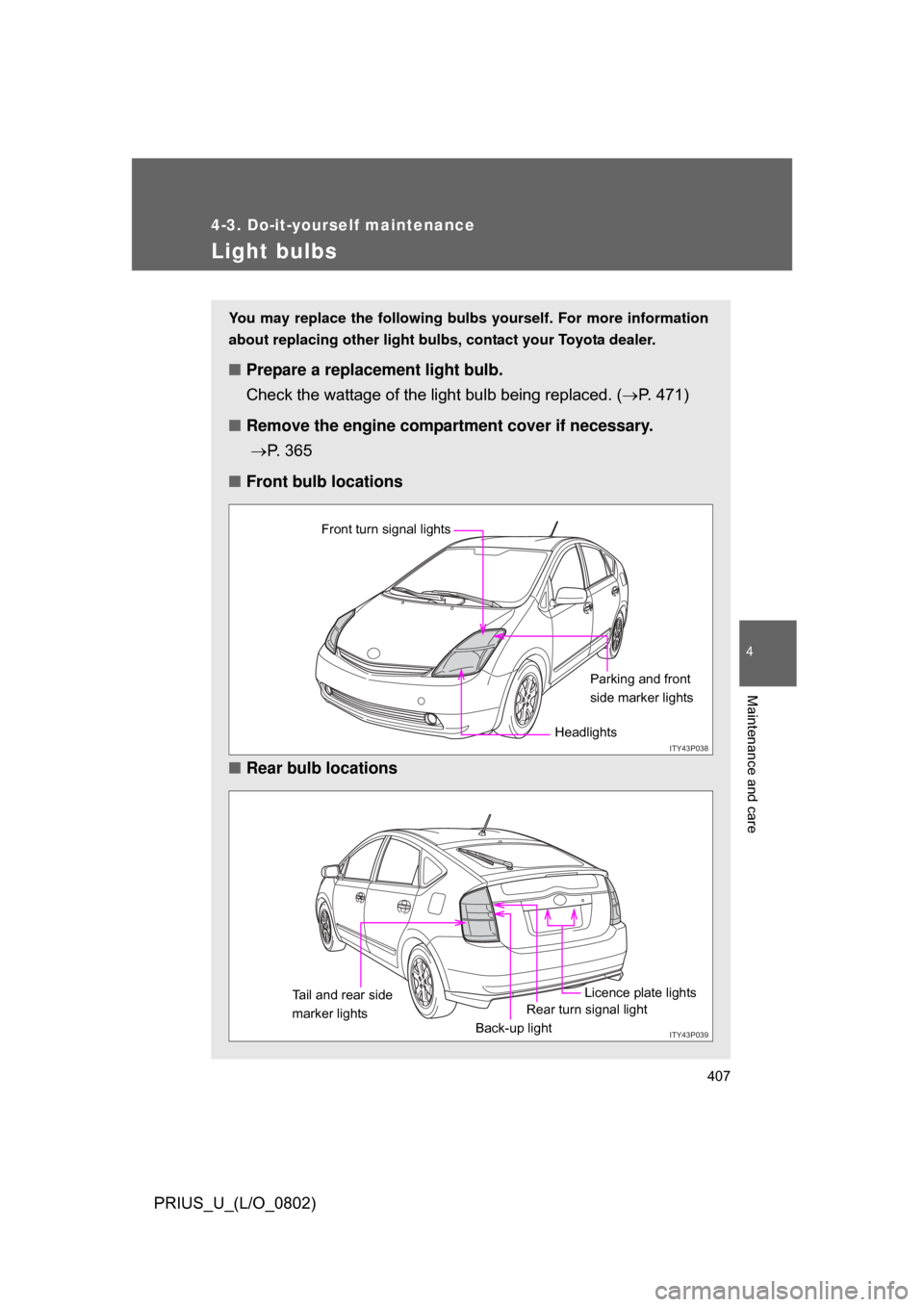

Light bulbs
You may replace the following bulbs yourself. For more information
about replacing other light bulbs,  contact

Page 408 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 408 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)

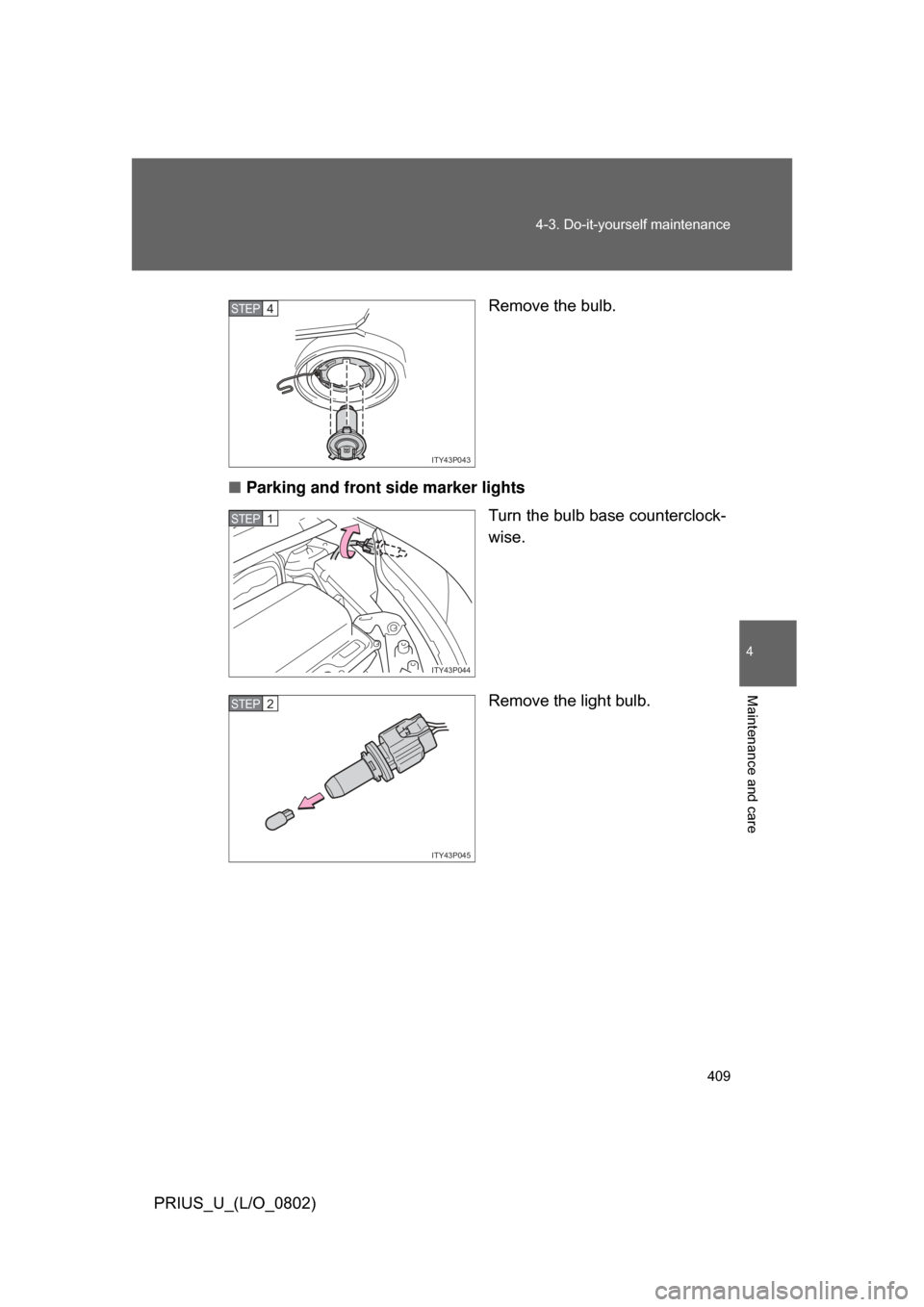

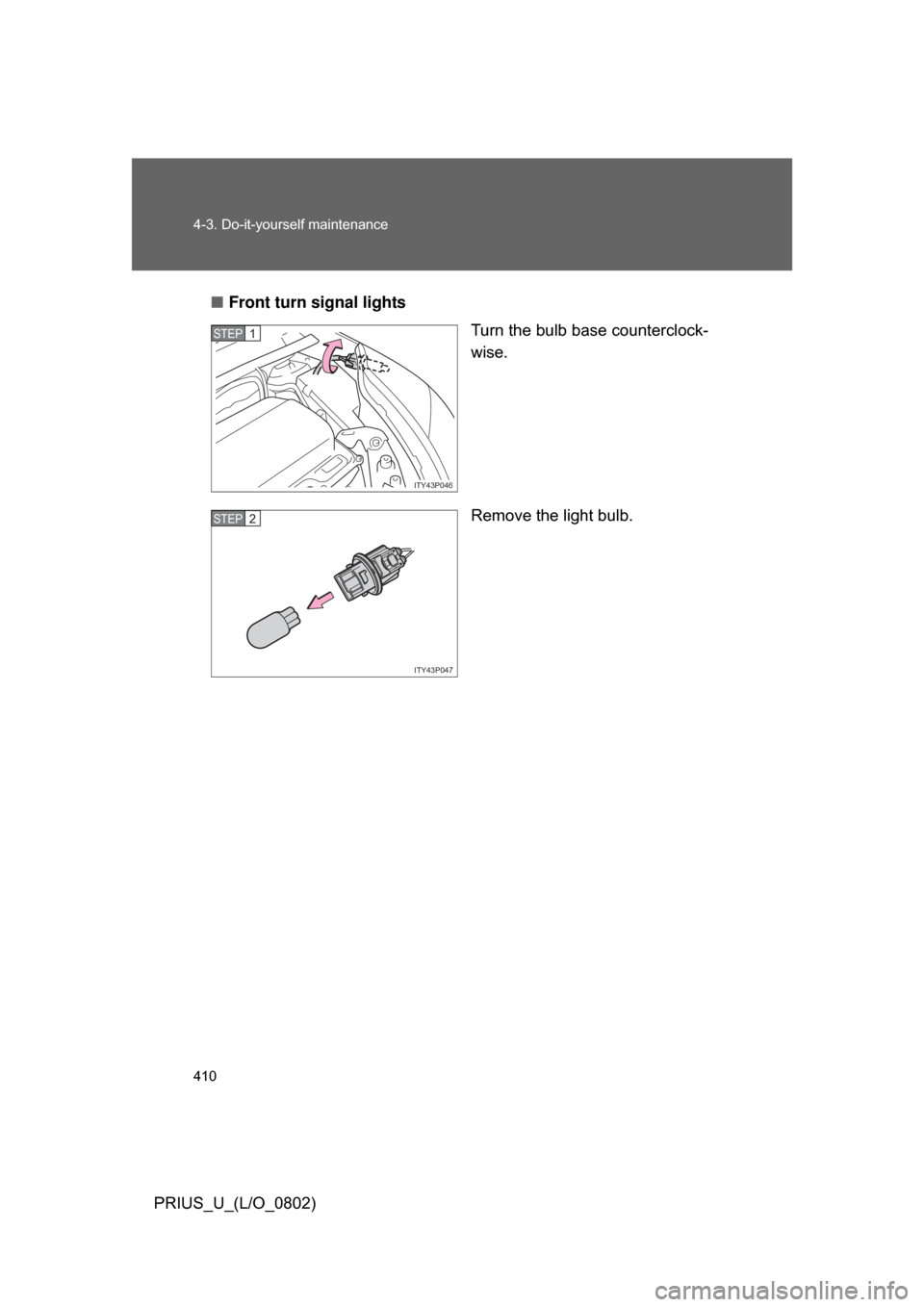

Replacing light bulbs■ Headlights (vehicles with halogen bulbs)
Unplug the connector.
Remove the rubber cover.
Release  the  bulb  retaining
sp

Page 409 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 409
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(L/O_0802)

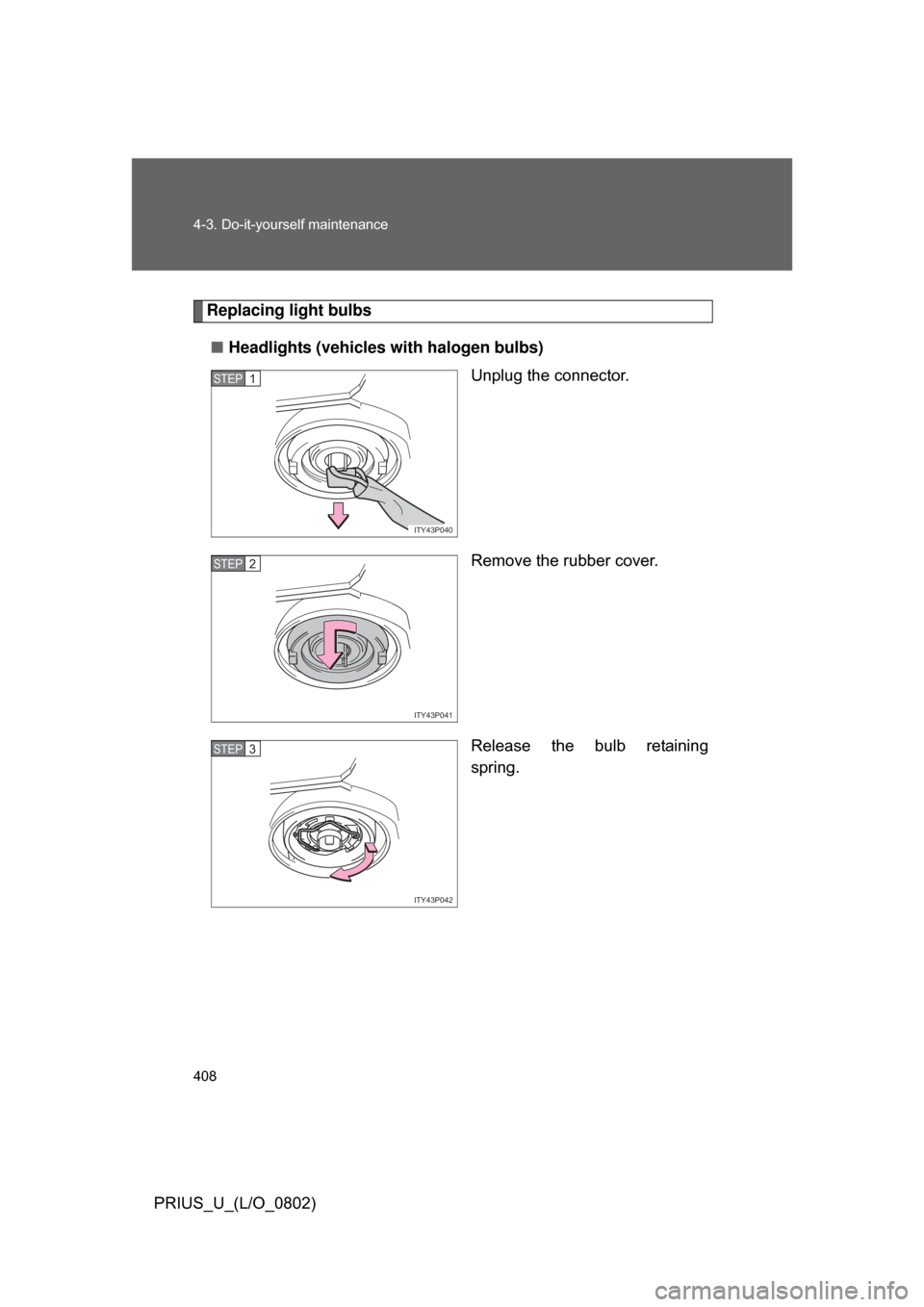

Remove the bulb.
■ Parking and front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
IT

Page 410 of 512

TOYOTA PRIUS 2008 2.G Owners Manual 410 4-3. Do-it-yourself maintenance
PRIUS_U_(L/O_0802)■
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43P046
STEP1
ITY43P047
STEP2
