Page 421 of 512

5
When trouble arises
421
5-1. Essential information
PRIUS_U_(L/O_0802)
NOTICE
■
To prevent causing serious da mage to the transmission
Never tow this vehicle with any of the wheels in contact with the ground.
■ To prevent damaging the vehicle
● Do not tow the vehicle with the “POWER” switch OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
Page 422 of 512

422 5-1. Essential information
PRIUS_U_(L/O_0802)
Using a flat bed truckIf you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
ITY51P008
Page 423 of 512

5
When trouble arises
423
5-1. Essential information
PRIUS_U_(L/O_0802)

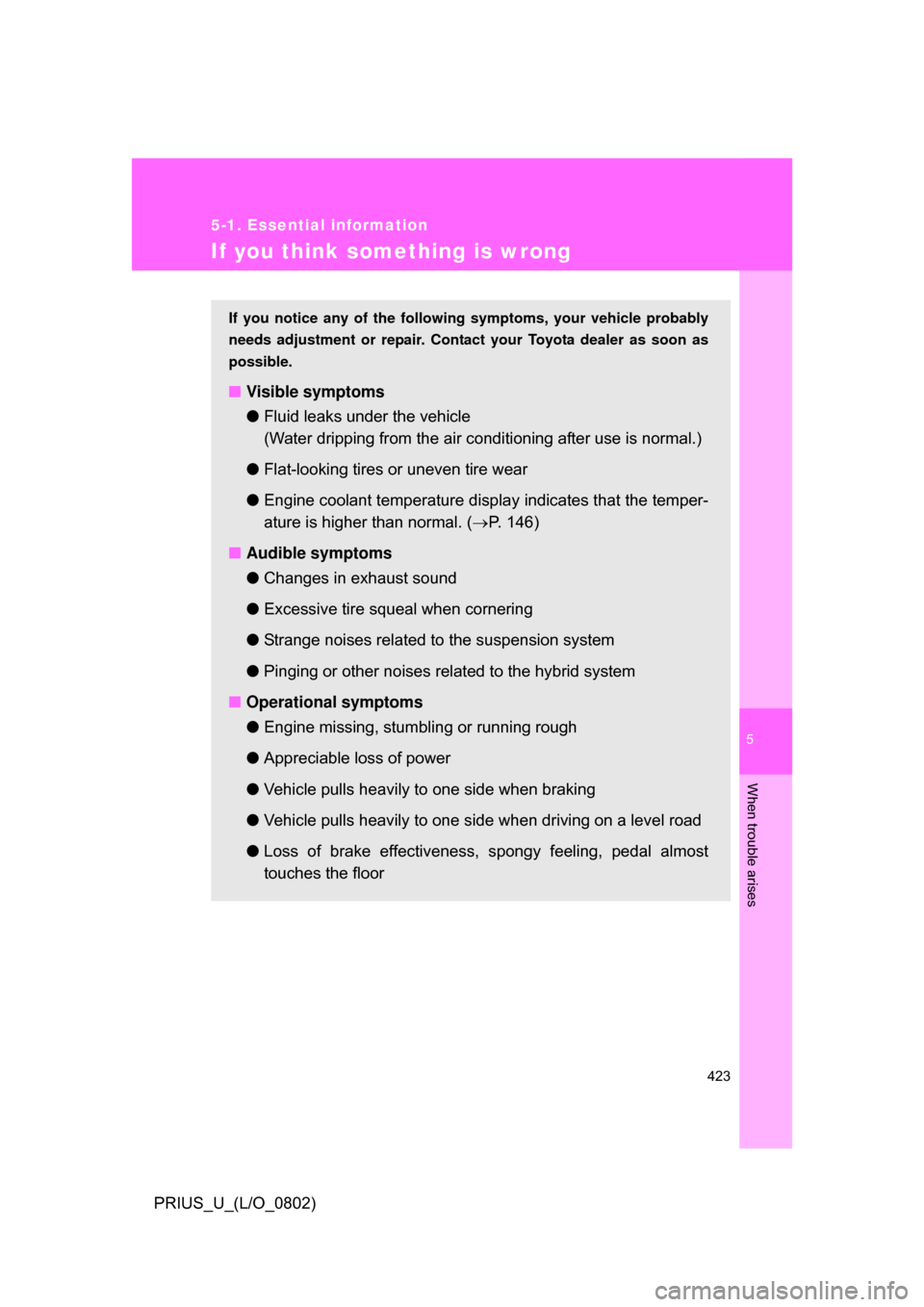

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
■ Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air cond itioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature displa y indicates that the temper-
ature is higher than normal. ( P. 146)
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, s pongy feeling, pedal almost
touches the floor
Page 424 of 512

424
5-1. Essential information
PRIUS_U_(L/O_0802)
Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly contains the EDR. In a crash or a
near car crash event, this device may record some or all of the follow-
ing information:
● Gasoline engine speed
● Whether the brake pedal was applied or not
● Vehicle speed
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver’s seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
The information above is intended to be used for the purpose of
improving vehicle safety performan ce. Unlike general data recorders,
the EDR does not record sound data such as conversation between
passengers.
Your vehicle has computers that monitor and control certain aspects
of your vehicle. These computers assi st in driving and maintaining
optimal vehicle performance.
Besides storing data useful for tr oubleshooting, there is a system to
record data in a crash or a near car crash event. This is called an
Event Data Recorder (EDR).
Page 425 of 512

5
When trouble arises
425
5-1. Essential information
PRIUS_U_(L/O_0802)
Disclosure of the data
Toyota will not disclose the data re corded in an EDR to a third party
except when:
● An agreement from the vehicle’s ow ner (or the leasing company for
a leased vehicle) is obtained
● Officially requested by the police or other authorities
● Used as a defense for Toyota in a law suit
● Ordered by a court
However, if necessary Toyota will:
● Use the data for research on Toyota vehicle safety performance
● Disclose the data to a third party for research purposes without dis-
closing details of the vehicle owner, and only when it is deemed
necessary
● Disclose summarized data cleared of vehicle identification informa-
tion to a non-Toyota organization for research purposes
Page 426 of 512

426
PRIUS_U_(L/O_0802)
5-2. Steps to take in an emergency
If a war ning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
*:Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately 3 mph
(5 km/h) or more.
Warning lightWarning light/Details
(U.S.A.)
(Canada)
Brake system warning light and warning buzzer* (red
indictor)
• Low brake fluid
• Malfunction in the brake system This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released, the system is operating normally.
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.
Page 427 of 512

5
When trouble arises
427
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Have the vehicle inspected by your Toyota dealer immediately.Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system.
Low engine oil pressure warning light Indicates that the engine oil pressure is too low.
*1Hybrid system warning light Indicates a malfunction in the hybrid system.
Warning lightWarning light/Details
Malfunction indicator lamp Malfunction in:
• The electronic hybrid system control system;
• The electronic throttle control system; or
• The transmission control system.
SRS warning light Malfunction in:
• The SRS airbag system;
• Front passenger occupant classification system; or
• The seat belt pretensioner system.
Page 428 of 512

428 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
Warning lightWarning light/Details
Vehicle stability control system warning light (if
equipped)
Indicates a malfunction in the Enhanced VSC system.
*1
Automatic headlight leveling system warning light (if
equipped) Indicates a malfunction in the automatic headlight level-
ing system.
(U.S.A.)
(Canada)
ABS warning lightMalfunction in:
• The ABS; or
• The brake assist system.
Brake system warning light (yellow indicator) Malfunction in the electronically controlled brake sys-
tem.
*1
or
*1
Electric power steering system warning lightMalfunction in the EPS (Electric Power Steering).
Page 429 of 512

5
When trouble arises
429
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*2
A door or a back door is
not fully closed.
Check that all doors and the
back door are closed.
Low fuel level warning
light Remaining fuel
(Approximately 3.0 gal.
[11.4 L, 2.5 Imp.gal.] or
less) Refuel the vehicle.
Driver’s seat belt
reminder light (warning
buzzer)
*3
Warns the driver to fasten
his/her seat belt. Fasten the seat belt.
Front passenger’s seat
belt reminder light
(warning buzzer)
*3
Warns the front passen-
ger to fasten his/her seat
belt. Fasten the seat belt.
Tire pressure warning
light
When the light comes on:
Low tire inflation pressure.
Adjust the tire inflation
pressure.
When the light stays on
after blinking for 1 minute:
Malfunction in the tire
pressure warning system. Have the system checked
by your Toyota dealer.
Page 430 of 512

430 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
*1:This warning light is displayed on the touch screen.
*2:Open door warning buzzer:
(U.S.A.)
Engine oil replacement
reminder light
Illuminates for about 3 sec-
onds and then flasher for
about 15 seconds:
Engine oil is scheduled to
be changed. Check and the engine oil,
and change if necessary.
Comes on and remains:
Engine oil should be
changed. Check and change the
engine oil.
*1
Hybrid battery warning
light
The hybrid battery voltage
drops when the transmis-
sion is left in “N” position. Push the “P” position
switch.
The hybrid battery is dis-
charged. If this light comes on with
the “READY” light on in this
case, have the system
checked by your Toyota
dealer.
High coolant temperature
warning light Indicates high engine cool-
ant temperature P. 456
Master warning light A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion. Take appropriate action in
accordance with the mes-
sage displayed on the multi-
information display.
Warning lightWarning light/DetailsCorrection procedure
