Page 431 of 512

5
When trouble arises
431
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
*3:Driver’s and front passenger’s
seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder sounds to alert the
driver and front passenger that his or her seat belt is not fastened. The
buzzer sounds intermittently for 10 seconds after the vehicle has reached a
speed of at lest 12 mph (20 km/h). Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone for 20 more seconds.
Have the malfunction repaired immediately. (vehicles with smart
key system)
After taking the specified steps to correct the suspected problem,
check that the warning light turn off.
AlarmWarning lightDetailsCorrection procedure
Interior and
exterior alarm:
One beep
(sounds con-
tinuously)
The driver has
removed the smart key
from the vehicle while
the hybrid system is
not OFF and the shift
lever is in a position
other than “P”.Pressing the “P”
position switch
before removing the
smart key from the
vehicle and turning
the hybrid system
OFF.
Interior alarm:
One beep
Exterior alarm:
3 beeps The driver has
removed the smart key
from the vehicle while
the hybrid system is
not OFF and the shift
lever is in the “P” posi-
tion.
Turn the hybrid sys-
tem OFF and
remove the key
from the vehicle.
A passenger has
removed the smart key
from the vehicle while
the hybrid system is
not OFF. Check whether the
passenger leaving
the vehicle is carry-
ing the smart key.
Page 432 of 512

432 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
Exterior alarm:
One beep
(sounds for 2
seconds)The lock button has
been pressed while
the hybrid system is
not OFF and the shift
position is in “P”.
Turn the hybrid sys-
tem OFF.
Interior alarm:
One beep (for 5
seconds) The vehicle’s ID code
detection system has
judged that the smart
key is not present
when the “POWER”
switch is pressed.
Check that the
smart key is in the
vehicle and within
the detection area.
AlarmWarning
lightDetailsCorrection procedure
Page 433 of 512

5
When trouble arises
433
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
■
If the malfunction indicator lamp comes on while driving
First check the following:
● Is your vehicle low on gas?
If it is, refuel the vehicle immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after taking several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.
■ Power steering warning light
When the voltage is low or drops, the power steering warning light may
come on.
■ SRS warning light
This warning light system monitors the following:
● The airbag sensor assembly
● Front airbag sensors
● The curtain shield airbag sensors
● The side and curtain shield airbag sensor assemblies
● The driver’s seat position sensor
● Driver’s seat belt buckle switch
● The front passenger occupant classification ECU
● The pressure sensor
● The belt tension sensor
● “AIR BAG ON” and “AIR BA G OFF” indicator lights
● Front passenger’s seat belt buckle switch
● The inflators
● The warning light
● The interconnecting wiring and power sources
Page 434 of 512

434 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
■Front passenger detect ion sensor and passenger seat belt reminder
If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash, even if a passenger is not
sitting in the seat.
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
Pushing the tire pressure warning reset switch should not turn off the tire
pressure warning light.
■The tire pressure warning light ma y turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such
as natural air leaks or tire inflation pressure changes caused by temper-
ature. In this case, adjusting the ti re inflation pressure will turn off the
warning light.
■If the tire pressure warning system is inoperative
The tire pressure warning system may become inoperative in the follow-
ing conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmit-
ters are used.
●If the ID code on the tire pressure warning valves and transmitters is
not registered.
●If the tire inflation pressure is more than 73 psi (500 kPa, 5.1 kgf/cm2
or bar).
The system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies
are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on the vehicle, in particular around the
wheels or wheel housings.
●If non-genuine Toyota wheels are used.
●If tire chains are used.
Page 435 of 512

5
When trouble arises
435
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
■If the tire pressure warning light comes on after blinking for 1
minute frequently
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the “POWER” switch
is turned to ON mode, have it
checked by your Toyota dealer.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pres-
sure warning system may not operate properly.
CAUTION
■When the power steering warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, firmly
hold and operate it using more force than usual.
■
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and result in death or serious injury. • Stop your vehicle in a safe place as soon as possible. Adjust thetire inflation pressure immediately.
• If the tire pressure warning light comes on even after tire inflation pressure adjustment, it is probable that you have a flat tire. Check
the tires. If the tire is flat, change to the spare tire and have the flat
tire repaired by the nearest Toyota dealer.
• Avoid abrupt maneuvering and brak ing. If the vehicle tires deterio-
rate, you could lose control of th e steering wheel or the brakes.
■If a blowout or sudden air loss should occur
The tire pressure warning system may not activate immediately.
Page 436 of 512

436 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a differ-
ent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the
proper tire inflation pr essure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pressure telltal e (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressu re telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire main tenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached the
level to trigger illu mination of the TPMS low tire pressure telltale (tire
pressure warning light).
Page 437 of 512

5
When trouble arises
437
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
CAUTION
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indi
cate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light).
When the system detects a malfunctio n, the telltale will flash for approxi-
mately one minute and then rema in continuously illuminated. This
sequence will continue upo n subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the
system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
Page 438 of 512

438
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)

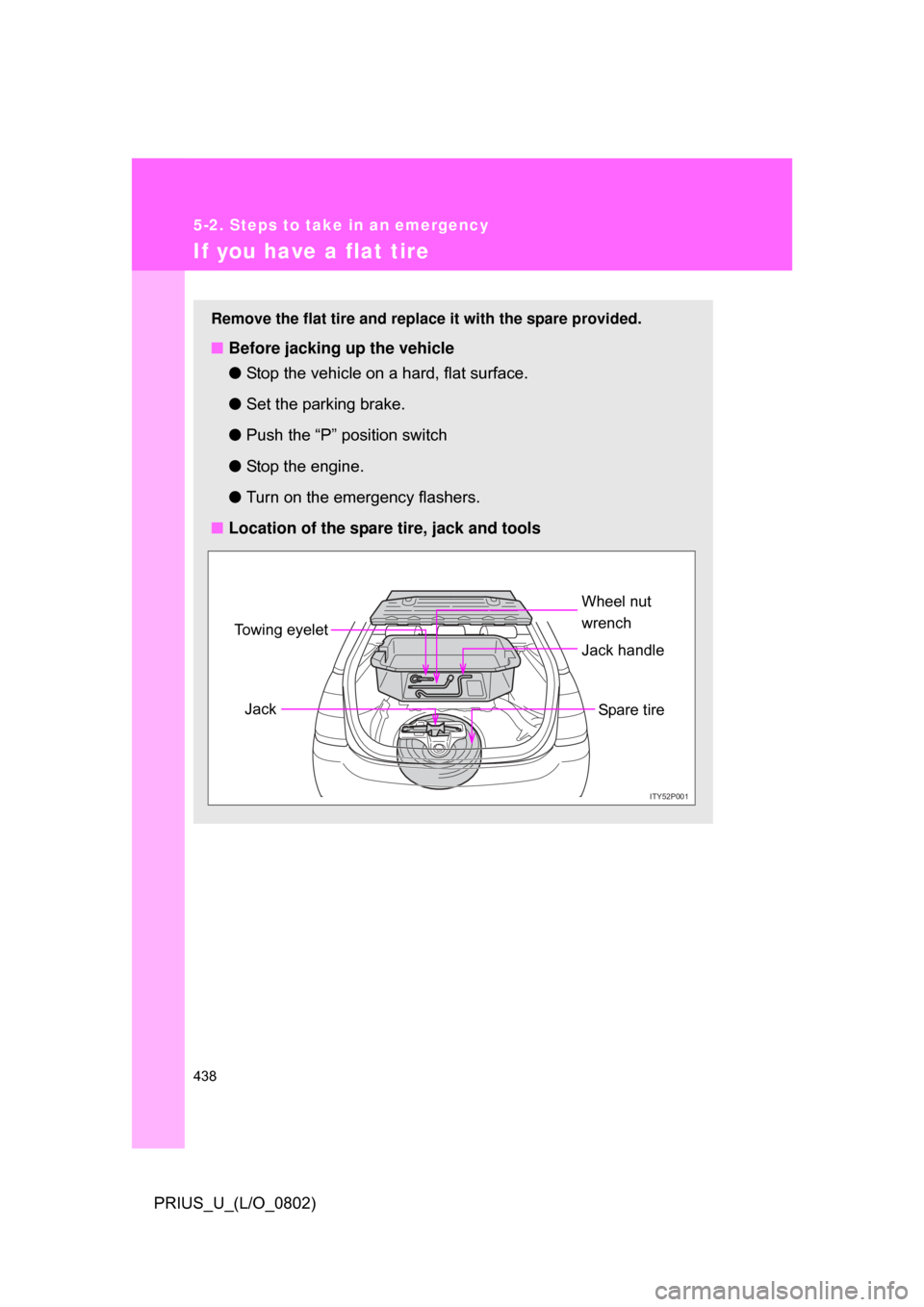

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Push the “P” position switch
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
ITY52P001
Wheel nut
wrench
Jack handle
Jack
Towing eyelet
Spare tire
Page 439 of 512

5
When trouble arises
439
5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
■The compact spare tire
●The compact spare tire is identifi
ed by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare
tire. ( P. 470)
■Tread life
The compact spare tire can be used many times, if necessary. It has
tread life of up to 3000 miles (4800 km) depending on road conditions
and your driving habits. When tread wear indicators appear on the tire,
replace the tire. ( P. 379)
■When using the compact spare tire
As the spare tire is not equipped with the tire pressure warning valve and
transmitter, low inflatio n pressure of the spare tire will not be warned.
Also, if you replace the compact spare tire after the tire pressure warning
light comes on, the light remains on.
■ Compact spare tire
The compact tire saves space in your luggage compartment,
and its lighter weight helps to enhance fuel economy and per-
mits easier installation in case of a flat tire.
The compact spare tire is
designed for temporary emer-
gency use only.
Page 440 of 512

440 5-2. Steps to take in an emergency
PRIUS_U_(L/O_0802)
Taking out the jack.Open the auxiliary box.
( P. 336)
Unlock the tightening strap.
After storing the jack, make
sure it is securely held by the
tightening strap.
ITY52P002
STEP1
ITY52P003
STEP2
